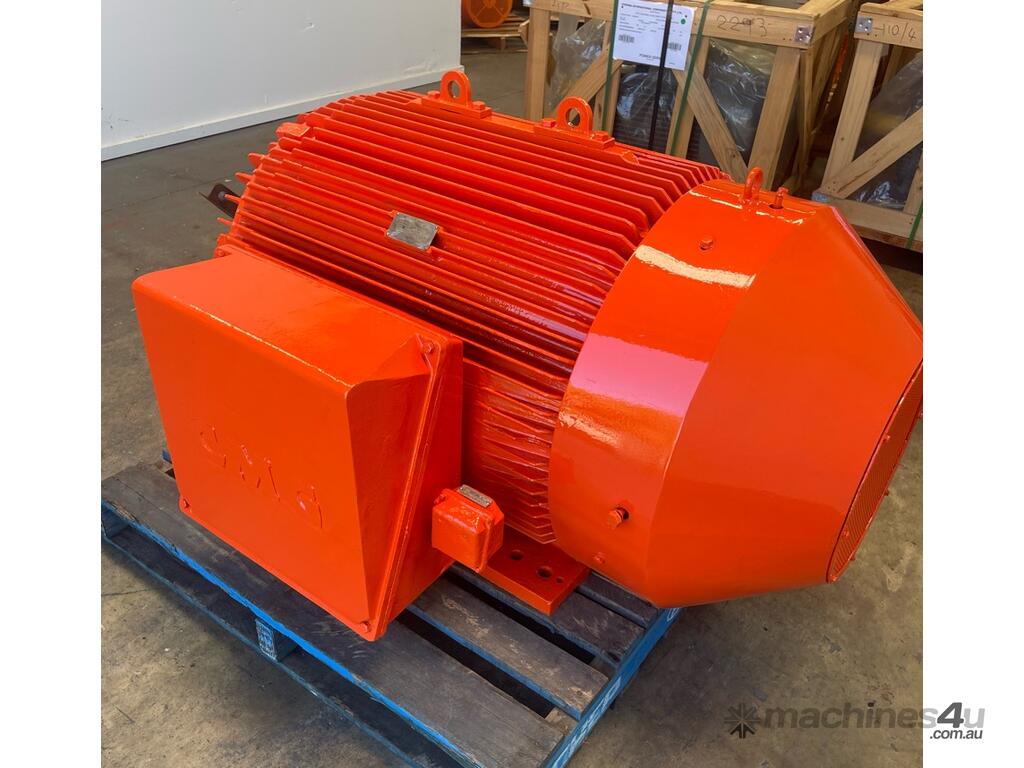

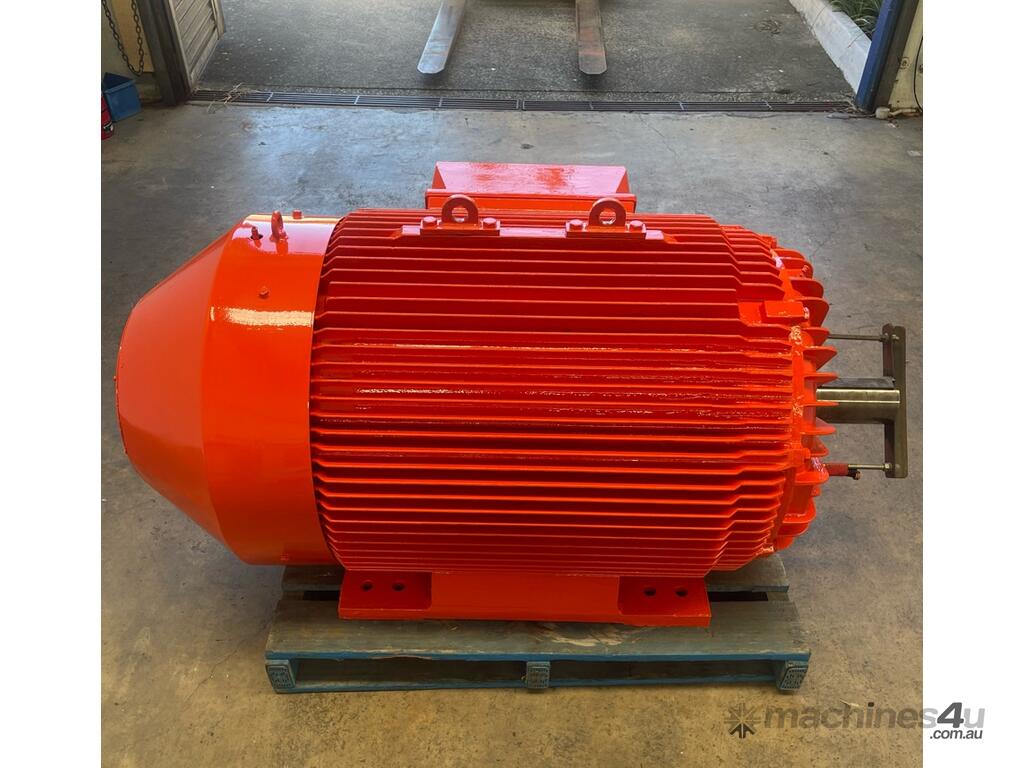

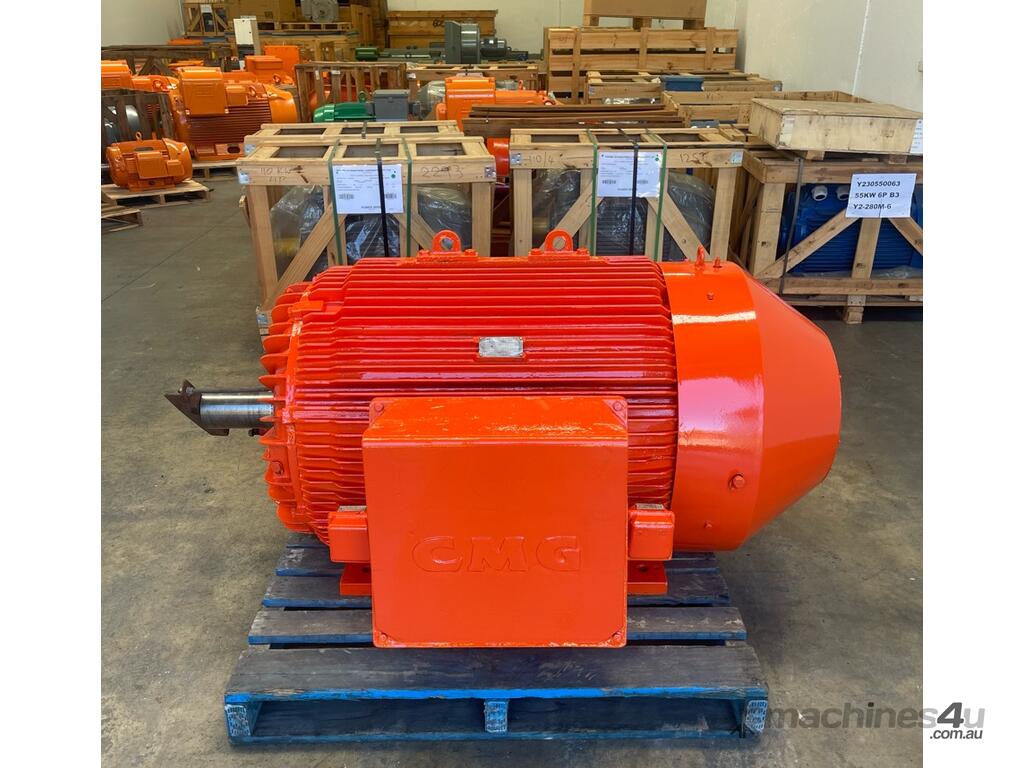

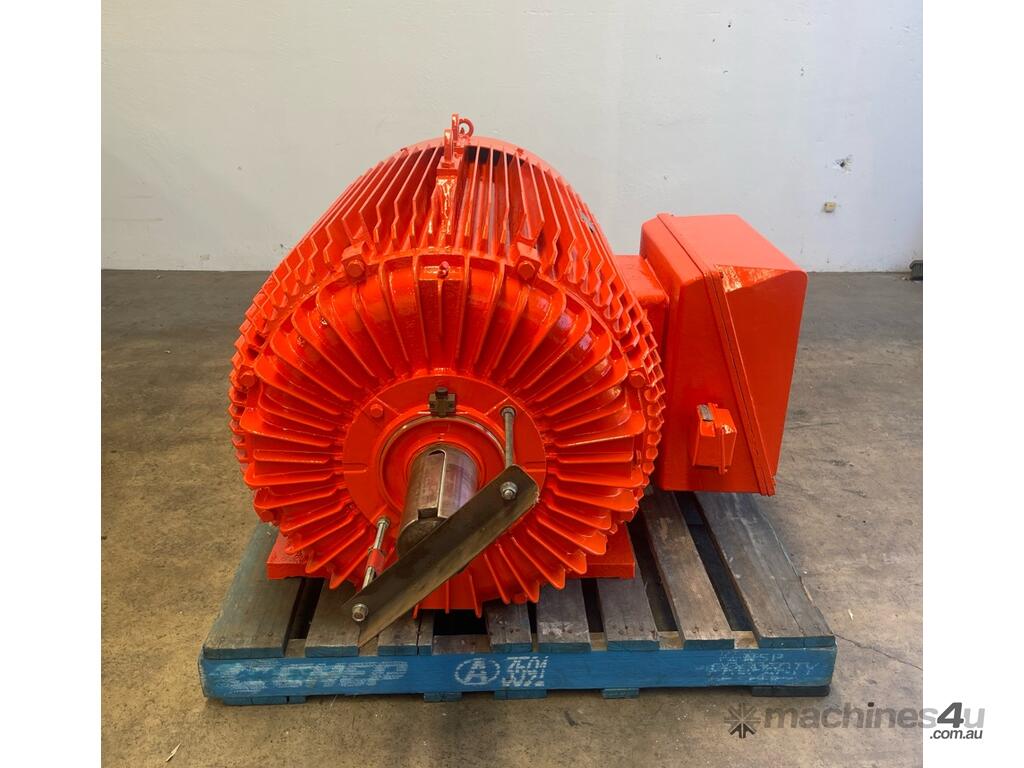

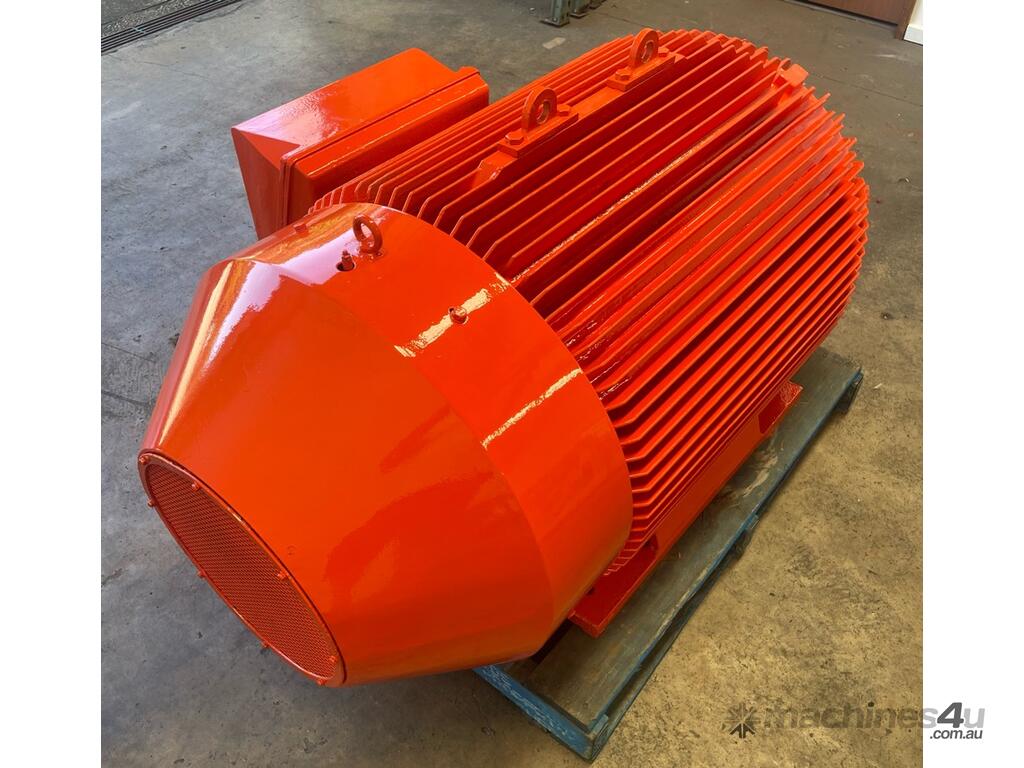

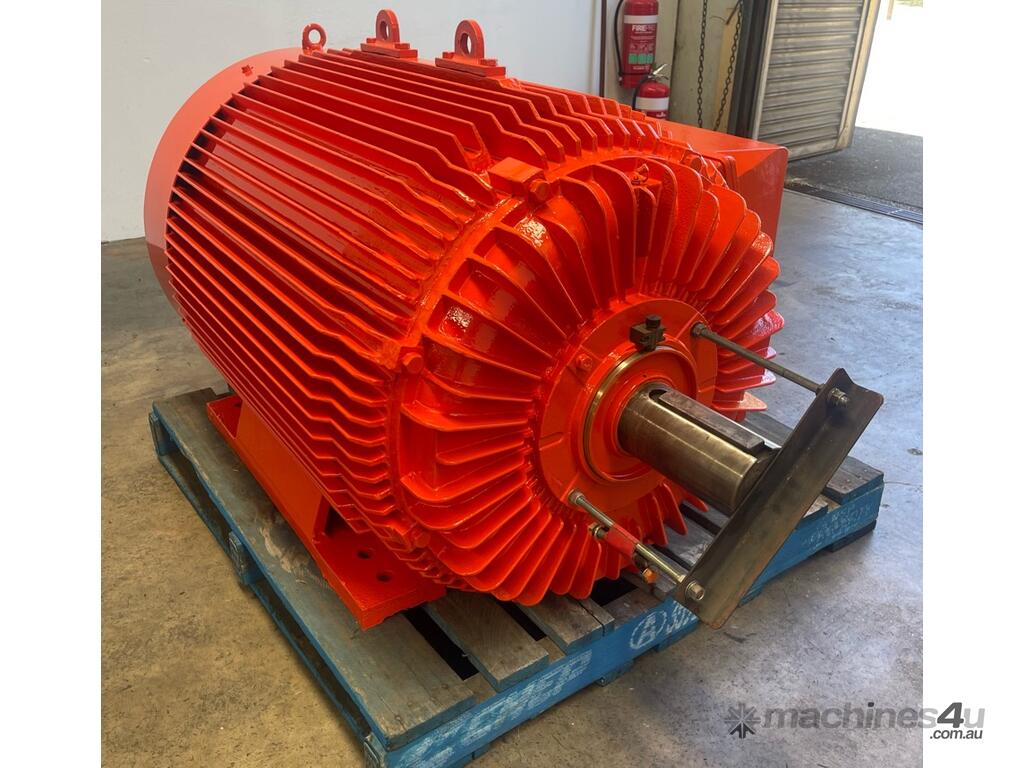

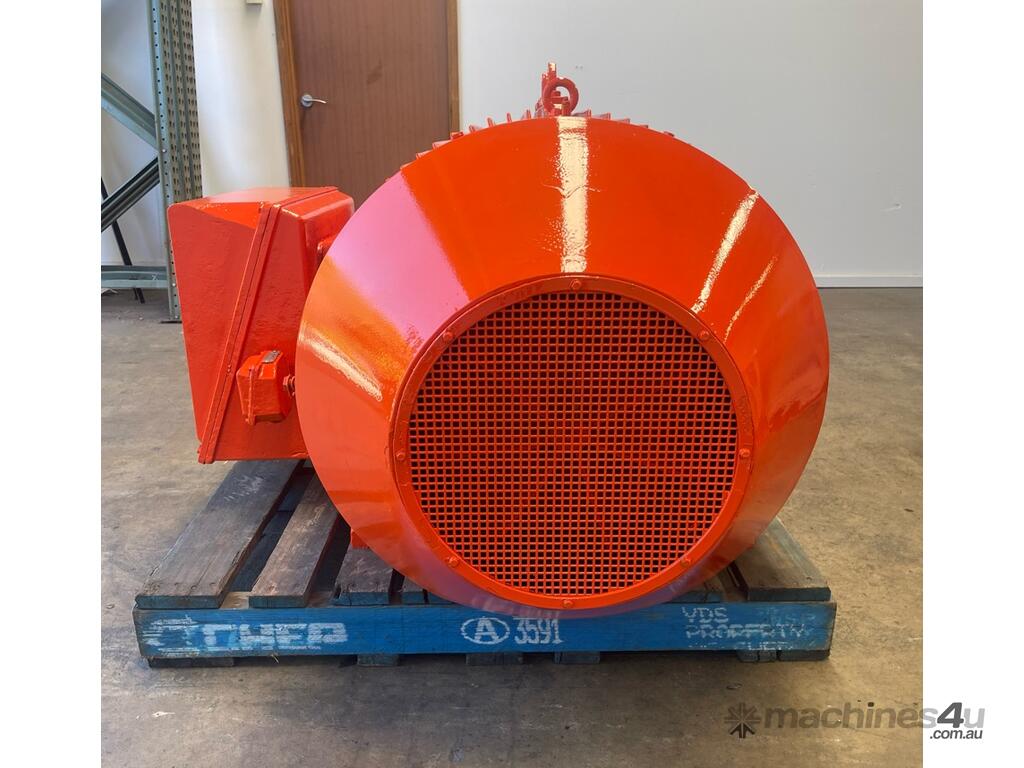

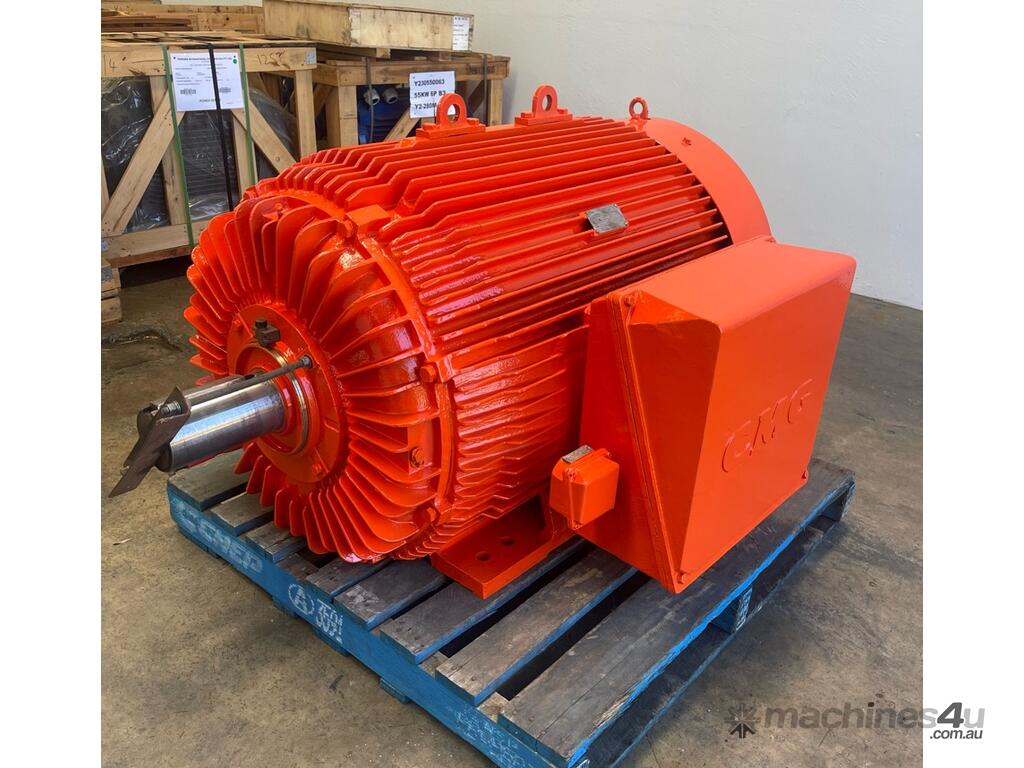

400 kw 535 hp 4-pole 1480 rpm 415v 355L frame IP66 Mining AC Electric Motor CMG Type PPA355L110-4

400 kw 535 hp 4-pole 1480 rpm 415 volt Foot Mount 355L frame IP66 Mining AC Electric Motor CMG Australia Type PPA355L110-4 Reconditioned

Category: AC Squirrel Cage Electric Motor
3-phase induction motor
Make: CMG Australia
Type: PPA355L110-4
Power: 400 KW (535 HP)
Speed: 4-pole (1480 rpm)
Rated Frequency: 50 Hz
Rated Voltage: 415v
Full Load Amperage: 657.4 A
Mount: B3 Foot
Frame: 355L
Protection Rating: IP66 Mining
Insulation Class: H
Weight: 2340 kg
Inclusions:
- Drive-end roller bearing NU324C3 (for pulley-driven application)
- Setup for VSD application (N.D.E. insulated bearing, plus earth brush fitted to shaft)
- Heaters / Thermistors

Critical DIMS:
Shaft DIA: 110 mm
Shaft Length: 210 mm
Total Length: 1670 mm (incl. shaft)
Total Width: 1042 mm (incl. standard RHS to D.E. terminal box)
Total Height: 845 mm
Feet Measurements: Across 'A' - 610 mm, Front to Back 'B' (2-holes) - 630 mm and 810 mm
Front hole to shaft 'C' - 254 mm

Available QTY: 1
Condition: Fully Reconditioned critical spare, warehouse storage.
exStock Seaford VIC 3198 Australia
Freight Australia-wide available on request - available for immediate despatch
