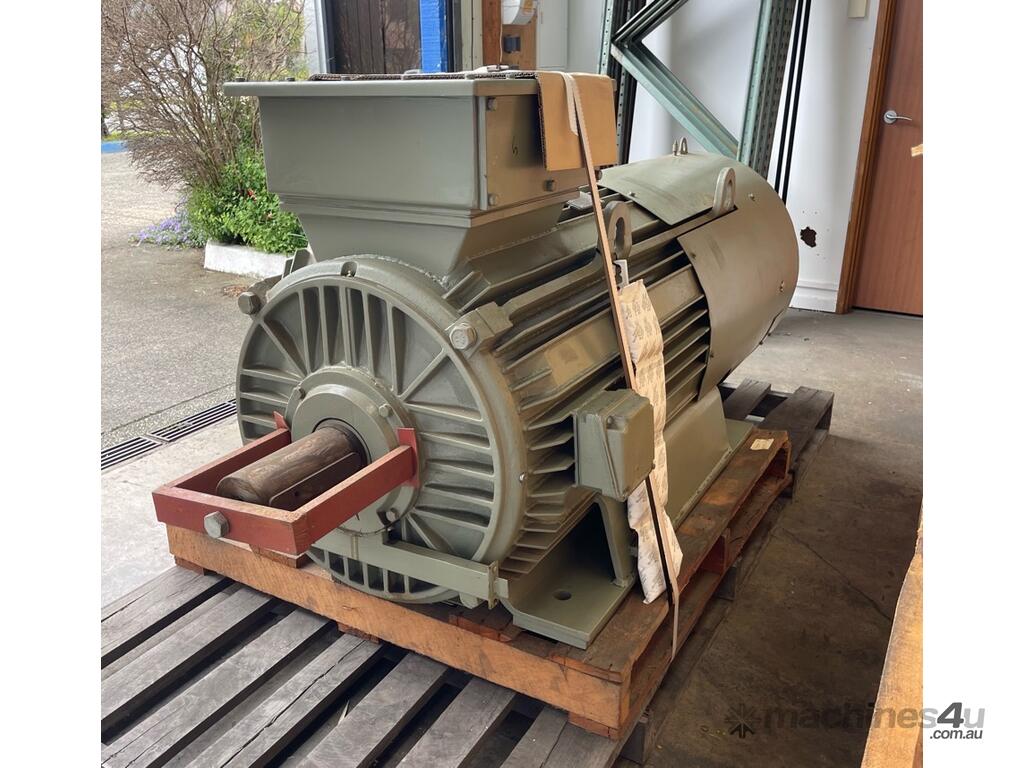

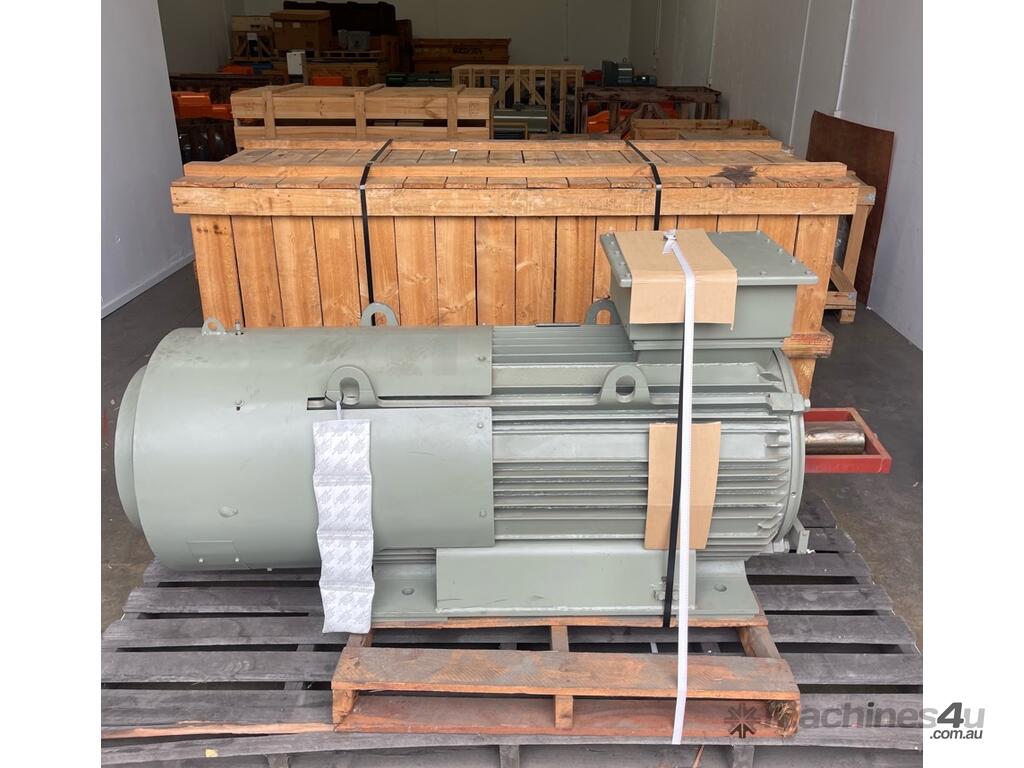

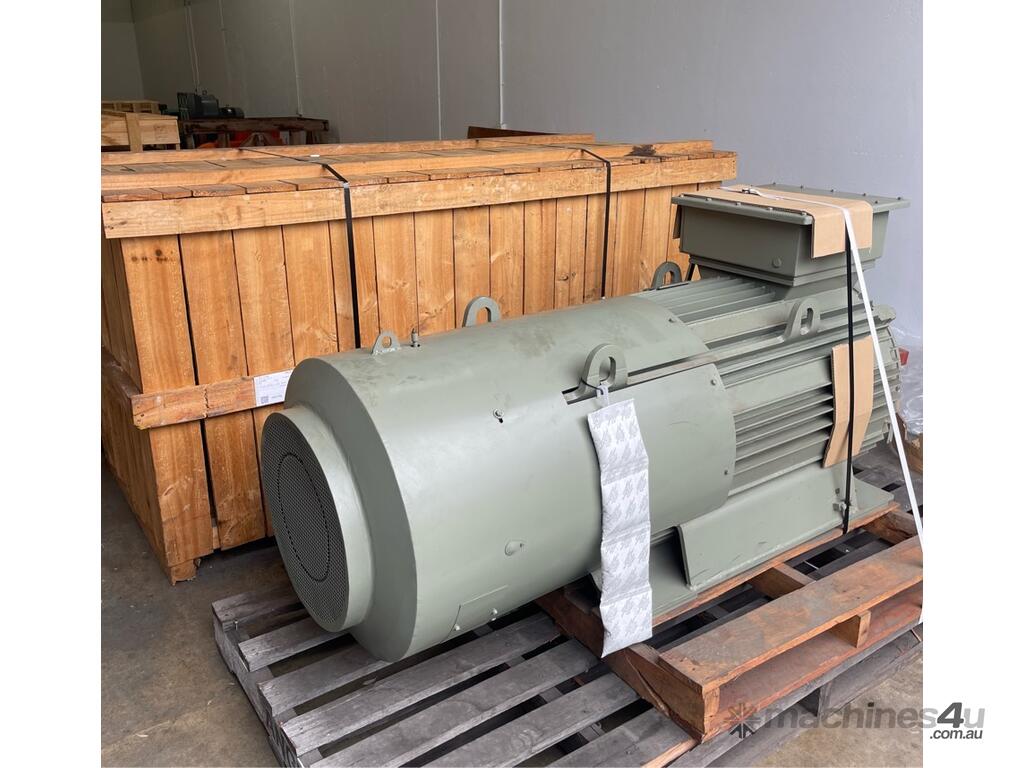

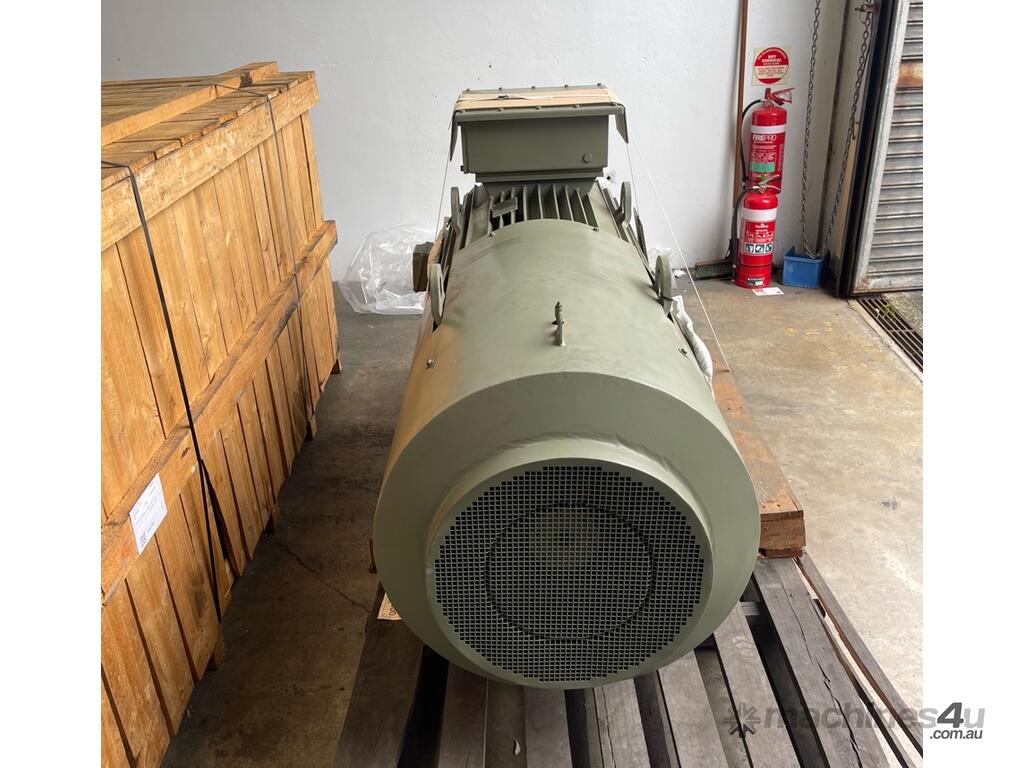

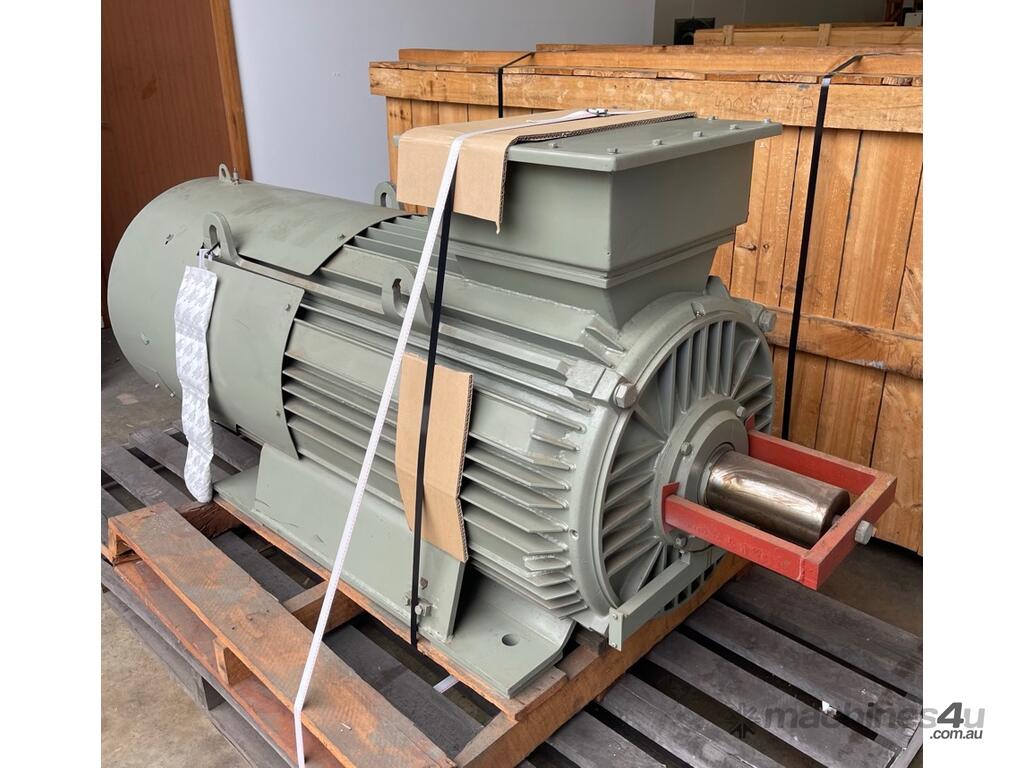

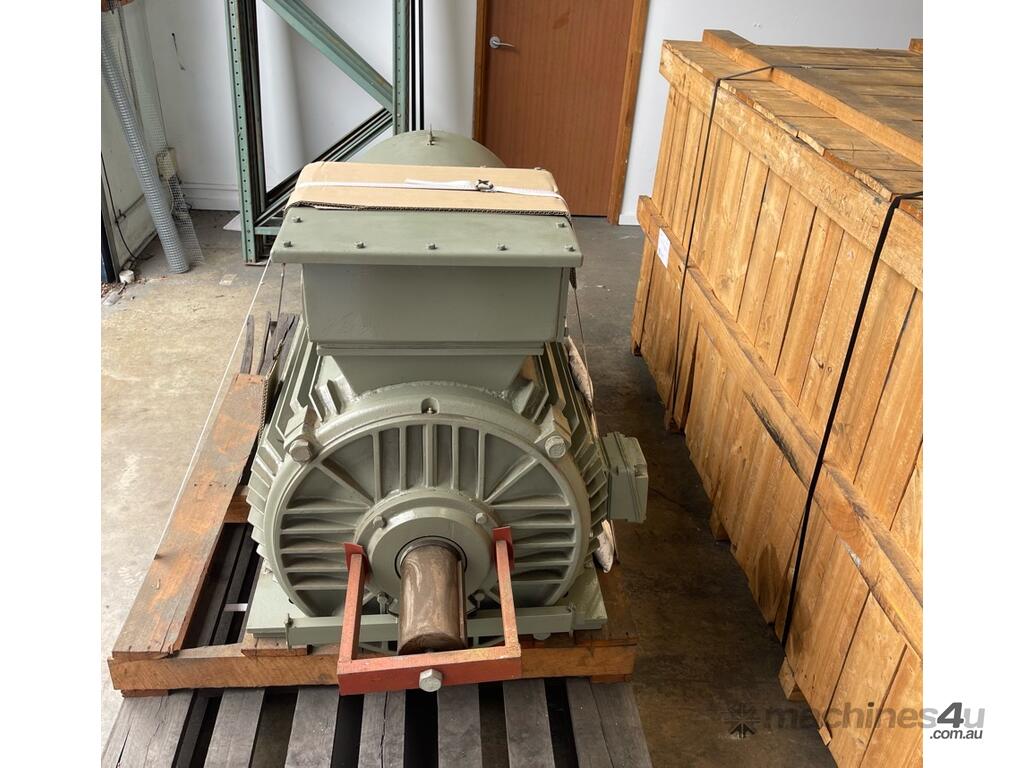

400 kw 535 hp 4-pole 1490 rpm 415 volt Foot Mount 355L frame IP56 AC Electric Motor TOSHIBA Model ATB-SV01 D355Ld new unused
Category: AC Squirrel Cage Electric Motor
3-phase induction motor

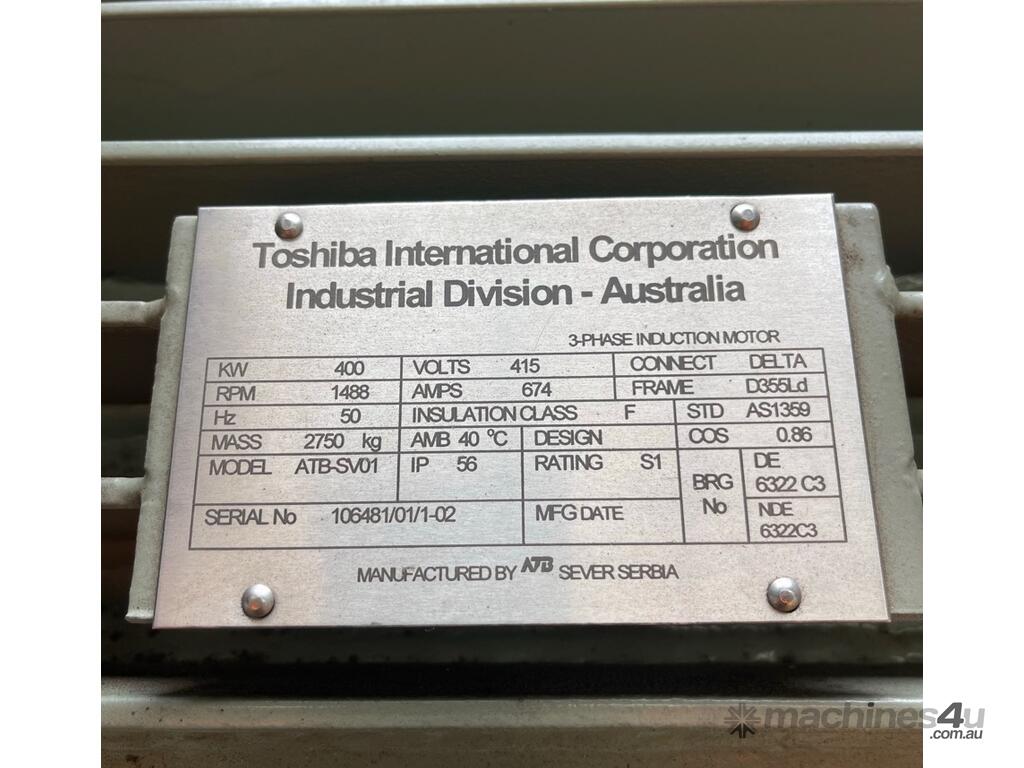

Make: Toshiba
Model: ATB-SV01 D355Ld
YOM: 2016
Power: 400 KW (535 HP)
Speed: 4-pole (1490 rpm)
Rated Frequency: 50 Hz
Rated Voltage: 415 v
Full Load Amperage: 674 A
Mount: B3 Foot
Frame: 355L
Protection Rating: IP56
Weight: 2750 kg
Critical DIMS:
Total Length: 2200 mm (incl. shaft)
Total Width: 780 mm
Total Height: 990 mm (incl. top mount terminal box)
Shaft DIA: 110 mm
Shaft length: 210 mm
Centre Shaft Height: 355 mm
Feet Measurements: Across 'A' - 610 mm, Front to Back 'B' - 900 mm
Front hole to shaft 'C' - 254 mm
Available QTY: 2 (both new/unused)

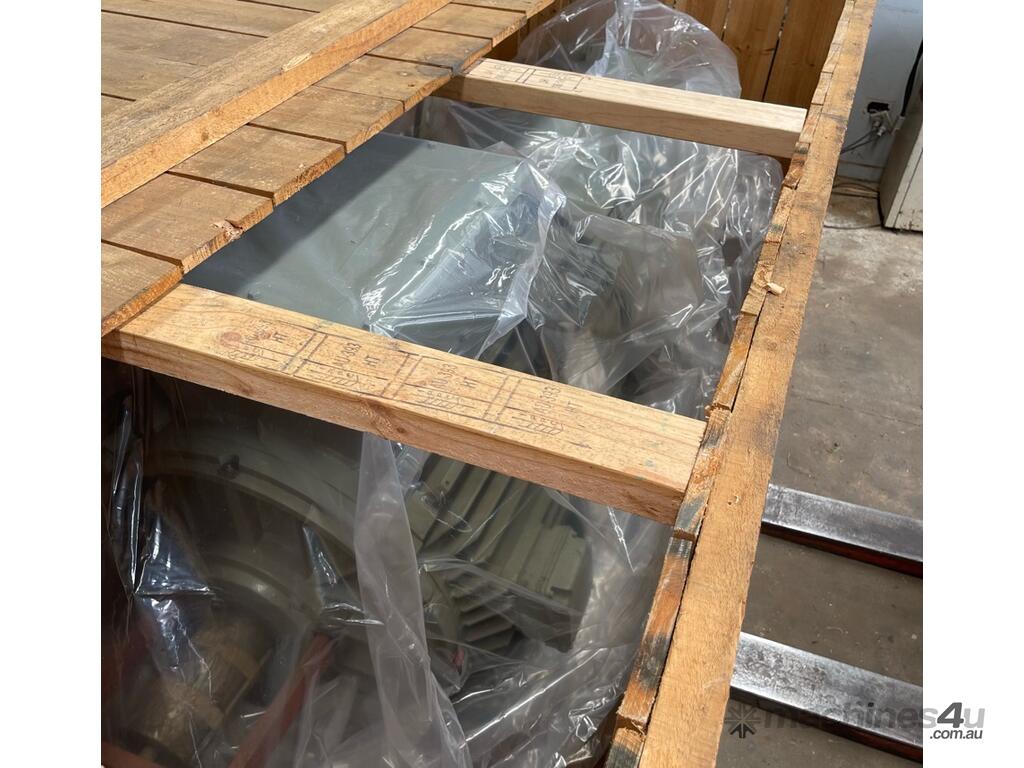

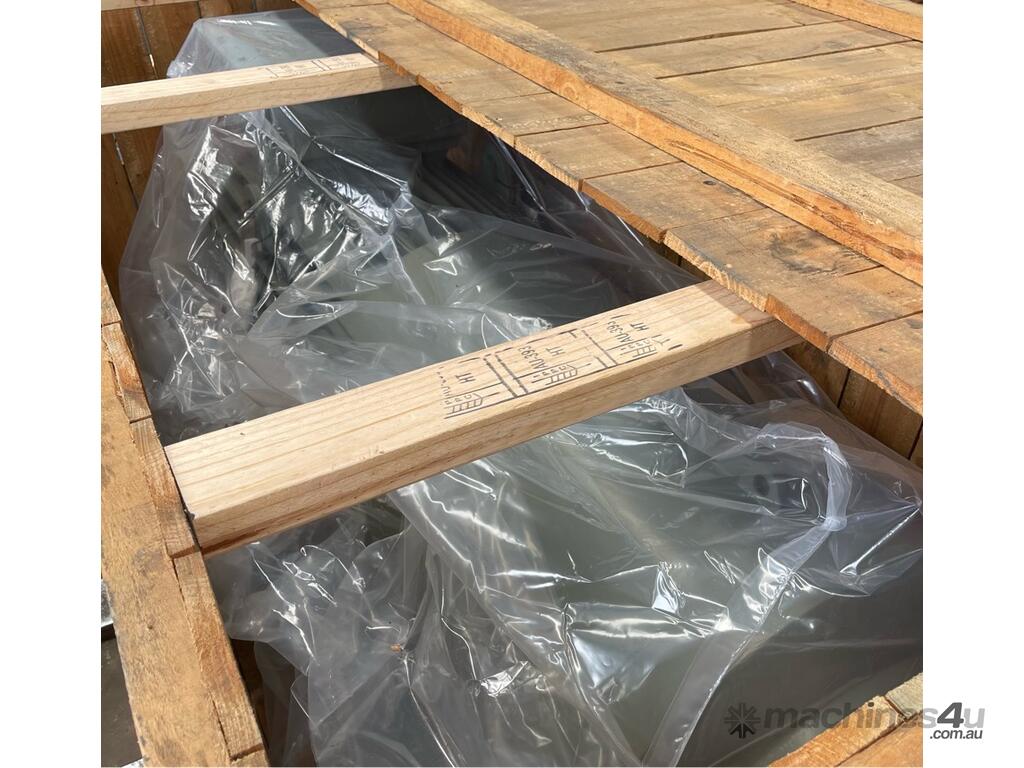

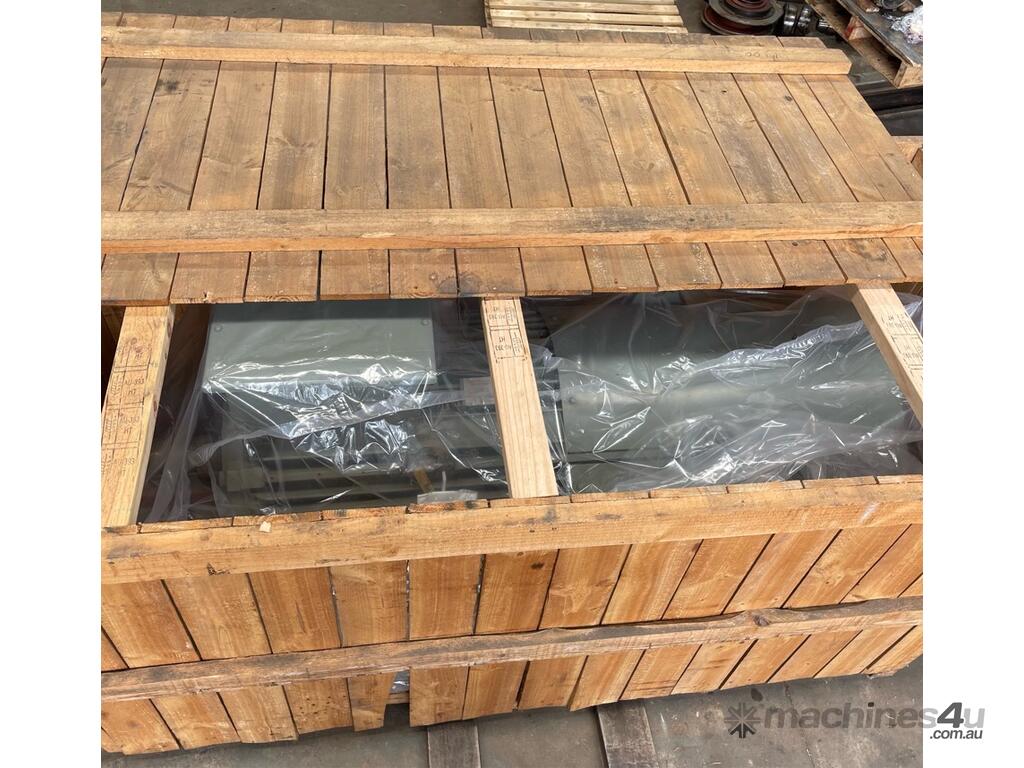

Condition: New / Unused in crate - warehouse storage
exStock Seaford VIC 3198 Australia
Available for immediate supply - freight services Australia-wide available on request
