4000*2000 mm 5 Axis Water Jet Cutter Factory Price

Water jet Cutter Technical Parameters

Model HEAD4020BA-5AC/HEAD42037Z-B
Working area 4000*2000 MM
Z-axis 250 MM
Cutting Accuracy ± 0.1 MM
Drive Type Servo
Repeat positioning accuracy ±0.05 MM
Pressure  420 MPA
Cutting Ability 150 MM
Auto Abrasive Supply System 200KG(optional:400KG/1000KG)

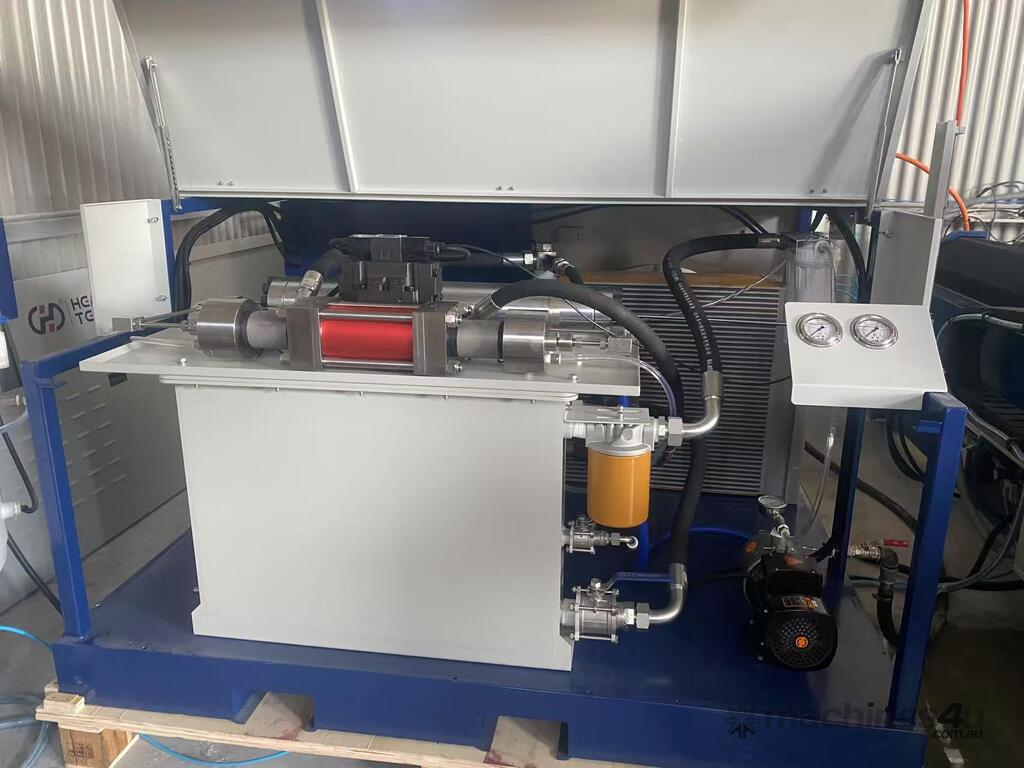

Pump type Intensifier
Max pressure 420Mpa(6000psi)
Working pressure 50-380MPa 7200-55000psi
Max orifice diameter 0.33mm
Water flow rate 3.7L/min
Maximum oil pump flow 119L/min
Pressure ratio 1:20
Main motor power 37KW(50hp)
Voltage 380v 50hz

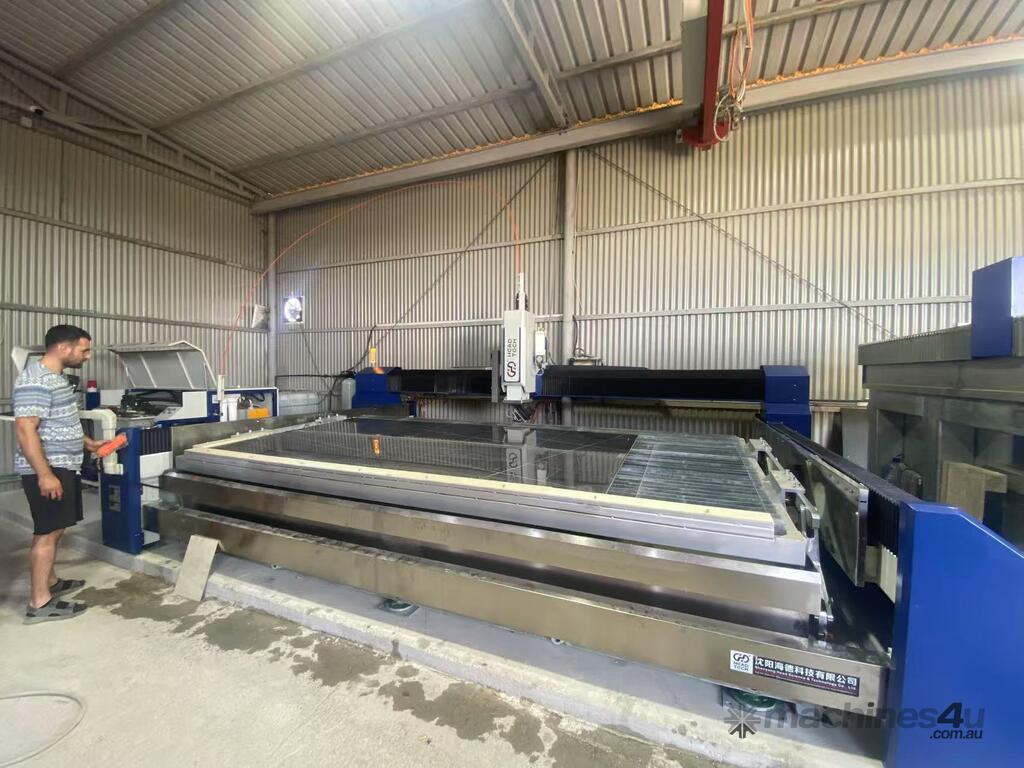

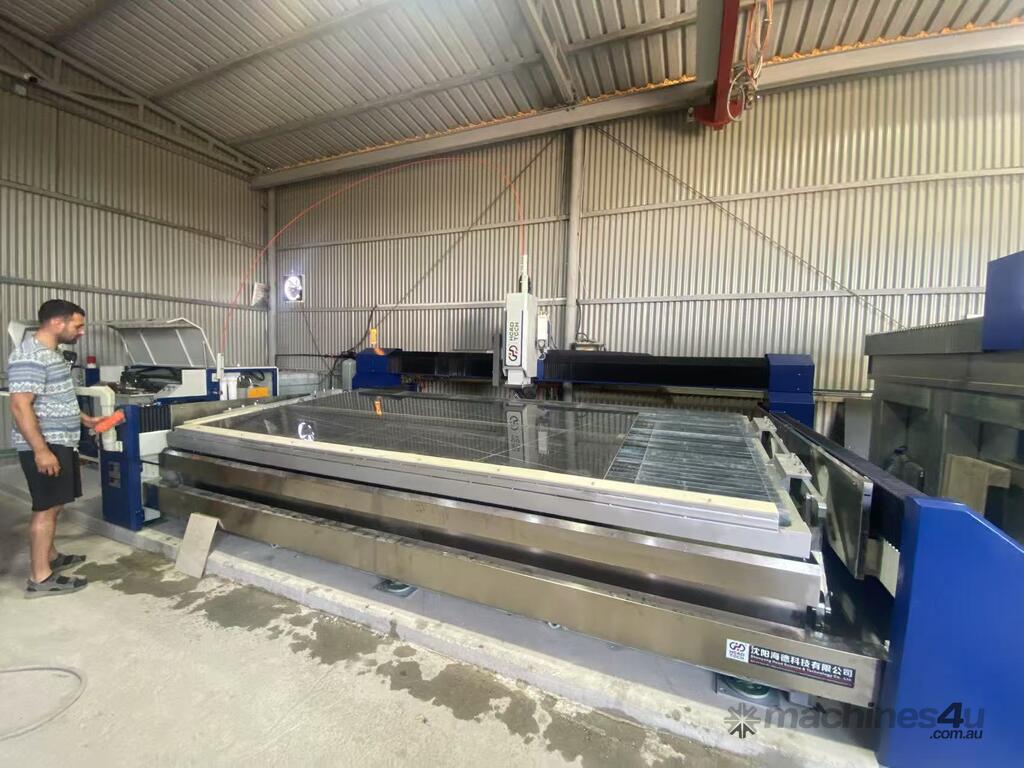

The HEAD Waterjet is designed for precision, durability, and efficiency, making it ideal for stone, metal, glass, and composite cutting.

Key Features

1. Rock-Solid Structure: Pyramid-style frame with 5mm steel tubes and welded bed ensures stability and long-term accuracy.

2. Precision Cutting: ±0.1 mm accuracy, ±0.05 mm repeatability, powered by Japanese Panasonic servo motors and dual ball screws.

3. Heavy-Duty Platform: Independent water tank with reinforced grilles supports up to 1500 kg/m², reducing deformation and maintenance costs.

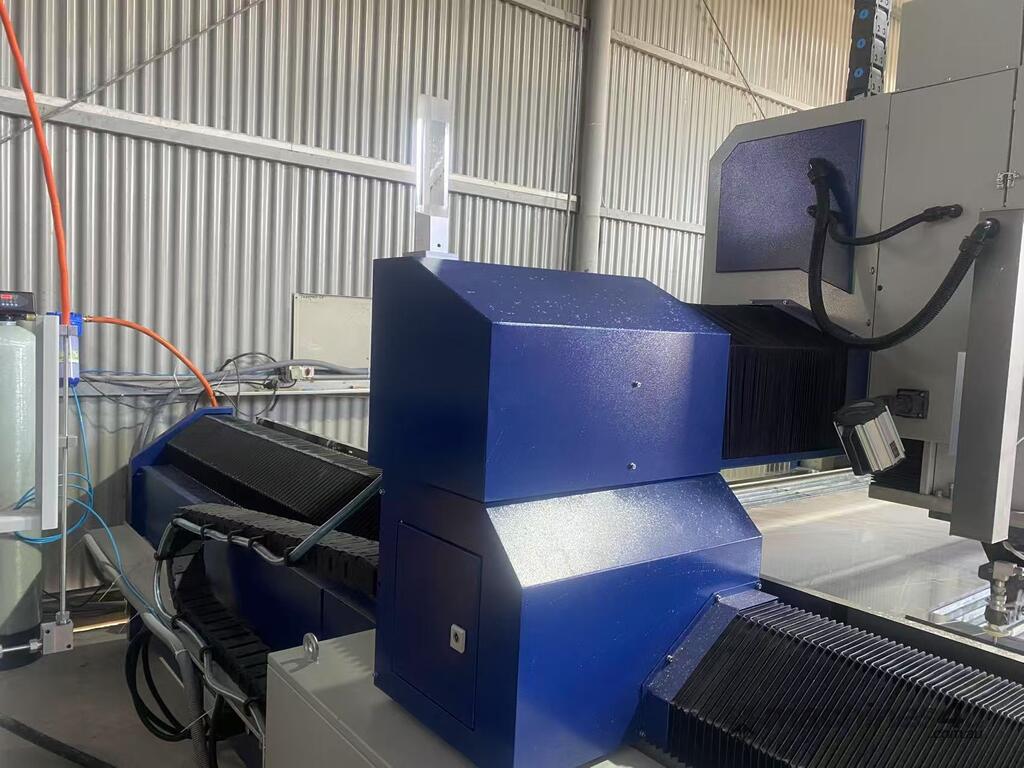

4. Reliable Protection: Fully enclosed design, dust-proof drag chains, and oil recovery system extend machine life and lower service costs.

5. Operator-Friendly: Wireless remote control, ergonomic touch console, and built-in LED lights improve safety and ease of use.

6. Flexible Performance: Extended 250mm Z-axis, optional laser height measurement, and pressures up to 600 MPa handle complex and thick material cutting.

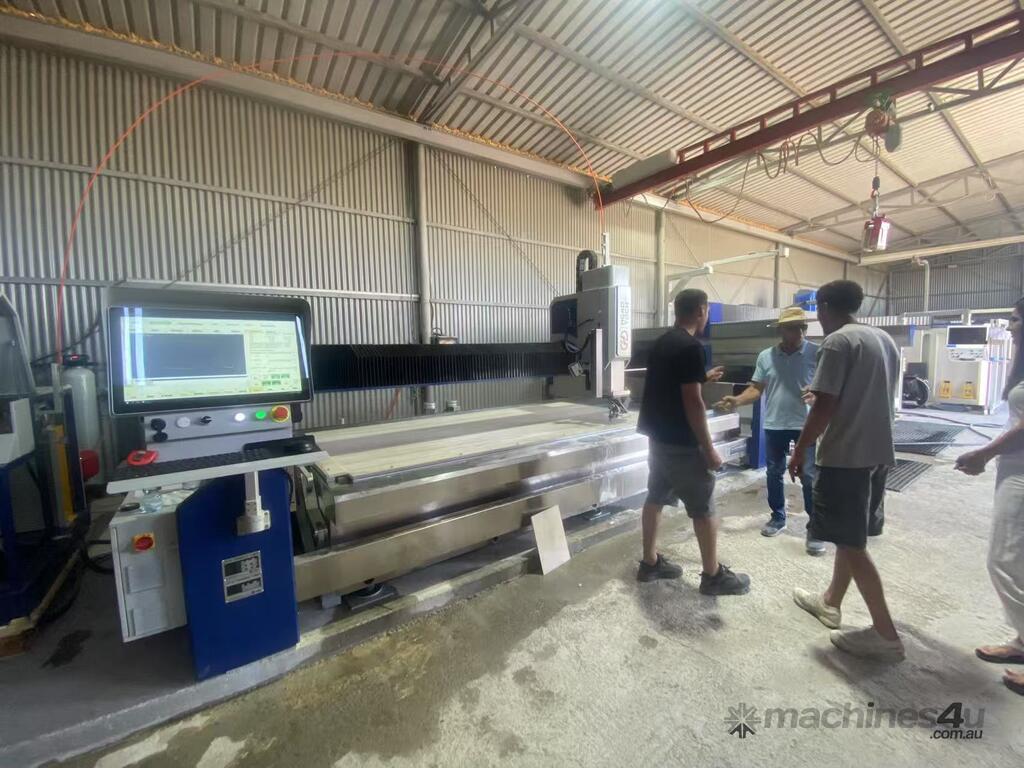

? Trusted by Australian workshops for its stable performance, low maintenance, and high cost-effectiveness.
