41M Elevated Work Platform Mounted on a 2024 MAN TGM 4X4

KEY FEATURES:

• Maximum Aerial Height: 41 Meters
• Maximum Outreach: 26 Meters
• Basket Capacity: 500KGs
• Extendable and Rotating Aluminium working basket
• Auto-Leveling Outriggers
• 180kg Lifting Jib
• ACM Basket Crush Prevention for safety and enhanced operator protection

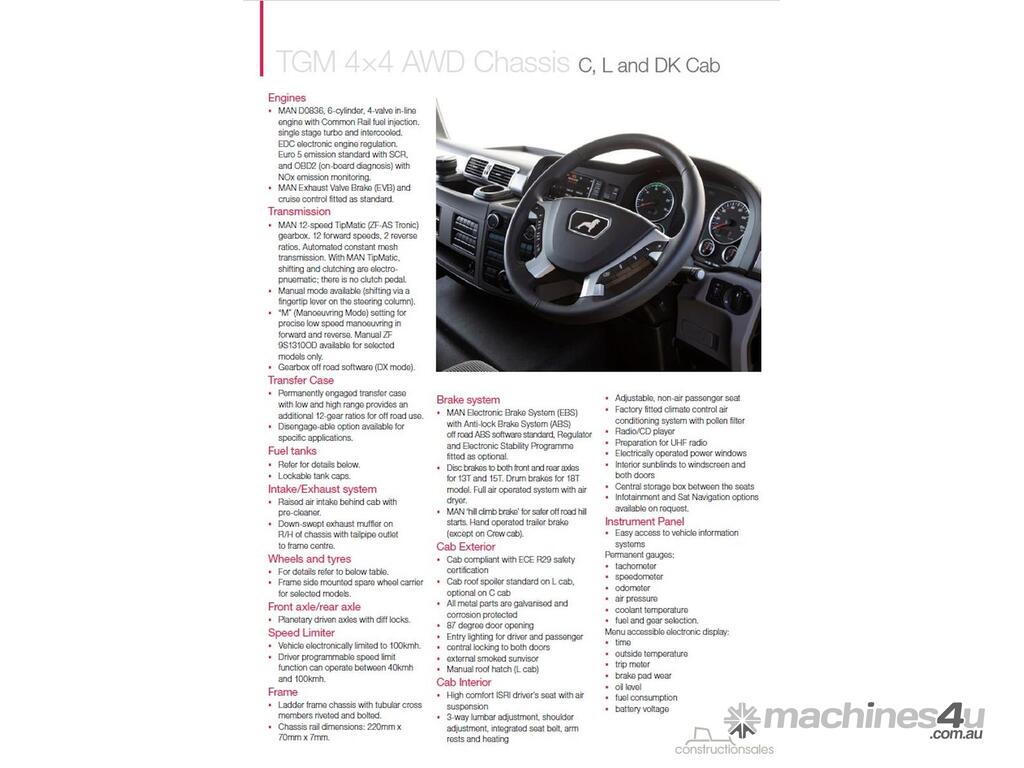

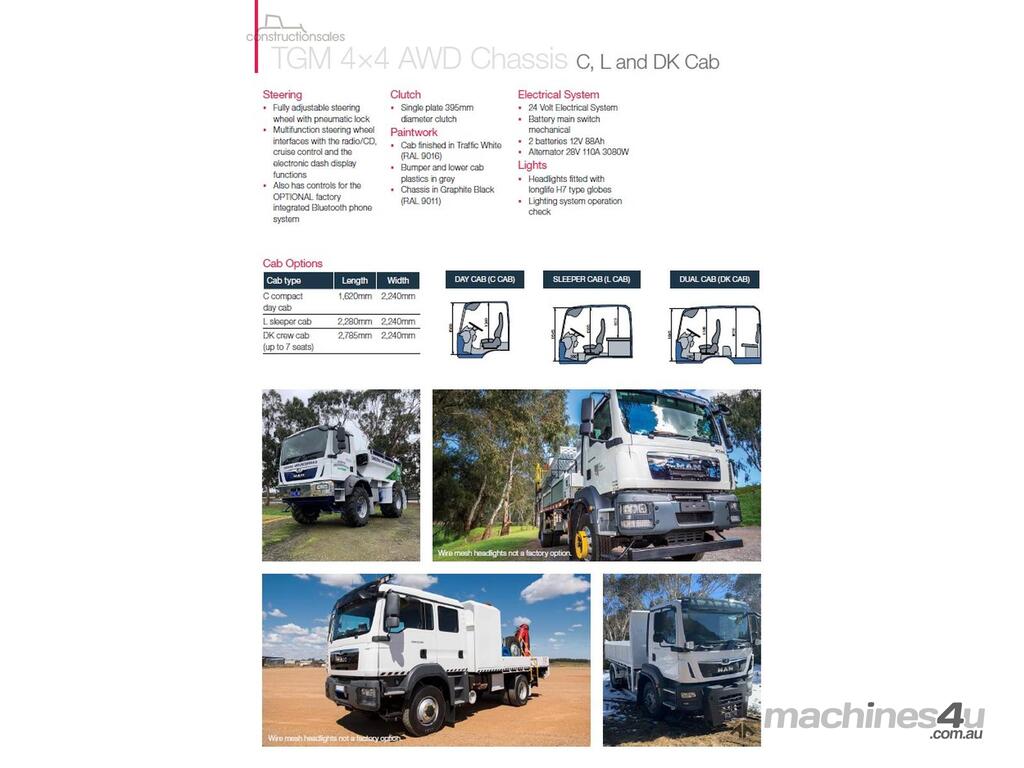

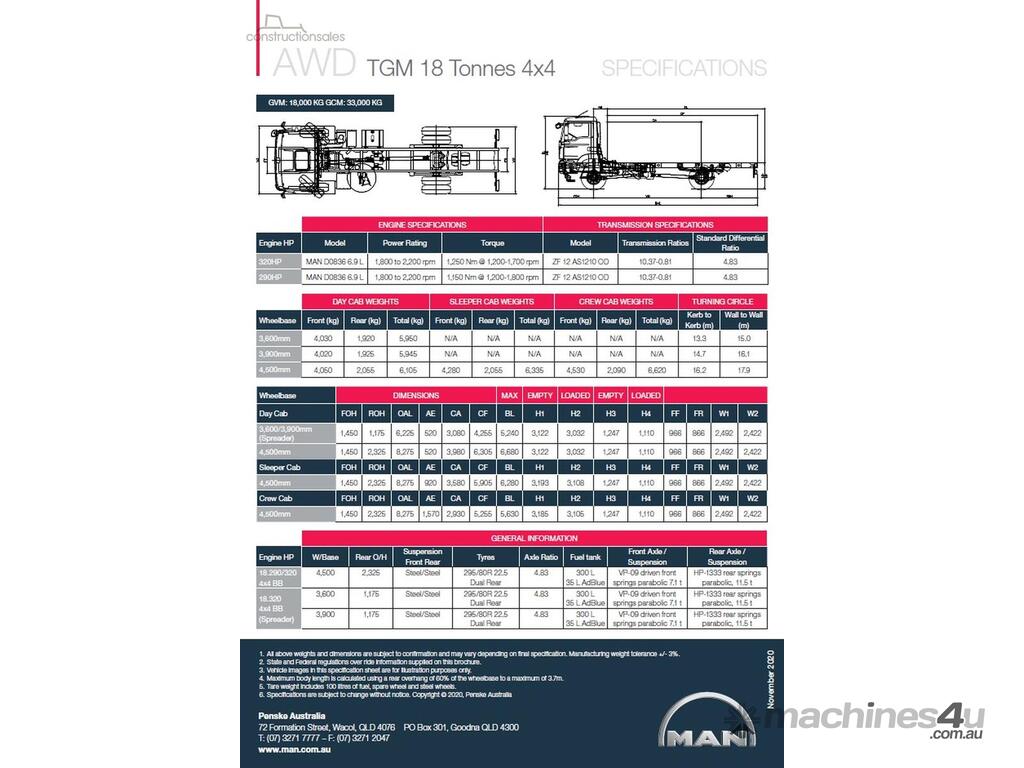

• Truck Model: MAN 4 x 4
• Engine Make M.A.N.
• Transmission Automatic
• Suspension Front Axle: VP-09 driven front springs parabolic 7.1t. Rear Axle: HP-1333 Rear springs parabolic 11.5t
• Brakes ABS - Disc
• Compact Design: Allowing for easy on-site setup and improved site access, making it ideal for the often-constrained
environments typical in telecom work.

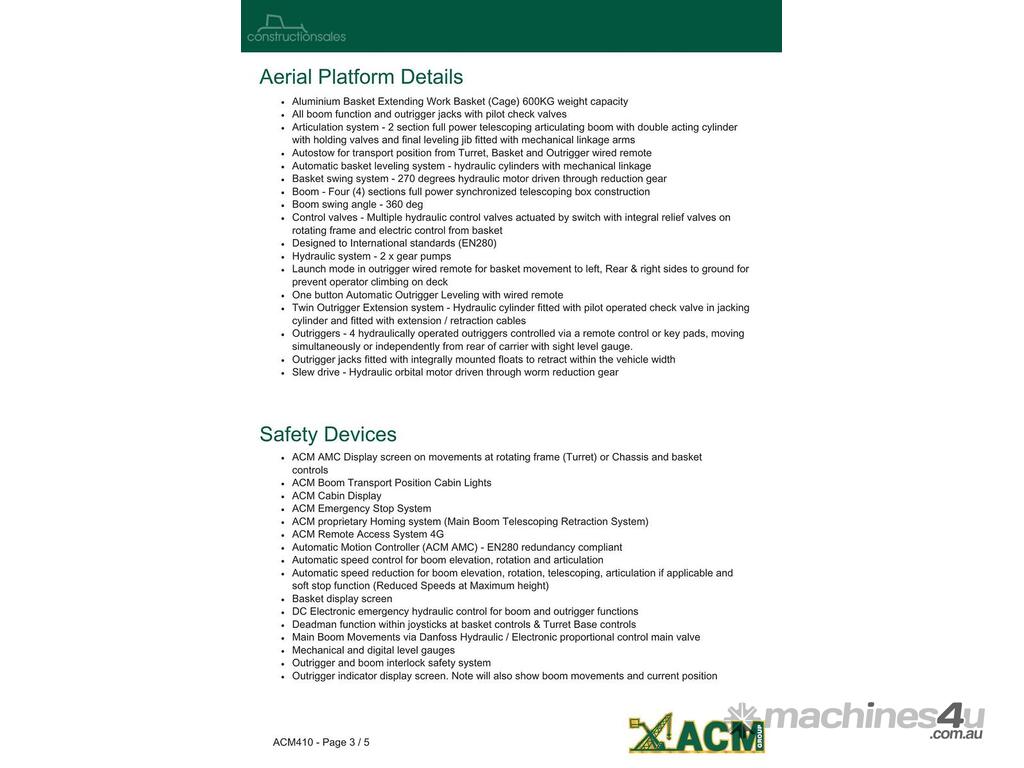

AERIAL PLATFORM DETAILS:

• All boom function and outrigger jacks with pilot check valves
• Articulation system – 2 section full power telescoping articulating boom with double acting cylinder with holding valves
and final leveling jib fitted with mechanical linkage arms
• Autostow for transport position from Turret, Basket and Outrigger wired remote
• Automatic basket leveling system – hydraulic cylinders with mechanical linkage
• Basket swing system – 270 degrees hydraulic motor driven through reduction gear
• Boom – Four (4) sections full power synchronized telescoping box construction
• Boom swing angle – 360 deg
• Control valves – Multiple hydraulic control valves actuated by switch with integral relief valves on rotating frame and
electric control from basket
• Designed to International standards (EN280)
• Hydraulic system – 2 x gear pumps
• Launch mode in outrigger wired remote for basket movement to left, Rear & right sides to ground for prevent operator
climbing on deck
• One button Automatic Outrigger Leveling with wired remote
• Twin Outrigger Extension system – Hydraulic cylinder fitted with pilot operated check valve in jacking cylinder and fitted
with extension / retraction cables
• Outriggers – 4 hydraulically operated outriggers controlled via a remote control or key pads, moving simultaneously or
independently from rear of carrier with sight level gauge.
• Outrigger jacks fitted with integrally mounted floats to retract within the vehicle width
• Slew drive – Hydraulic orbital motor driven through worm reduction gear


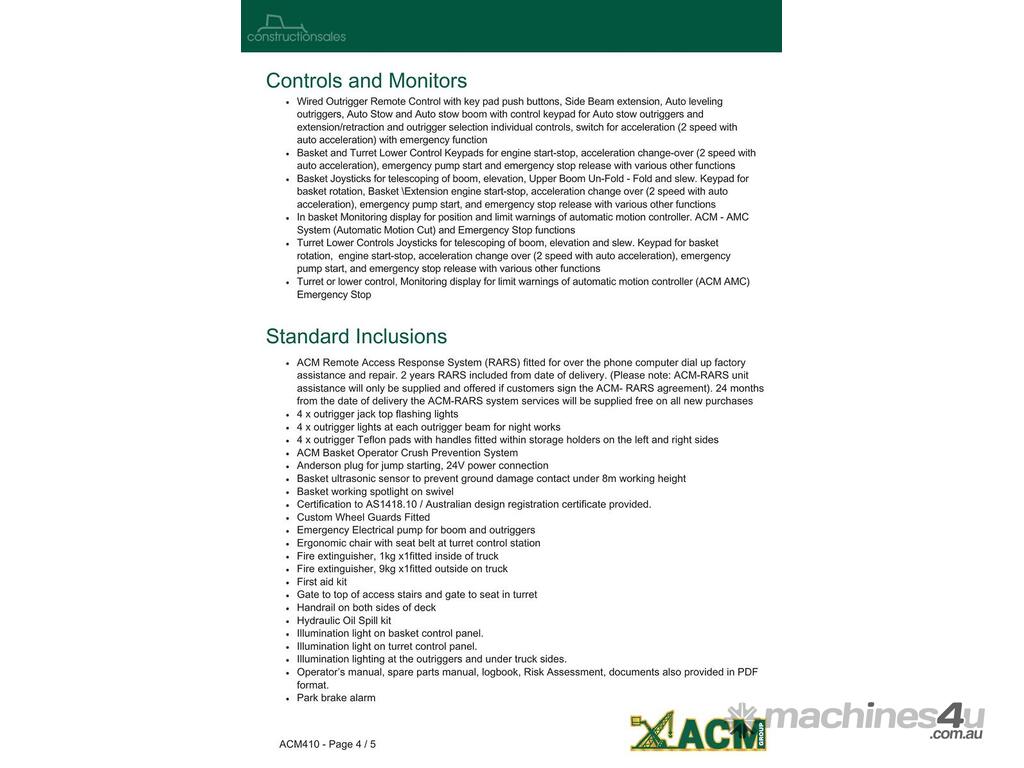

SAFETY DEVICES

• ACM AMC Display screen on movements at rotating frame (Turret) or Chassis and basket controls
• ACM Boom Transport Position Cabin Lights
• ACM Cabin Display
• ACM Emergency Stop System
• ACM proprietary Homing system (Main Boom Telescoping Retraction System)
• ACM Remote Access System 4G
• Automatic Motion Controller (ACM AMC) – EN280 redundancy compliant
• Automatic speed control for boom elevation, rotation and articulation
• Automatic speed reduction for boom elevation, rotation, telescoping, articulation if applicable and soft stop function
(Reduced Speeds at Maximum height)
• Basket display screen
• DC Electronic emergency hydraulic control for boom and outrigger functions
• Deadman function within joysticks at basket controls & Turret Base controls
• Main Boom Movements via Danfoss Hydraulic / Electronic proportional control main valve
• Mechanical and digital level gauges
• Outrigger and boom interlock safety system
• Outrigger indicator display screen. Note will also show boom movements and current position

ADDITIONAL INFORMATION:

• Vehicle registration included in advertised price
• EWP Operator and Remote Access training provided
• 2 years Remote Access Response System included
• 12 months warranty for EWP

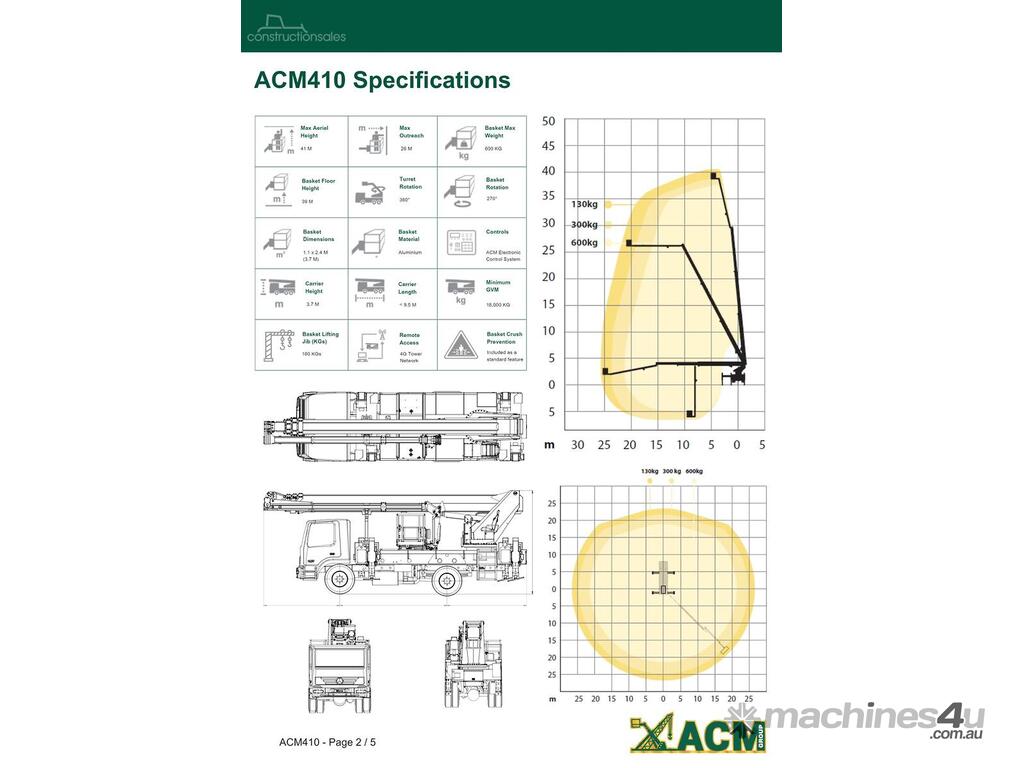

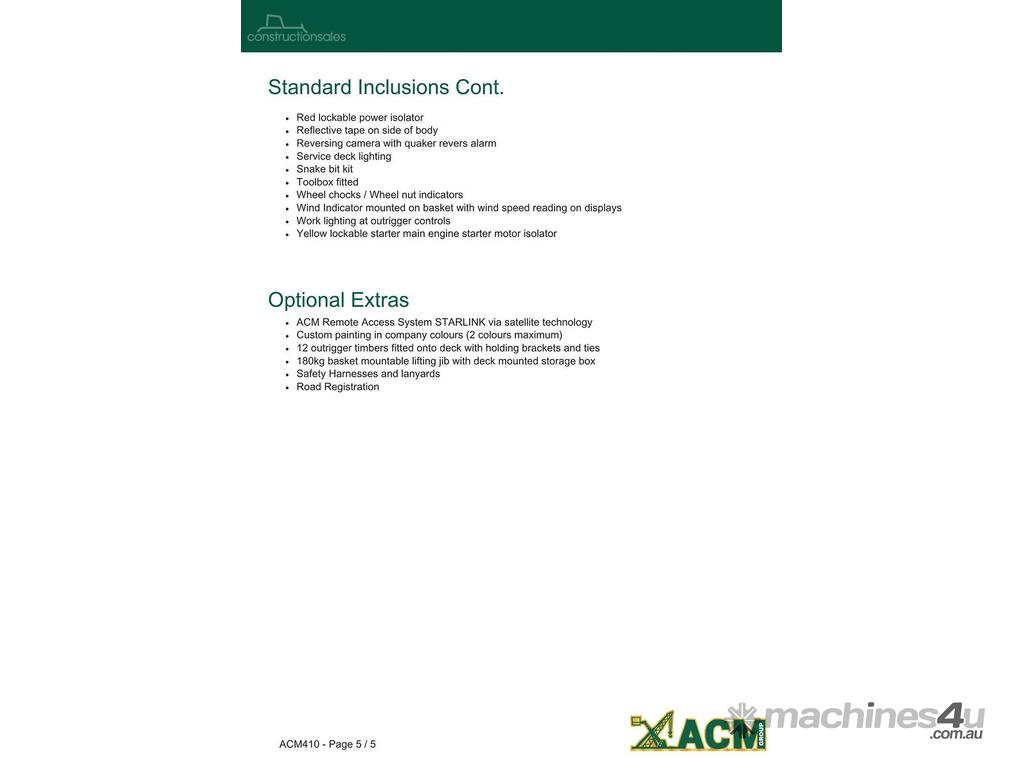

• Full specifications listed in ACM410 Brochure

The ACM410 EWP is an excellent choice for telecommunications professionals, combining specialised features and a compact design to ensure safety, efficiency, and ease of use on the job.
