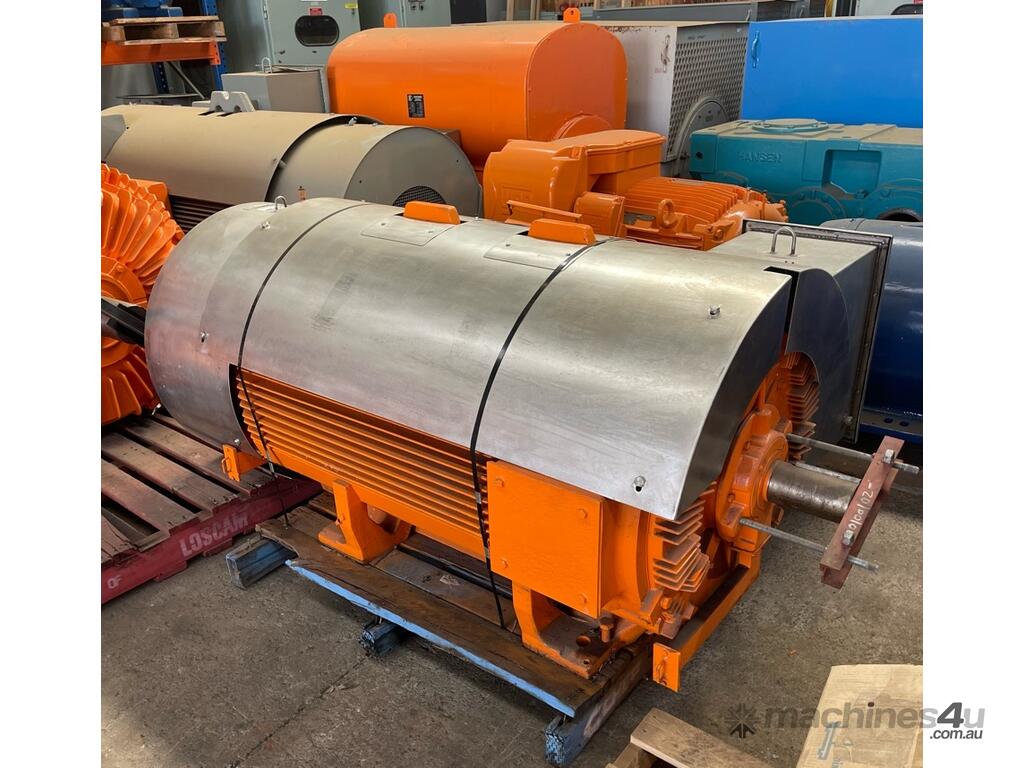

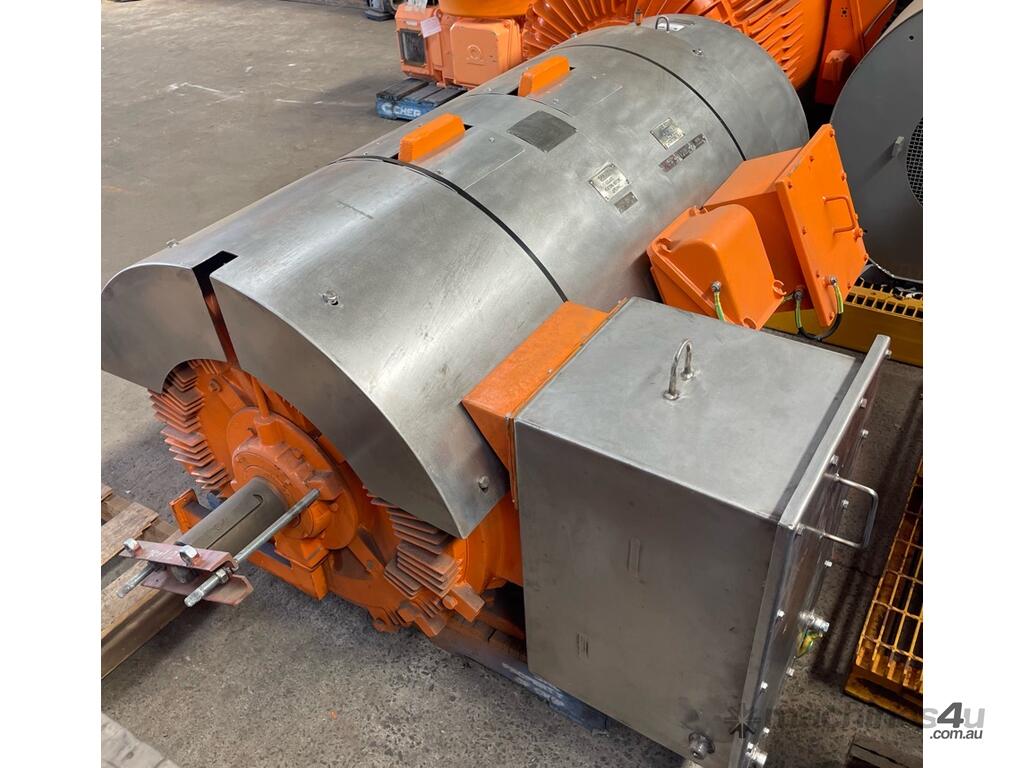

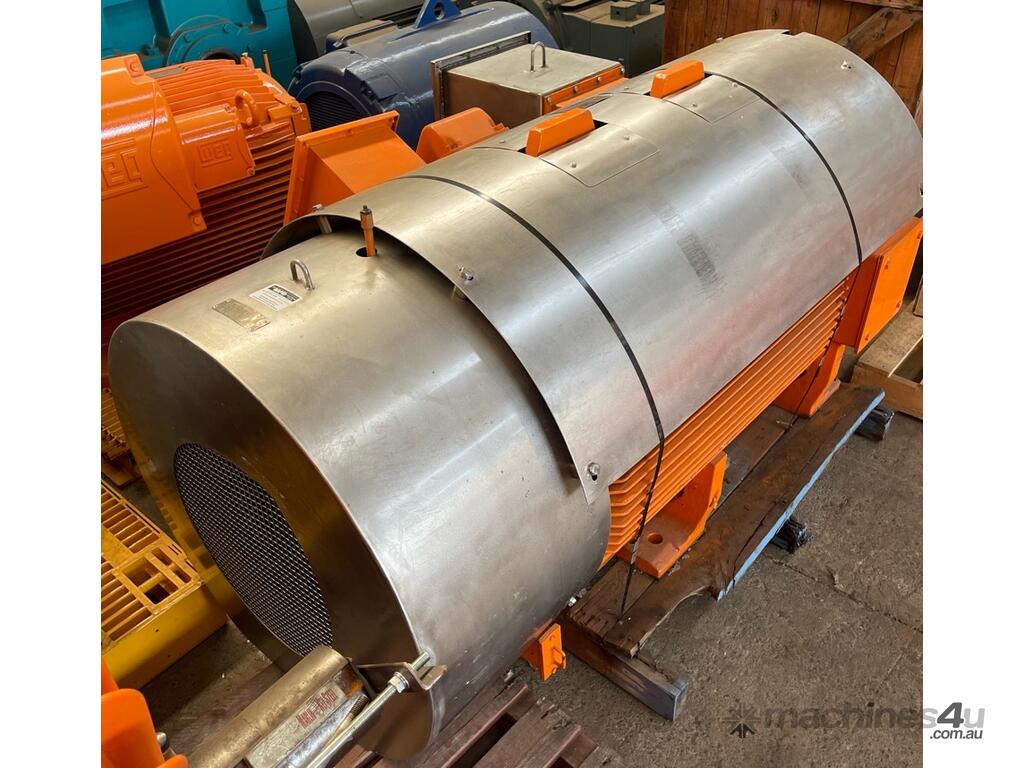

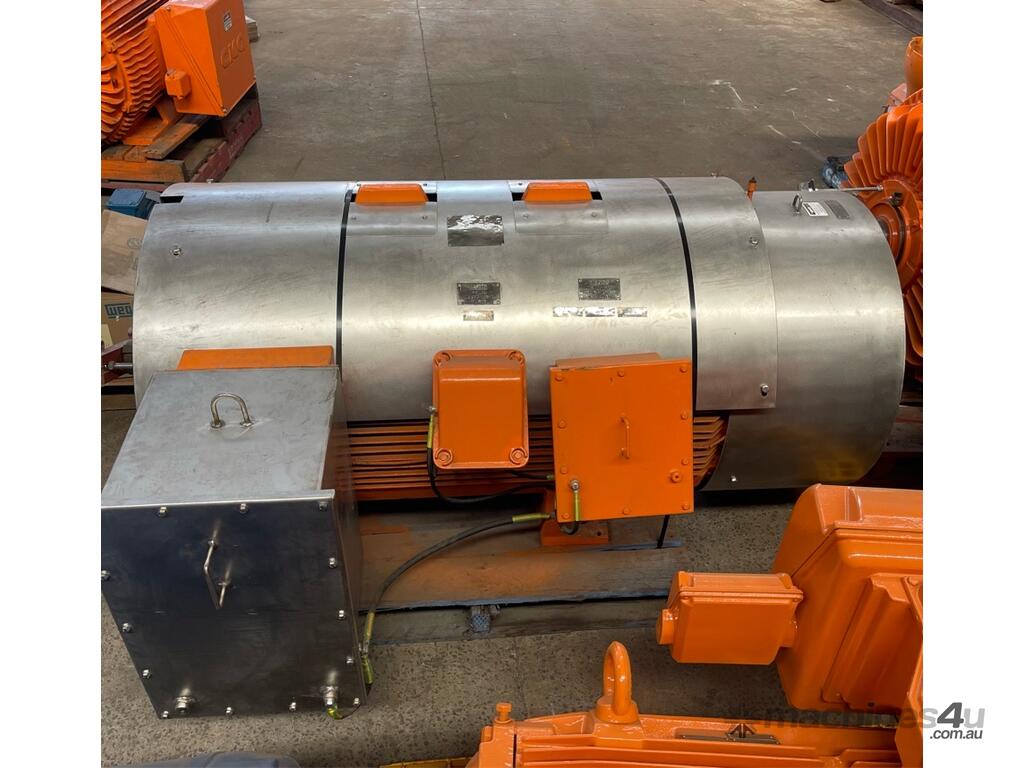

450 kw 600 hp 4-pole 1480 rpm 3300v 3.3kv Foot Mount 400L frame Mining AC Electric Motor Toshiba Type TIK FCKNW 400LSZ
Category: AC Squirrel Cage Electric Motor
3-phase induction motor
Make: Toshiba
Type: TIK Form: FCKNW
Power: 450 KW (600 HP)
Speed: 4-pole (1480 rpm)
Rated Frequency: 50 Hz
Rated Voltage: 3300v (3.3kv)
Mount: B3 Foot
Frame: 400L (Toshiba 400LSZ)
Weight: 3500 kg
Protection Rating: Mining IP56
Total length: 2050 mm (incl. shaft)
Total Width: 1420 mm (incl. standard RHS to D.E. terminal box)
Total Height: 920 mm
Shaft: 95mm DIA (by 170mm long)
Centre Shaft Height: 400 mm
Feet Measurements;
- Across 'A' - (approx.) 730 mm
- Front to Back 'B' - 800 mm
- Front hole to shaft 'C' - (approx.) 245 mm
Available QTY: 1
Condition: Fully reconditioned & decommissioned critical spare. N/L test run in motor workshop. Warehouse storage
Delivery Point: exStock Seaford VIC 3198 Australia
Supply: Available for immediate despatch - Freight services available on request
