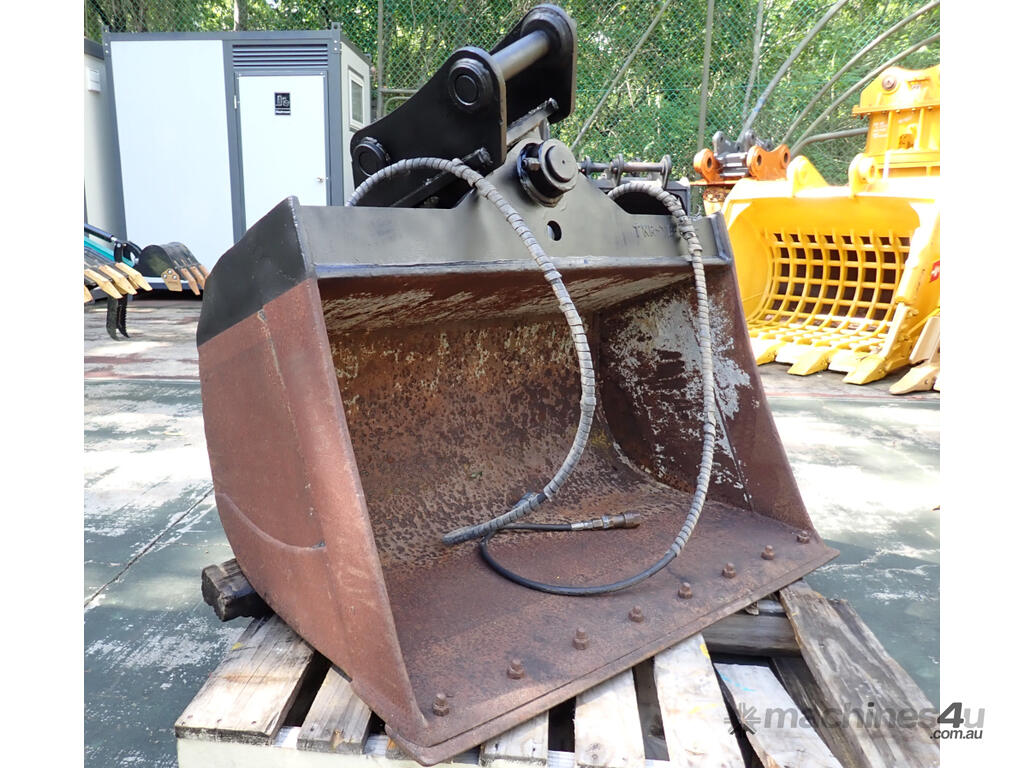

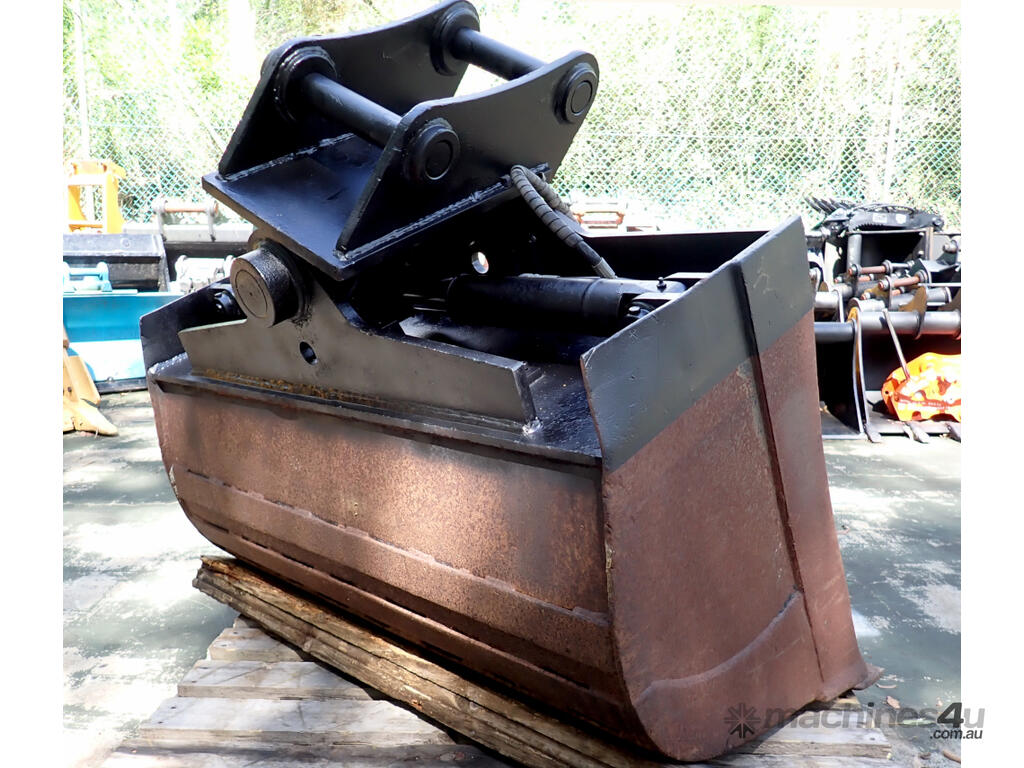

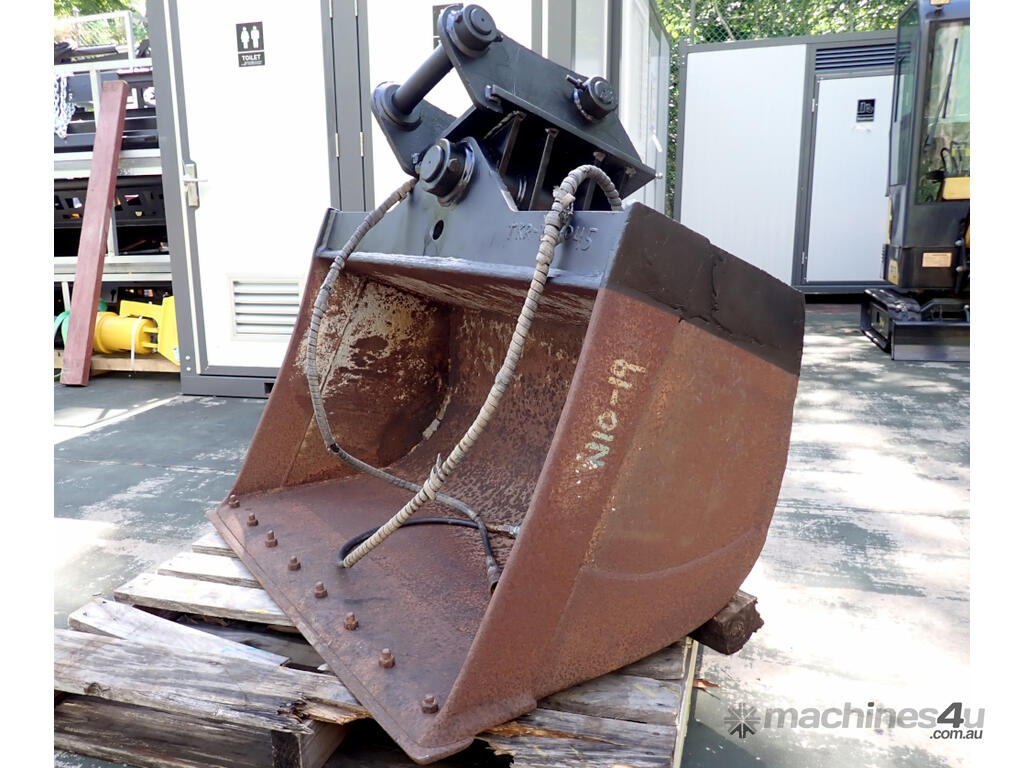

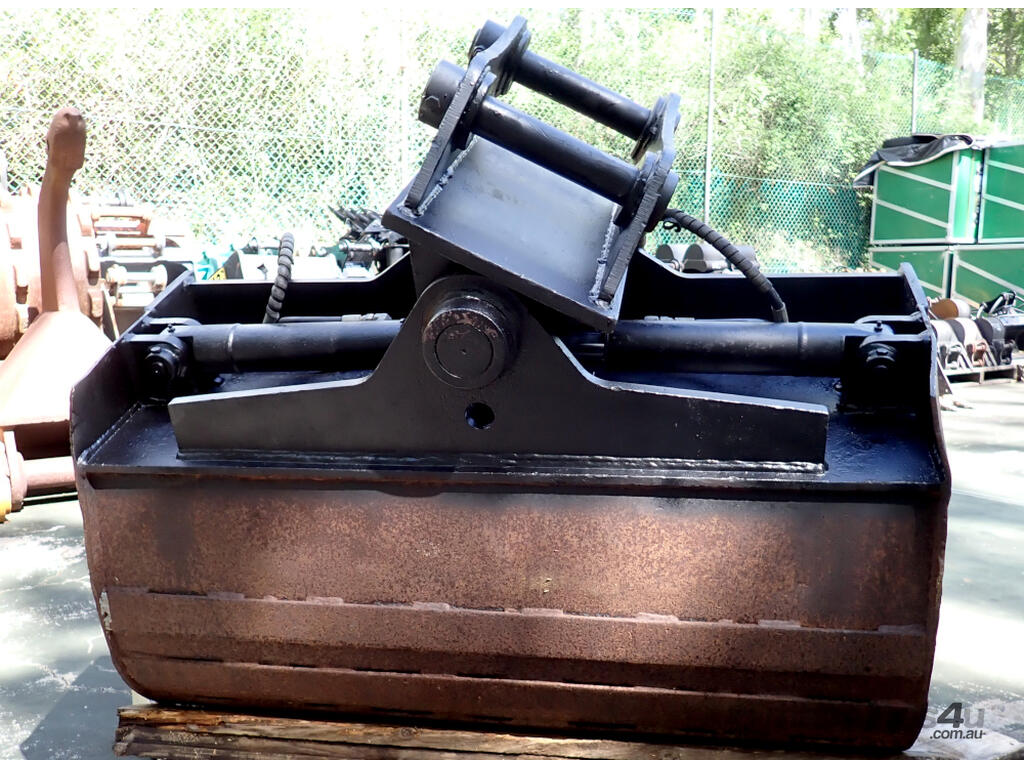

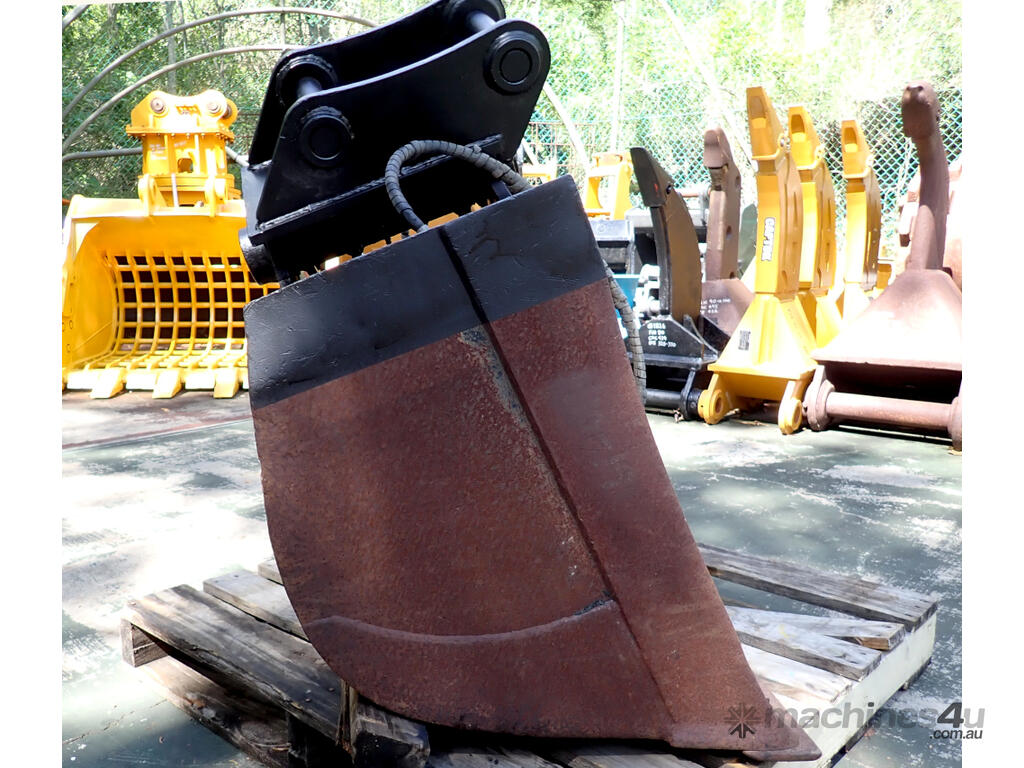

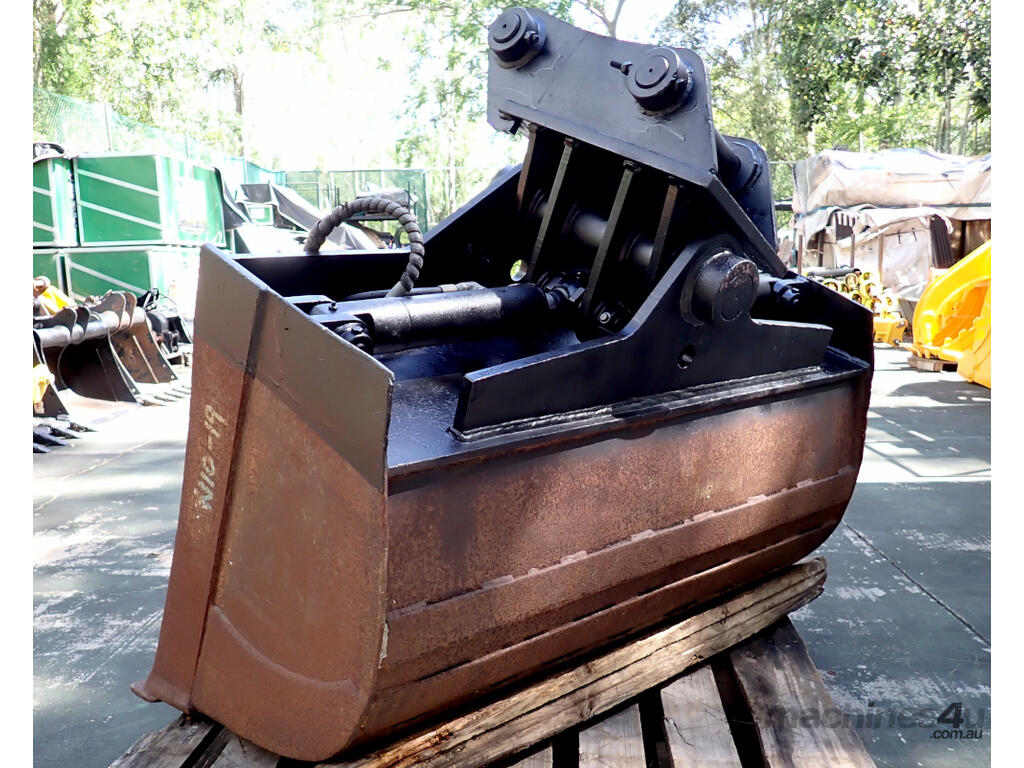

Used 1200mm Excavator Twin Ram Tilting Mud Batter Bucket suit 5-10 Ton machine.

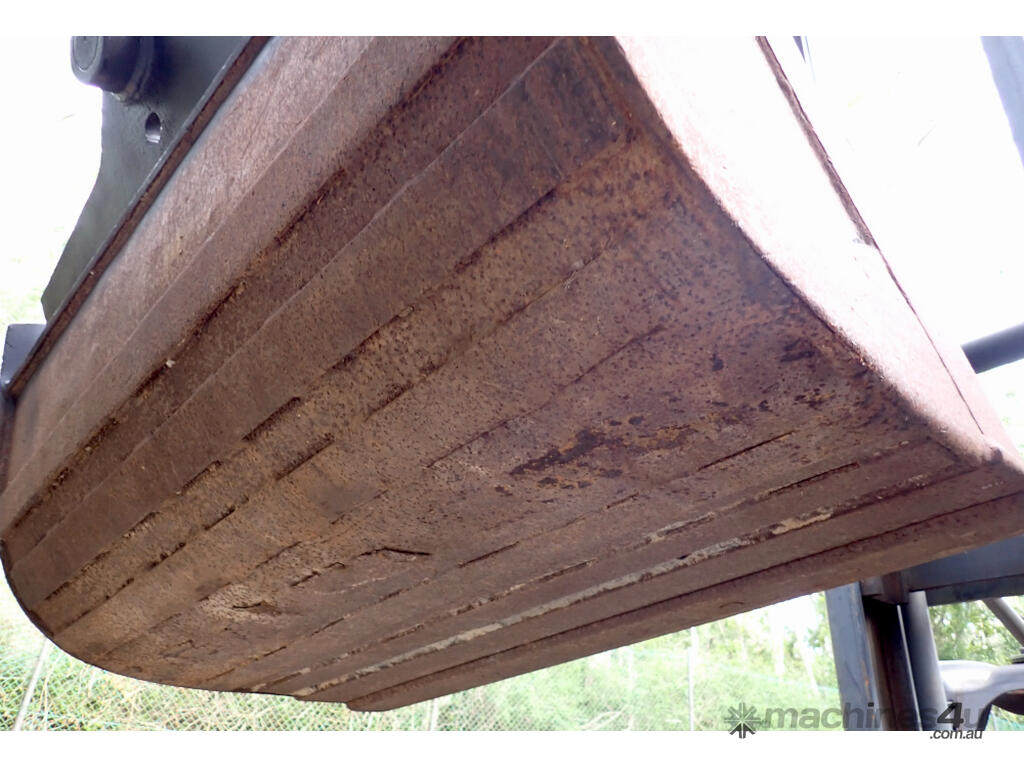

It has a bolt-on front cutting edge. There are extra wear plates welded to the bottom of the sides and there are extra wear strips welded underneath for durability (see pic# 10).

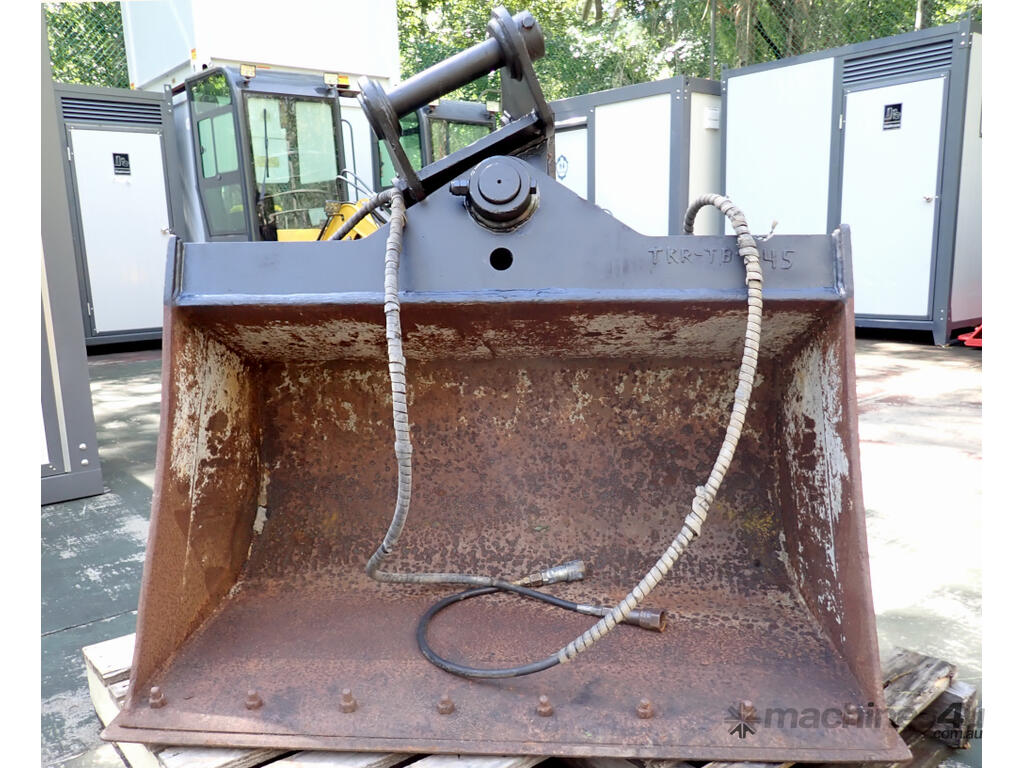

There is a mounting plate welded on the top ready for a Tilt Position Sensor should you choose to fit one (see pic# 7 on the right side).
Condition is Used, but there is plenty of life left.
Comes with Hydraulic hoses (as pictured), with Quick Release Couplings.

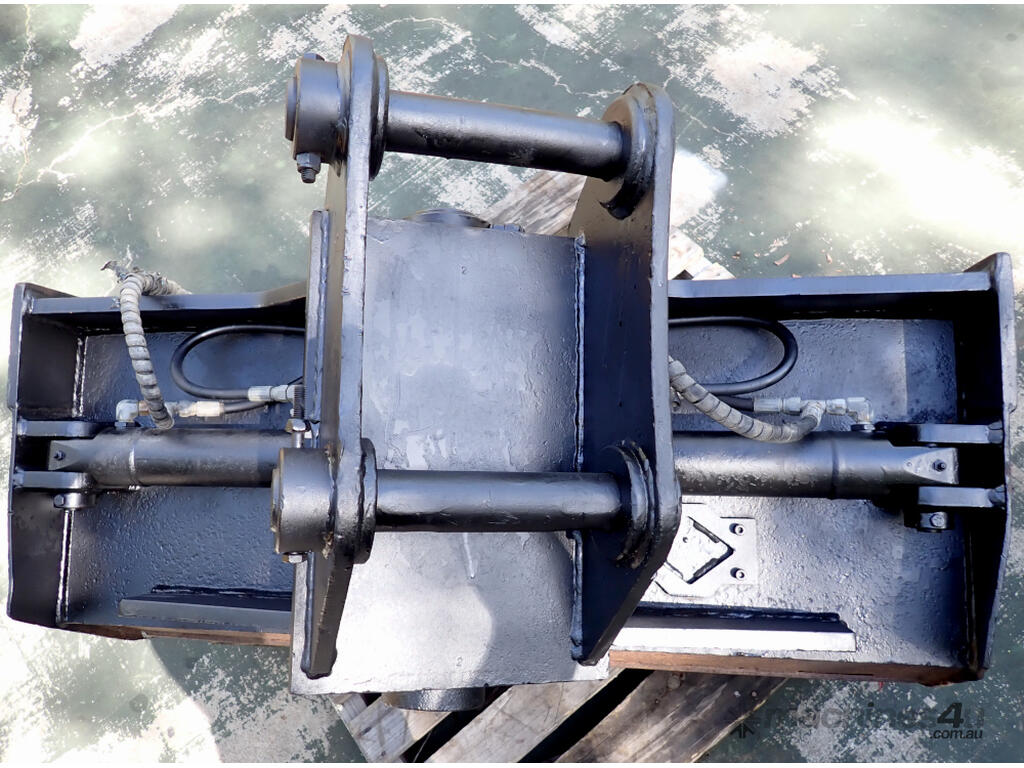

*** Current Headstock configuration:
* 50mm Pin Diameter.
* 312mm Pin Center to Pin Center (CtoC).
* 207mm Between the inside Ear Bosses (BTE) (which can be shaved back up to 237mm between the Ear Plates if you need more inside width for your hitch or dipper arm to fit in).
*
* Should fit: Caterpillar 308D / 308e2cr, Hitachi EX60-5 / EX60-5 Import / EX75-5 / EX80 Import, Hitachi Zaxis 75US / 80, John Deere 75C / 80C, Komatsu PC 60 / PC 60-5 / PC 60-6 / PC 60-7 / PC 70FR / PC 75UU / PC 75UU-1 / PC 75UU-2 / PC 75UU-3 / PC 78MR-6 / PC 80-1 / PC 80-2 / PC 80-3 / PC 90-1 / PC 95R-2 / SV100, Sany SY 75C, Yanmar B 7 SIGMA / VIO70 / VIO75.
*
* Maybe fit: Bobcat zx125, Case 9007 / 9007B / CX 75SR / CX 80SR, Ingersoll-Rand ZX125, JCB 3CX Std to Suit G65 Bush / JS 70 / JZ 70, Kato 180G, Kobelco 70SR / 80CS / SK 60 / SK 70SR / SK 70SR-1E / SK 75UR / SK 80MSR, Komatsu WB146-5,PS-5, Link-Belt 75SA (Mono & Offset) / 80SA / 1600 QUANTUM, New Holland EH 70 / EH 80 CS, Sumitomo LS 1600F2U / SH 60 / SH 60-2 / SH 60DX-2 / SH 60SP / SH 60SR / SH 60X-2 / SH 75U / SH 75U-2 / SH 75UU / SH 75X-2 / SH 75X-3 Sunward SWE 75, Takeuchi TB 70 / TB 70FR / TB 80FR / TB 175 and possibly other machines with similar pin spacings or that have a variable pin spacing hitch (Multi-Hitch).
Dimensions (standing up as in pics): 1217mm Wide, 745mm Deep, 1050mm High. Weight: 400kg (including hoses).
Call if you would like to discuss or to come inspect it.
We are at Pullenvale, 16km west of Brisbane CBD, between Brookfield and Anstead, near Kenmore.
You can pick up, we can deliver to a reasonable distance for an agreed fee, or we can arrange freight within Australia.
