5.7m long Excavator Demolition Ripper 28-50 ton (110mm or 100mm pin)

Almost New Excavator Demolition Ripper, 5.7m long, suit 28-50 Ton machine.

Great for getting to those hard to reach spots up high, out far, or down down very low. Would most suit demolition, a big machine with 110mm Pins can now reach 2 floors higher for knock downs etc.

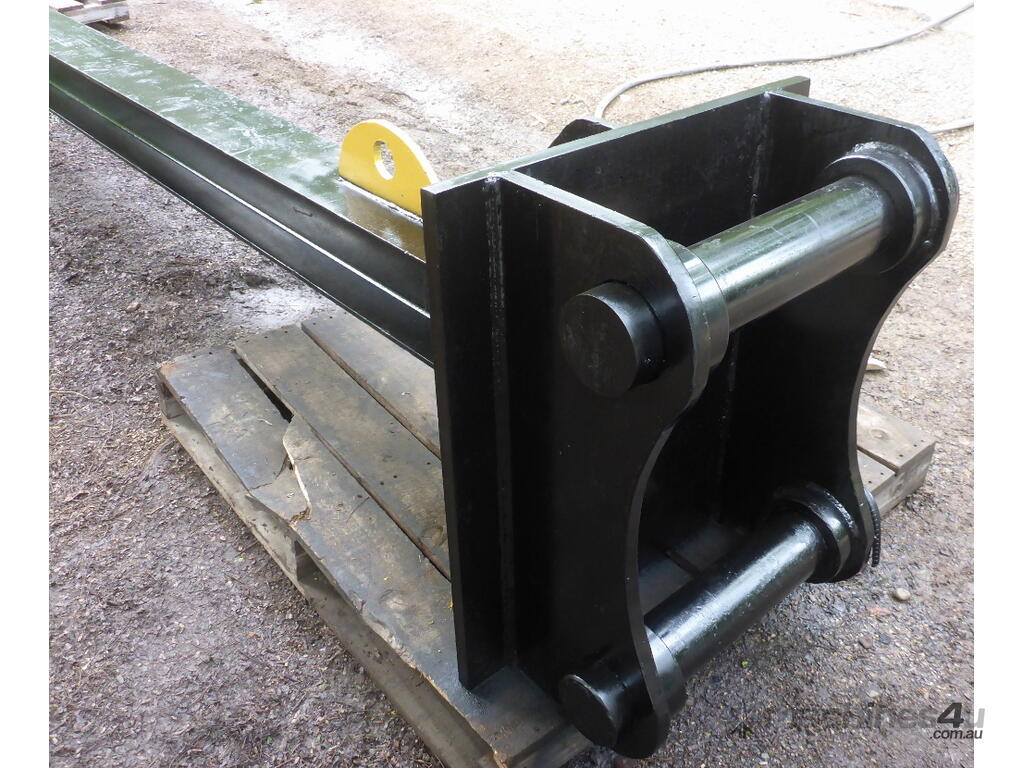

It has a full 28-50 ton headstock welded to some serious I-Beam, and with just a small ripper on the end to reduce the weight at distance. Just enough to poke through bricks, rip up timber, sheet and cladding etc. Whole unit weighs only 610kg.

The I-Beam is "200 UC 52 - Universal Column" and measures 204mm Wide x 206mm High. The center Web Thickness is 9mm and the Top & Bottom Flanges are 12.5mm Thick. The weight is 52kg/M.

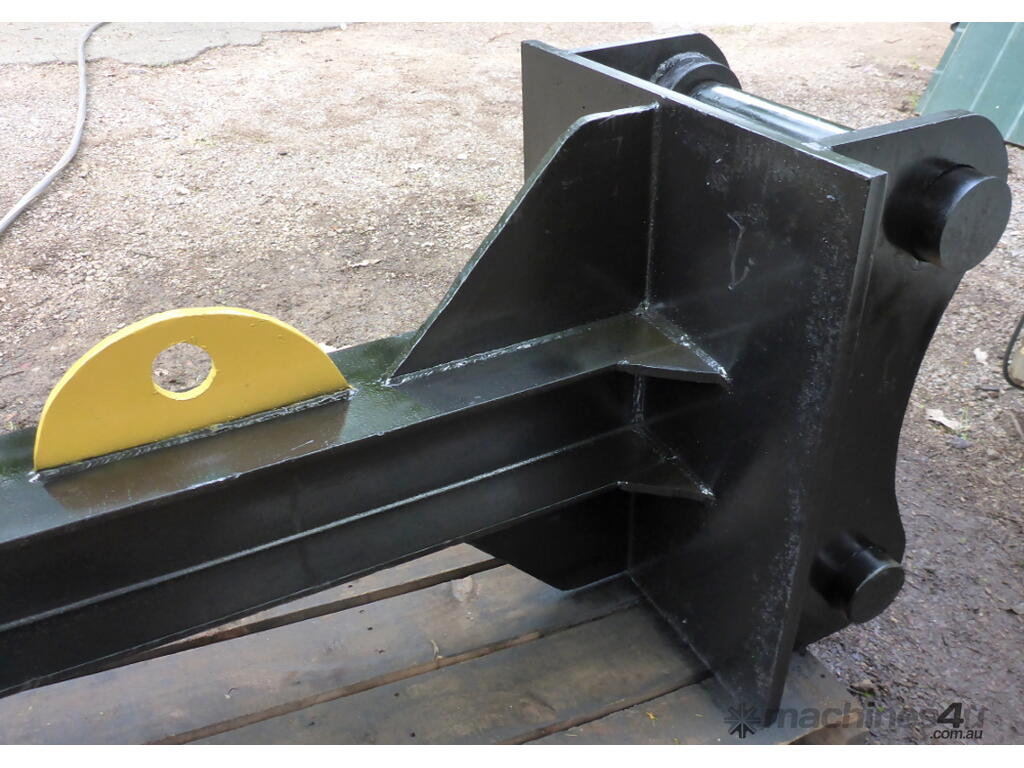

The extra triangle bracing down by the headstock end keeps the welds from ripping apart at the join, and the welds themselves are professional.

It is not new, it has already been tested, used and proven itself for demolition, and there is still no damage or twisting etc, just some moderate wear on the end of the tooth.


*** Current 110mm Pins configuration:

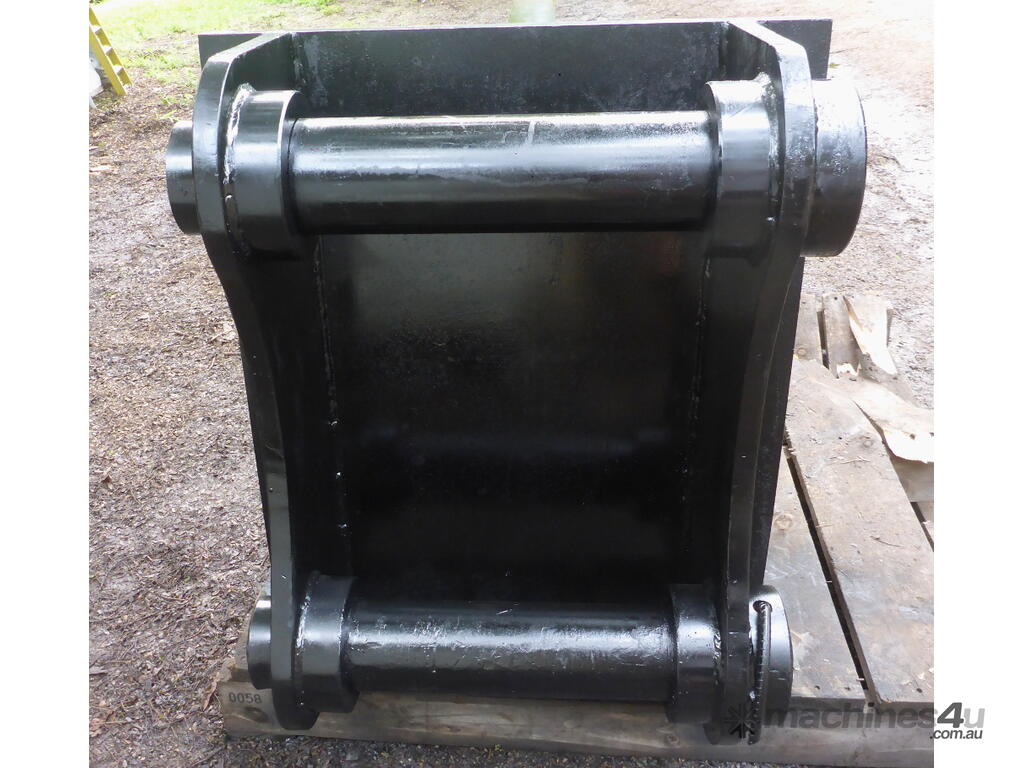

110mm Pin Diameter, 575mm Pin Center to Pin Center (CtoC), 378mm Between the inside Ear Bosses (which can be shaved back up to 478mm between the Ear Plates if you need more inside width for your hitch or dipper arm to fit in).

Should fit: Caterpillar 330D w/Mass Linkage / 345C w/Reach Linkage / 345C w/TB Link, Hitachi EX400 / EX400-1 / EX400-2 / EX400-3 / EX450 / EX455 / EX550 / EX600 Long Arm, Hitachi Zaxis 400 / 450 / 450 & LC / 470H-3 / 500-3, John Deere 450DLC, Samsung SE350LC / SE450LC, Volvo EC330B / EC330C / EC360B / EC360C / EC460B / EC460C.

Maybe fit: Daewoo DX420 LC, Daewoo Solar 400LC-2 / 400LC-3 / 400LC-V / 420LC-V, Doosan DX420 / DX420LC-3 / S420LC-V and possibly other machines with similar pin spacings or that have a variable pin spacing hitch (Multi-Hitch).


*** Possible 100mmm Pins configuration: (mill the center of the pins down to 100mm)

Should fit: Caterpillar 330C w/Mass Linkage / 345B w/Reach Linkage / 345C w/TB Link, Halla HE360, Hitachi EX300 / EX310 / EX330 / EX350 / EX355, Hitachi Zaxis 300 / 330 & LC / 350 / 350LC / 350LC-3 / 370, Hyundai R450LC-7, John Deere 350D LC / 370C, Samsung SE350-3 / SE450-3, Volvo EC330B / EC360 / EC360B / EC460 / EC460B / MX365LS / MX455LS / SE360LC-3 / SE460LC-3.

Maybe fit: Caterpillar 330B w/E Link / 330C w/E Link / E Family Linkage, Daewoo DX340 LC, Daewoo Solar 330LC-V / 340LC-V / 360LC-V, Doosan DX340 / DX350LC-3 / S340LC-V, Hyundai R320L / R320LC-3 / R360LC / R360LC-3 / R420LC / R450LC-3, Kobelco SK450 / SK480, Komatsu PC400 / PC400 Mighty / PC400-3 / PC400-5 / PC400-7 / PC400-8 / PC450 and possibly other machines with similar pin spacings or that have a variable pin spacing hitch (Multi-Hitch).

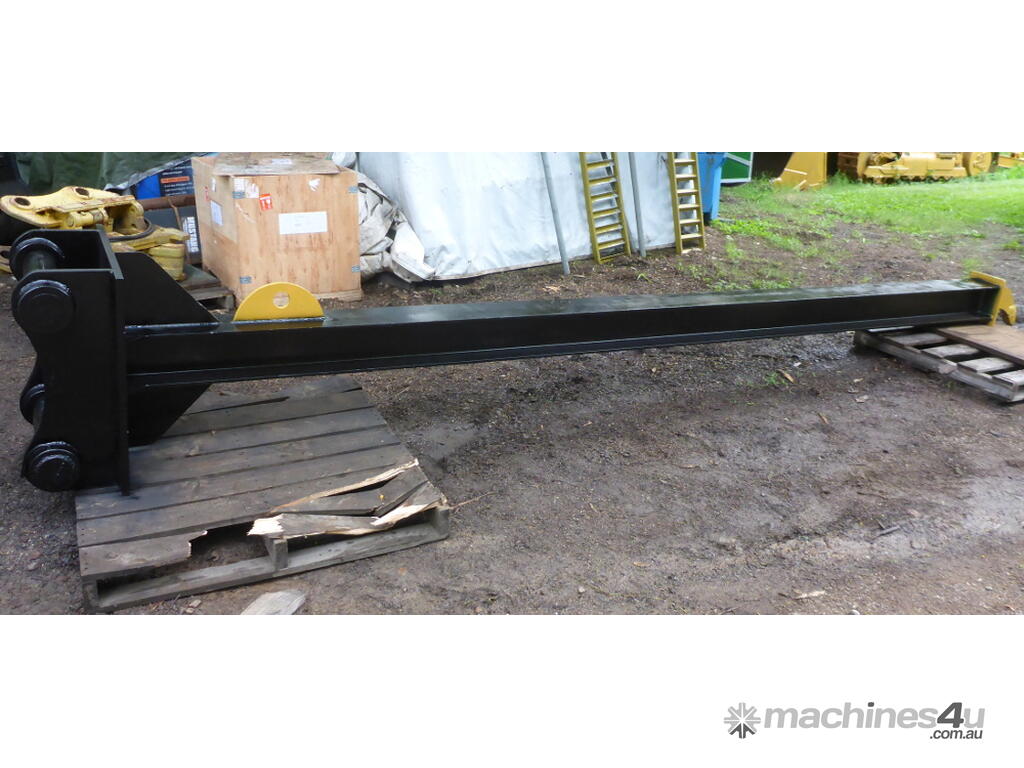

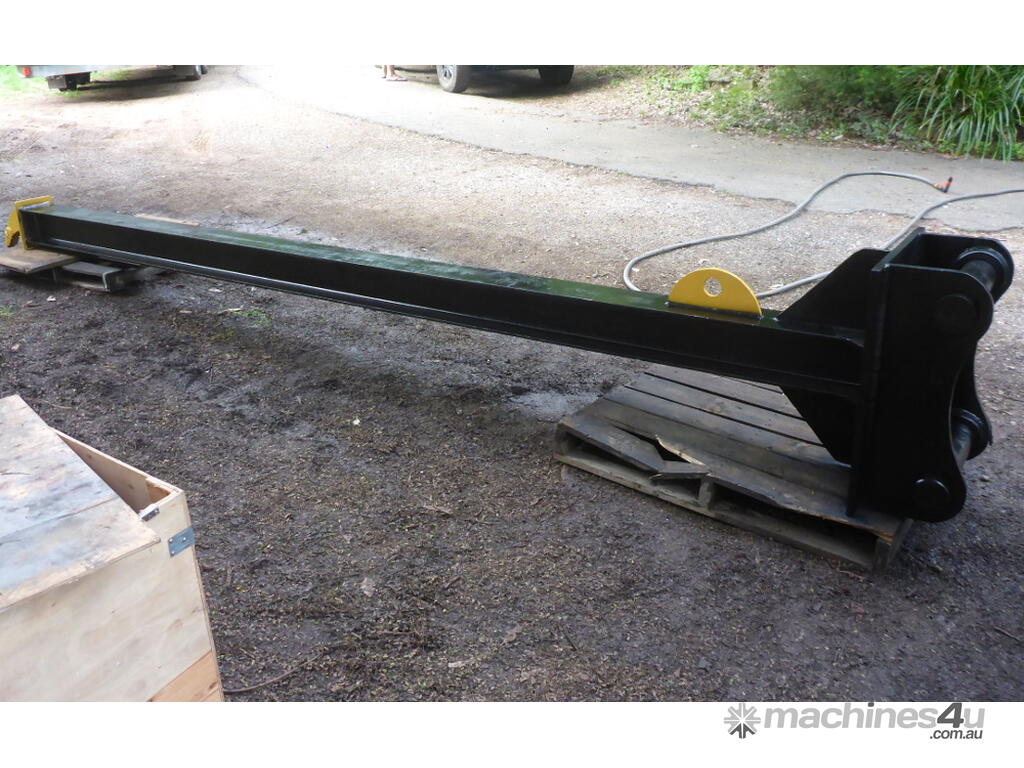

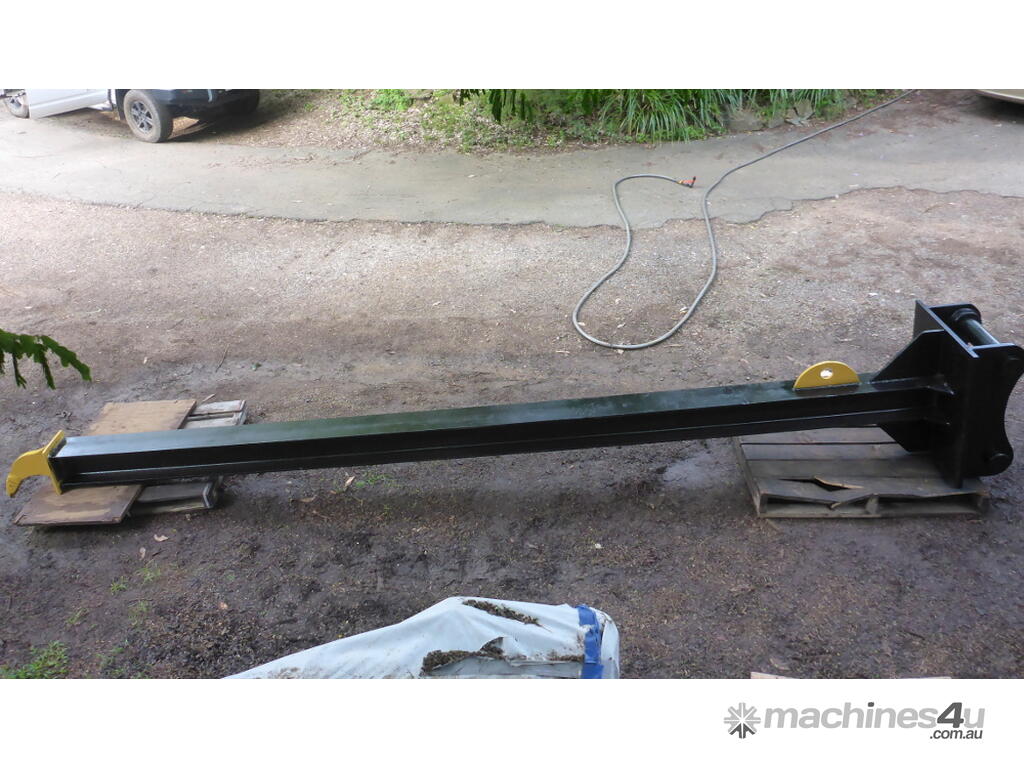

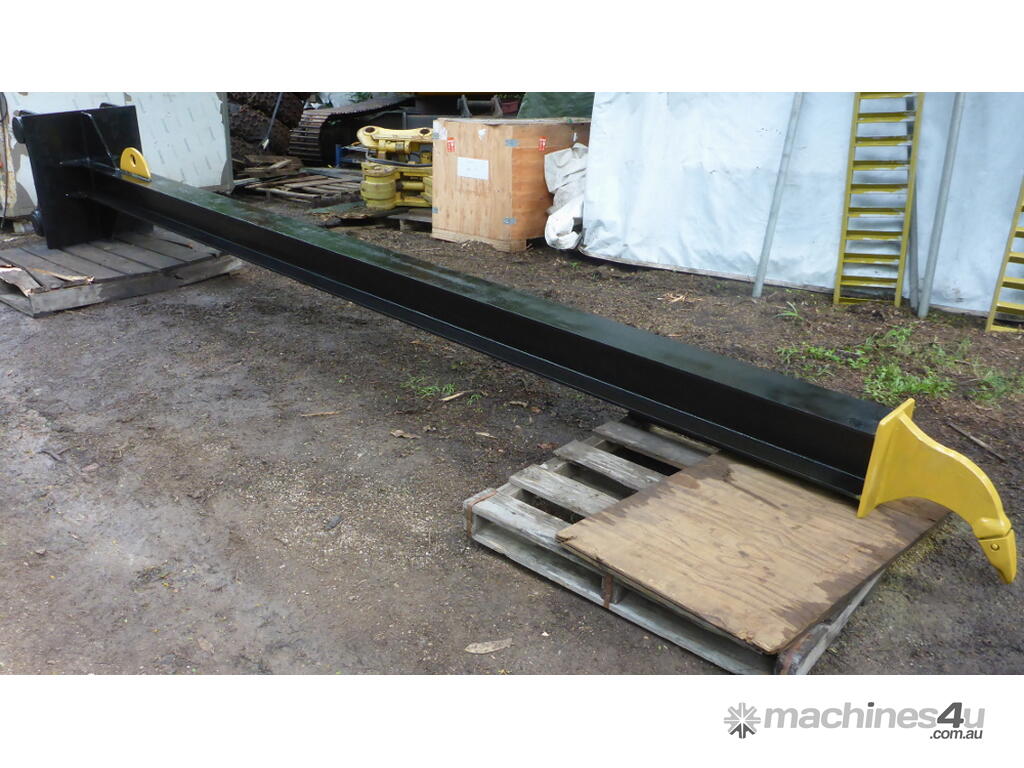

Dimensions (laying down as in pics): 5730mm Long, 700mm Wide, 800mm High. Weight: 610kg.


Call if you would like to discuss or to come inspect it.
We are at Pullenvale, 16km west of Brisbane CBD, between Brookfield and Anstead, near Kenmore.
You can pick up, we can deliver to a reasonable distance for an agreed fee, or we can arrange freight within Australia.
