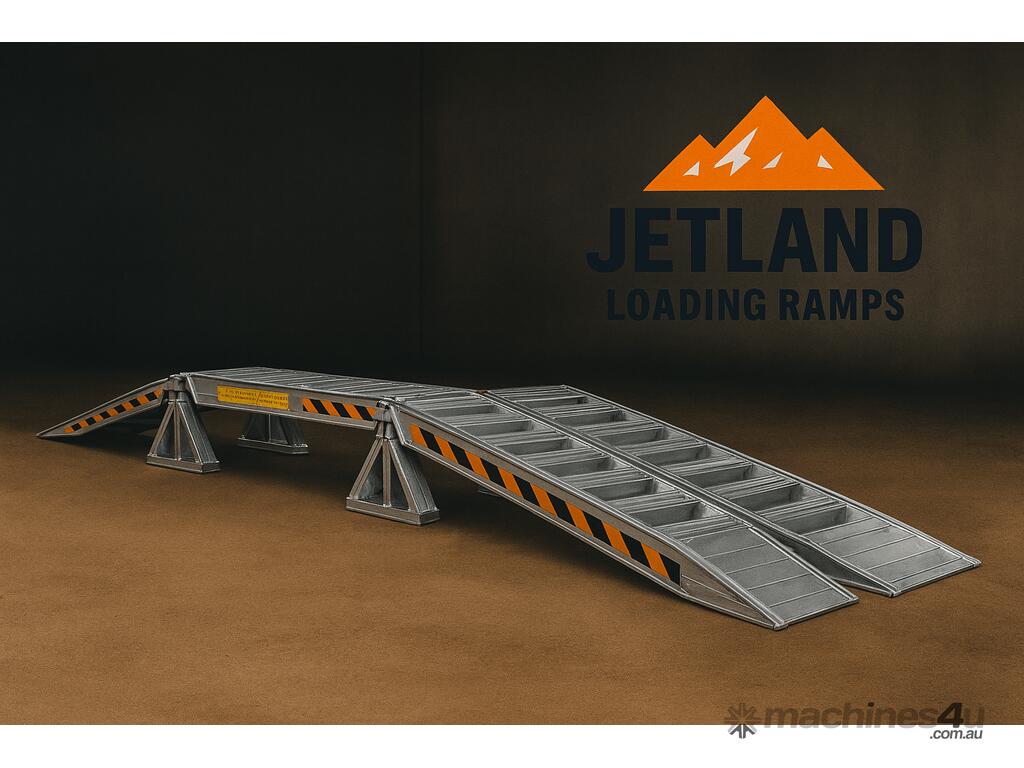

The Jetland Machinery CrossRamp is specifically engineered for heavy-duty construction and agricultural machinery, enabling safe crossing over ditches and factory obstacles.
Made from high-strength aluminum alloy with a modular structure.
Offers a slightly longer span for improved reach while maintaining excellent durability and stability.
Features?
Multiple Load Options: Available in 15-ton and 20-ton capacities, with three total length configurations to suit various job site needs.
Robust and Reliable: Reinforced structural design ensures maximum stability and safety under heavy loads.
Versatile Applications: Ideal for construction sites, agricultural fields, industrial plants, and mining environments.
Easy Setup: Modular sections allow quick assembly and disassembly for convenient transportation and flexible installation.
Each CrossRamp consists of two end sections and two center sections:
End sections: 1.8–2.0 m each
Center sections: 2.0–2.3 m eachDifferent models are configured for specific requirements, making transportation easier and on-site setup more adaptable.
With its durable build and customizable specifications, the Jetland Machinery CrossRamp provides a safe and efficient solution for machinery movement across uneven terrains and obstacles.
Specification:
Item No: JET-M158059
Material: Aluminium
Weight Capacity: 15000kg/pair
Ramp Total Length: 5.9 m (end sections 1.8 m ×2 + center sections 2.15 m ×2)
Ramp Width: 80cm
Ramp height:40cm
Total Weight: 350 kg
Modular Weights: Bases 30 kg ×4 = 120 kg, Center sections 47 kg ×2 = 94 kg, End sections 34 kg ×4 = 136 kg
Package Includes:
2 x ramps
**** Ramp images displayed are a representation of the ramp type or style – They may not be the specifications of the ramps listed on this page****
