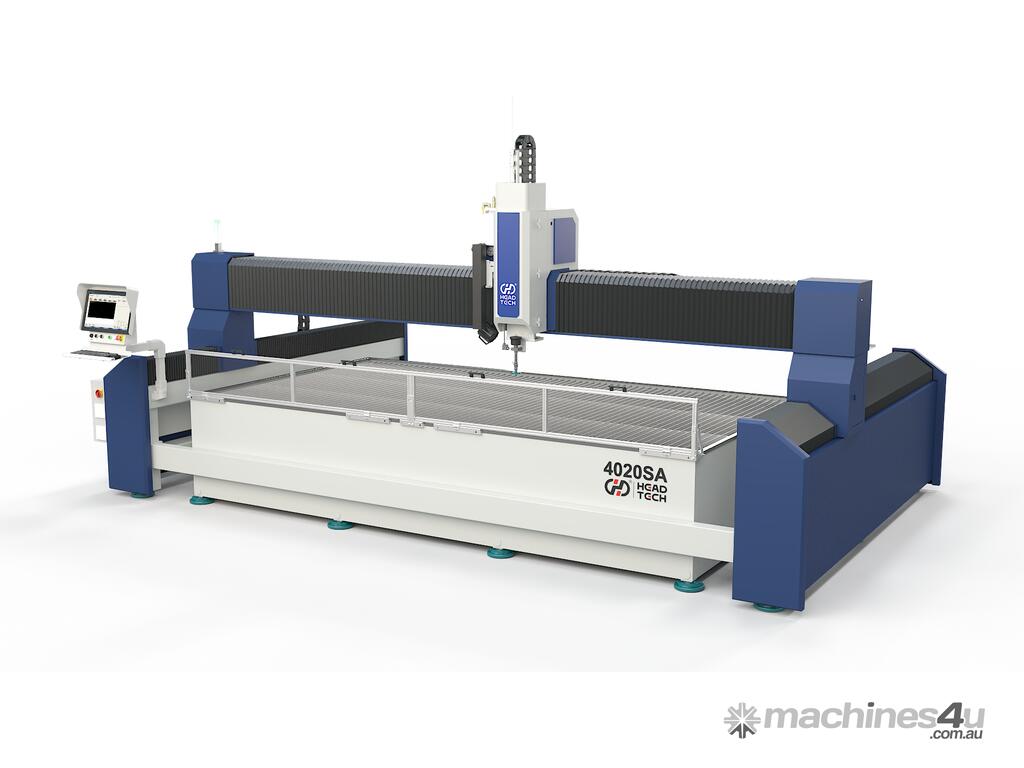

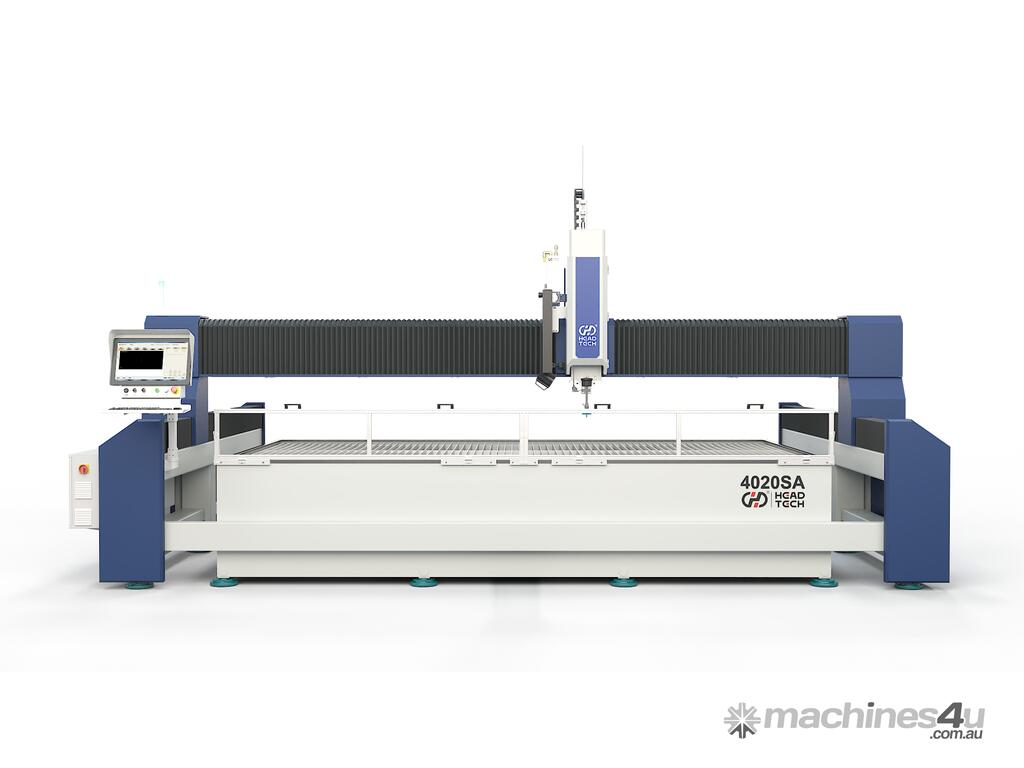

5-Axis Metal & Stone Water Jet Cutter - Cut Any Angle

High-Precision Gantry Water Jet Cutter – The Professional's Choice for the Australian Market
Engineered for superior accuracy and built for the demands of Australian industry, this Gantry Water Jet Cutter is the ultimate solution for cutting a vast range of materials. Whether you're in metal fabrication, stone masonry, or architectural design, this machine delivers exceptional performance backed by reliable local support.

Key Performance & Features
Ultra-High Precision Cutting: Leveraging an advanced CNC control system and high-pressure technology, this machine achieves a remarkable cutting accuracy of ±0.1mm, perfect for intricate designs and tight tolerances.

No Heat-Affected Zone (HAZ): As a cold-cutting process, it eliminates the risk of heat distortion, micro-cracks, and material degradation, preserving the integrity of even the most sensitive materials.

Powerful & Stable High-Pressure System: Equipped with a high-performance pump delivering stable pressure up to 320 MPa, ensuring faster, cleaner, and more efficient cutting cycles.

Unmatched Material Versatility: Effortlessly cut through natural marble, porcelain tiles, glass, metals (including stainless steel, aluminium, and titanium), and complex composites with a single machine.

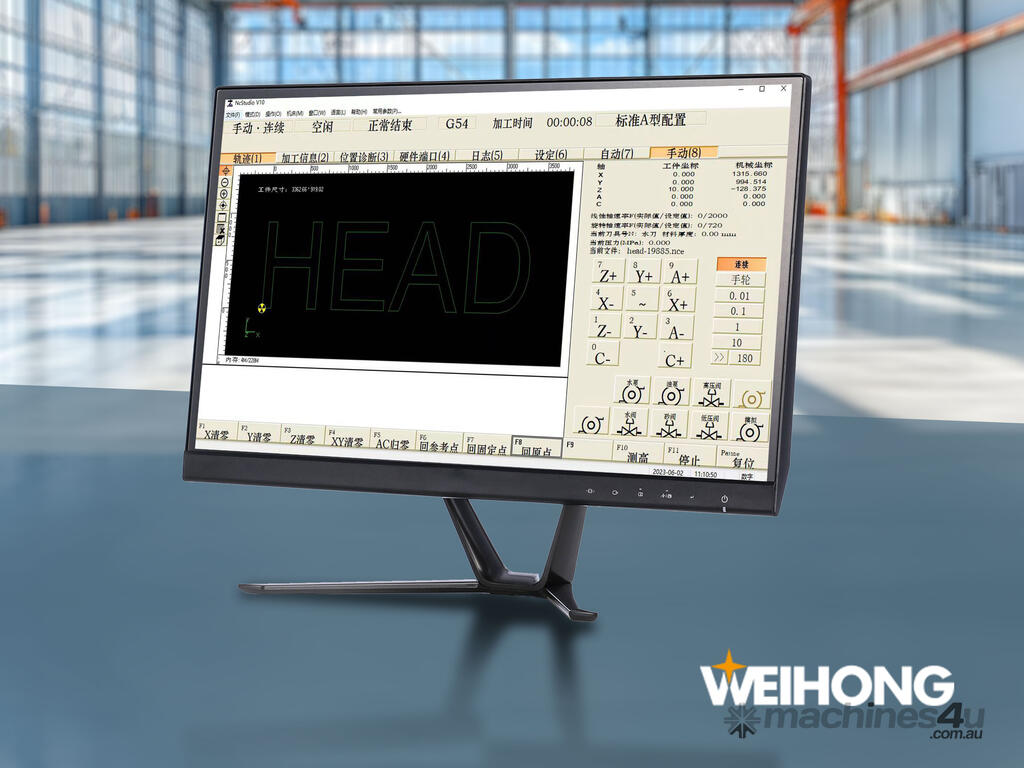

Intelligent & User-Friendly Control: The intuitive control system allows for direct import of CAD files, streamlining your workflow, reducing manual setup, and boosting overall productivity.

Efficient and Eco-Friendly Operation: Designed with an efficient water-saving system and abrasive recycling technology to lower your operational costs and meet modern environmental standards.

Technical Specifications
Machine Structure & Dimensions:

Machine Type: Gantry, Split Machine Series

Installation Footprint: 9200mm x 6000mm

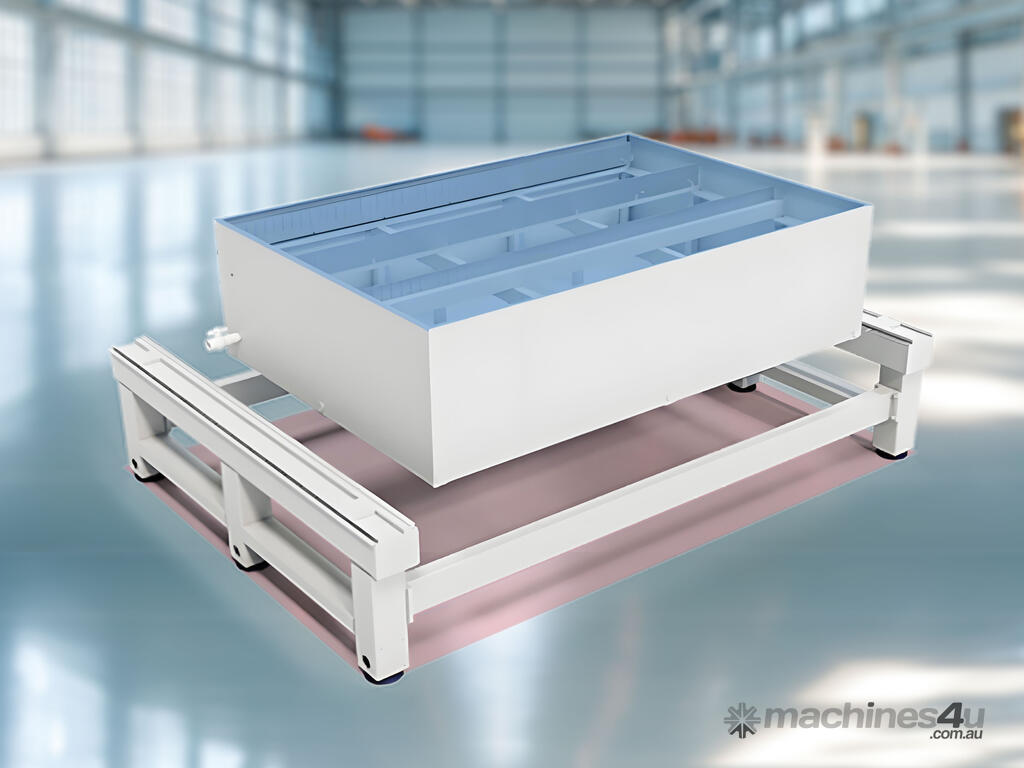

Water Tank Form: Load-Bearing Water Tank

Water Tank Load Capacity: 1500 kg/m²

Water Tank Height (incl. feet): 900mm

Travel & Speed:

X-Axis Travel: 4000mm

Y-Axis Travel: 2000mm

Z-Axis Travel: 250mm

Maximum Traverse Speed: 20,000 mm/min

Accuracy:

Cutting Accuracy: ±0.1mm

Positioning Accuracy: ±0.05mm / 500mm

Repeat Positioning Accuracy: ±0.03mm / 500mm

Your Trusted Australian Partner
Choosing our equipment means investing in a partnership dedicated to your success.

Over 20 Years of Industry Experience: We have a deep understanding of the Australian market and provide proven, reliable water jet solutions.

Trusted by 100+ Australian Businesses: Our quality is field-tested and validated across metal fabrication, stone carving, glass cutting, and more.

Live Demonstrations in Sydney: Don't just take our word for it. Visit our Sydney showroom to see the machine in action and witness its capabilities firsthand.

Expert Local Support: Our professional maintenance teams in Sydney and Melbourne ensure rapid response times to keep your machine in peak condition.

Sydney-Based Spare Parts: A local warehouse of critical components guarantees maximum uptime and smooth, uninterrupted production.
