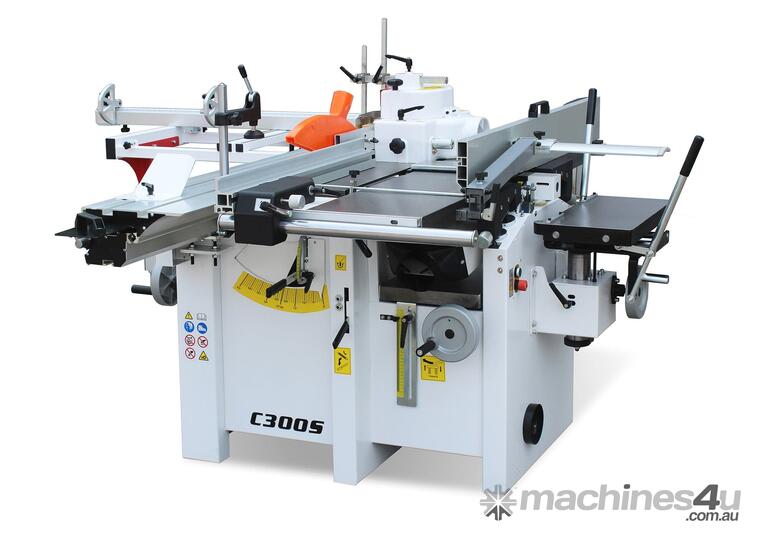

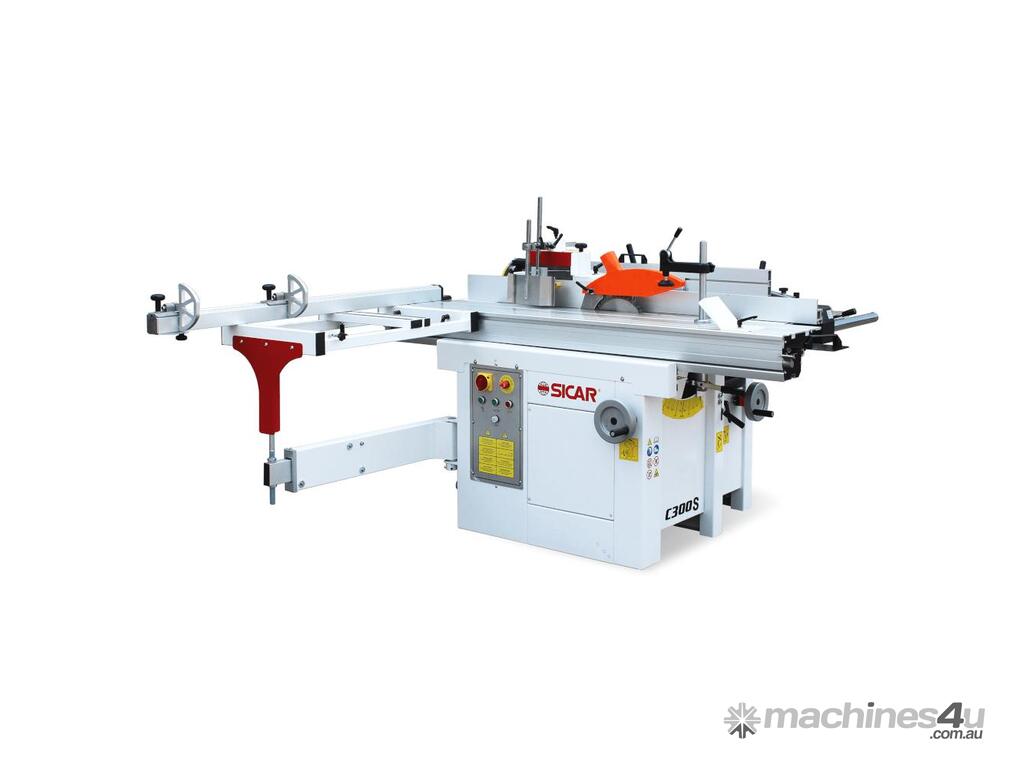

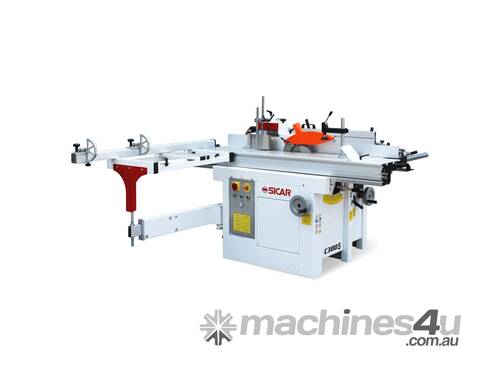

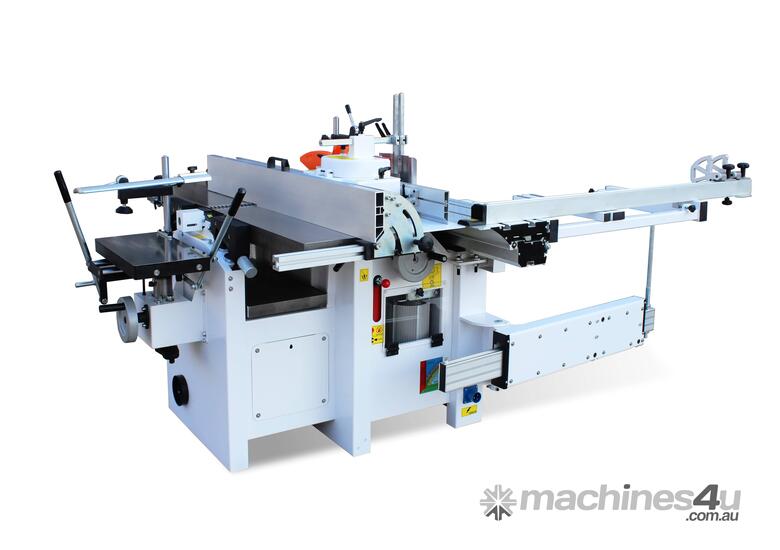

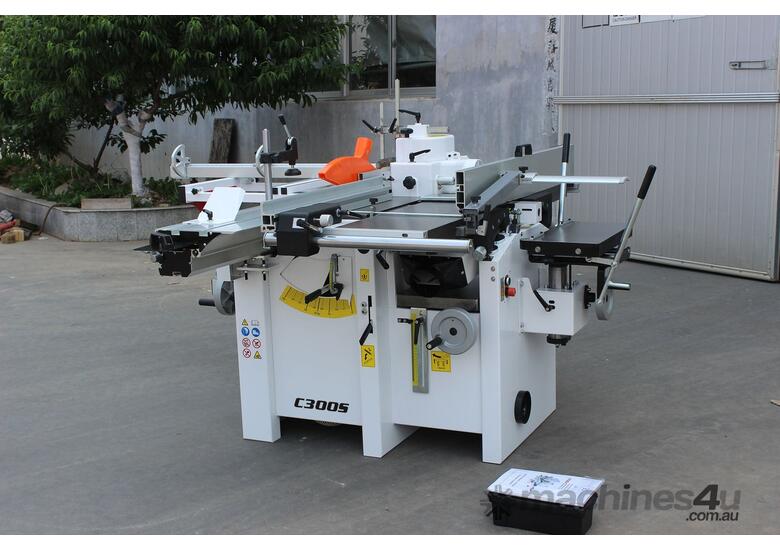

5 in 1 Combination Machine C300S by Sicar 240V

The Sicar 5 in 1 combination C300 is the connecting link between the hobby line and the professional line. It has been designed for the particularly demanding wood craftsman, who doesn't want to give up to safety, precision and reliability. It's the right means by which you can give shape to your wood creation! equipped with spiral cutter block, This machine is 240 v so it can fit into any workspace with 15amp supply.

Features:

5 in 1:
Table Saw
Spindle Moulder
Planer
Thicknesser
Mortiser
Tilting functionality on Saw Blade
Scoring Saw

Planer
Spiral cutter block
Working table 300x1500mm
Cutter block diameter 70mm
Cutter block rotation speed 5700 r.p.m
Cutter block length 300mm
Max table adjustment 4mm
Number of Blades 52

Thicknesser
Working table 300x660mm
Feed speed 8m/Min.
Working height 4-220mm

Mortiser
Working table mm 250x500
Vertical stroke mm 205/95/90
Chuck (M18*1.5-S) mm 0-16

Table Saw / Circular Saw
Working table mm 220x1000
Main shaft speed 4500 r.p.m
Scribe shaft speed 7000 r.p.m.
Main blade diameter 250x30mm
Scribe blade diameter 90x22mm
Cutting height at 45°/90° 50/80mm
Cutting width parallel fence 500mm

Spidle Moulder
Working tables mm 220x1000
Shaft rotation speeds r.p.m. 2000/3100/4400/7000
Standard shaft diameter mm 30
Shaft vertical stroke mm 115
Max. tool diameter mm 160
Max. tenoning depth mm 55

Standard Specification:-
Single-phase motor 3,0hp - 2,2kw
Voltage 230V
Carriage dimensions mm 1800x315
Weight kg 580

Packing
Weight N .W/G.W 580/ 670 KG
Box 1906×1300×1050 mm

Optional Accessories:-

100mm Dust Hose #8600640
FM300 Dust Collector

Optional Consumables:

Blades
Main blade = 250 x 30mm x 24T
Main blade = 250 x 30mm x 80T #8714666
Scribe Blade = 90 x 22mm

Full 12Month Manufacturer Warranty
