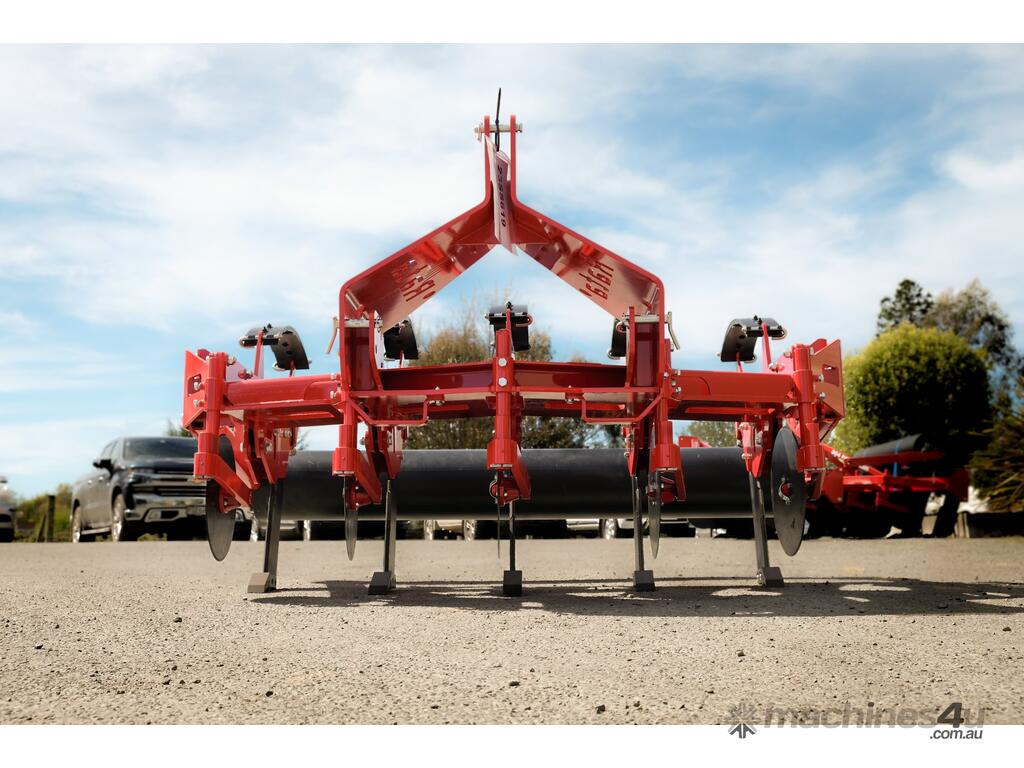

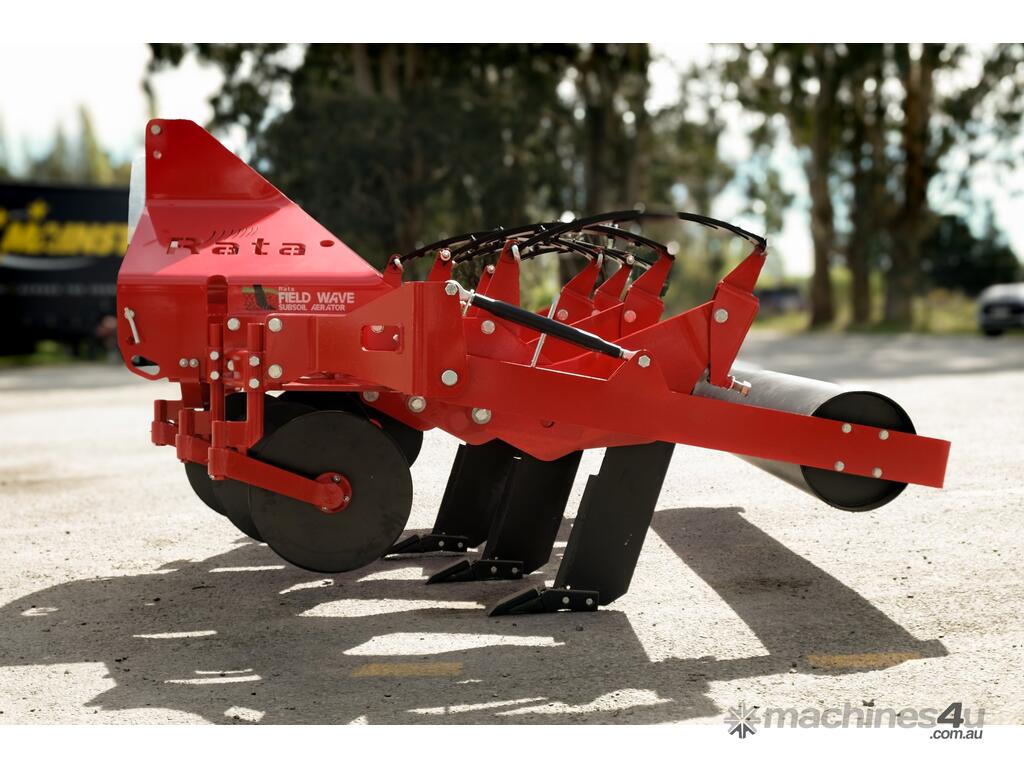

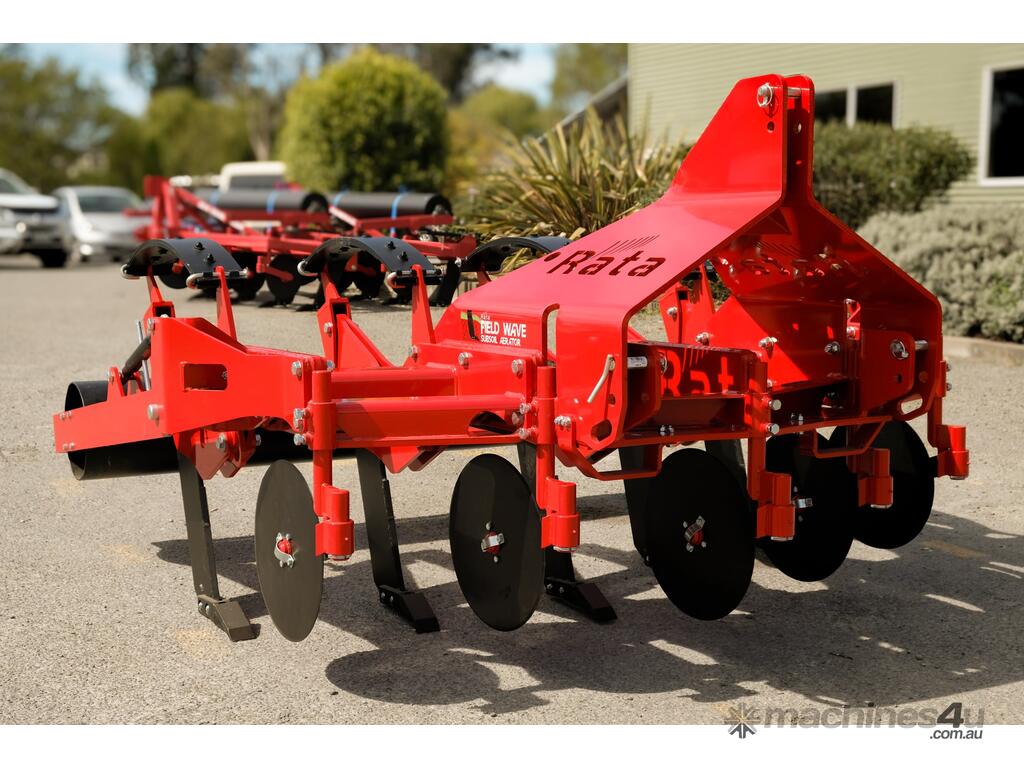

5 leg Auto Reset Fieldwave Aerator 304P5ARR

304 Auto Reset Fieldwave aerators are the ultimate subsoiling machine, especially when the soils to be aerated are heavy & full of obstructions.

Being auto reset makes your subsoiling job seamless as the legs simply lift over any obstruction & immediately reset automatically so you can continue aerating your soils without stopping. Leaf spring reset has a great advantage over rams, not only do they require less maintenance, but the legs are at the highest point of resistance while in the ground & resistance reduces as they lift. This ensures the legs to not tip falsely & ensures they do clear obstructions when hit.


Why the Auto-Reset Fieldwave?

Optional winged foot
Adjustable depth control
Heavy duty bearings and roller
Immense leg construction
Double bar 'v' frame
Working depth up to 450mm
Skeith discs for pasture pre cutting included as standard

Specifications
Model (Code): 304P5ARR
Number of Legs: 5
Working Width: 2.50 m
Max Working Depth: 450 mm
Recommended Minimum HP: 120

Features & Benefits

1 V Formation
Rata Panerazer legs are in a 'V' formation, this reduces drag between the legs making it easier to pull and uses less fuel. V formation also means the legs leave the ground independently at the headlands which eliminates 'heaving'

2 Heavy Duty Build
Rata Auto Reset Panerazers feature a heavy duty build, featuring a heavy duty RHS main frame construction with reinforcing to cope with hard conditions. The wear protected legs are also securely bolted into the reset mounts.

3 Depth Adjustment
Working depth on the 304 Auto Reset model Panerazer is easily controlled via the rear roller setting and tractor 3 point linkage. The rear roller is secured to the main aerator frame with heavy machine pins

4 Modular Foot
An innovative modular leg, foot & point assembly provides maximum flexibility of parts. Cast point features extra wear protection in the form of beveled hard wearing plate.

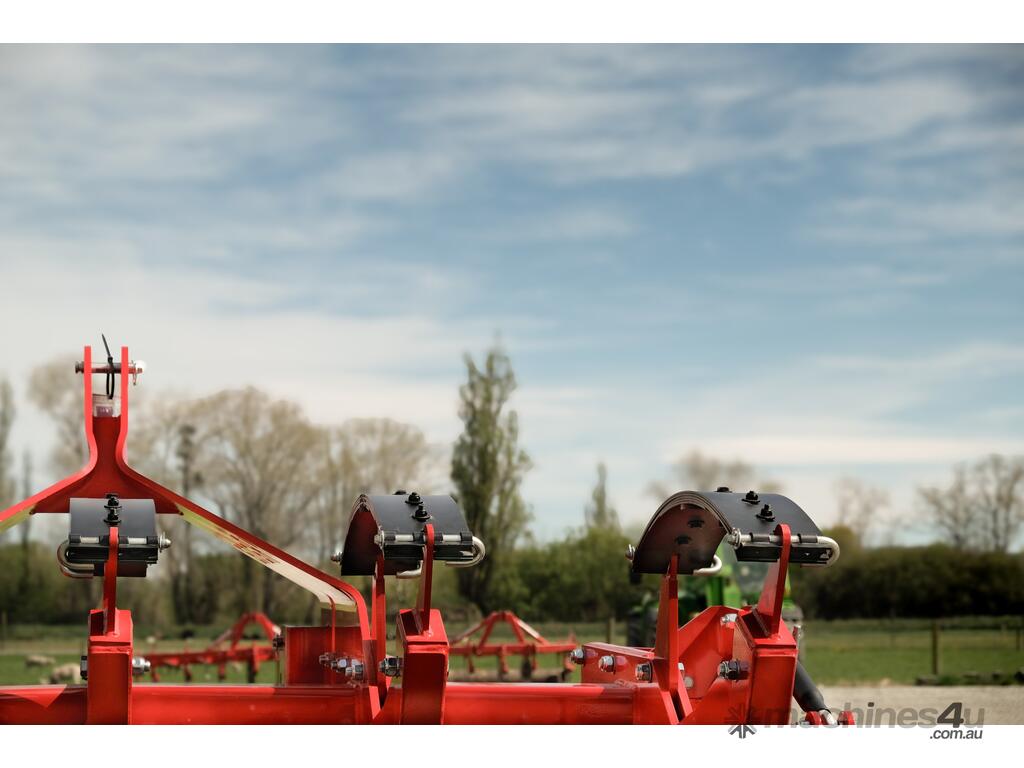

5 Leaf Spring Reset
The auto reset system on this model of Panerazer is powered by heavy duty leaf springs mounted on each leg. Leaf springs reset immediately after tripping & clearing the obstacle unlike other reset systems such as hydraulic.
Adjustable tension of reset springs

6 Tension Adjustment
Auto reset leaf spring tension is easily adjusted via the 'tension bolt' mounted on the leg, this enable the operator to adjust the tension to the ideal level required for the ground they're operating in, the tension adjustment spanner is included.

From the outset we have aimed to give Farmers and Contractors the ability to aerate almost any type of soil. Designed for heavy working conditions and high horse power tractors. The innovative double-bar 'v' frame construction allows the user to pull more with less, as well as making it easily adaptable from pasture to cropping applications. The auto reset makes operating seamless as when the point hits an obstruction, it resets itself immediately.

Pricing doesn't include freight, located in Ballarat VIC. Contact us for more information or to arrange an inspection.
