The Perkins® 1103 range of electric power engines delivers cost-effective solutions for both prime and standby power generation. Designed to meet EU Stage IIIA / U.S. EPA Tier 3 equivalent emission standards, these engines combine compliance with efficiency.

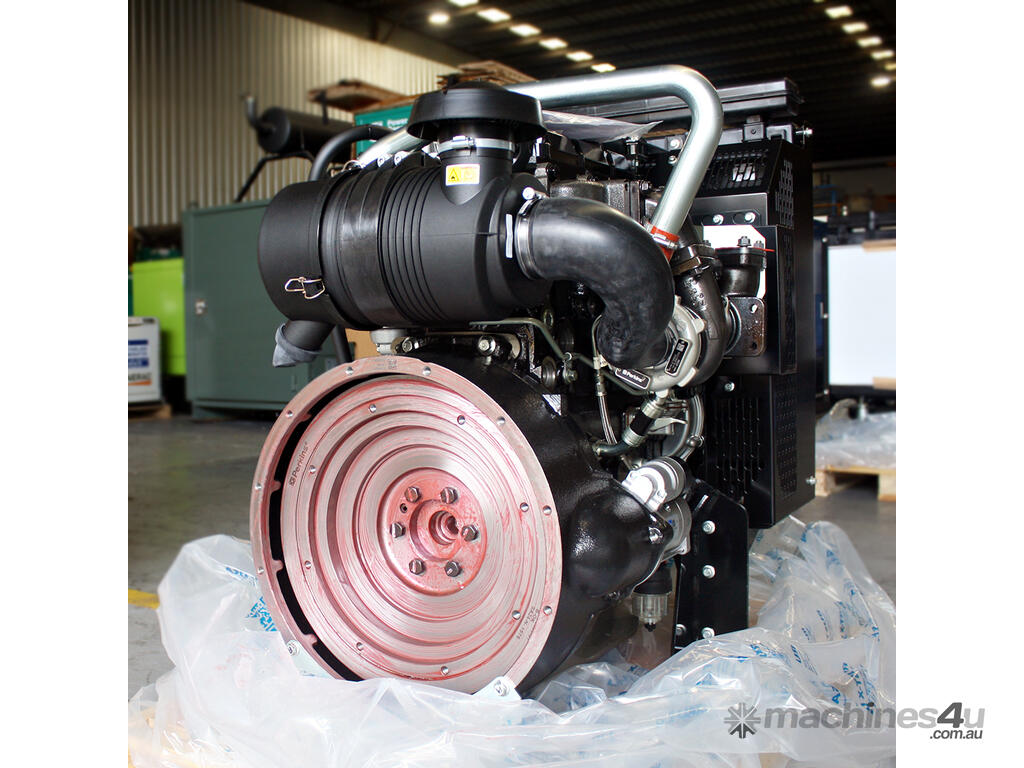

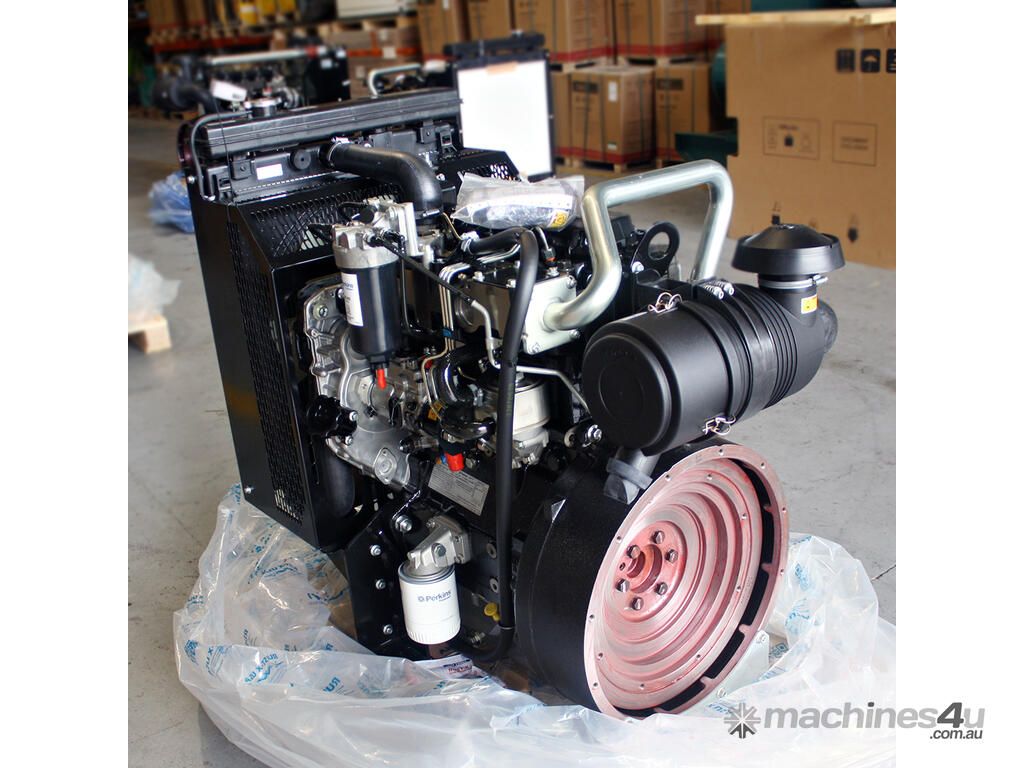

ENGINE 1103A-33TG2
Features
Ease of maintenance
Easy transition
Oil and filter filtration
Prime power generation
Specifications
Gross Mechanical Output - 42 - 70 kWm
Rated Speed - 1500 rpm
Emissions - Fuel Optimised
Electrical Output 50HZ - Prime 45-60kVA - Standby 50-66kVA
Cylinders - 3 Vertical Inline
Bore & Stroke - 105 x 127mm
Displacement - 3.3 I
Compression Ratio - 17.3:1
Aspiration - Turbocharged
Combustion System - Direct injection
Rotation Anti-clockwise
Typical Alternator Efficiency - 89%
Cooling System - Liquid
Weight (kg) Dry: 420kg
Dimensions (LWH) 1150 x 760 x 1300 mm
