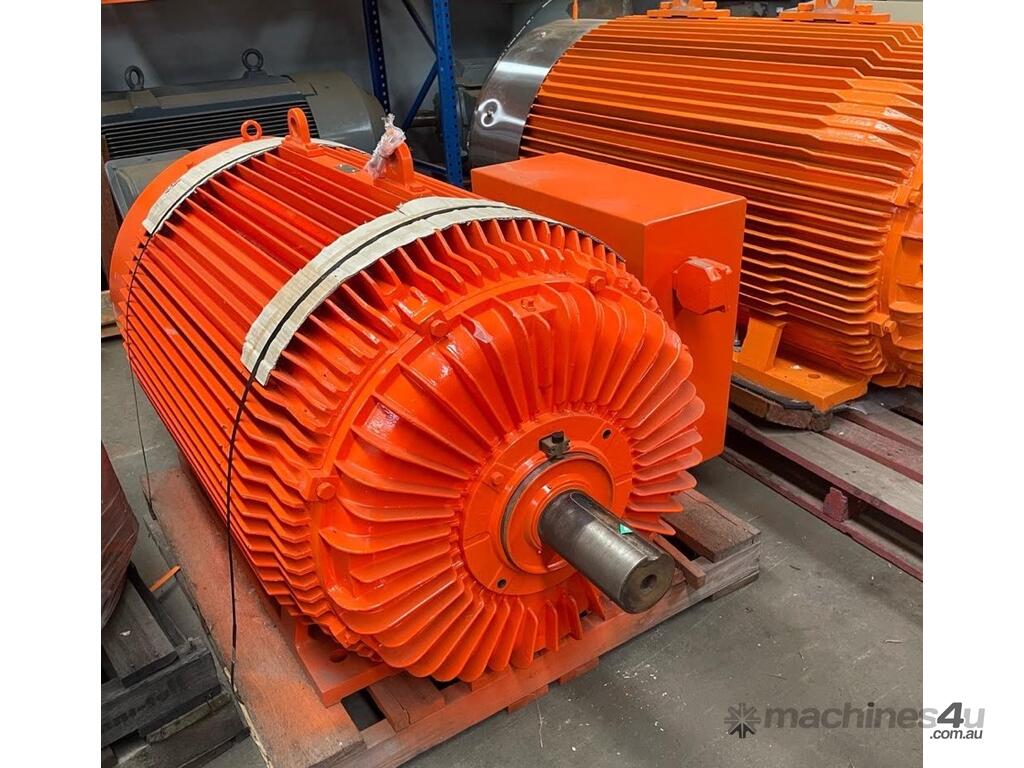

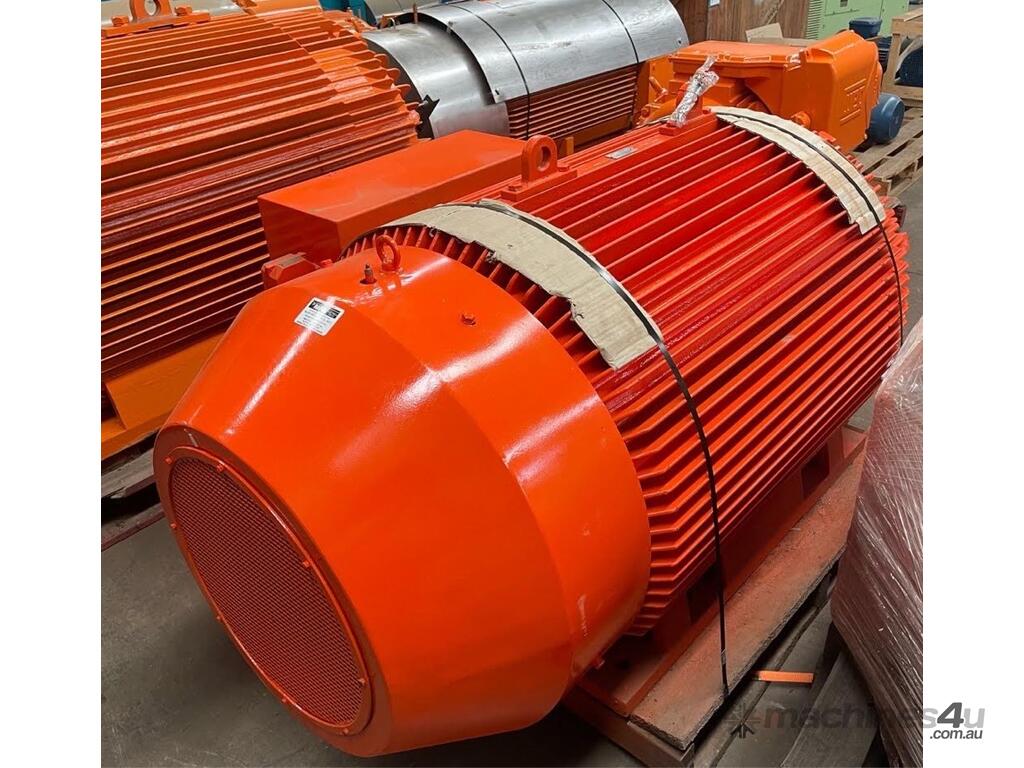

530 kw 710 hp 6-pole 994rpm 415v 400L frame IP66 Mining AC Electric Motor CMG PPA Model PPA400L110-6

530 kw 710 hp 6-pole 994 rpm 415 volt Foot Mount 400LX frame IP66 Mining AC Electric Motor CMG Model PPA400LX110-6

Category: AC Squirrel Cage Electric Motor
3-phase induction motor
Make: CMG
Series: PPA
Model: PPA400LX110-6
Power: 530 KW (710 HP)
Speed: 6-pole (994 rpm)
Rated Frequency: 50 Hz
Rated Voltage: 415 v
Full Load Amperage: 877 A
Mount: B3 Foot
Frame: 400LX
Weight: 3500 kg
Insulation Class: H
Protection Rating: IP66 Mining

Critical DIMS:
Shaft DIA: 110 mm
Shaft Length: 210 mm
Centre Shaft Height: 400 mm
Total Length: 1845 mm (incl. shaft)
Total Width: 1130 mm (incl. standard RHS to D.E. terminal box)
Total Height: 935 mm
Feet Measurements: Across 'A' - 686mm, Front to Back 'B' - 710mm
Front hole to shaft 'C' - 280mm

Available QTY: 1
Condition: Fully Reconditioned & Decommissioned Critical Spare. Electrically OK, N/L test run in Motor Workshop. Warehouse storage.
Delivery point: exStock Seaford VIC 3198 Australia
Freight: Available for immediate despatch. Freight services available on request
