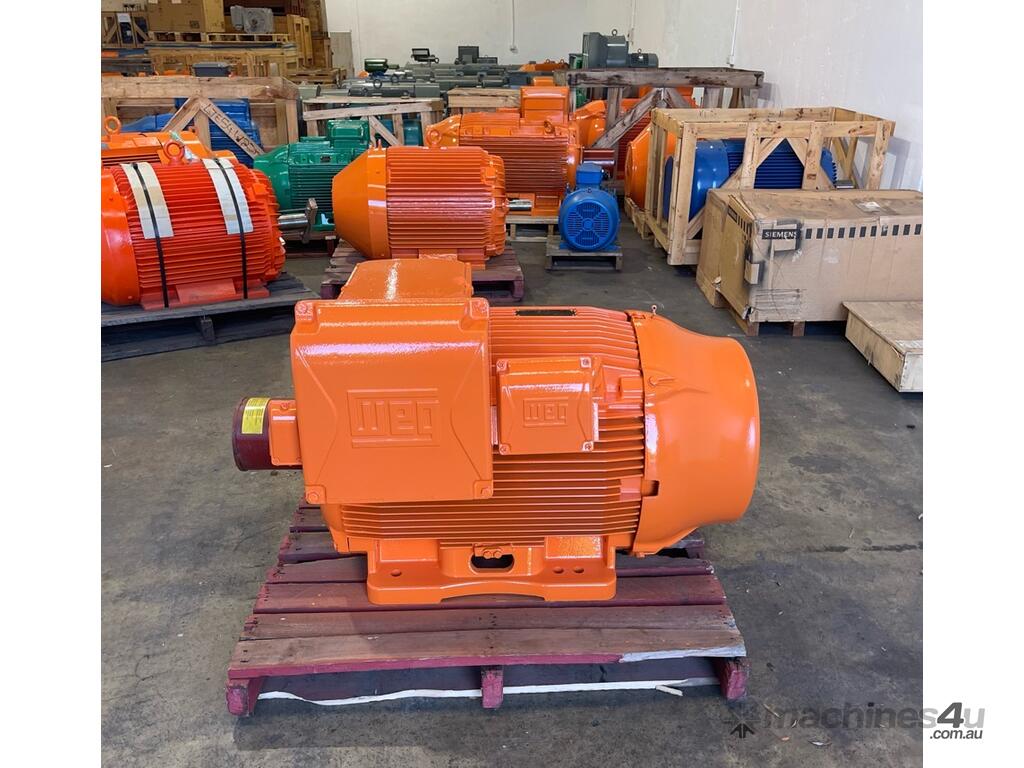

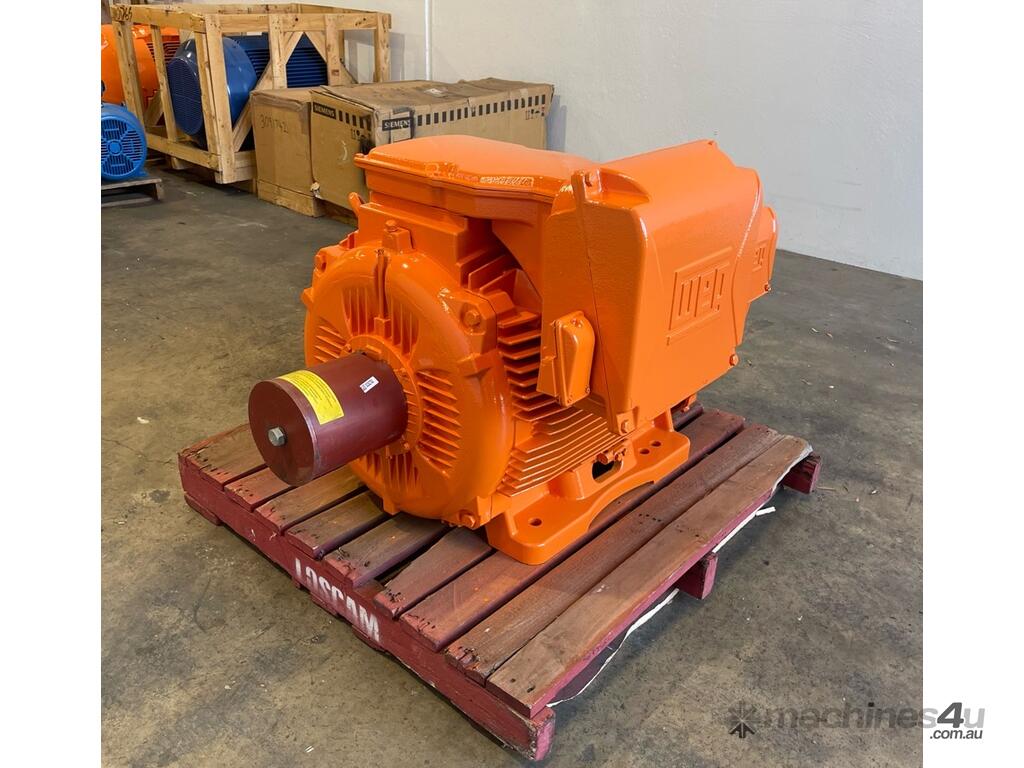

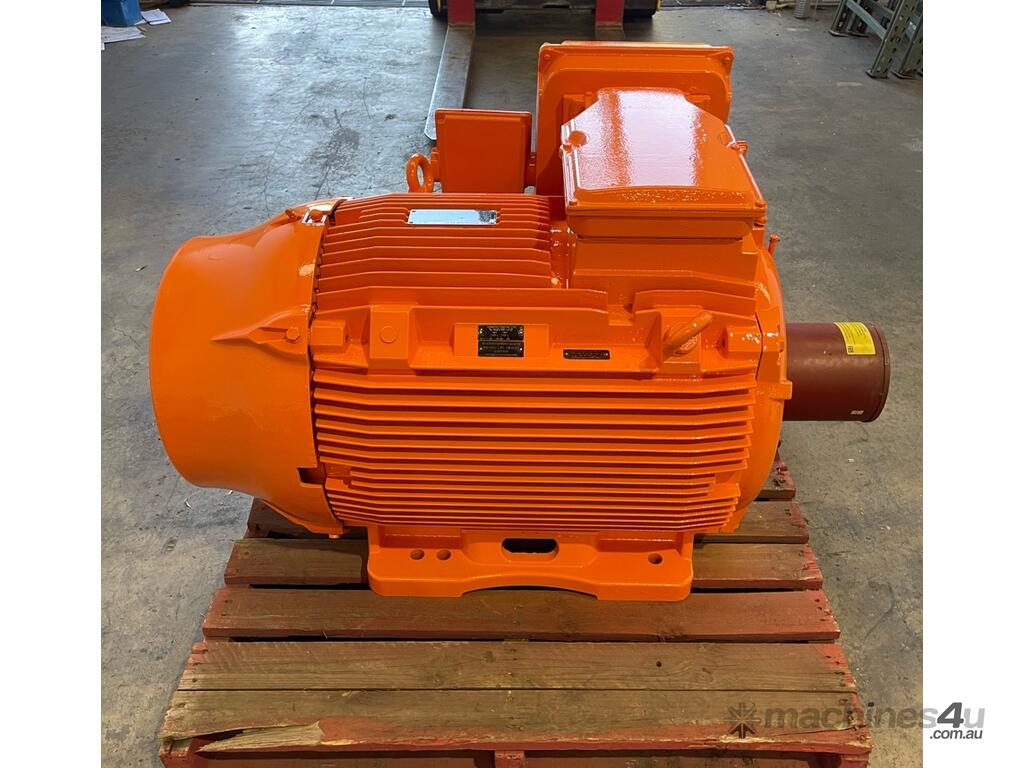

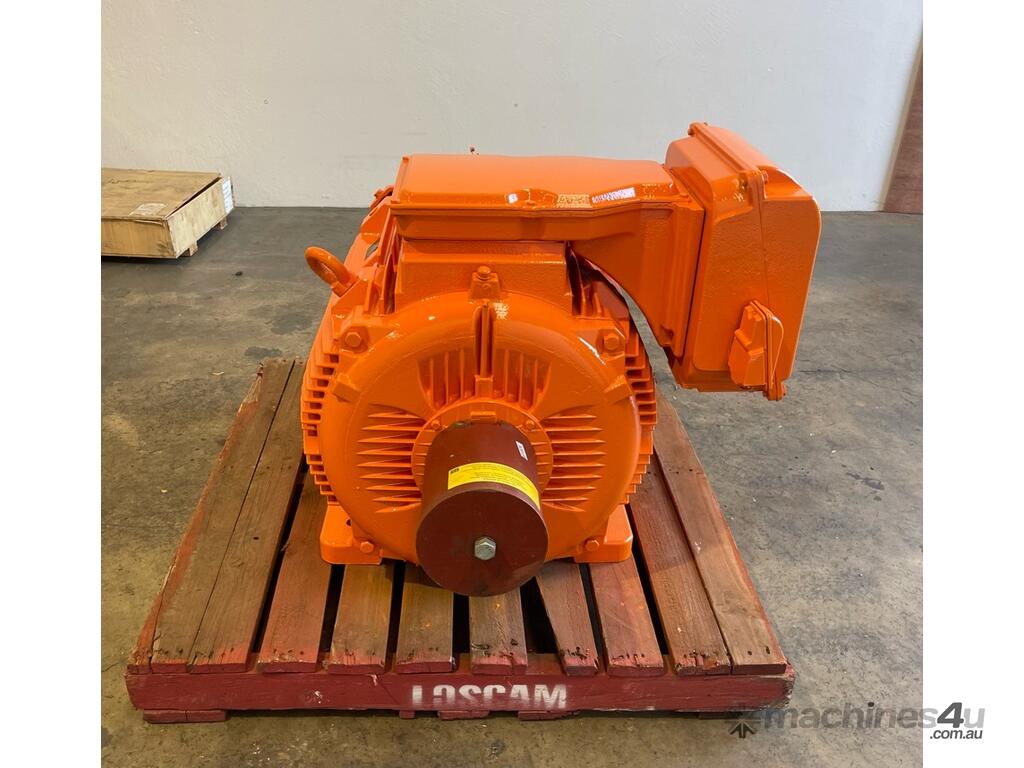

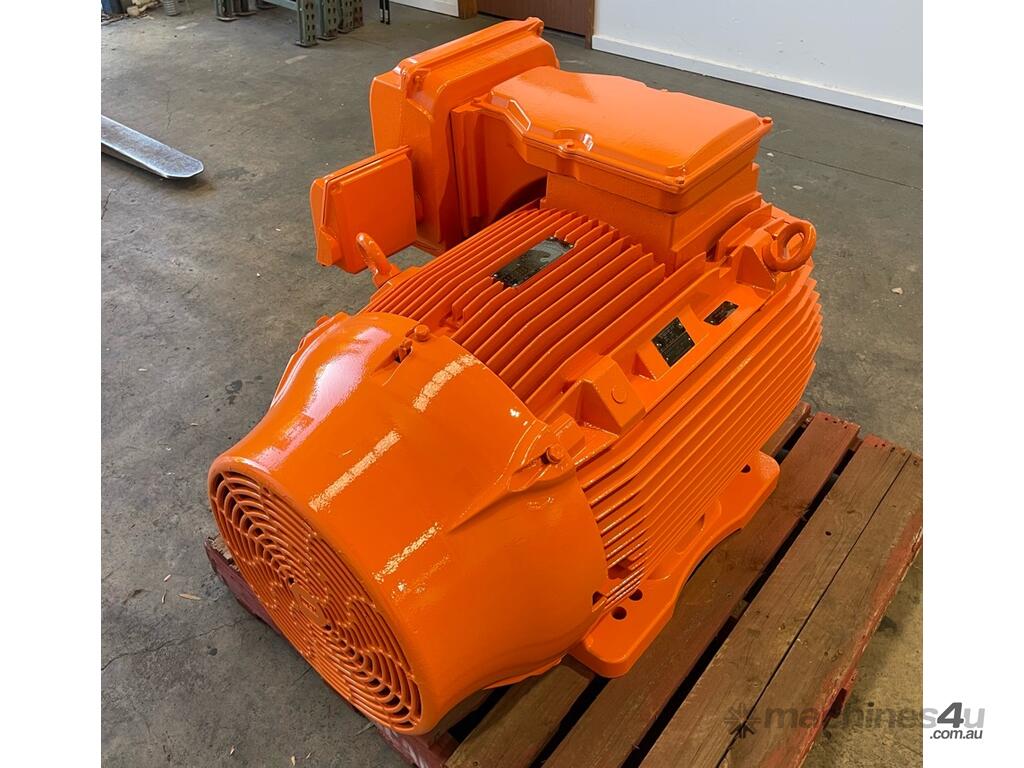

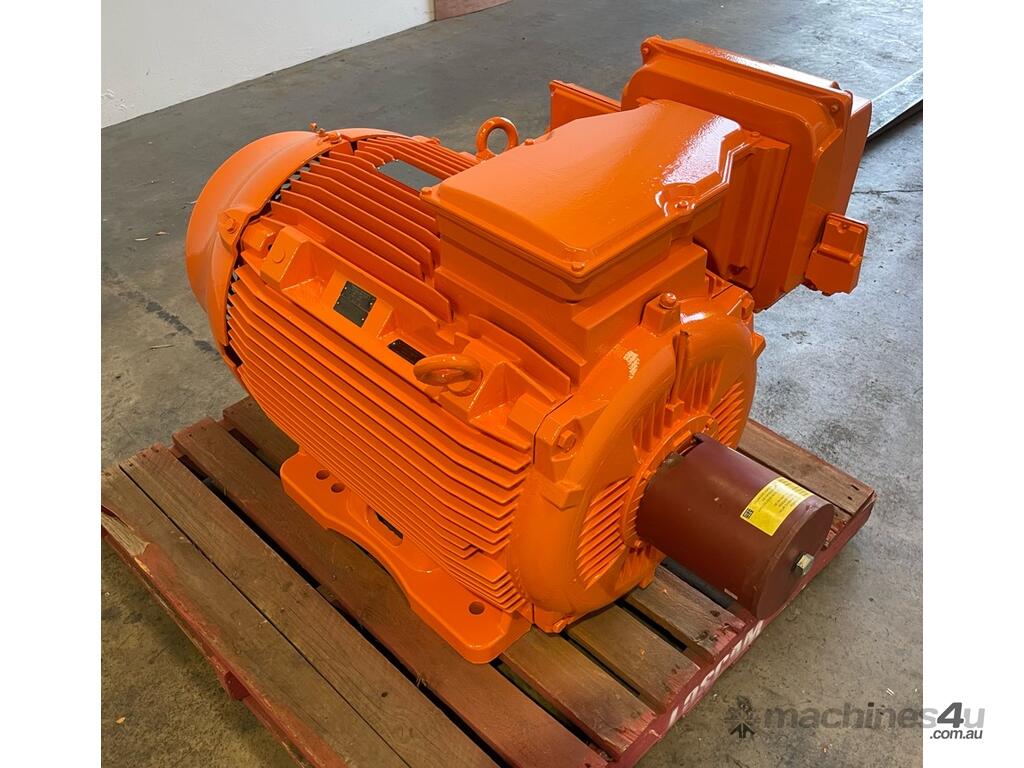

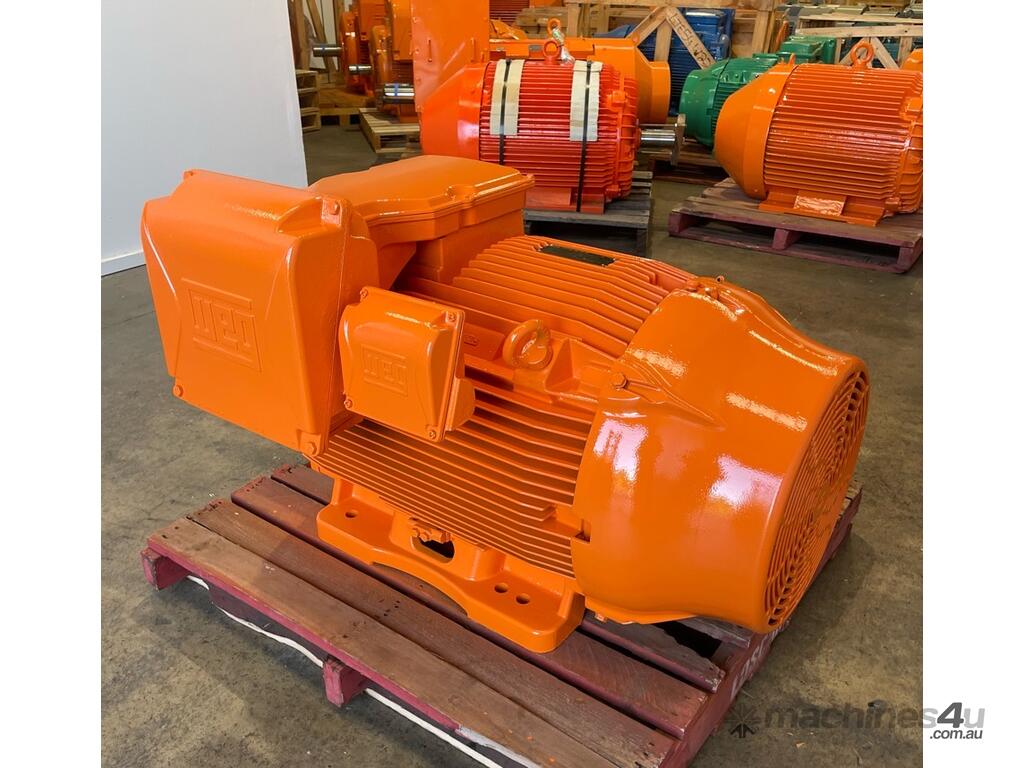

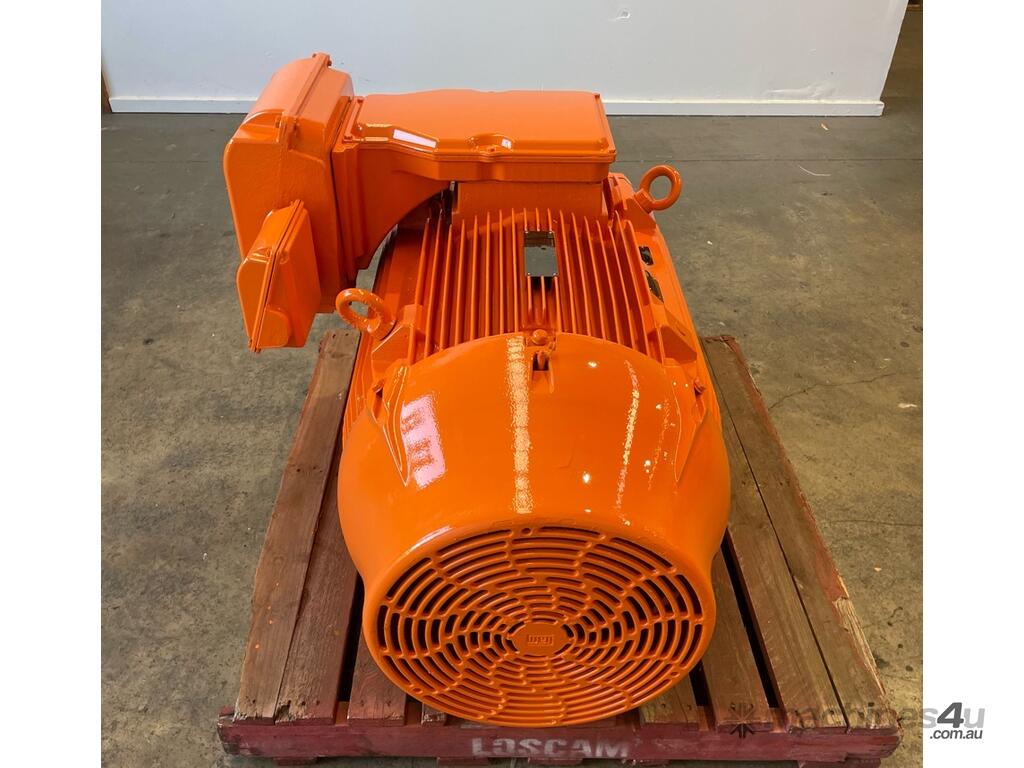

55 kw 75 hp 8-pole 740 rpm 415 volt Foot Mount 315S/M frame IP66 Mining AC Electric Motor WEG Model KTE44B W22M unused
Category: Squirrel Cage AC Electric Motor
3-phase induction motor

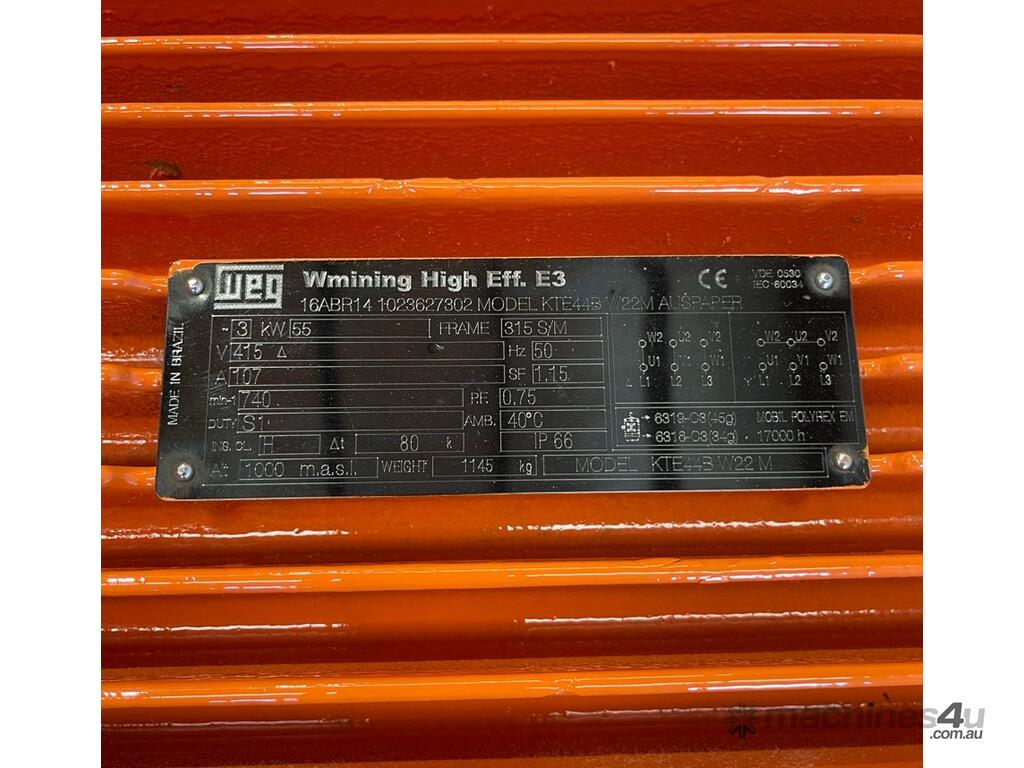

Make: WEG
Model: KTE44B W22M
Power: 55 KW (75 HP)
Speed: 740 rpm
Rated Frequency: 50 hz
Rated Voltage: 415v
Full Load Amperage: 107 A
Mount: B3 Foot
Frame: 315S/M
Protection rating: IP66 Mining
Insulation class - H
Weight: 1145 kg
Notes: Includes D.E. Roller Bearing for belt-driven application
Shaft DIA: 85 mm
Centre shaft height: 315mm
Total Length: 1276mm (incl. shaft)
Total Width: 858mm (incl. standard RHS box to D.E)
Total height: 750mm
Feet Measurements: Across 'A' - 508mm, Front to Back 'B' (2-holes) - 406mm and 457mm
Front hole to shaft 'C' - 216mm
Available QTY: 1
Condition: Unused & Decommissioned critical spare. N/L test run in motor workshop. Factory storage.
Delivery Point: exStock Seaford VIC 3198 Australia
Freight services available on request
Australian wide distribution of leading Electric Motor brands WEG & TECO.
As well as a large stock of Surplus mining/industrial electric motors, saving our customers cost & downtime.
