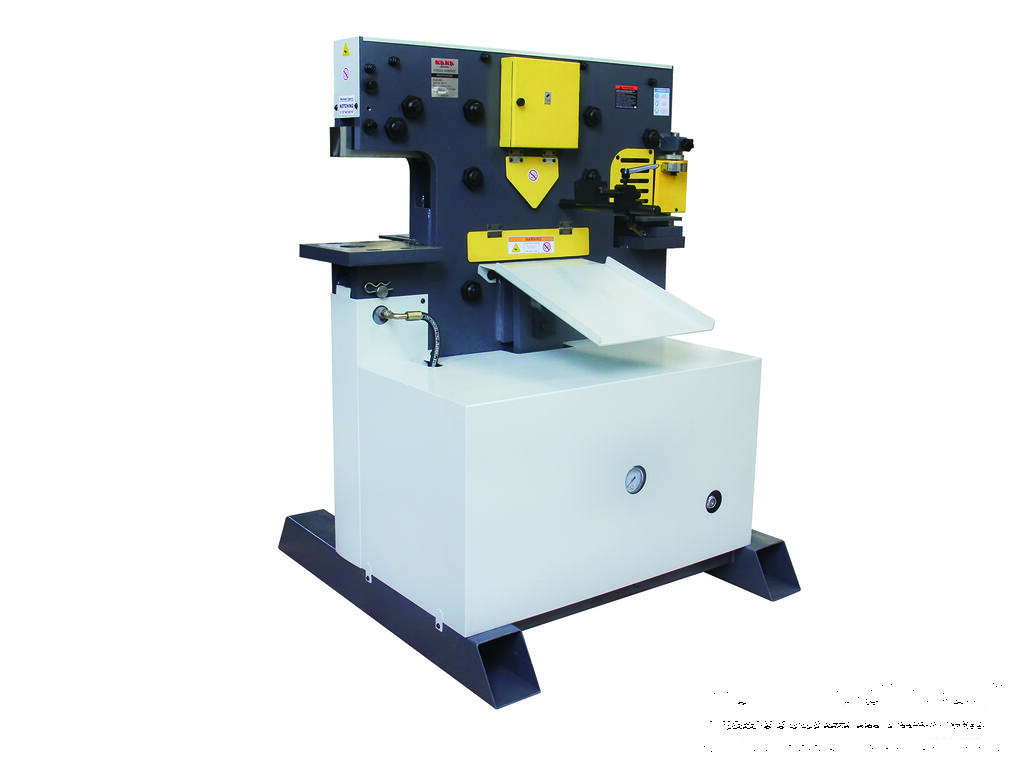

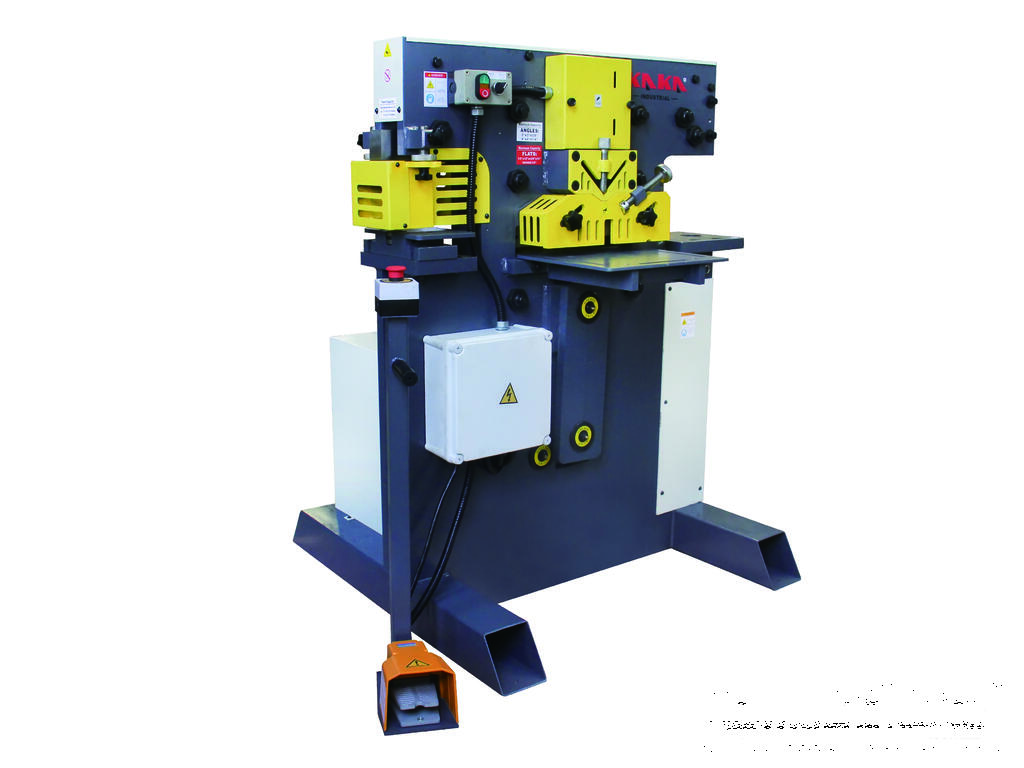

60 Tonne Hydraulic Ironworker M-60, 4 Workstations for Punching, Shearing, and Notching

Kang Industrial Hydraulic Ironworker

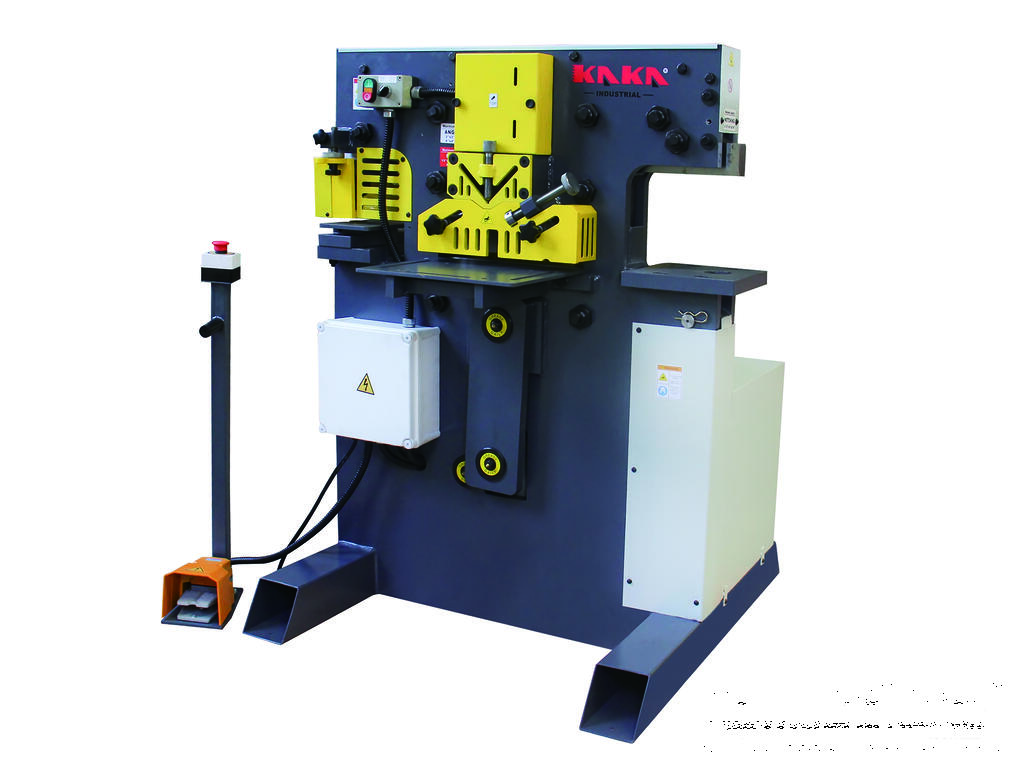

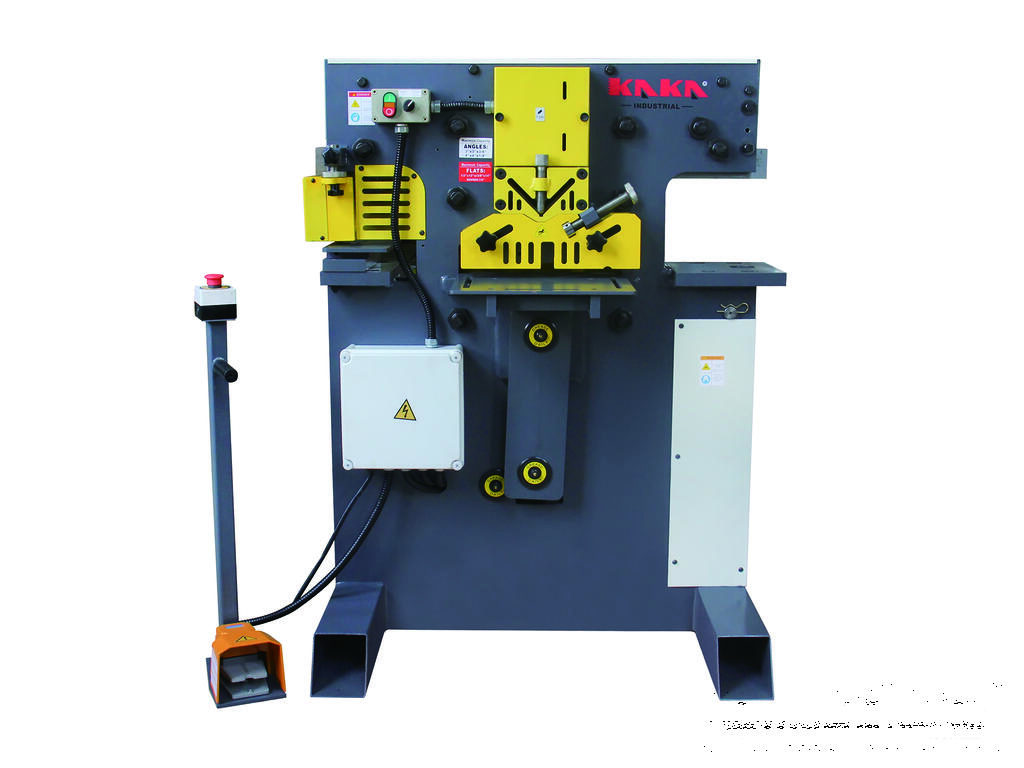

The KANG 60 Tonne Ironworker M-60 is a heavy-duty, mid-range industrial fabrication machine designed for high-volume metalworking. Its defining characteristic is its versatility; it features three standard workstations and one "open cavity" for customization.

Heavy-Duty Fabrication Machine. The ultimate mid-range ironworker with 60 tons of hydraulic force, capable of punching, shearing, and notching mild steel with industrial precision.

4-IN-1  Versatility Combination Ironworker. Features three standard stations (Punch, Flat Bar Shear, Angle Shear) plus an open cavity for custom attachments like pipe notchers or press brakes.

Clean, Precise Cuts on Sheet Metal. Vertical movement ensures even pressure across the workpiece, resulting in minimal distortion and significantly longer tooling life.

Features

Runs on 415V, 3 Phase power

4 available workstations

60T pressure at each of the 4 integrated stations

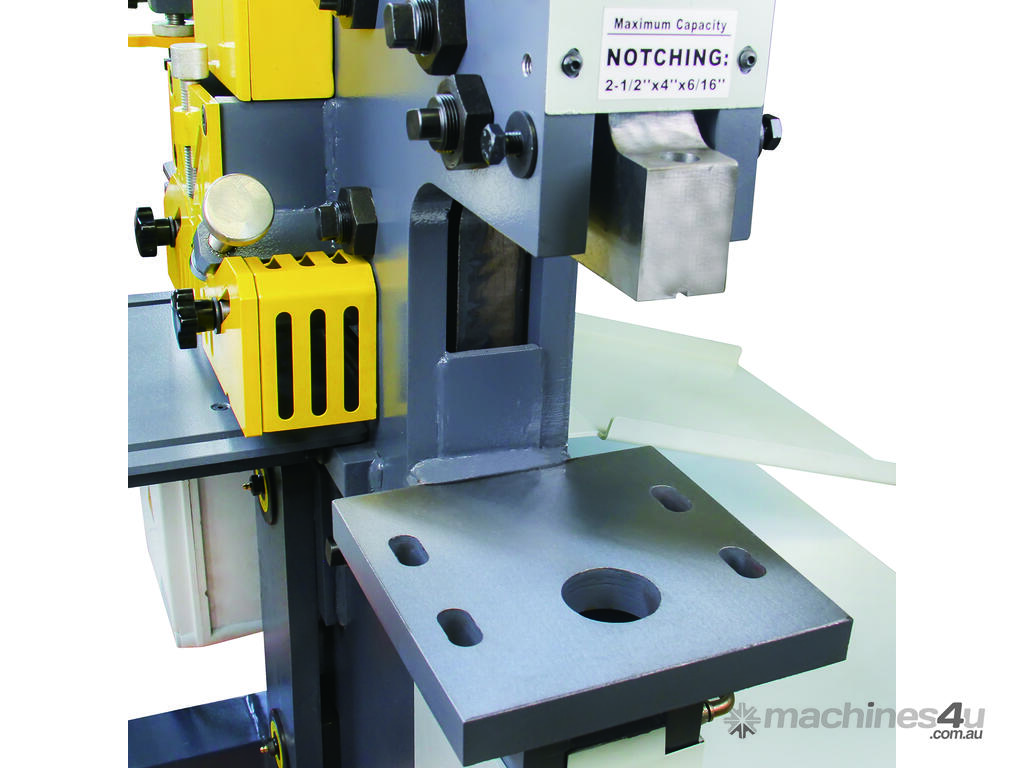

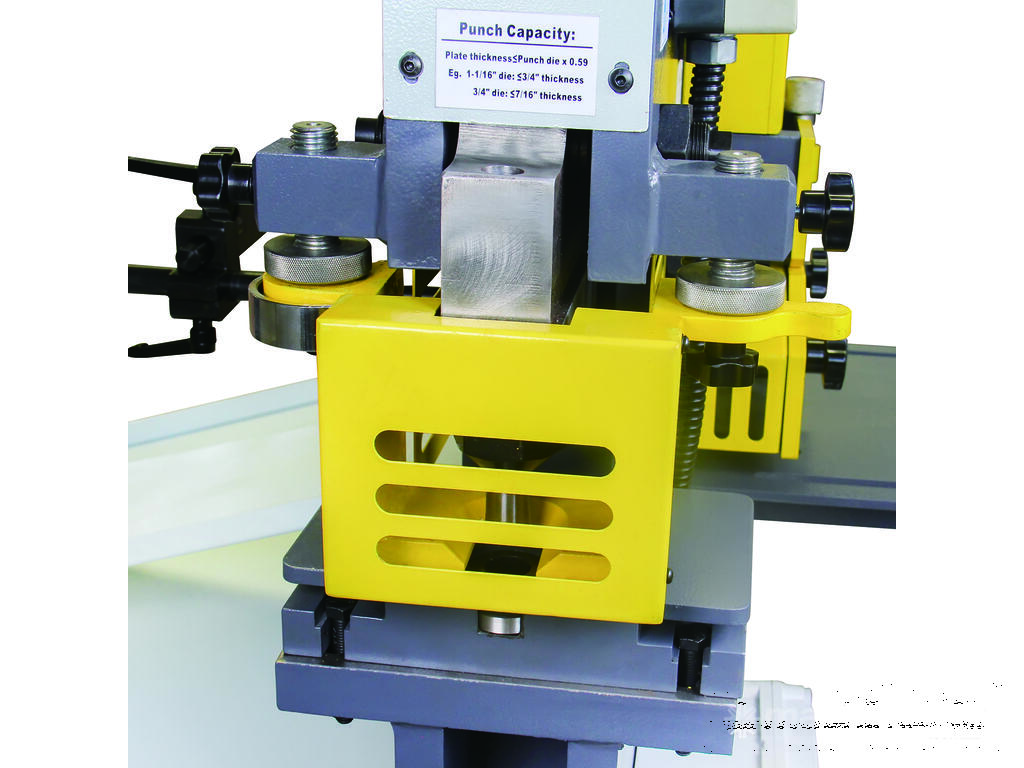

Standard with punch assembly, flat bar shear, angle shear, and a universal open tooling station for optional toolings

Specifications
SKU 181112
Model M60

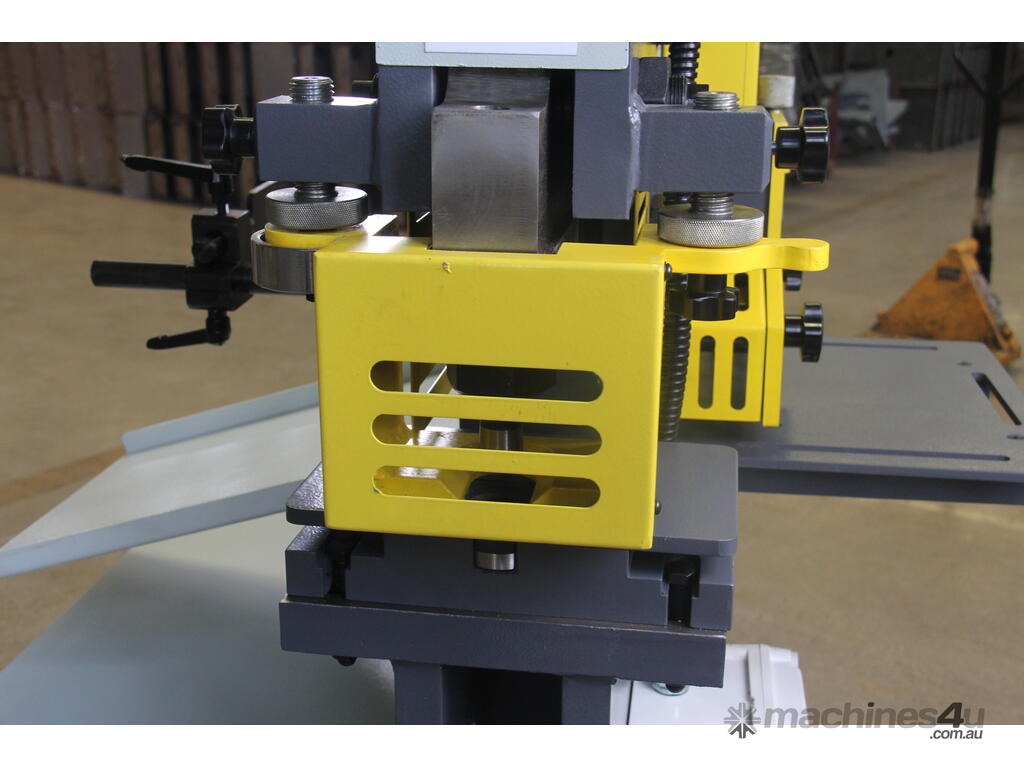

Punching (Max.) 1" dia. in 3/4" plate

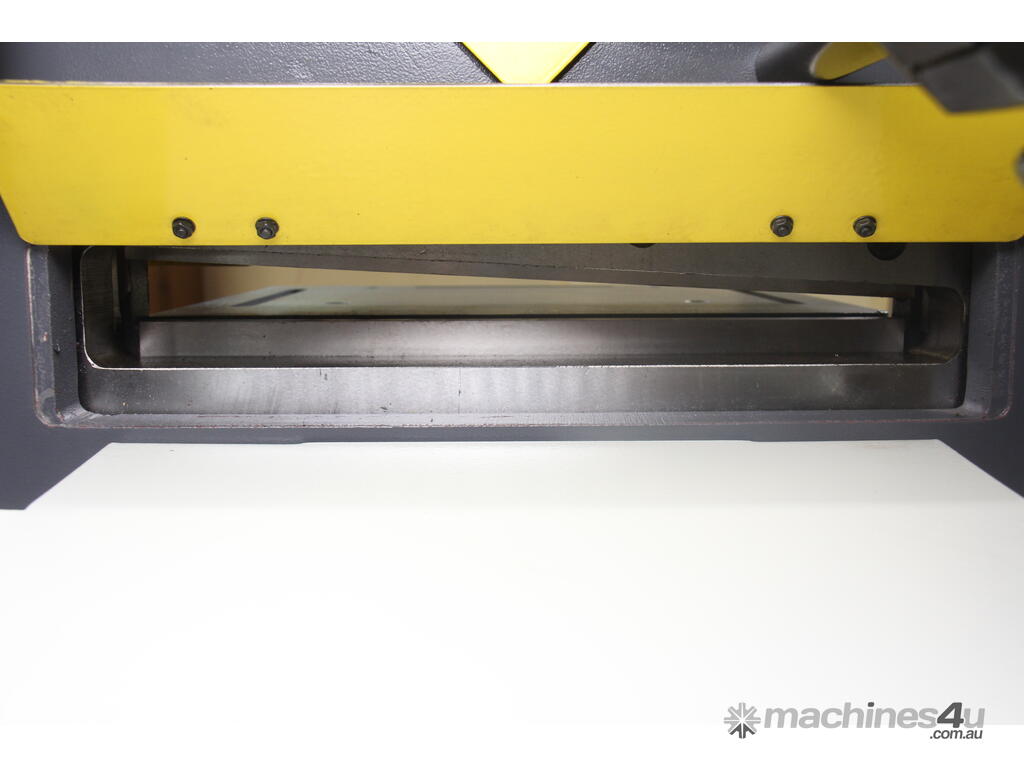

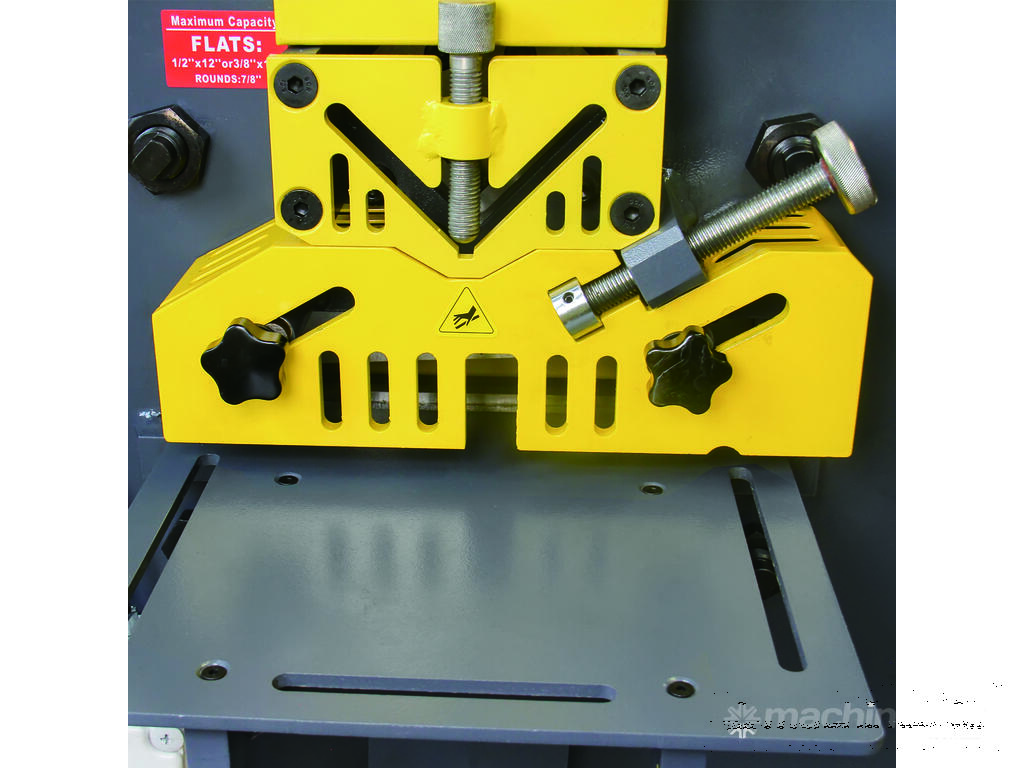

Flat bar max. width 5/8"x12", 3/8"x14"
Flat bar Max. thickness 3/4"x4"

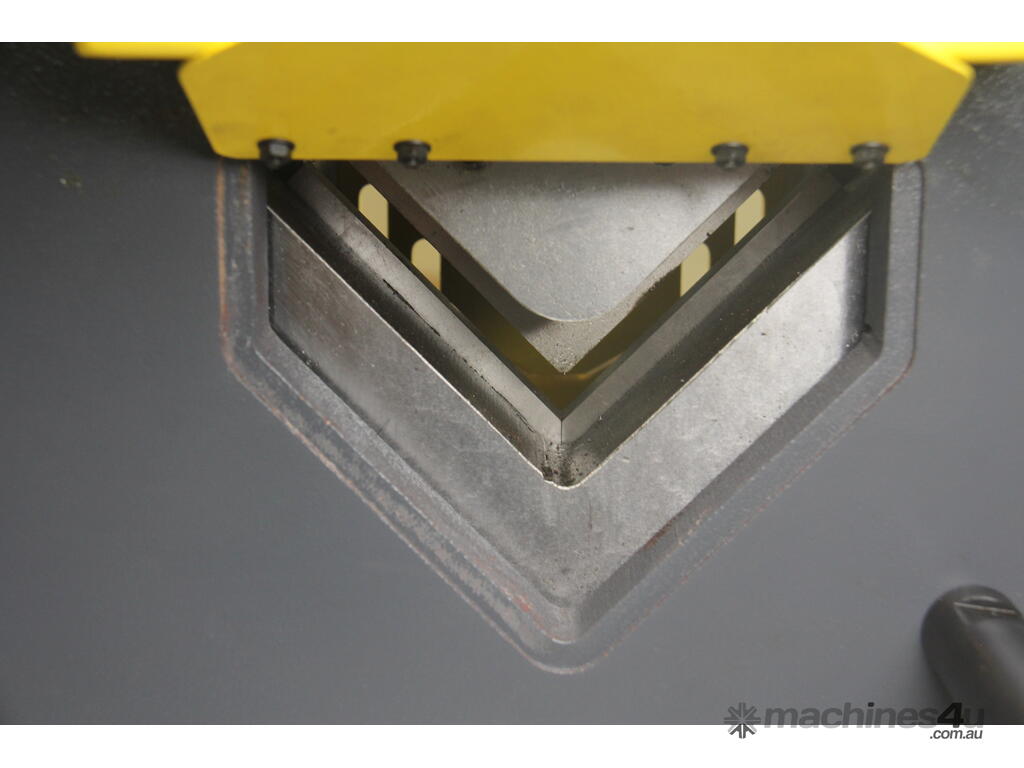

Angle shear 4"x4"x3/8" or 3"x3"x1/"
Capacity 60 T
Throat depth 7-1/2"
Open height 8"
Shut height 6-3/4"
Stroke 1-1/4"
Motor power 5 kW
Packing size 123x113x152 cm
N.W./G.W. 1000/1150kg
