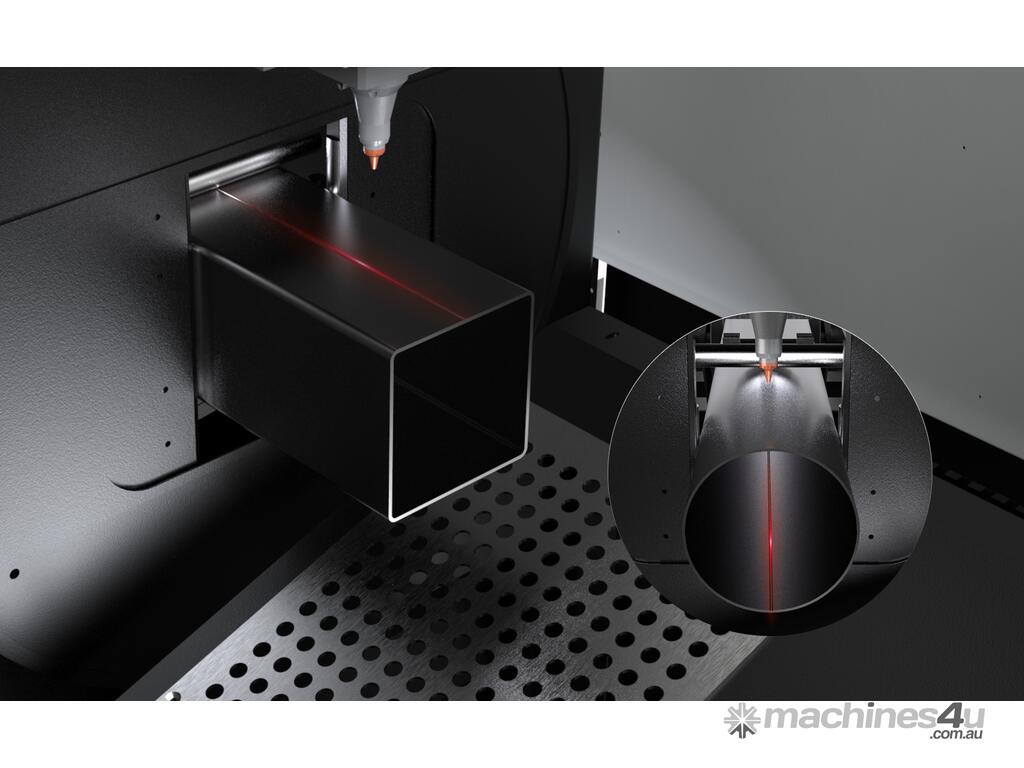

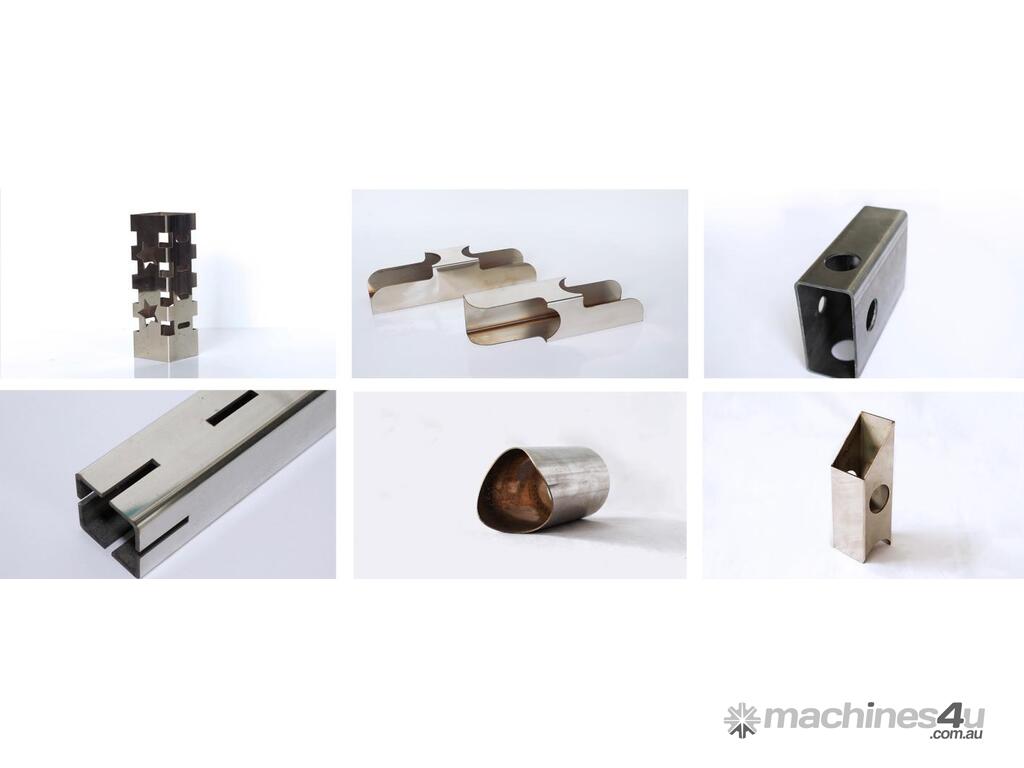

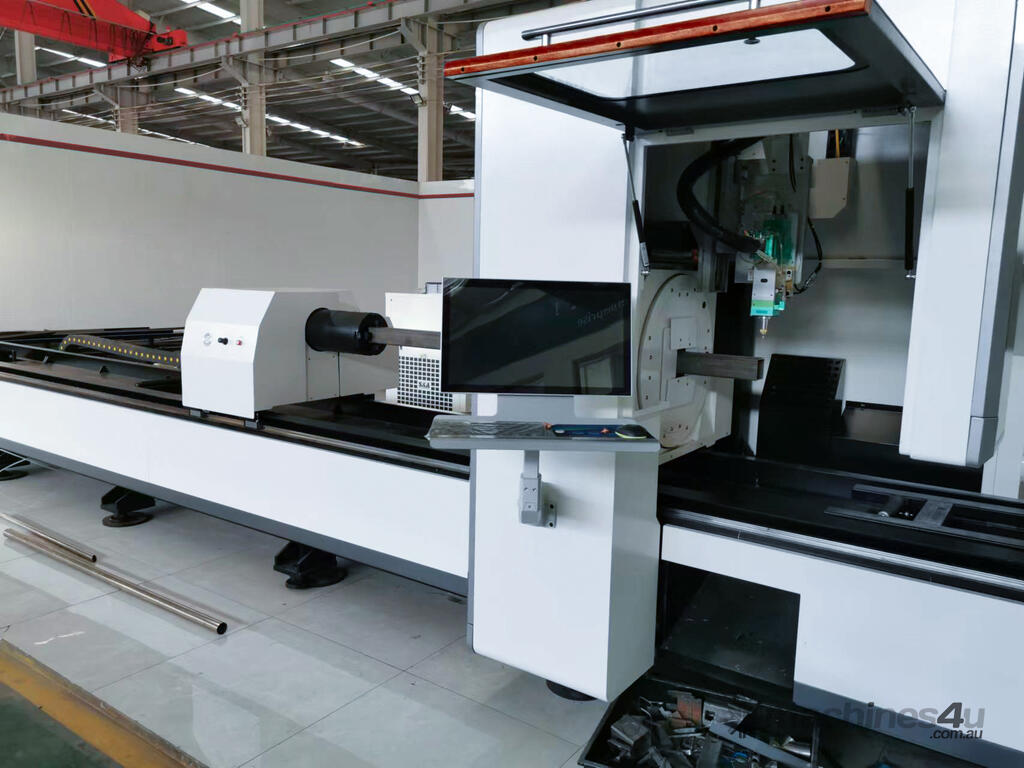

Our laser tube cutting machine is engineered for versatility, handling a wide range of cutting applications with ease. Whether it's simple pipe cutting or complex contour shaping, this system adapts to various working conditions effortlessly.

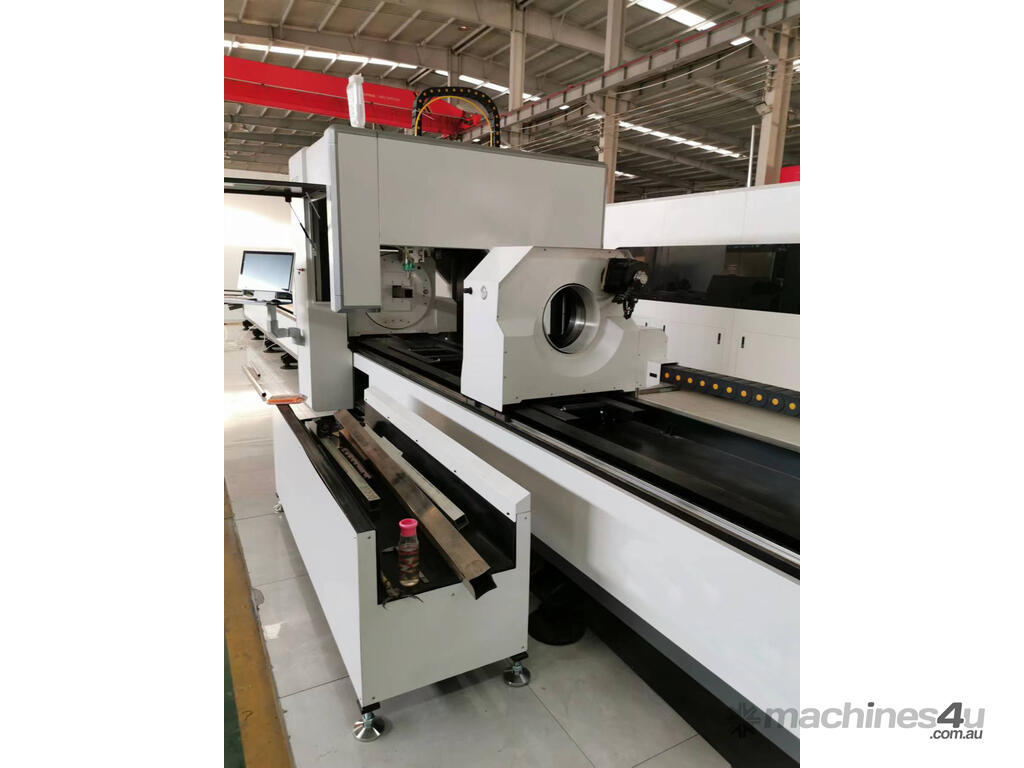

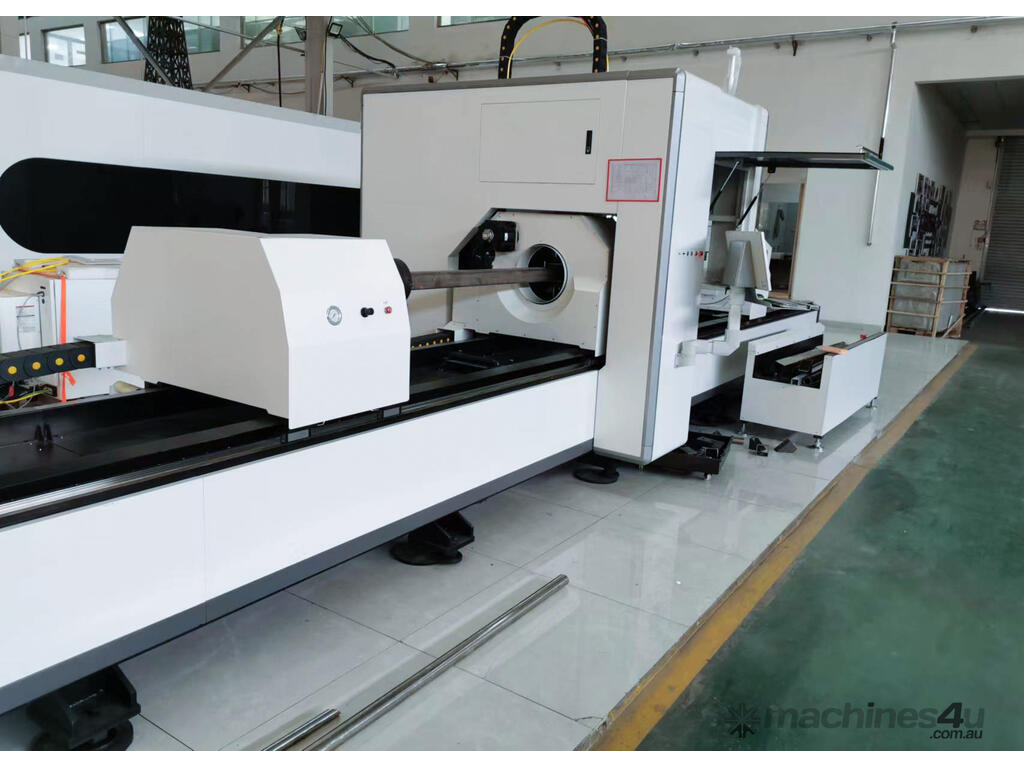

The machine features a pneumatic direct-push chuck system that ensures automatic centering and stable clamping. Its high transmission efficiency and easy maintenance design significantly enhance productivity and reduce downtime.

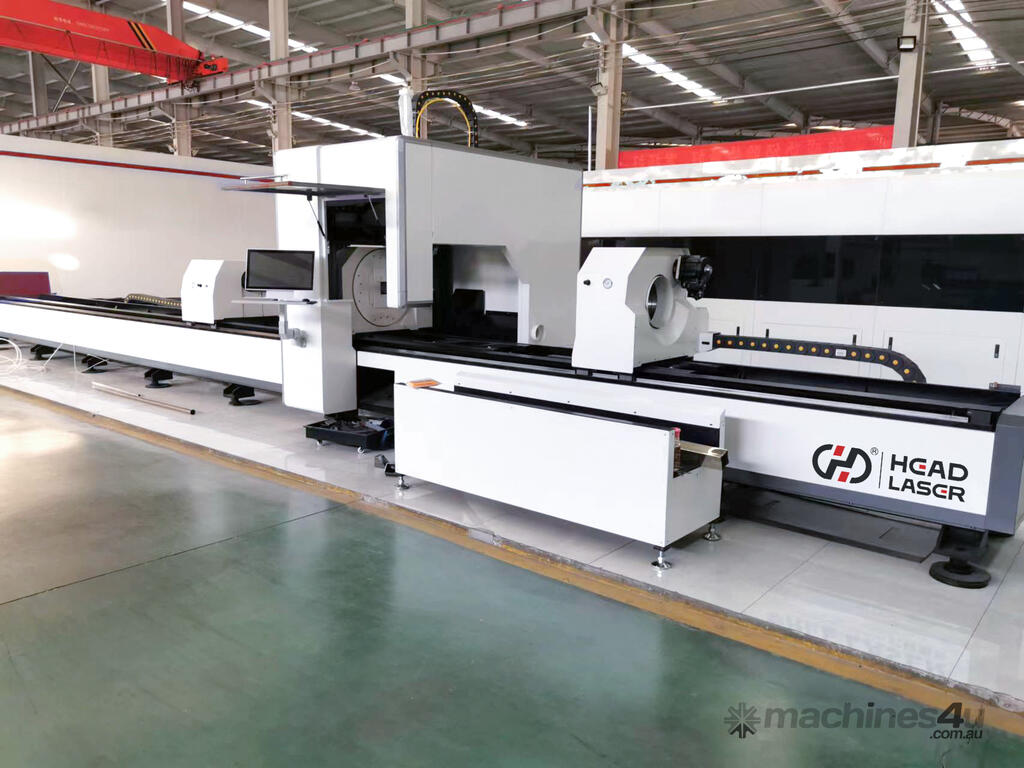

Built with a horizontal bed structure and double-beam (dual keel) design, it delivers exceptional load-bearing capacity, rigidity, and stability—even during high-speed operations.
While achieving faster cutting speeds, it also maximizes material utilization, helping manufacturers reduce production costs and waste.
Maximum processing pipe length: 6300mm
Round pipe processing range: 20-350mm
Square and rectangular pipe processing range: 20-350mm
Positioning accuracy: ±0.05mm/m
Repeatability: ±0.03mm/m
Maximum operating speed (Y-axis): 130m/min
Maximum acceleration (Y-axis): 1.5G
Maximum chuck speed: 200r/min
Chuck load capacity: 100kg
Minimum tail length: 120mm
