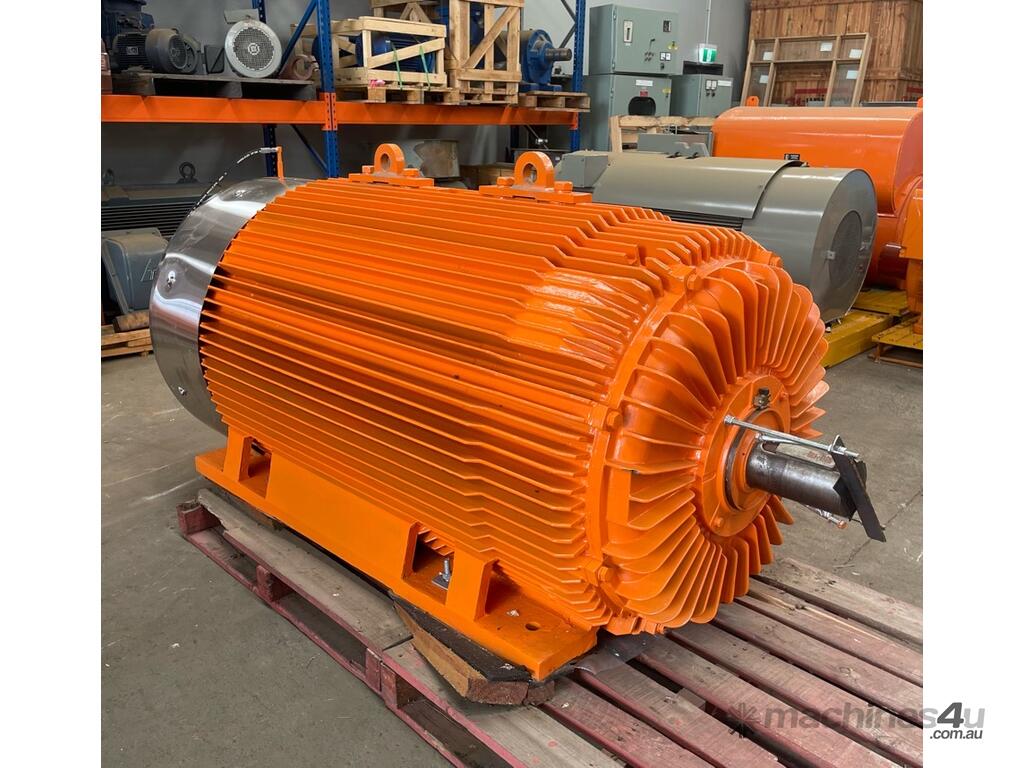

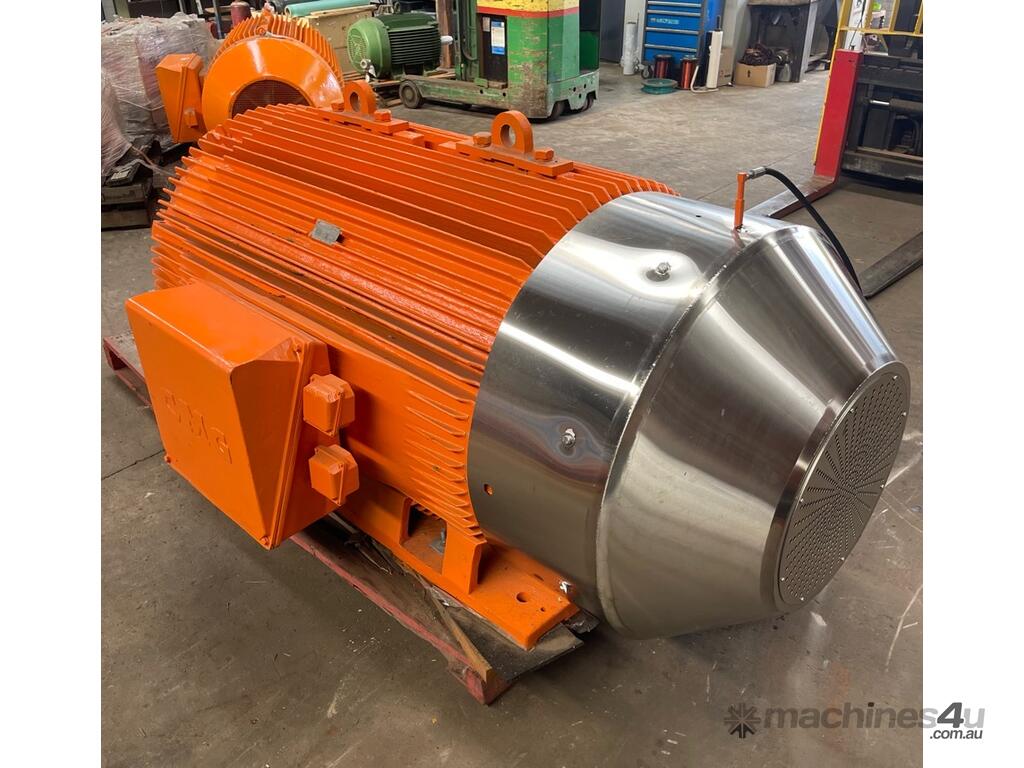

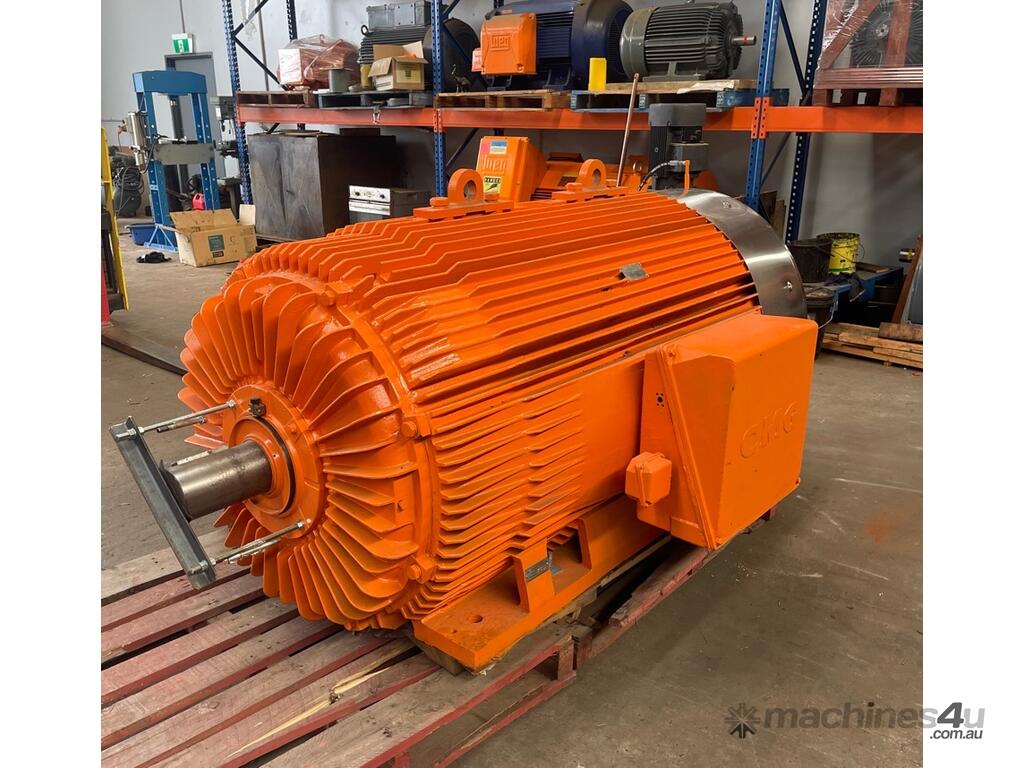

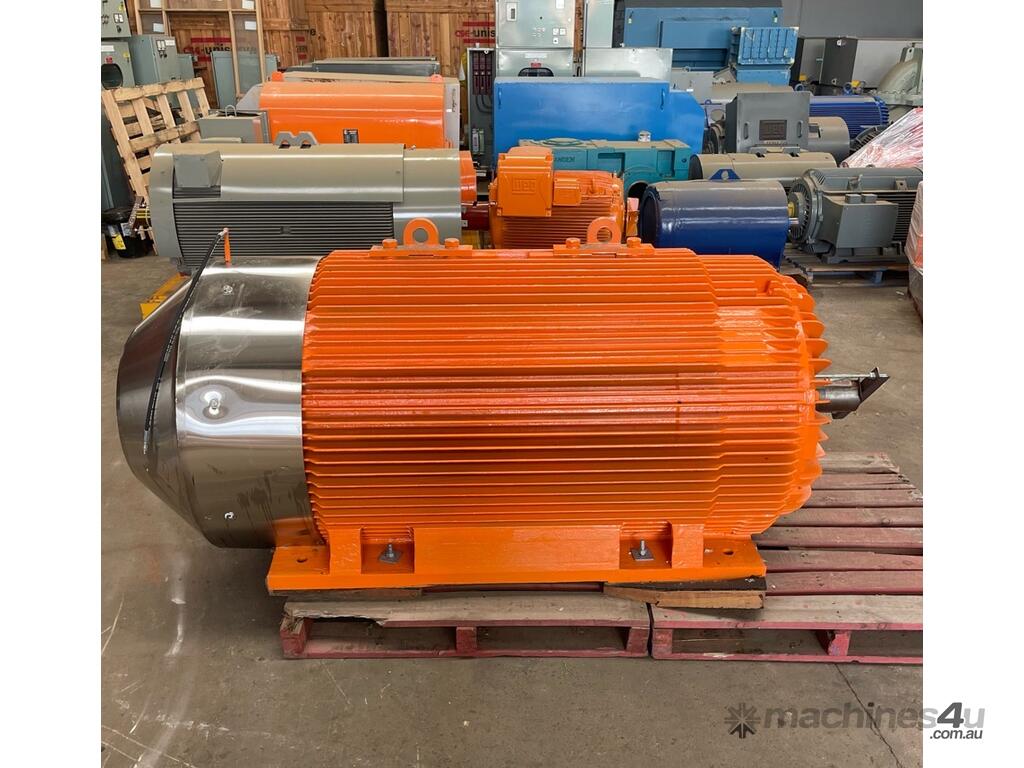

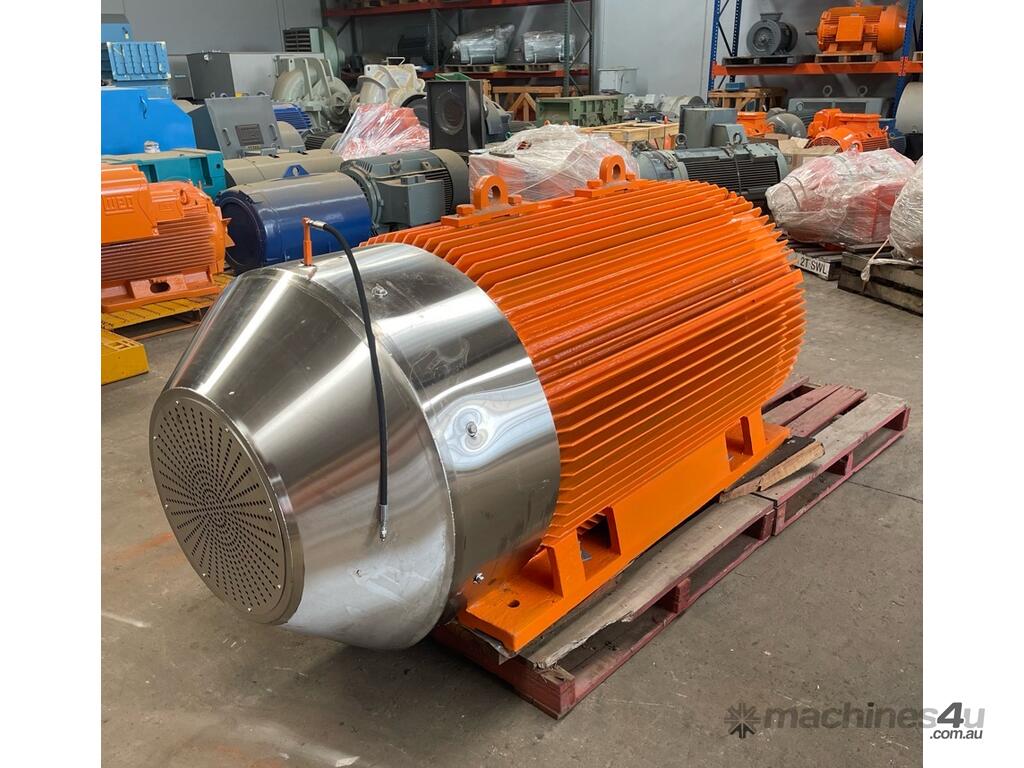

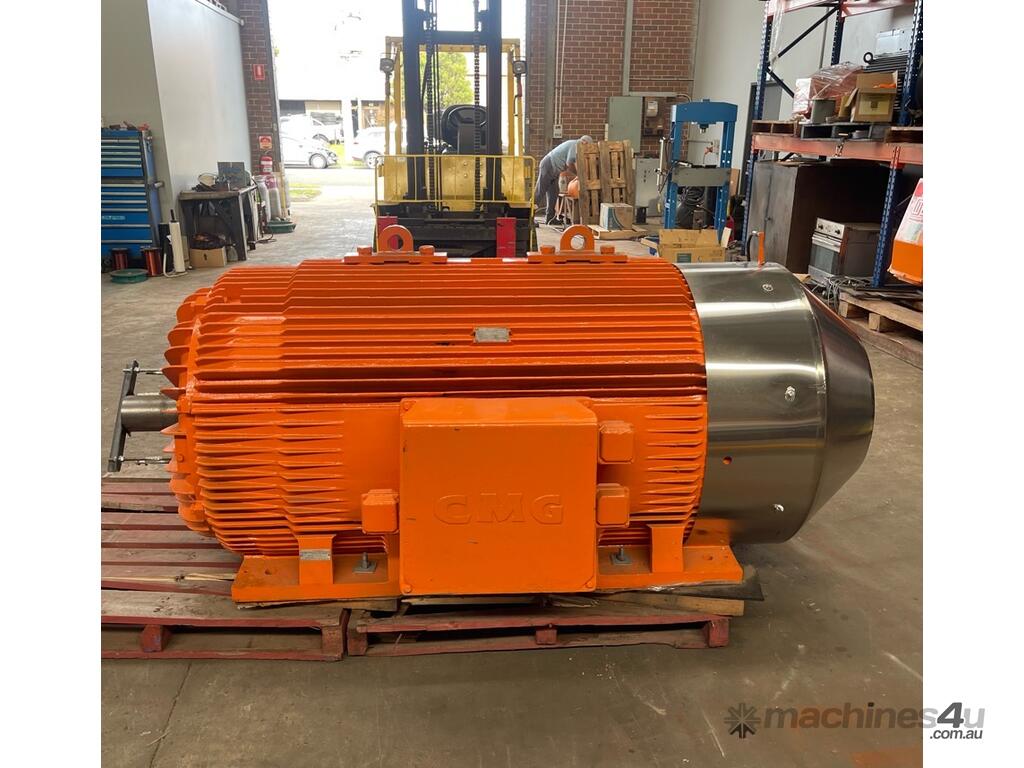

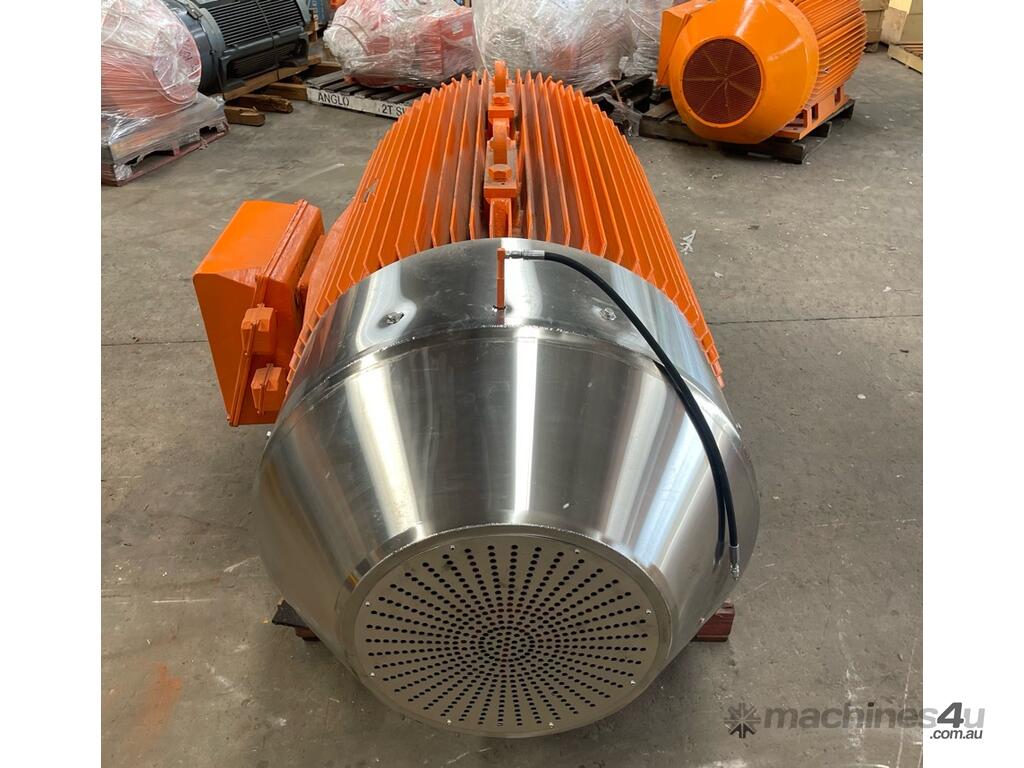

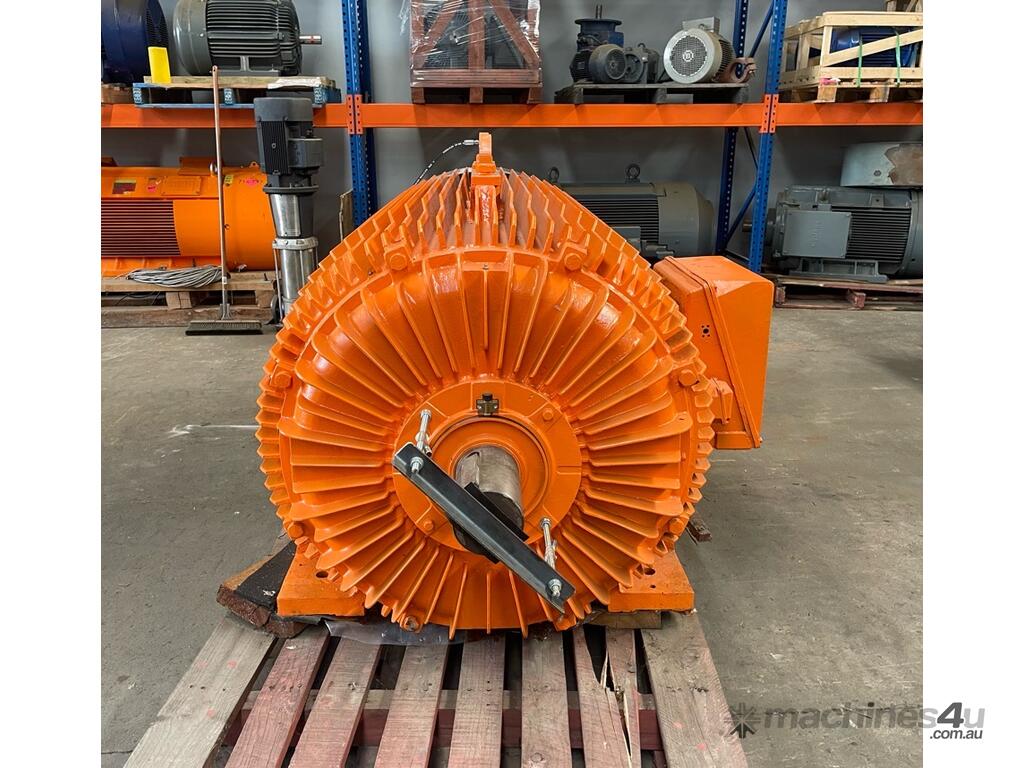

630 kw 850 hp 6-pole 994rpm 415v 450L frame IP66 Mining AC Electric Motor CMG PPA Model PPA450L125-6

630 kw 850 hp 6-pole 994 rpm 415 volt Foot Mount 450L frame IP66 mining AC Electric Motor CMG PPA Model PPA450L125-6

Category: AC Squirrel Cage Electric Motor
3-phase induction motor

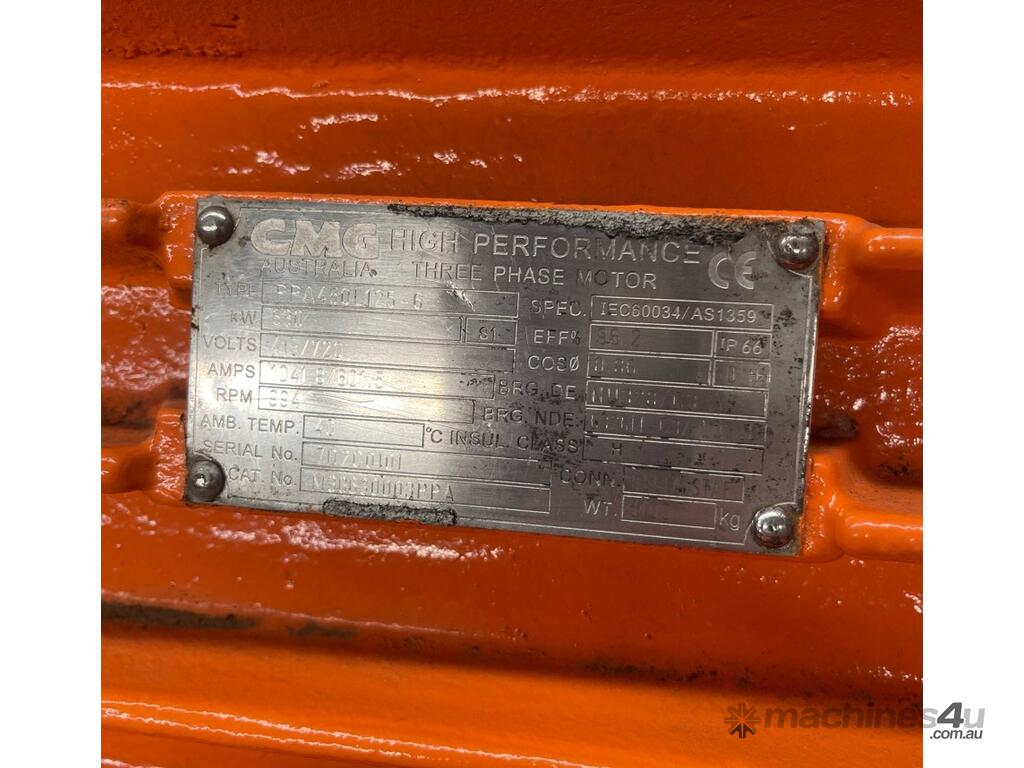

Make: CMG
Model: PPA450L125-6
Power: 630 KW (850 HP)
Speed: 6-pole (994 rpm)
Rated Frequency: 50 Hz
Rated Voltage: 415v
Full Load Amperage: 1041 A
Mount: B3 Foot
Frame: 450L
Weight: 5100 kg
Insulation Class: H
Protection Rating: IP66 Mining

Critical DIMS:
Shaft DIA: 125 mm
Shaft Length: 210 mm
Centre Shaft Height: 450 mm
Total Length: 2500 mm (incl. shaft)
Total Width: 1350 mm (incl. standard RHS to D.E. terminal box)
Total Height: 1050 mm (incl. lifting points)
Feet Measurements: Across 'A' - (approx) 770mm, Front to Back 'B' (2-holes) - 1120mm & 1400mm
Front hole to shaft 'C' - 290 mm

Available QTY: 1
Condition: Fully Reconditioned & Decommissioned critical spare. Electrically OK, N/L test run in motor workshop. Warehouse storage
Delivery Point: exStock Seaford VIC 3198 Australia
Freight: Available for immediate despatch - Freight available on request
