1.The pipe clamping range is wide: Round tube ?20-?350mm, and Square tube side length is 10 * 10mm-360mm * 350mm. Support the cutting of various shapes of pipe materials, such as I-beam, channel steel, angle steel, elliptical pipe, waist pipe, multi-deformed pipe,etc.

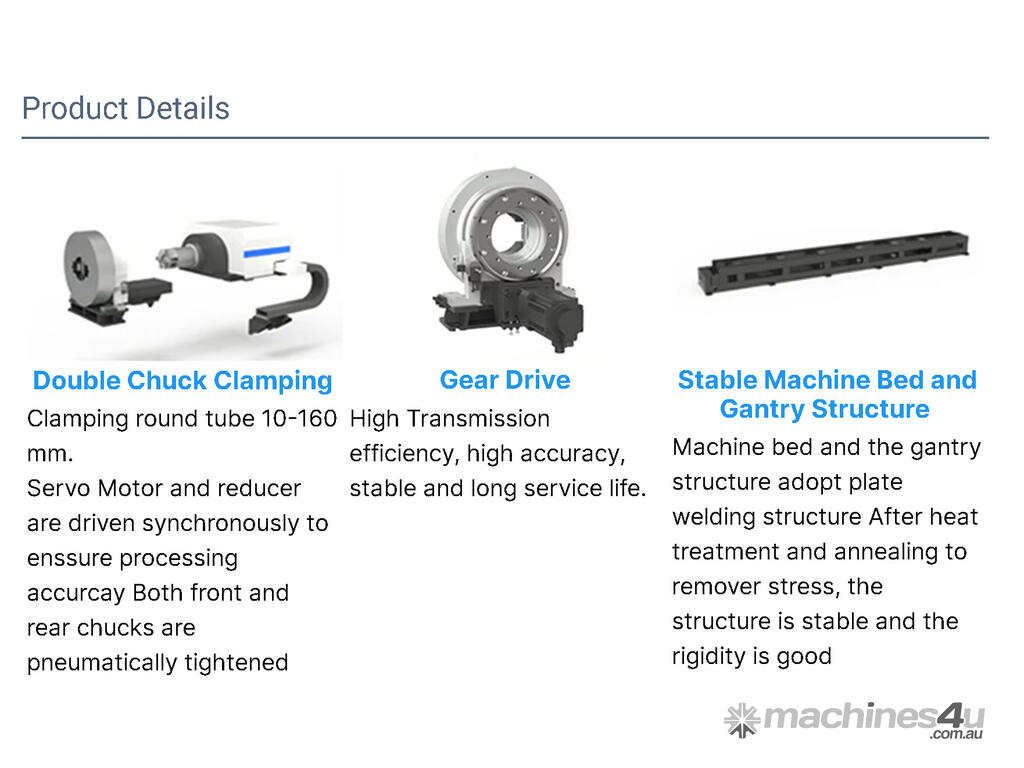

2.The unique industrial structure design gives it maximum stability and higher vibration resistance and damping quality. The compact spacing of 650mm ensures the agility of the chuck and the stability during high-speed driving.
3.Fixing the pipe effectively solves the deformation problem in the cutting operation of the long pipe.
4.Uses professional cutting software for processing various types of pipes. Through the collection and processing of various real-time information, it can achieve high-precision cutting and achieve higher efficiency processing.
5. The frequency and time interval of automatic lubrication can be manually set according to the length of equipment use which facilitates the automatic lubrication of guide rails, sliders, gears, racks, and other components, after which, recycling and centralized processing of lubricating waste oil takes place.

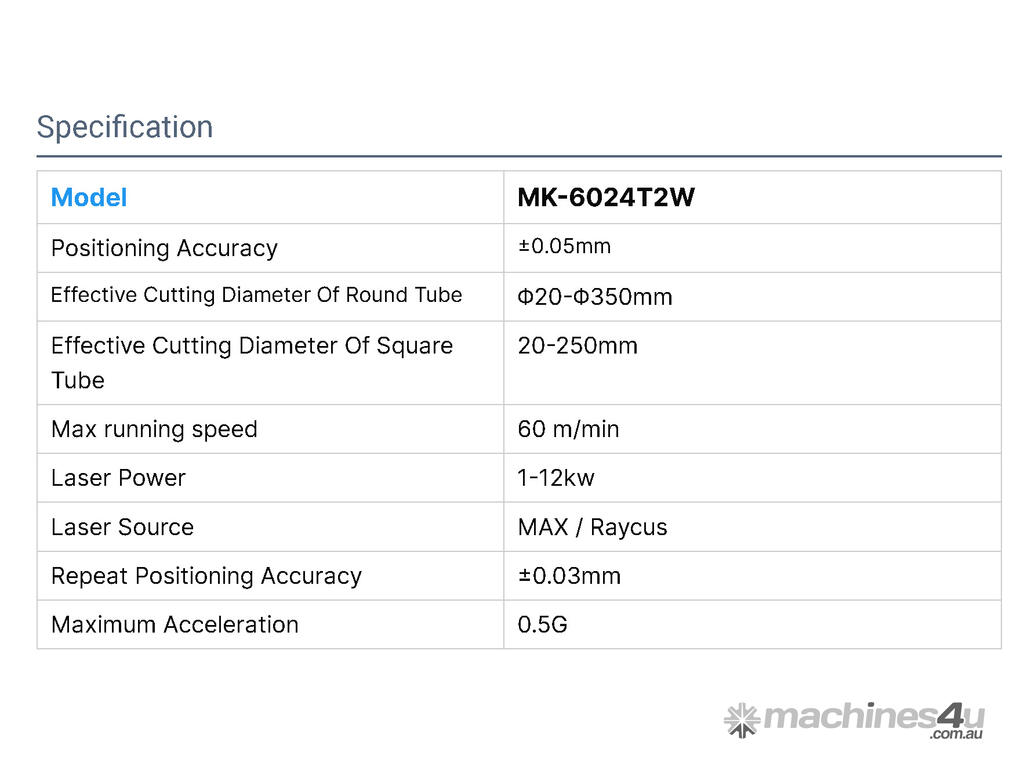

Specification
Model MK-6024T2W
Positioning Accuracy ±0.05mm
Effective Cutting Diameter Of Round Tube ?20-?350mm
Effective Cutting Diameter Of Square Tube 20-250mm
Max running speed 60 m/min
Laser Power 6kw

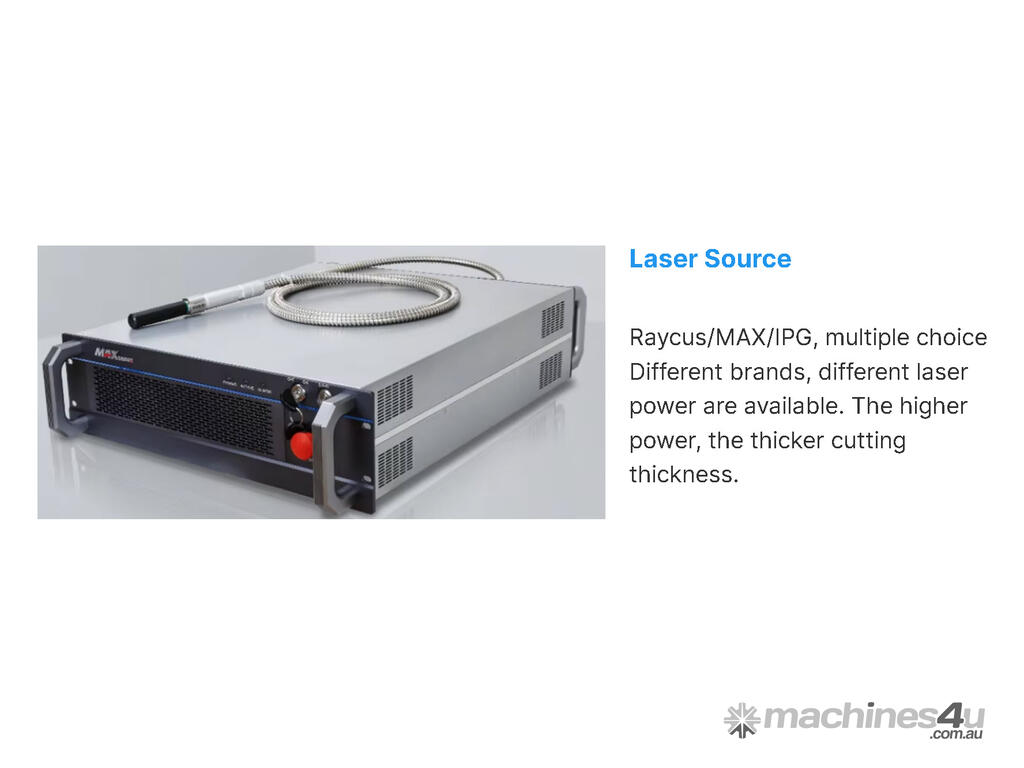

Laser Source MAX / Raycus
Repeat Positioning Accuracy ±0.03mm
Maximum Acceleration 0.5G
