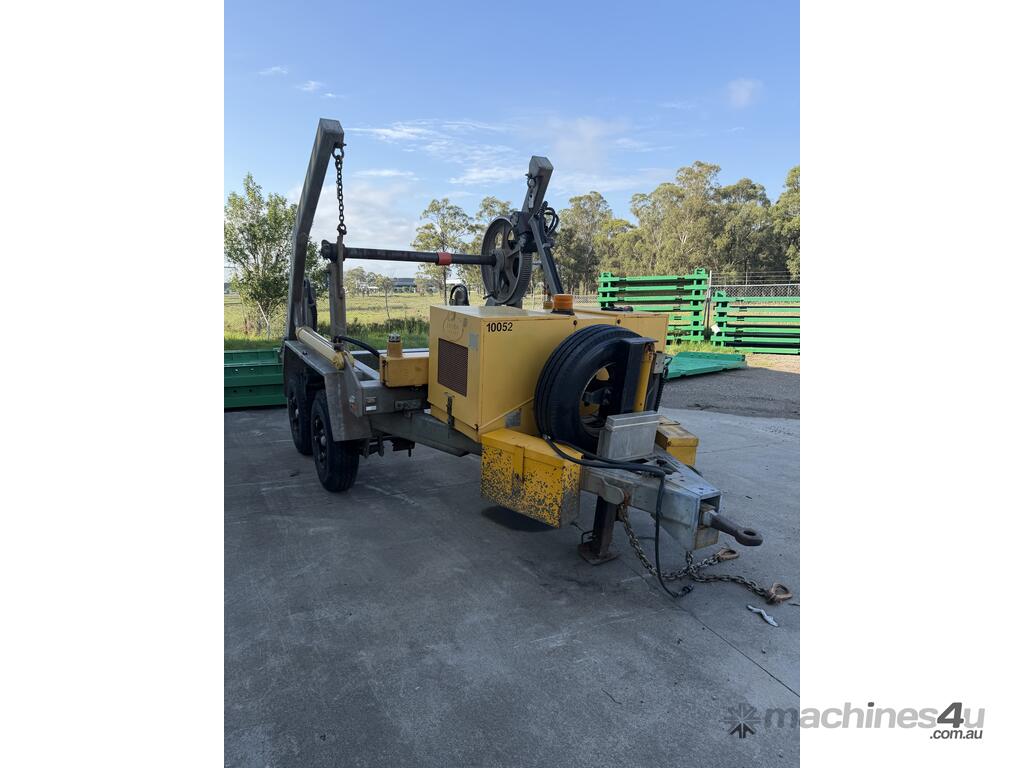

6T SELF LOADING CABLE TRAILER

Description

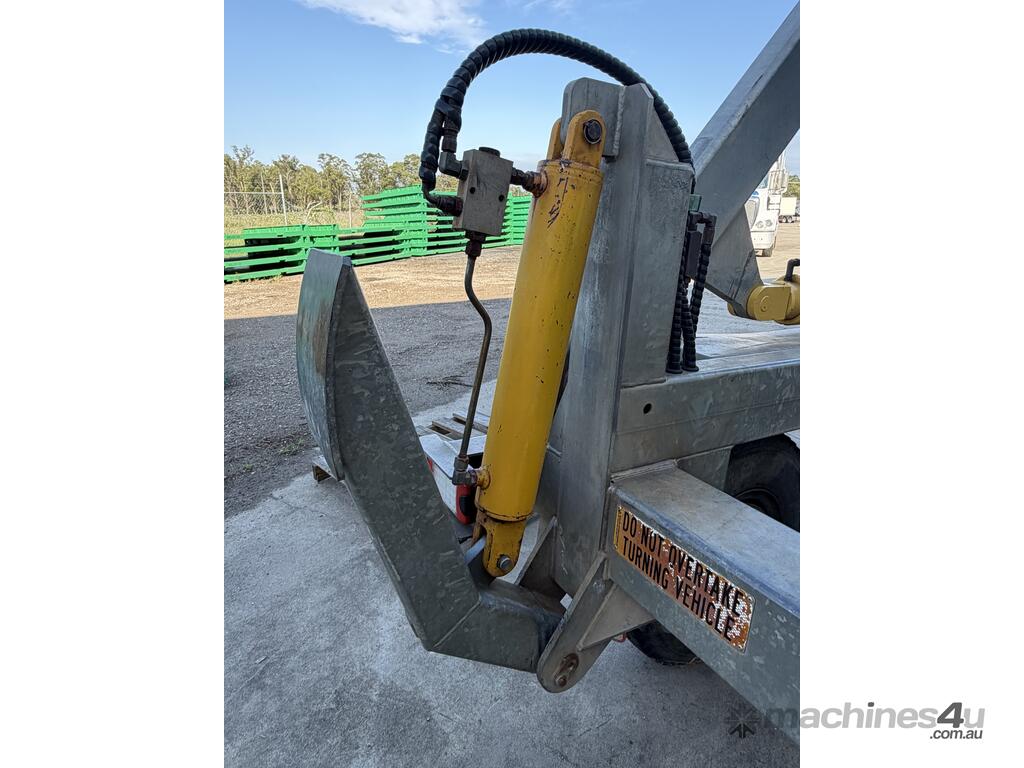

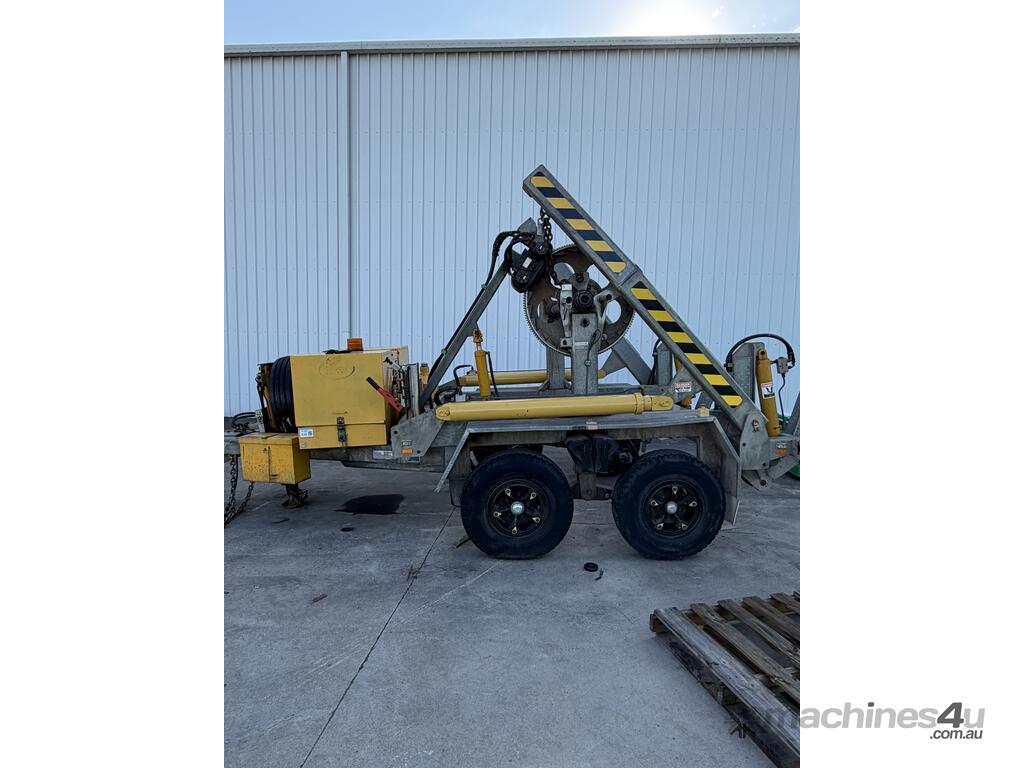

6-Tonne self-loading cable drum trailer is a unique design which includes two independently controlled lifting arms and chain link to the spindle bearing carriers. This makes it possible to pick up drums that are not aligned to the trailer or are on uneven surfaces. All Redmond Gary self-loading cable drums trailers incorporate this design feature. All trailers are designed for one-man operation. Due to the mechanized design of the trailers which includes hydraulic jacklegs, hydraulic lift arms and drum rotators, trailers can be used for lifting drums, rotating drums etc all by one person. All trailer spindles are high tensile hollow section making them light enough to be a single person lift.

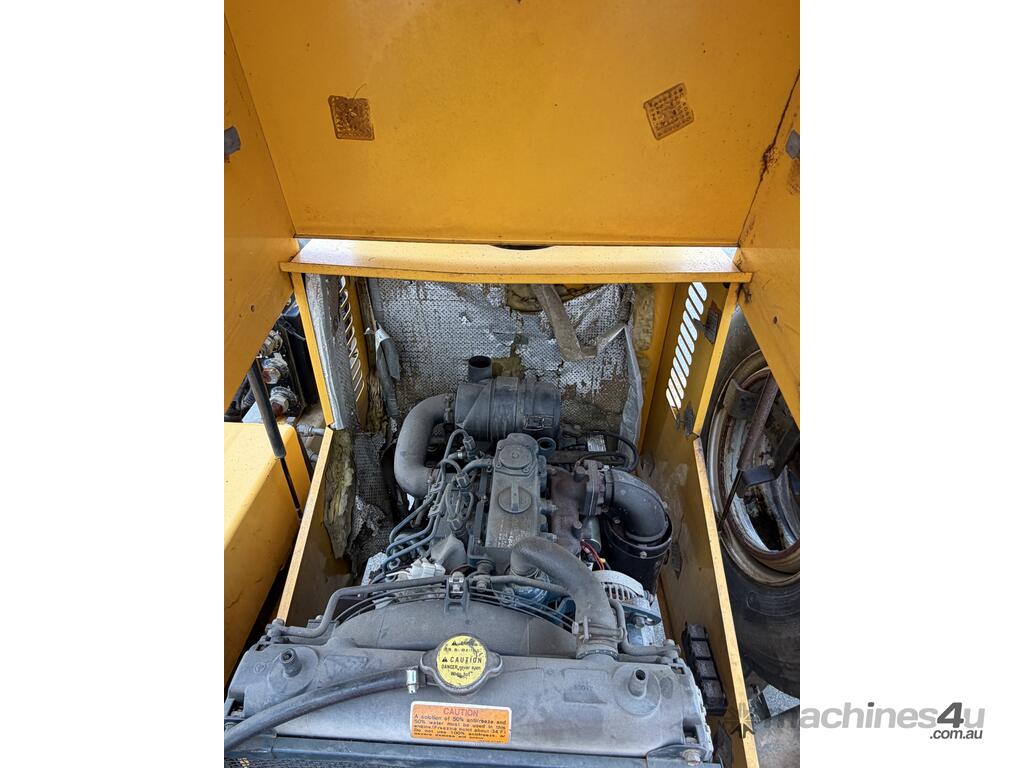

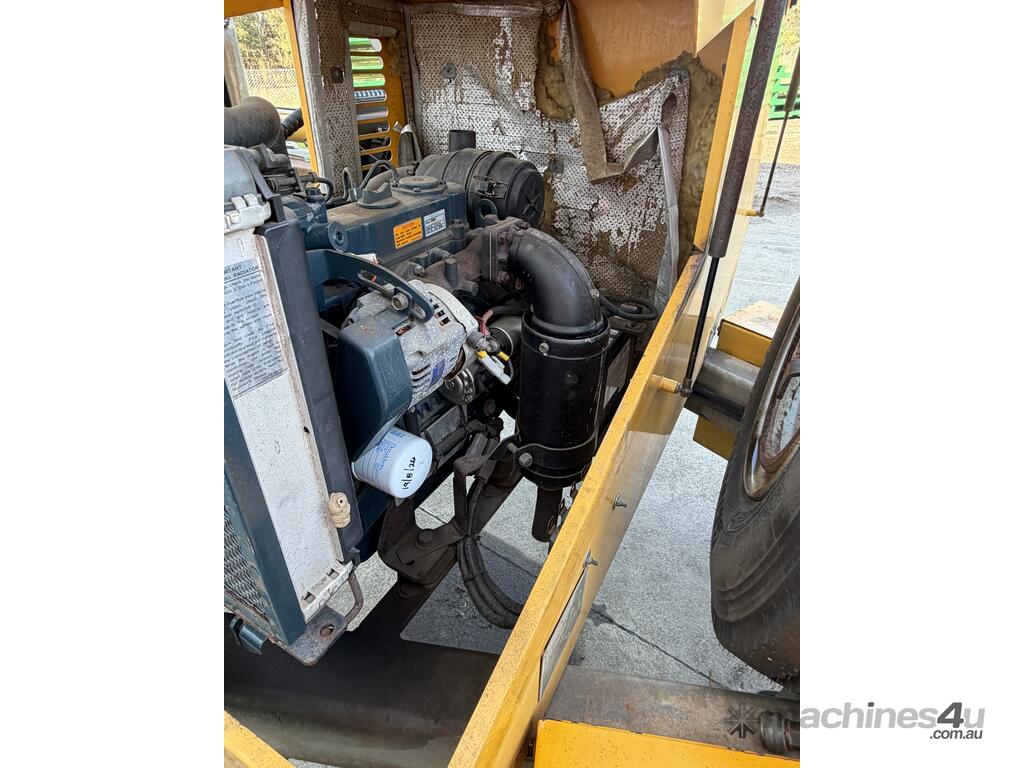

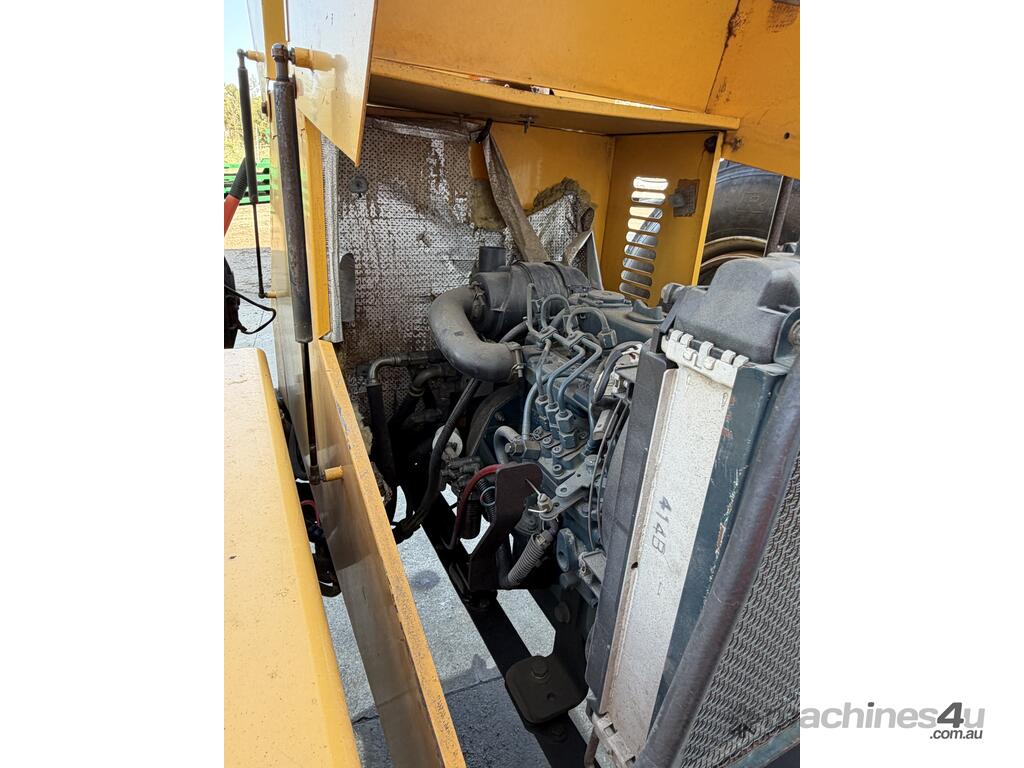

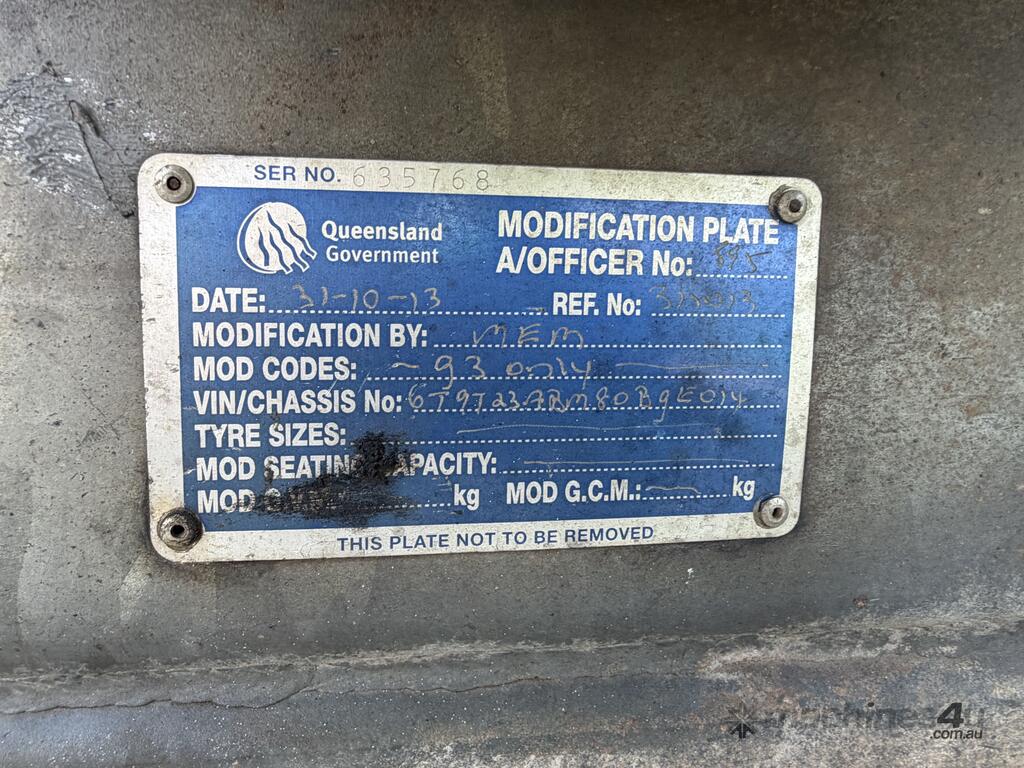

The trailers are of rugged construction featuring hot dip galvanized frame and powdercoated sheet metal components. All trailers are equipped with water-cooled diesel engine and fully self-contained powerpack. Trailers are designed to comply with Australian Standards and Australian Design Rules. They can be registered in any state in Australia and New Zealand. A wide range of optional accessories is available.

Lifting System
The Self loading Cable Trailer is primarily designed for transporting drums of electrical power cable and paying out cable at the work site.

The unit has a number of features which improve productivity by permitting safe, one man handling of cable drums.

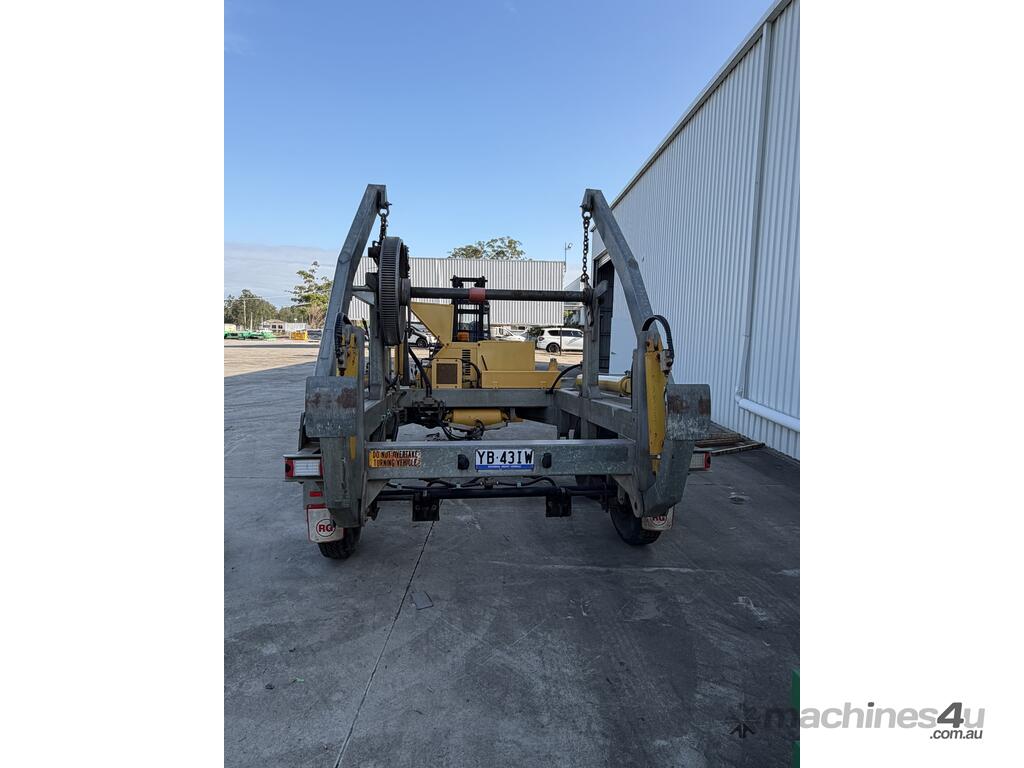

The cable trailer need not be positioned accurately to pick up the load. Chains attached to the pickup arms provide the required flexibility.

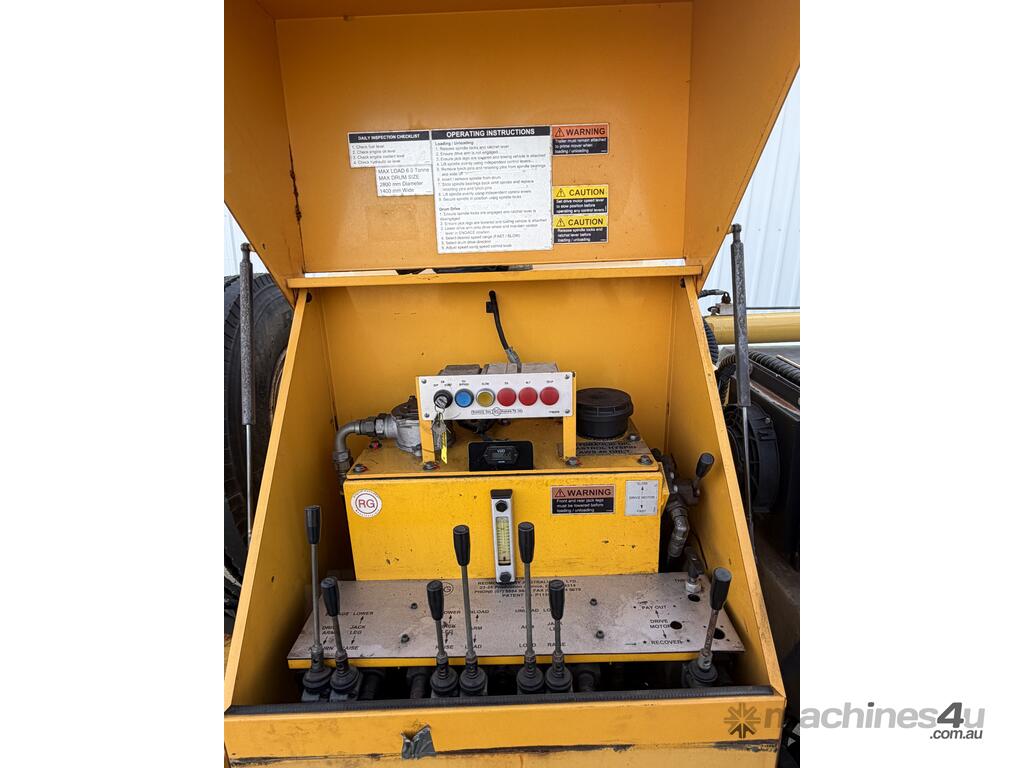

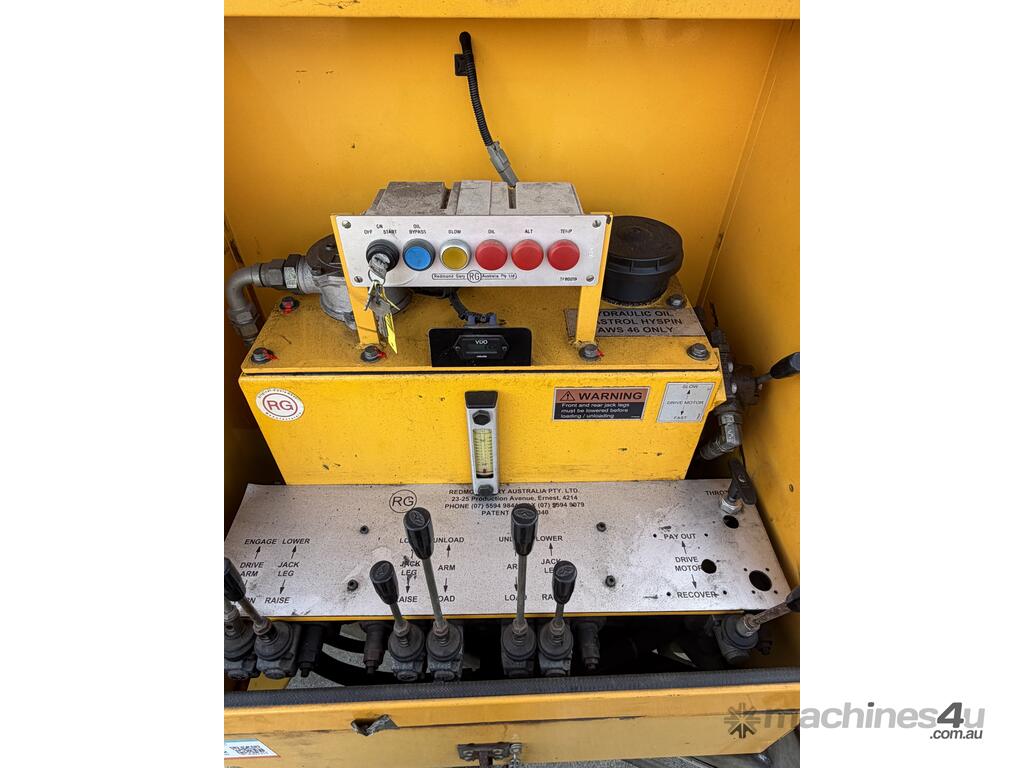

Hydraulic power is used to load the trailer and pay out cable ar the work site.

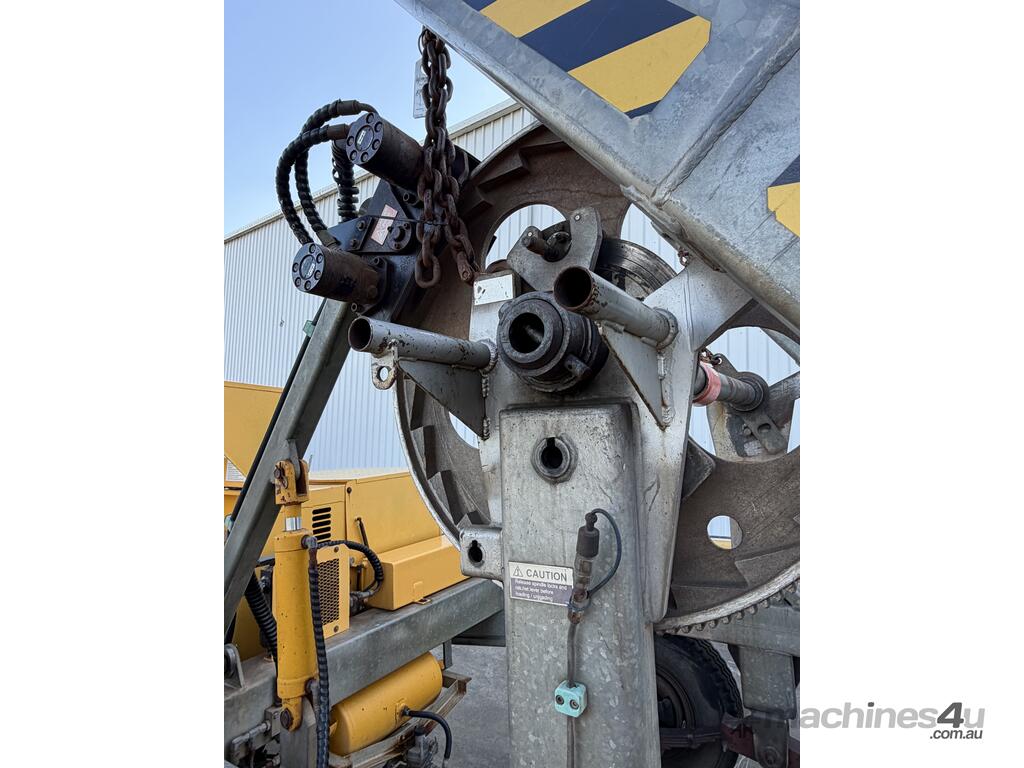

The Drum support shaft is manufactured from high tensile steel tube and can easily be fitted throught the cable drum by one person.
The cable drum shaft rotates on loe friction, weather resistant bearings.

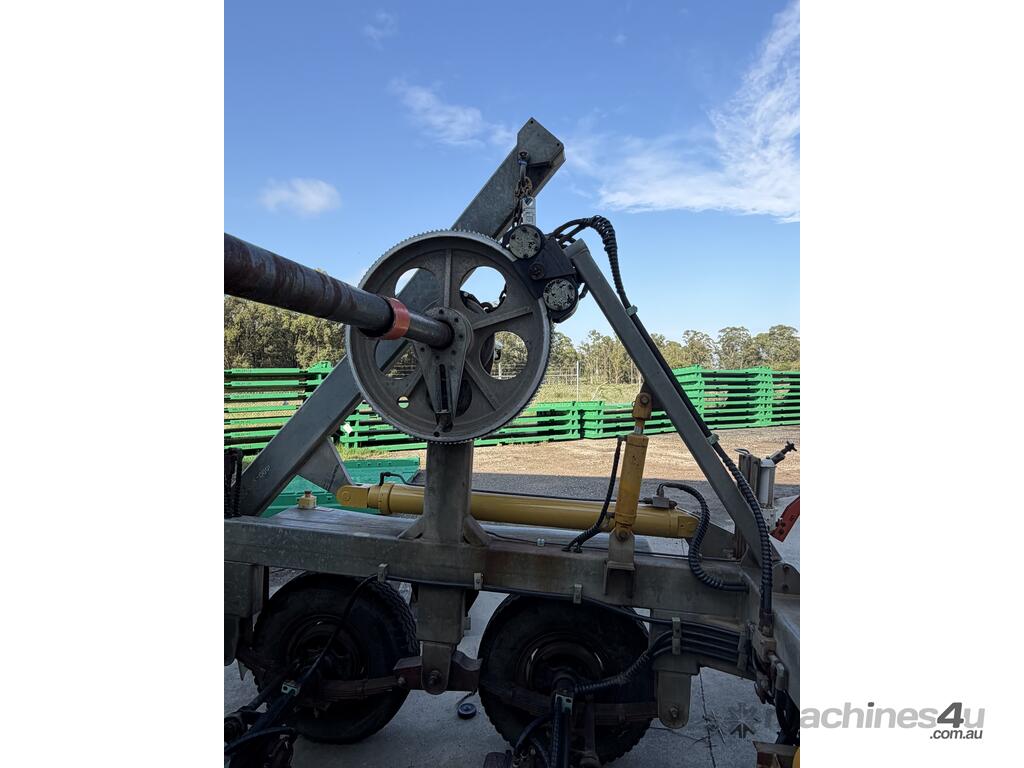

A drum rotator turns the drum to pay out or reel in.
Because the cable trailer has been designed for one man operation, use of the trailer can free personnel for other tasks or allow smaller work groups to maintain effective output. The principles of the Self Loading Cable trailers may be used in other applications including:

Telephone and Optical Cable
Irrigating Hose
Newsprint Rolls
Conveyor Belting
Defence Equipment
Seismic Line
Specification
Max Load Mass: 6 Tonne
Max Drum Diameter: 2800 mm
Max Drum Width : 1450 mm
Standard Spindle Diameter: 95 mm
Overall Length : 6115 mm
Overall Width: 2500 mm
Height Loaded: 3400 mm
Height Unladen : 2980 mm
Mass Unladen: 3200 kg

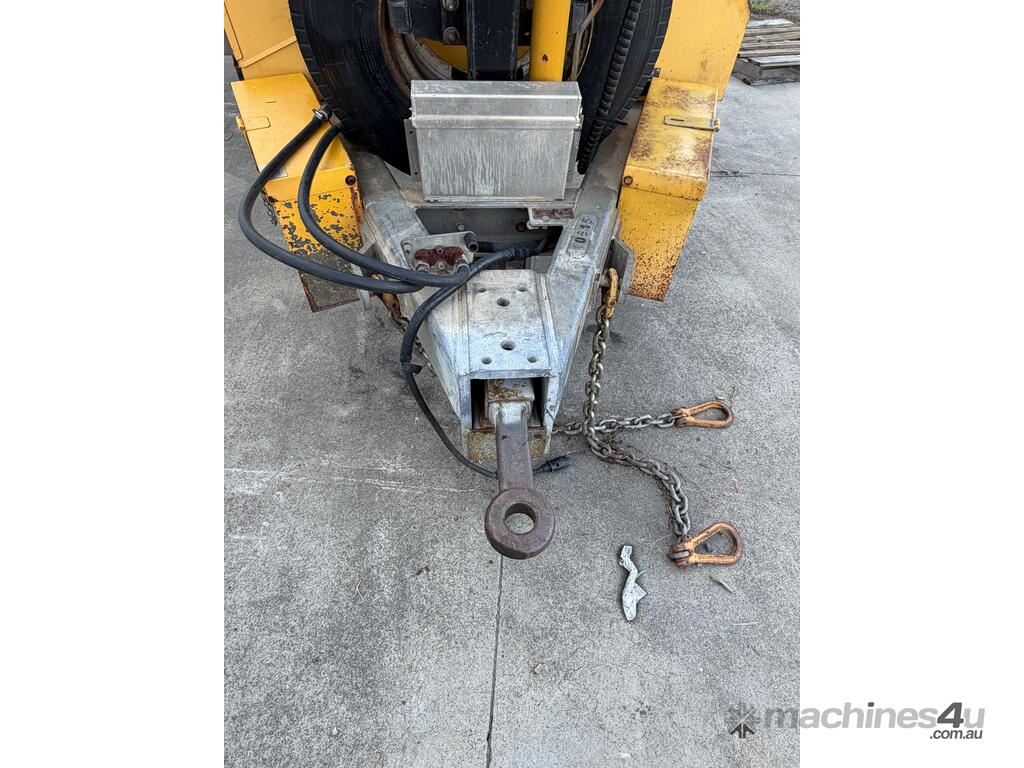

Standard Trailer Brake Type: “S” Cam to ADR 38
Engine: 15 kW
Transmission: Hydraulic
Please note the spindle diameter quoted is a special light weight spindle with 95mm outside diameter. If you require 90mm you will require a solid spindle in order to carry the 6 tonne drum weight. A solid spindle will be much heavier than the hollow one we normally provide and it will be a 2 or 3 man operation to lift the spindle And it involves additional cost to fit our standard spindle components. For this reason, most authorities prefer light weight spindles.
