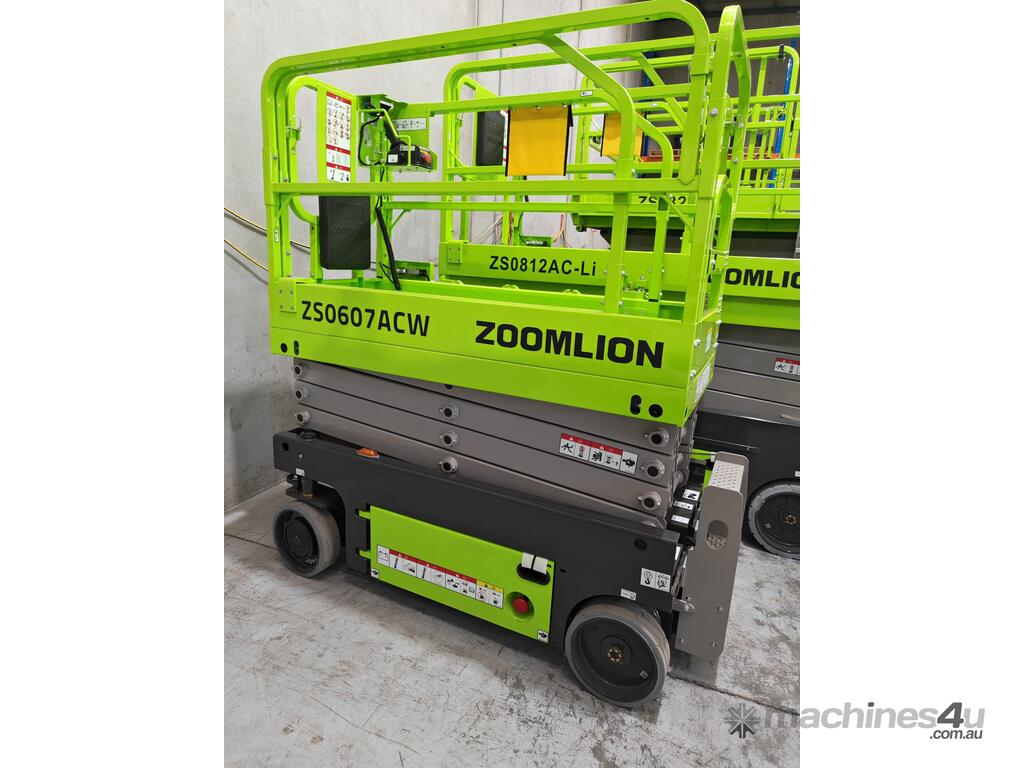

6m Scissor Lift - Working Height 7.8m

Electric powered scissor lifts with work height at 7.8m , providing high efficiency and safe operation around jobsites.

AC System offers higher working efficiency

IP67 rated waterproof protection on AC Wheel motors for longer lifespan

Work Height (indoor/Outdoor) 7.8m
A- Platform Height-Elevated (Indoor/Outdoor) 5.8m
B - Platform Height-Stowed 1.05m
C - Platform Length 1.65m
D- Platform Width 0.74m
Platform Extension 0.91m
E-Overall Height (Rails Up) 2.20m
Overall Height (Rails Down) 1.79m
F- Overall Length 1.85m
G - Overall Width 0.81m
H - Wheelbase 1.37m
I- Ground Clearance (Stowed) 0.06m
J- Ground Clearance (Raised) 0.016m

Platform Capacity 230kg
Capacity on Deck Extension 113kg
Drive Speed (Stowed) 4km/h
Drive Speed (Raised) 0.8km/h
Turning Radius (Inside) 0.1m
Turning Radius (Outside) 1.6m
Lifting Motor 24V/3.3KW
Drive Motor 2x0.65KW
Up/Down Time 20s/24s
Gradeability 25%(14°)
Max. Working Slope (Lateral/Vertical) 1.5°/3°
Tire Ø323mmx100mm
Gross 1620kg
