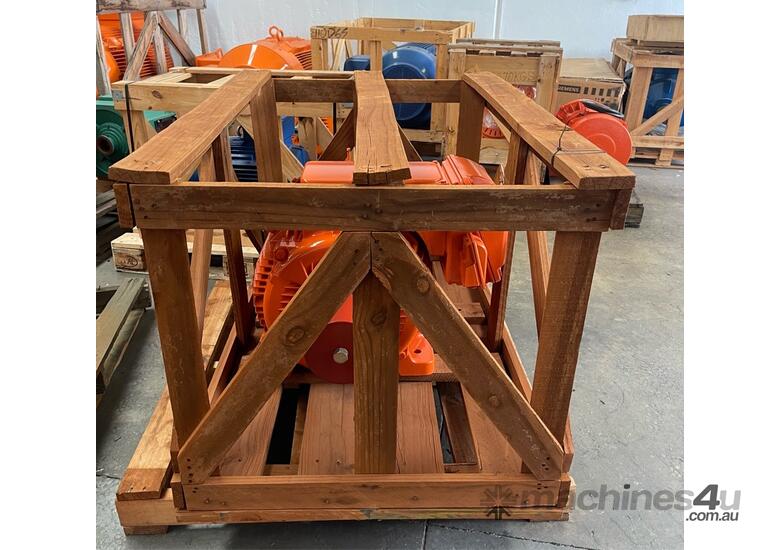

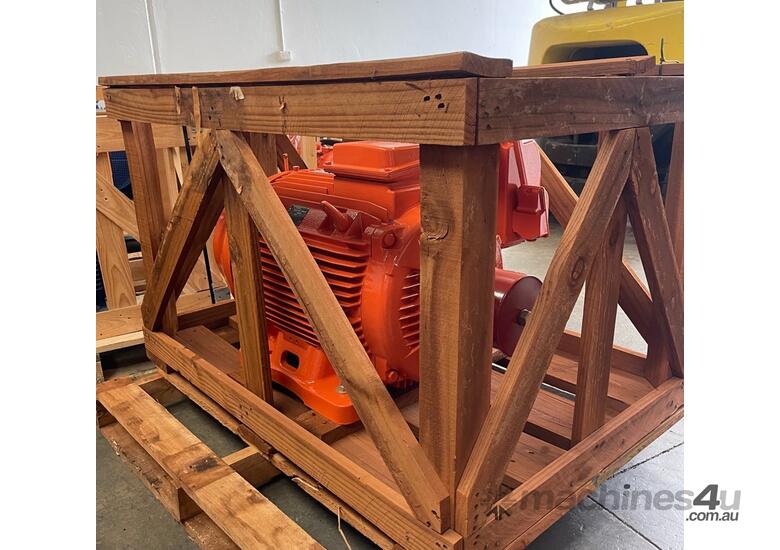

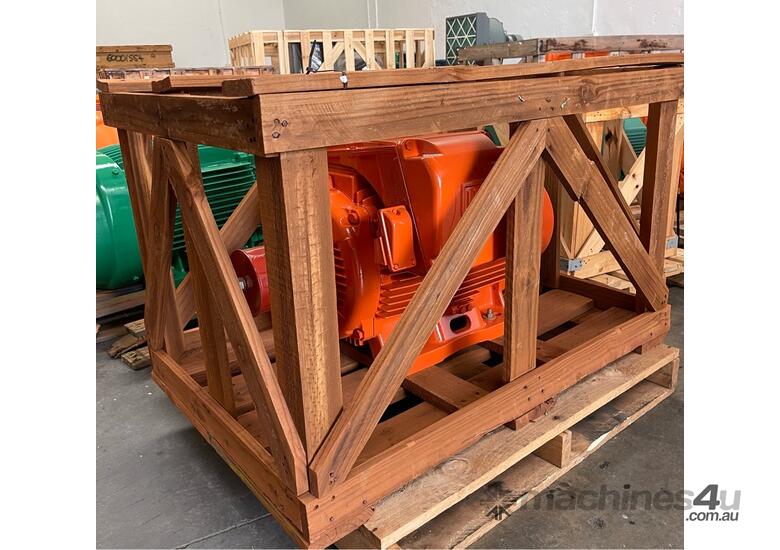

75 kw 100 hp 4-pole 1482 rpm 415 volt Foot Mount 250S/M frame IP66 Mining AC Electric Motor WEG Model KTE46 W22M unused
Category: AC Squirrel Cage Electric Motor

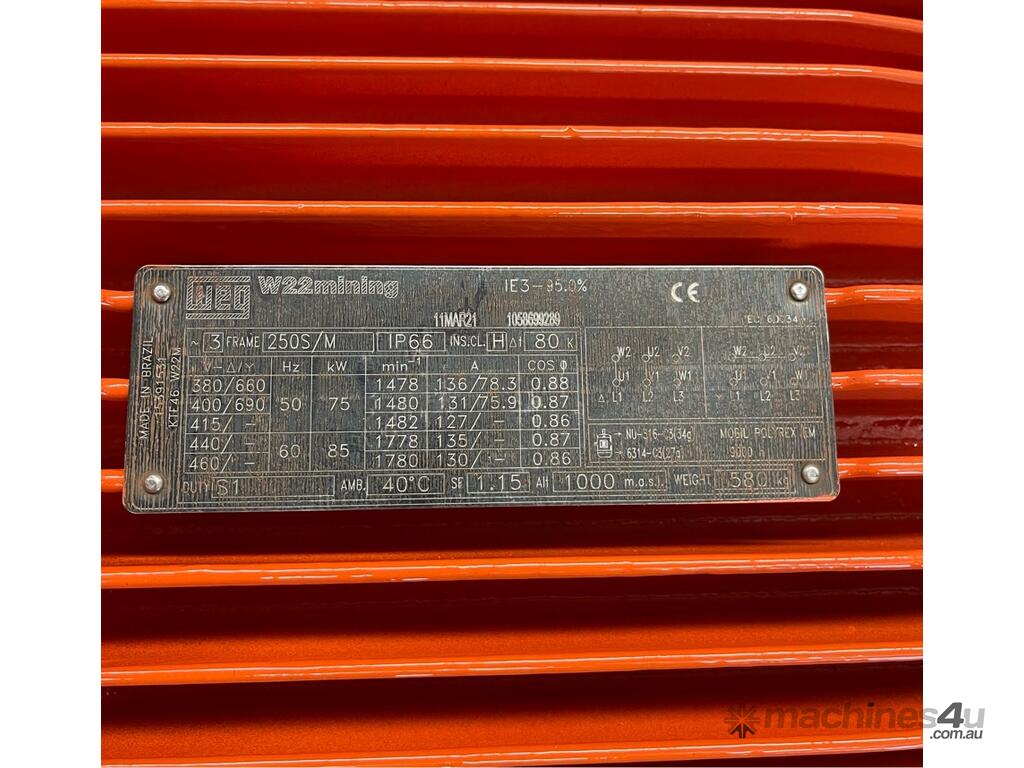

3-phase induction motor
Make: WEG
Model: KTE46 W22M
Origin: Brazil
YOM: 2021
Power: 75 KW (100 HP)
Speed: 4-pole (1482 rpm)
Rated Frequency: 50 Hz
Rated Voltage: 415 v
Full Load Amperage: 127 A
Protection Rating: IP66 Mining
Insulation Class: H
Mount: B3 Foot
Frame: 250S/M
Weight: 580 kg
Criritcal DIMS:
Total Length: 964.5 mm (incl. shaft)
Total Width: 652 mm (incl. terminal box)
Total Height: 575 mm
Centre shaft height: 250 mm
Shaft DIA: 70 mm
Shaft length: 140 mm
Feet Measurements: Across 'A' - 406mm, Front to Back 'B' (2-holes) - 311mm and 349 mm
Front hole to shaft 'C' - 168 mm
Available QTY: 1

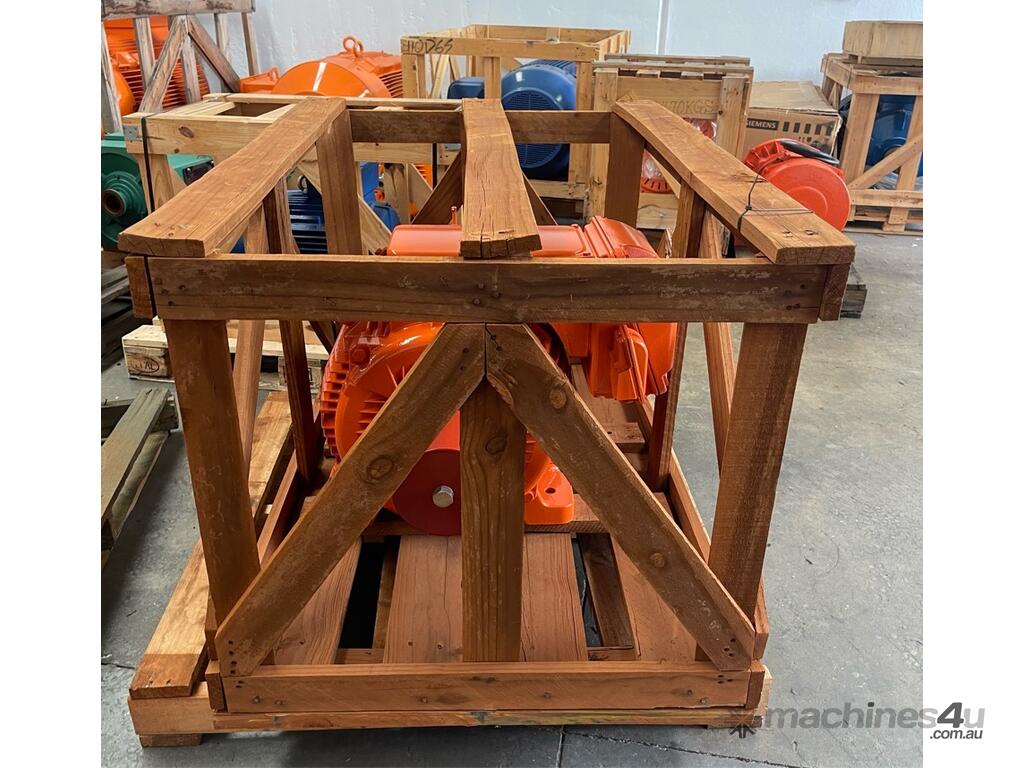

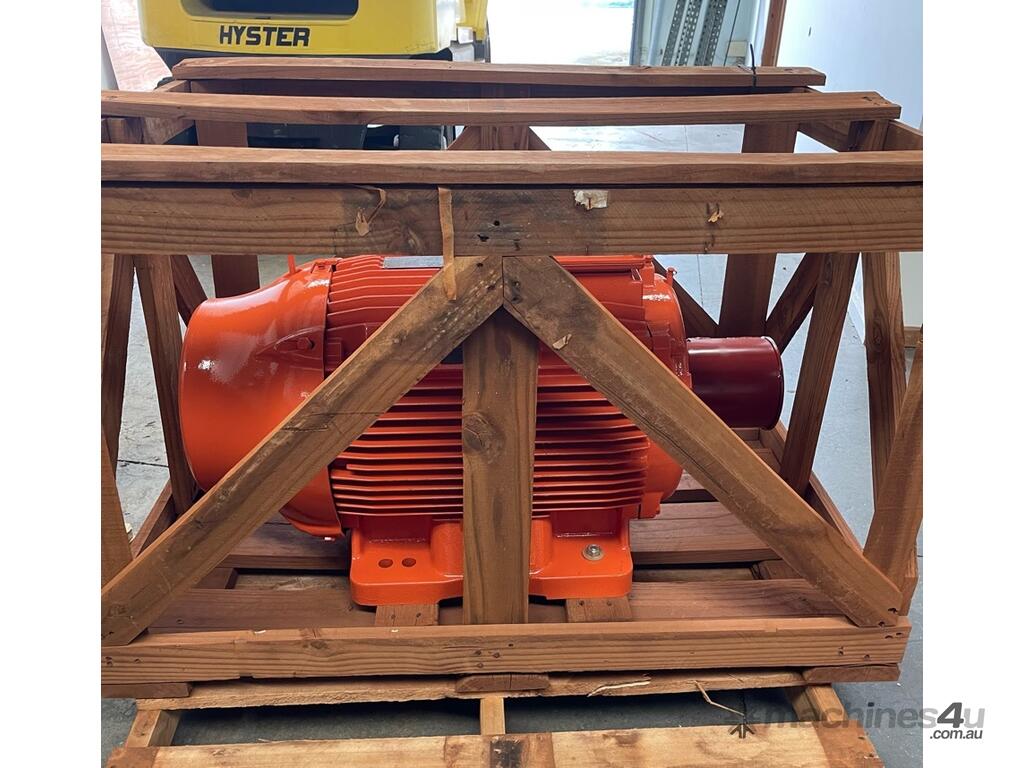

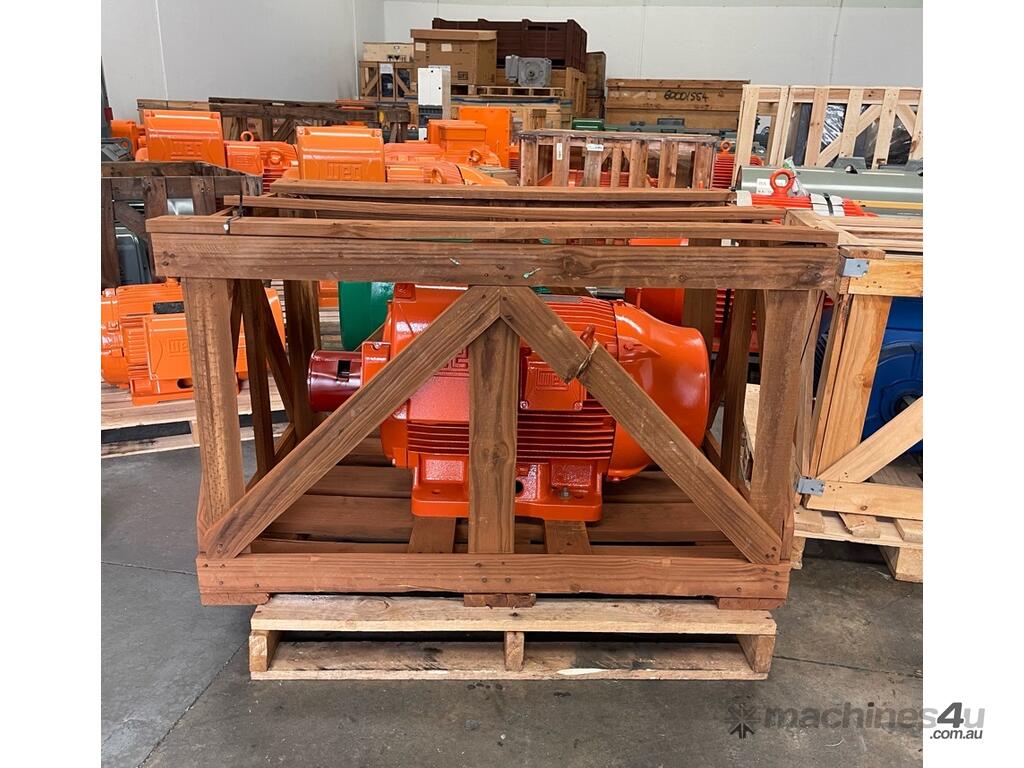

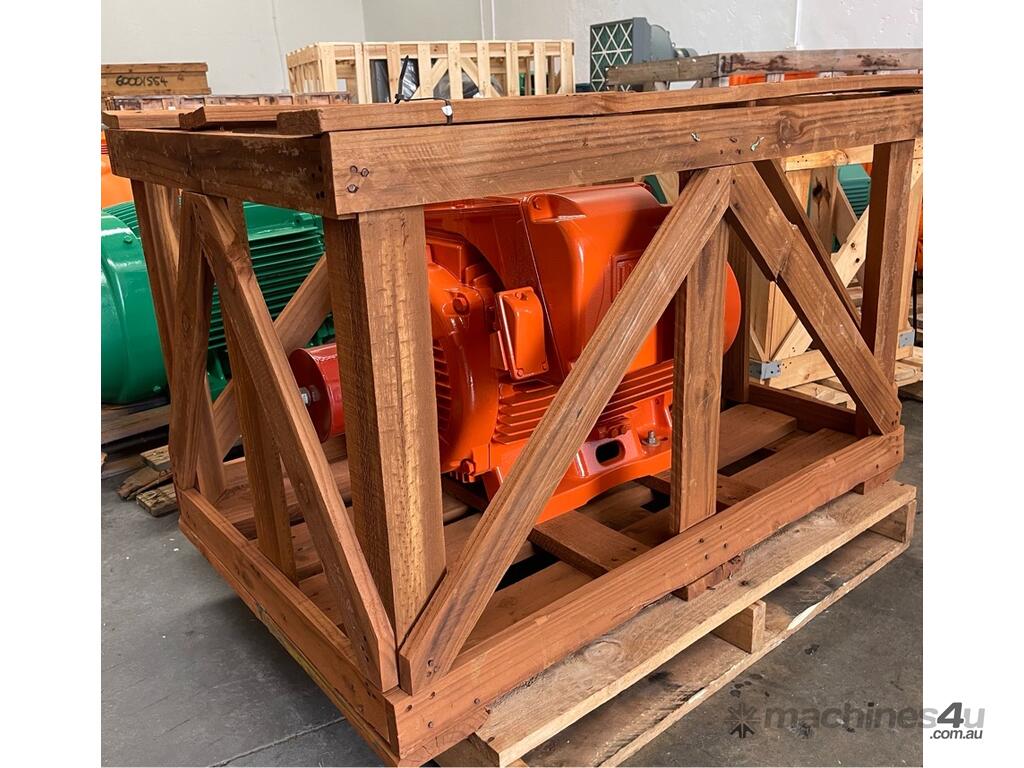

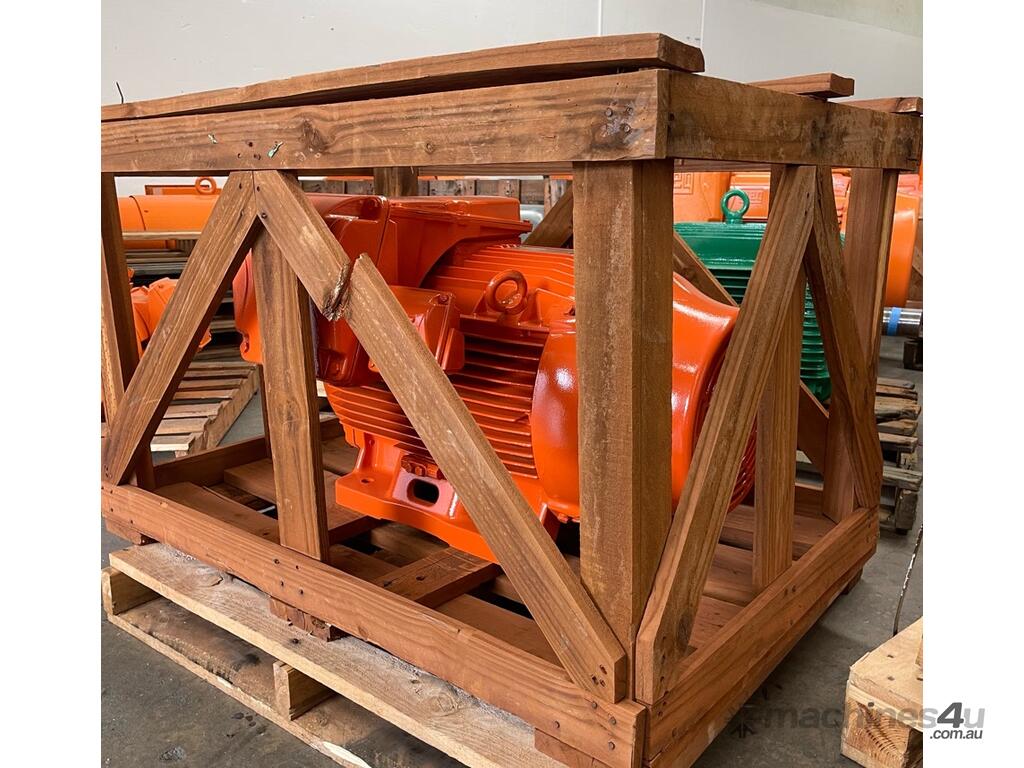

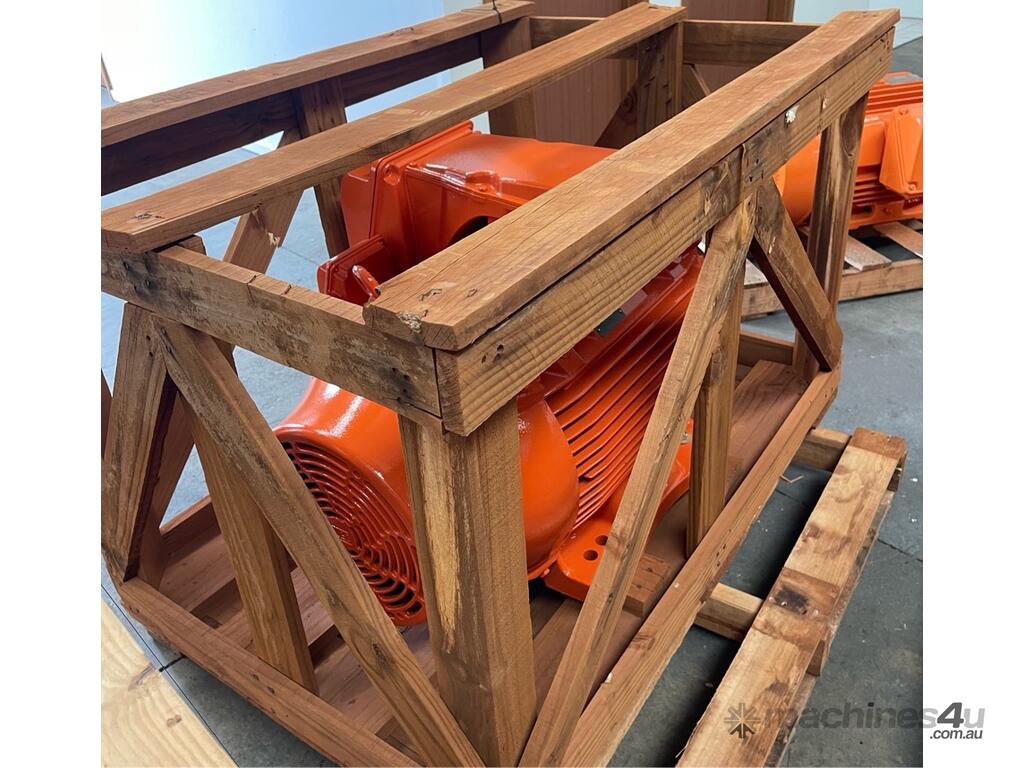

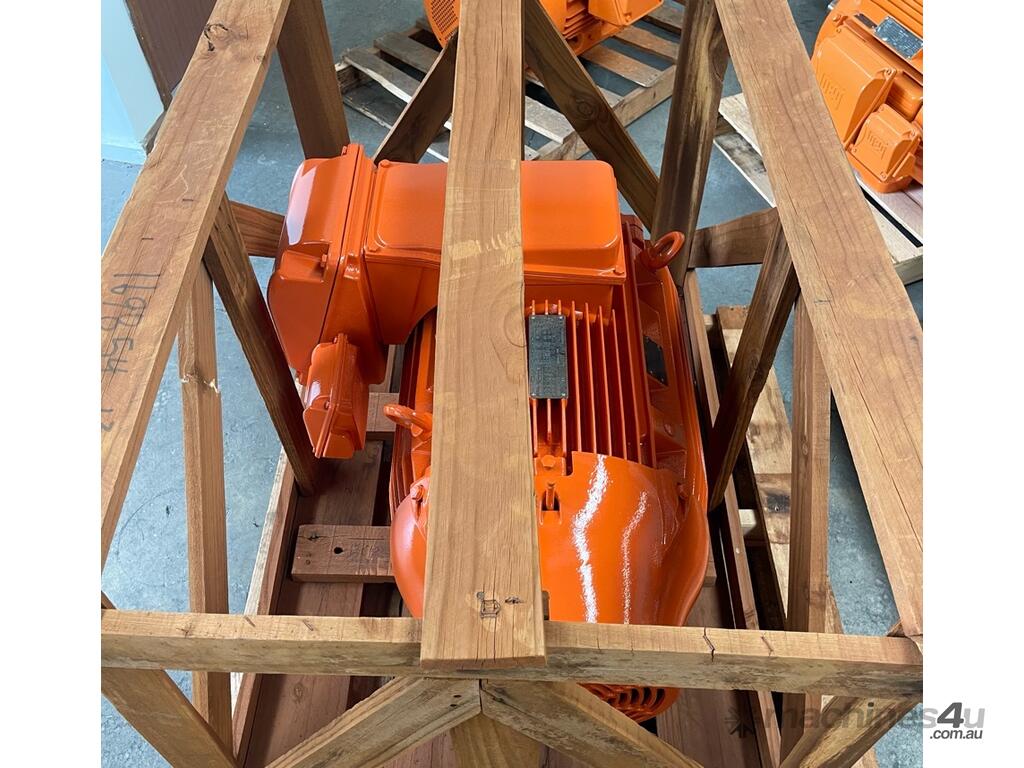

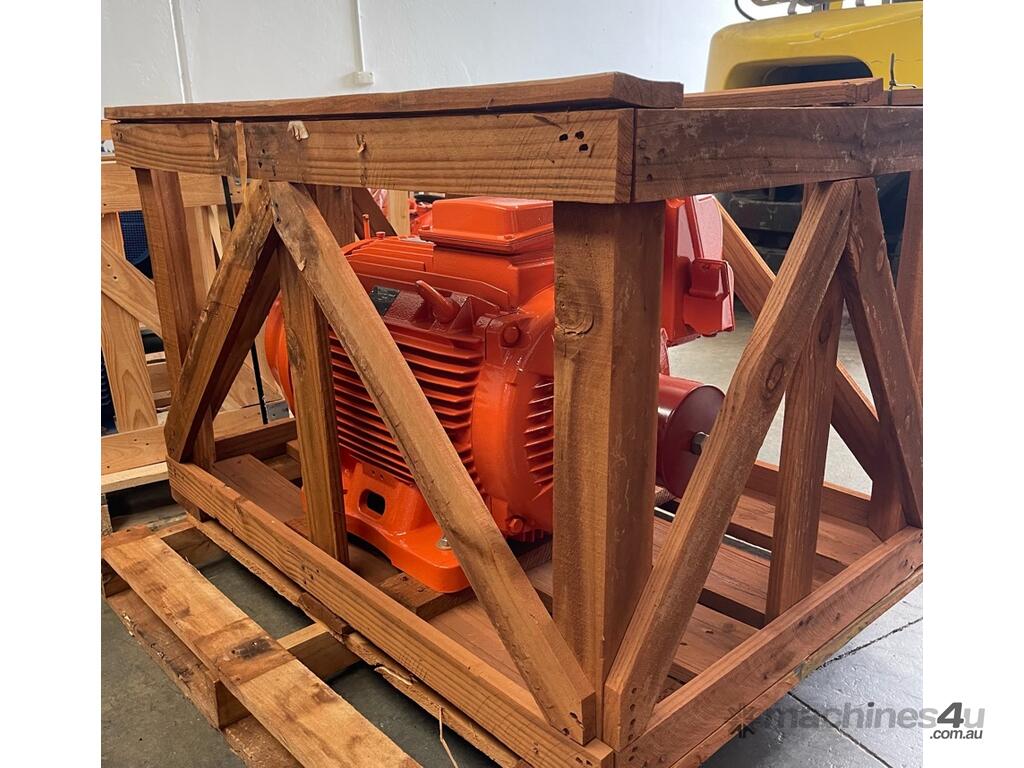

Condition: New/Unused YOM 2021 in crate
Delivery point: exStock Seaford VIC 3198 Australia
Freight services Australia-wide available on request - Available for immediate despatch
