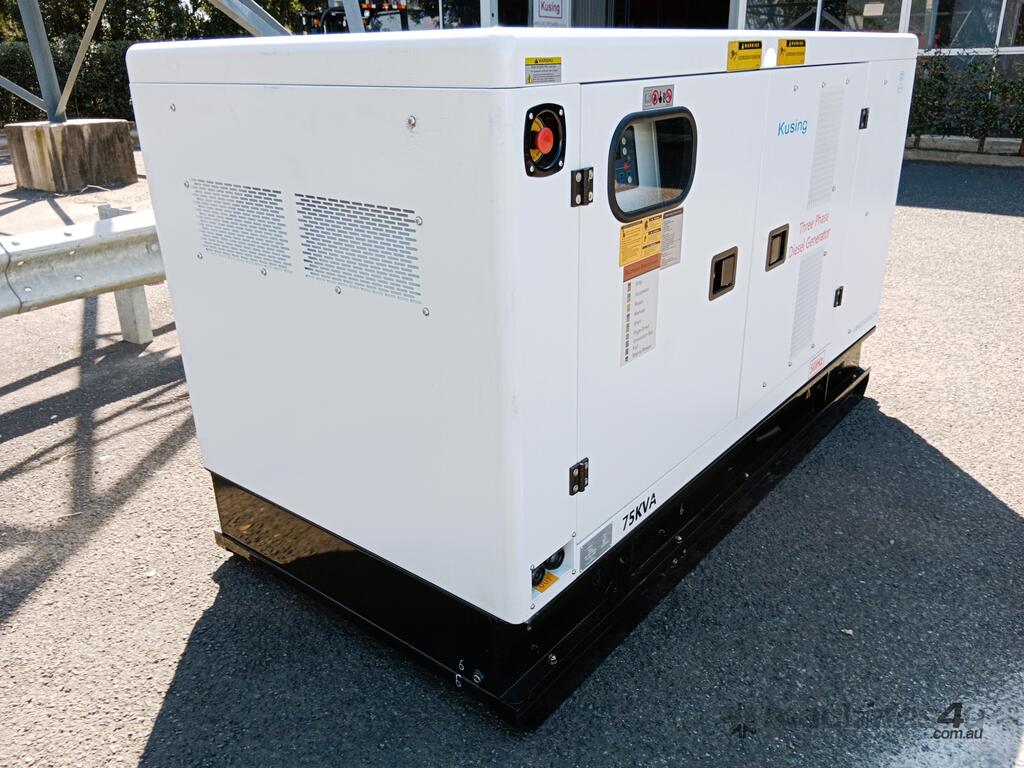

75KVA Silenced Diesel Generator 3 Phase 415V

Main Features
4 pole brushless alternator with zero THD delivering clean stable energy.
Safe to use on digital electronic equipment.
Water-cooled diesel engine for round the clock use in extreme conditions.
User friendly controller with instruction manuals available.
Some generators are ATS/Auto start connection equipped (check specs).
Compliant with Australian safety standards.
Strong lockable weatherproof canopy with various lifting locations

Safety Features
Emergency stop
Battery Isolator
Over temperature protection
Low oil protection
Low fuel alarm
RCD protection
Over current protection
Battery DC charge fault alarm
Phase imbalance protection
Full canopy soundproofing with lockable doors
Poly baffled fuel tank
Fire extinguisher (by request)

Generator Model K30600
Prime Power 75KVA
Standby Power 82.5KVA
Rated Current 104 Amps per phase
Canopy Silenced
ATS (Auto Transfer Switch) 2 Wire Start Connection
Fuel Tank Capacity Est. 160 Litres
Noise Level 75dB 7m
Controller Kusing AD6132
Main Breaker Switch 225A
Internal Protection IP23
Dimensions 2300L x 1100W x 1350mm
Weight 1250kg

Engine Make YTO
Engine Model YTN4092-23T
Air Aspiration Turbo Charged
RPM 1500
Speed Governor Electronic
Start System 12V
Alternator Make Kusing
Alternator Model KAL224H4
Voltage 415V
Phase 3 phase
Frequency 50Hz 1500 RPM
Power Factor 0.8 (lagging)
Voltage Tolerance +/- 1%
Insulation Class H

Warranty
All of our industrial diesel generators come with a standard 12 month/1000 hour warranty. Expert presales advice and after sales service provided.

Shipping
For a shipping price to deliver to your location, please contact us on or sales1wellku
We deliver anywhere in Australia with a few exceptions for remote regions.
For all deliveries, we recommend delivery to your nearest major centre for depot collection.

Finance also available, with same day approval.
