760 mm Sheet Metal Fabrication Machines, 3-IN-1 Combination of Guillotine, Pressbrake & Curving Roll

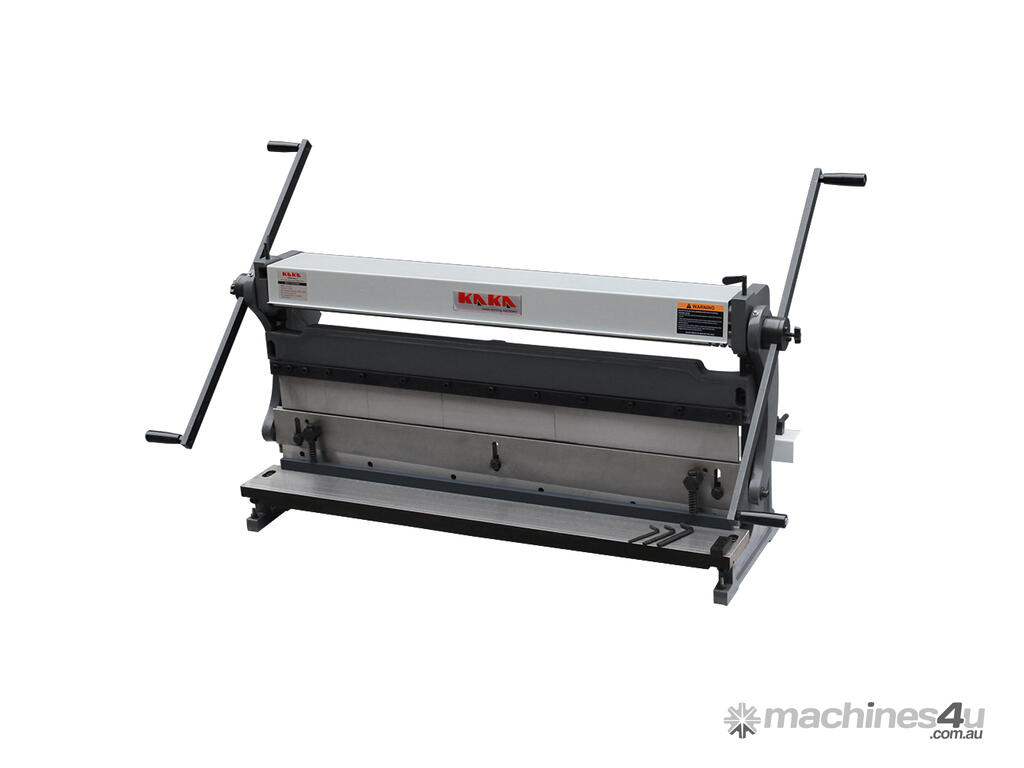

KANG Industrial 3-IN-1/30 Sheet Metal Fabrication Machine

3-IN-1 Combination of Pressbrake, Guillotine & Sheet Metal Plate Curving Rolls; Work with 760x1.0mm Mild steel plate; Segment bending fingers for panbrake; Minimal rolling dia. 39mm; Entry-level for automotive, HVAC or custom fabrication

Multi-Function Versatility Sheet Metal Fabrication Machine. Combines shearing, rolling, and bending in a single compact machine, eliminating the need for separate tools and saving both space and costs, ideal for efficient workflows on thin sheets without sacrificing capability.

User-Friendly Operation Sheet Metal Machines. A single handle controls all three functions, allowing seamless mode switches with minimal effort, which reduces setup time, operator fatigue, and errors; perfect for solo users or beginners in small workshops.

Enhanced Capacity for Broader Projects. Supports up to 760mm working length, with 1mm mild steel and 1.5mm soft aluminum capacity, enabling larger panels or longer runs while maintaining precision for prototyping or repairs.

Durable and Stable Construction Machines. Robust cast iron build ensures vibration-free performance and longevity under regular light-duty use, with a net weight of 136kg providing solid benchtop stability without excessive bulk.

Practical Design Sheet Metal Machines. Includes a segmented top blade for panbrake, a removable top roller for easy closed-cylinder forming (minimum diameter 39mm), and wiring grooves in rolls and backgauge for handling electrical conduits—boosting efficiency in specialized tasks like ductwork.

Features

760mm working width for pressbrake, guillotine, and rolls

Max. 1.0 mm mild steel plate for all three functions

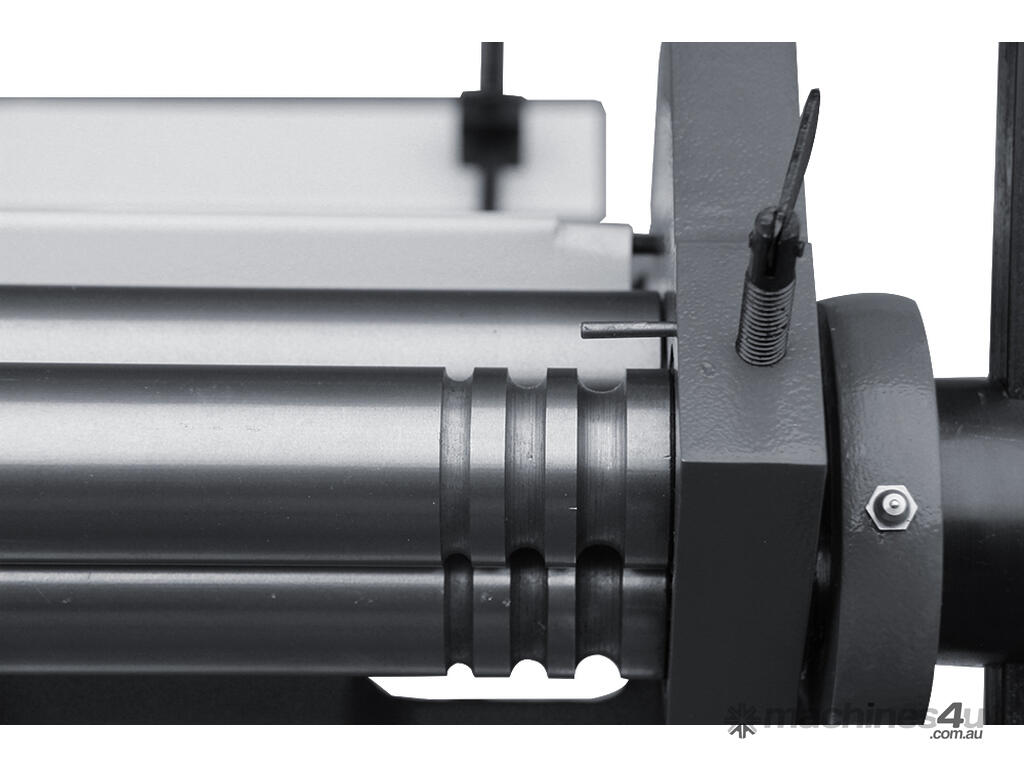

Slip roller with 3 grooves for wire rolling

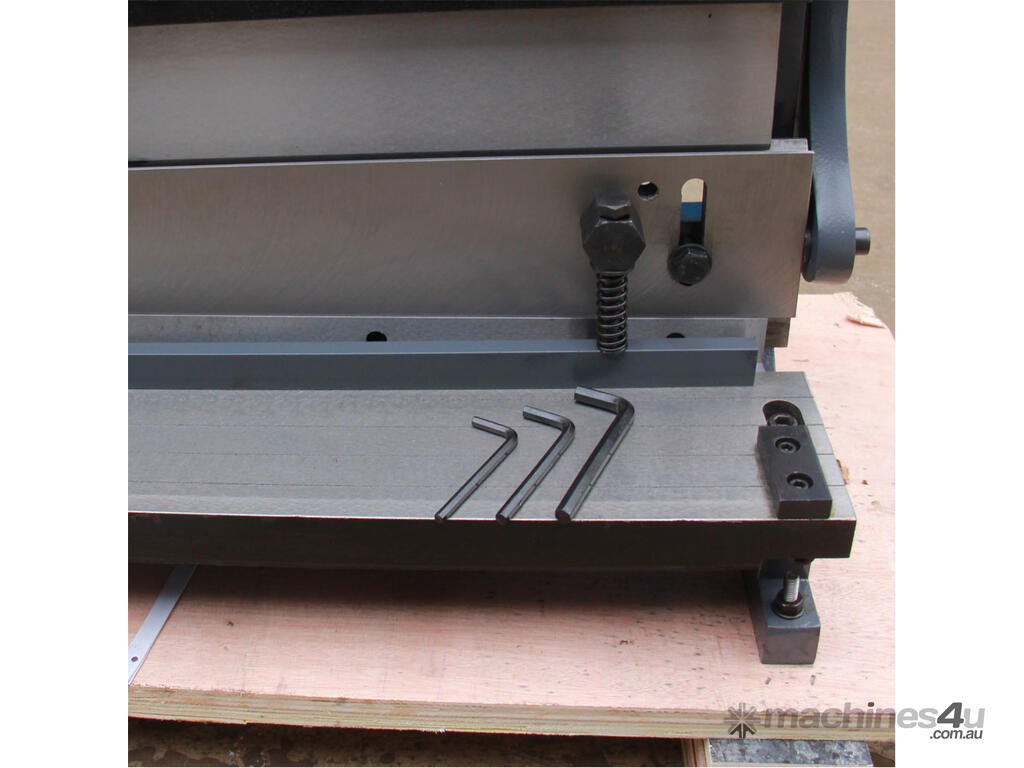

Segment fingers for the panbrake

Hardened blade for long cutting life

Standard back gauge for cutting and bending functions

Optional

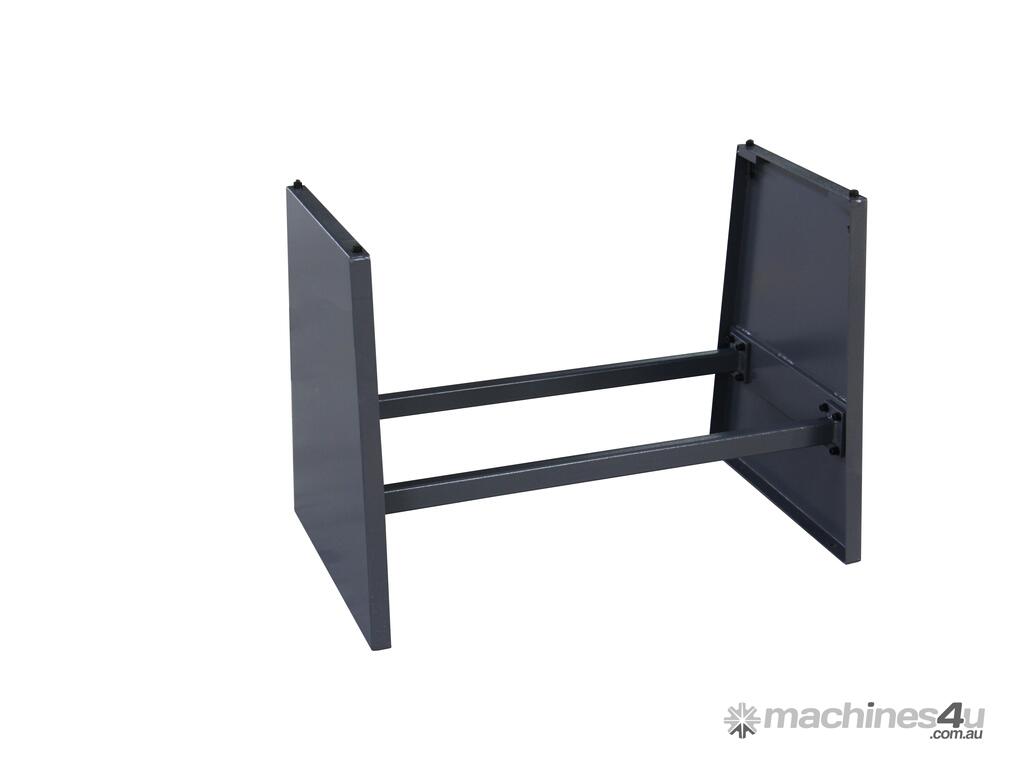

B Type Stand

C Type Stand

Specifications
SKU 171003
Model 3-IN-1/30
Bed width 760 mm
Max. shearing thickness 1.0 mm
Max. bending thickness 1.0 mm
Max. bending angle 90°
Max. rolling thickness 1.0 mm
Min. rolling dia. 39 mm
Packing size 100x45x72 cm
N.W./G.W. 136/143 kg
