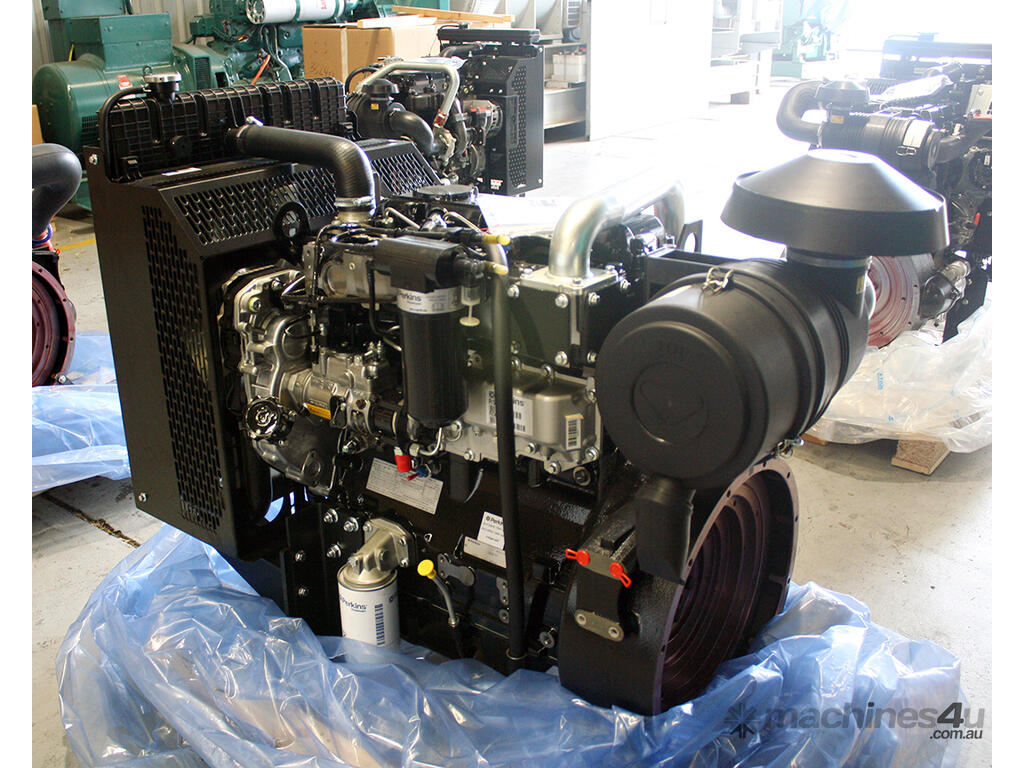

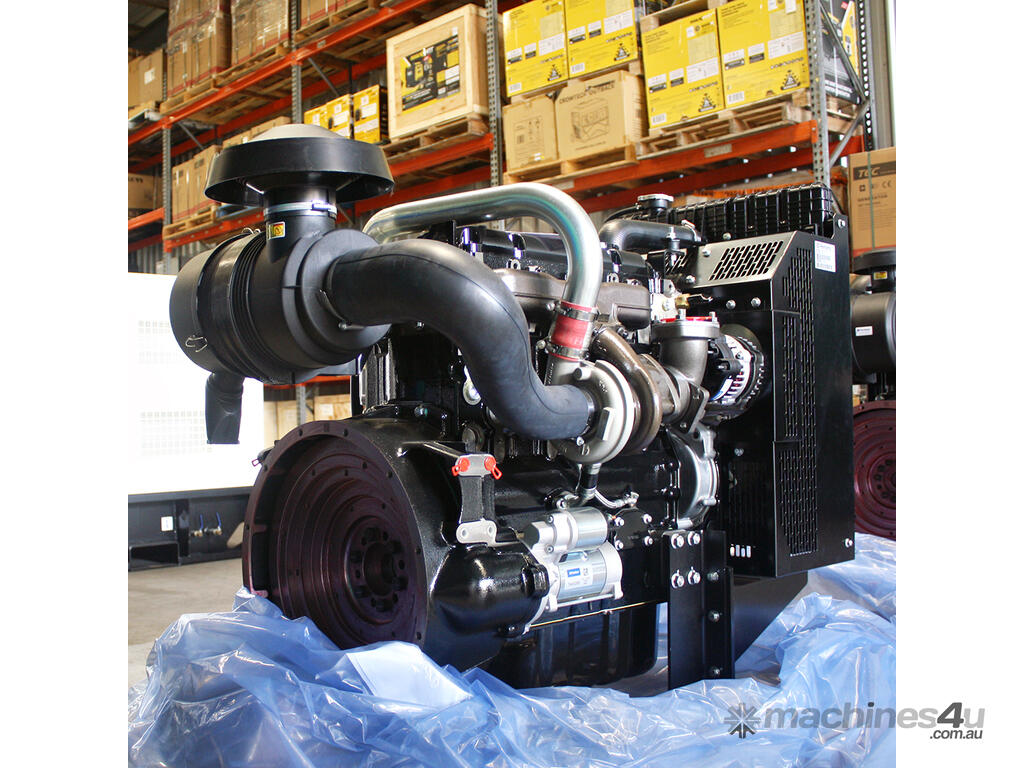

80.5kW Perkins Gen Drive Engine RS51277R

Whatever your application, there’s a Perkins 1104 engine for you.

Part of the proven Perkins 1100 Series, the 4-cylinder, 4.4-litre 1104 engines are built for smooth, quiet, and reliable performance.

Designed to meet EU Stage II/IIIA and U.S. EPA Tier 2/Tier 3 equivalent emissions standards, the range offers flexibility with both mechanical and electronically controlled common rail options. The electronic versions optimise fuel injection to match engine load, ensuring maximum efficiency and power.

With common front and rear ends, connection points, and shared components across the range, swapping or upgrading within the 1100 Series is straightforward—making installation easier and more cost-effective.

ENGINE 1104A-44TG2

Specifications
Maximum Power - 80.5 kW
Minimum Power - 73.5 kW
Maximum Torque - 404 Nm1400 rpm
Rated Speed - 2200 rpm
Cylinders - 4 Inline 4 stroke
Bore & Stroke - 105 x 127mm
Displacement - 4.4 I
Compression Ratio - 18.23:1
Aspiration - Turbocharged
Combustion System - Direct injection
Rotation Anti-clockwise
Cooling System - Liquid
Weight (kg) Dry: 372kg
Dimensions (LWH) 786 x 558 x 947 mm
