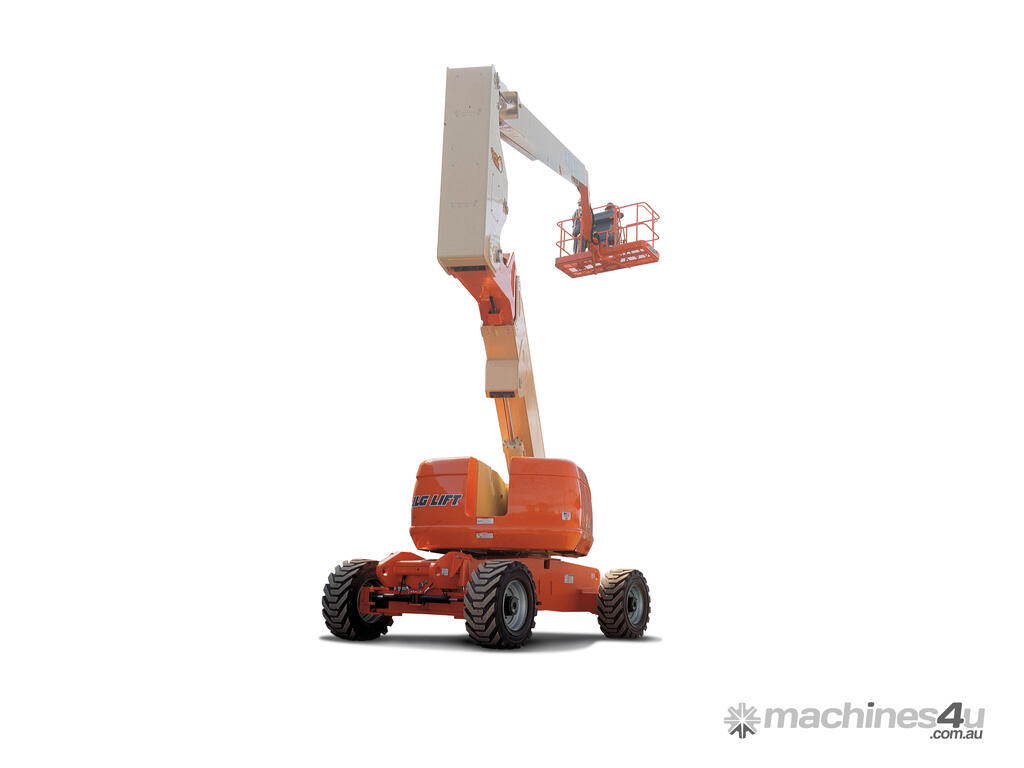

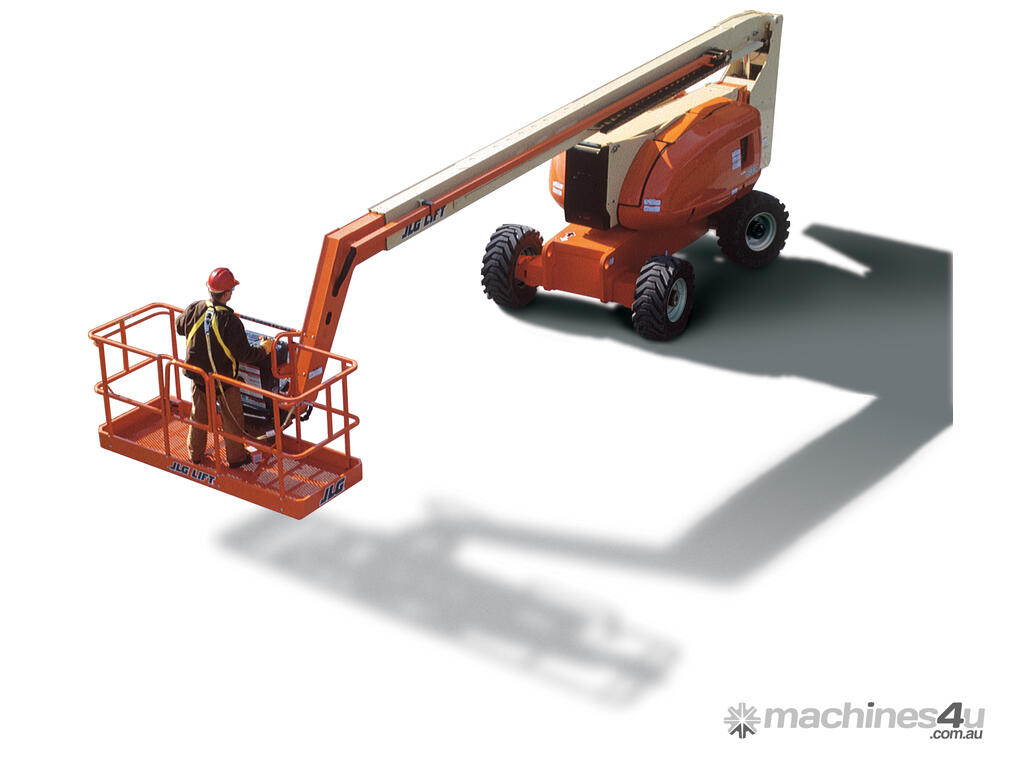

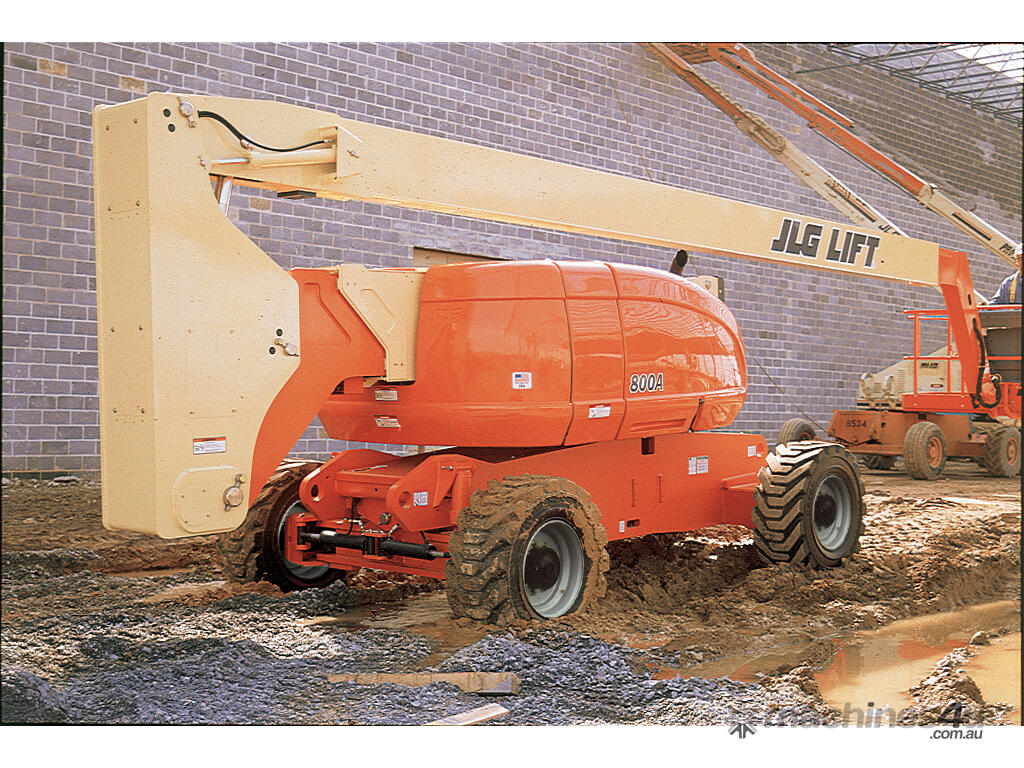

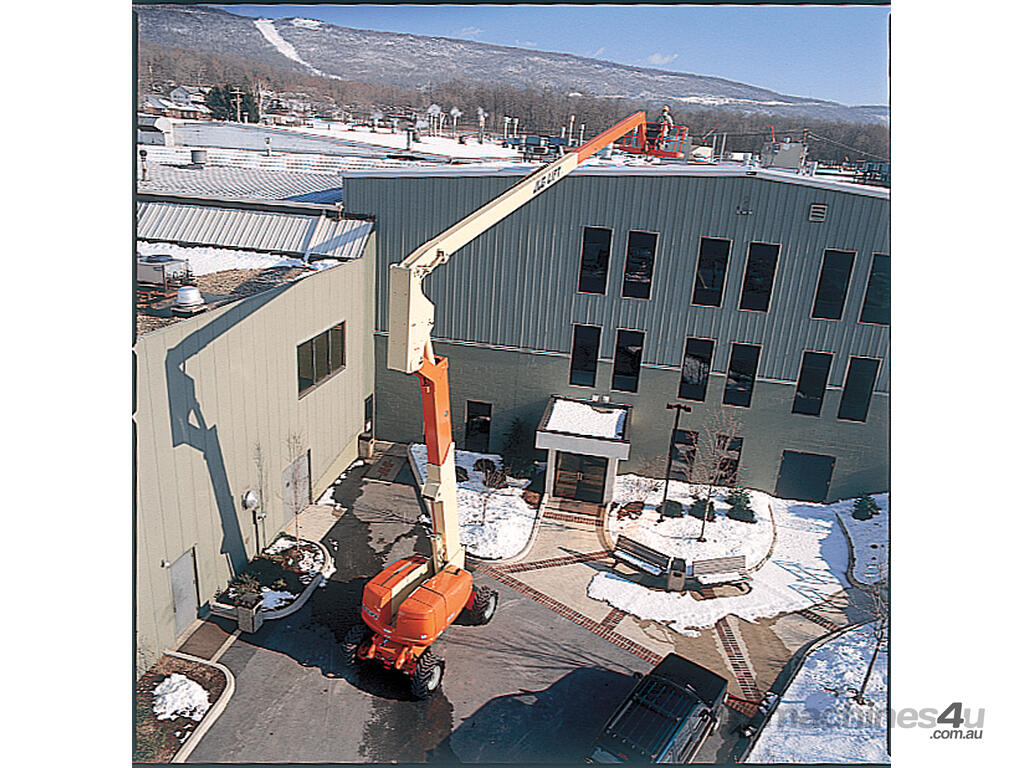

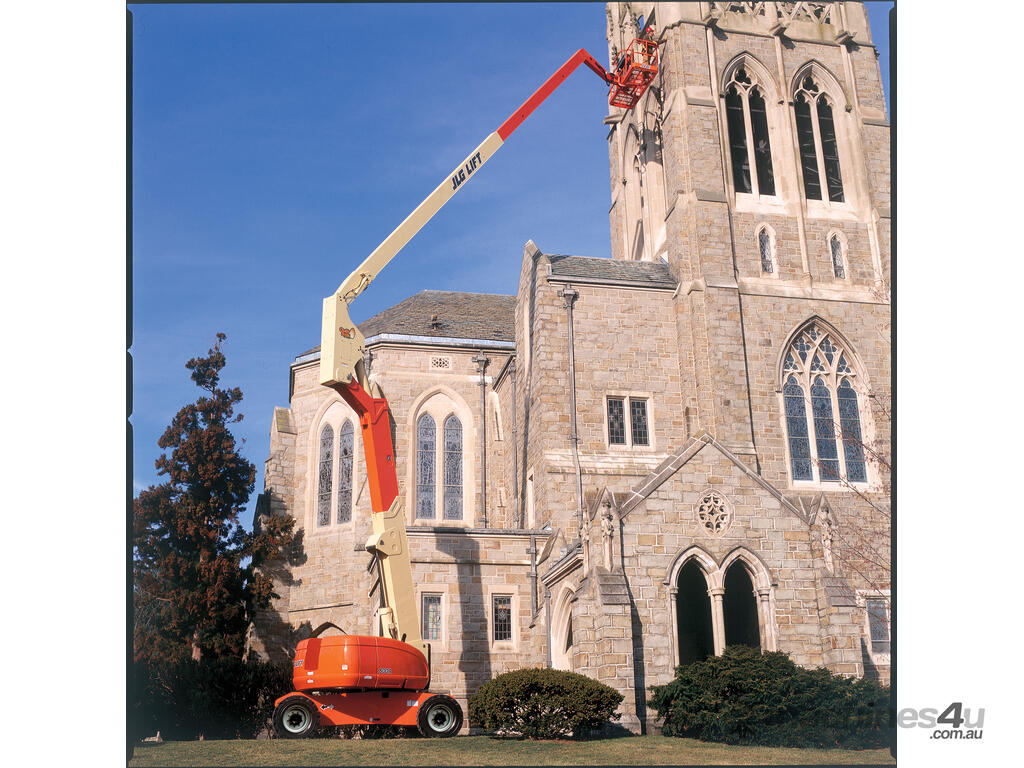

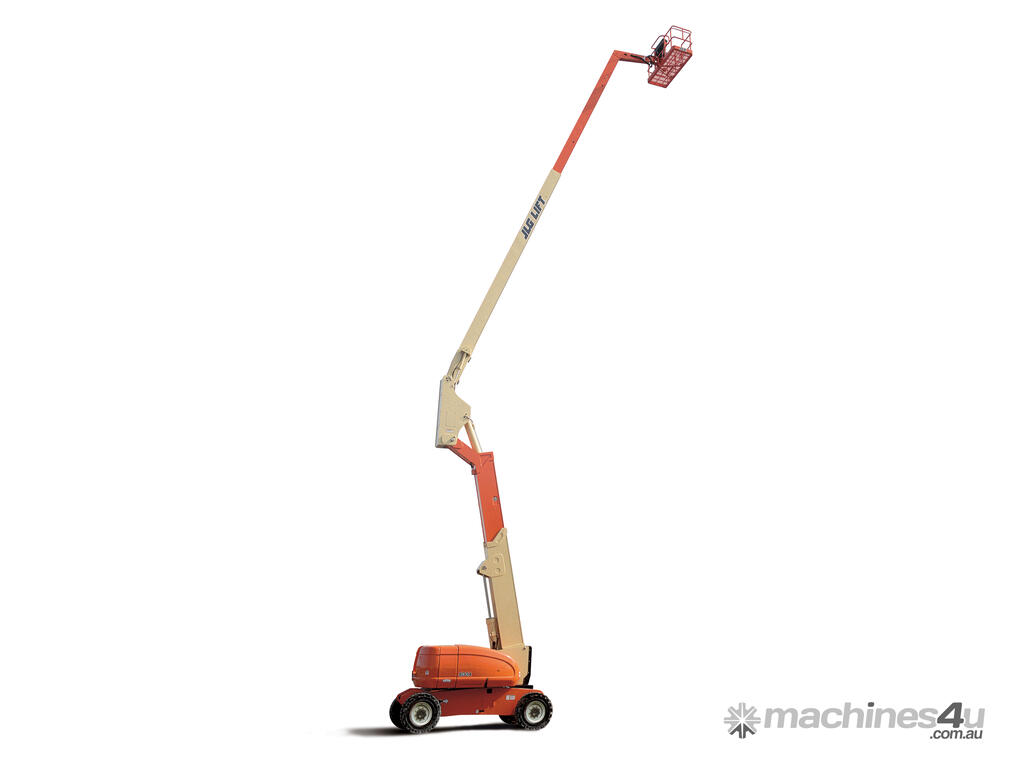

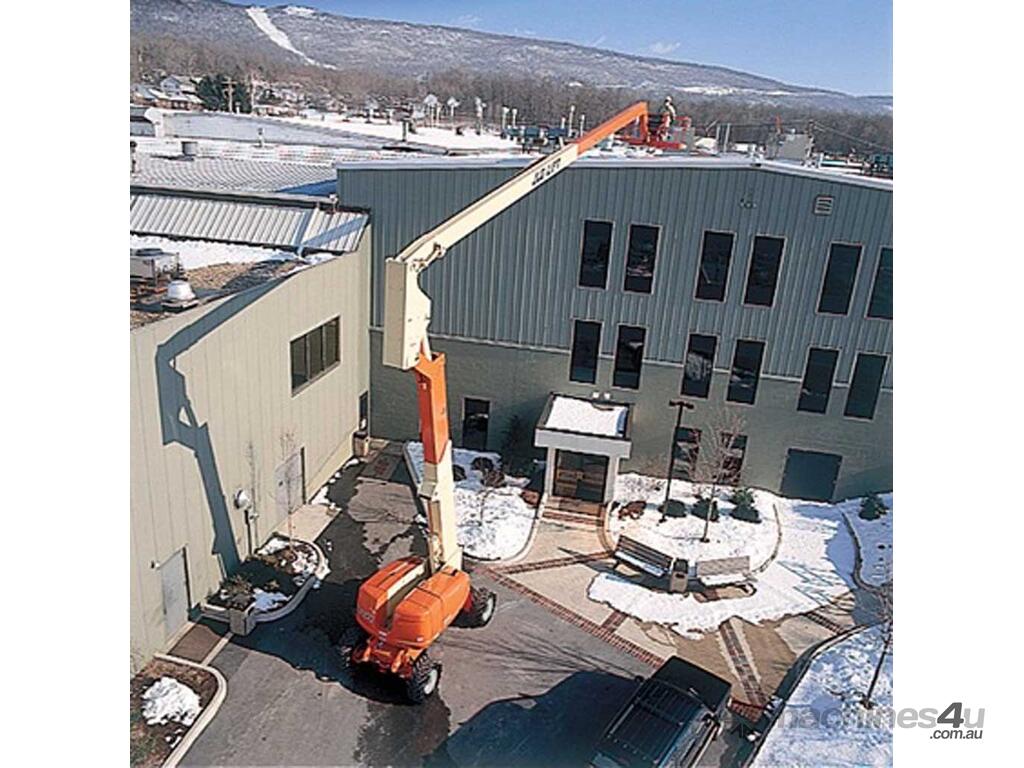

800AJ Articulating Boom Lift - 80 ft Platform Height, Advanced Design Electronics

JLG - 800AJ Articulating Boom Lift
Engine Powered Boom Lifts - 800 Series Articulating Boom Lift

Features:
-Get the extra reach and versatility you need with the best reach envelope in the industry
-With Workstation in the Skyä accessories, you will have all you need to get the job done
-Advanced Design Electronics System reduces your costs by increasing your fuel efficiency and reducing emissions

Quick Specs:
-Platform Height Elevated – 80 ft
-Overall Width – 8 ft
-Platform Capacity – 500 lb

Dimensions:
Platform Size 36 x 96" / 0.91 x 2.44 m
Overall Width 8' / 2.44 m
Tailswing 2' 6" / 76 cm
Stowed Height 9' 10" / 3.0 m
Stowed Length 36' 6" / 11.13 m
Wheelbase 10' / 3.05 m
Ground Clearance 12" / 30 cm
Weight* 34,300 lb / 15,558 kg
Max. Ground Bearing Pressure** 76 psi / 5.3 kg/cm²

Reach Specifications:
Platform Height 80' / 24.38 m
Horizontal Outreach 51' 10" / 15.8 m
Up and Over Height 32' 1" / 9.78 m
Swing 360º Continuous
Platform Capacity-Restricted n/a
Platform Capacity-Unrestricted 500 lb / 227 kg
Platform Rotator 180º Hydraulic
Jib (Range of Articulation) 130º (+70, -60)

Chassis:
Drive Speed 2WD or 4WD 3.0 mph / 4.8 kmph
Gradeability 2WD 30%
Gradeability 4WD 45%
Turning Radius (Inside)
Turning Radius (Inside) - 2WS 12' / 3.66 m
Turning Radius (Inside) - 4WS 7' / 2.13 m
Turning Radius (Outside)
Turning Radius (Outside) - 2WS 22' 6" / 6.86 m
Turning Radius (Outside) - 4WS 14' 6" / 4.42 m
Tire Size-2WD 385/65 x 19.5
Tire Type-2WD Pneumatic Lug Tread
Tire Size-4WD 445/55 x 19.5
Tire Type-4WD Wide Lug Tread

Power Source:
Dual Fuel Engine- GM Vortec 3000 MPFI 82 hp / 61 kW
Diesel Engine- Deutz D2011L04 64 hp / 47kW - Caterpillar 3044C 63.3 hp / 48 kW
Fuel Tank Capacity- 39 gal. / 147.63 L
Hydraulic Reservoir- 40 gal. / 151.42 L
Auxiliary Power- 12V DC
Noise Level- 70 dBa 7 meters

Available Options:
-Foam-Filled 18 x 19.5 Tires
-Soft Touch System 6 ft/8 ft
-36 x 72" (0.91 x 1.83 m) Platform
-43.5 lb (19.73 kg) Propane Tank
-Cold Weather Start Kit
-Hostile Environment Kit

JLG Industries is dedicated to delivering top-tier, innovative, and sustainable access equipment that enhances productivity and guarantees safety on job sites around the world. With decades of expertise, a commitment to continuous improvement, and a focus on customer success, JLG stands as a trusted partner in the industry. Order now and experience unmatched quality and reliability with JLG!
