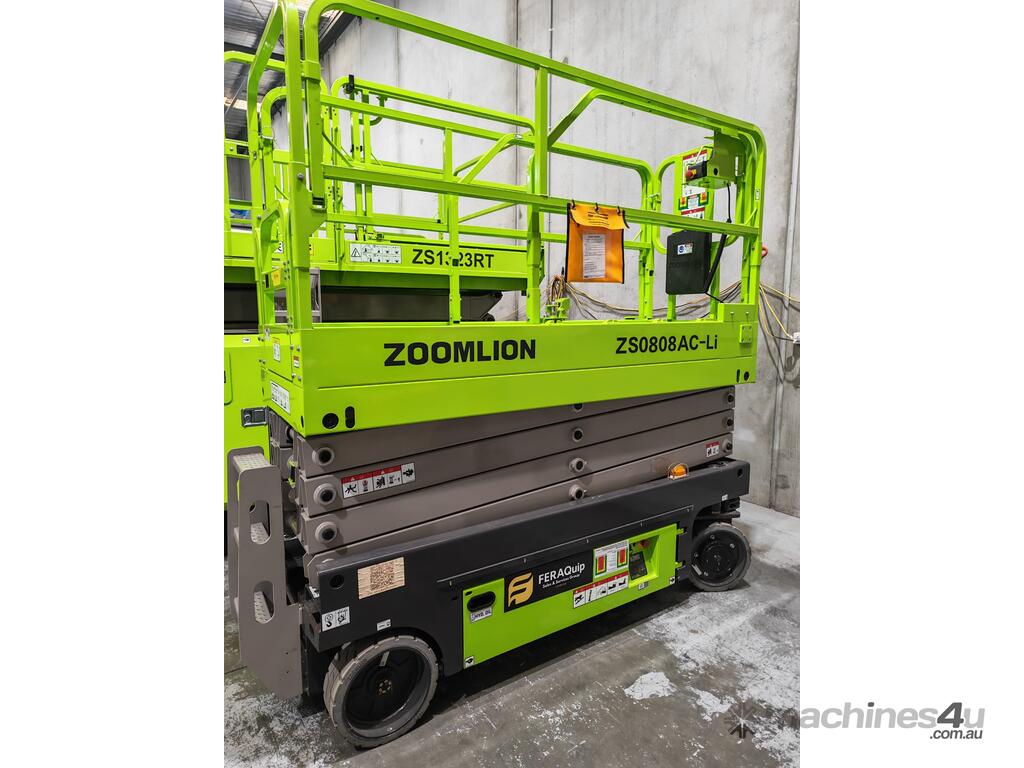

8m Scissor Lift - Working Height 10m

- AC system & Anti-collision sensor offers higher working efficiency & safety

- Battery Management System (BMS) + Machine control system provide dual protection

- Knuckles lubrication-free and maintenance-free

- IP67 rated waterproof protection on AC wheel motors for longer lifespan

- Lithium-ion batteries features long service life that the running time increases by 30%, and could apply to -20 cold working conditions

Work Height (lndoor/Outdoor) 10.00m/7.8m 32ft 10in/25ft 7in
A- Platform Height-Elevated (Indoor/Outdoor) 8.00m/5.8m 26ft 3in/19ft
B - Platform Height -Stowed 1.26m 4ft 2in
C- Platform Length 2.30m 7ft 7in
D- Platform Width 0.81m 2ft 8in
Platform Extension 0.91m 3ft
E- Overall Height (Rails Up) 2.4m 7ft 11in
Overall Height (Rails Down) 1.9m 6ft 3in
F- Overall Length 2.49m 8ft 2in
G - Overall Width 0.81m 2ft 8in
H - Wheelbase 1.85m 6ft 1in
I- Ground Clearance (Stowed) 0.11m 4.5in
J- Ground Clearance (Raised) 0.02m 0.75in
Platform Capacity 230kg 510lb
Battery 135Ah Li-ion
Charger 24V/30A
Gross Weight 2090kg 4610lb
