8x5 Builders Tradie Trailer White 3500KG ATM with Drawer and Fog Lights BIGMAN TRAILER

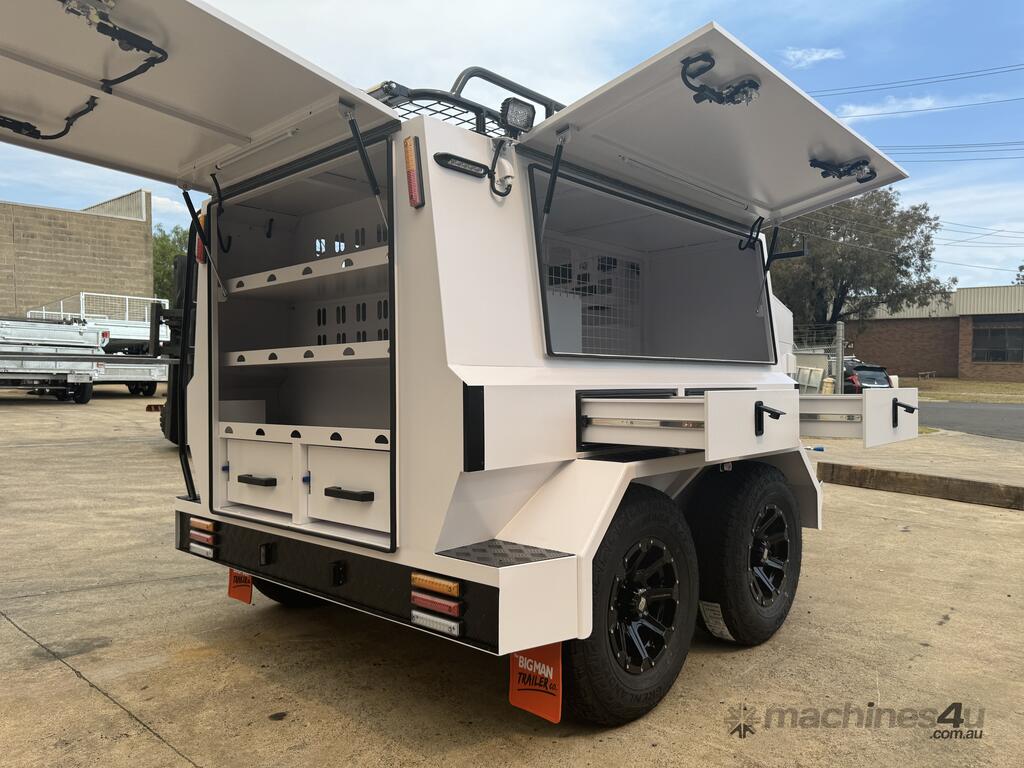

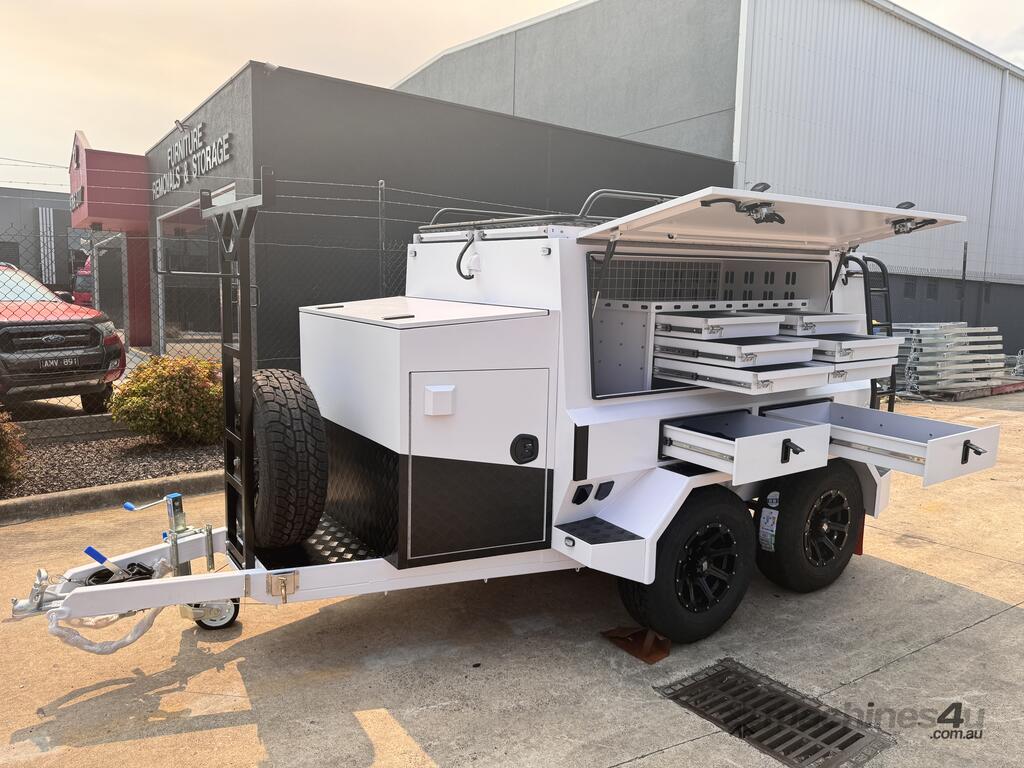

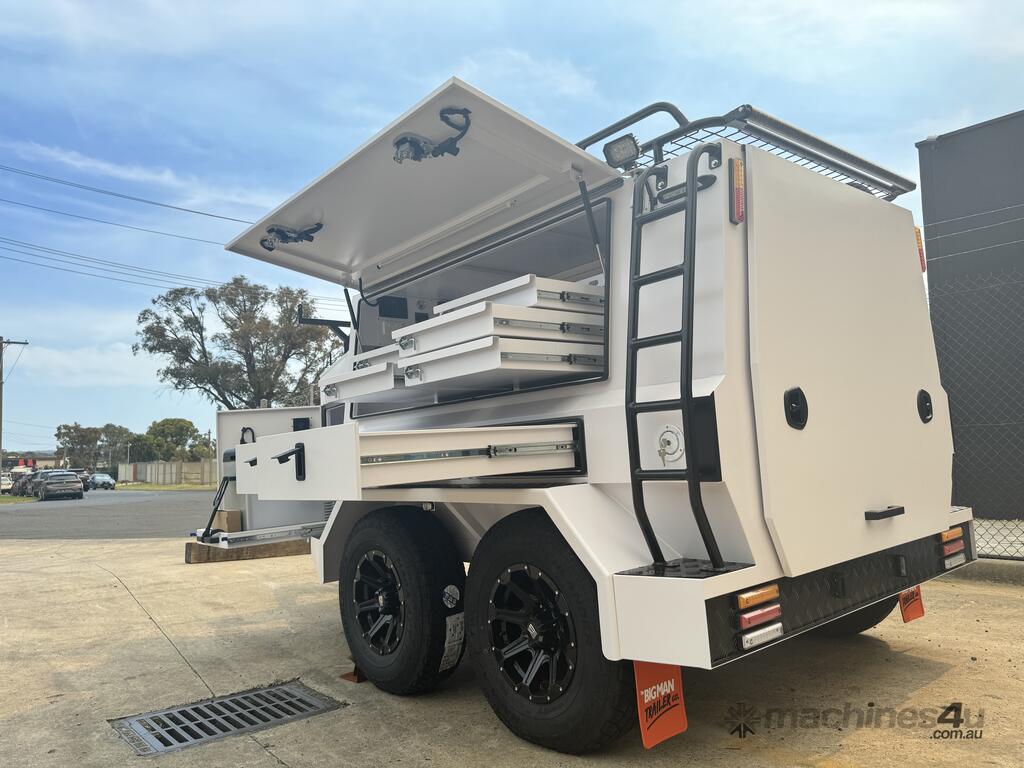

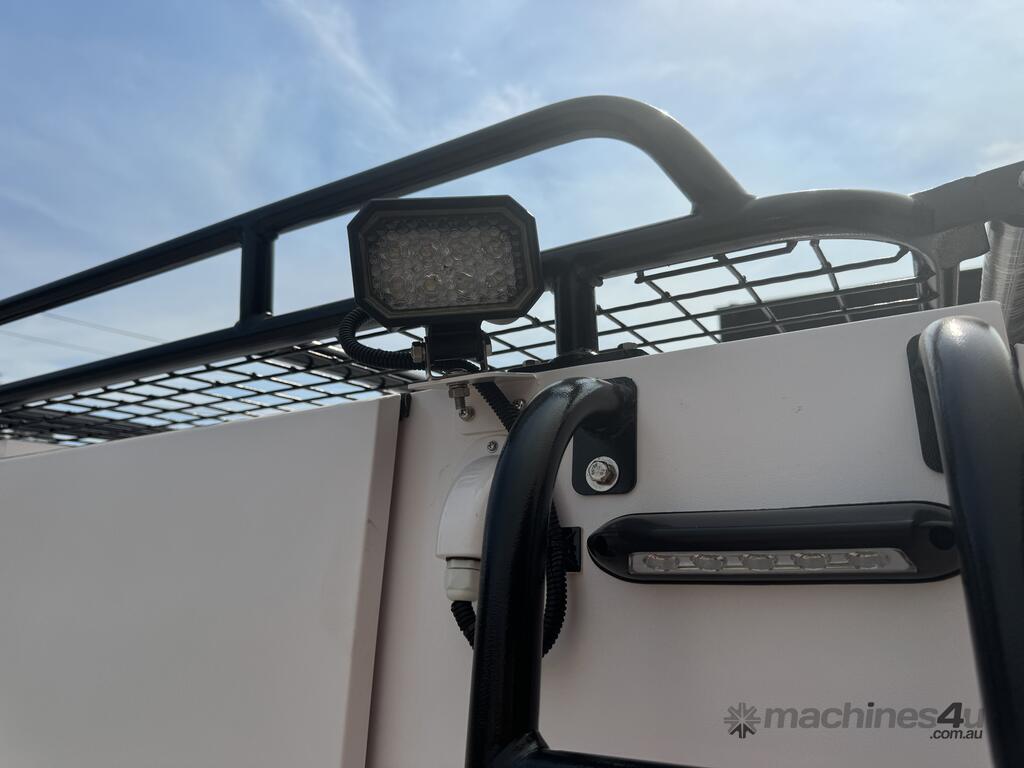

The 8×5 Tradie Trailer in white is a cutting-edge, versatile, and robust solution for builders and tradespeople of all professions. Designed for 2025, the new TT85WV2 model enhances functionality, storage, and safety, making it the ultimate tool for any job site. The trailer features a comprehensive storage system, including spacious main compartments on each side, newly designed slide-out drawers underneath, and slide-out drawers at the rear, with an added internal drawer in the latest model to maximize storage capacity. A 50-liter fridge slide-out with a fan and additional compartments ensures convenience, while internal fans near the wheel holder further enhance its practicality. The new rear fog lights improve visibility and safety during nighttime work. This model is equipped with dual batteries, anderson plugs, external sockets, a water gauge, and a 70L water tank, making it a reliable companion on the job. Other features include a black ladder rack with a spare tire, solar panel slide-outs and a rocker roller 9-leaf suspension for superior handling. With upgraded lighting, a roof luggage carrier, and a sleek black checker plate finish on step-on areas, the trailer balances style and utility. Built with 256 75R16 inch tires and a sturdy 1800mm drawbar, the TT85WV2 now has a tare weight of 1750 kg while maintaining a 3500kg aggregate trailer mass. Additionally, the new model includes a central locking system as a standard feature, ensuring optimal security for tools and equipment. Practical, innovative, and built for performance, the 8×5 Tradie Trailer is the perfect choice for professionals who demand reliability and excellence.

Storage Features

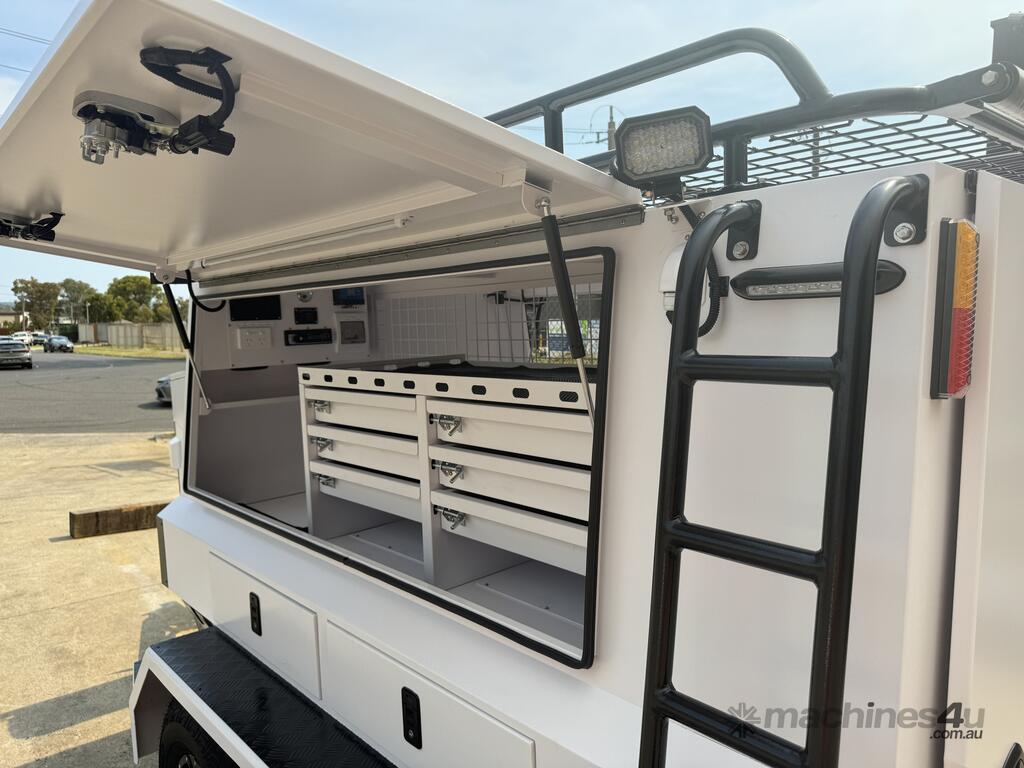

2x smaller compartments underneath the main compartment area (450w x 450L x 450H).

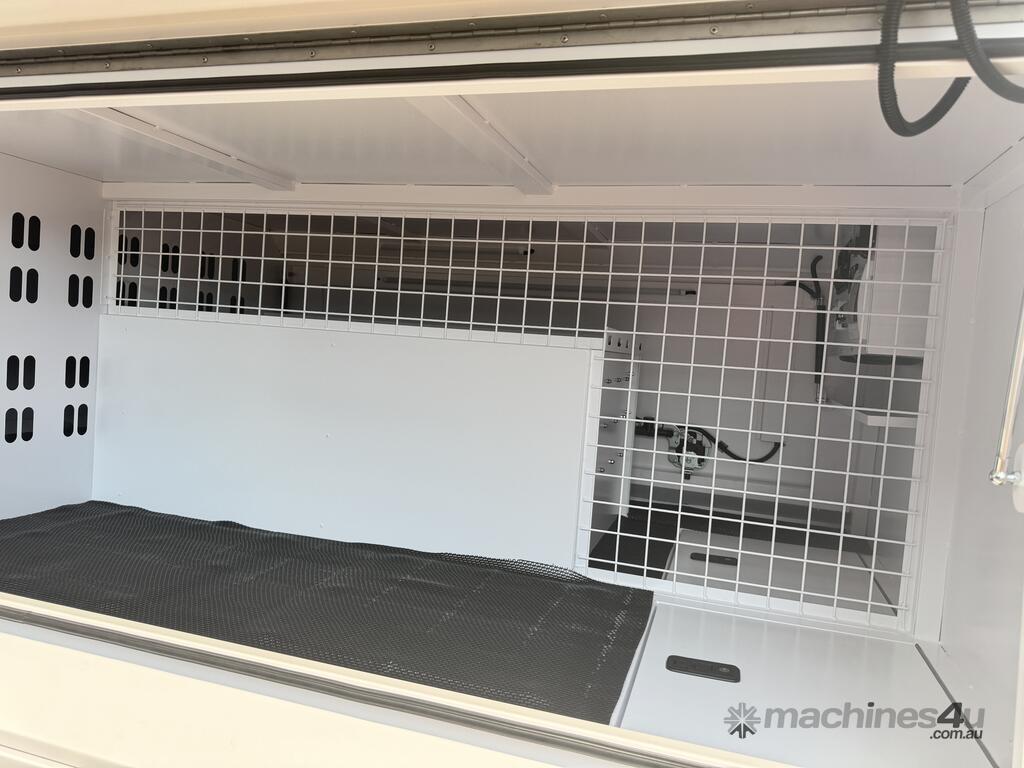

The main compartment area on either side is 1700 in width x 1950 length x 820 in depth.

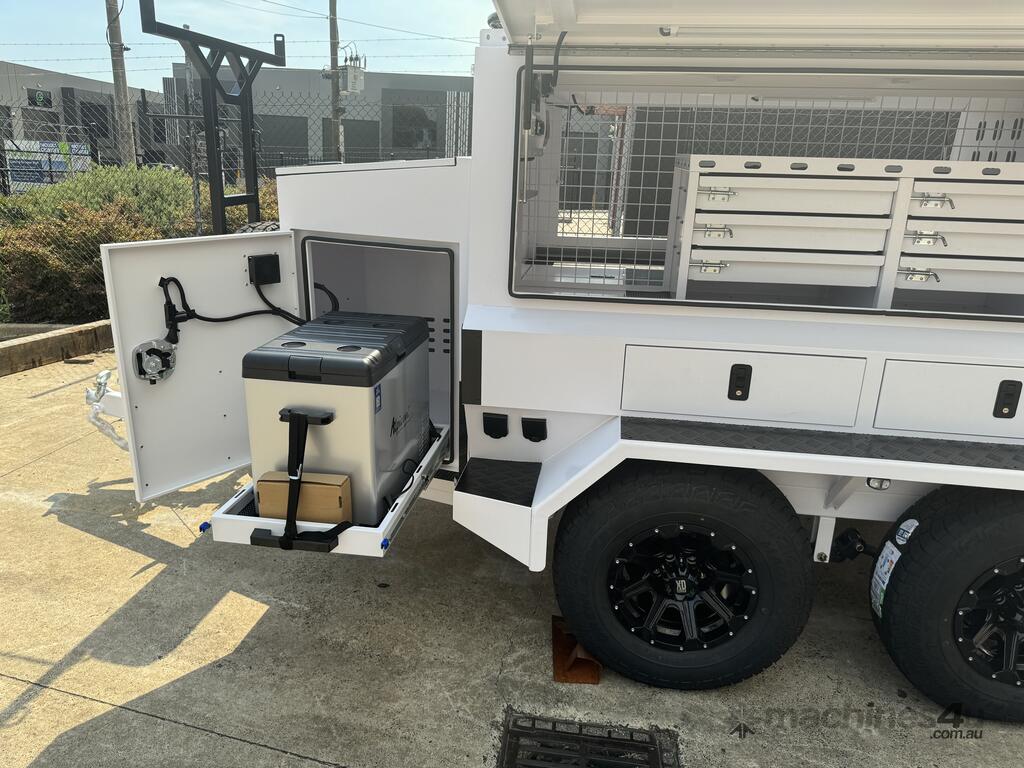

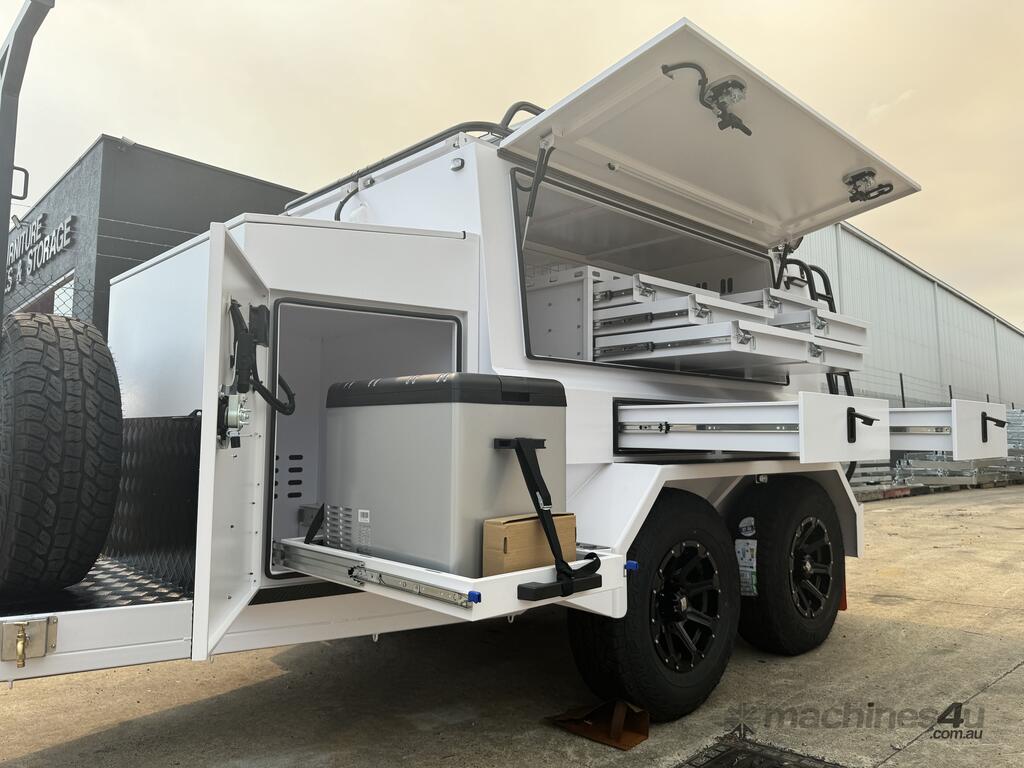

Fridge slide out -50 Litres with Fan.
Additional Compartment above the fridge – 1100 width x 600 length x 200 Depth.

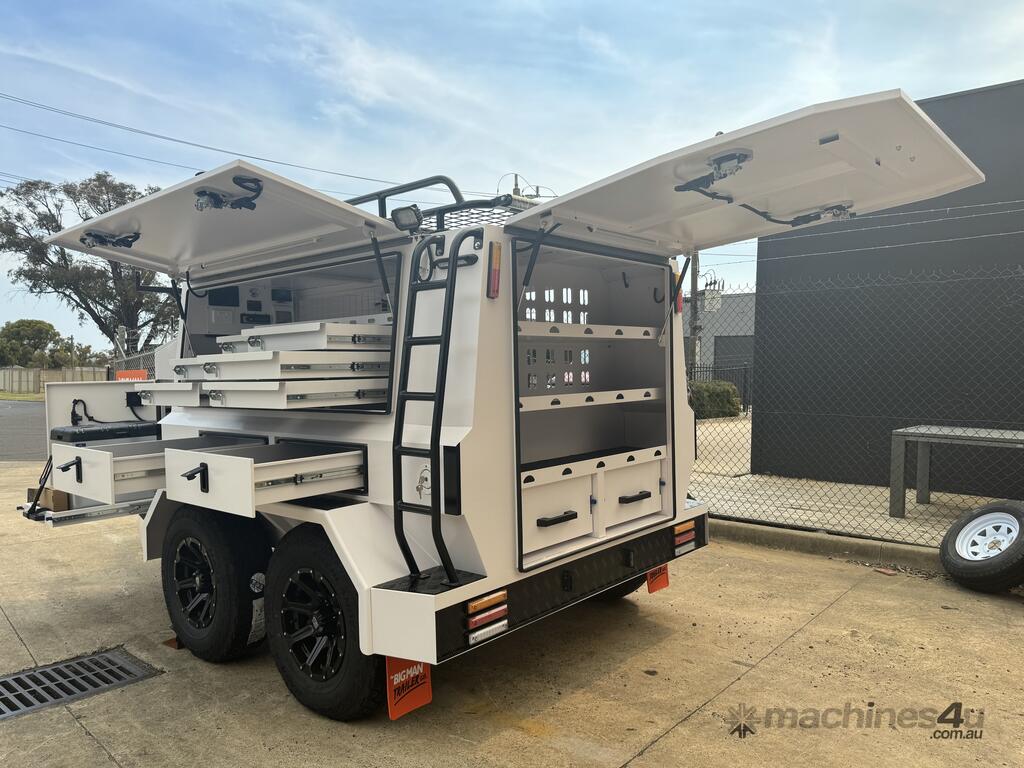

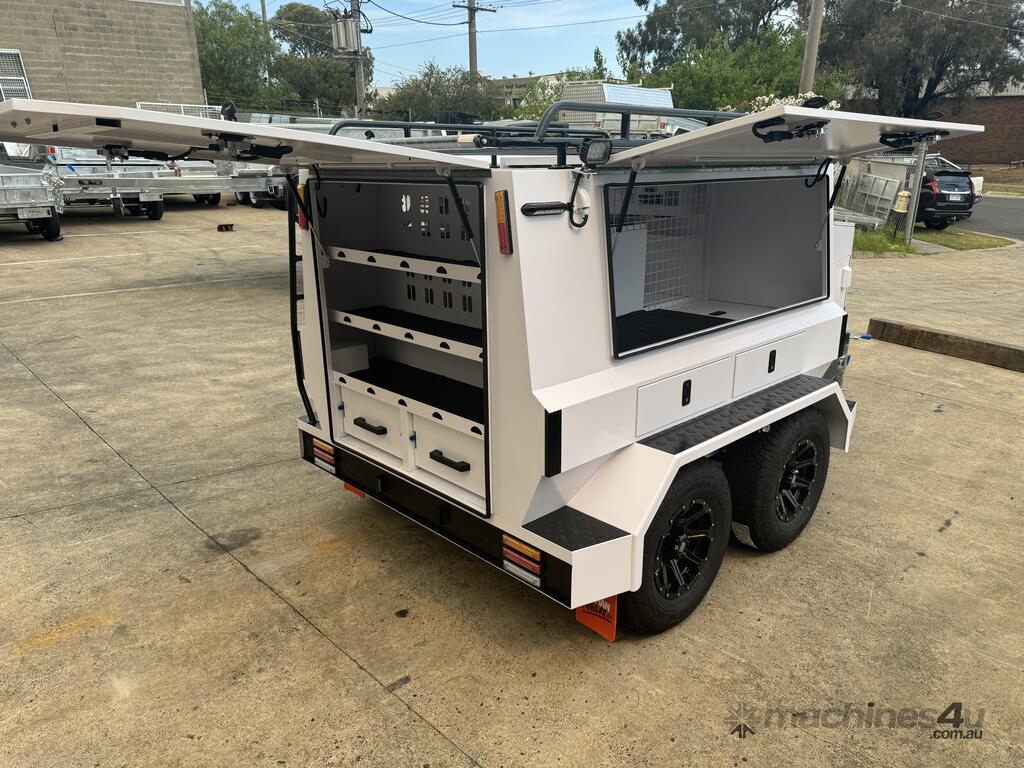

2 x shelves located at the rear:
Bottom shelves – 1800 width x 450 length x 420 height.
Top shelf – 1500 width x390 length x 380 height.

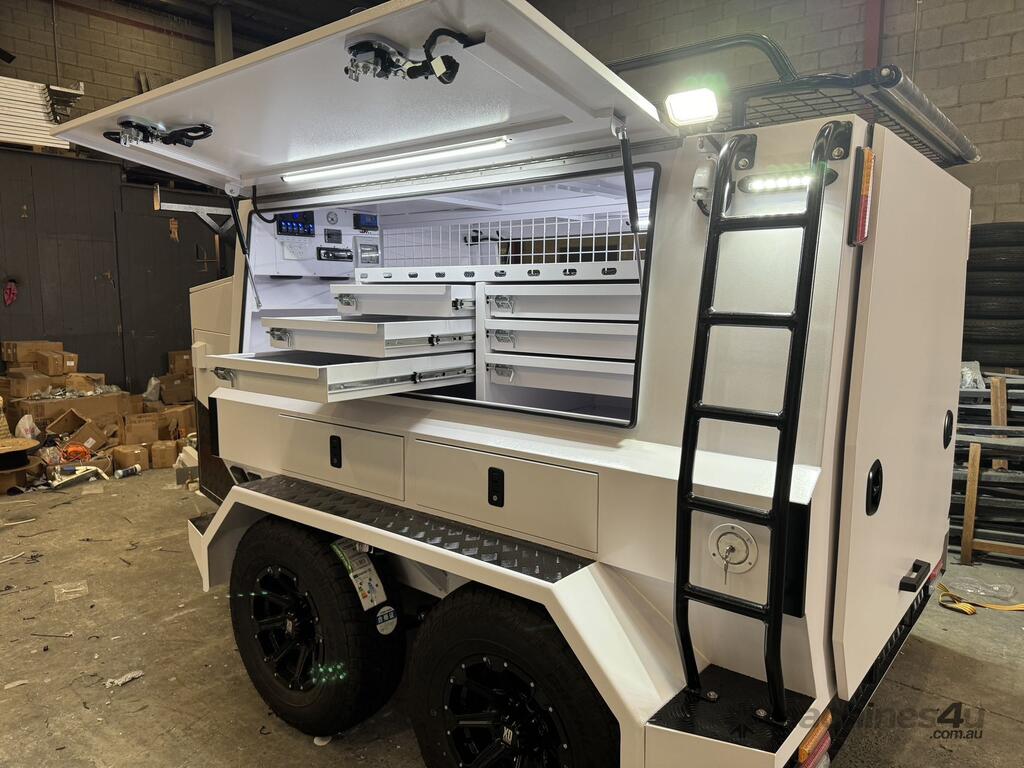

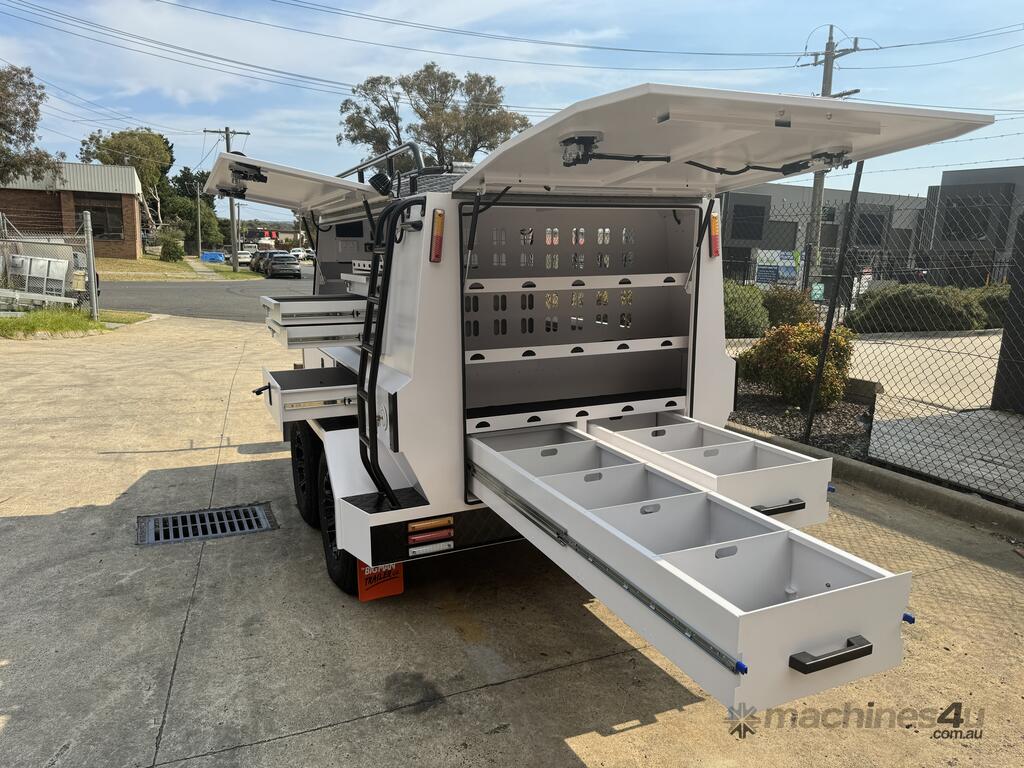

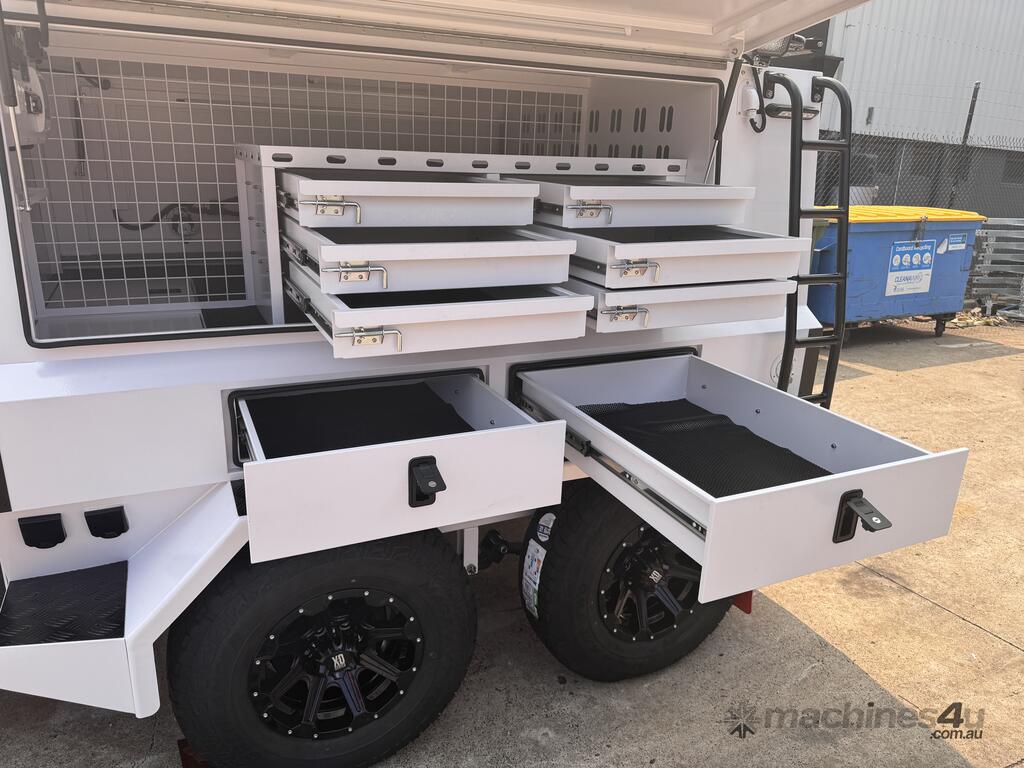

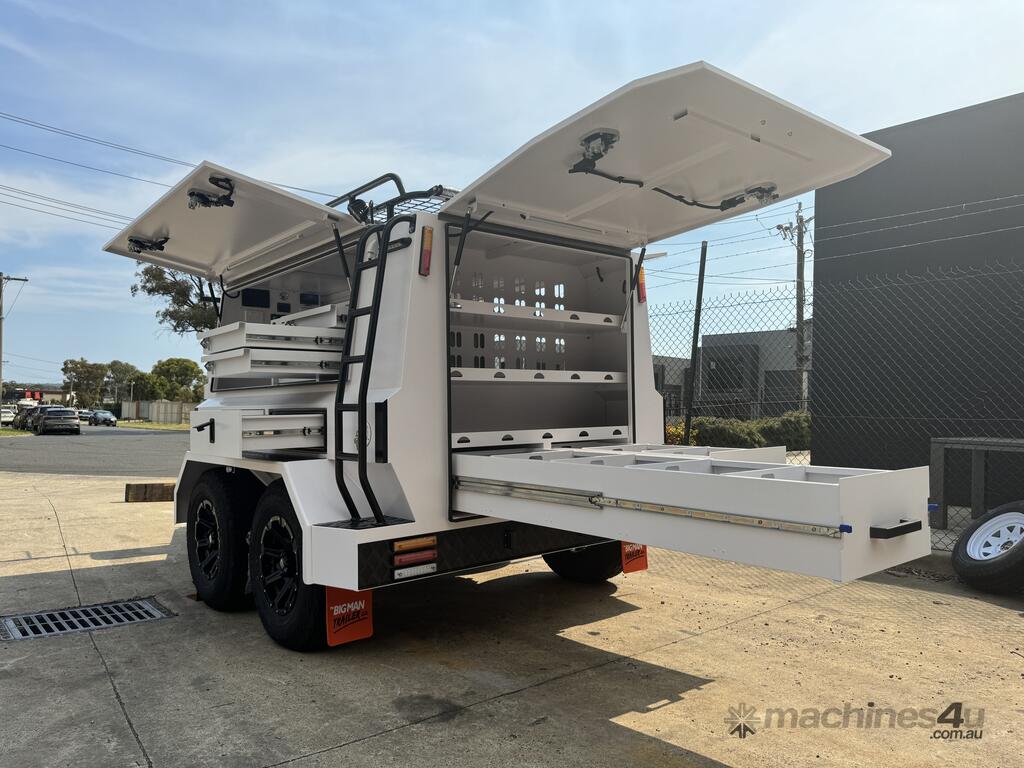

2 x slide-out pull-out drawers located at the rear – 500 width x 1800 length x 400 height.

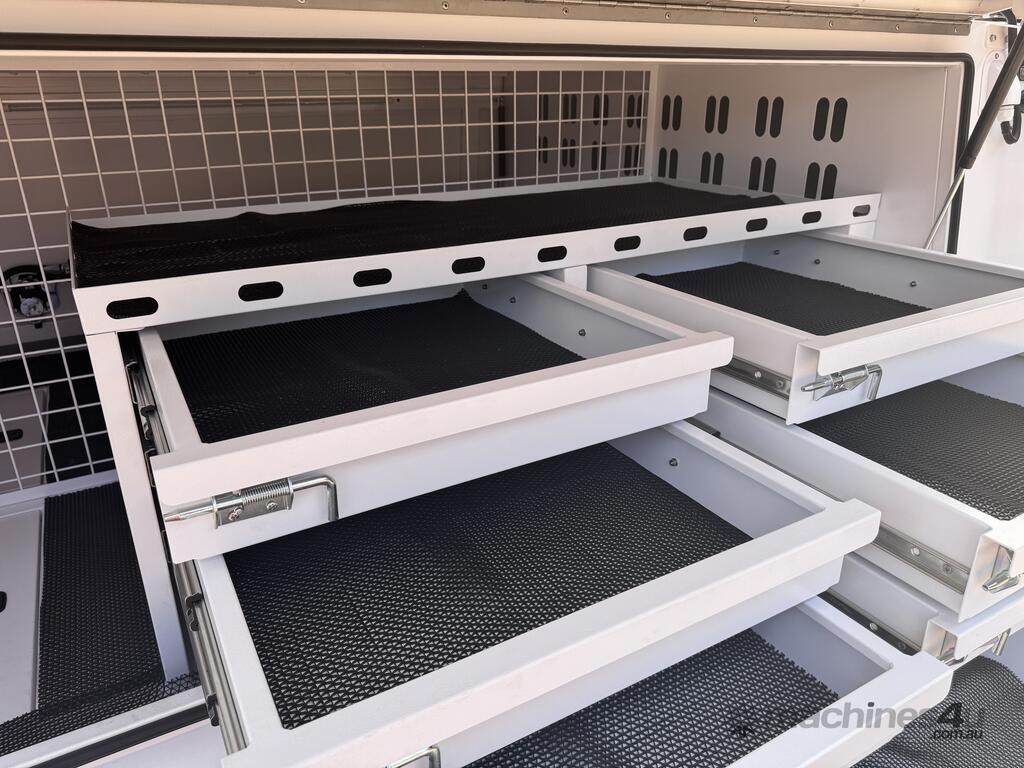

Draws Have Latches on the side to open and close.
Additional storage compartments (Right side)
Longest point – 450 length x 700 width x 200 height.
Lowest point – 340 length x 700 width x 200height.
Additional storage compartments (Left side)
Longest point – 450 length x 700 width x 200 height.
Lowest point – 340 length x 700 width x 200 height.
Internal fans were found in front of the wheel holder behind the fridge.

Body Specs & Features
Model TT85
Tare 1590
Aggregate Trailer mass 3500
Axle Group Loading 3500
Tyre Size 256 75R16 Inch
Cold Inflation Pressure 275
Gloss White External
Gloss White Internal
Drawbar 1800mm long 50 x 100
Free upgrade ARK500 Jockey wheel

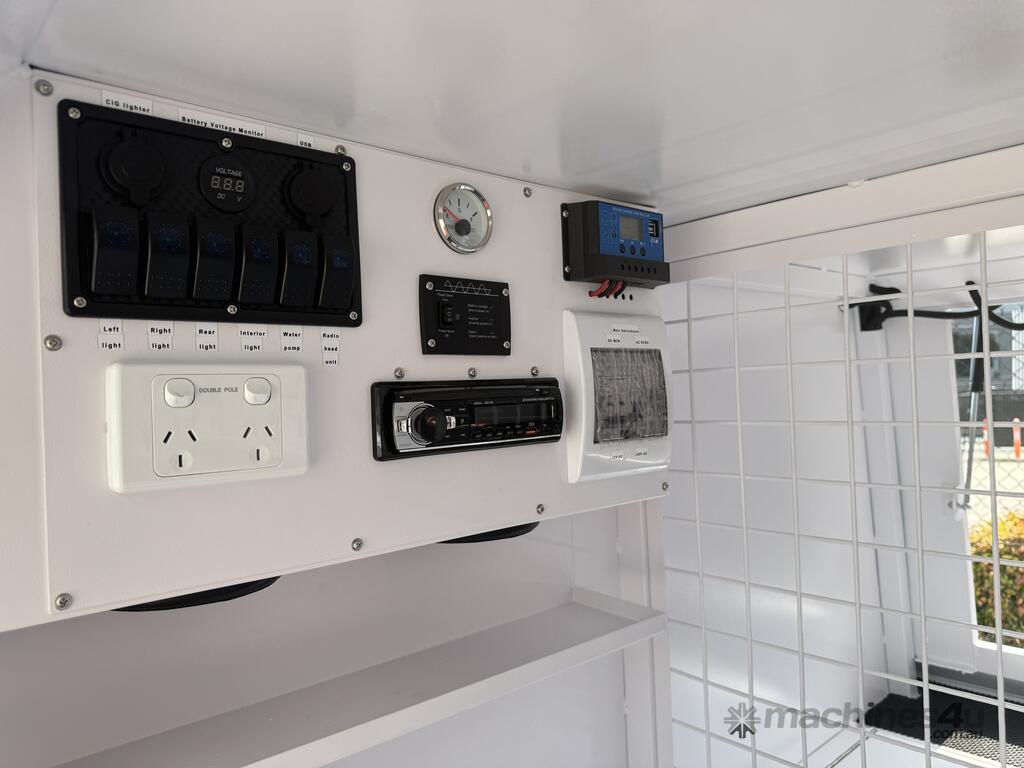

Power outlets, 2 speaker radios

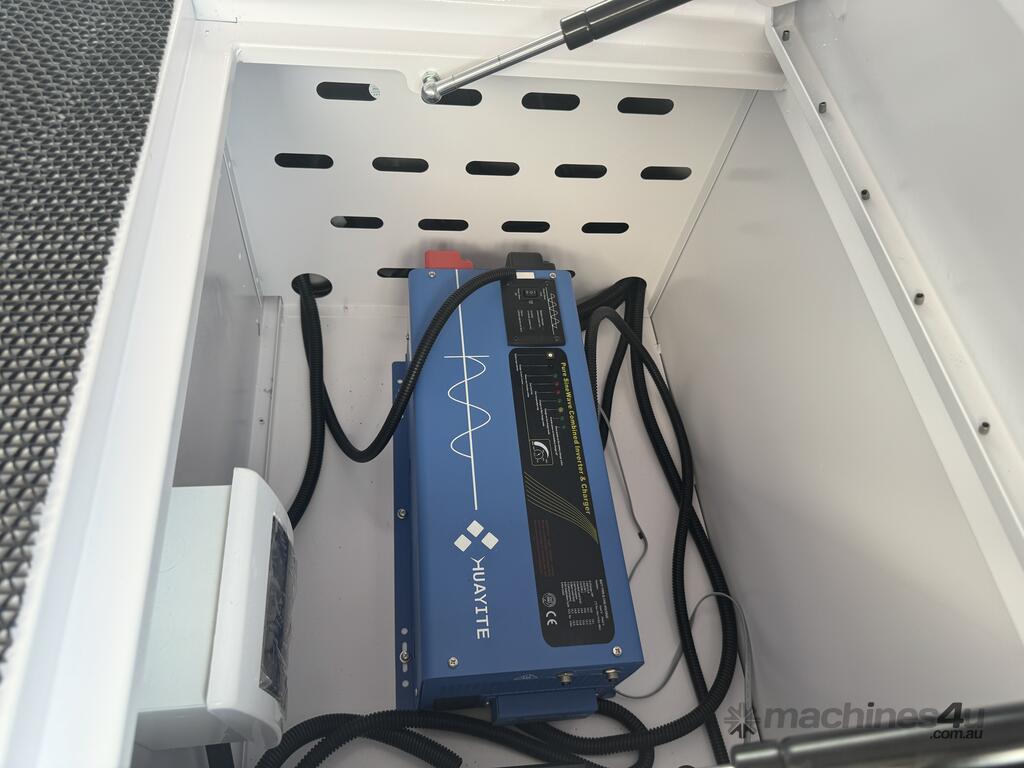

Converter found within the main compartment.

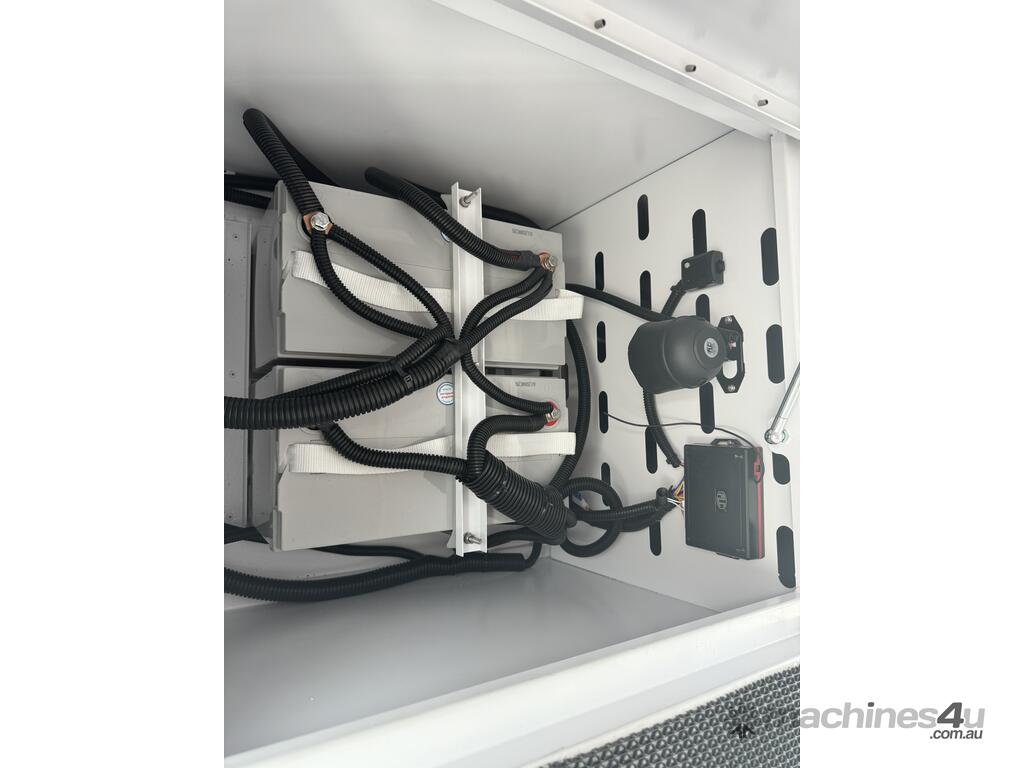

Dual Battery

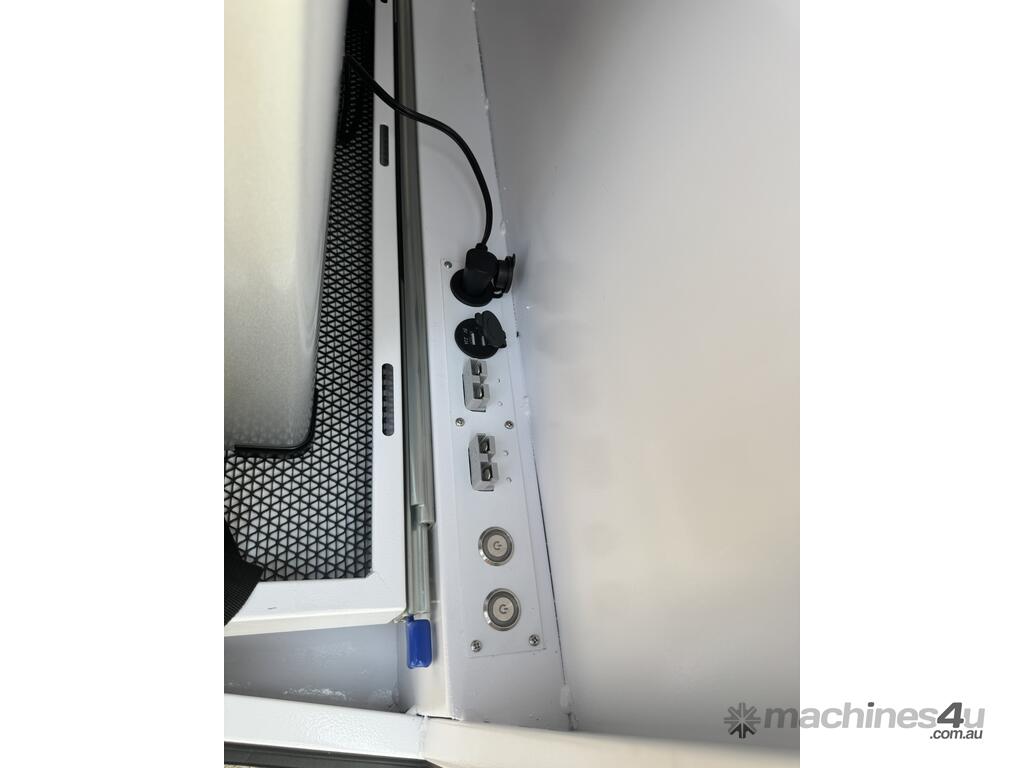

Anderson plugs, external sockets, power button.
Water gauge indicating levels found within the compartment.
Water tank runs inside the chassis and sits on the left-hand side.
70L Dual water tank found underneath.
Hose runs inside the chassis where you can open the tap.
Water pump fitted.

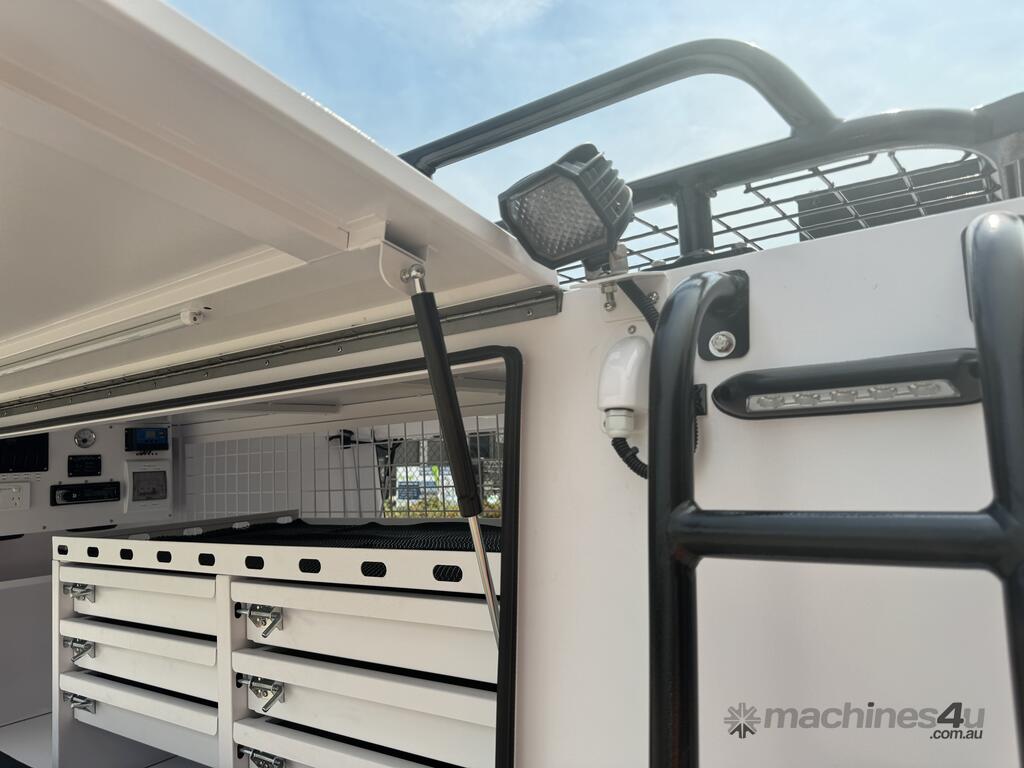

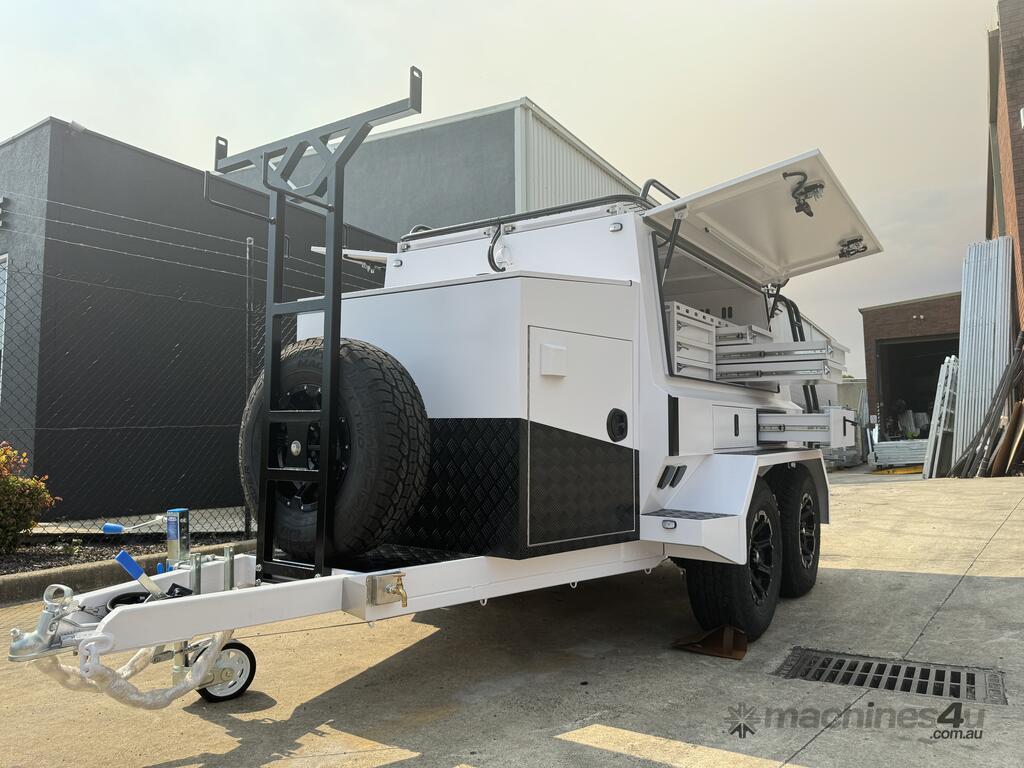

Black ladder rack located at the front with a spare tyre.
2 x Solar panel slide-outs located underneath the roof cage.
Fridge slide-out with Fan.
Compression press-release locks on all doors.
Gas struts for all doors.
Black checker plate finish for all step-on areas.
Rocker roller 9 leafs suspension
Ladder rack located at rear, 1300 height.
Roof Luggage Carrier Included.
Brake, parker, reverse, and number plate lights with a black checker plate finish.

Photos of the trailer include some optional extras. Pictures shown are only for demonstration only. Speak to one of us further for info on accessories
