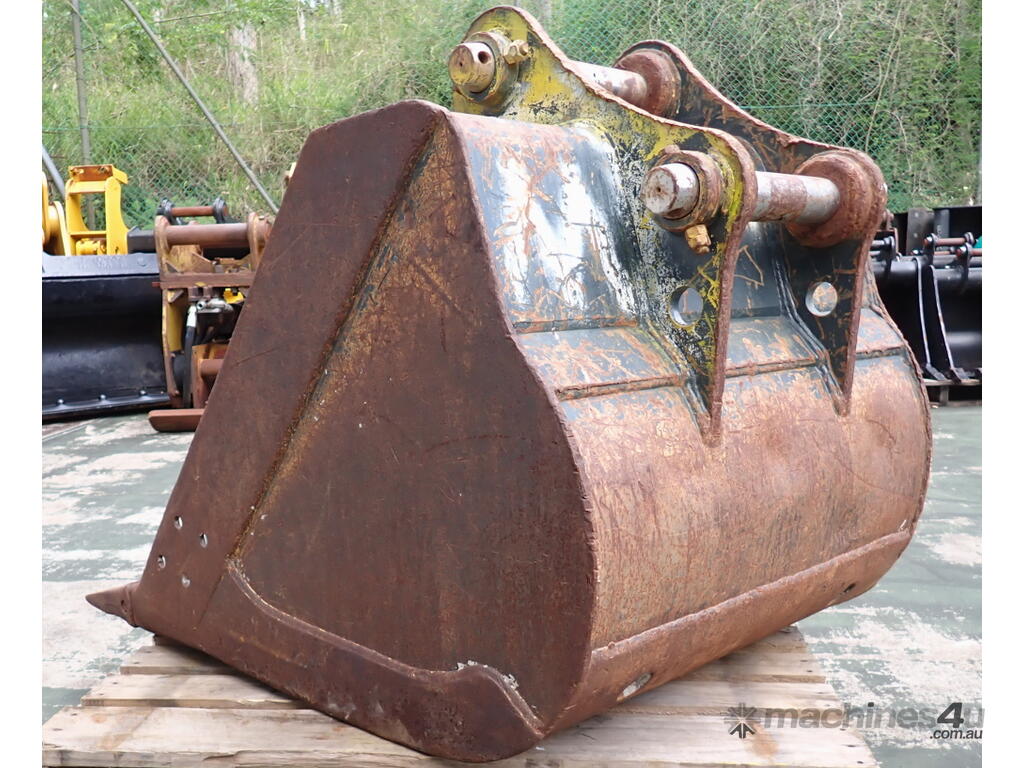

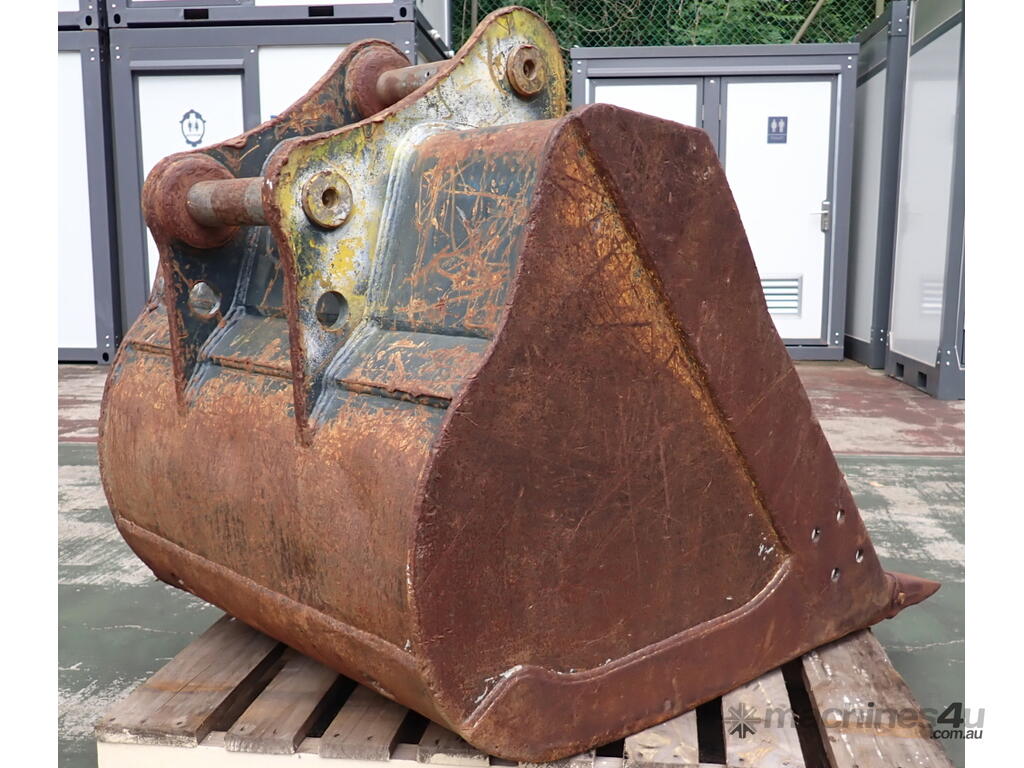

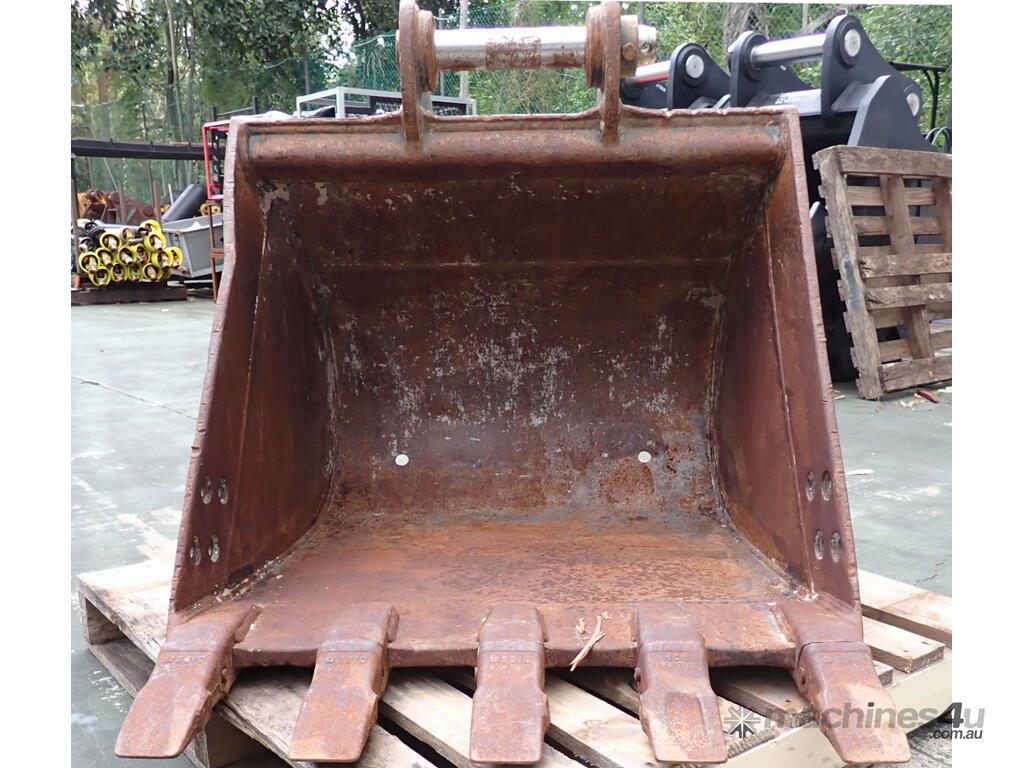

9-20 ton (65mm pin) 1000mm Excavator GP Digging Bucket

Used 1000mm Excavator GP Digging Bucket suit 9-20 Ton machine.
Condition is used but it is a sturdy, well built bucket with plenty of life left.

It has Tapered sides so the mud slides out easily.

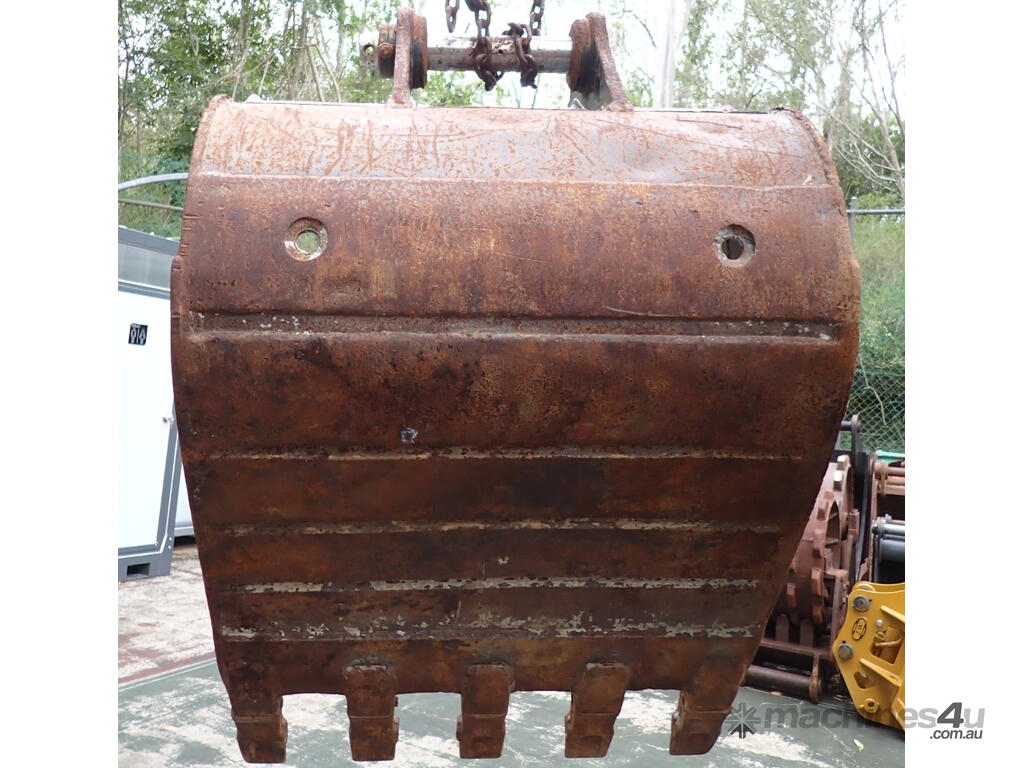

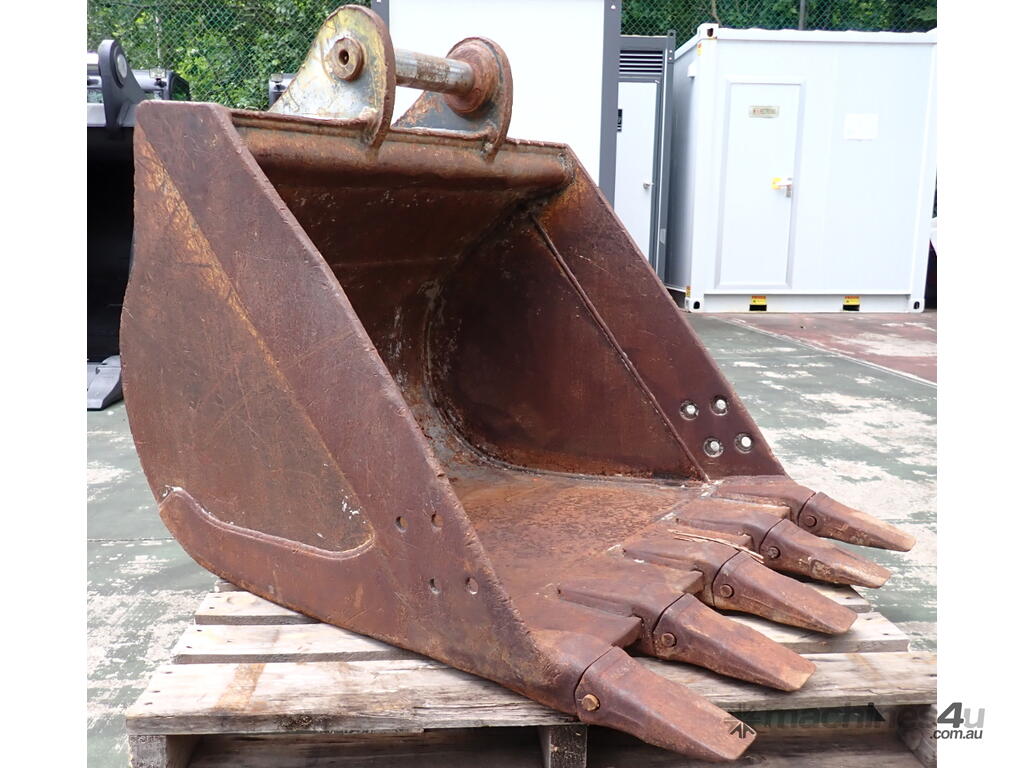

There are extra wear strips on the lower sides (see pics# 4 & 9), and many wear strips welded underneath for durability (see pic# 10).

It has holes ready for removable bolt-on Side Cutters.

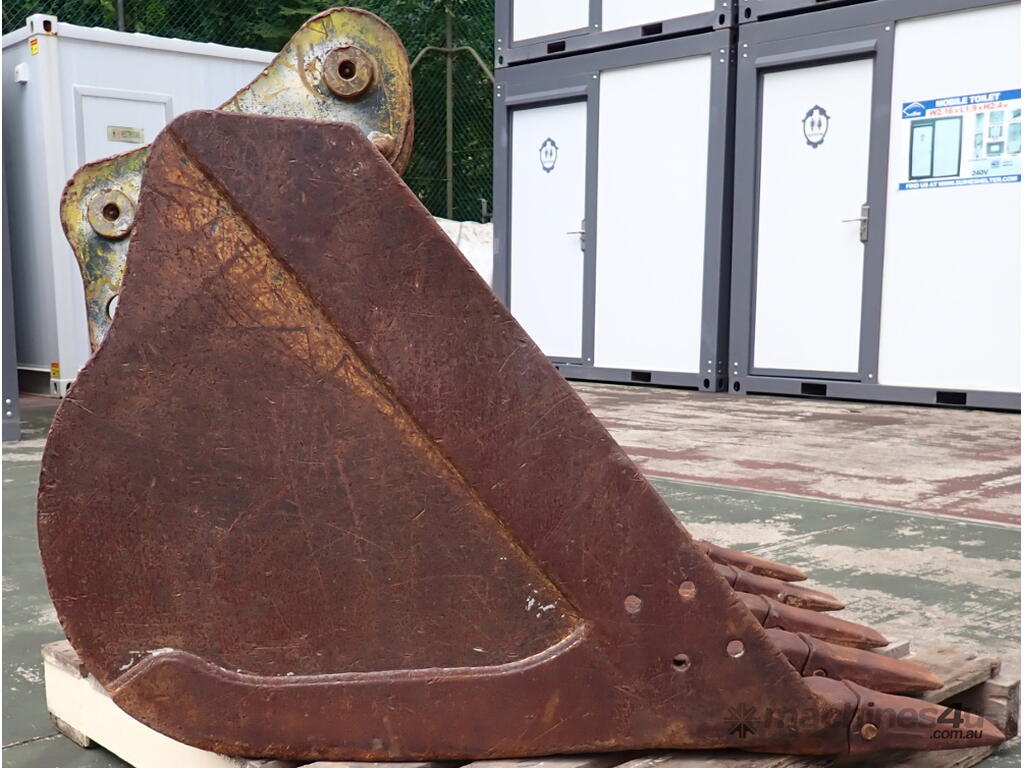

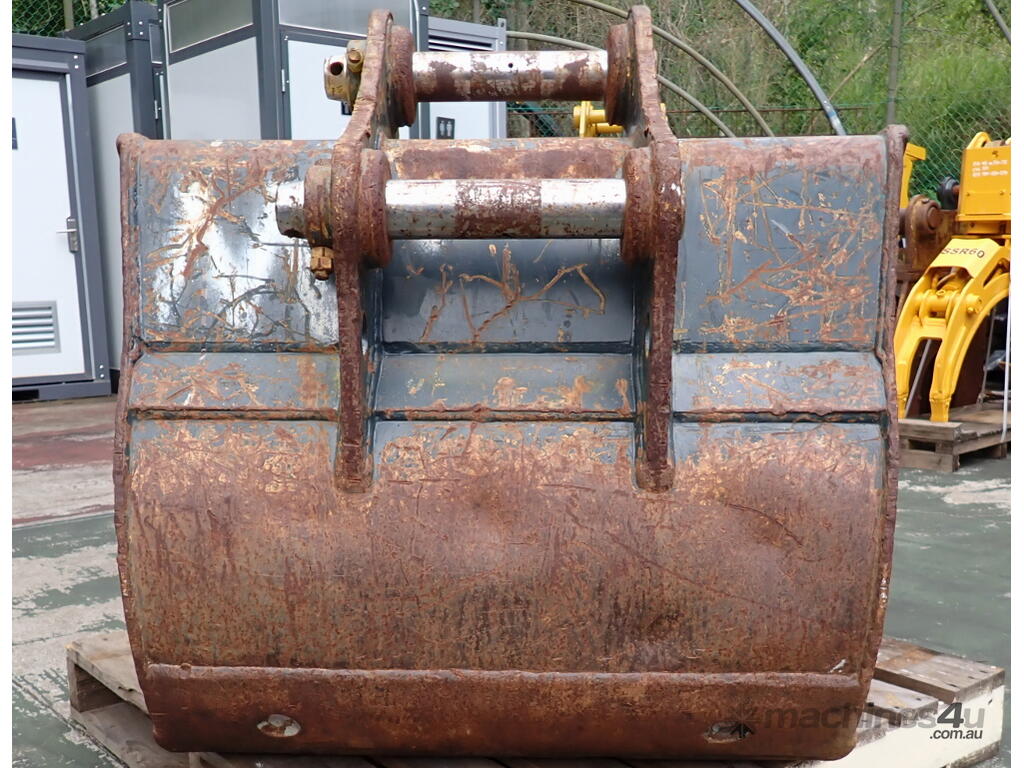

There are 2 small holes in the back of the bucket, useful for letting out water if you are dredging out a wet dam etc. (see pics# 2 & 7).

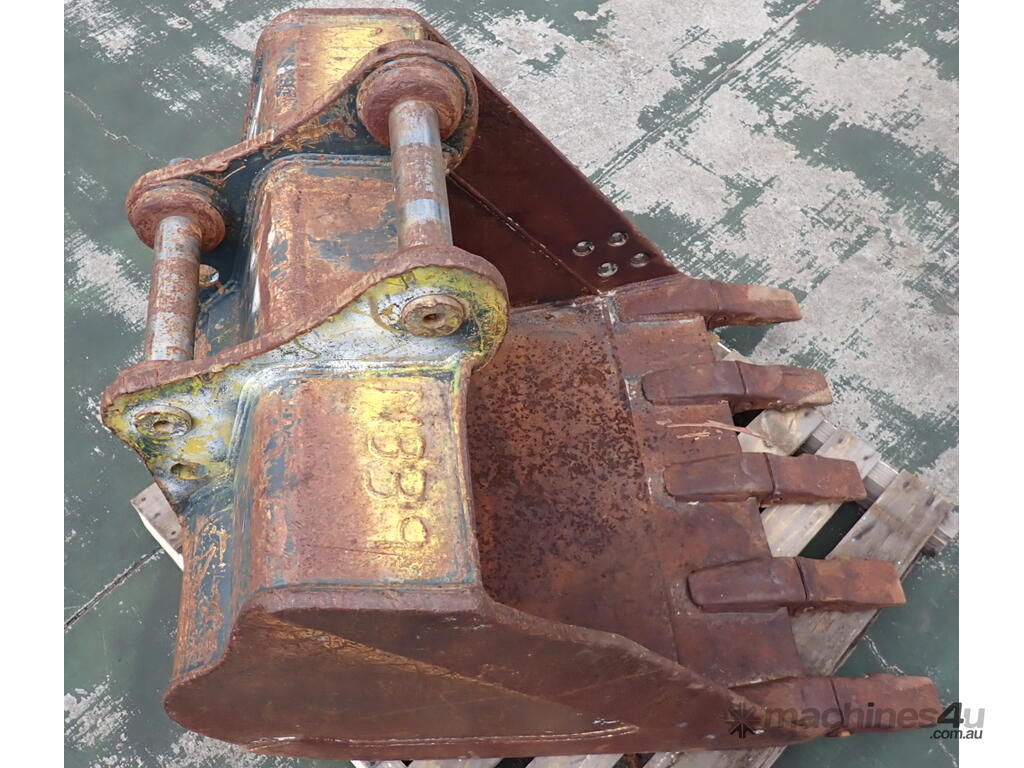

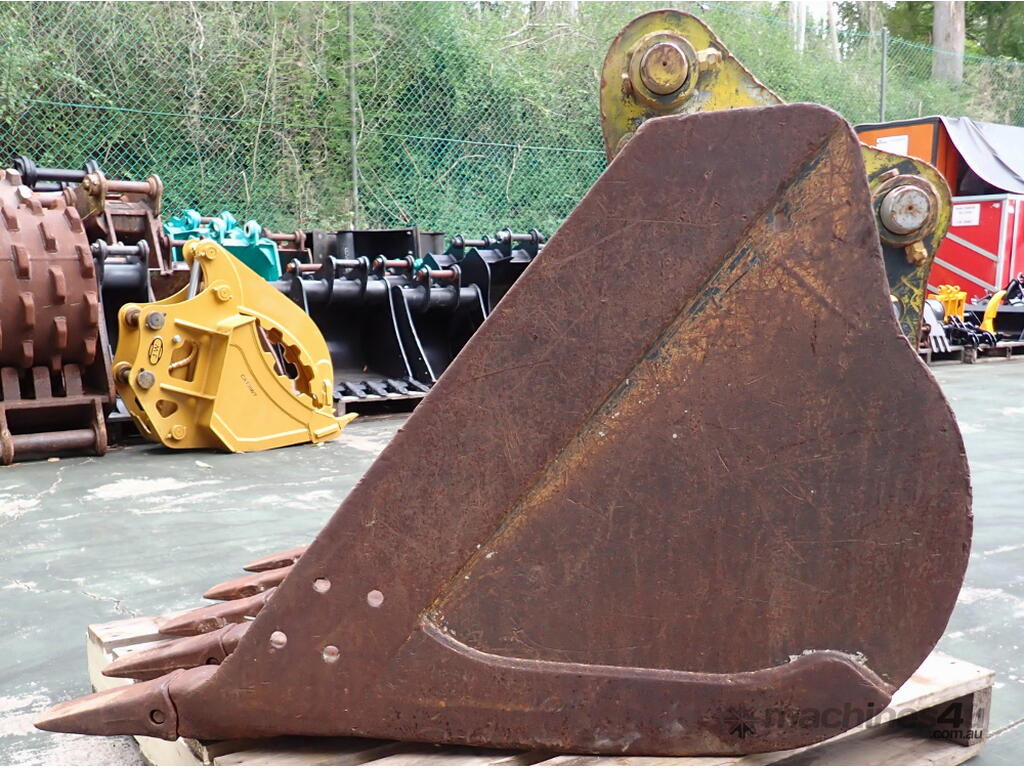

There are also 2 holes at the bottom of the ear plates that can be used as lifting points (see pics# 6 & 8).

There is a small dent in the front of the side (see upper left side of pic#2).

The teeth are almost new.

Current Headstock configuration:
65mm Pin Diameter, 390mm Pin Center to Pin Center (CtoC), 260mm Between the inside Ear Bosses (which can be shaved back up to 322mm between the Ear Plates if you need more inside width for your hitch or dipper arm to fit in).

Should fit: Case 9013 / CX130 / CX135 / CX135SR, Daewoo Solar 130LC-V / 130W-2 / 130W-3 / 130W-V / 140LC-V, Doosan S130LC-V / S140LC-V / S140W-V / S255SLR / S300SLR, Hyundai R120 / R130LC / R130LC-3 / R130W / R140LC-7, JCB JS110 / JS130 / JZ140, Link-Belt 130LX / 135SA / 2650 QUANTUM, New Holland EH130LC, Samsung SE130-3 / SE130LC-3, Sumitomo SH100 / SH100-2 / SH100CT-2 / SH120 / SH120-2 / SH120CT-2 / SH135U-2 / SH135X-2 / SH145U / SH200LC-3LR, Terex TXC 140LC-1, Volvo EC130-3 / EC140 / EC140B / EC140C / EC140D / EC145D / EC210C LR / EC240C LR / EC290C LR / ECR145C / EW130 / EW140C / MX135WS/LS / SE130W-3/LC-3, Yuchai YC135-7.

Maybe fit: Caterpillar 311 / 311C / 311D / 312 / 312B / 312C L / 312D / 313 / 314C LCR / 314D / 320D, Daewoo Solar 130-2 / 130-3, Doosan DX140LC-3 / DX140W / DX140W-3 / DX300LC-3 SLR, Halla HE130 / HE130W, Hitachi EX100 / EX110-5 / EX120 / EX120-1 / EX120-2 / EX120-3 / EX120-4 / EX120-5 / EX130 / EX135 / EX135UR / FH120 / FH130 / UHO62 / UHO63, Hitachi Zaxis 135US, JCB 805B / 814S, John Deere 135C RTS, Kato HD 512, Kobelco 115SRDZ / 135SRLC / K905 / SK120 / SK130 / SK130LC / SK135 / SK135SR, Samsung SE130W / SE130W-3, Sumitomo SH120-3 / SH125-3 / SH125X-3 / SH130-5 / SH135-3 / SH135X-3, Takeuchi TB 1140 and possibly other machines with similar pin spacings or that have a variable pin spacing hitch (Multi-Hitch).


Dimensions: 990mm Wide, 1260mm Deep, 1005mm High.
Weight: 470kg.


Call if you would like to discuss or to come inspect it.
We are at Pullenvale, 16km west of Brisbane CBD, between Brookfield and Anstead, near Kenmore.
You can pick up, we can deliver to a reasonable distance for an agreed fee, or we can arrange freight within Australia.
