9-20 ton (65mm pin) Jaws Hydraulic Excavator Quick Hitch Coupler

Used 65mm pin Jaws Hydraulic Excavator Quick Hitch Coupling to suit 9-20 Ton machines.

Strong and well engineered. Made in Australia by Jaws Buckets & Attachments.

This hitch is in great, almost new condition with no visible wear.

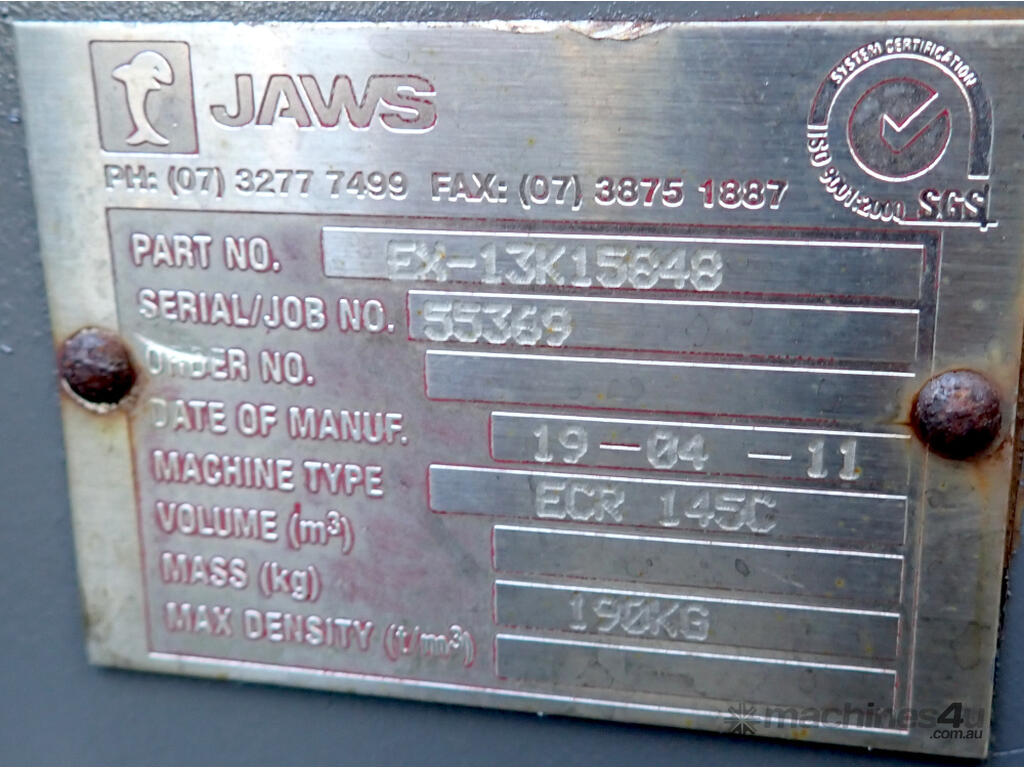

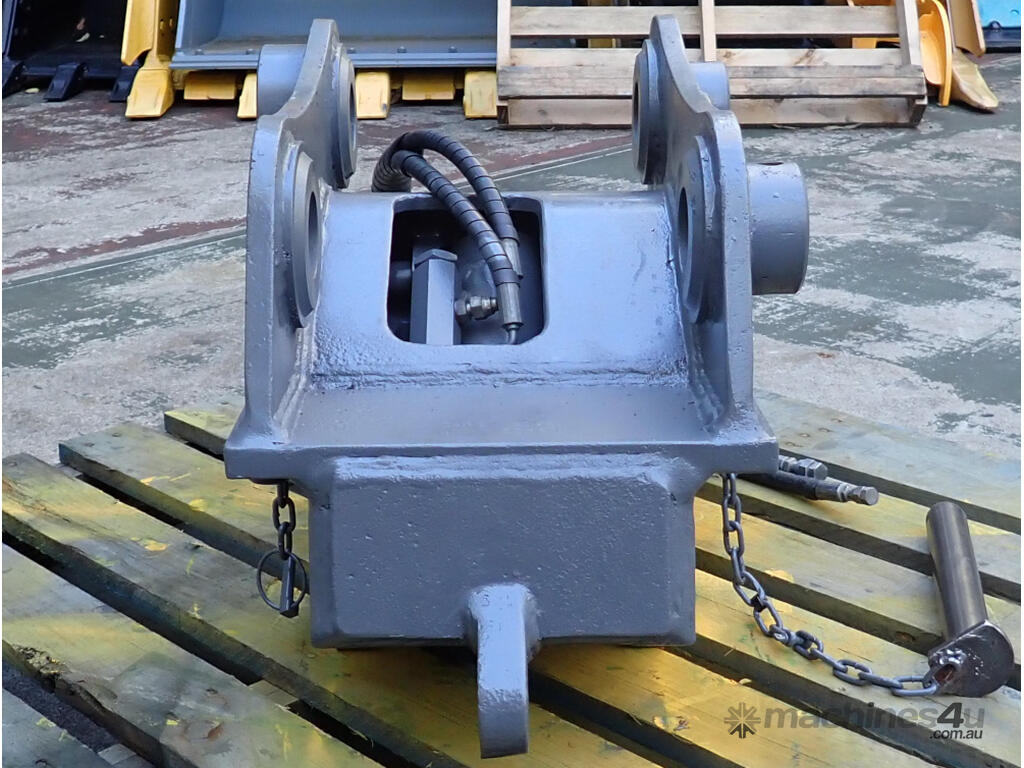

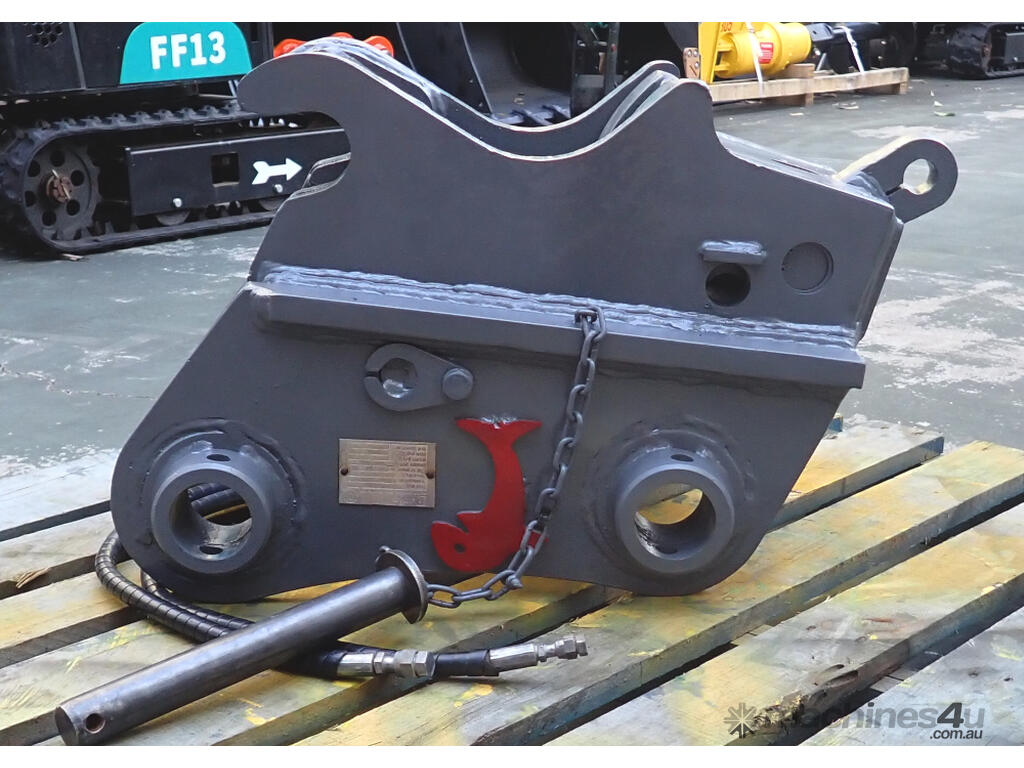

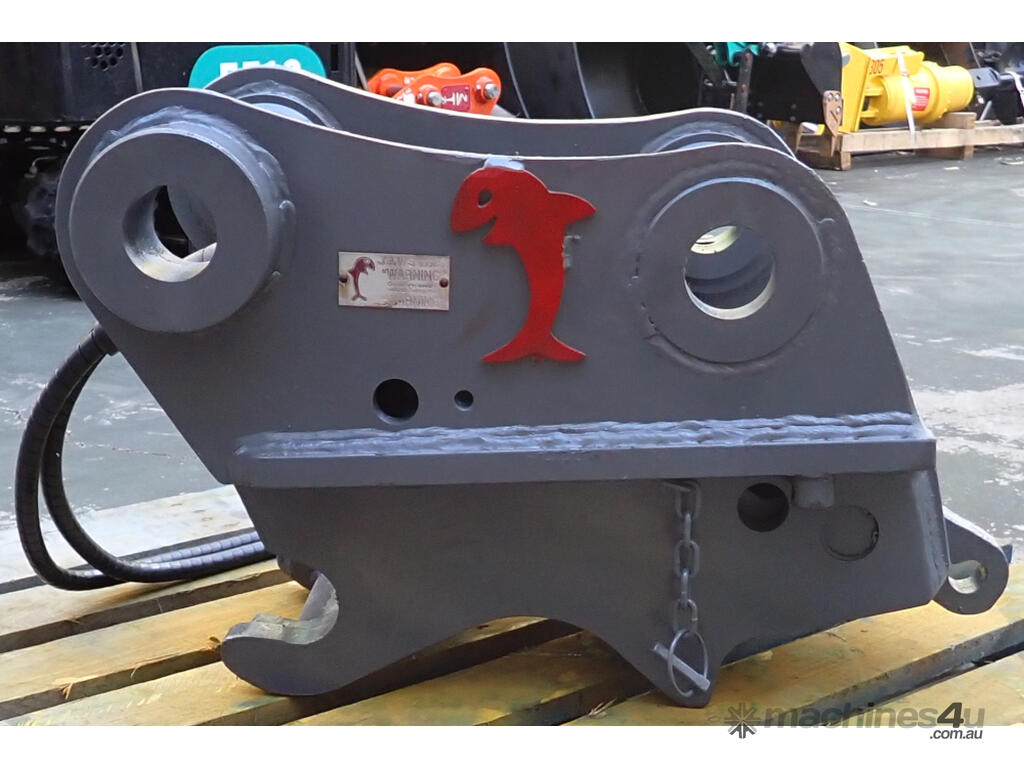

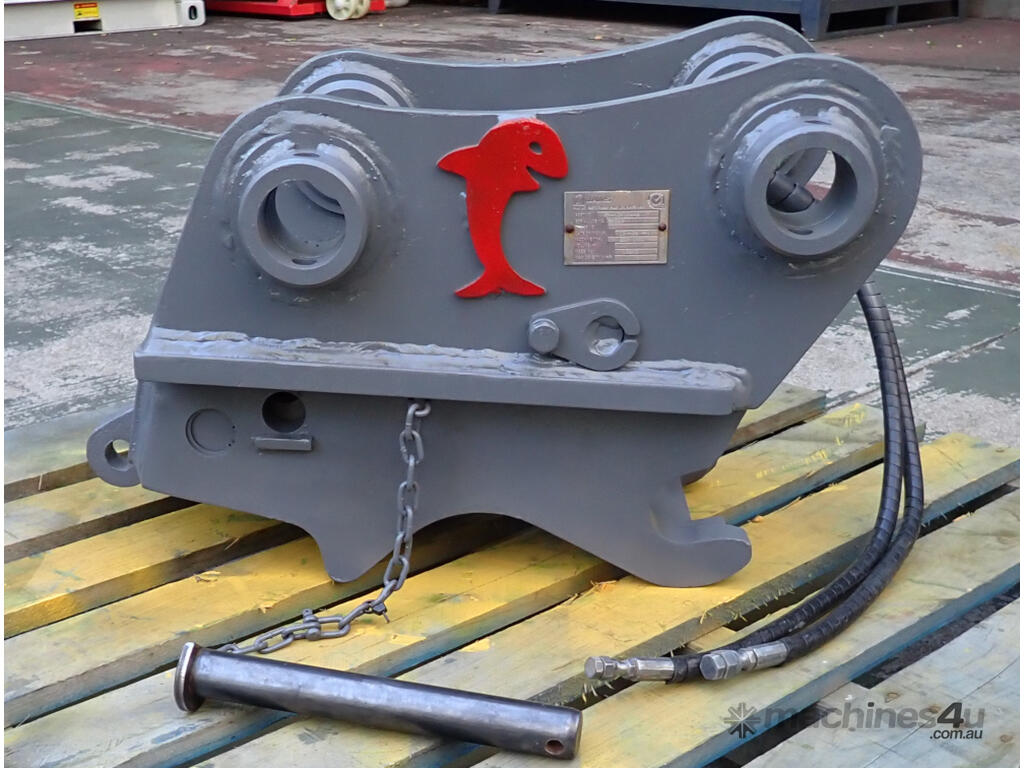

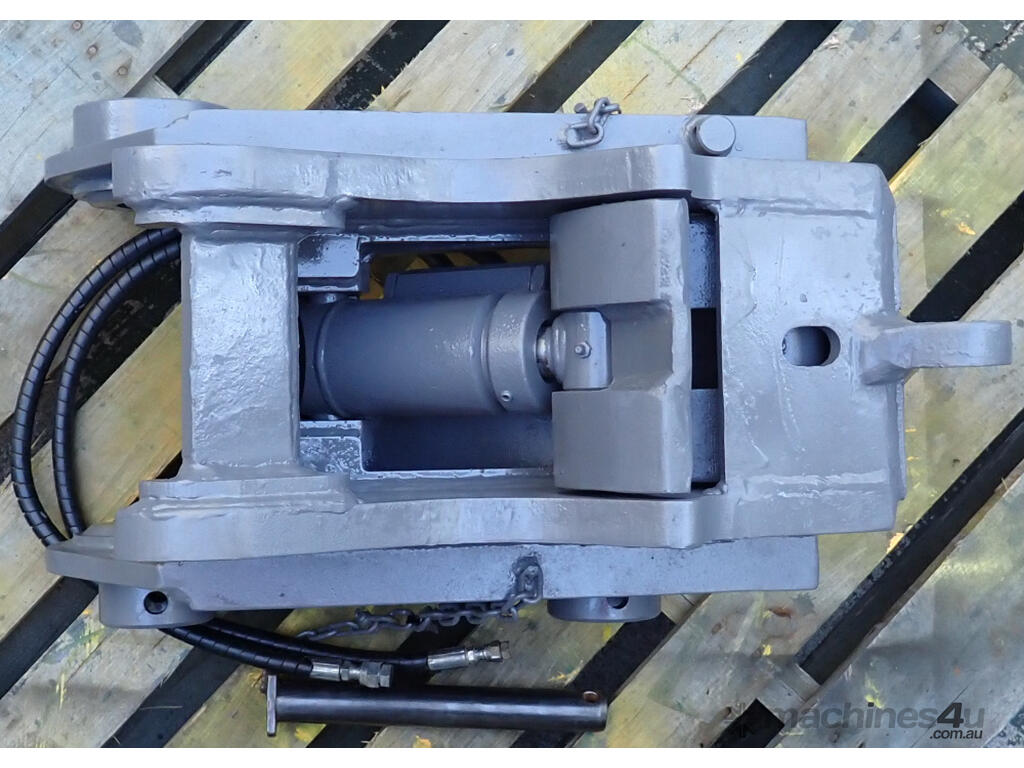

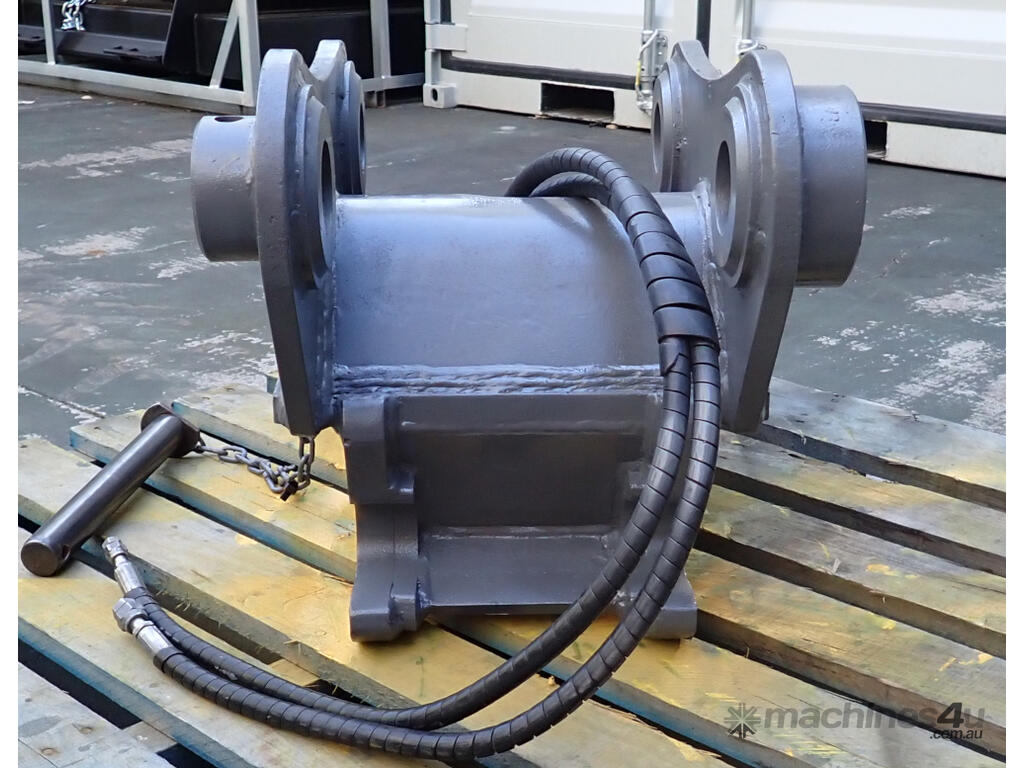

Uses the older style manual safety locking pin (see pics# 2-5, 7-9).

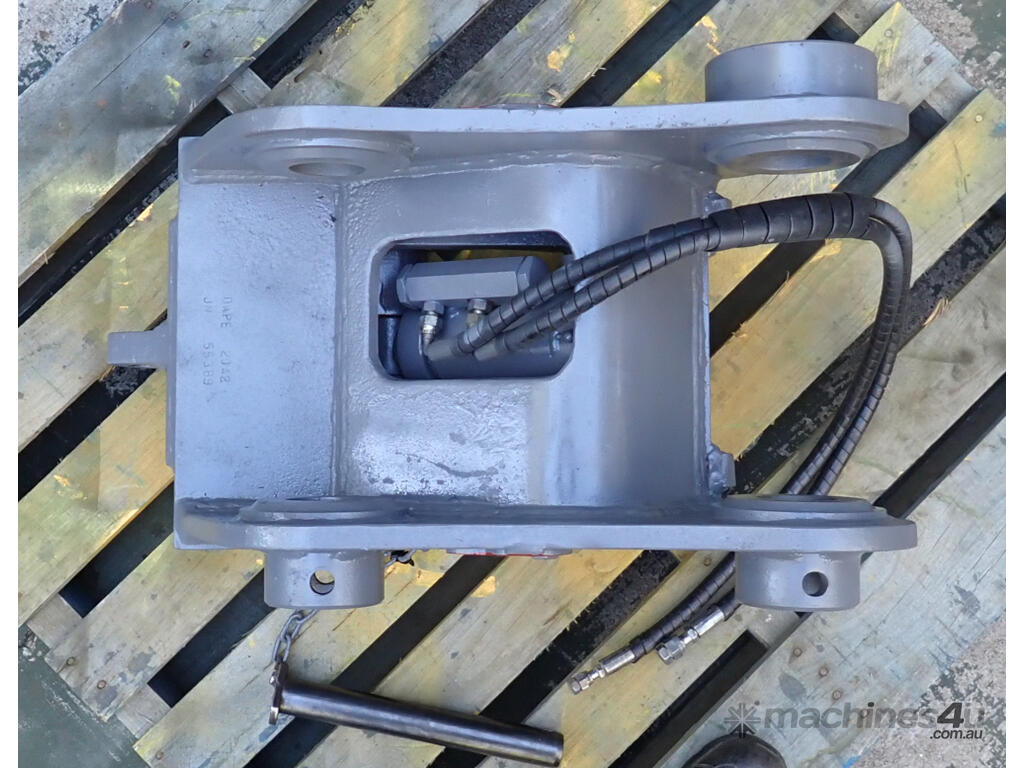

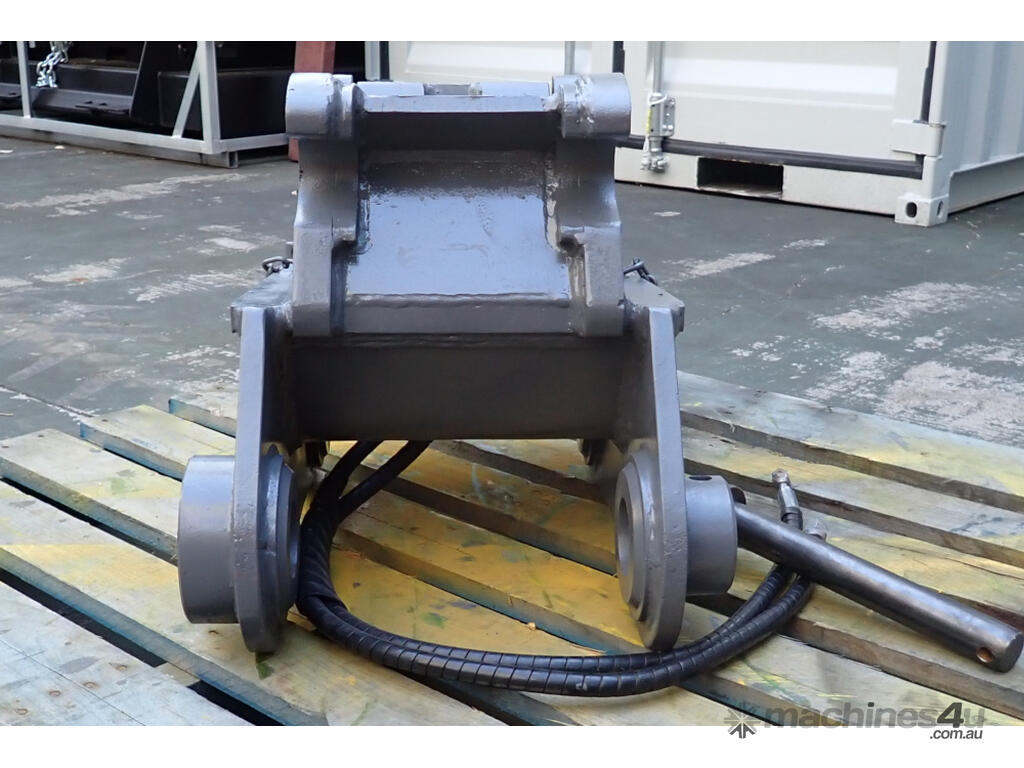

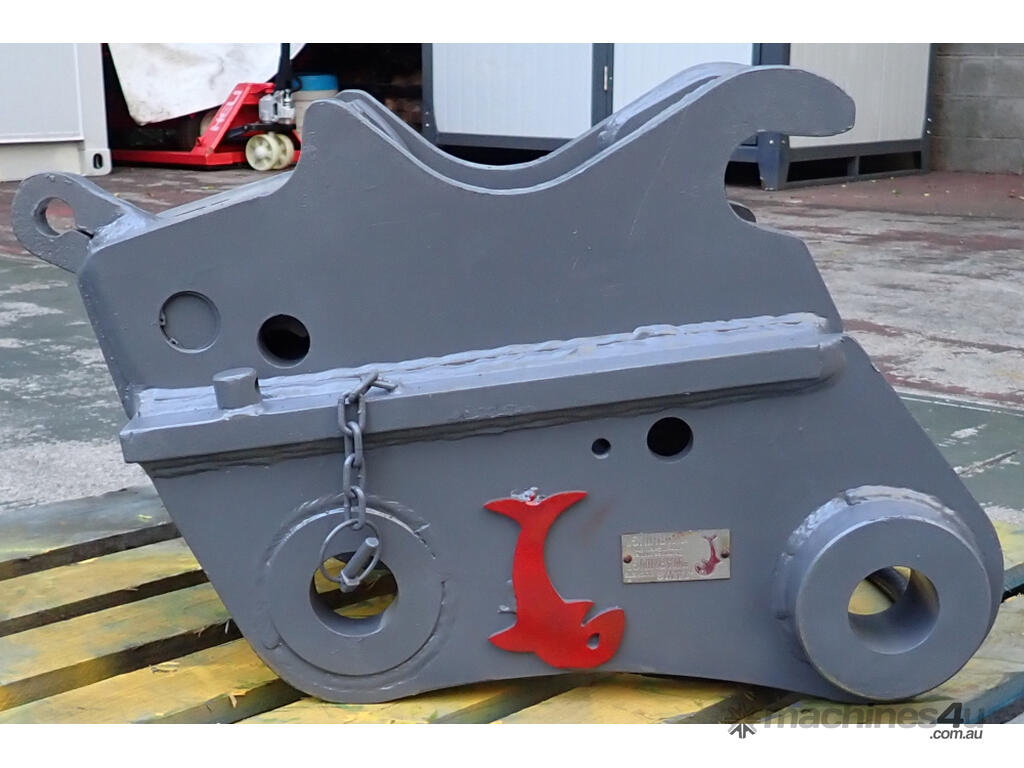

Has Lifting Eye Hook (see pics# 1, 3-6, 8-9).


*** Pin Setup Dimensions (where your Dipper Arm goes in):
* Pin Diameter: 65mm.
* Pin Center to Pin Center (CtoC): 388mm.
* Between The Ears (BTE): 276mm Between the inside Ear Bosses of the hitch (which can be shaved back up to 309mm between the Ear Plates if you need more inside width for your excavator's dipper arm to fit in).
*
*** Pin Setup Dimensions (where the Hitch goes in your bucket):
* Pin Diameter: 65mm.
* Pin Center to Pin Center (CtoC): around 380mm.
* Between The Ears (BTE): 271mm width (your buckets/attachments need to have at least this much width or more gap between the ears).
*
* Should fit: Case 9013 / CX130 / CX135 / CX135SR, Daewoo Solar 130LC-V / 130W-2 / 130W-3 / 130W-V / 140LC-V, Doosan S130LC-V / S140LC-V / S140W-V / S255SLR / S300SLR, Hyundai R120 / R130LC / R130LC-3 / R130W / R140LC-7, JCB JS110 / JS130 / JZ140, Kobelco K905 / SK120 / SK130 / SK130LC / SK135 / SK135SR, Link-Belt 130LX / 135SA / 2650 QUANTUM, Samsung SE130-3 / SE130LC-3 / SE130W-3, Sumitomo SH100 / SH100-2 / SH100CT-2 / SH120 / SH120-2 / SH120CT-2 / SH135U-2 / SH135X-2 / SH145U / SH200LC-3LR, Terex TXC 140LC-1, Volvo EC130-3 / EC140 / EC140B / EC140C / EC210C LR / EC240C LR / EC290C LR / ECR145C / EW130 / EW140C / MX135WS/LS / SE130W-3/LC-3, Yuchai YC135-7.
*
* Maybe fit: Caterpillar 311 / 311C / 311D / 312 / 312B / 312D / 313 / 314C LCR / 314D / 320D, Daewoo Solar 130-2 / 130-3, Doosan DX140LC-3 / DX140W / DX140W-3 / DX300LC-3 SLR, Halla HE130 / HE130W, Hitachi EX100 / EX110-5 / EX120 / EX120-1 / EX120-2 / EX120-3 / EX120-4 / EX120-5 / EX130 / EX135 / EX135UR / FH120 / FH130 / UHO 62 / UHO 63, Hitachi Zaxis 135US, Hyundai R130LC, JCB 805B / 814S, John Deere 135C RTS, Kato HD 512, Kobelco 115SRDZ / 135SRLC, New Holland EH130LC, Sumitomo SH120-3 / SH125-3 / SH125X-3 / SH130-5 / SH135-3 / SH135X-3, Takeuchi TB1140 and possibly other machines with similar pin spacings or that have a variable pin spacing hitch (Multi-Hitch).


Hitch dimensions: 735mm long, 447mm wide, 472mm high. Weight: 188kg.


Call if you would like to discuss or to come inspect it.
We are at Pullenvale, 16km west of Brisbane CBD, between Brookfield and Anstead, near Kenmore.
You can pick up, we can deliver to a reasonable distance for an agreed fee, or we can arrange freight within Australia.
