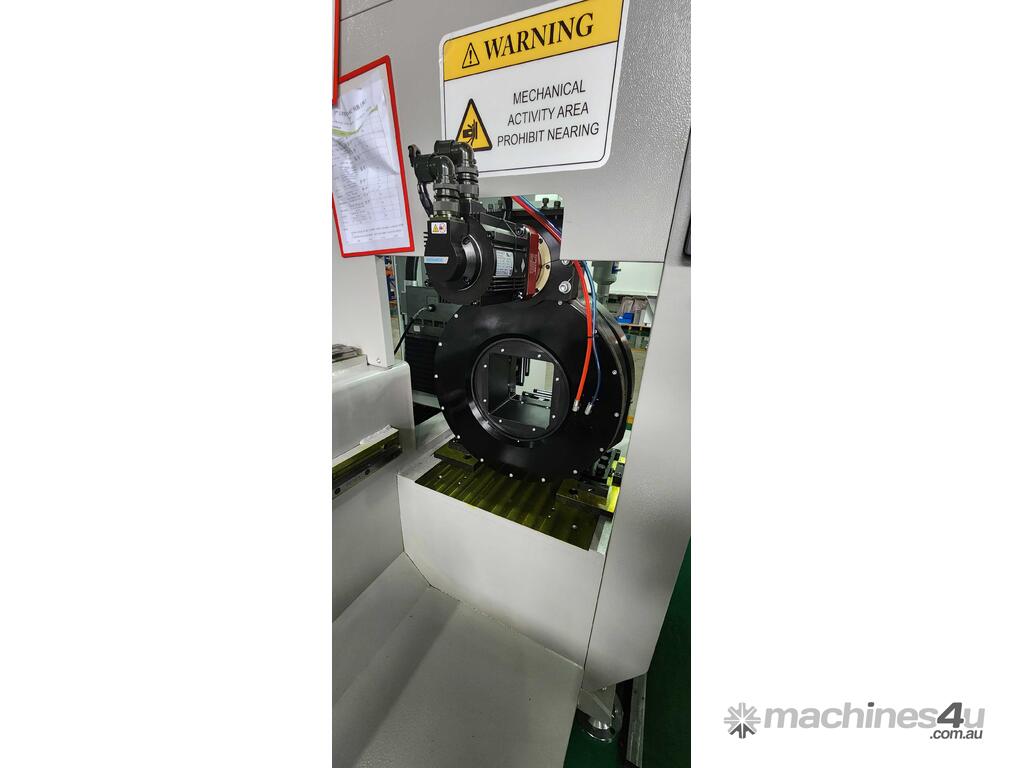

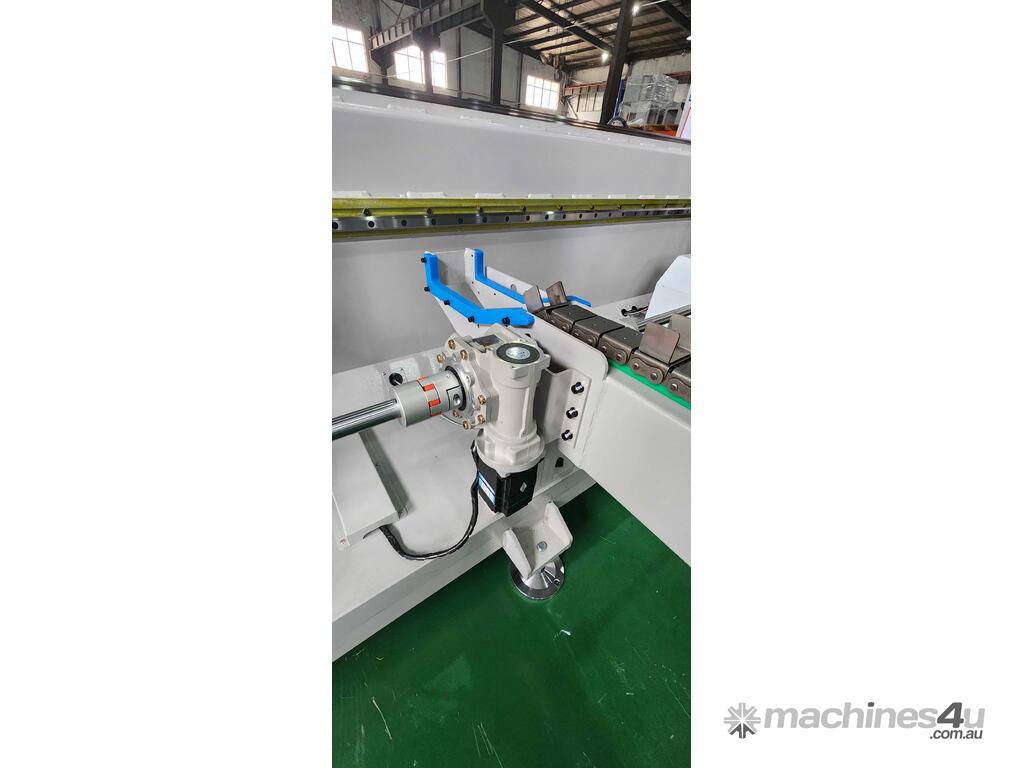

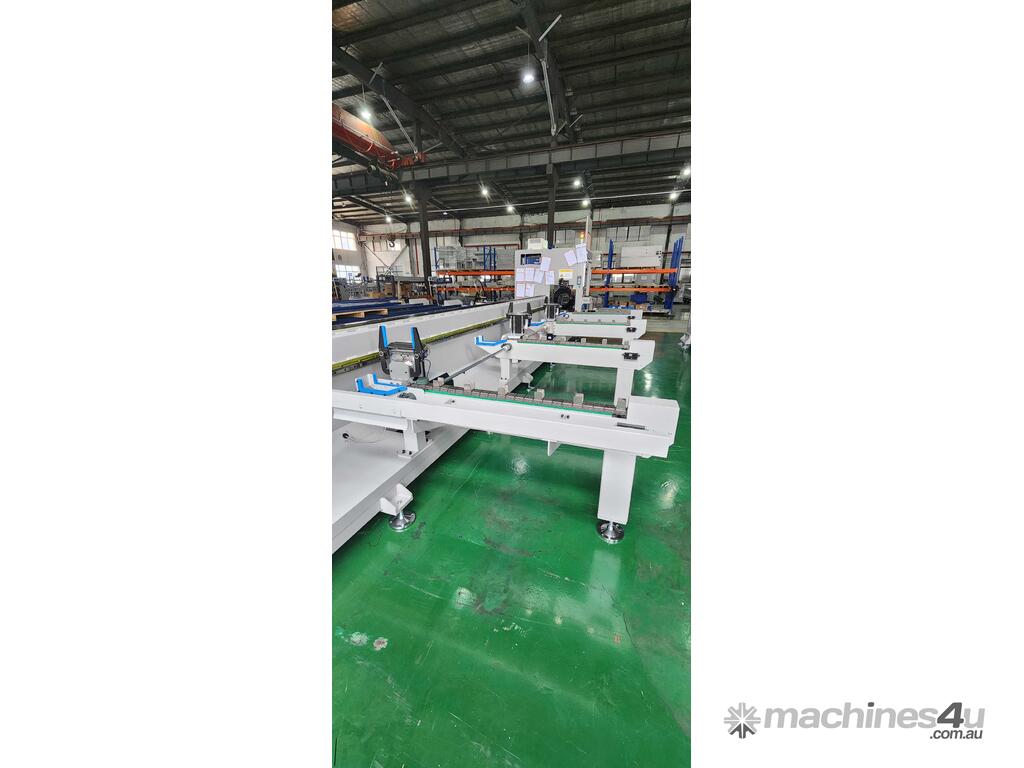

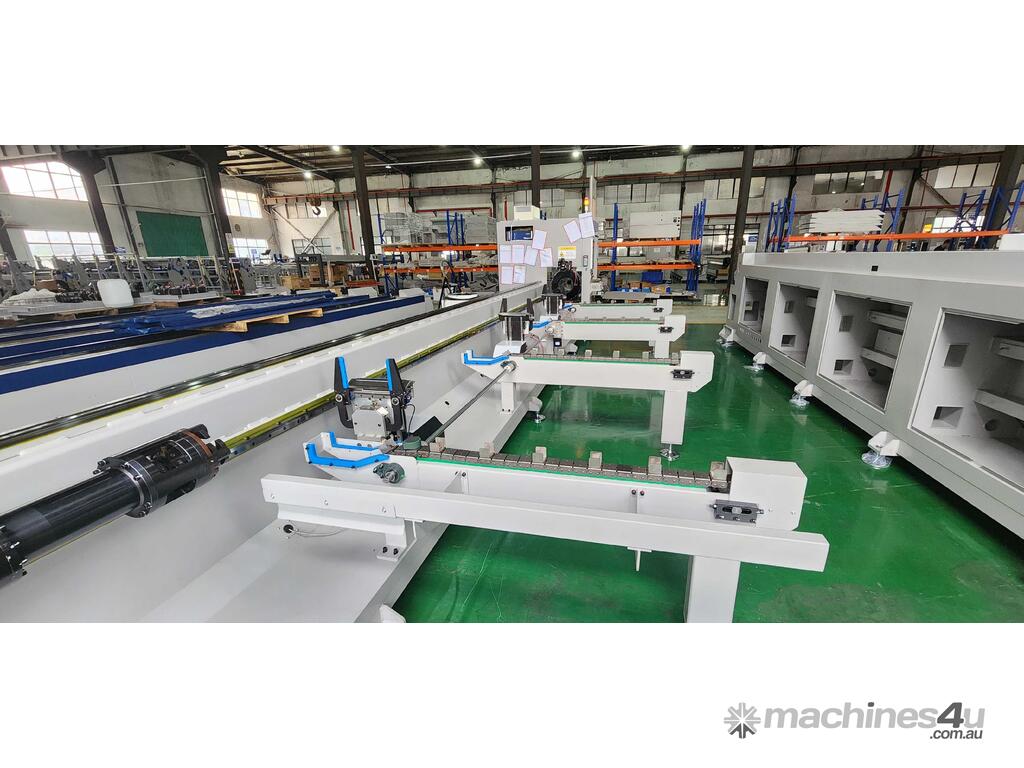

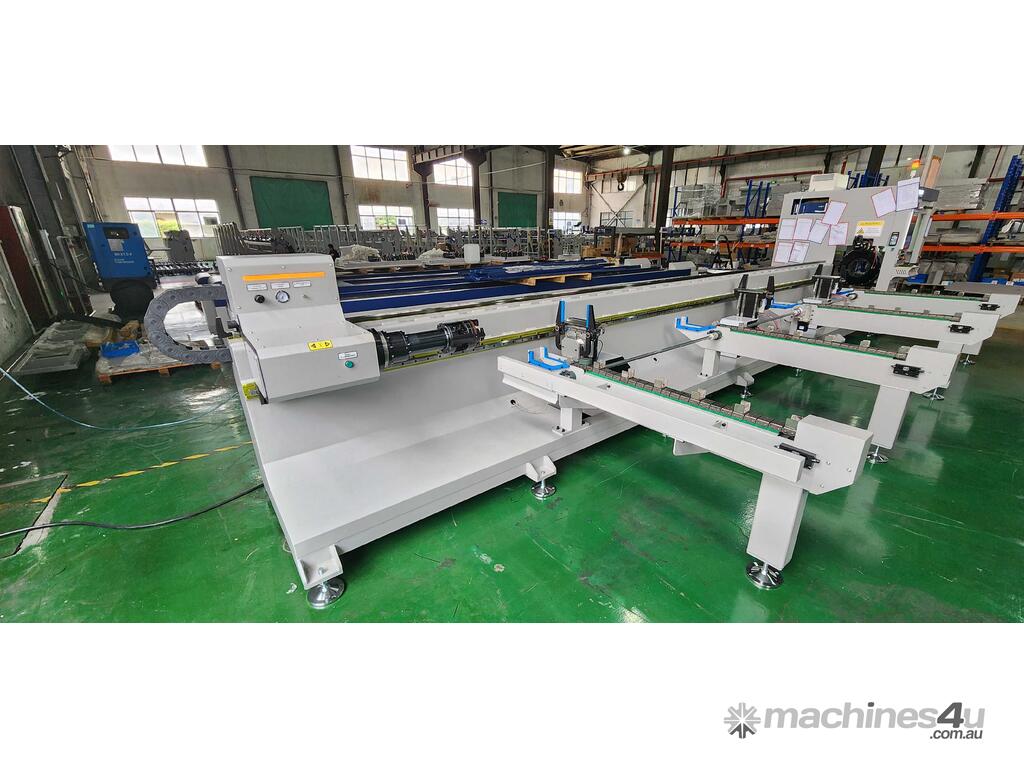

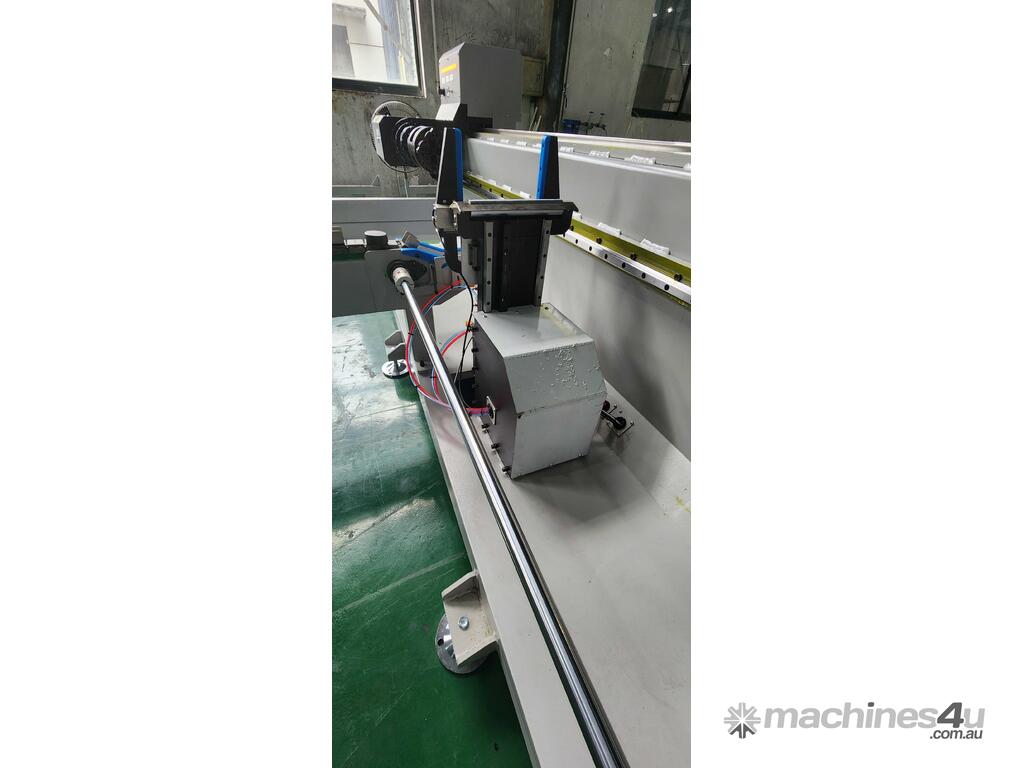

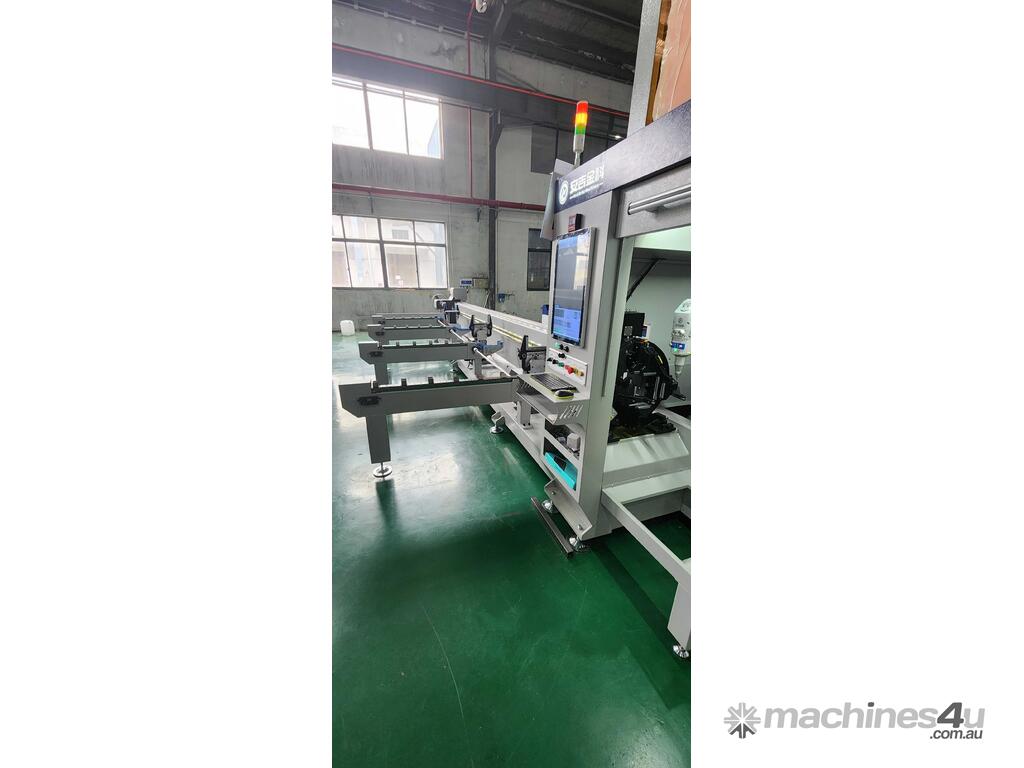

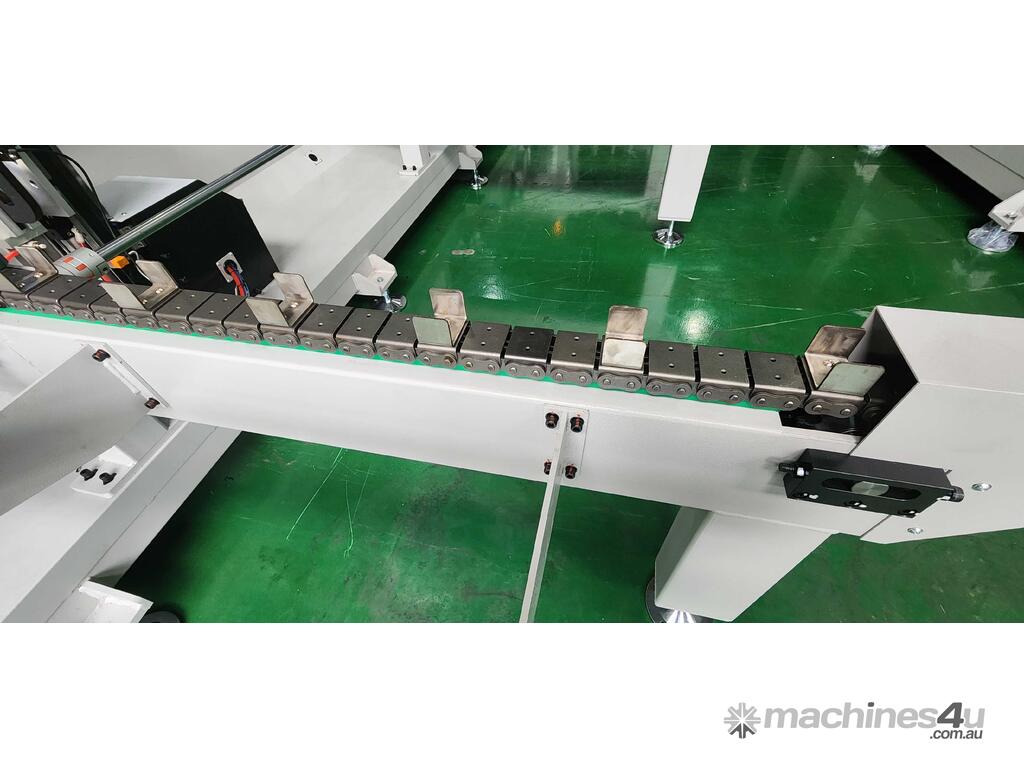

Rapid Engineering, an exclusive agent for Australia, proudly introducing Quantum Laser A-16-C, 160mm Bevel Cutting Tube laser including automatic loading rack equipped with servo following support and 2000mm servo following unloading table for tubes up to 160mm diameter and up to 6000mm.
Different configuration available and tailored to your specific needs, loading length up to 8m, unloading table up to 4m and laser power up to 6KW.
Independently developed bus control system features fast dynamic response, high signal transmission efficiency, simplified wiring, and excellent stability. Very simple and easy operation and programming, specially designed for bevel cutting with comprehensive process control capabilities.

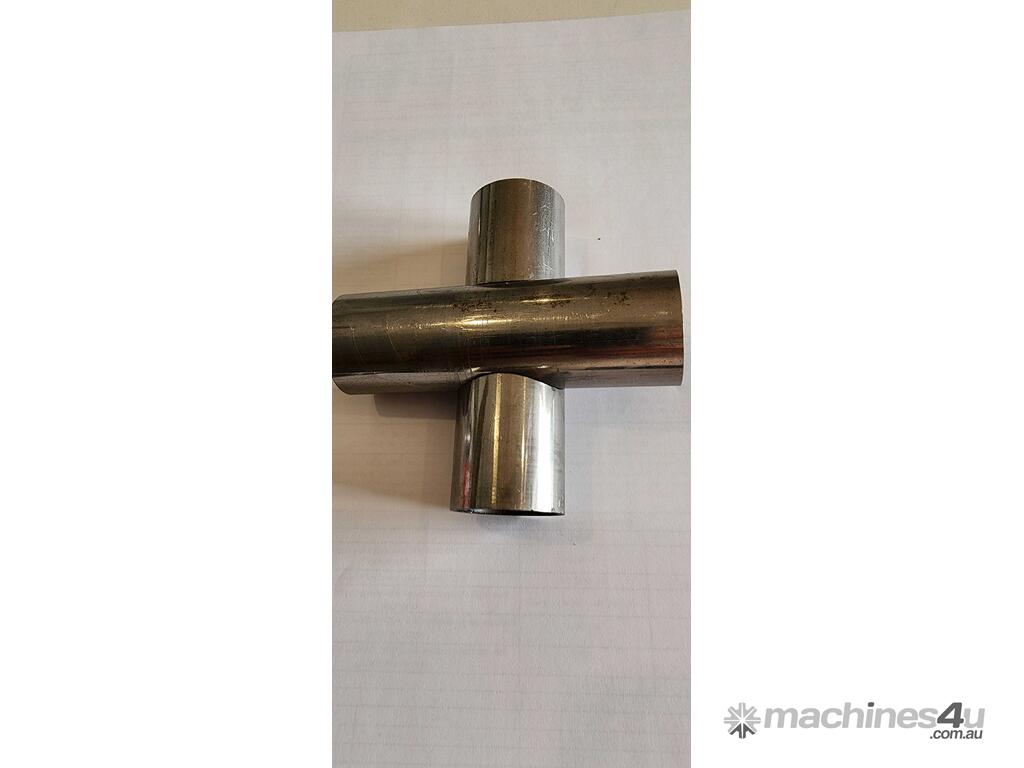

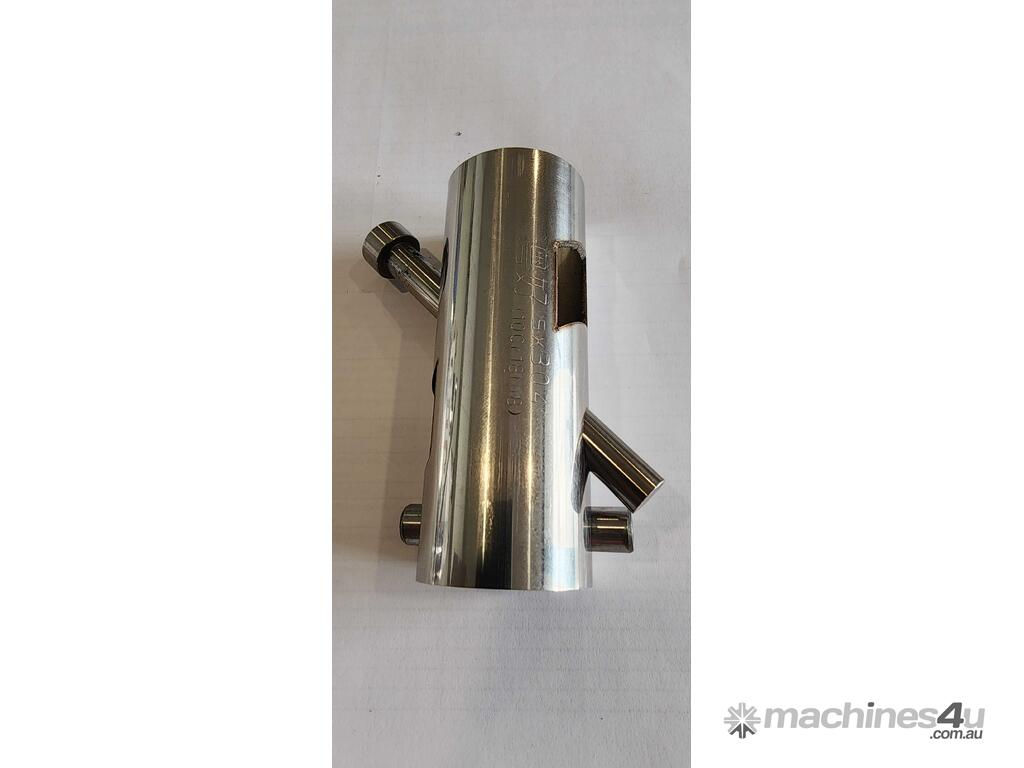

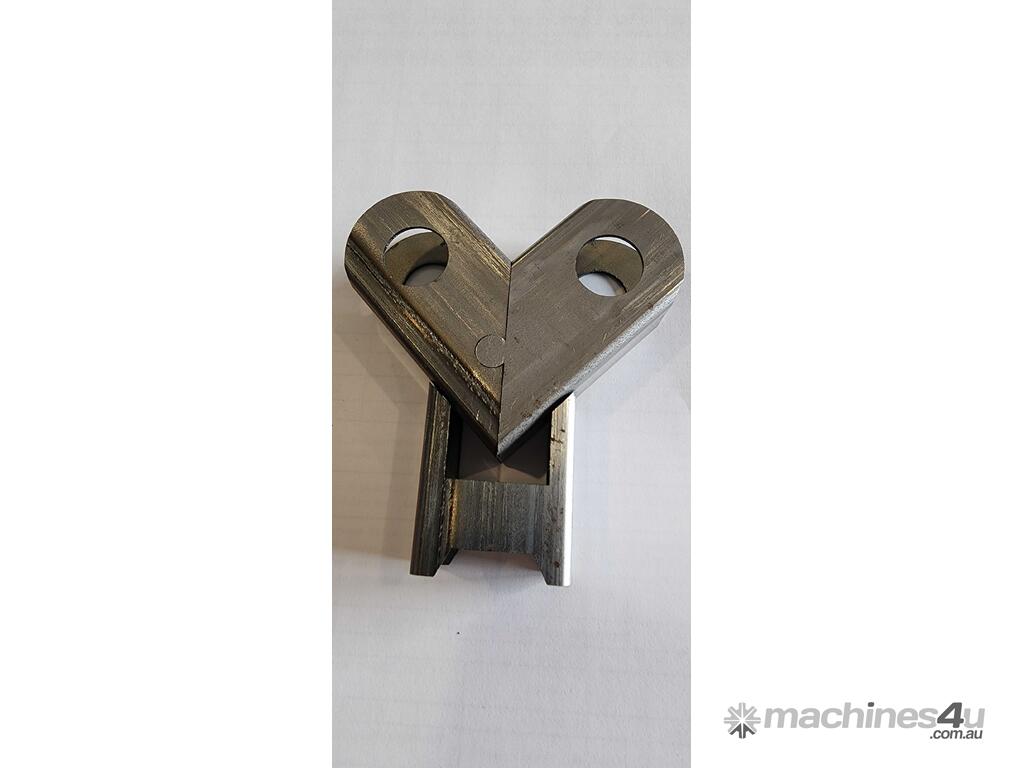

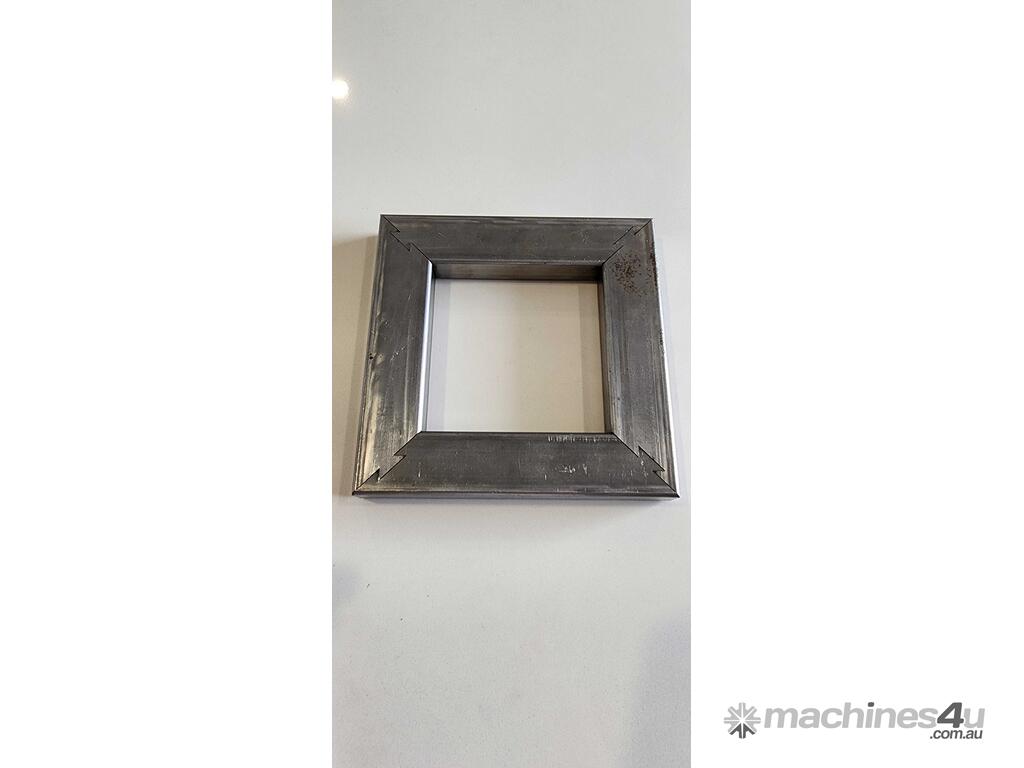

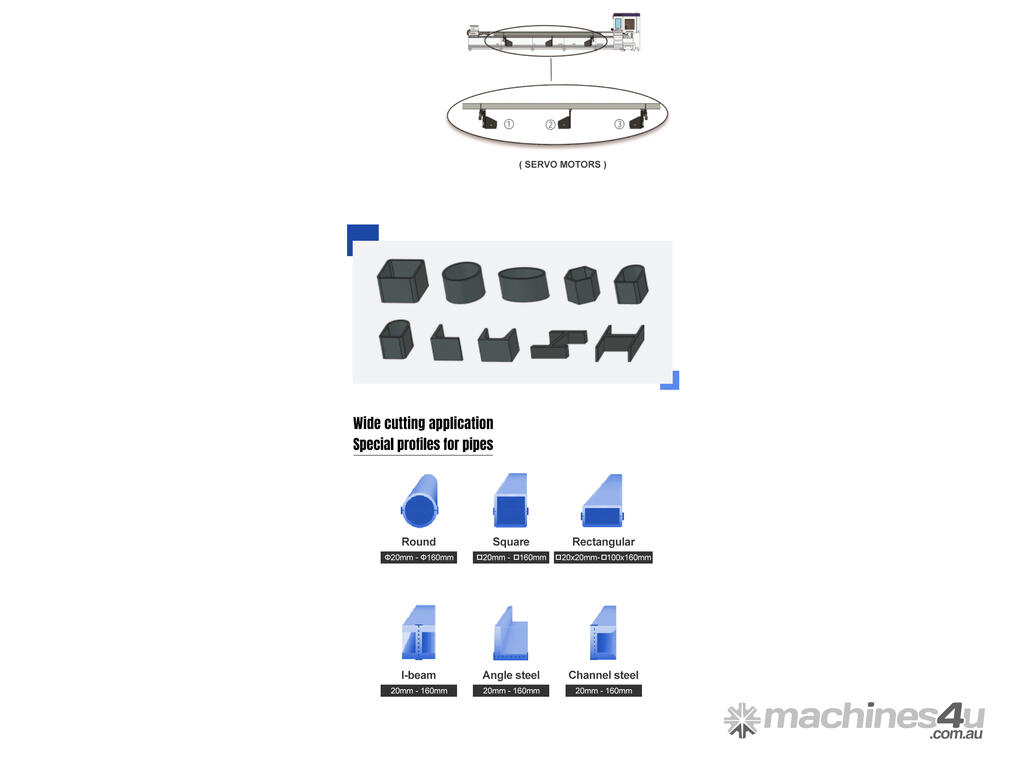

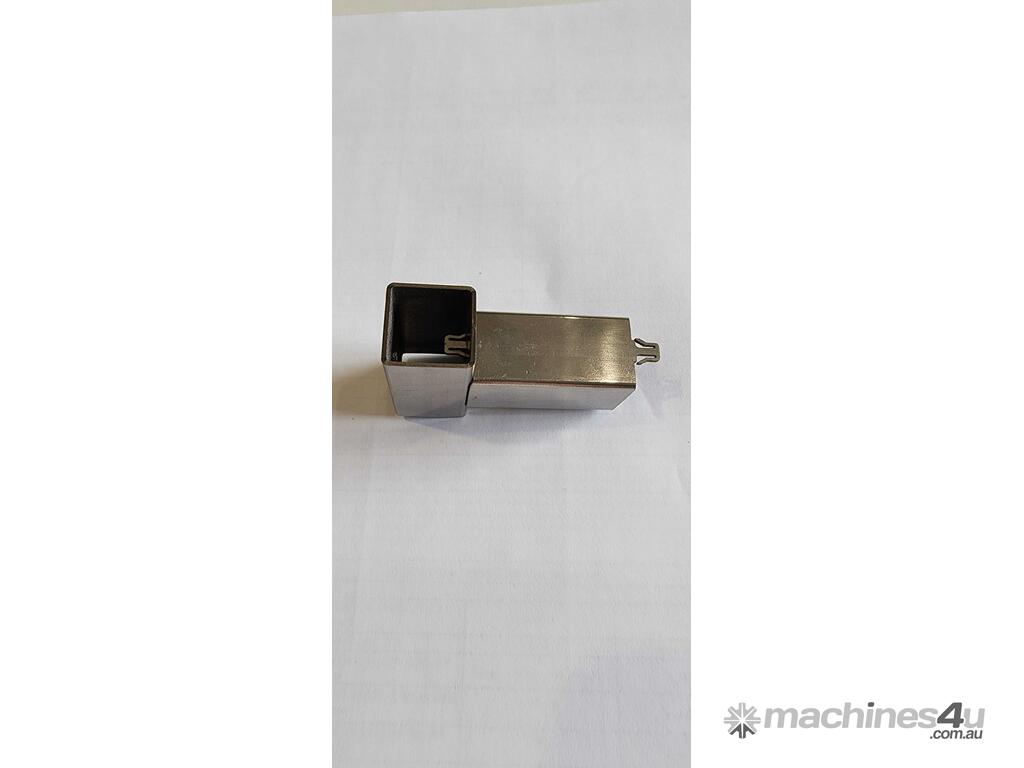

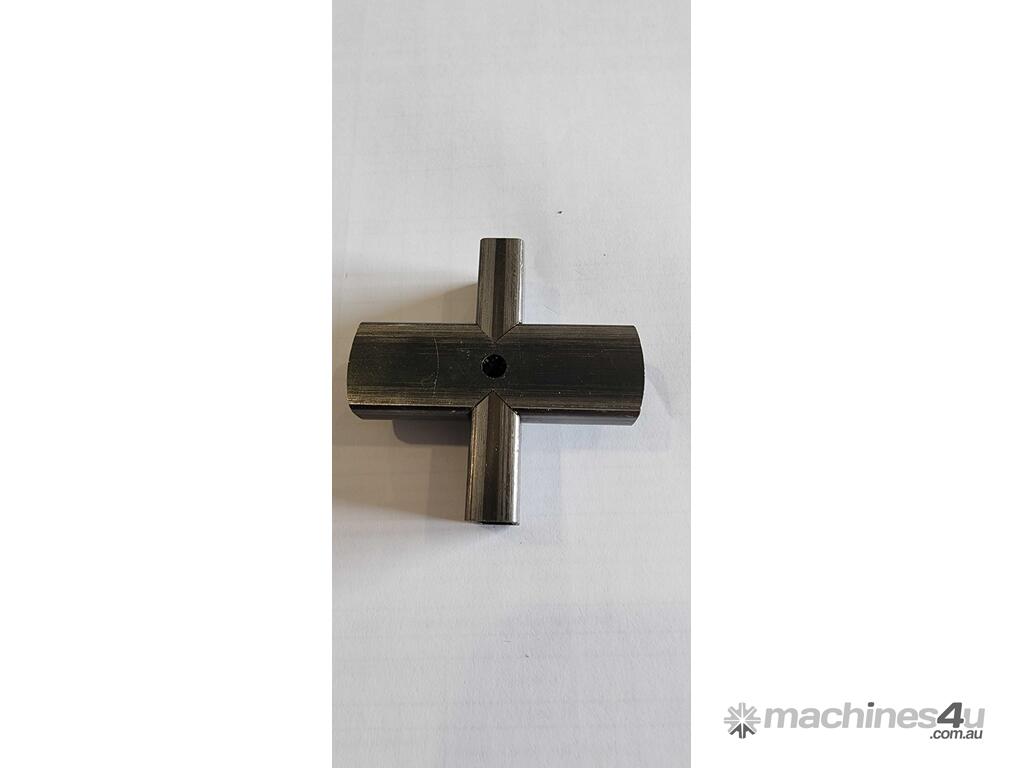

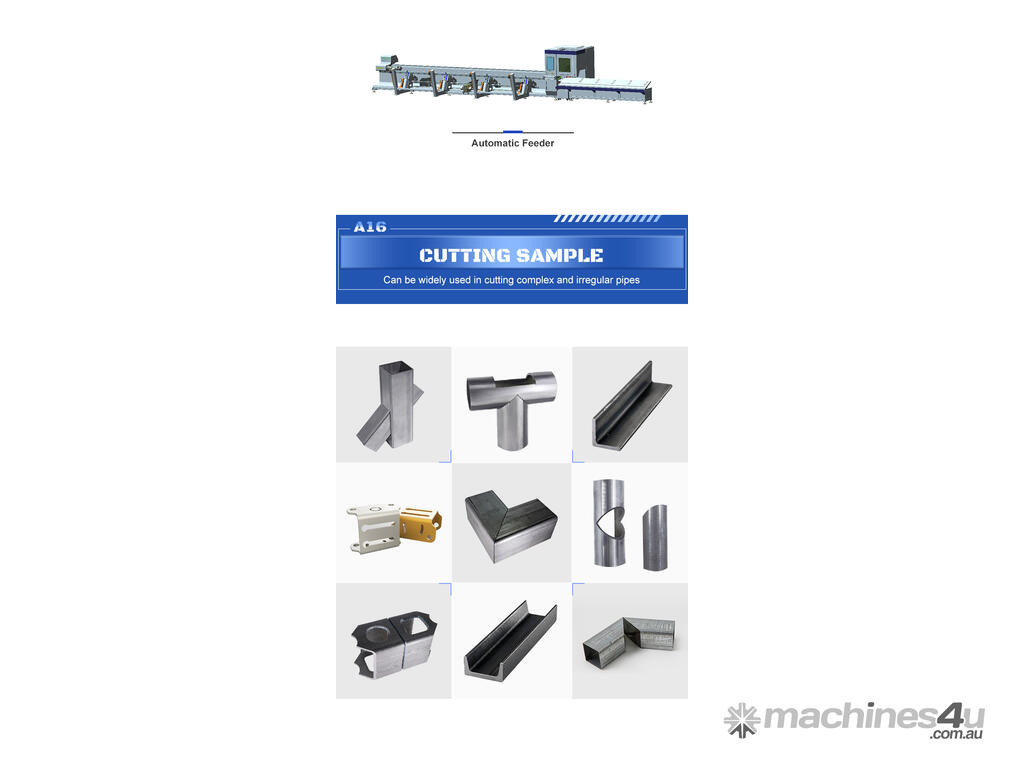

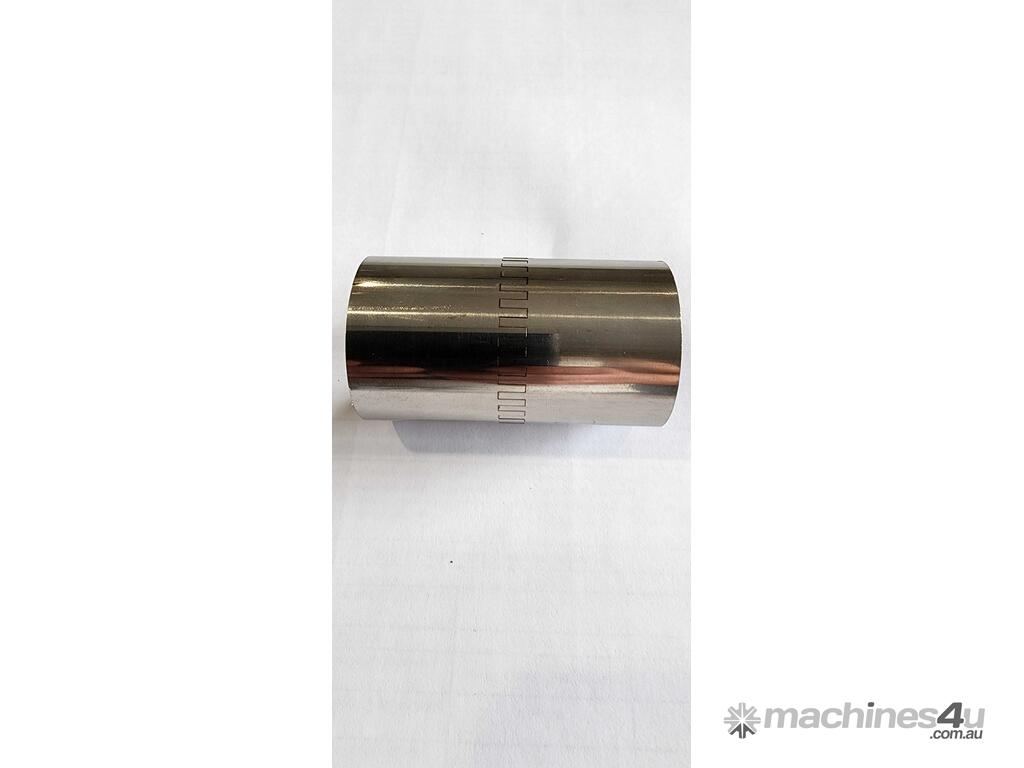

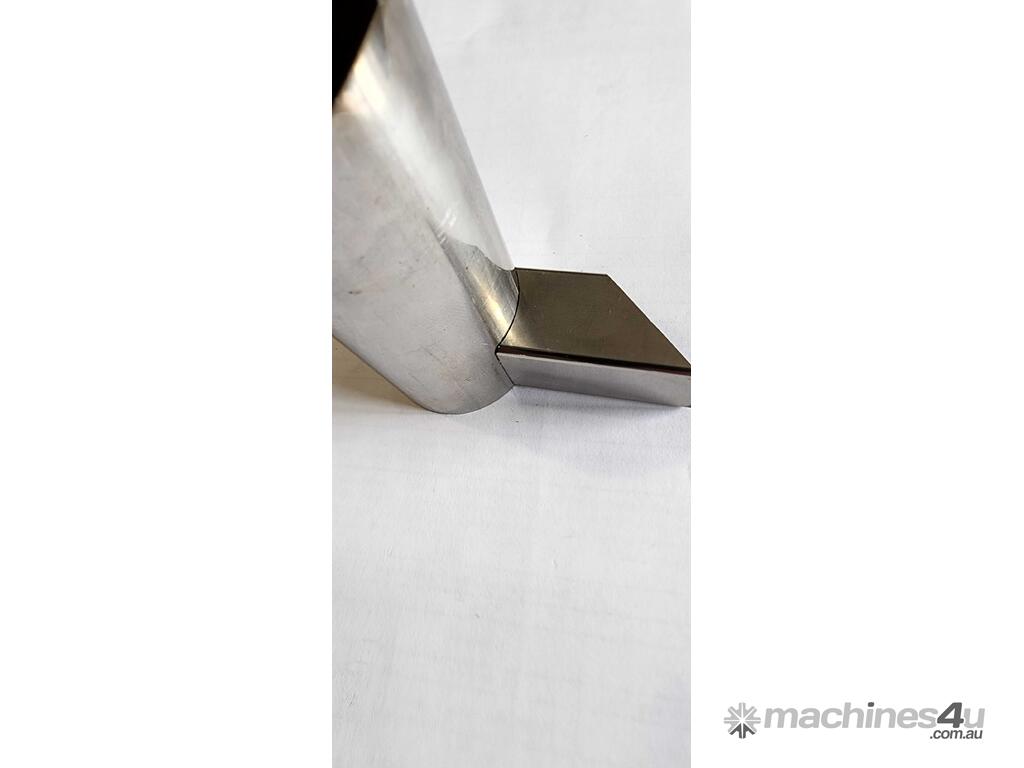

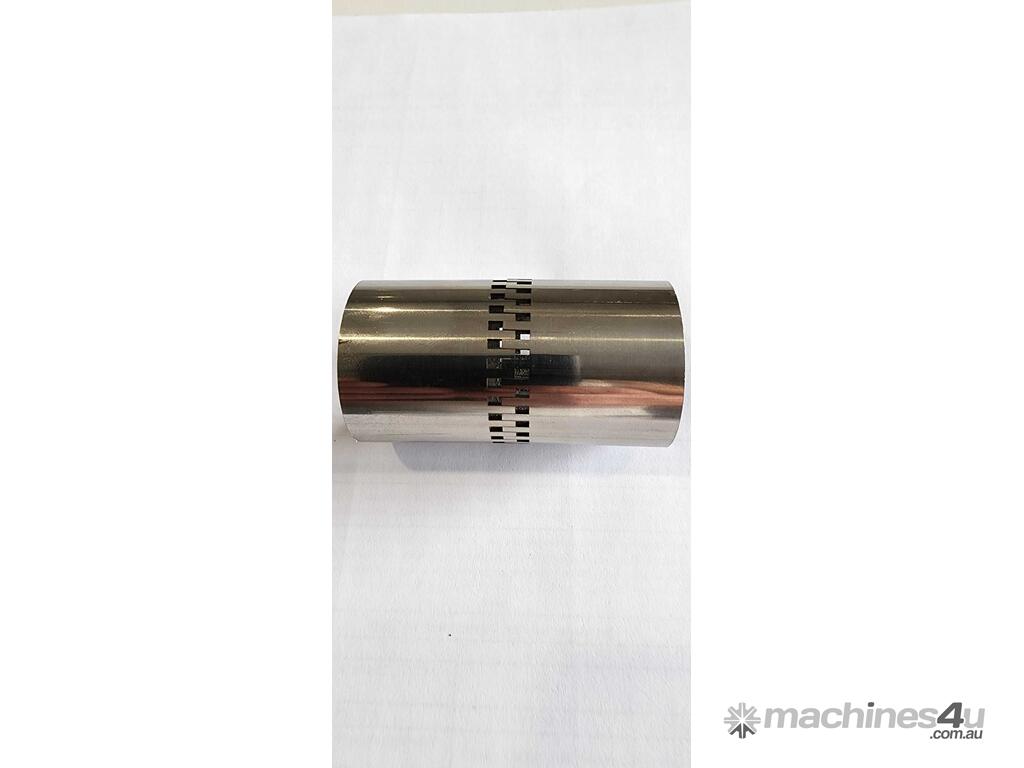

It supports cutting of standard tubes such as round, square and rectangular tube, as well as the cutting various special-shaped tubes. For example, I-beam, PFC, Angles, Elliptical tube, Polygonal tube, Aluminium extrusions, etc.
Specification:
Heavy Duty Machine Body (Heat treated and stress relieved)
RAYCUS CE 3kW Laser Source (Global warranty version)

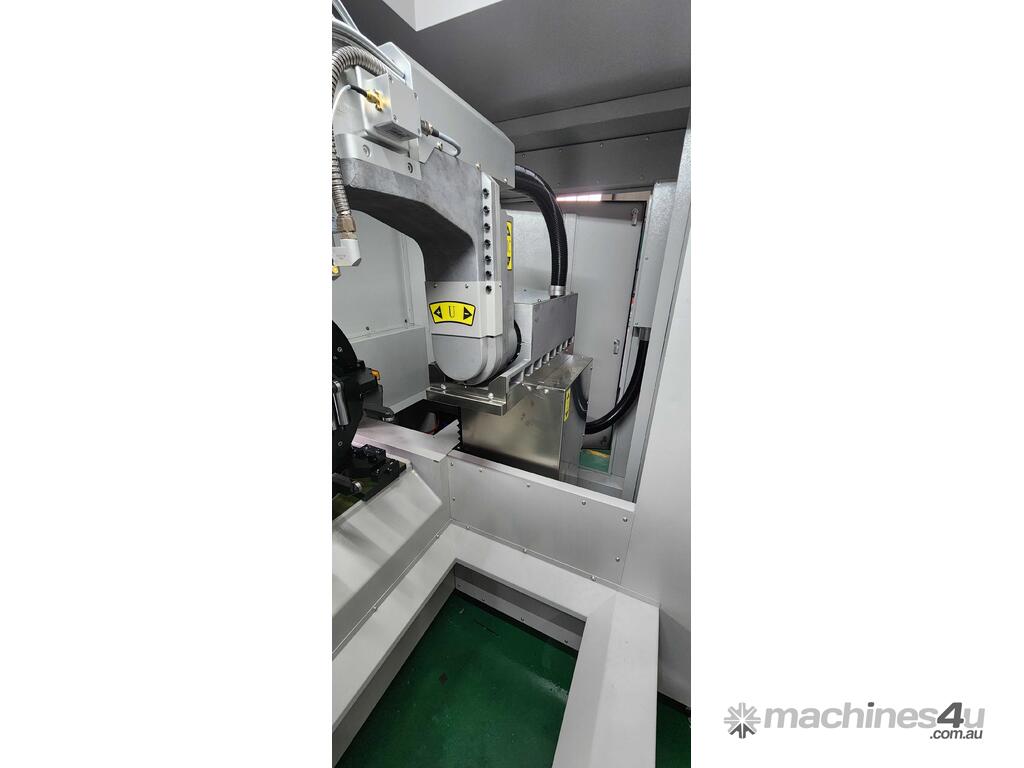

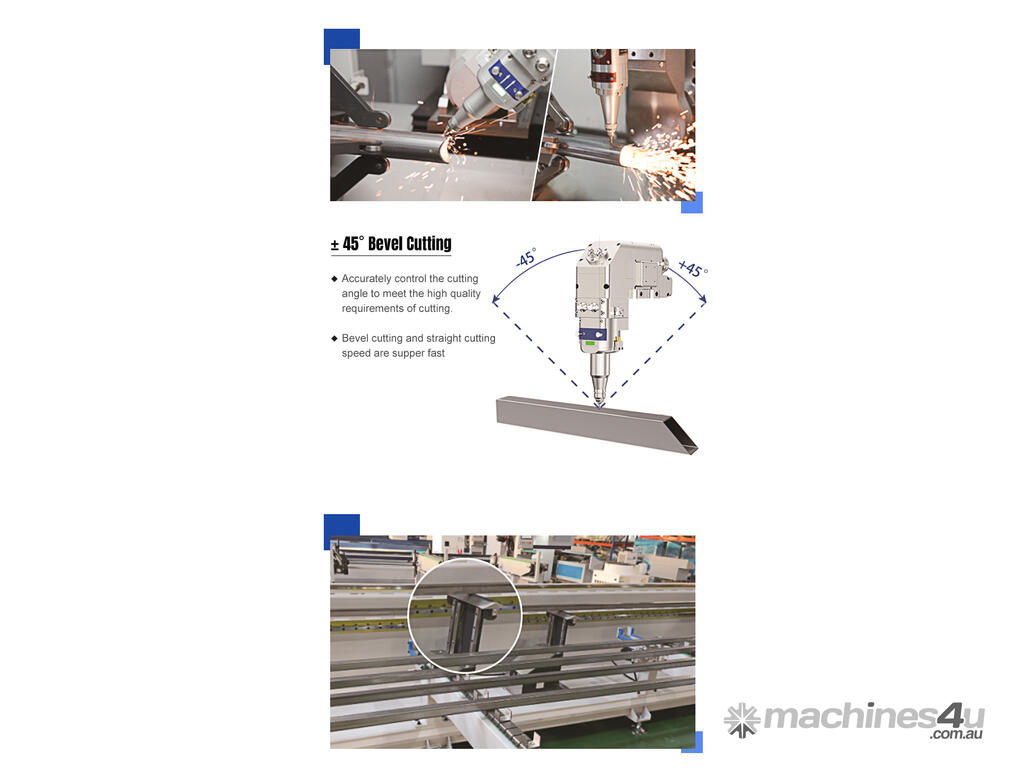

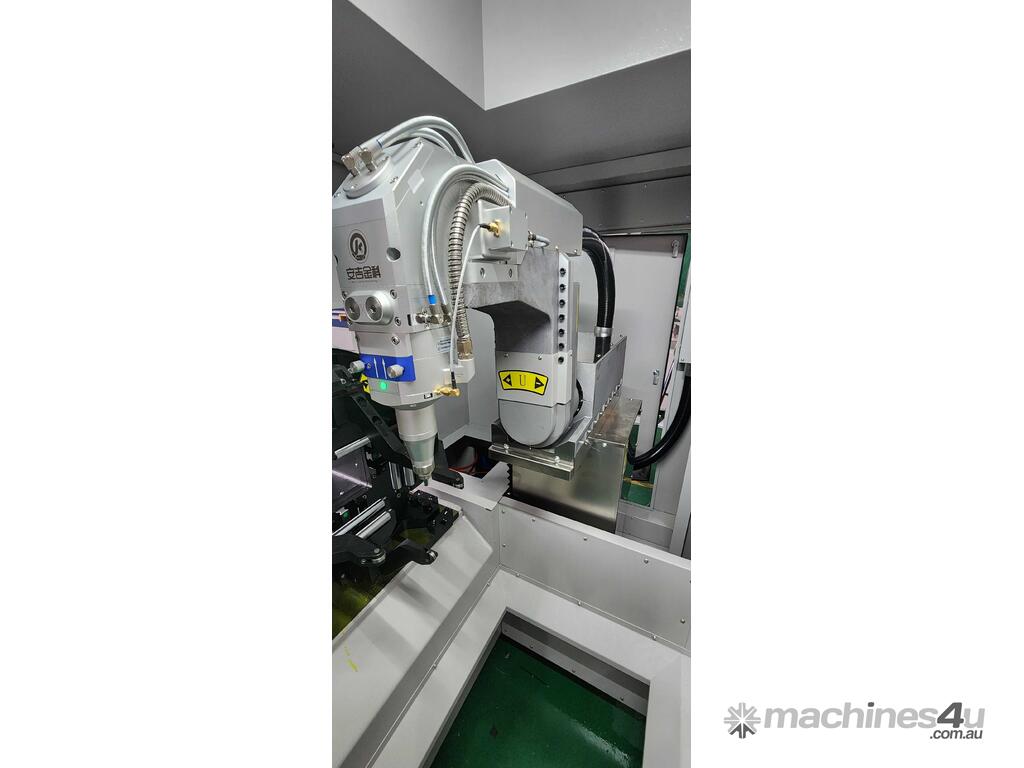

OSPRI Autofocus Intelligent Bevel Cutting Laser Head

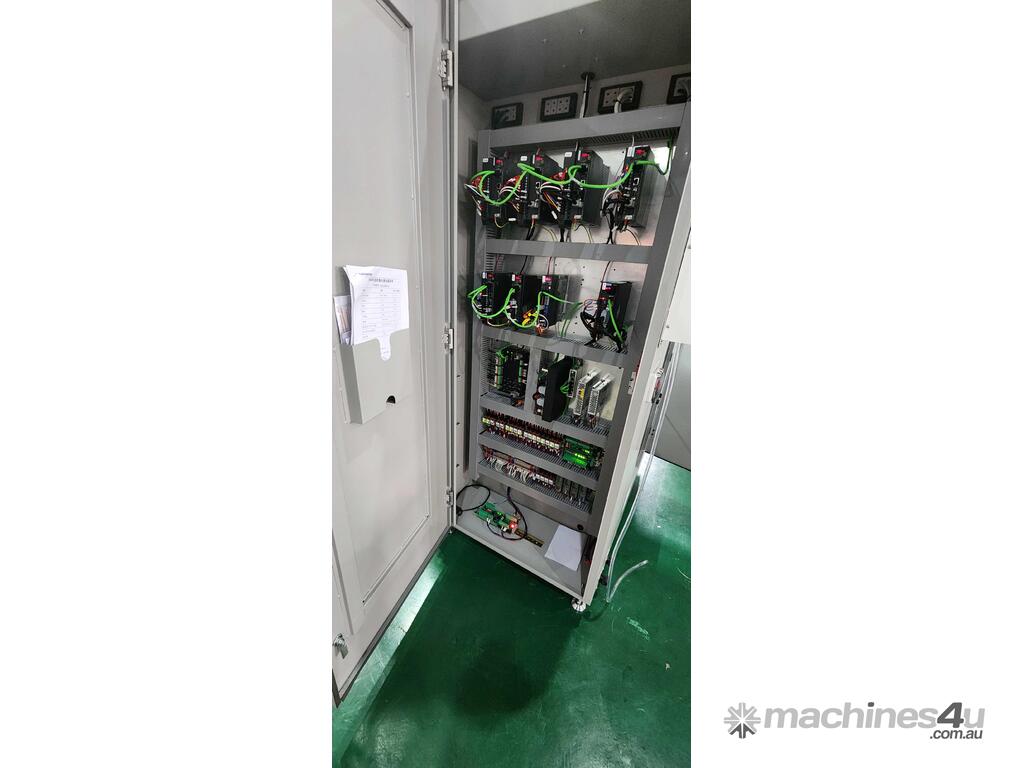

EtherCAT CNC Control System
INOVANCE (China) Servo Drives
FASTON (Taiwan) Planetary Reduction Gearbox
SMAGIC (Japan) Helical Rack and Pinion
SMAGIC (Japan) High Precision Linear Guide Rails
SMC (Japan) High Pressure Proportional valve
SCHNEIDER Electrical Components
S&A/HANLI Dual Circuit Industrial Water Chiller
JINBAO 415V 50Hz Voltage Stabilizer and Transformer
Automatic Lubrication System

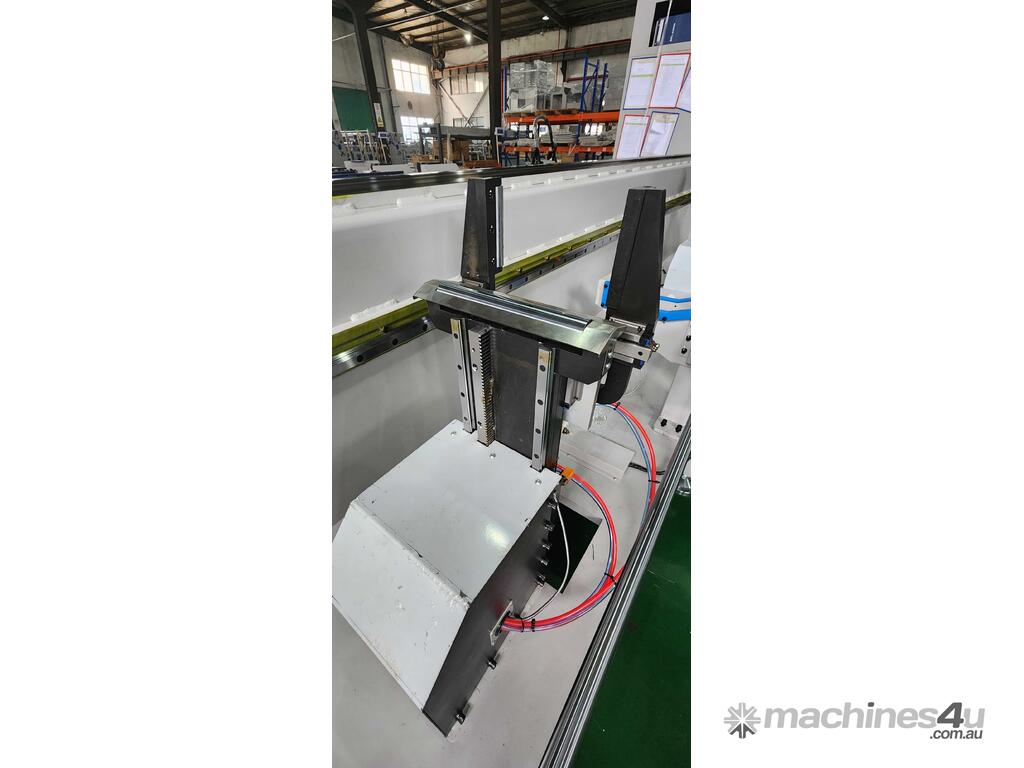

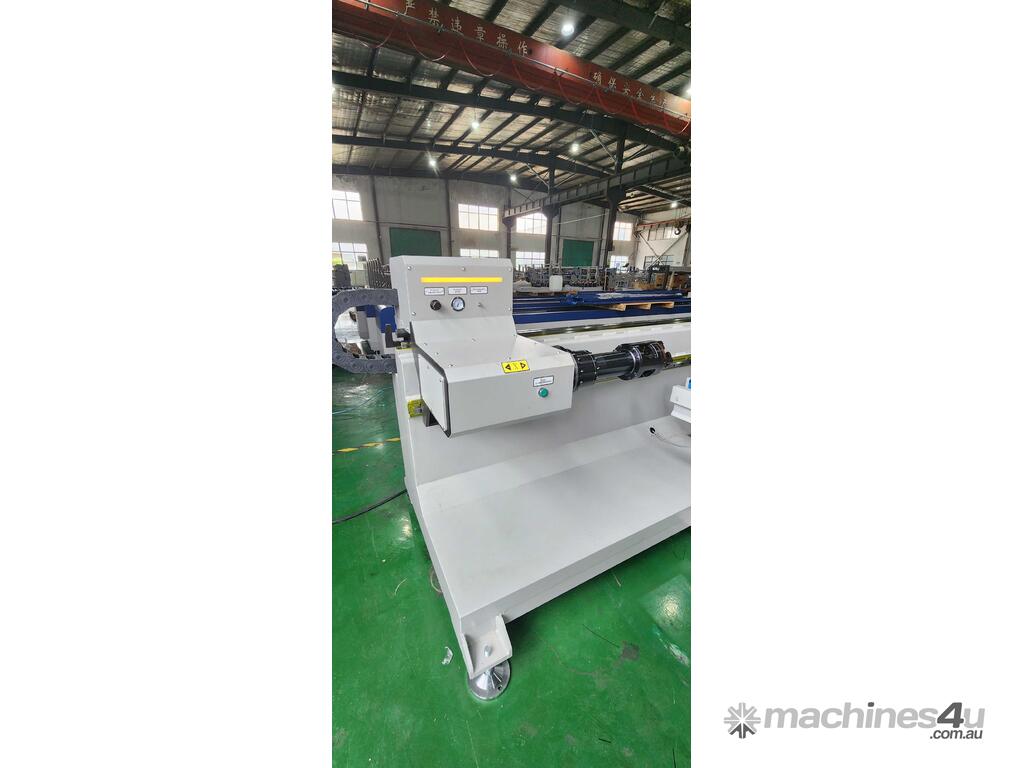

Servo Following 2m Unloading Table.
Compliant to Australian Safety Standard with 6 x Light Curtains, 2 gate Safety Locks and dual channel programable Safety Relay.
Demo machine available for ultimate test of performance on your own job or product!
Please contact us today, so we can discuss your specific requirements and find the best solution for your business!
