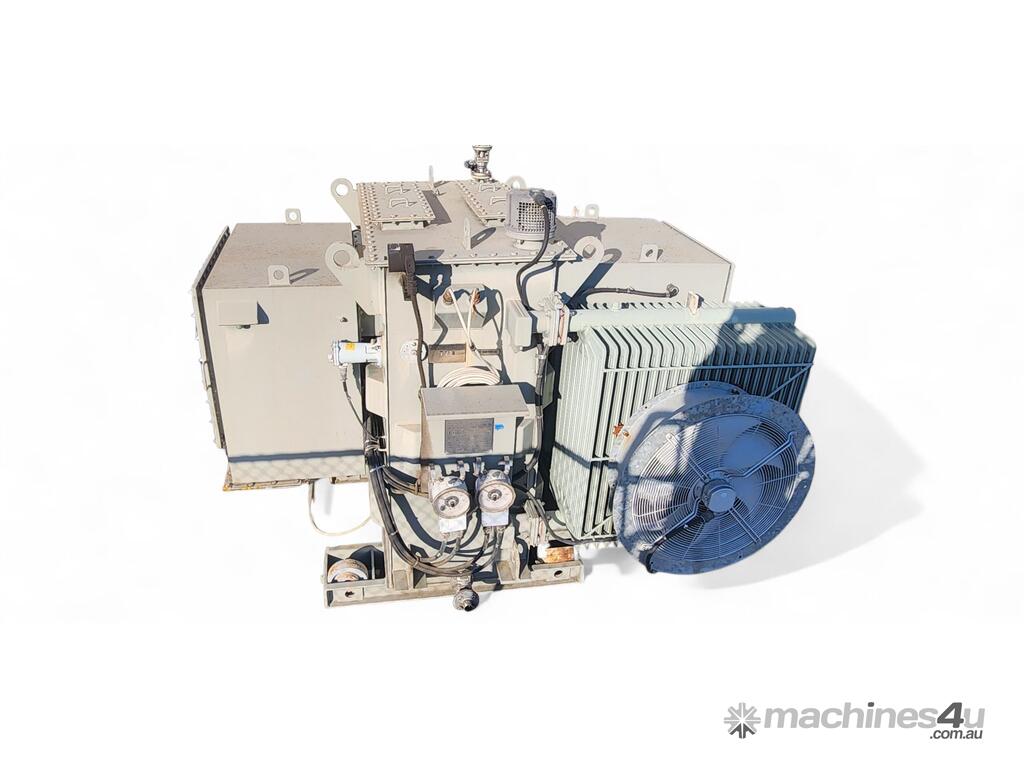

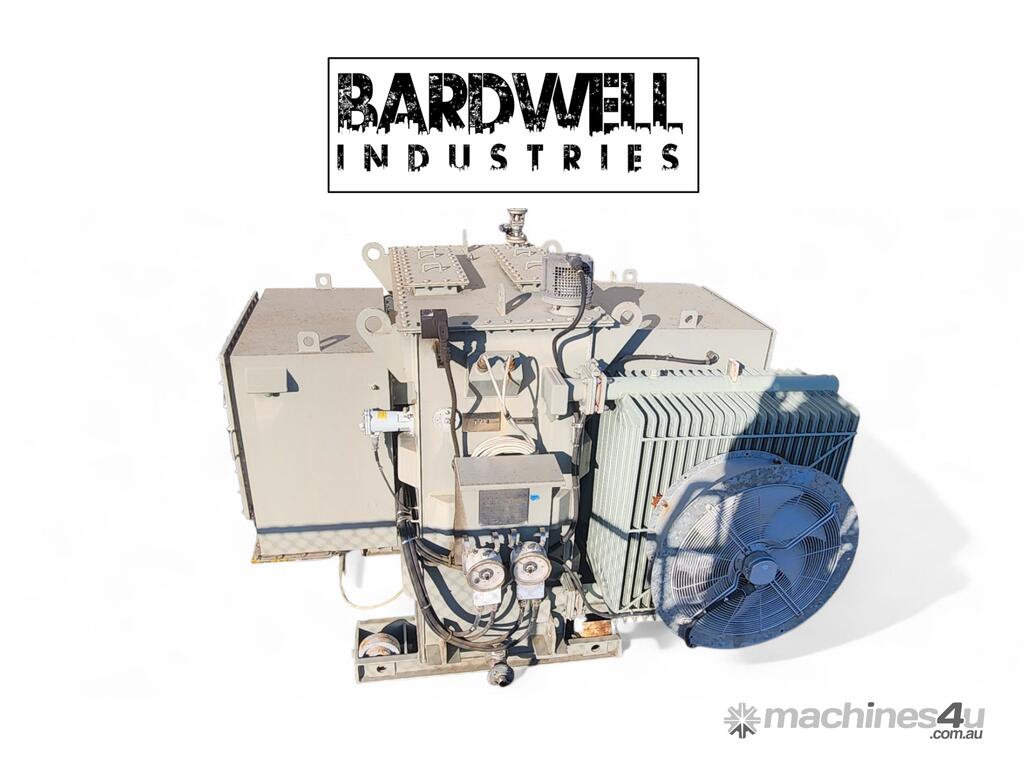

ABB 22kV>415V 1500 kVA Oil-Immersed Transformer

ABB 1500 kVA Oil-Immersed Transformer (Dyn11)

4 available

Location: Morwell

Specifications:

Brand: ABB
Model: 1LVN2130910
Year of Manufacture: 2013
Type: Oil-Immersed Transformer
Power Rating: 1500 kVA
Vector Group: Dyn11
Phases: 3
Rated Frequency: 50 Hz
Impedance: 6.29%
Insulation Level: 125 kV AC (HV), 3 kV AC (LV)
Standard: IEC 60076
Sound Level: 58 dBA
Temperature Rise (Winding/Oil): 65/60 °C
Temperature Class: A
Voltage and Current:

High Voltage: 22±2x2.5% kV
Rated Current: 39.4 A
Maximum Tap Current: 43.3 A
Low Voltage: 415 V
Rated Current: 2086.8 A
Maximum Tap Current: 2295.5 A
Oil and Weight:

Oil Type: FR3
Oil Volume: 1240 kg / 1390 litres
Total Weight: 4650 kg
Core and Coils Weight: 2533 kg
Transport Weight (with oil): 4650 kg
Additional Details:

Tap changer positions: 5 (±2x2.5%)
CT Mark: 2500/1 A
Vacuum withstand pressure: 5 kPa (full vacuum)
Clear vector diagrams and connection guide included
Applications:

Suitable for industrial plants, substations, or commercial electrical infrastructure requiring reliable medium-voltage transformation.
