ACRA MACHINERY -SB-T Series Hydraulic Swing Beam Guillotine

SB-T Series Hydraulic Swing Beam Guillotine

The Durma swing beam Touch Series guillotines are constructed as a very rigid box beam. This allows the rake to be maintained at a low angle to optimise cut quality. The swing beam containing the top blade pivots on large spherical roller bearings. The minimal clearances of these quality bearings coupled with the rigid box beam and table design maintains a constant blade gap over the entire cut length providing excellent cut quality.

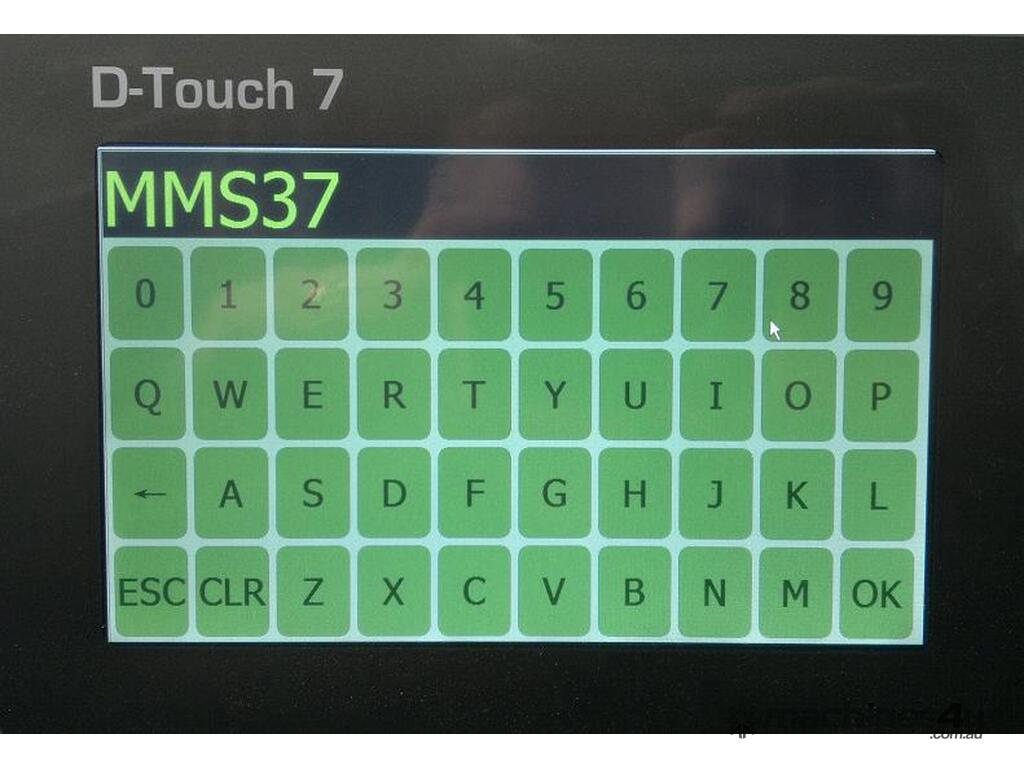

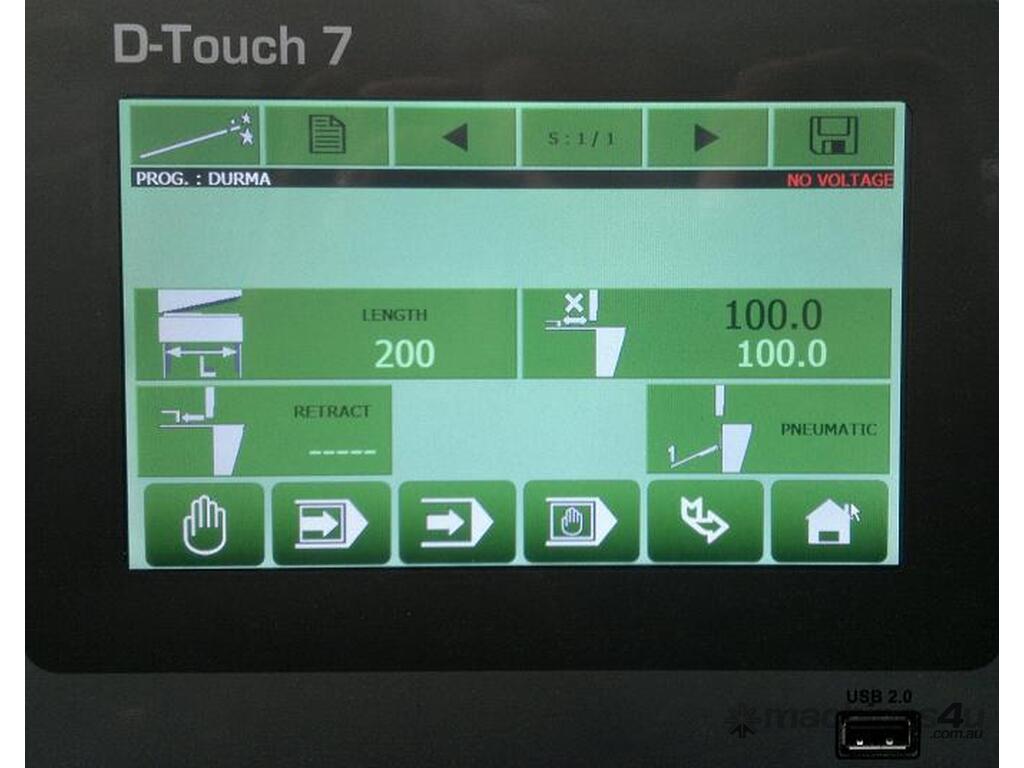

SBT series guillotines incorporate the new DT-7 Large colour touch screen controller. The controller allows for rapid data input with unlimited user programs and steps,external backup and restore via an inbuilt usb port.

Standard Features

Stress Relieved Frame
User friendly CNC Touchscreen Control Unit D-Touch 7

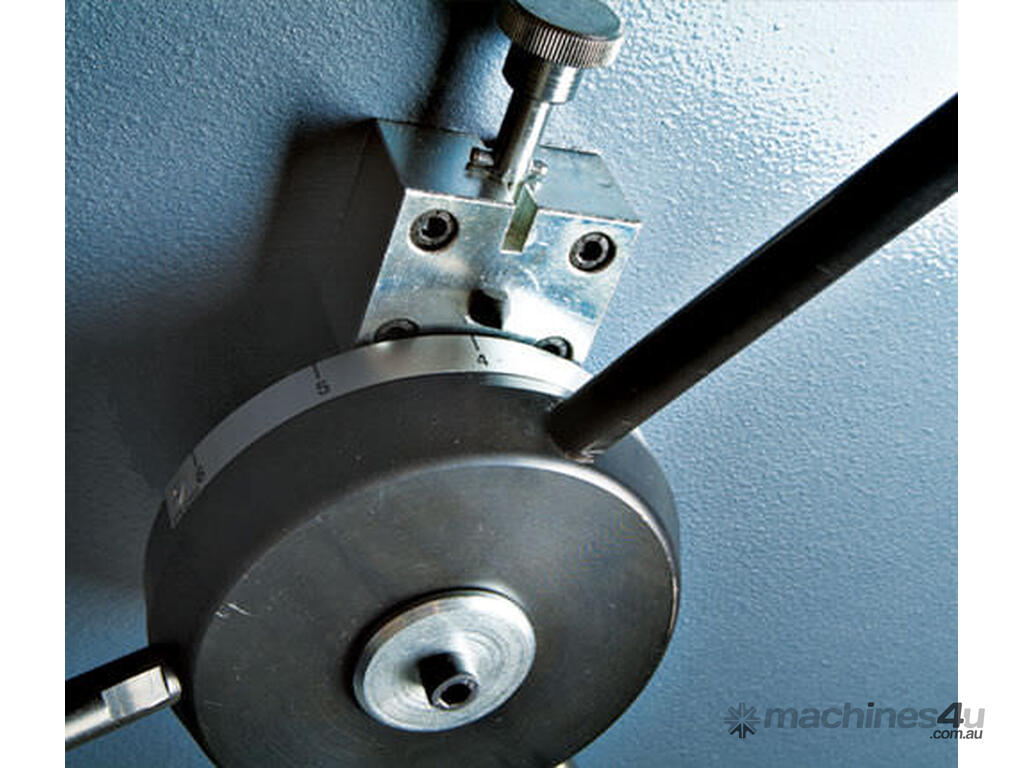

Single point easy blade gap adjustment
Ball integrated front tables

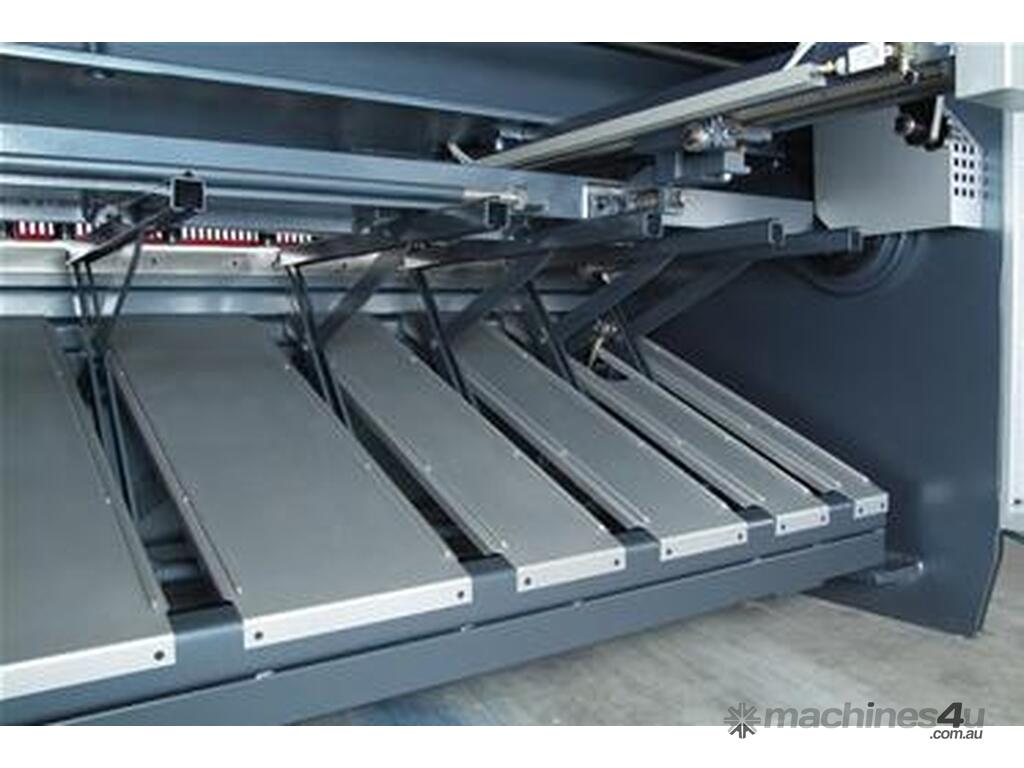

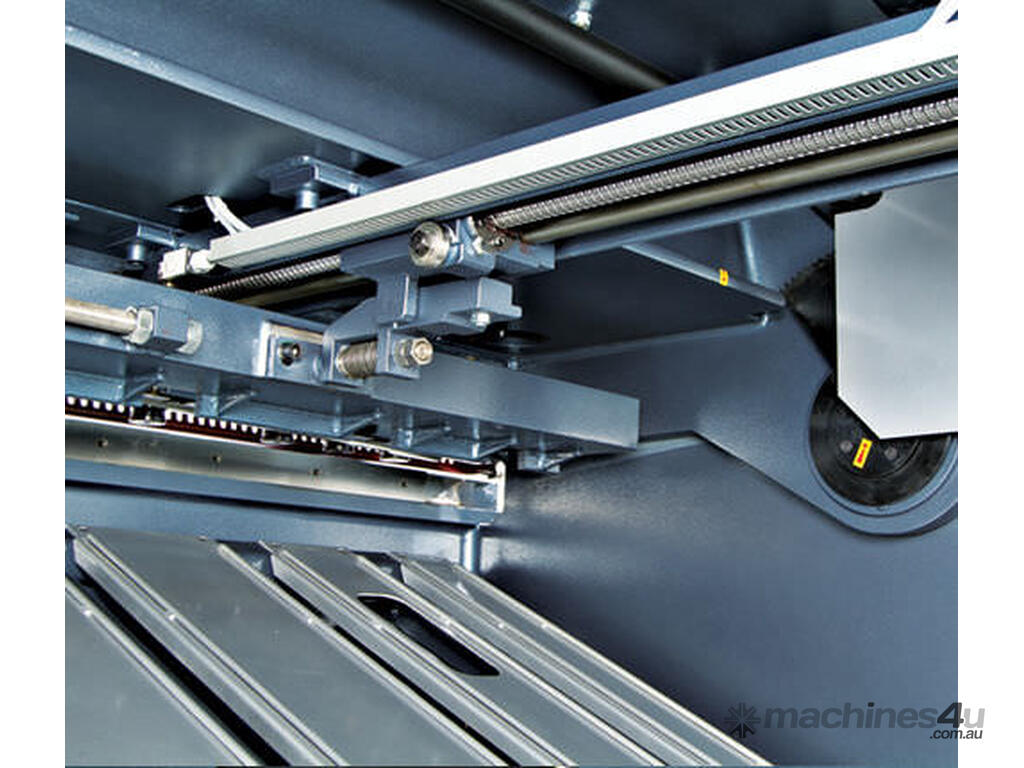

Ballscrew backguage with Automatic swing - up

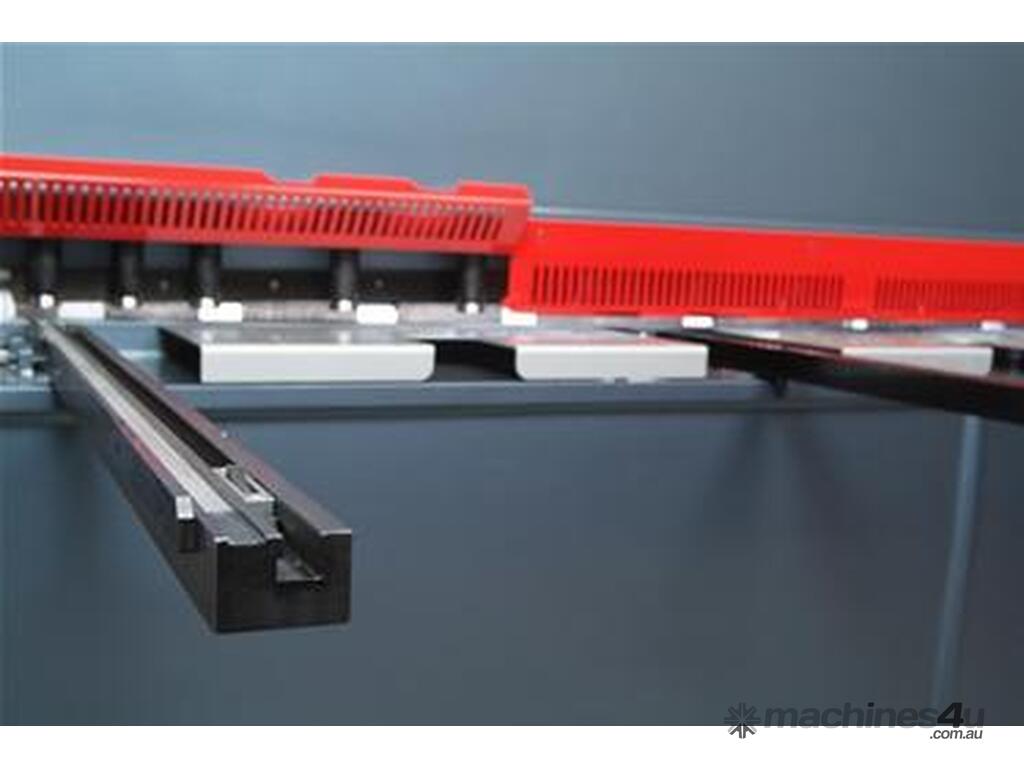

1500mm Squaring Arm with measuring scale, T-Slot and Tilting Stop
1000mm support arms with T-slot and tilting stops.
Illumination and Shadow Line

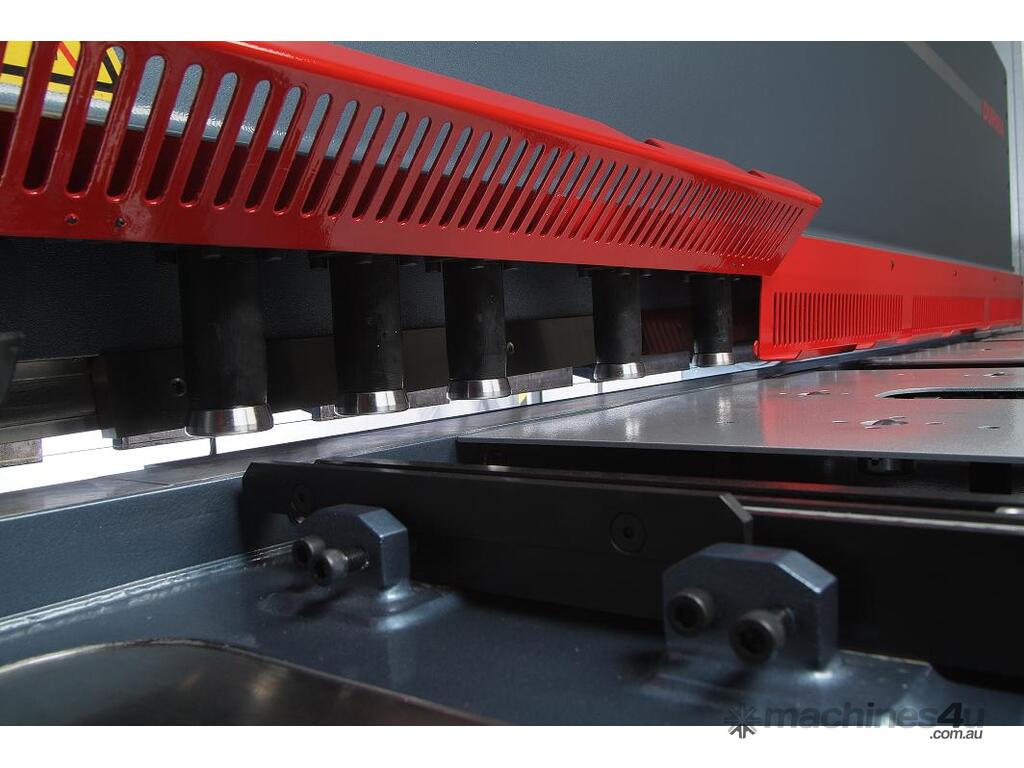

1 Mtr Flip up finger guards
Wandering footpedal with Emergency stop

Optional Features

HI SPEED (Strokes/Min)
Motorised Blade Gap adjustment
Laser Cutting Line
Light Curtains for finger protection
Pnuematic Sheet Support Device
Hydraulic Anti-Twist Device
Special Throat Depth
1250mm Backguage
Additional Support Arms
Central Lubrication (Manual or Motorised)
Adjustable Angle Stop 0 - 180 degrees
