BDO-2223
High-Rigidity
- The one-piece construction base with modular box design and optimum
support maintains the machining accuracy.
- The construction base with optimum rigidity support design is proved by
ultimate analysis that can guarantee maximum loading on worktable and heavyduty
cutting.
High-Precision
- The spindle position is designed with symmetrical to center that provides
stability of temperature level. Moreover, the short transmission system design
reduces the heat conduction and extends the machine's life expectancy.
- X-axis and Y-axis is adopted THK linear roller guide ways.
High Horsepower, High Rotational Speed, High Stability
- 35-HP spindle motor, 6,000 RPM two-steps automatic change gear box.
- Output torque of 642Nm (ZF gear box), offers capability of low-speed heavy
cutting and high-speed precision cutting with extensive process range. (For
demand of higher torque, please contact with our sales department).
Auto Tool Change System
- The max tool diameter is 125mm & the tool length is 300mm.
- Auto tool change time is 8 sec. (Tool to Tool)

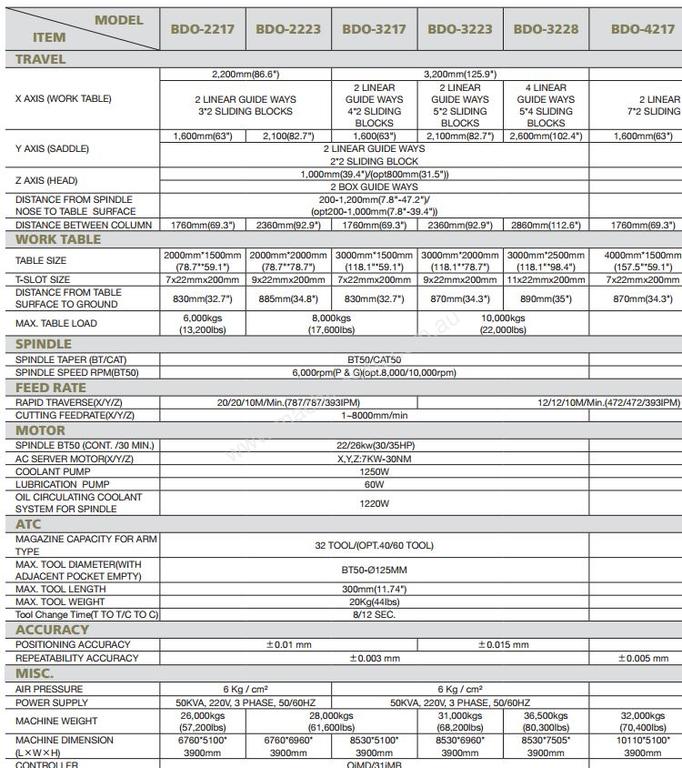

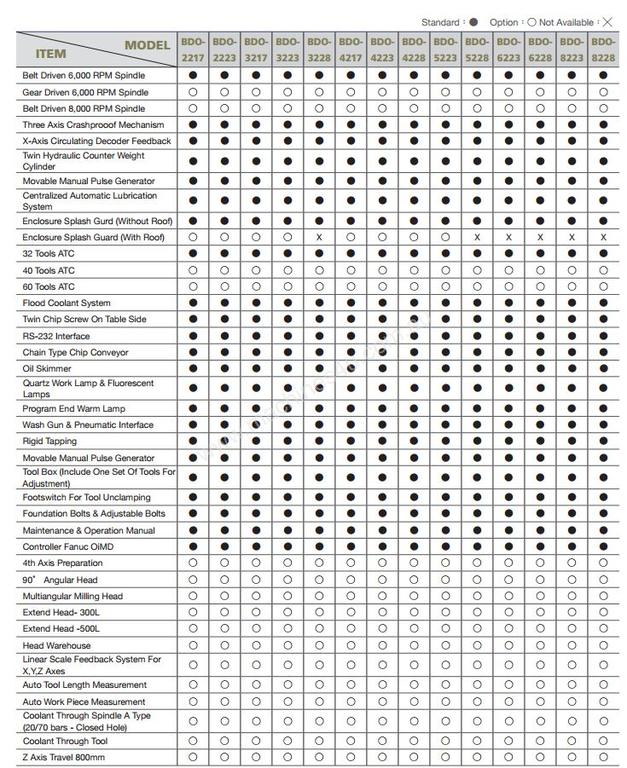

Process Ability
- Y-axis travel: 1,600mm/2,100mm/2,600mm
- Z-axis travel: 1,000mm (standard)
- Z-axis travel: 800mm (option)
- Width of Table: 1,500mm/2,000mm/2,500mm
Unique X Axis Transmission System
- Advantage of direct transmission leads that the
leadscrew can rotate with no influence from belt tension.
- Direct transmission with speed-reduction mechanism is
added to X-axis to increase the transmission torque, the
thrust, and the capacity for workpiece weight.
- Z-axis is adopted oil pressure balance system and
building in pressure saver which supports smooth and
stability for acting in Z-axis.
- These three axis motors are adopted direct driven design
that provides no back interstices as well as increases
the machining efficiency and accuracy.
