AGY-1 50 Ton Compression Load Cell with Mounting Pads

Brand: Australian Weighing Systems
Condition: Used
Weight: 50.00 kg
AGY-1 50 Ton Compression Load Cell with Mounting Pads

Rugged compression-style load cell designed for high-capacity force measurement in industrial weighing and structural monitoring applications

Specifications:
• Model: AGY-1
• Capacity: 50 Ton (500 kN)
• Type: Compression Load Cell
• Construction: Heavy-duty stainless steel body

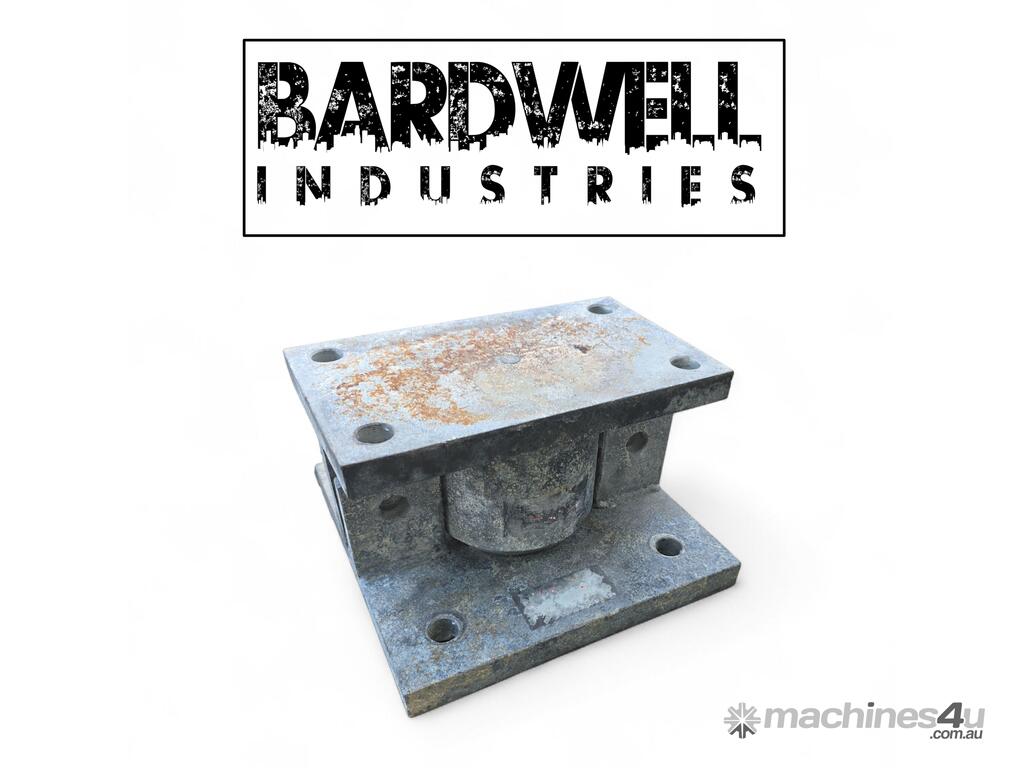

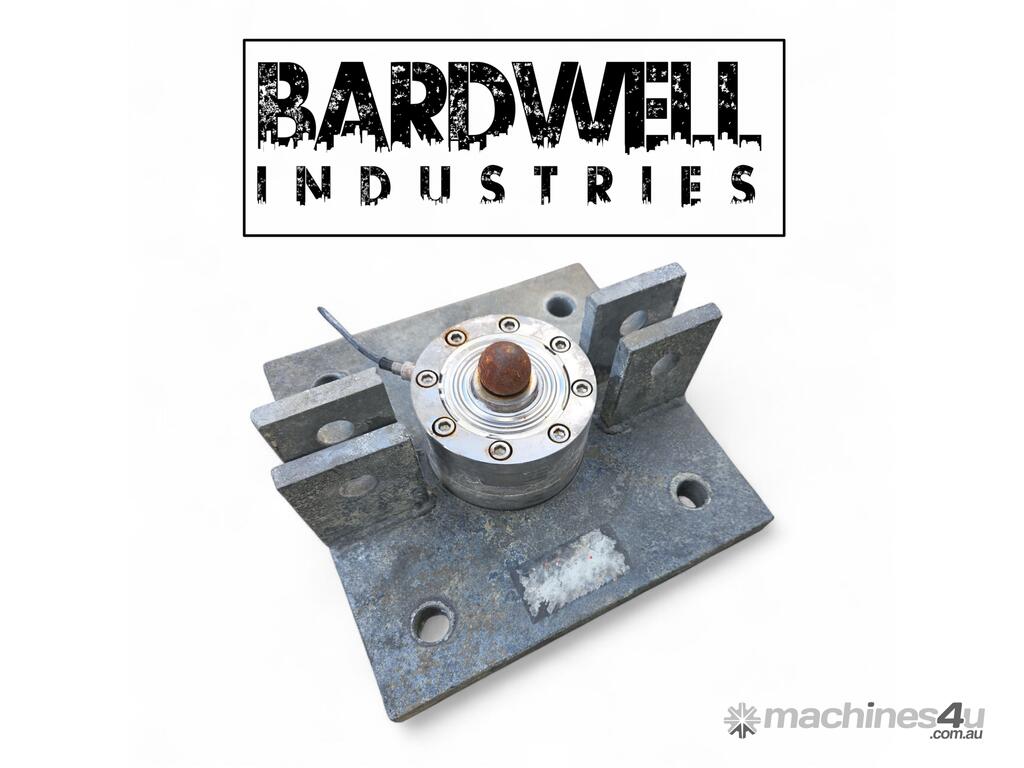

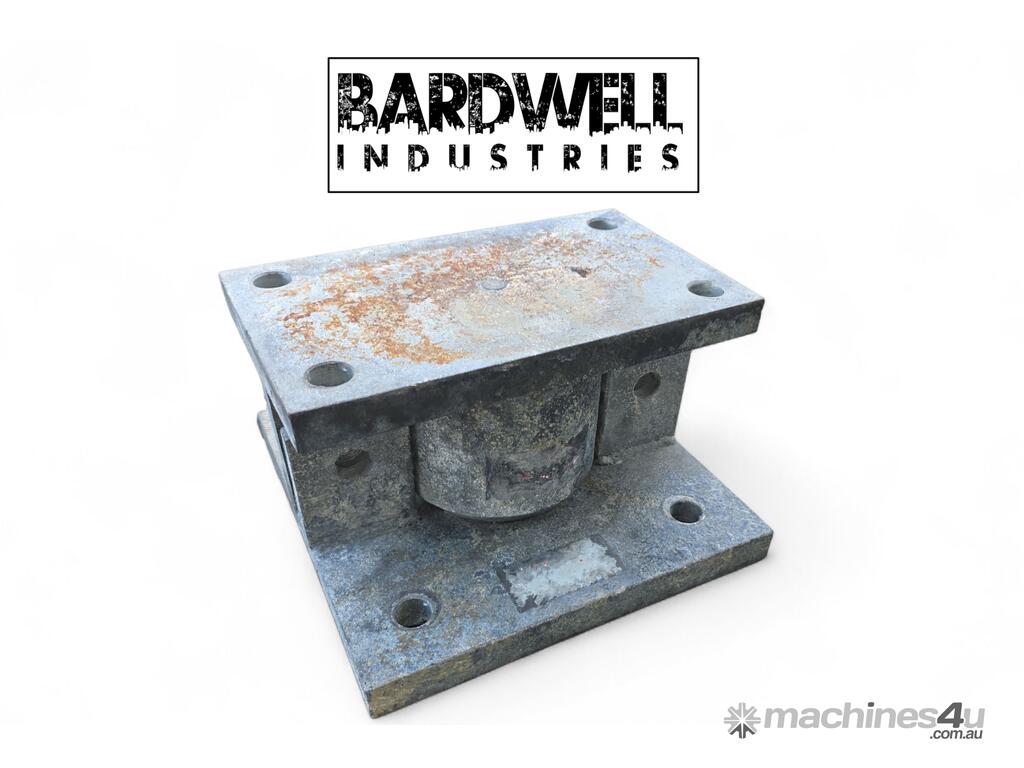

• Mounting: Includes top and bottom mounting pads for stable, aligned load application
• Signal Output: Strain gauge type (4-wire or 6-wire, depending on configuration)
• Application: Static load monitoring, structural load testing, silo/hopper weighing, and heavy machinery integration

Key Features:
• High capacity, robust load sensing
• Accurate and repeatable performance under compressive load
• Suitable for integration with digital weight indicators or PLCs
• Mounting pads improve stability and reduce misalignment effects

Typical Uses:
• Civil and structural monitoring
• Industrial press load measurement
• Truck or axle weighing systems
• Silo and tank weighing setups

Location: Morwell, VIC
Shipping: Australia-wide shipping and local pickup available
