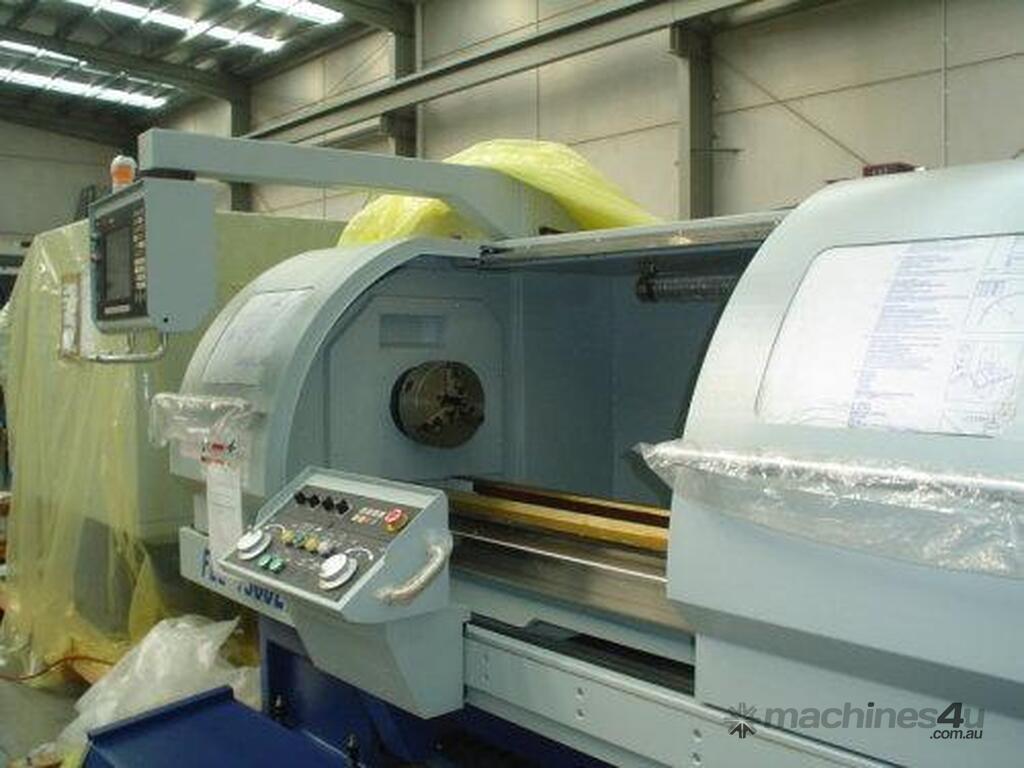

AJAX 460mm Swing Taiwanese Teach-In Flat Bed CNC Lathe

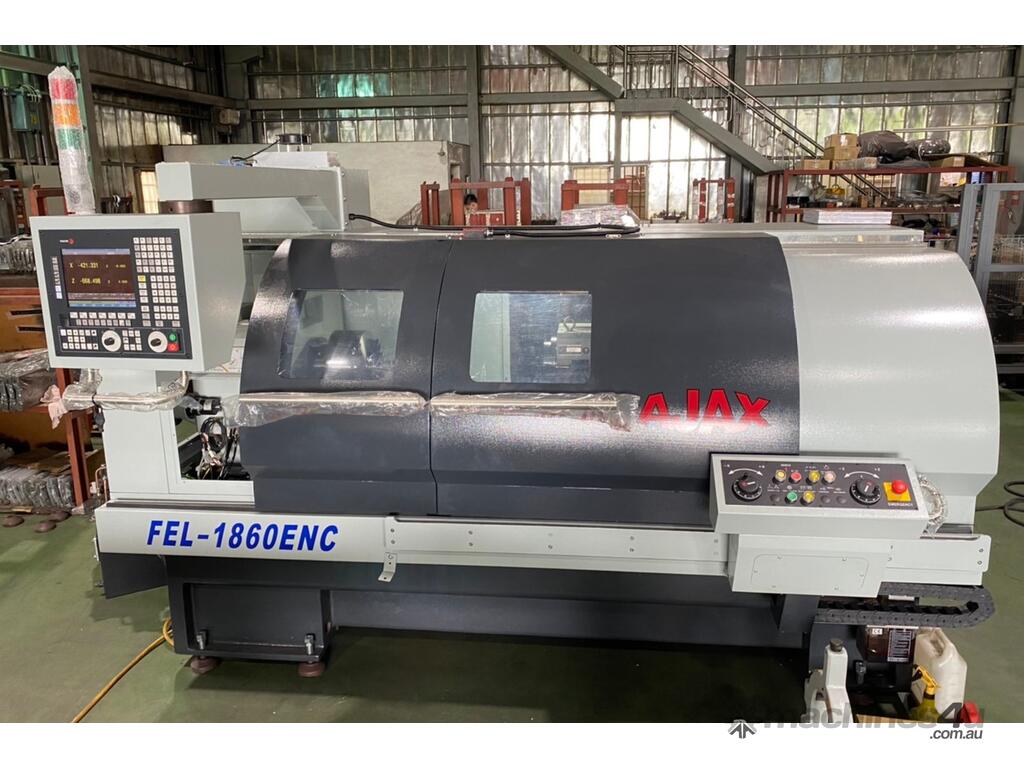

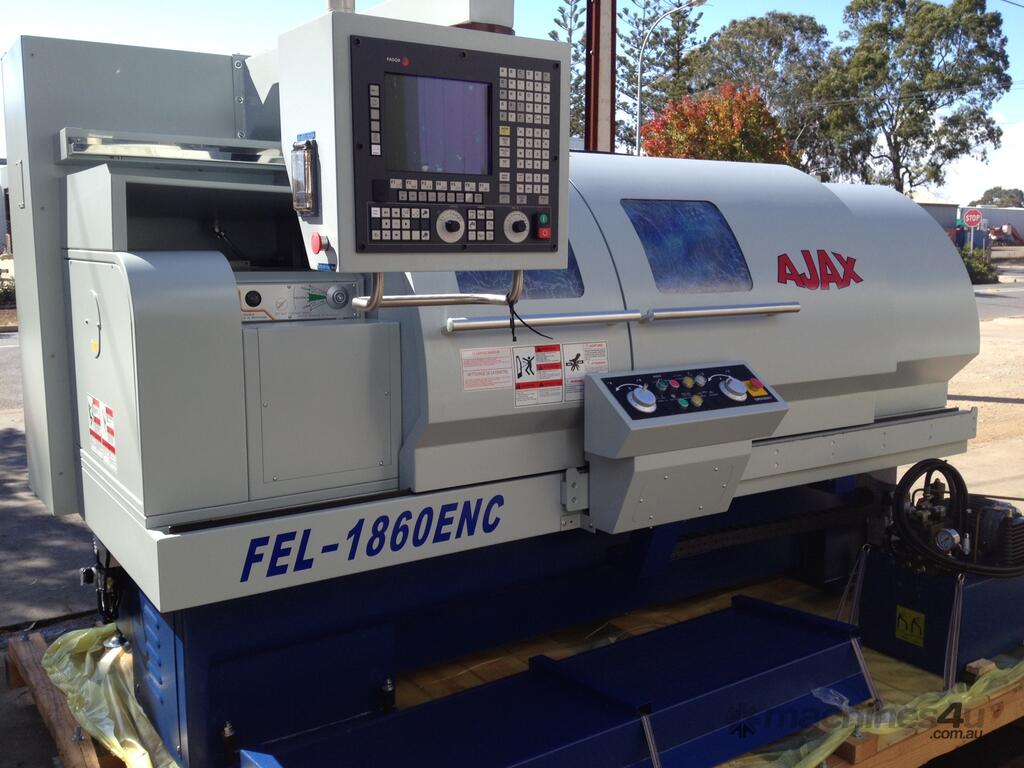

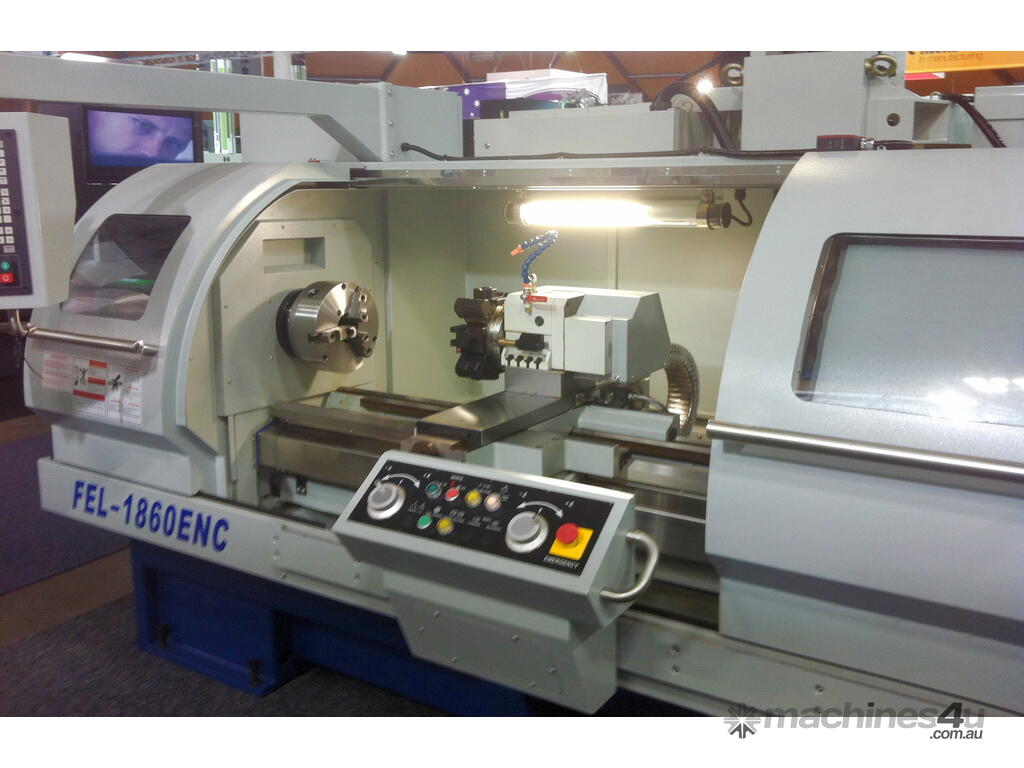

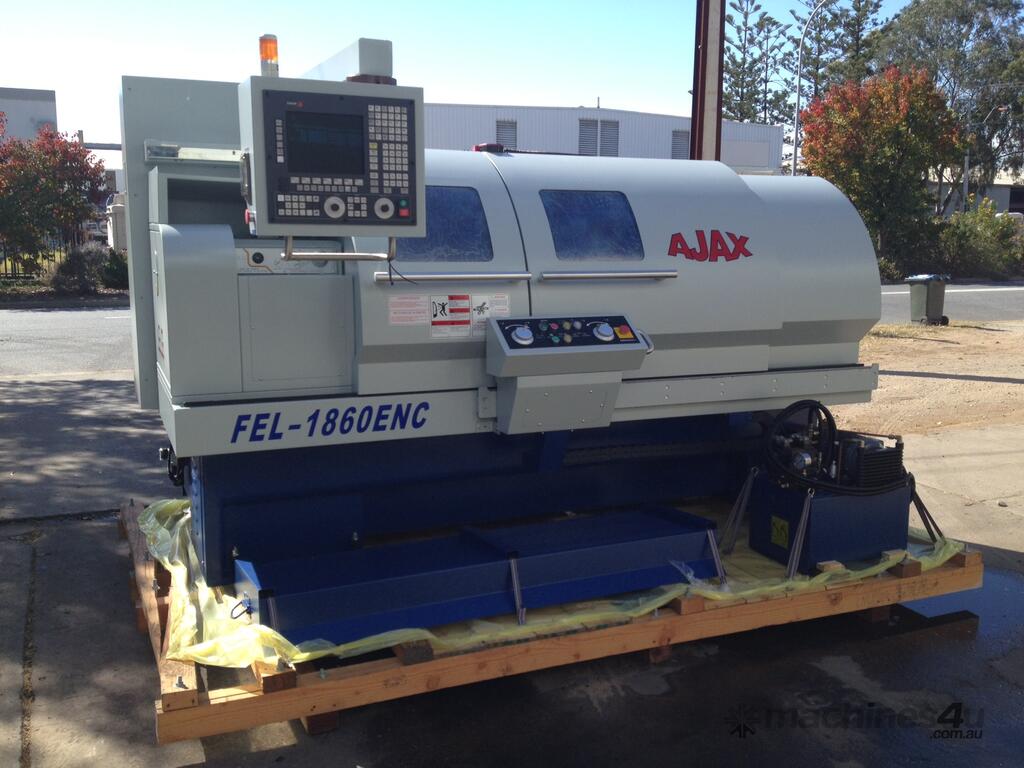

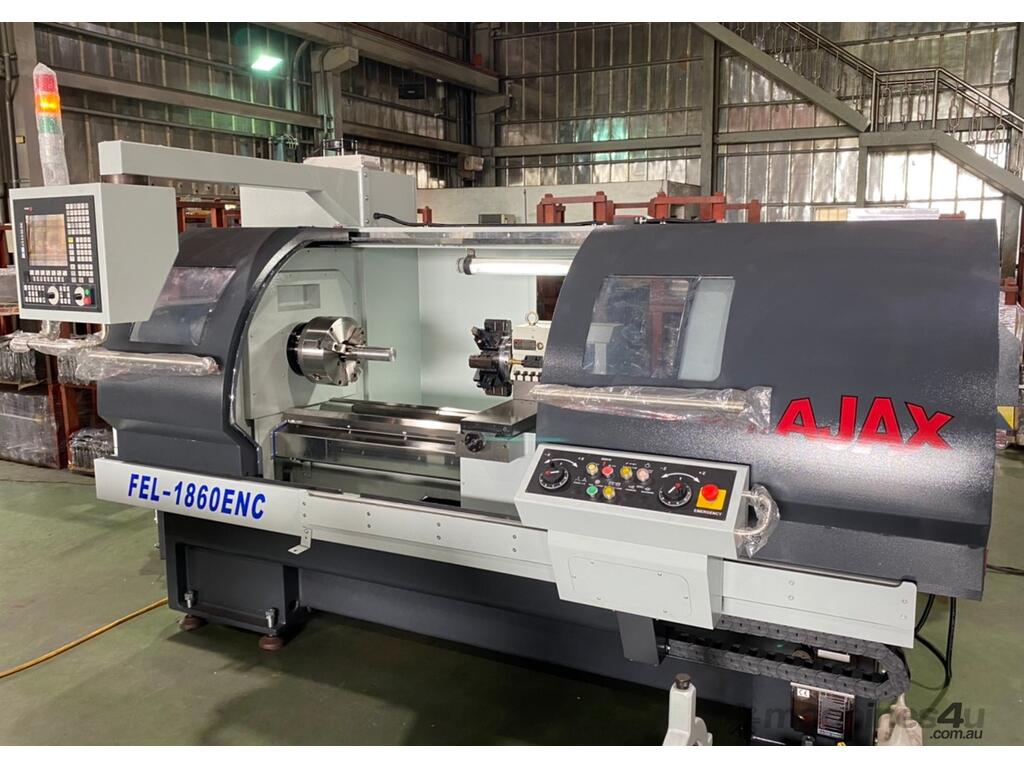

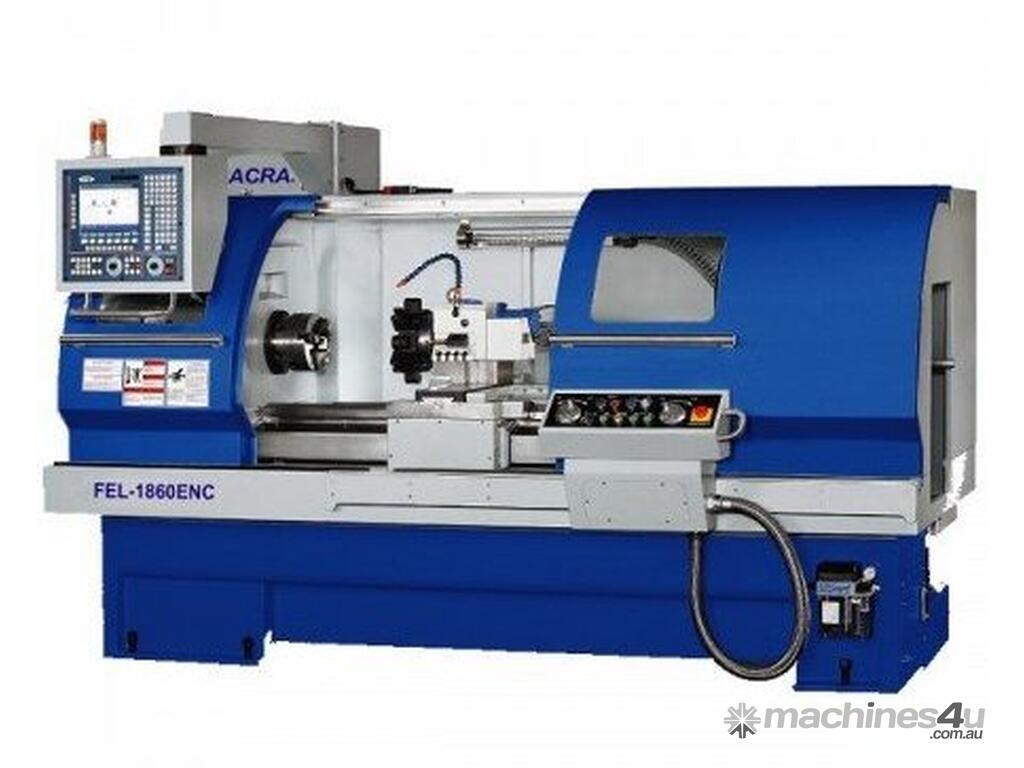

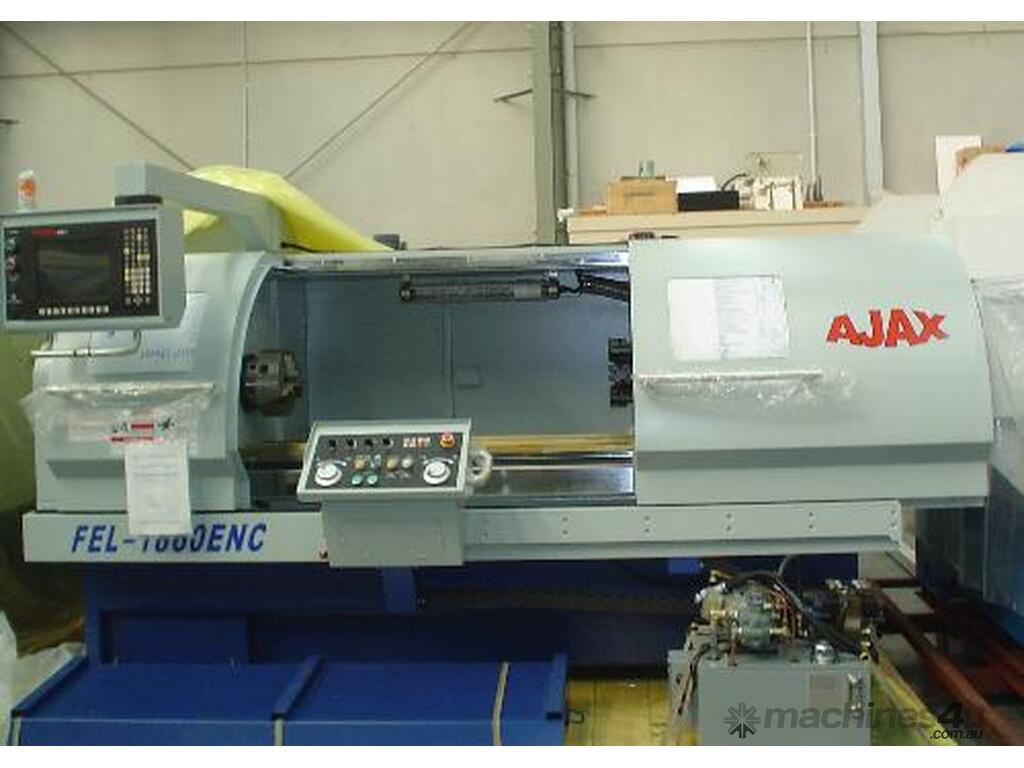

CNC MACHINERY SALES AUSTRALIA PRESENTS - AJAX 1840 and 1860ENC ``Teach In`` style flat bed CNC lathes offer the very best combination of the powerful and user friendly control system in a solid and compact lathe package.

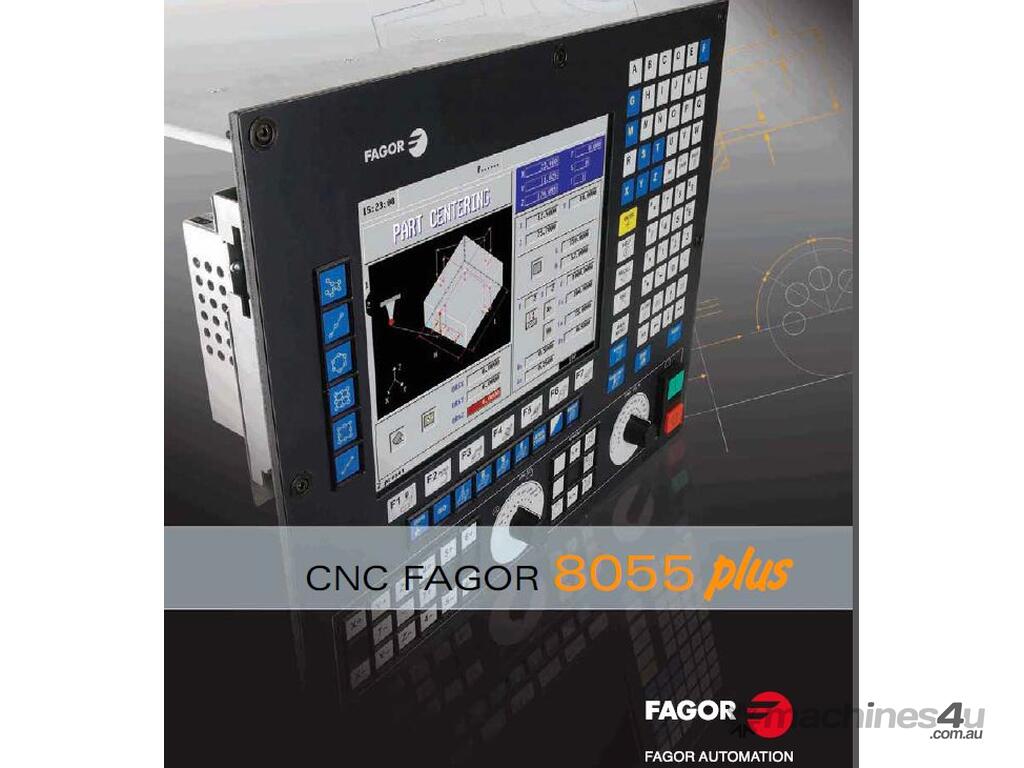

With 460mm swing, 900mm or 1400mm between centres, V8 tool turret, programmable speed range change and Fagor or Fanuc controls.

AJAX CNC lathes are the perfect solution for jobbing work, small production runs and for those making the move from manual to CNC turning for the first time.

Automatic speed range change & V8 tool turret as standard.

C Axis and Live Tool Turret optional.

Specifications:
Capacity
Swing over the bed 460mm
Distance between centres 900mm or 1400mm
Max working diameter:
V 8 Turret 250mm
X & Z ballscrews 20mm & 40mm
Width of bed 305mm
Spindle
Spindle 270~830rpm / 831~2500rpm
Speed ranges 2
Spindle bore 60mm D1-6 or 65mm A2-6
Spindle motor 7.5kw / 11kw
Turret

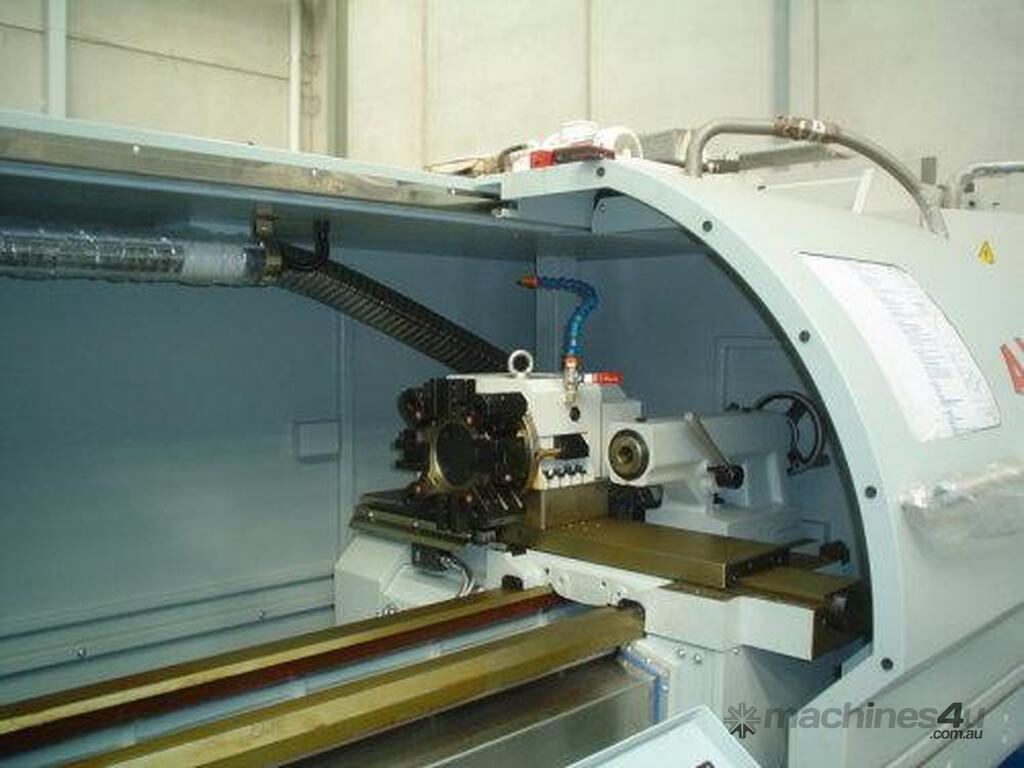

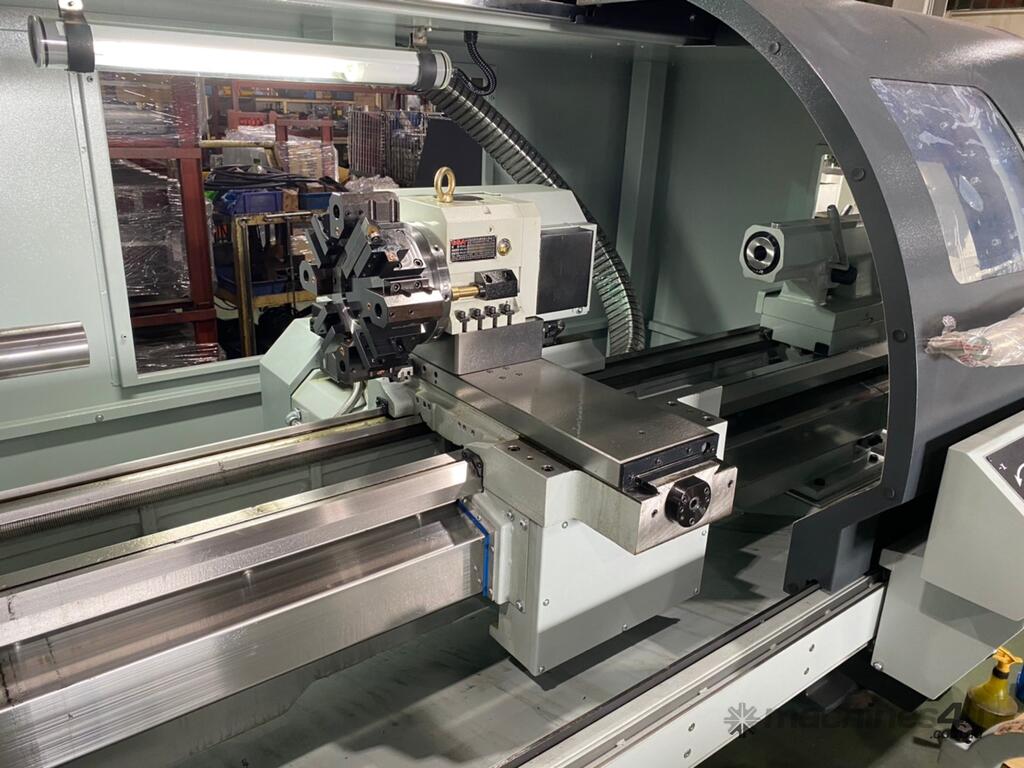

Standard Turret V8
Tool size 20mm OD tool, 20mm x 20mm Square tool
Feed Traverse
X-axis travel 230mm
Z-axis travel 1350mm
Rapid traverse X / Z 10M/min
Tailstock
Tailstock Quill diameter 68mm
Tailstock Quill travel 153mm
Taper of centre MT 4
Miscellaneous
Length (packing size) 3360mm
Width (packing size) 2115mm
Height (packing size) 2340mm
Machine weight nett 2600kg

Delivery, commissioning, training and ongoing support Australia wide.

Since 1989, CNC Machinery Sales Australia's commitment has extended beyond the sale. We prioritize seamless service and support to all of our clients, large and small. Our in-house service engineers and network of industry professionals ensure swift response to any machine issue at any location across Australia.

Go to the CNC Machinery Sales showroom on Machines4u to see the rest of our range, send us a message about the product you are interested in, or give CNC Machinery Sales a call, we are happy to answer any of your questions and provide professional advice.

*CLICK ON THE PDF SPEC SHEET FOR MORE DETAILED INFORMATION *
