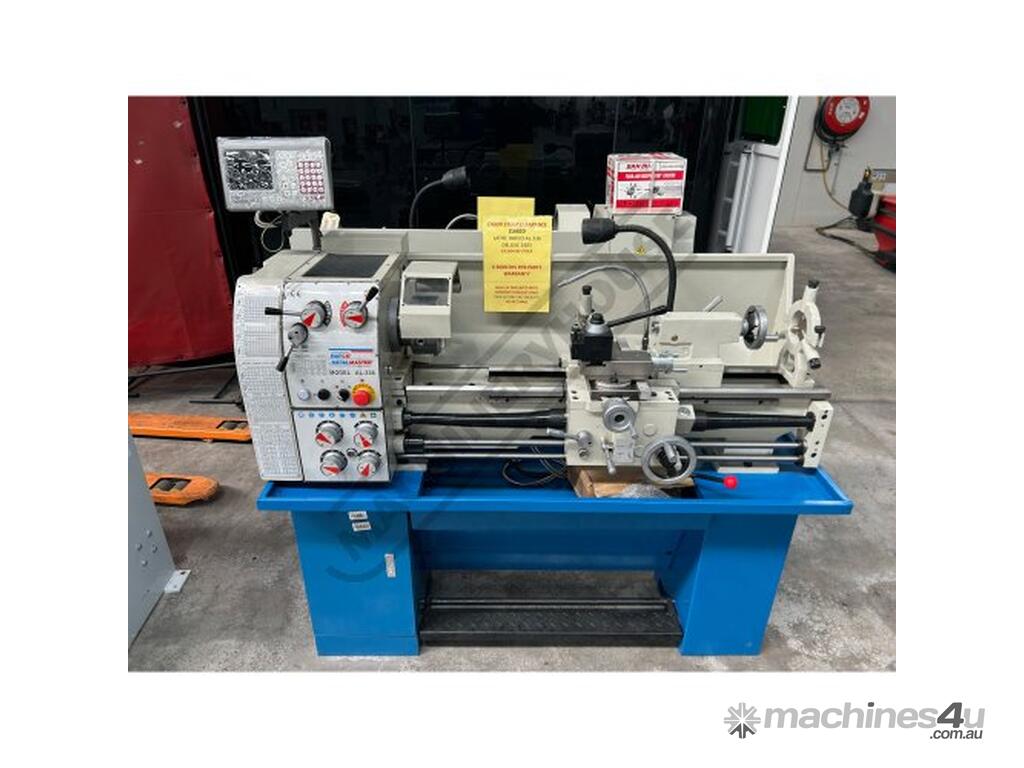

AL-336D DELUXE Centre Lathe Ø300 x 900mm Turning Capacity - Ø38mm Spindle Bore 18 Geared Head Speeds

HAFCO-METALMASTER AL-336D DELUXE Centre Lathe Ø300 x 900mm Turning Capacity - Ø38mm Spindle Bore 18 Geared Head Speeds 65 ~ 1810rpm, Includes Digital Readout System, Quick Change Toolpost, Leadscrew Covers, Foot Brake & Cabinet Stand
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: ZL682D

EX DISPLAY, pick up only Melbourne.

The AL-336D deluxe high quality centre lathe with a turning capacity of Ø300 x 900mm is well known in the industry for its metal turning capabilities & is suitable for the model engineer or general maintenance workshops.

Featuring a 2-Axis digital readout system for radius & longitudinal measurements (X & Y-Axis), the DRO counter is mounted above the headstock in a user friendly location allowing you to achieve precision work every time. The induction hardened vee bedways are precision ground that allows the saddle to smoothly slide over it, full gear driven spindle speeds ranging from 65 - 1810rpm are selectable via the gear selector levers that are accessible from the front of headstock for your convenience & certainly makes this lathe package well sort after.

The 2hp single phase 240V motor is ample power to drive the 3 & 4 jaw chucks, auto feed & screw cutting thread system and the adjustable taper roller spindle bearings ensures accuracy & smooth operation even when under cutting load. A great range of cross, longitudinal feed speeds & metric & imperial screw cutting threads are easy accessible & selected via the separate gearbox located underneath the headstock for your convenience.

Supplied with a large range of standard accessories including a quick change tool post with 4 tool holders, 150mm 3 jaw self centring chuck, 200mm 4 jaw independent chuck with D1-4 camlock for quick change over, face plate, spindle safety foot brake, chuck guard with safety interlock switch, guarded leadscrew cover, thread chasing dial, rear splash guard, coolant pump system, work light, fixed & traveling steadies & that rounds up most of the great features on this fantastic centre lathe. The floor stand is equipped with a slide out swarf tray that makes it very easy to clean down and remove your waste material swarf.

Features:
2 Axis digital readout
Quick change toolpost with 4 holders
Gear drive headstock for quick change of spindle speeds
Precision 'V'-beds are hardened and ground incorporating a rigid webbed casting
Concertina leadscrew cover
Slide out swarf tray from front of machine
Low voltage work light
Foot operated spindle brake with safety cut out switch
Slide out front swarf tray for easy cleaning
Change gears for metric and imperial thread cutting
Oil sight glass for head stock and gearbox
Adjustable taper roller bearings support the spindle
18 spindle speeds from 65 to 1810rpm
Inching button is incorporated on the control panel for convenient spindle speed selection
Enclosed quick action gearbox for thread cutting and auto feeding
Powered longitudinal and cross feeds
D1-4 camlock spindle for quick chuck changes and safe reverse direction turning. ISO standard
Removable gap bed-way for larger diameter jobs
Dual calibrated dials (except for saddle hand-wheel)
Chuck & change gear guards are fitted with micro switches


Specifications:
ORDER CODE: ZL682D
MODEL: AL-336D DELUXE
Type: Lathe
Brand: HAFCO METALMASTER
Capacity: 300 x 900mm
Speed Range (rpm): 65 - 1810
Motor Power (kW / hp): 1.5 / 2
Voltage / Amperage (V / amp): 240 / 10
Branch The Item is Located (Available): Melbourne
