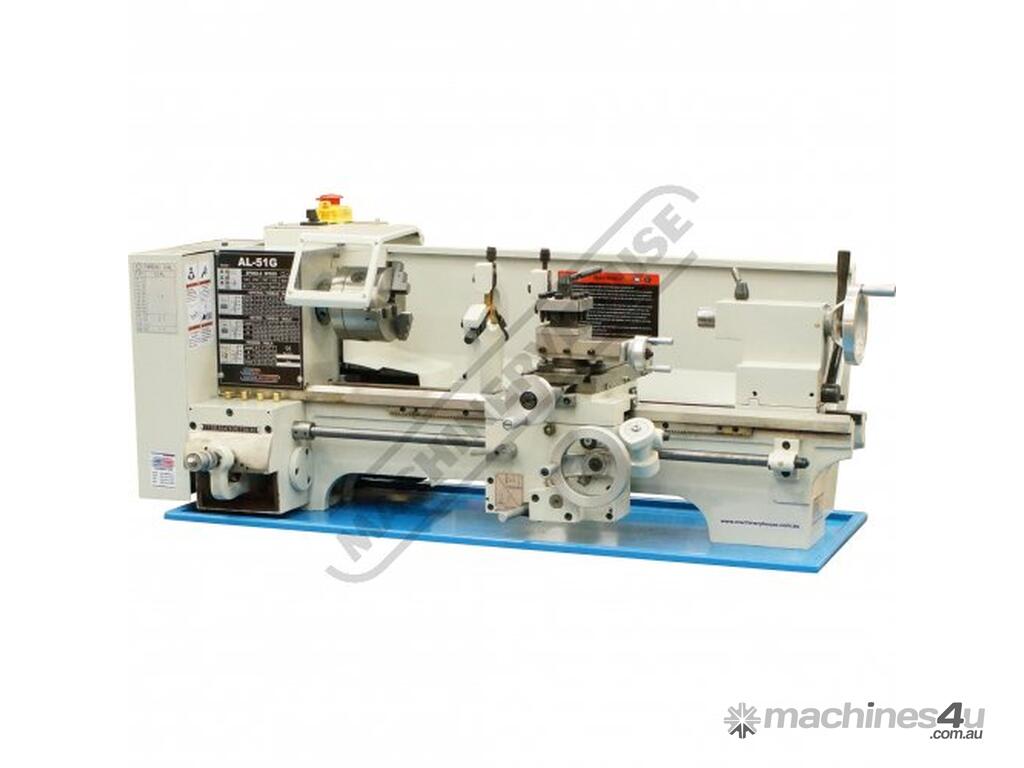

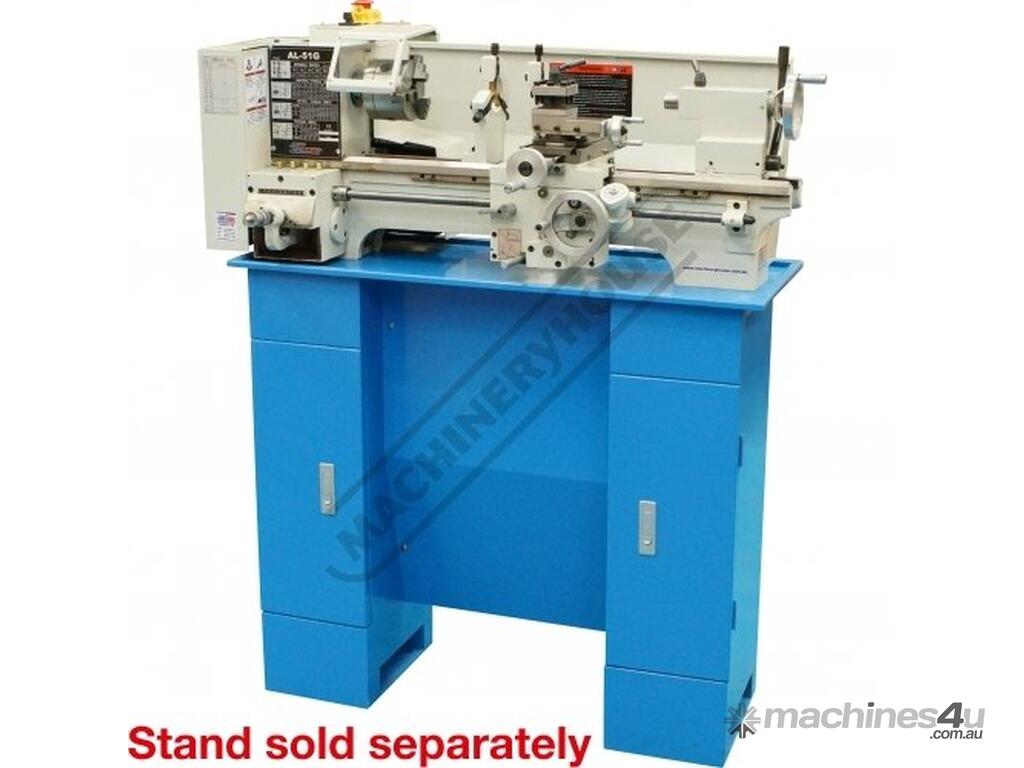

AL-51G Bench Lathe Ø230 x 500mm Turning Capacity - Ø20mm Spindle Bore 6 Speeds 100 ~ 1800rpm

HAFCO-METALMASTER AL-51G Bench Lathe Ø230 x 500mm Turning Capacity - Ø20mm Spindle Bore 6 Speeds 100 ~ 1800rpm
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: L160

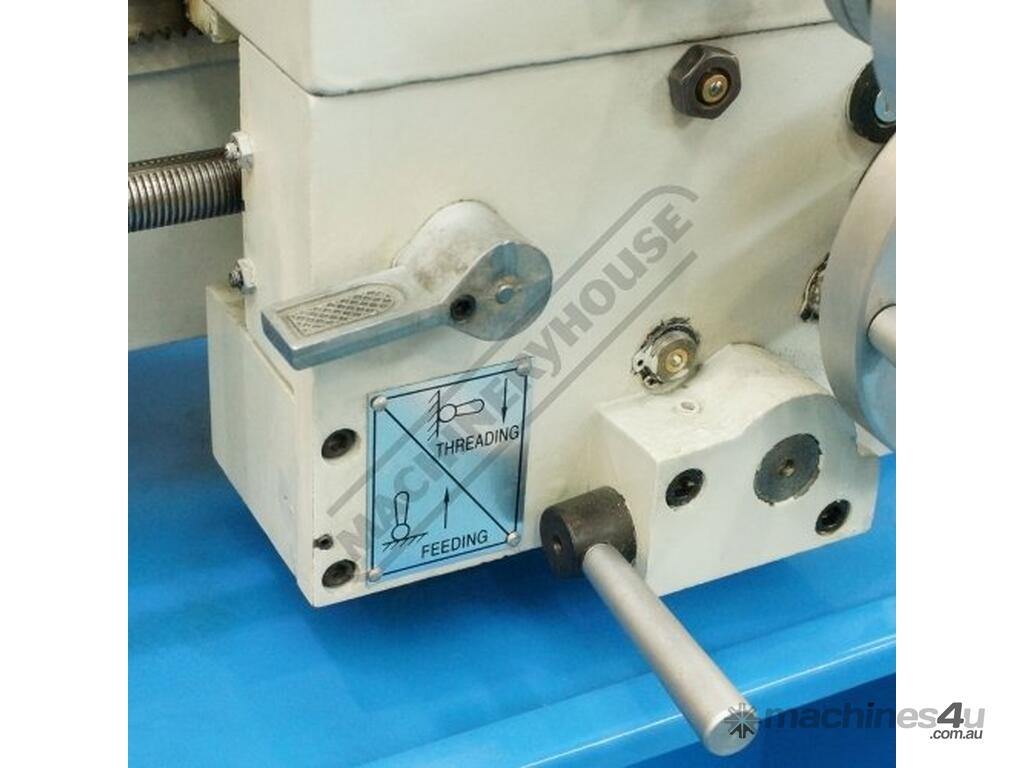

AL-51G has a quick-change gearbox for easy thread cutting operations
Can also cut 9.5 and 11.5 threads per inch

Features:
Perfect for the hobby machinist or auto electrician

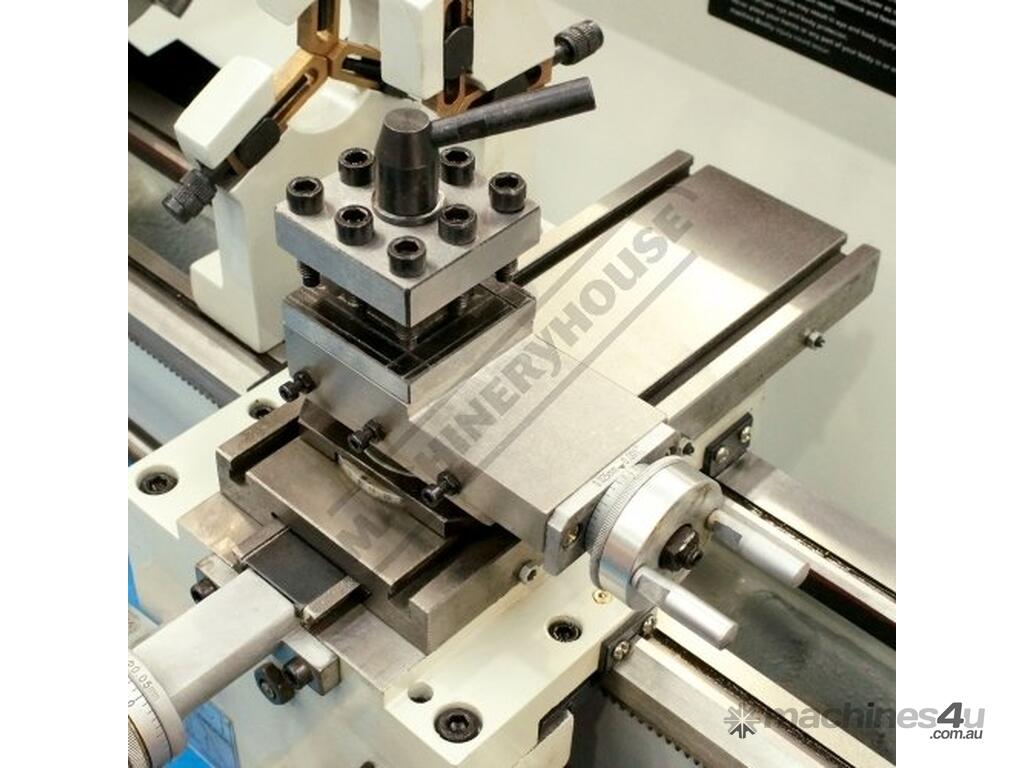

Precision 'V'-beds are hardened and ground encompassed on strong cast-iron rib webbing with dovetail cross and compound slides
Includes a full set of change gears for metric and imperial thread cutting

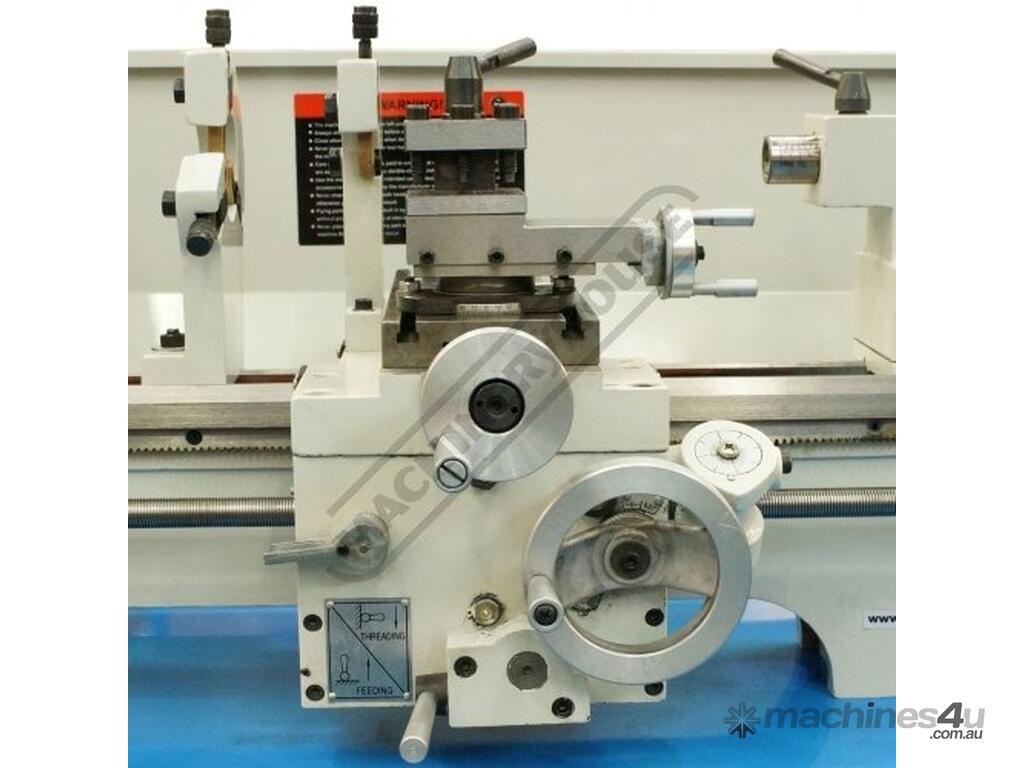

Saddle handwheel mounted on right side of apron reducing swarf contacting the hand
Induction hardened "V" beds

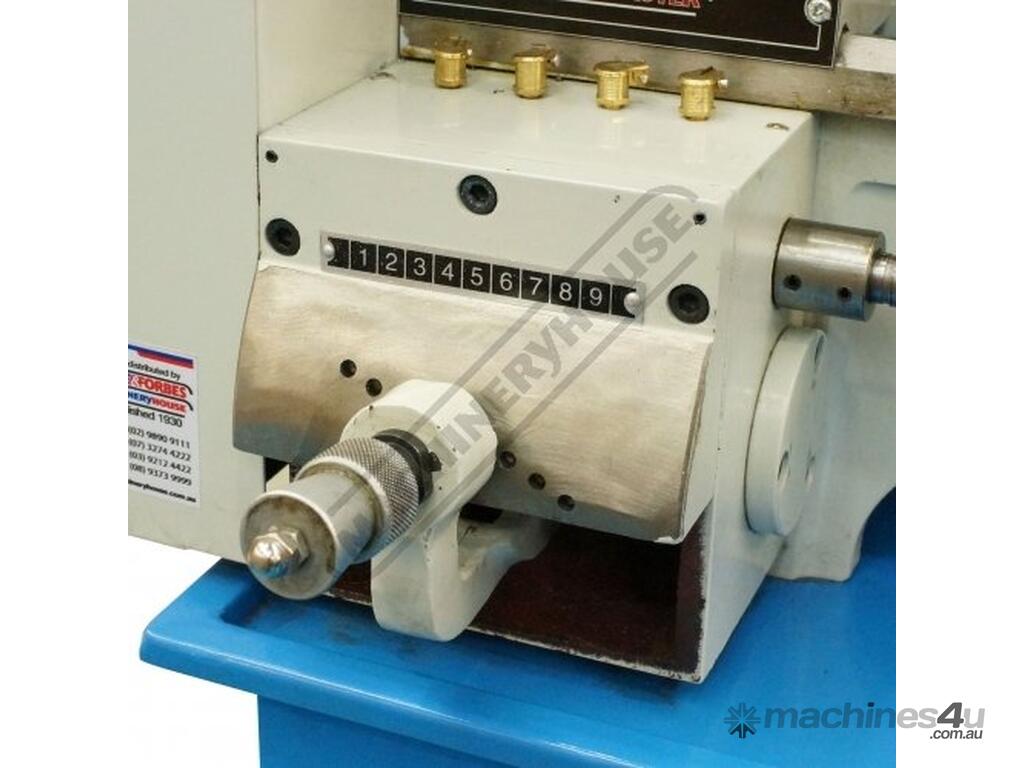

Norton style quick change gearbox
Adjustable ball bearings spindle support
4 x direct oiling points into gearbox

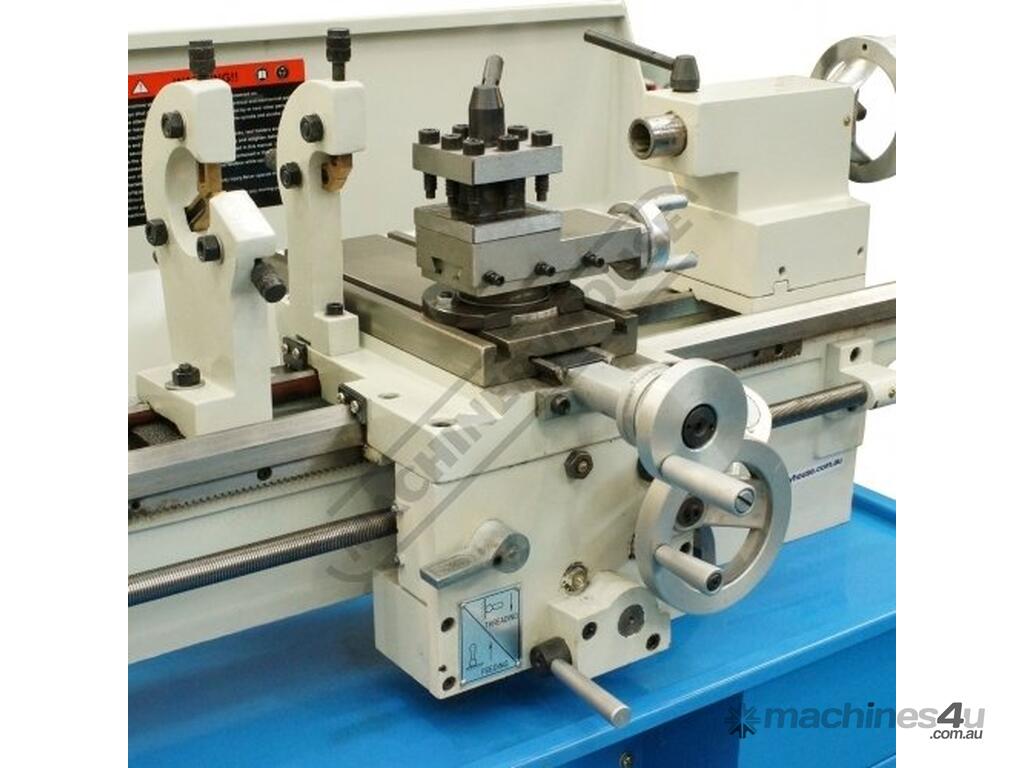

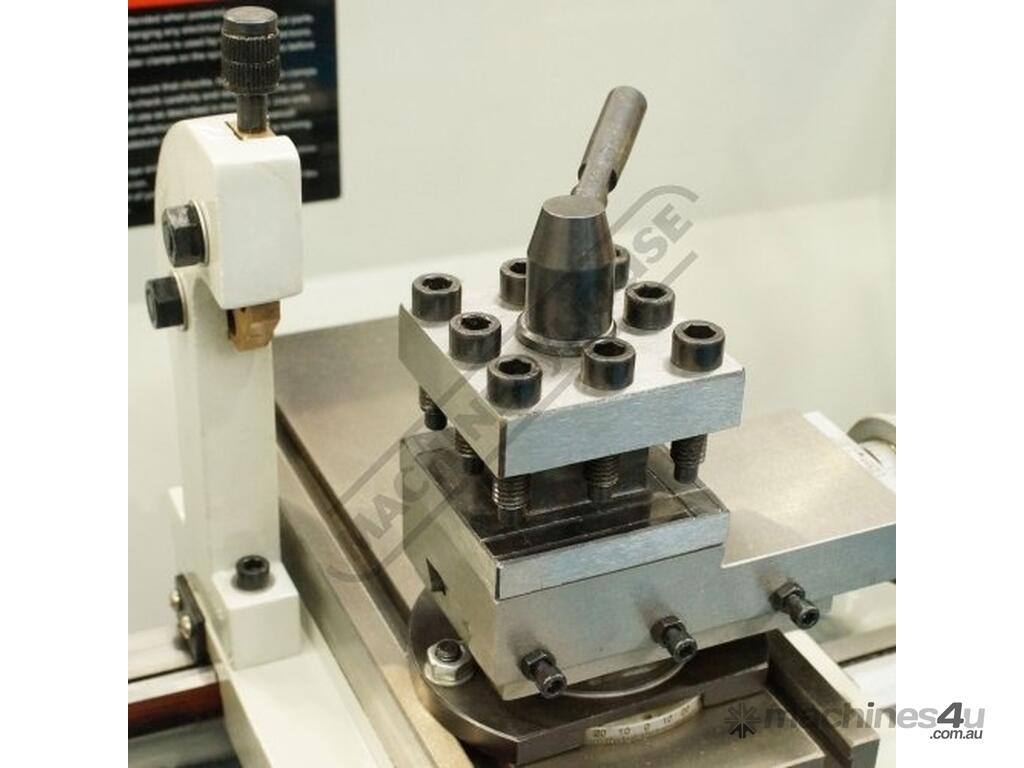

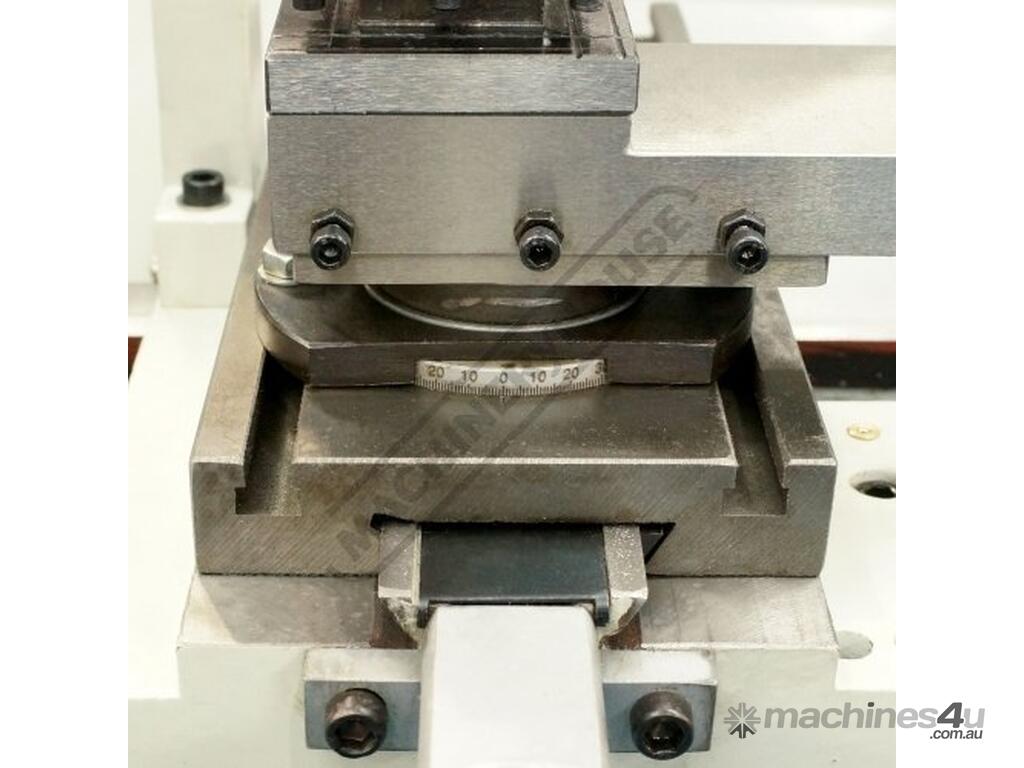

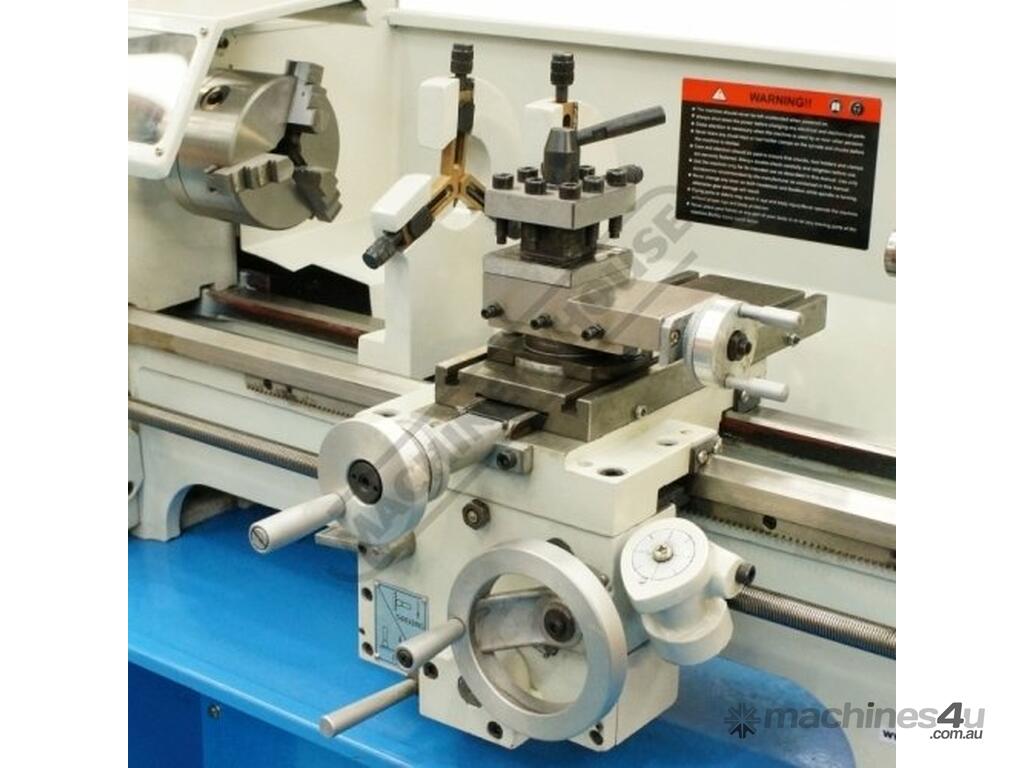

T slotted cross slide
Auto longitudinal feed

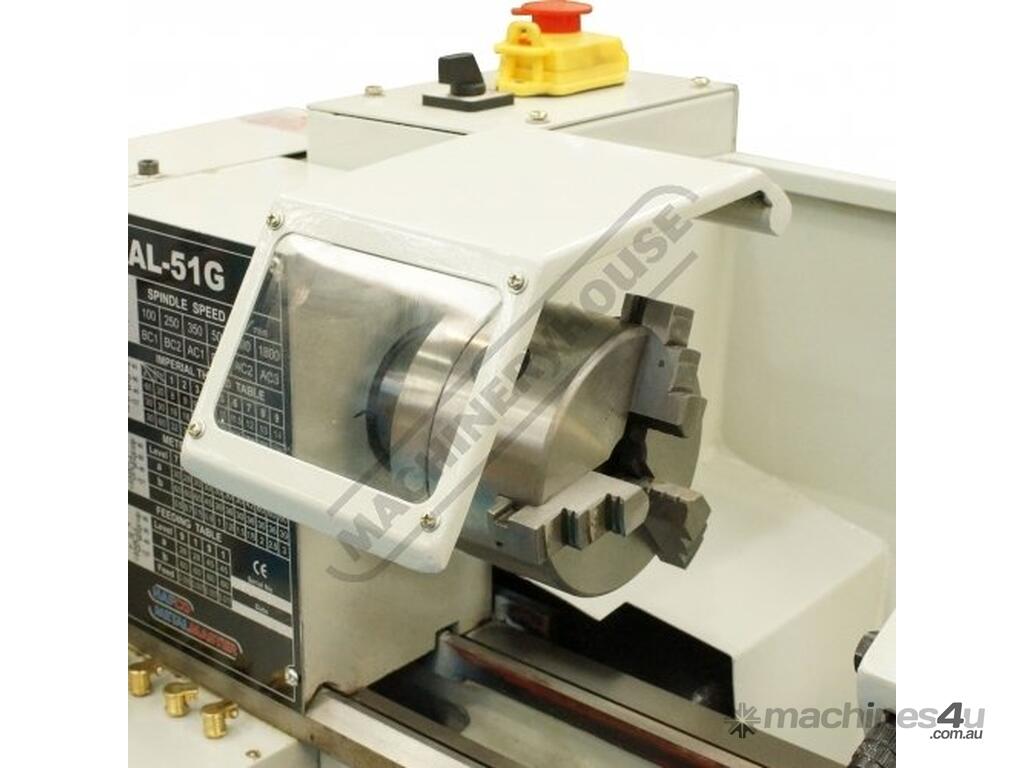

Clear perspex chuck guard
6 spindle speeds from 100-1800rpm

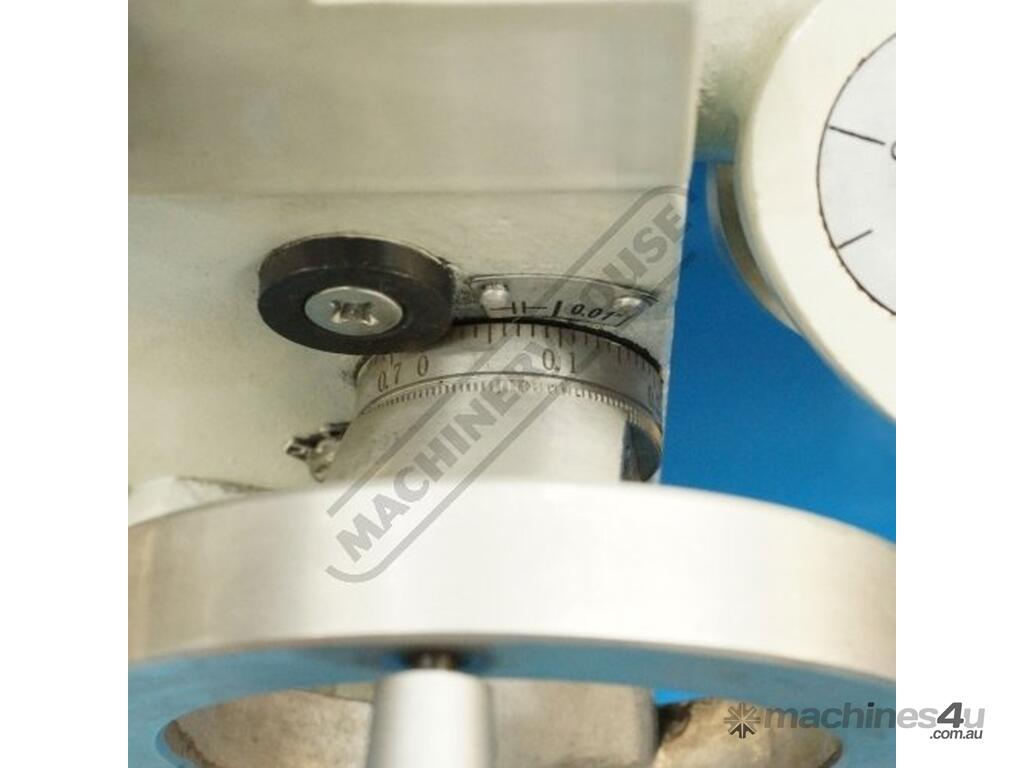

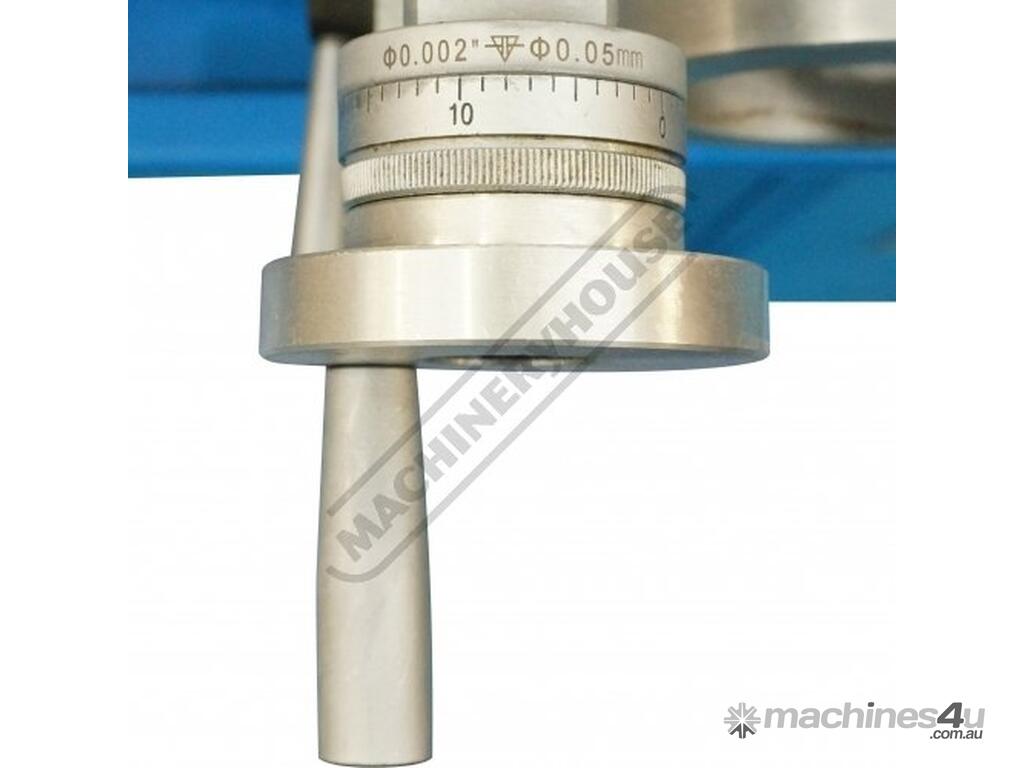

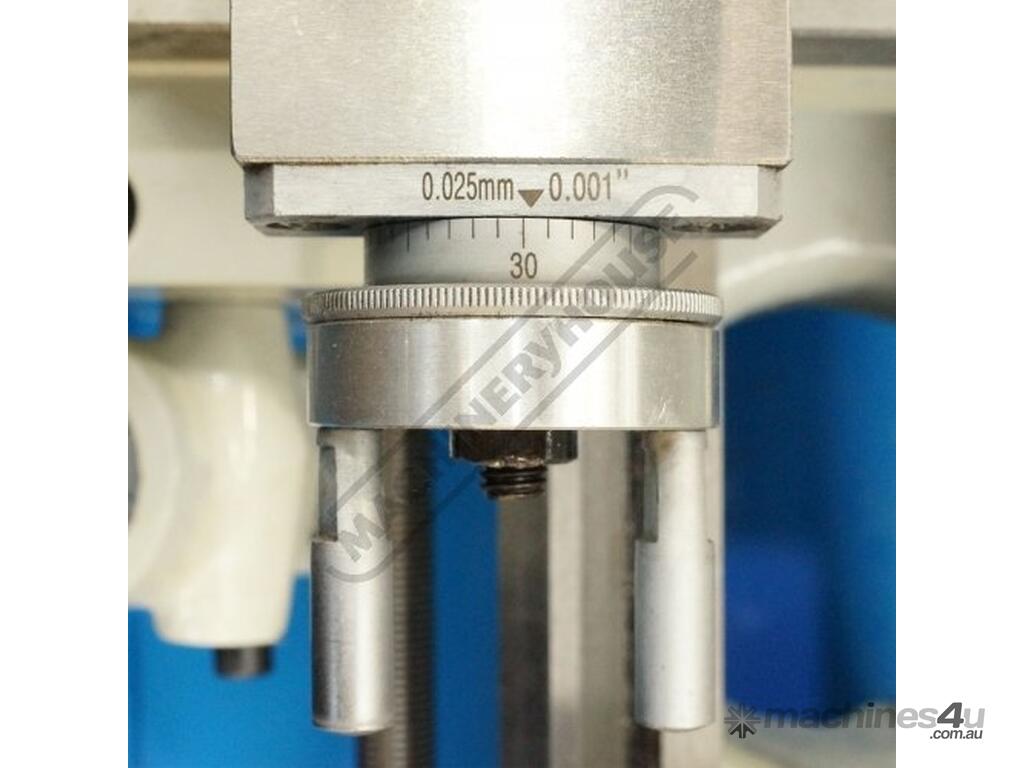

Metric dial calibrations

Includes:
- 3-jaw chuck with reverse jaws
- 4-jaw chuck
- Face plate

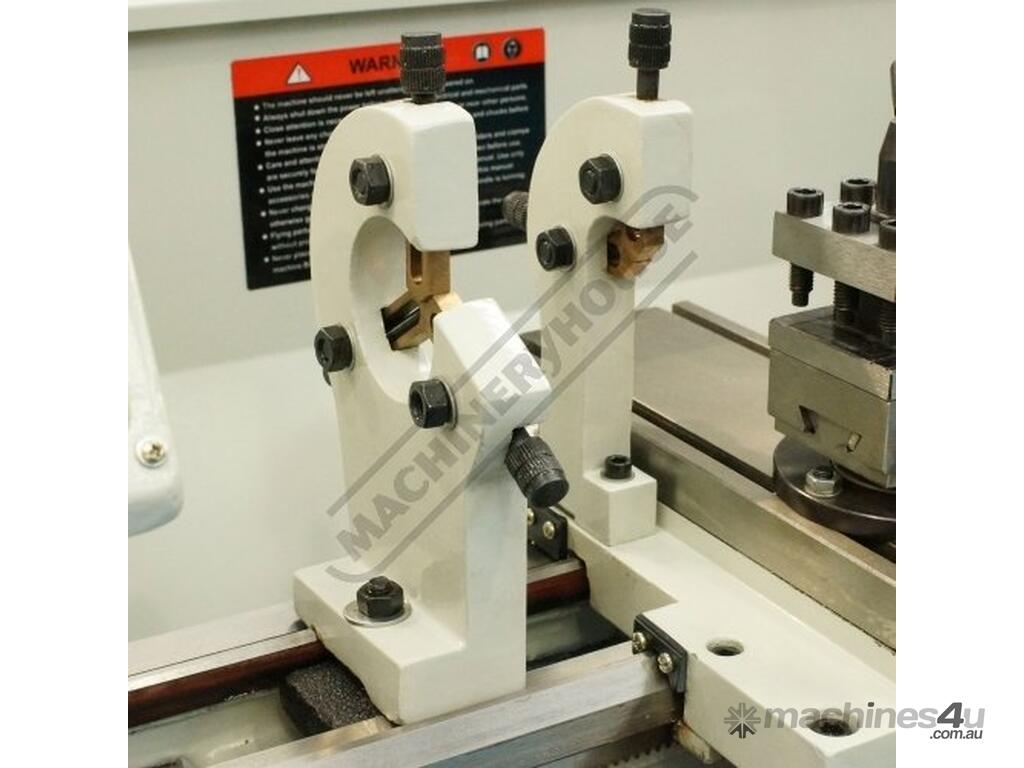

- Fixed and traveling steadies
- Change gears
- Dead centre

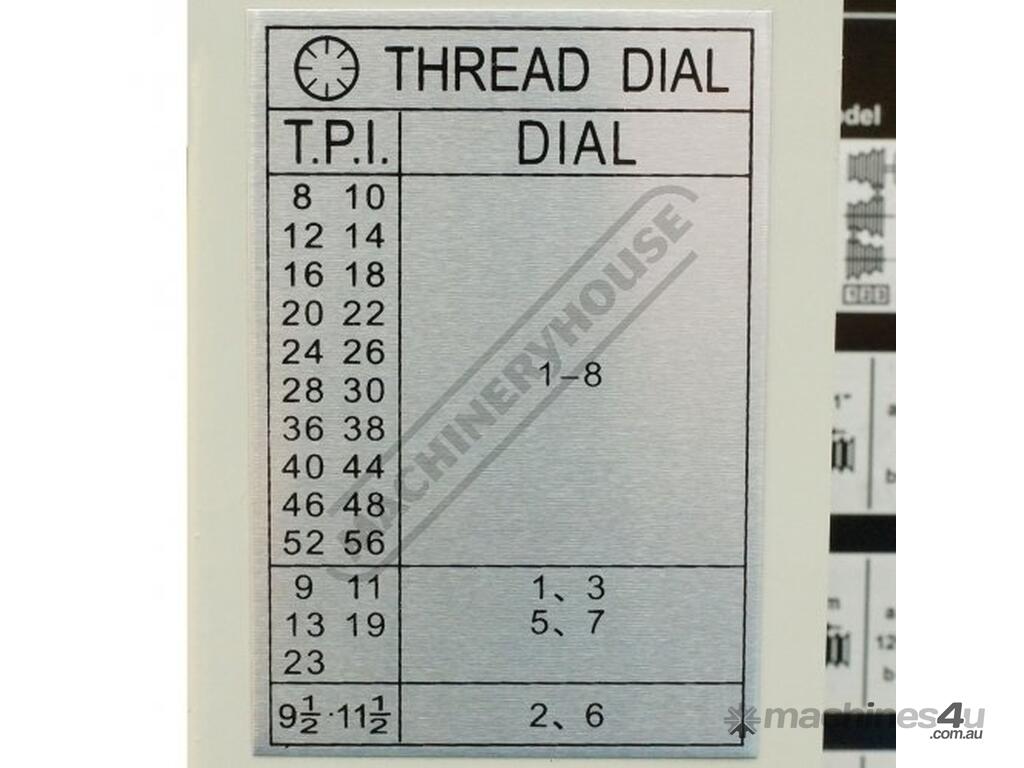

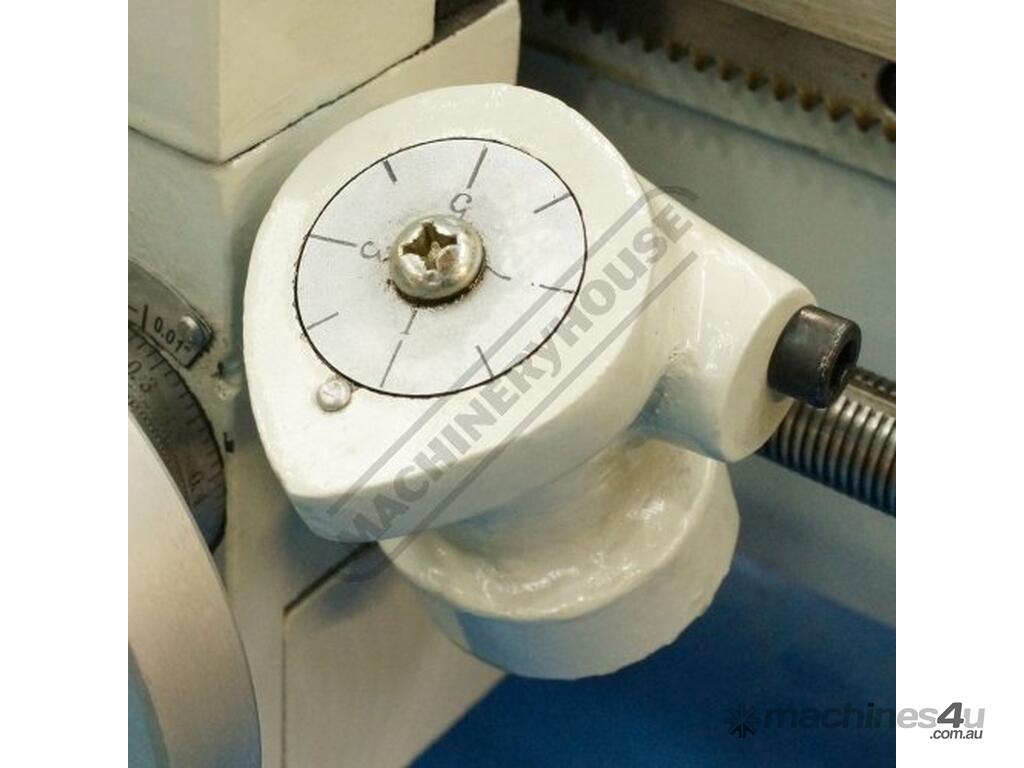

- Thread chasing dial
- Swarf tray
- Safety chuck guard
- Spanners tool box & instruction booklet



Specifications:
ORDER CODE: L160
MODEL: AL-51G
Swing Over Bed (mm): 230
Distance Between Centres (mm): 500
Spindle Bore (mm): 20
Swing In Gap (mm): ~
Swing Over Cross-slide (mm): 127
Digital Readout System Fitted: Optional
Quick Change Toolpost Fitted: Optional
Leadscrew Covers Fitted: ~
Taper Turning Attachment: ~
Coolant System: ~
Tool Height To Suit (mm): 12
Centre Height (mm): 115
Spindle Nose Size or Type: Threaded
Bed Width (mm): 114
Headstock Spindle Taper (MT): 3
Tailstock Taper (MT): 2
Cross Slide Travel (mm): 108
Compound Slide Travel (mm): 48
Leadscrew Type: Imperial
Metric Cross Feed (X-Axis) (mm/rev): ~
Imperial Cross Feed (X-Axis) (inch/rev): ~
Metric Longitudinal Feed (Z-Axis) (mm/rev): ~
Imperial Longitudinal Feed (Z-Axis) (inch/rev): 0.12 - 0.3

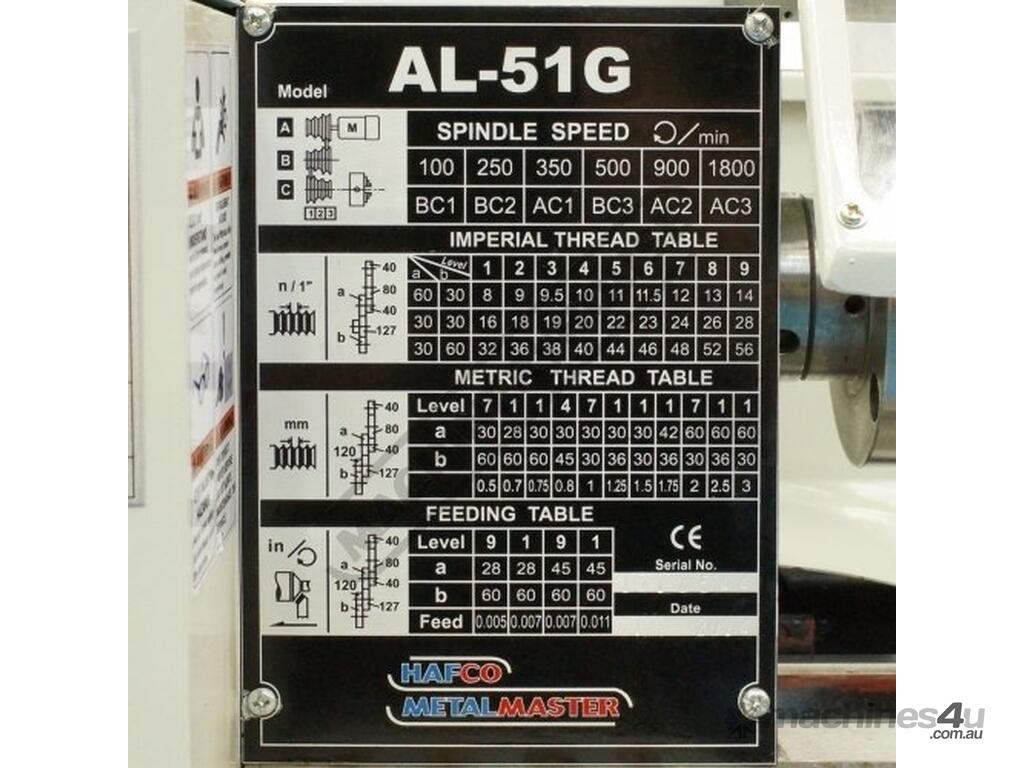

Metric Thread Steps & Pitch (No. / mm): 11 (0.5 - 3)
Imperial Thread Steps & TPI (No. / TPI): 27 (8 - 56)
3 Jaw Chuck Diameter (mm): 100
4 Jaw Chuck Diameter (mm): 190
Spindle Steps / Speeds (No. / rpm): 6 (100 - 1800)
Motor Power (kW / hp): 0.55 / 0.75
Voltage / Amperage (V / amp): 240 / 10
Nett Weight (kg): 129
