ALTEQUIP - Socage Raptor 21S Spider Lift- 21m height 230kg 10m reach

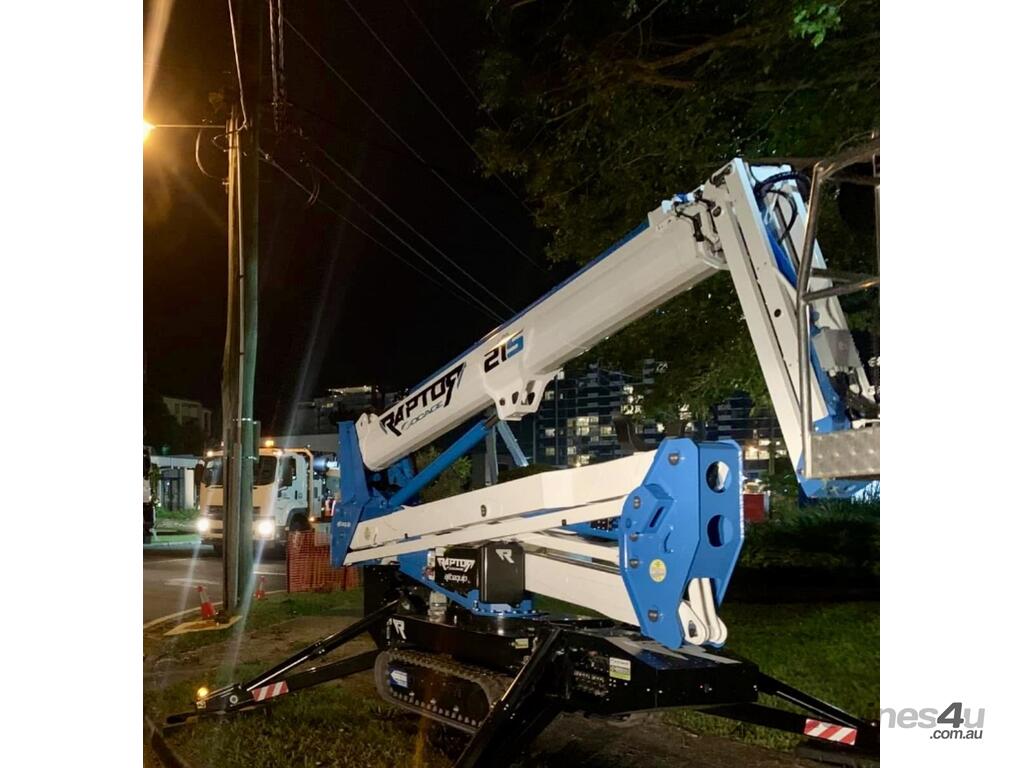

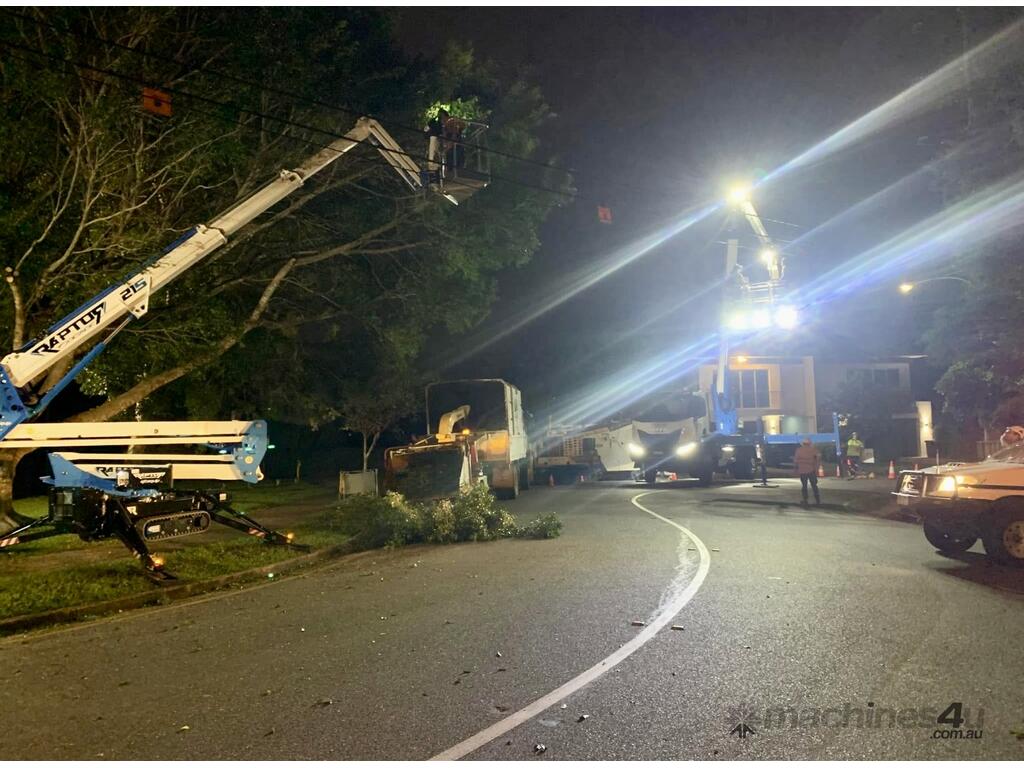

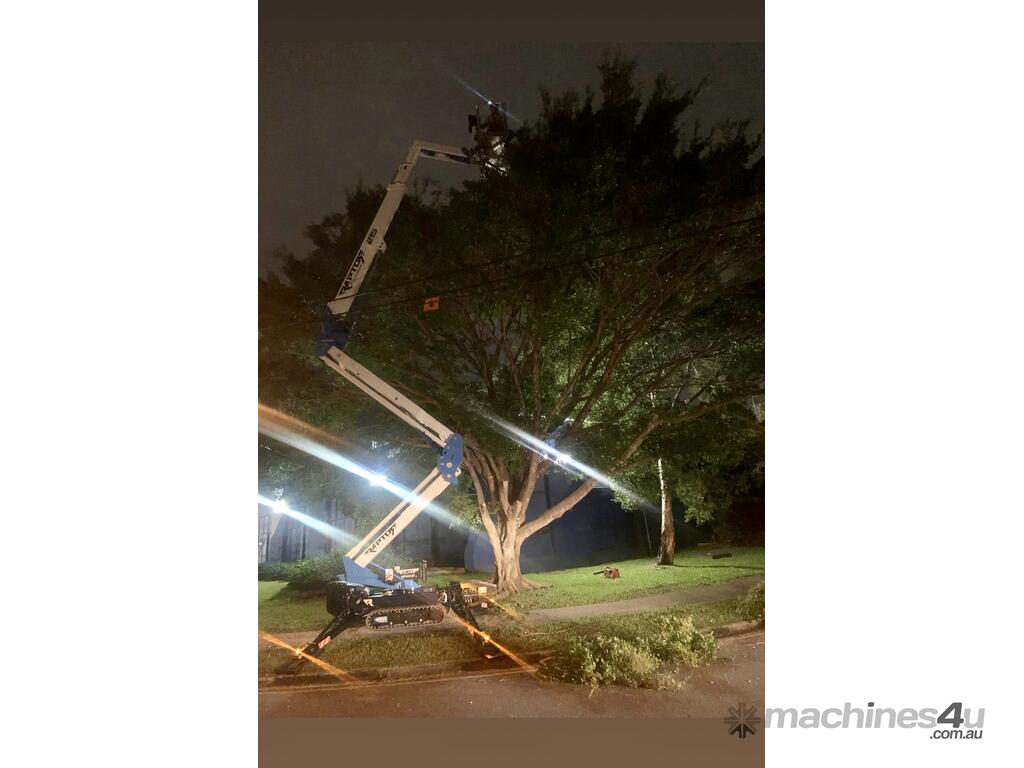

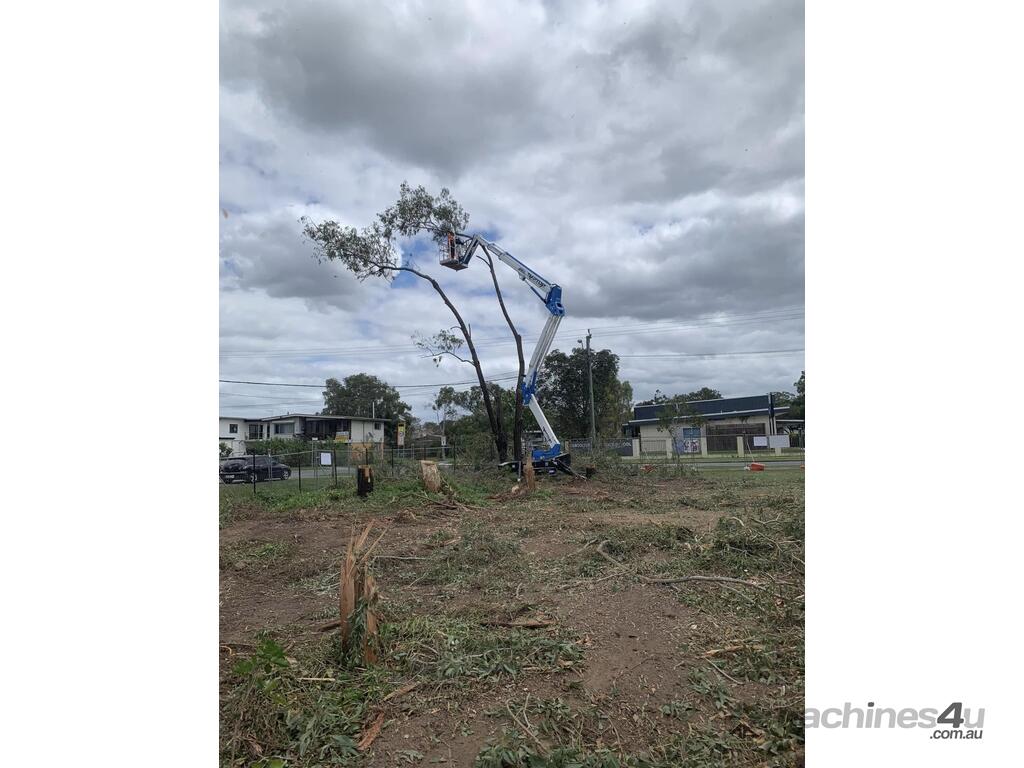

The RAPTOR 21S is a spider boom lifts with a maximum working height of 20.80 m and a maximum lateral outreach of 10.30 m.

Its basket payload is 230 kg (2 operators + material) in the whole working area without any limitation. It is fitted with automatic stabilization and automatic closing.

This crawler platform is equipped as standard with a multifunctional remote control capable of allowing not only the movements of the aerial part, but also greater safety and comfort for the operator.

Versatility with Bi-energy
Sustainable platform of 0% emissions, bi-energy as standard, in addition to the diesel engine incorporates a 230V electric motor that allows working without emissions, essential in some enclosed spaces such as churches, airports or factories.

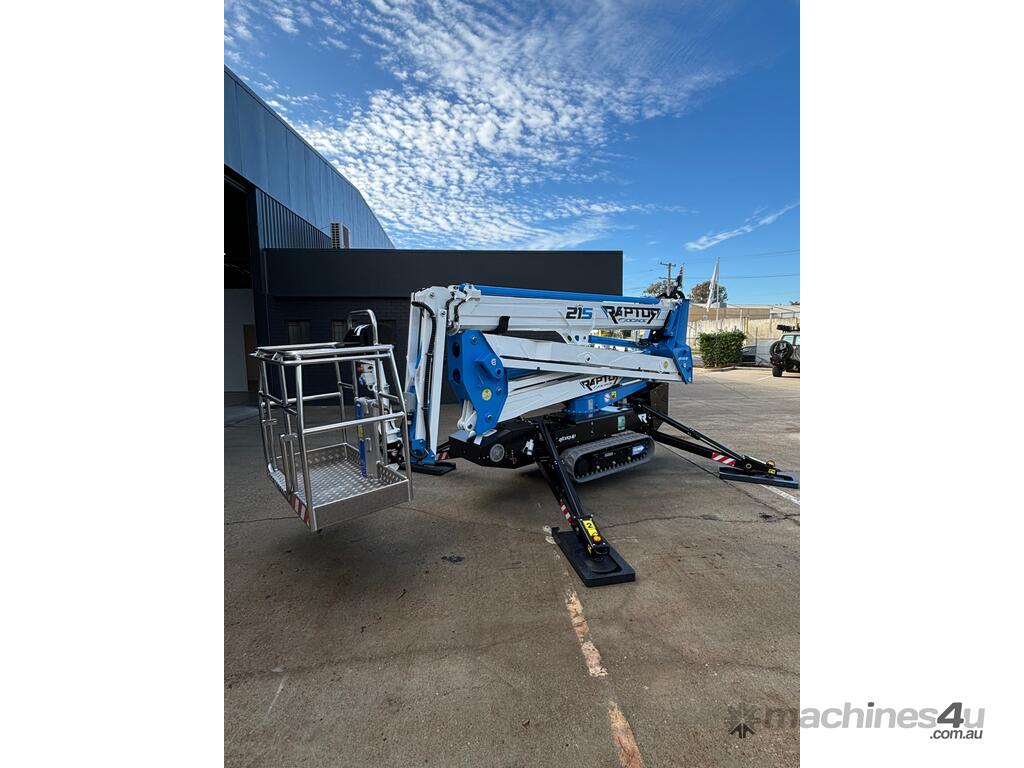

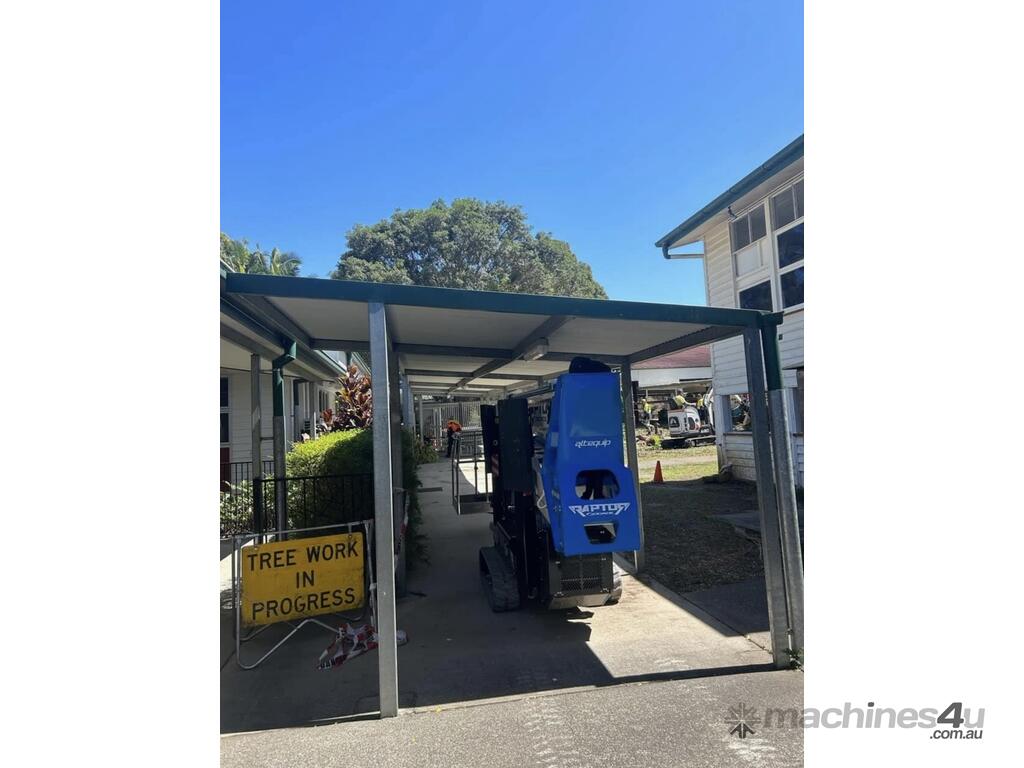

The towable boom lifts Raptor 21S has a reduced weight and dimensions. It is equipped with extendable tracks, and it is fitted with white non-marking tracks designed for use in enclosed spaces. The translation of the tracks has three different speeds.

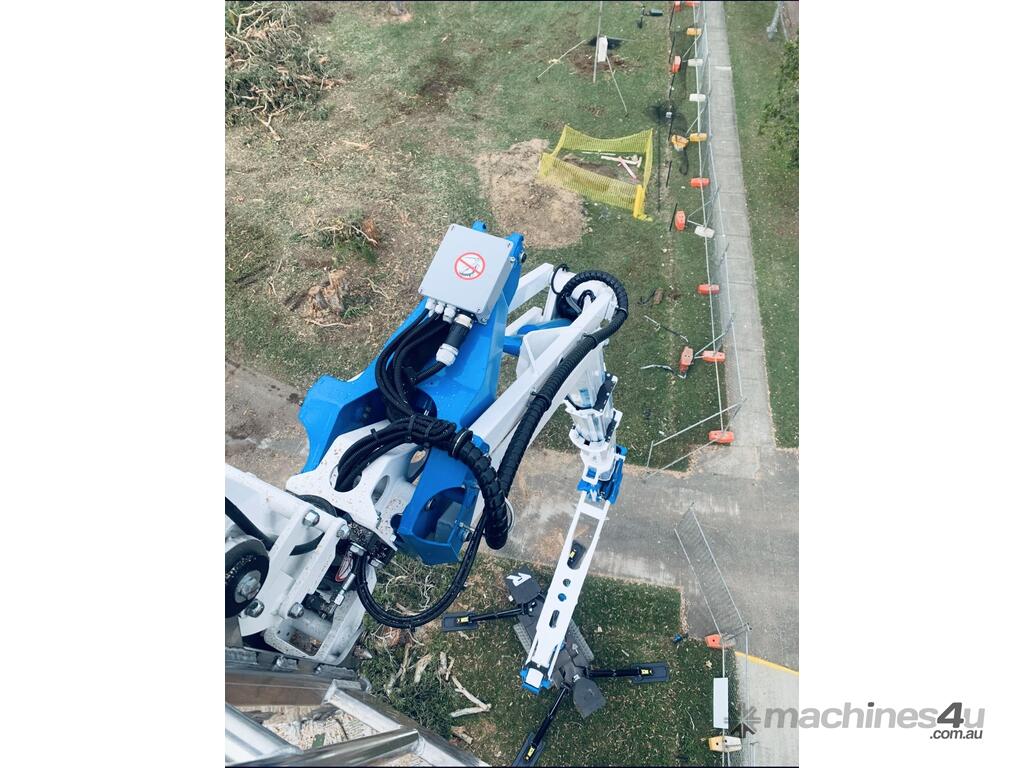

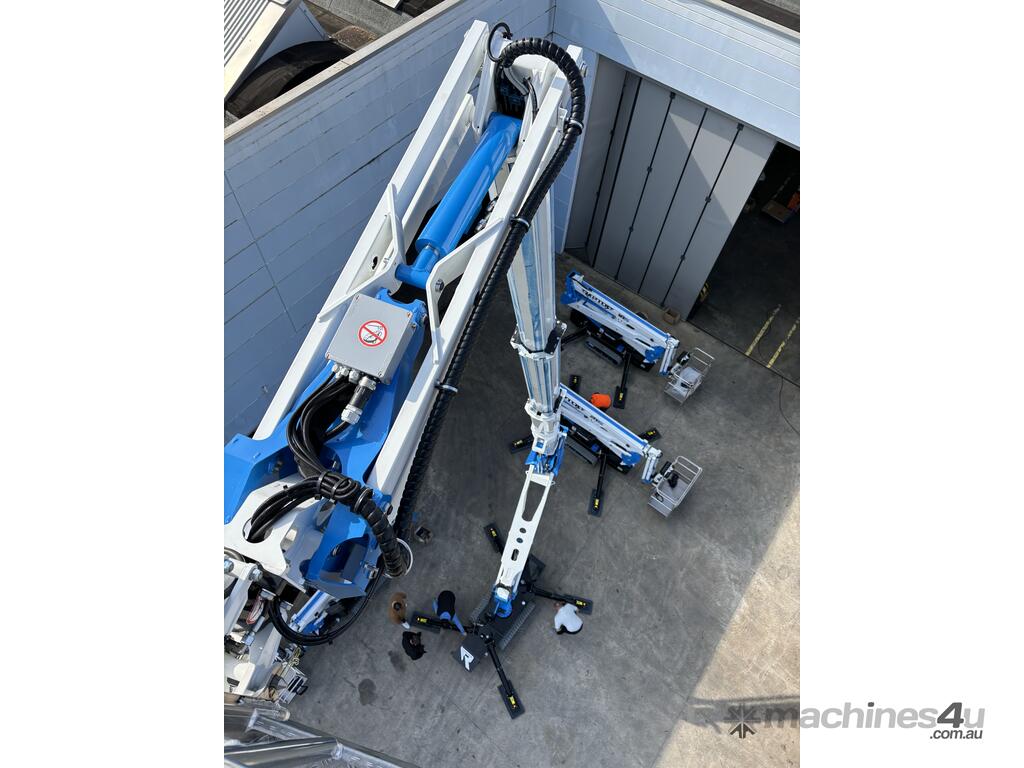

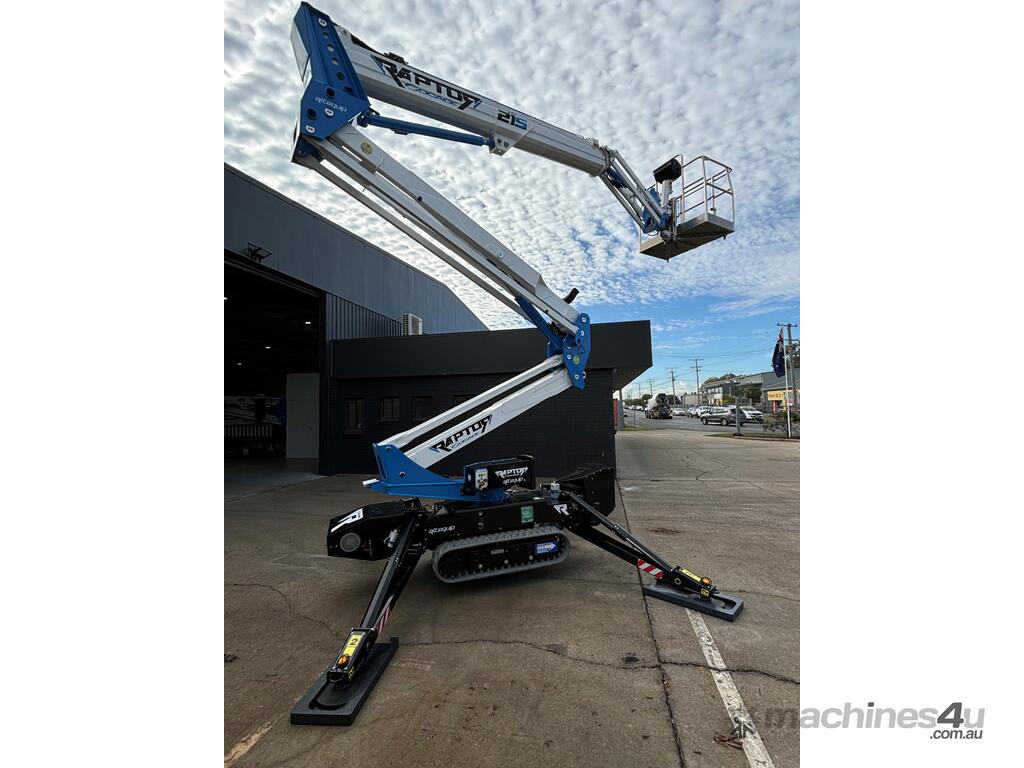

The rotation of the aerial part of 380º and the hydraulic jib next to the double articulated arm allow a wide work maneuverability.


Working height: 20.80 m
Max outreach: 10.30 m
Basket height: 18.80 m
Basket load capacity: 230 kg
Basket size: 1400 x 700 x 1100 mm
Controls: Electro-Hydraulic
Turret rotation: 380°
GVW: 2.6 ton

Basket rotation: 60° + 60°
Undercarriage hydraulically expandable
White non marking tracks
Electric hour-counter
Manual hand pump
230V electric socket in the basket
Multifunction remote control
Auxiliary electric pump 230V-50Hz
Flanged holding valves
Diesel engine
Automatic closing
Automatic stabilization
Outrigger plates
Lifting hook: 230 kg

---------------------------------------------------------------------------------------------------------------------------------------

Altequip is a leading provider of high-quality access equipment solutions, offering a comprehensive range of platforms, lifts, and other specialized machinery designed for safe and efficient height access. With a commitment to innovation, reliability, and customer satisfaction, Altequip delivers cutting-edge products that meet the demands of professionals across various industries. Our expert team ensures seamless service, from equipment selection to maintenance and support, empowering businesses to work smarter and safer. Altequip’s dedication to excellence and safety standards makes us a trusted partner for all your access equipment needs across Australia.

Go to the Altequip showroom on Machines4u to see the rest of our stock, send Altequip a message about the equipment you are interested in, or give Altequip a call to discuss the machinery solution that you need, we are happy to answer any of your questions.

* Click on the pdf brochure for more detailed information *
