AMADA TURRET PUNCH – KING 2510 x 2 Machines

KING:
Vipros 2510K.
Ser. No. 25100062.
Manf. 1992. (Japan)

Press Capacity: 33 tons
Maximum Traverse: 1210mm x 2500mm
Maximum Sheet Size: 1210mm x 2500mm
Total Tool Stations in Turret: 31
Turret Speed: 30 RPM
Air Requirement: 80 PSI
Main Motor Horsepower: 5.5 kW
Approximate Overall Dimensions: 5.2 Mt W x 2.1Mt H x 5.1Mt L
Approximate Weight 18 Tonnes


Safety Guarding supplied
Operational.
Supplied with some tooling

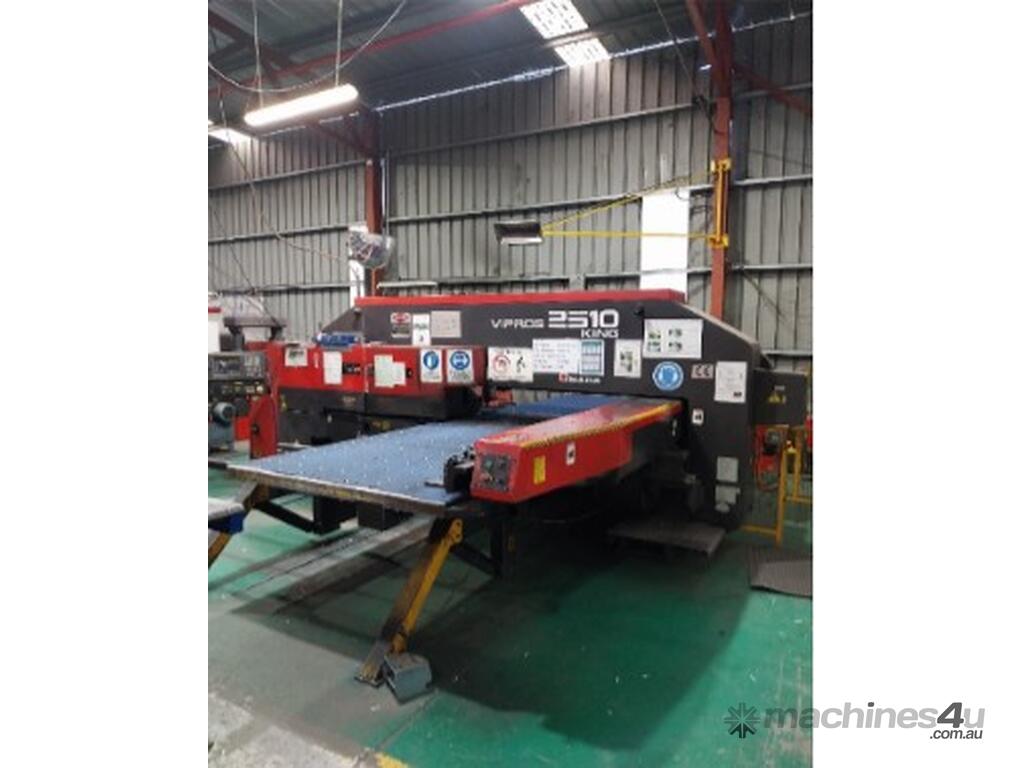

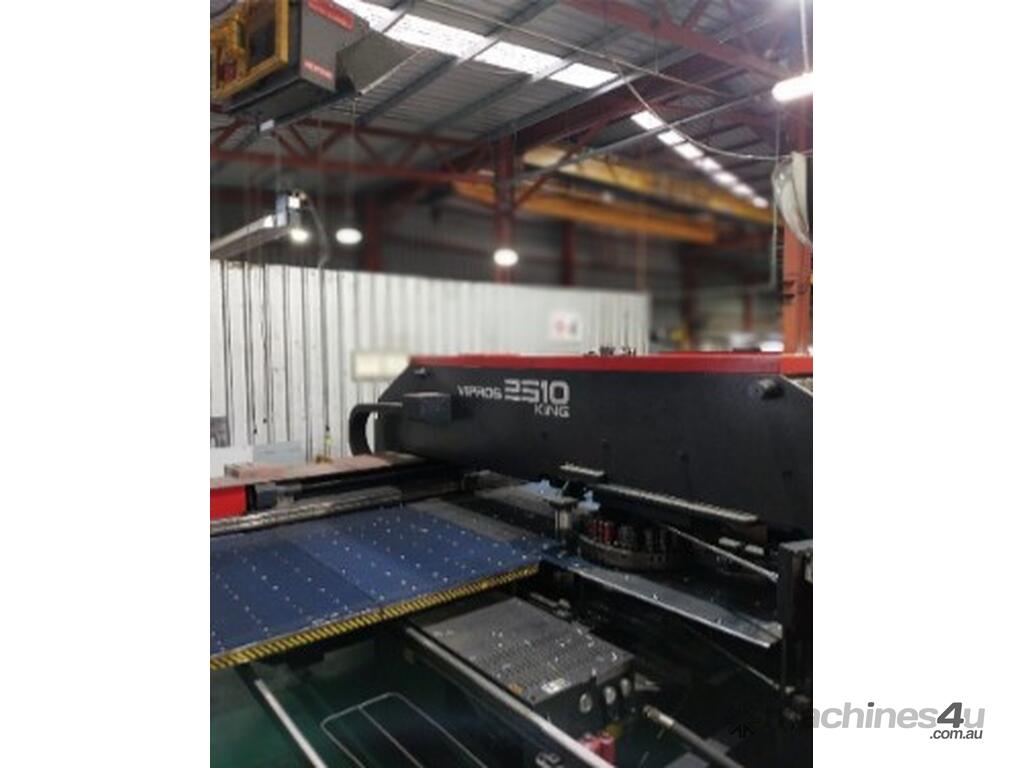

AMADA VIPROS 2510K – “KING” CNC Turret Punching Machine

This Amada VIPROS 2510K CNC Turret Punch Press, part of the respected VIPROS KING series, is a robust and highly capable punching solution engineered for precision sheetmetal fabrication. Built in Japan by industry leader Amada Co., Ltd., this machine combines powerful performance with reliable CNC control to tackle a wide range of production work with efficiency and accuracy.


Equipped with a FANUC Series 18P CNC controller, the VIPROS 2510K delivers consistent, programmable punching for complex parts and repetitive batches. Its 31station turret head offers flexibility for diverse tooling setups, allowing rapid changes between hole sizes and shapes to maximize uptime and throughput.


With a punching force of approximately 20tons (196kN) and generous X/Y travel of ~2500mm × 1270mm, this machine can handle medium duty sheet metal work — including stainless steel and aluminium — with smooth feed rates and excellent accuracy. A large brush table protects finished surfaces while reducing noise and ensuring better part quality.


Built on a sturdy, well balanced frame, the VIPROS 2510K is ideal for fabrication, appliance, automotive, and industrial component production environments where dependable CNC punching performance and minimal downtime are essential.
