YANK:

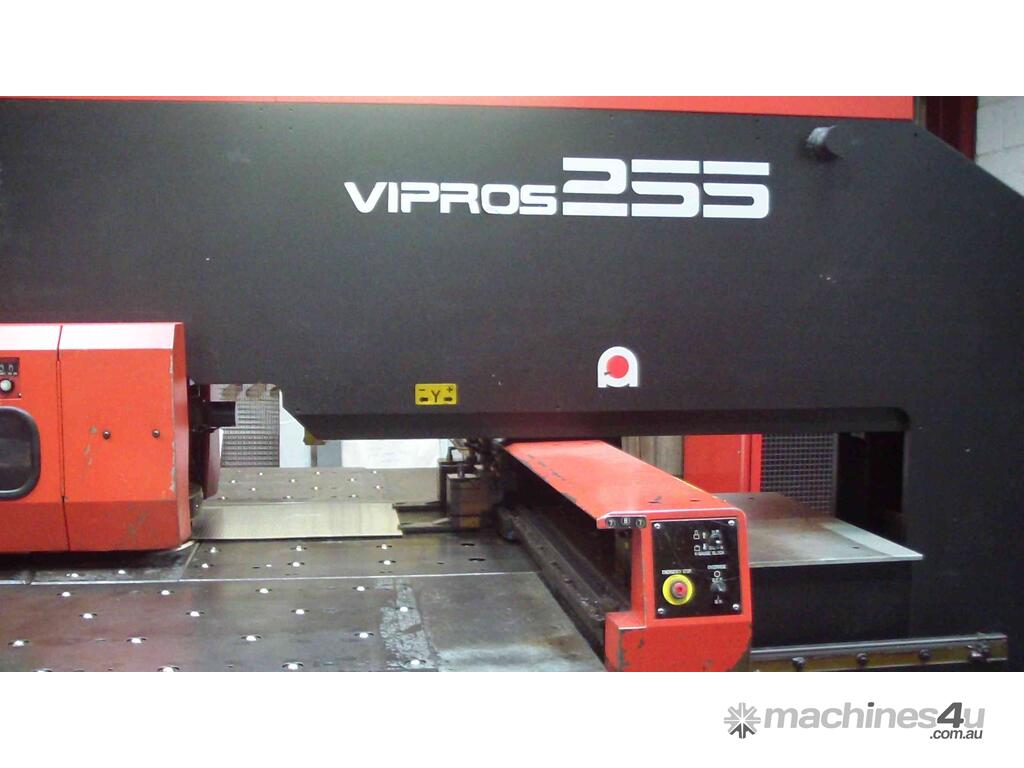

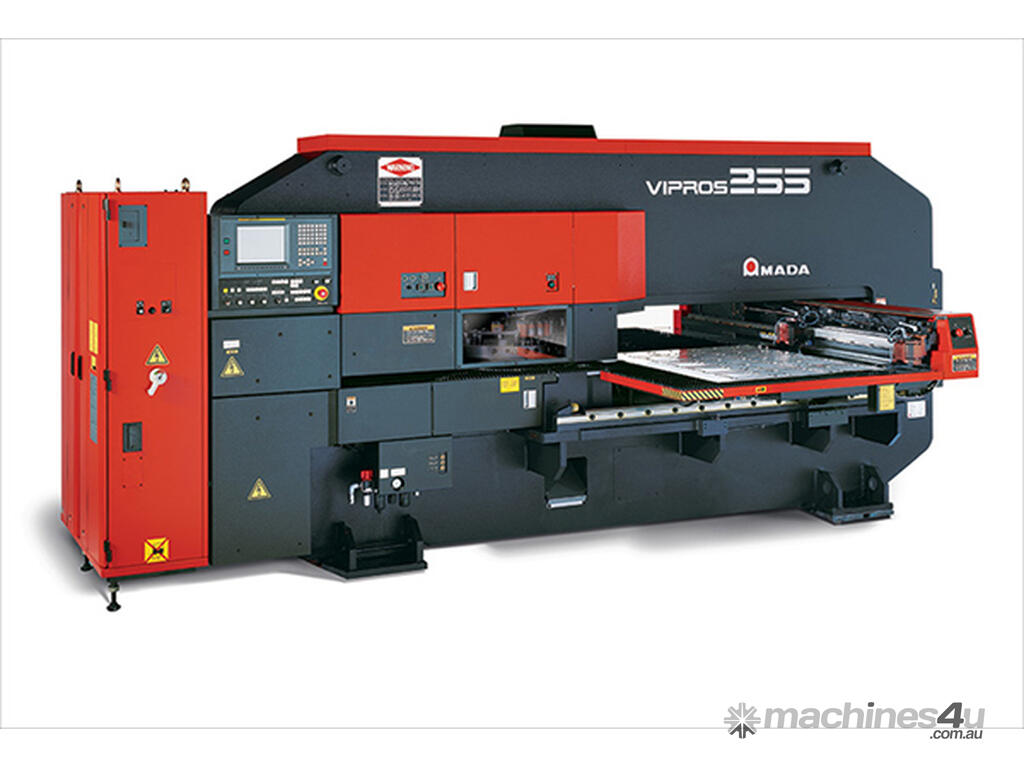

Vipros 255.
Ser. No. AVP55004.
Manf. 1997. (Assembled U.S.A. / Jap. Parts.) 25
Press Capacity: 22 tons
Maximum Traverse: 1210mm x 1270mm
Maximum Sheet Size: 1210mm x 2500mm (with repositioning)
Total Tool Stations in Turret: 31
Turret Speed: 30 RPM
Air Requirement: 80 PSI
Main Motor Horsepower: 5.5 kW
Approximate Overall Dimensions: 2.5 Mt W x 2.1Mt H x 5.1Mt L
Approximate Weight 8 Tonnes
Safety Guarding suppied
Operational.
Supplied with some tooling
PRODUCT INFORMATION:
Punching force: (Tonne): 20
Max. sheet size (X*Y mm): 2540 x 1270
Movement X-axis (mm): 1270
Movement Y-axis (mm): 1270
Max. positioning speed (X/Y, m/min): 65/50
Max. sheet thickness (mm): 6.2
Total number of revolver stations: 31
Turret rotation speed (rpm): 35
Weight (kg): 9200
Machine Length (mm): 5030
Machine Width (mm): 2630
Height (mm): 2840
