One owner, has been used once to test everything works after receiving.

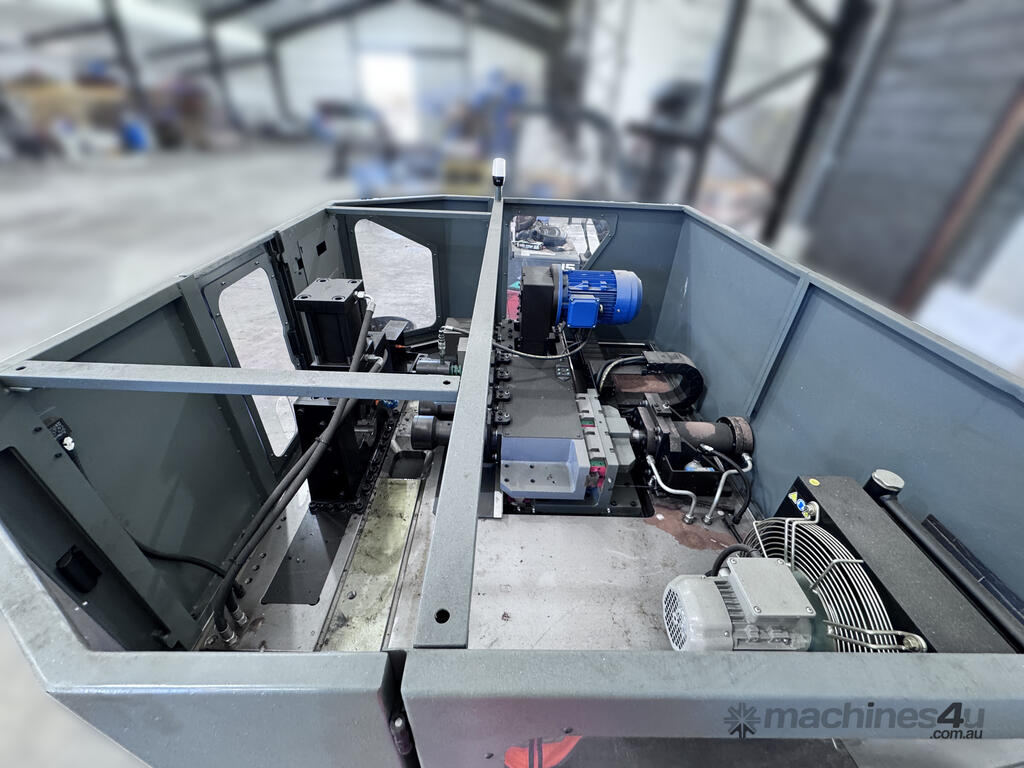

MB-60-H
Maximum swaging OD x thickness (steel - 450 N/mm2) (mm) 60,0 x 4,0
Maximum swaging OD x thickness (stainless steel – 700 N/mm2) (mm)
60,0
x 2,5
Maximum swaging square x thickness (mm) 45,0 x 2,0
Maximum working Pressure (bar) 180
Maximum station changing speed (mm/s) 500
Swaging max forward speed (mm/s) 80
Swaging max backward speed (mm/s) 105
Swaging force (kg)12.000
Clamp max closing speed (mm/s) 100
Clamp max opening speed (mm/s) 110
Clamp force (kg) 12.000
Electrical voltage (V) / frequency (Hz) 380/50
Setting dimensions (mm) 1935x2200x1973*
Gross weight (Kg) 3 000*
3 stations just to do the initial reduction + 1 more station to do the
spines.
4 stations total.
The tools are 2 clamps and 4 end forming tools.
Lead time 18 weeks to FAT.
Payment terms - 10% with order. 80% after FAT. 10% after delivery.
Batch/Serial Number :11378
EF-TS
The tools are 2 clamps and 4 end forming tools.
Custom
Rotating Station for MB-60 on order.
