** AMW PRICING UNTIL SOLD ** Yawei PBE 60-2050 CNC7 Electric Pressbrake with Delem DA-69S 3D Control

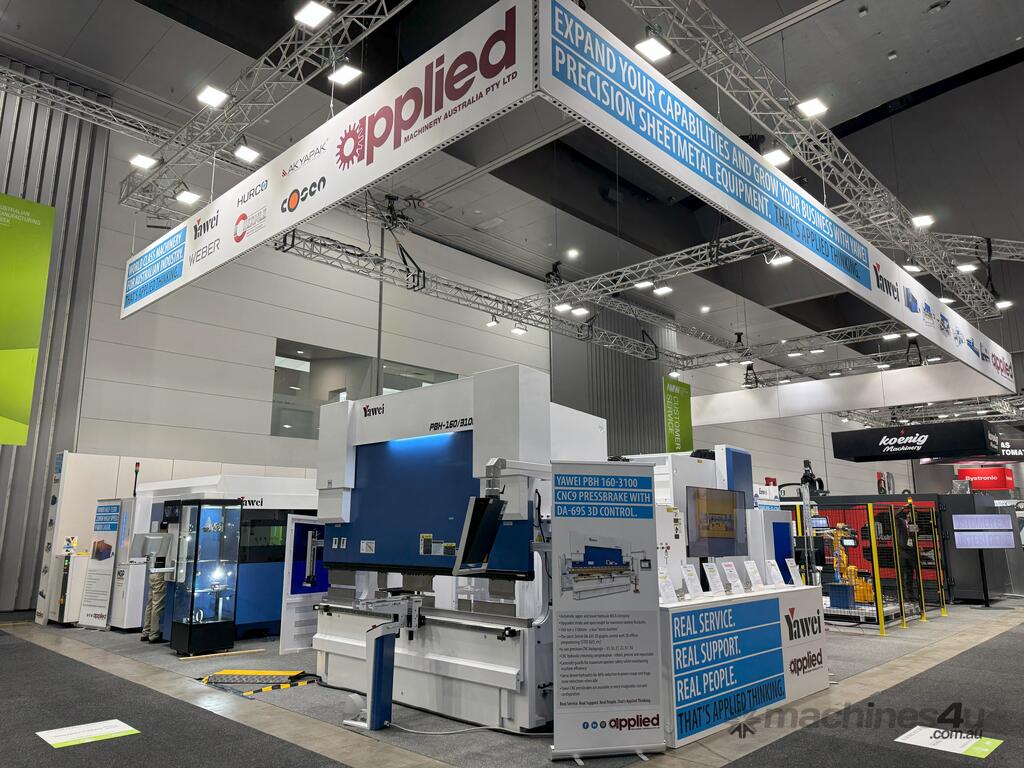

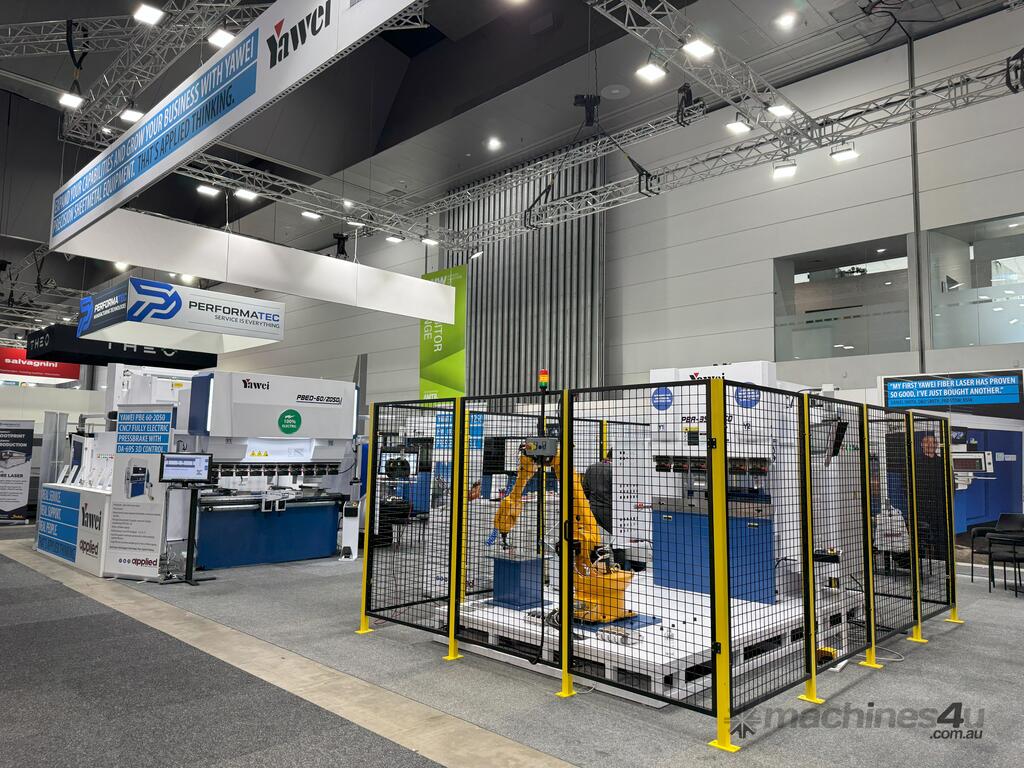

** AS SEEN AT AMW **

Exhibition pricing is available on this machine until sold

List price - $132,000+GST
"AMW" price - $119,000+GST

Price includes INSTALLATION AND TRAINING
Delivery to your door from Dandenong, VIC 3175 is simply chargeable at cost

---------------

Yawei's PBE series machines are a fully electric, precision CNC pressbrake.

High speed, low noise, low maintenance, high precision, user-friendly

This machine is fitted with the latest Delem DA-69S 3D graphical controller with offline 3D software

Machine specs at a glance .....

---------------

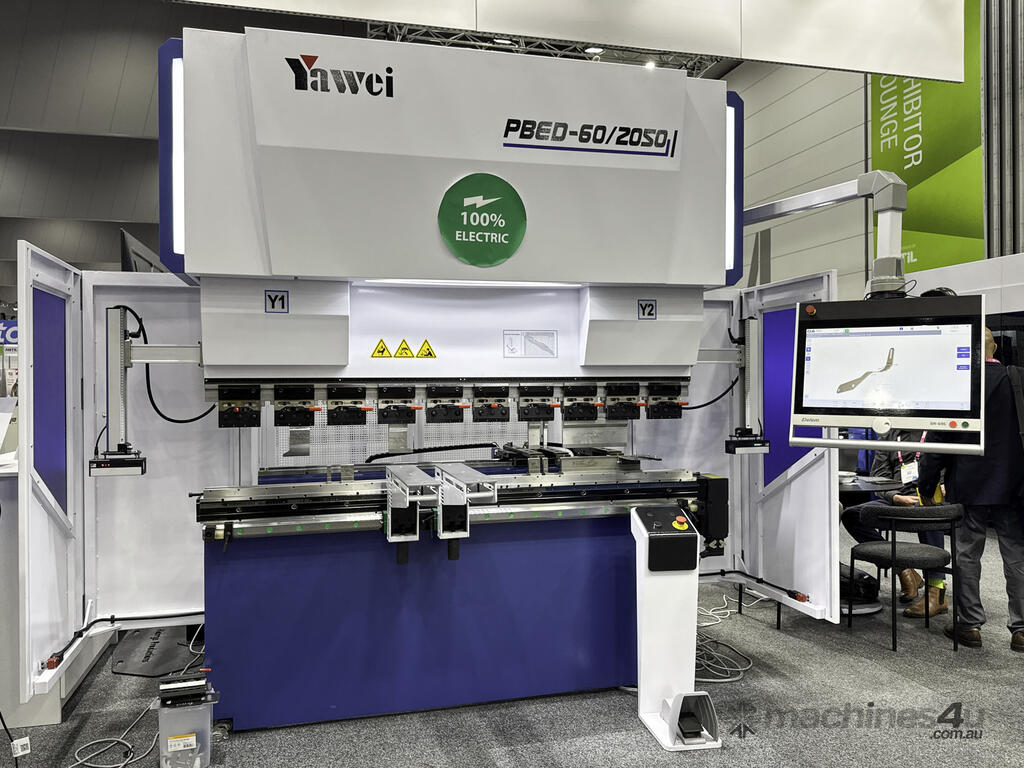

New Yawei Synchro High Speed Servo Electric CNC Pressbrake - model PBE 60-2050 CNC7.

Features include:
- 60 ton bending force
- 2050mm bending length with 1750mm between frames
- 350mm throat depth, 190mm ram stroke, 490mm open height
- 7 axis CNC (Y1, Y2, X, R, Z1, Z2 and crowning compensation)
- 2 front sheet supports
- 3 backgauge fingers (CNC Z1/Z2 + 1 manual finger)

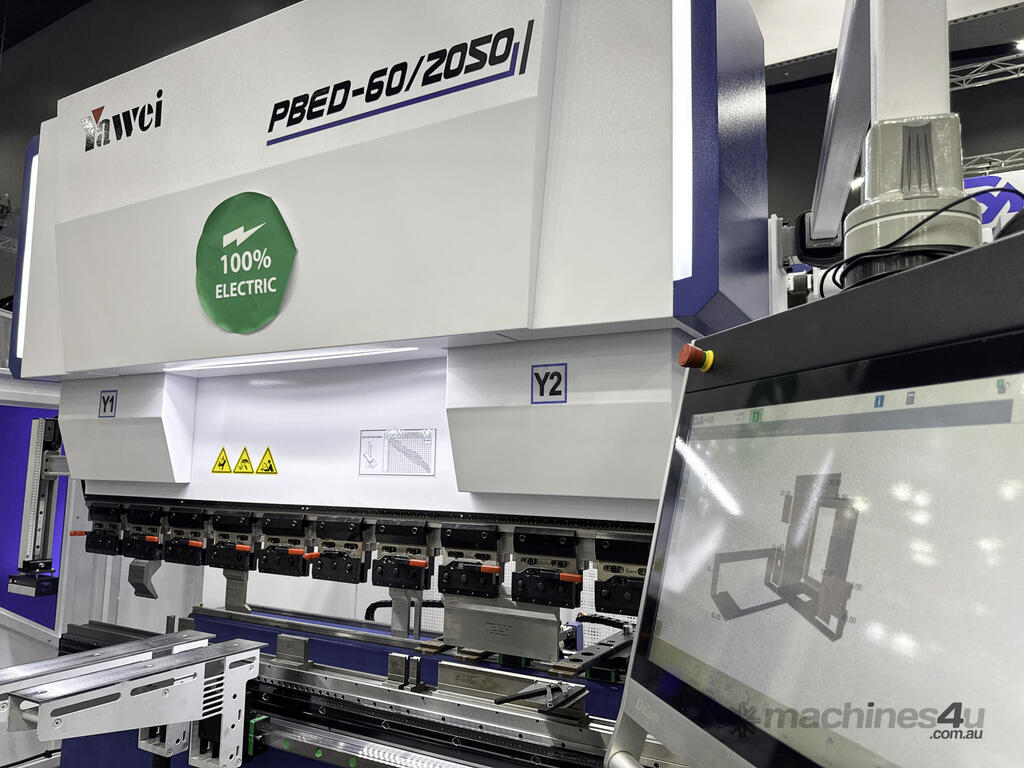

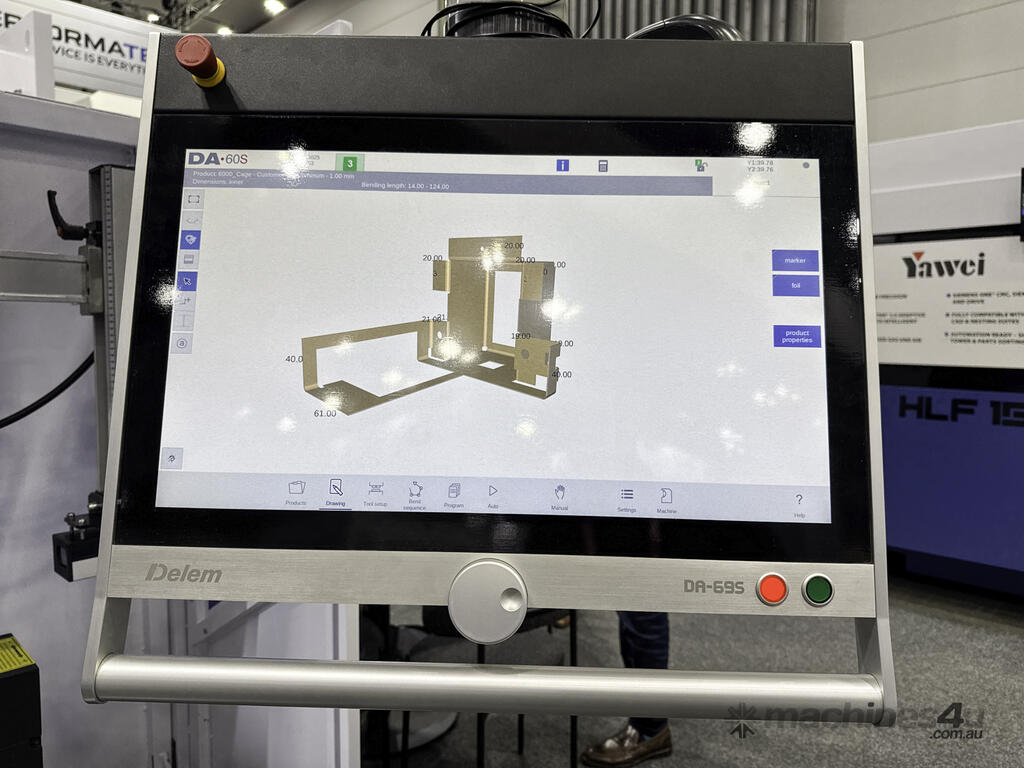

Delem DA-69S touch screen 3D graphical CNC control
- 3D and 2D graphical touch screen programming mode
- 3D visualisation in simulation and production mode
- 24" high resolution colour TFT
- Delem Modusys compatibility (module scalability and adaptivity)
- USB, peripheral interfacing
- Shop floor control, Job list functionality
- Open system architecture
- Sensor bending & correction interface
- Profile-S 3D offline software

Tooling:
- 60mm die shoe fitted into Yawei crowning table for maximum tooling compatibility

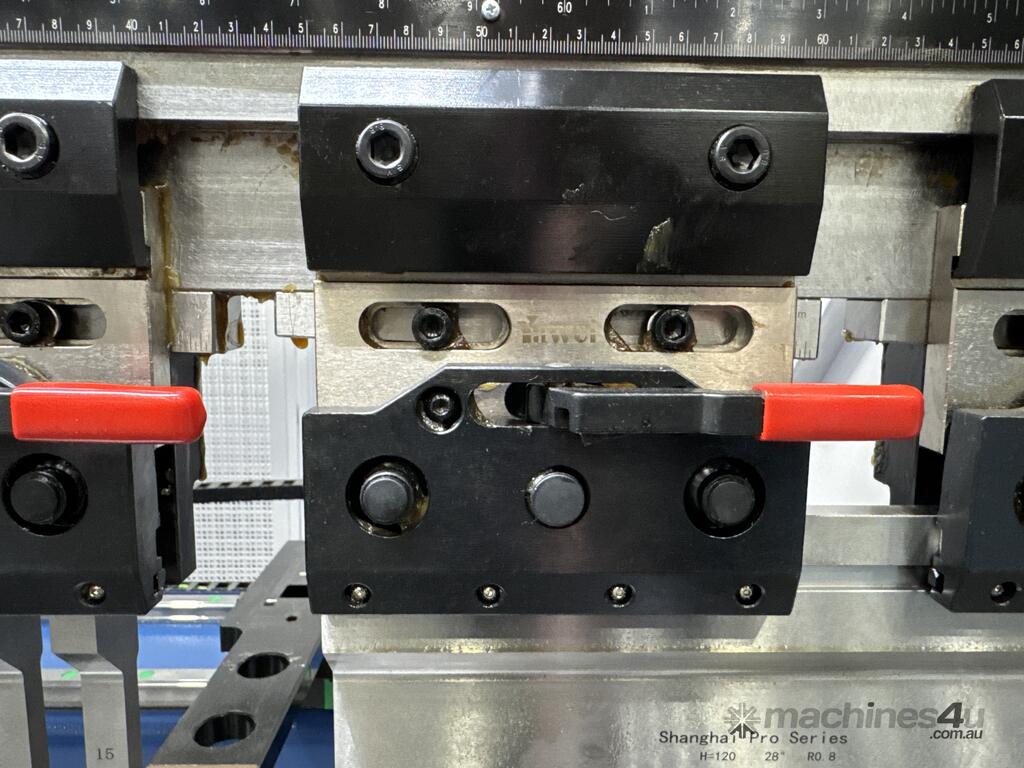

- Bottom loading quick change tool clamps

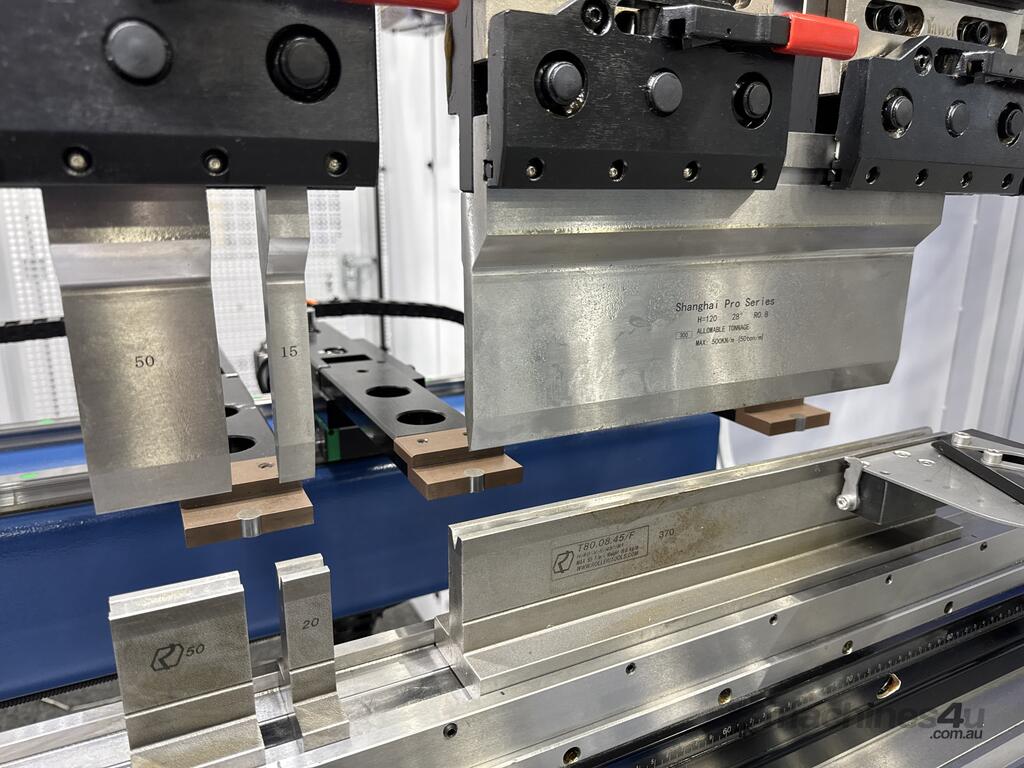

- Rolleri 4V die and P120.85.R1 punch (2x835mm+1x415mm)

Guards:

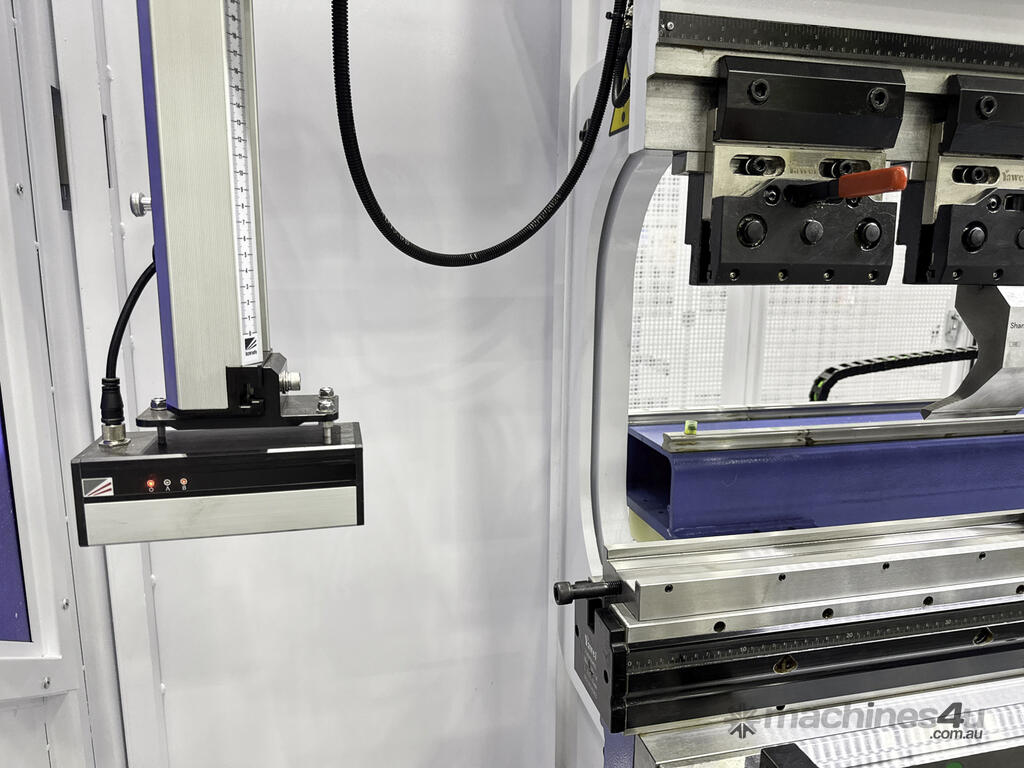

- Lazersafe Light Guard System (Australia)
- Physical side and rear guards with interlock

General:
- Deformation compensation on throat

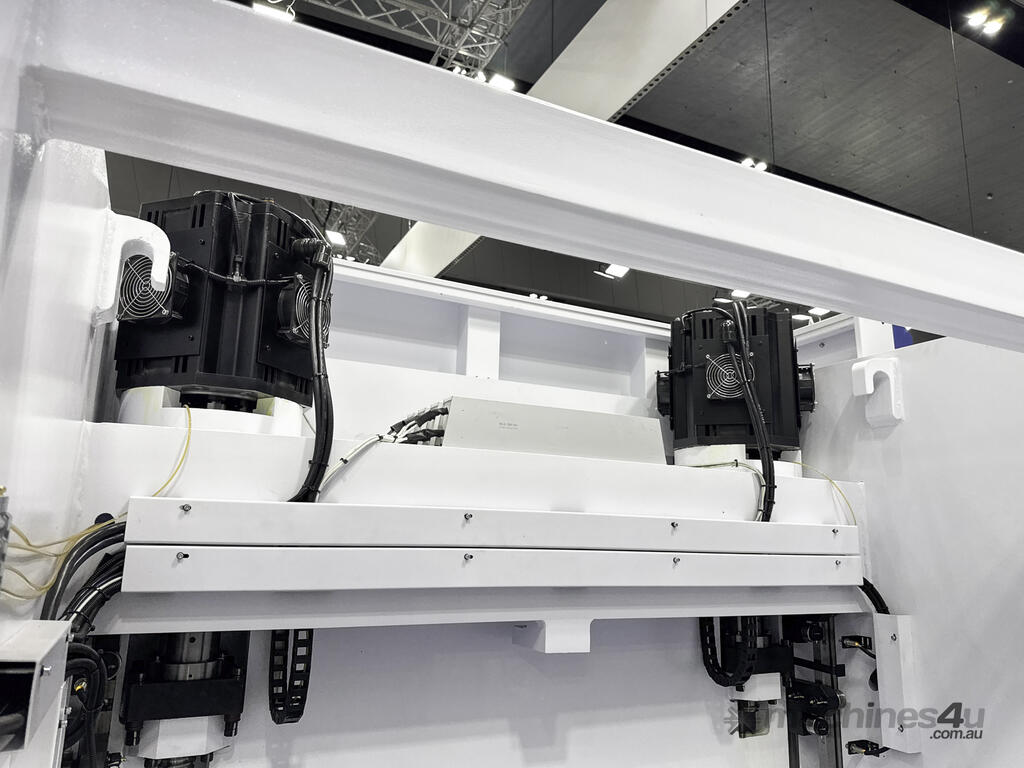

- 2x9.5kW servo motors

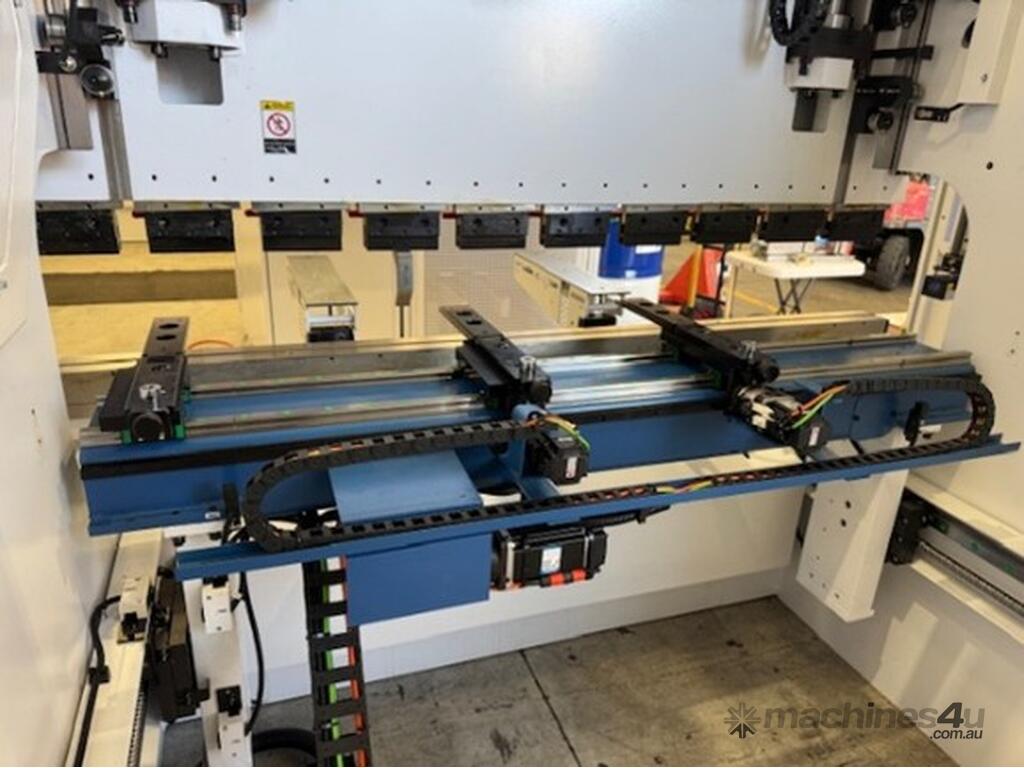

- Precision ballscrew backgauge running on a linear guide.
- Weight: 5500kg, Size: 2800 x 1500 x 2560mm

All Yawei Synchro PBE series pressbrakes maintain perfect control of the beam positioning at all times. These pressbrakes are of the highest quality and are perfectly suited to high production, high accuracy work environments.
