AORE TZ SERIES CNC TUBE LASER – 4 CHUCK HEAVY DUTY PIPE PROCESSING

AORE TZ SERIES CNC TUBE LASER – 4 CHUCK HEAVY DUTY PIPE PROCESSING

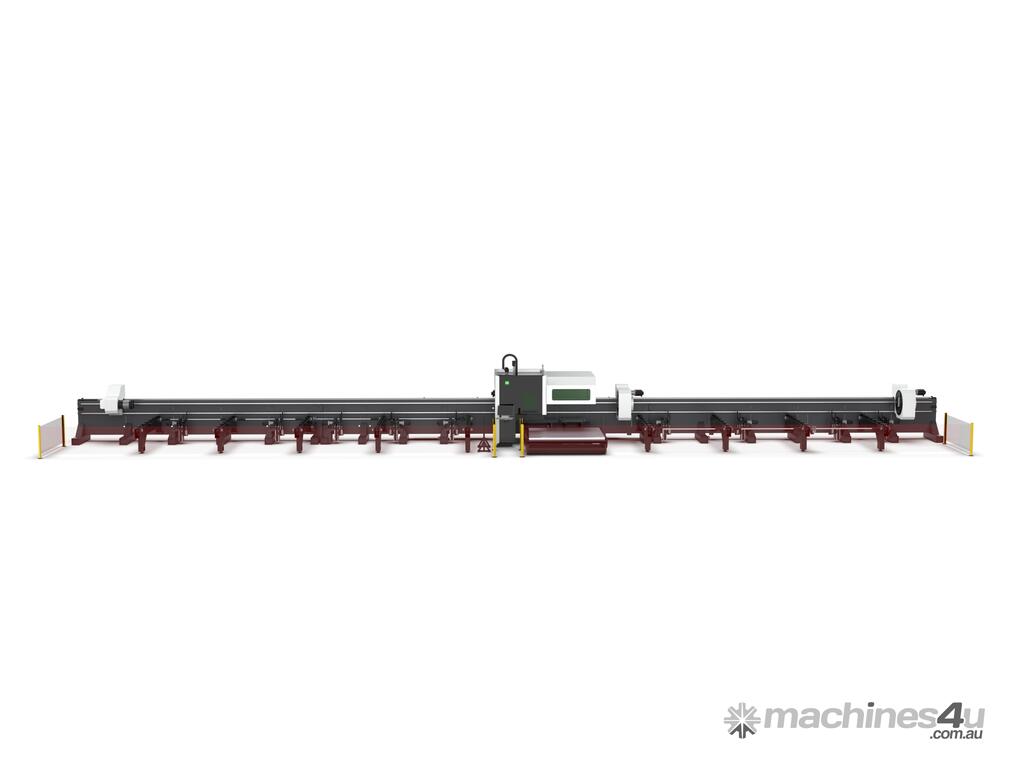

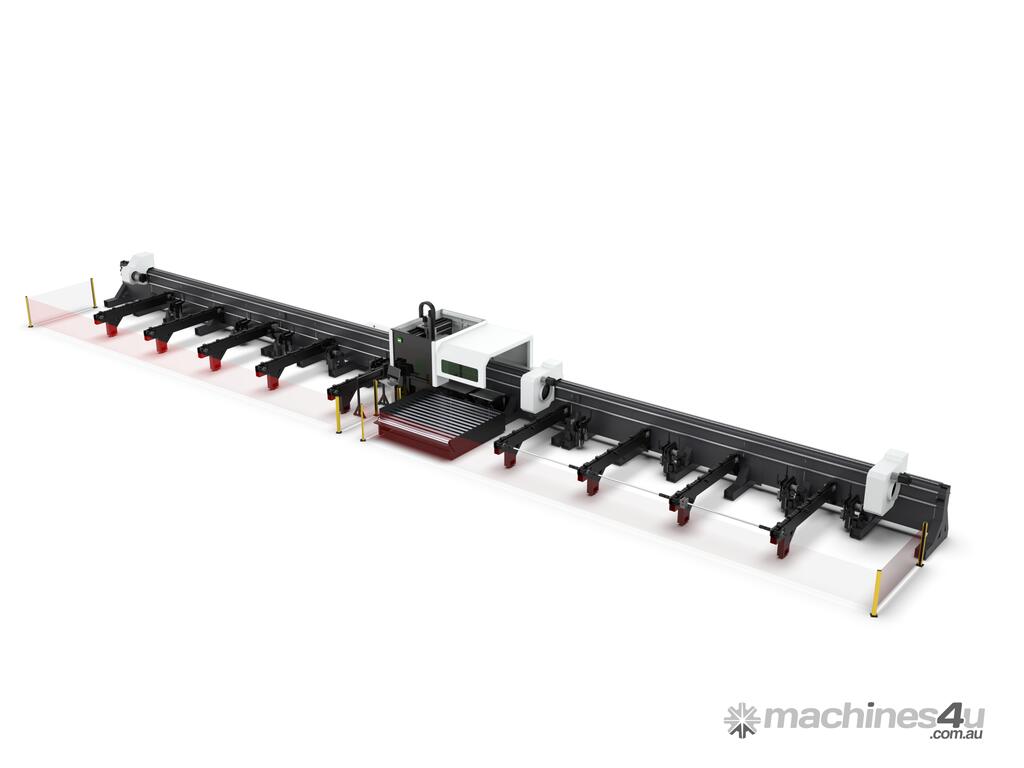

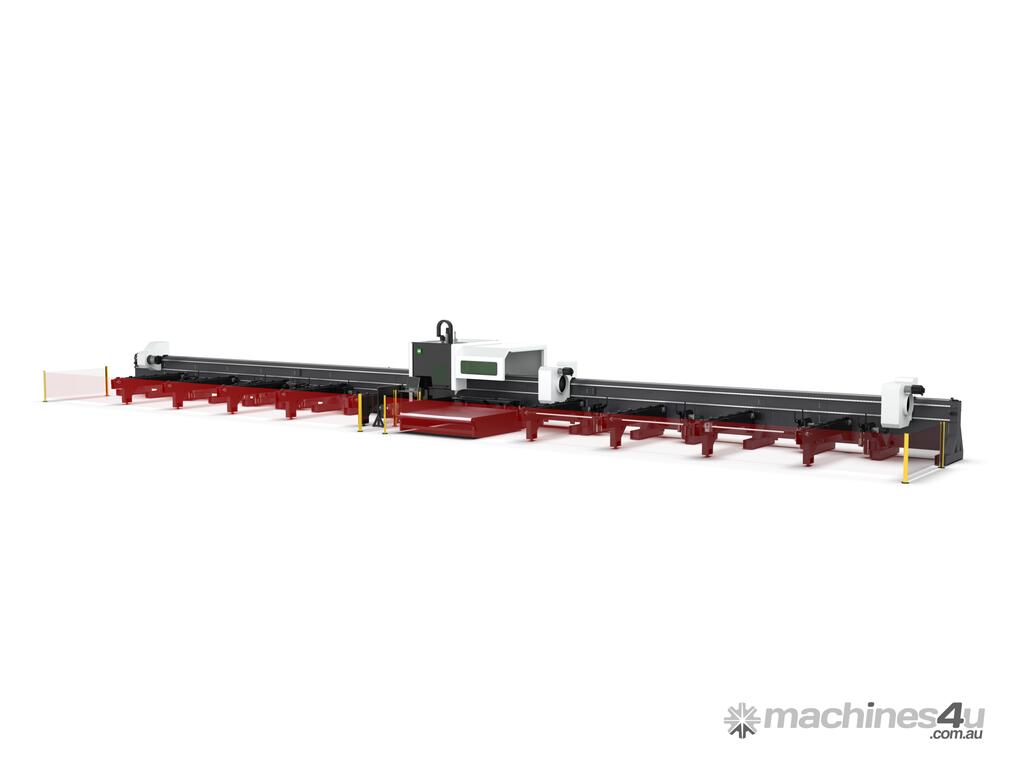

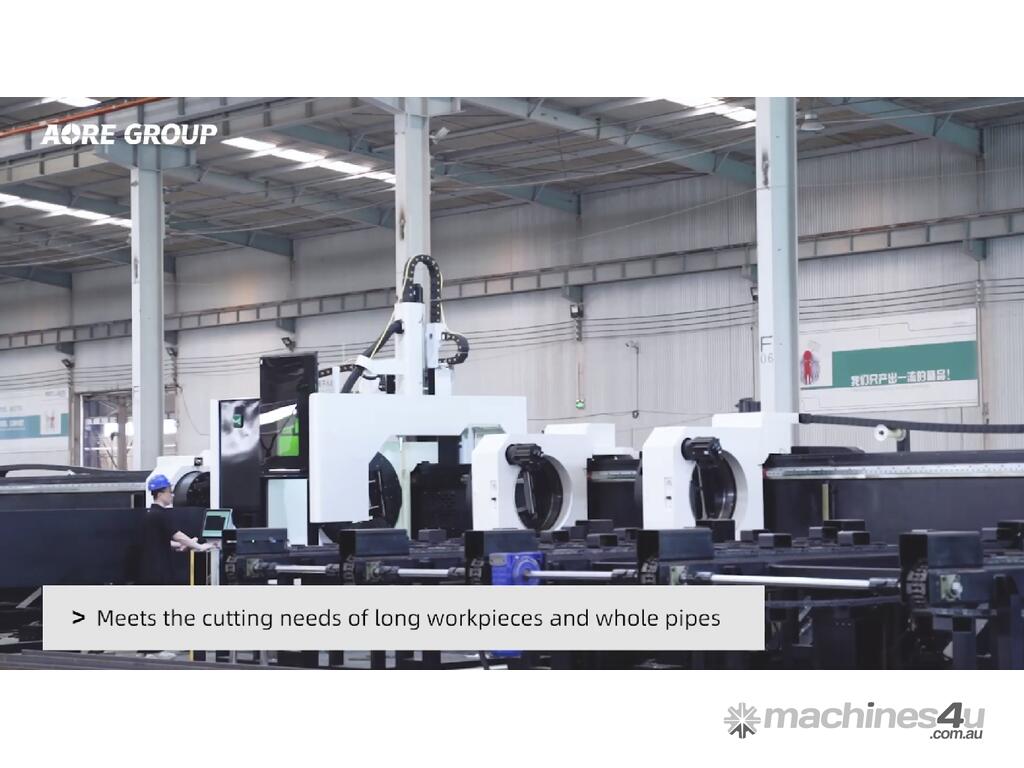

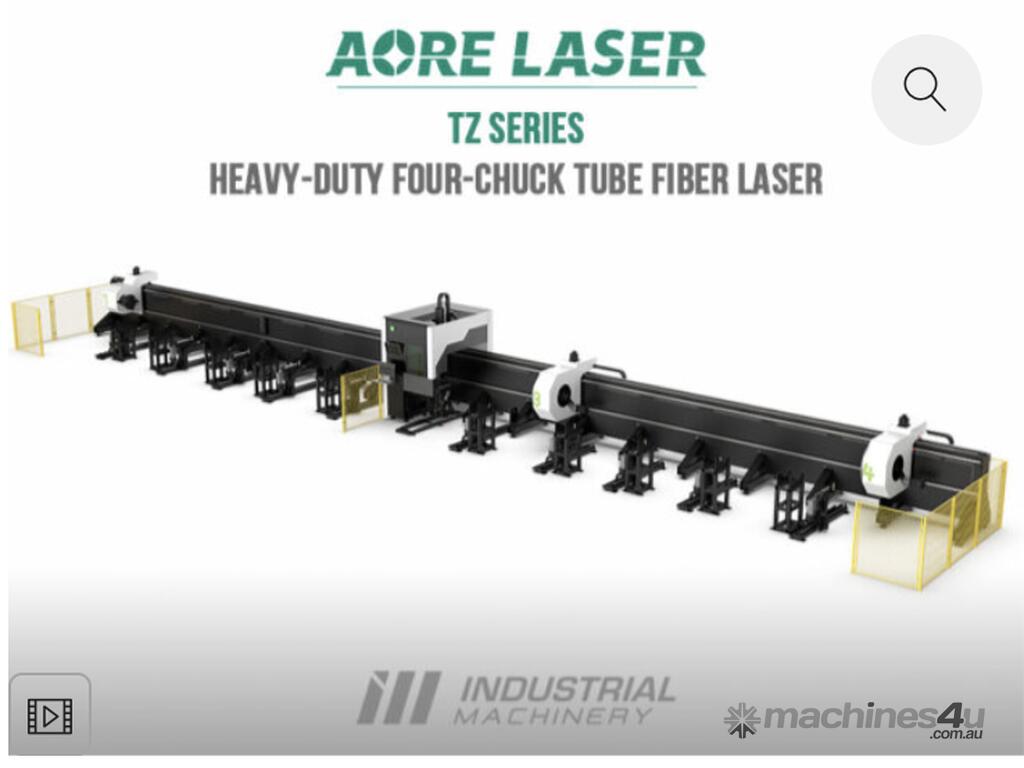

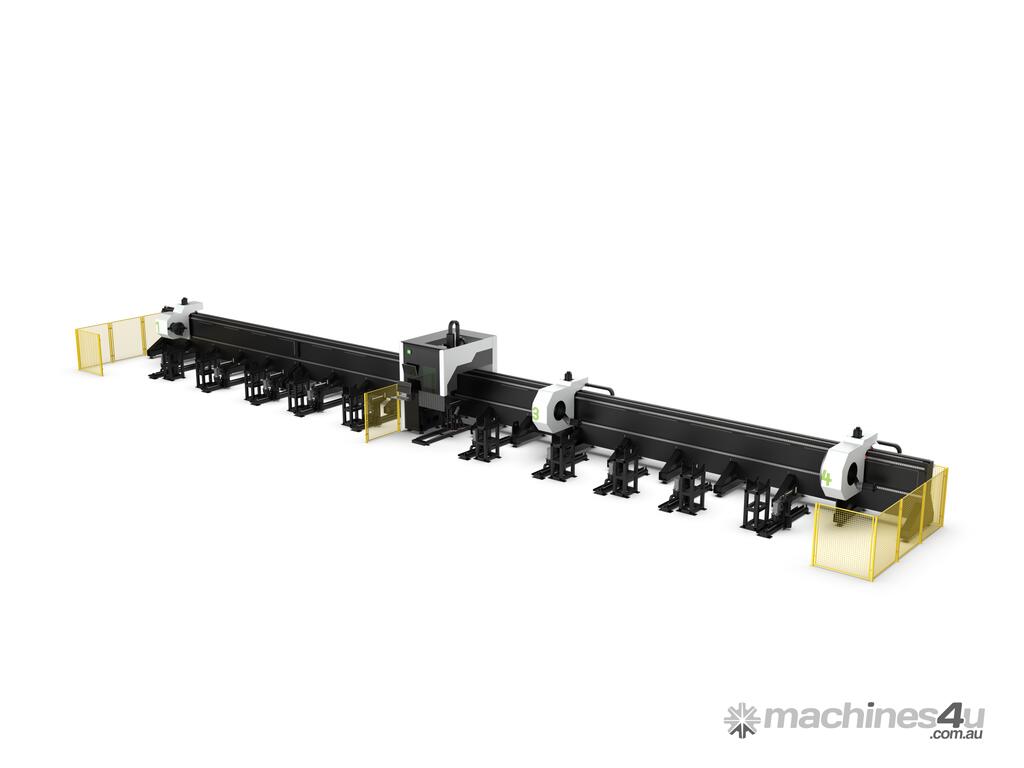

The AORE TZ Series CNC Tube Laser is a four-chuck heavy-duty tube cutting system designed for processing large diameter and thick-wall pipes with exceptional stability and precision.

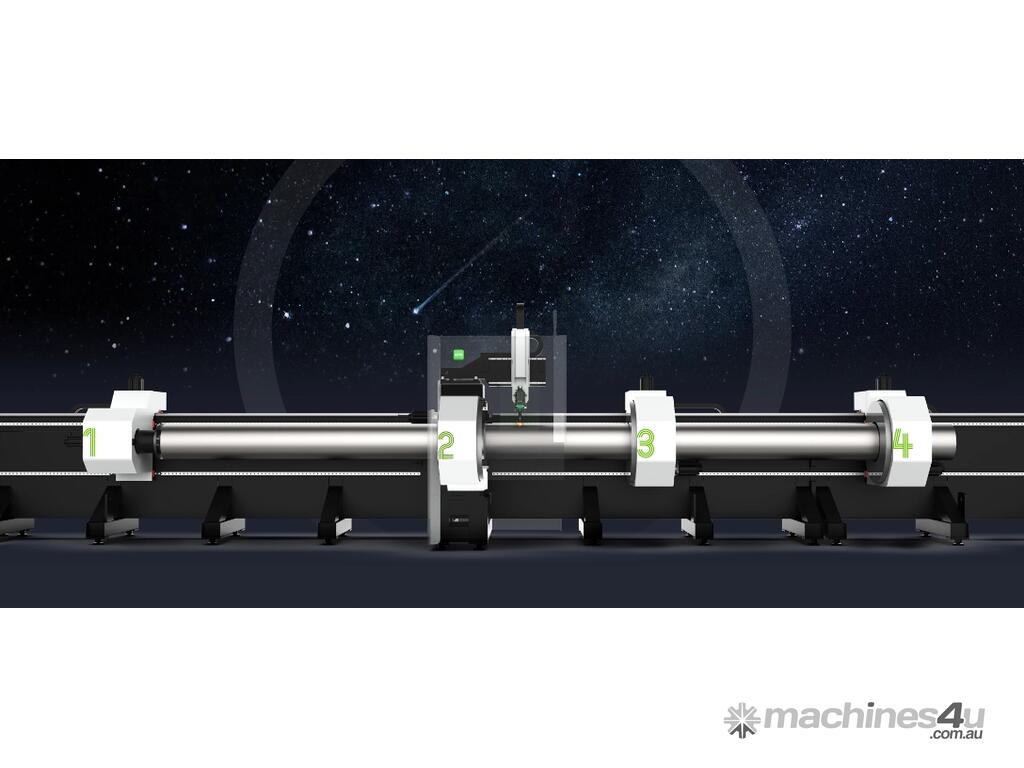

The four-chuck clamping design provides superior support for long and heavy tubes, ensuring vibration-free cutting and improved accuracy when processing structural steel and heavy pipe sections.

AORE is one of the leading fibre laser manufacturers in China, supplying advanced laser cutting systems worldwide. In Australia, AORE machines are supported by an extensive national sales and service network, with technicians and support available across multiple states.

Typical Specifications

• Tube Diameter Capacity: up to 350mm – 800mm (depending on model)
• Laser Power Options: 3kW – 20kW Fibre Laser
• Maximum Tube Length: up to 12m processing length
• Heavy-duty four-chuck clamping system

Key Features

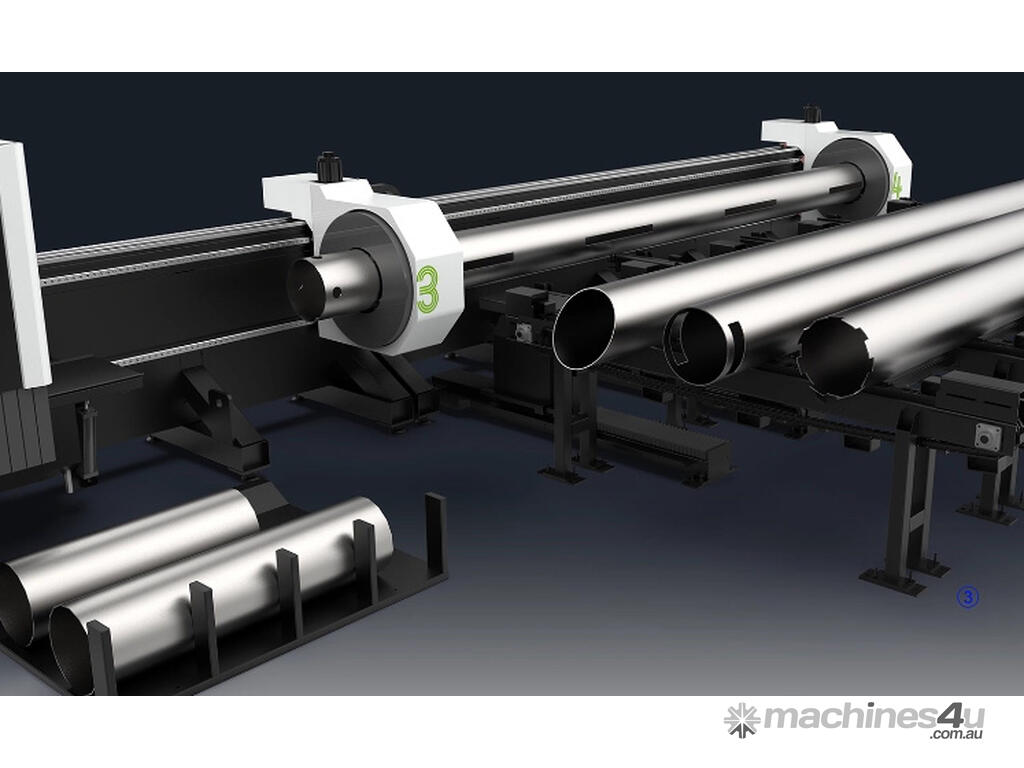

• Four-chuck clamping system for maximum tube stability
• Full-length tube support to prevent sagging during cutting
• Stationary tube cutting with moving laser head for high precision

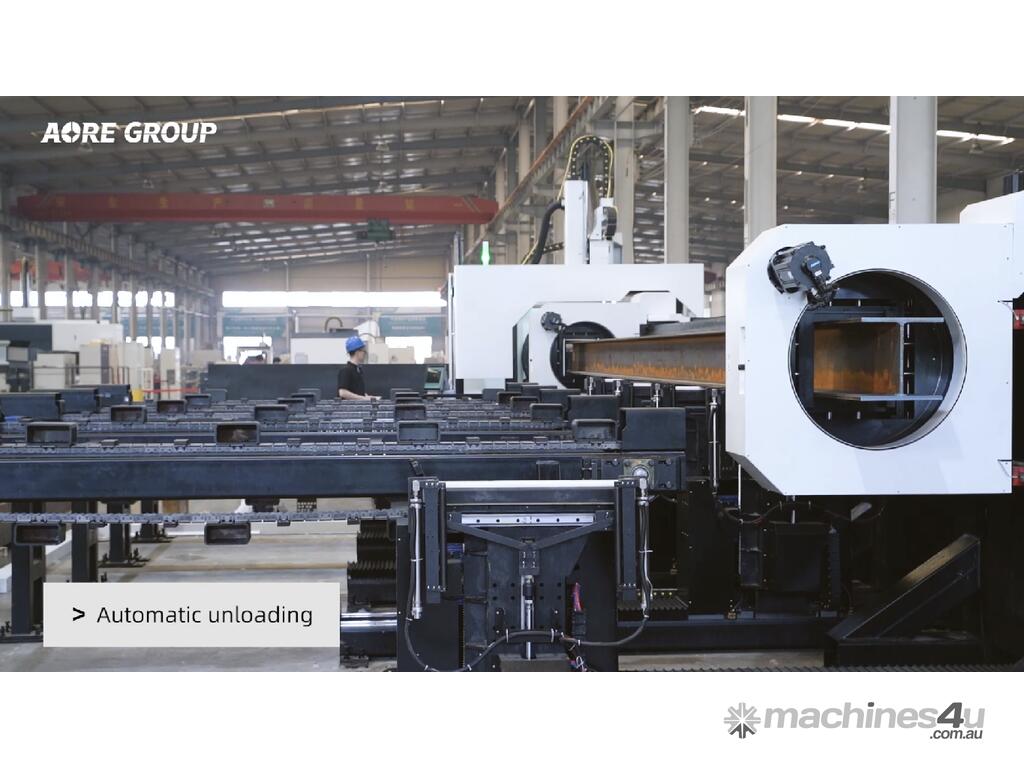

• Automatic tube loading system available
• Servo-driven follow-up support for long pipes
• Autofocus laser cutting head
• CypTube CNC control system for easy programming
• Fully enclosed machine design for safe operation

Production Advantages

• Stable cutting of large diameter pipes
• Reduced vibration for improved accuracy
• Efficient heavy tube processing
• Ideal for thick wall pipe cutting

Suitable for cutting:

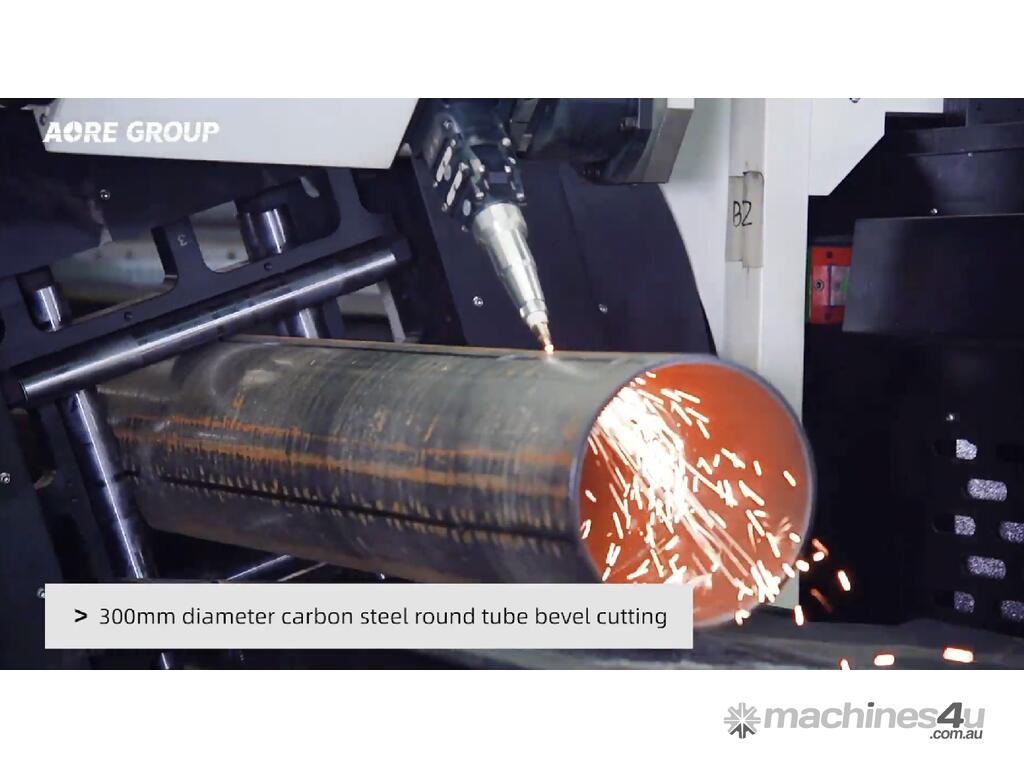

• Large round pipe

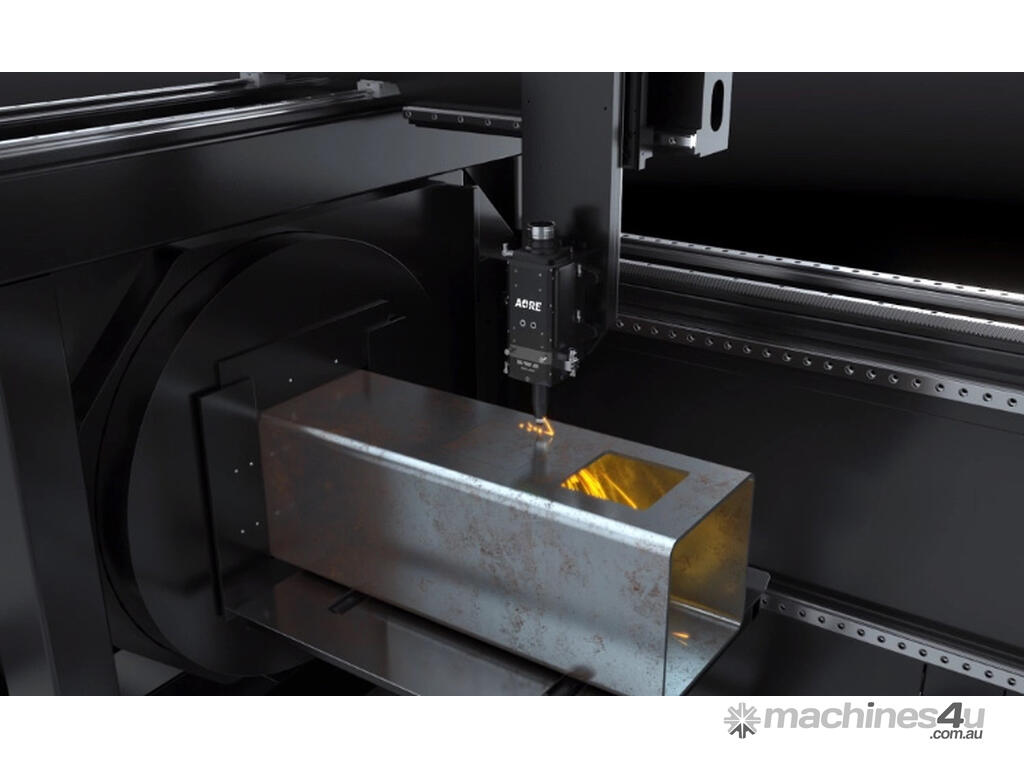

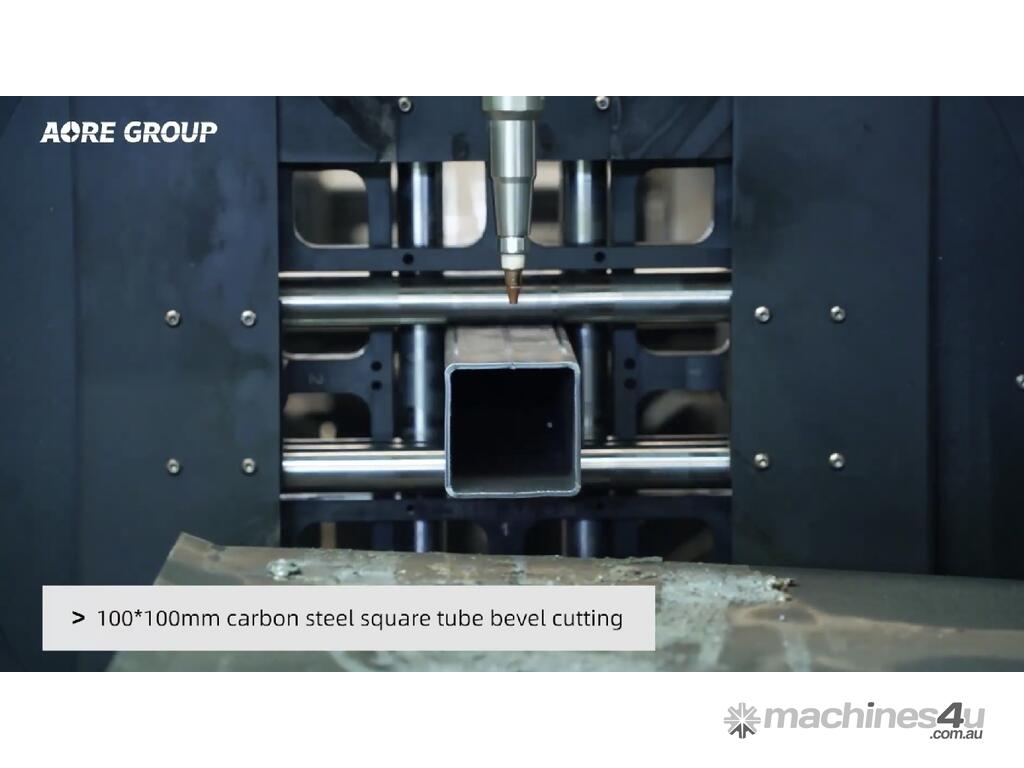

• Square tube
• Rectangular tube

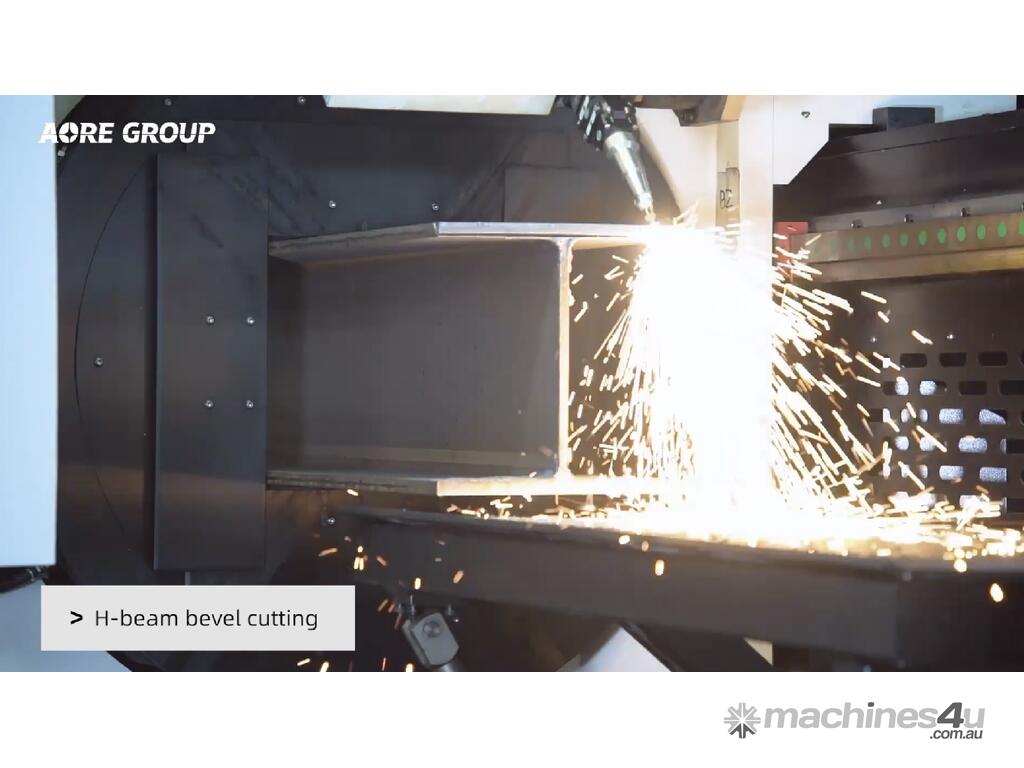

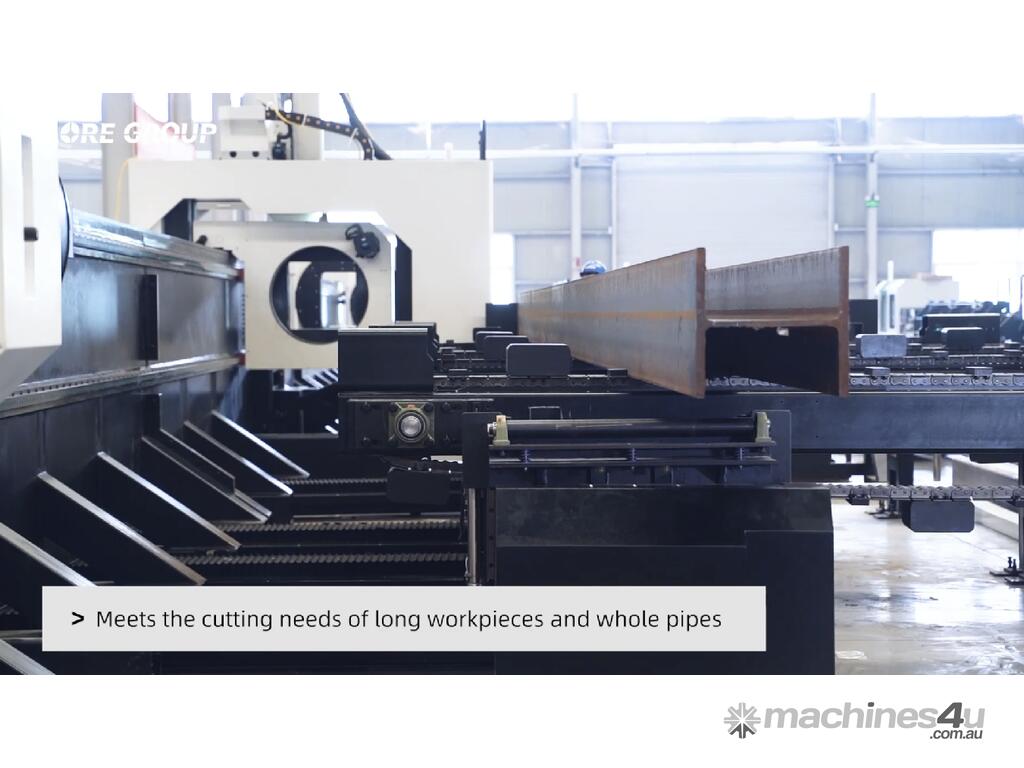

• Structural sections

Ideal for structural steel fabrication, heavy engineering, energy, mining and pipeline component manufacturing.

Australia-wide delivery, installation and training available.

Inspection welcome.
