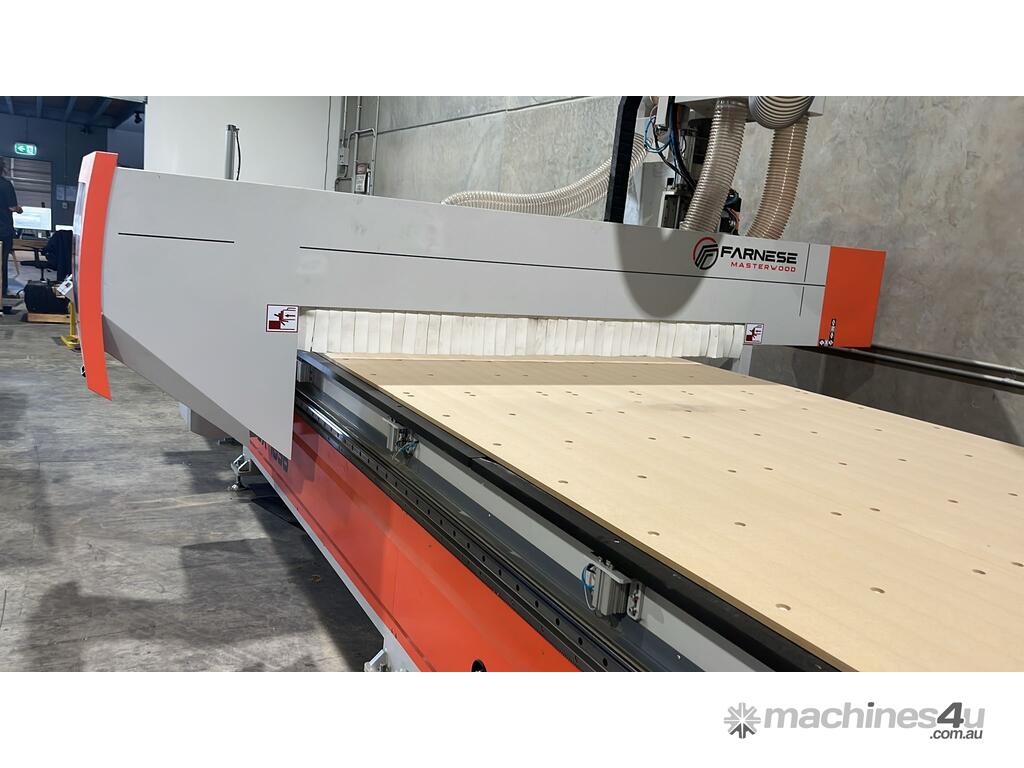

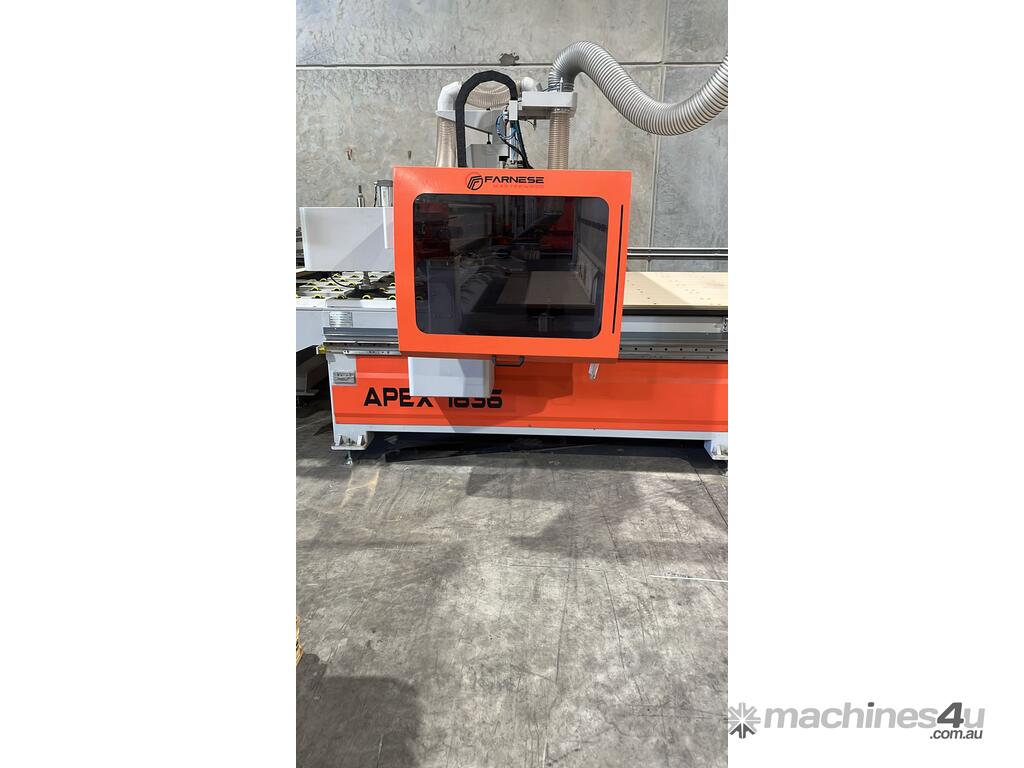

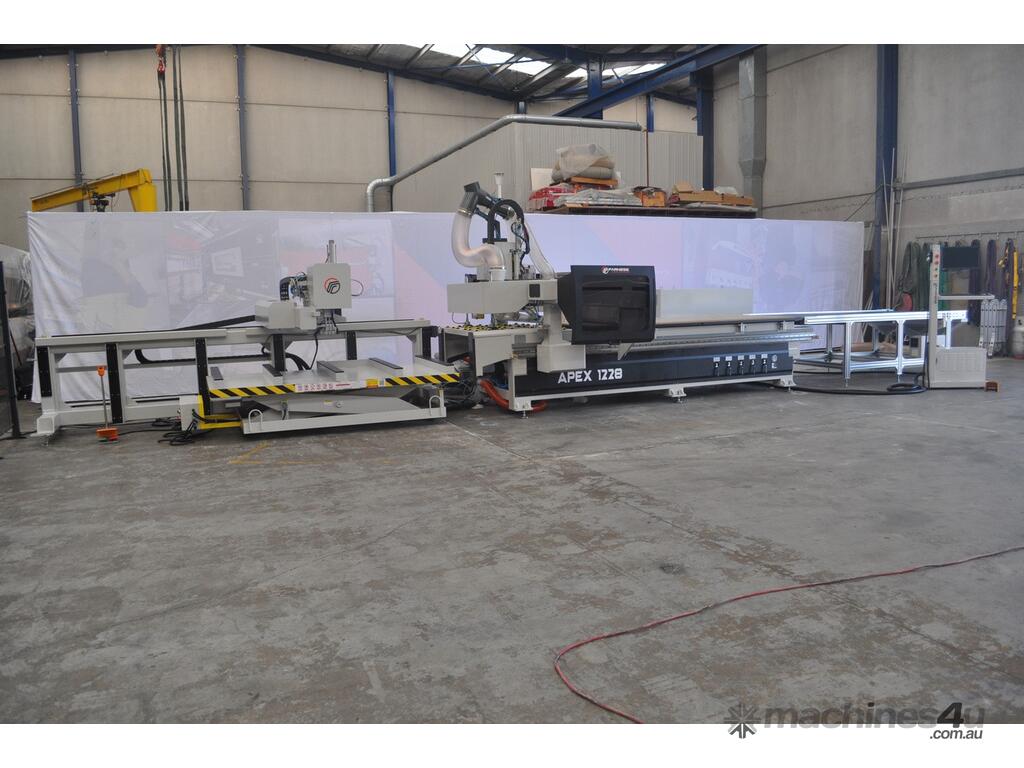

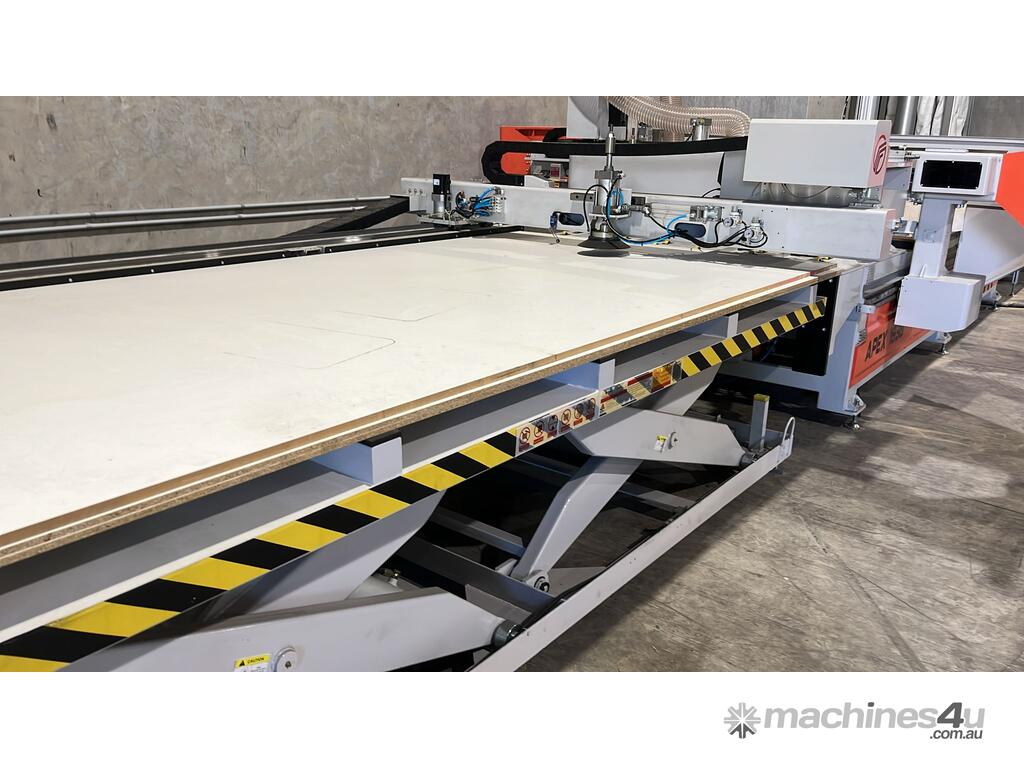

APEX 1836 CNC Router Auto Labeling line

Standard configurations
The APEX is a high-quality CNC machining centre with 3+ controlled axes,
equipped with a matrix table adapted to a variety of flexible working processes
such as quick nesting, drilling, grooving, milling function. The APEX comes in
multible sizes for any work size requirements.

Model
1836 nesting with auto pre-labelling
Traveling size
3600*1850*200mm
Working size
3600*1820*50mm?max infeed height
50mm)
Table size
3650*1820mm
Transmission
X/Y rack and pinion drive, Z ball screw drive
Table
Vacuum table
Spindle
9KW SI air cooling spindle ISO
coupling with dust cover 200mm diameter

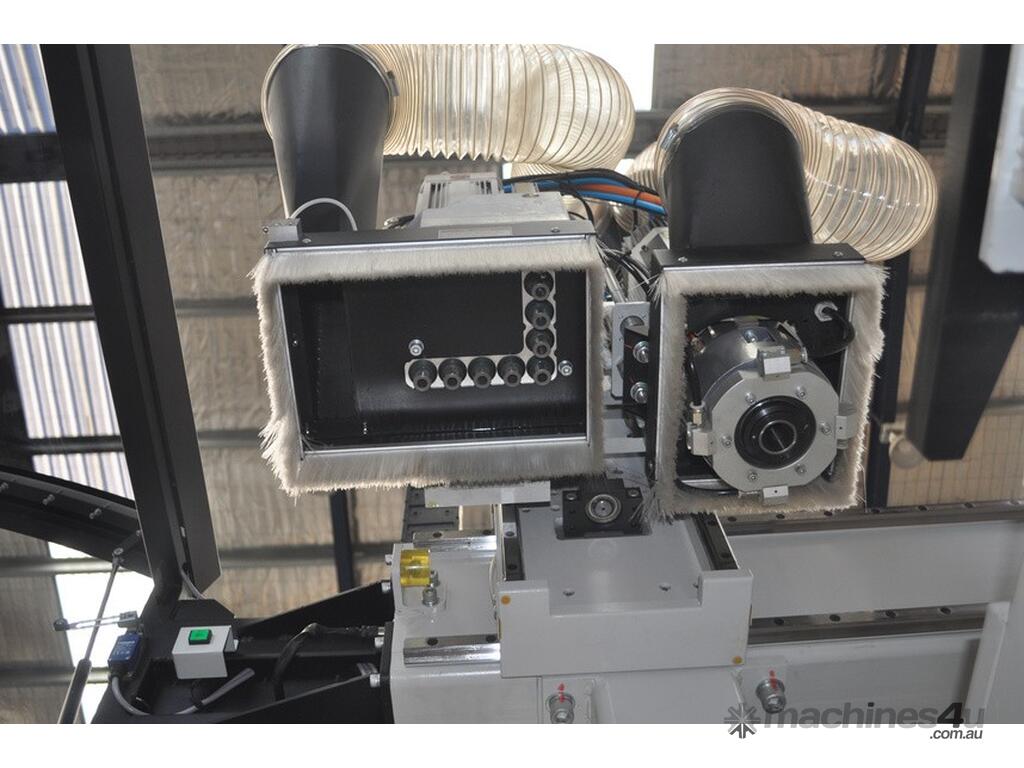

Drill bank
9 VERTICLE drill bank
Protection cover
Protection covers around spindle and drill
bank
Air conditioner
Air conditioner for electrical cabinet
light barrier
1 pair of light barriers
Traveling speed
Traverse speed 80m/min

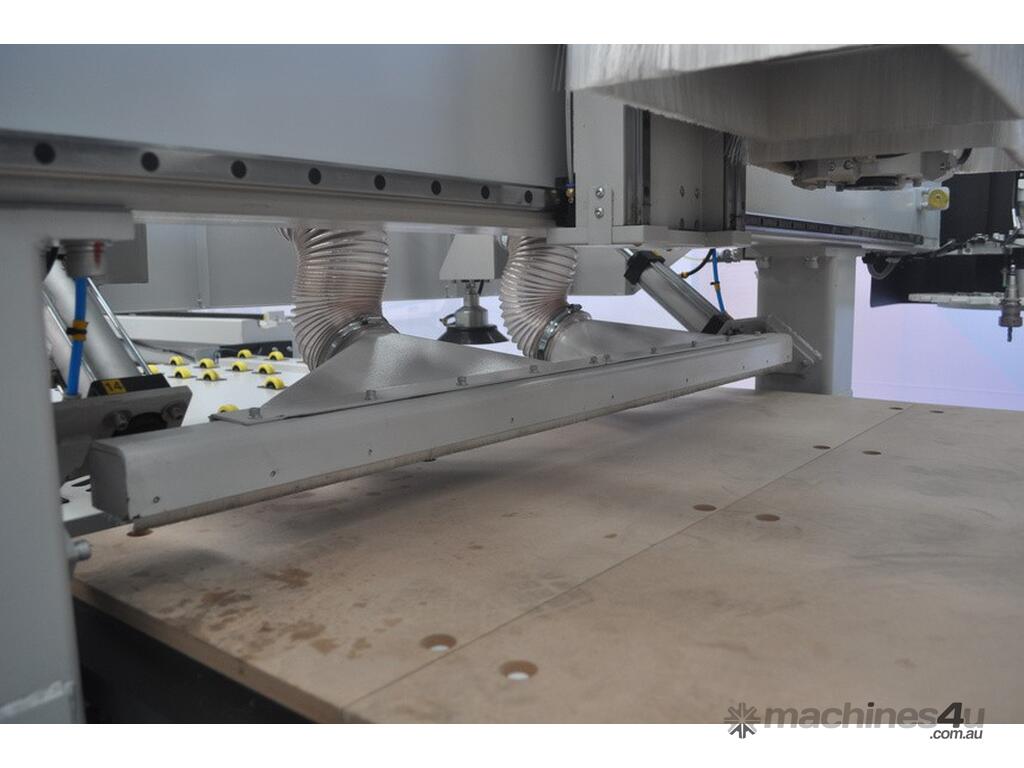

Pressing roller
pressing roller for helping hold small panels
Tool magazine
Carousel with 16-slot Stepper
Software
Exclusive, to be prepared by buyers
Controller
NC Studio controller -Separate type +Lenovo
computer 21.5 inches with touch screen


Positioning
Pop up pins+ positioning rails
auto board width setting on the infeed

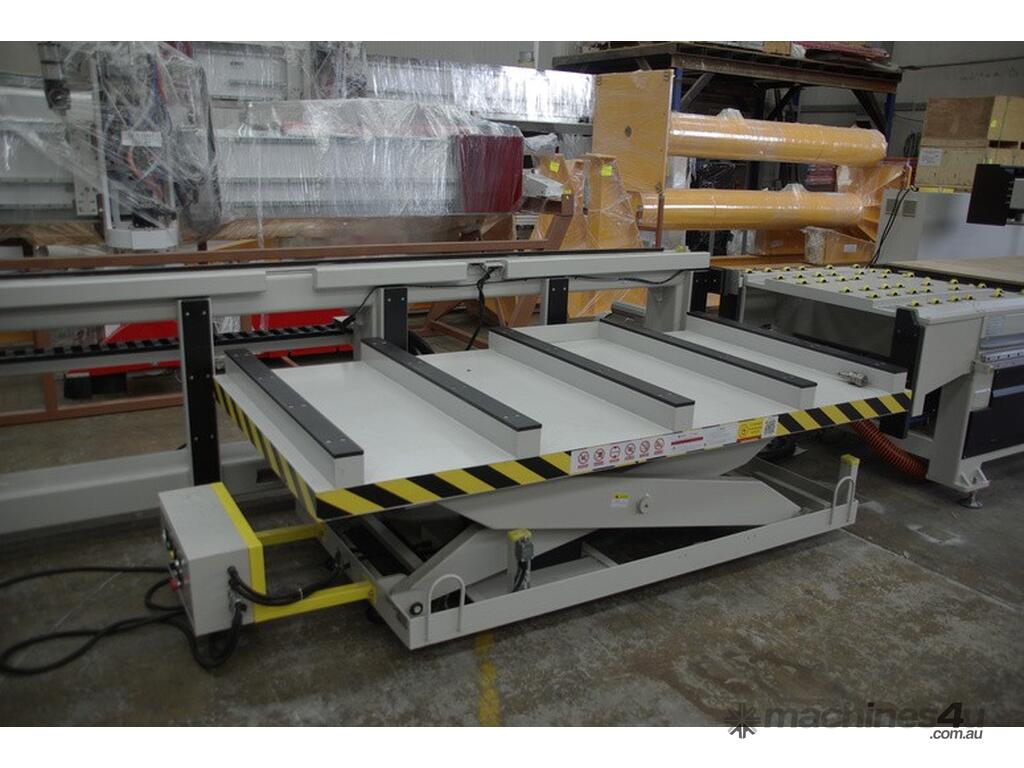

Ability -split apart
Machines can be split apart. Customer can buy
the 1836 CNC ONLY and not the loading and
unloading, then order just the load and unload
later
Driving system
INOVANCE Drivers
Pump
2 sets, 5.5KW pump
Dust extractor
Exclusive, to be prepared by buyers
Voltage
3P 415V 50HZ
