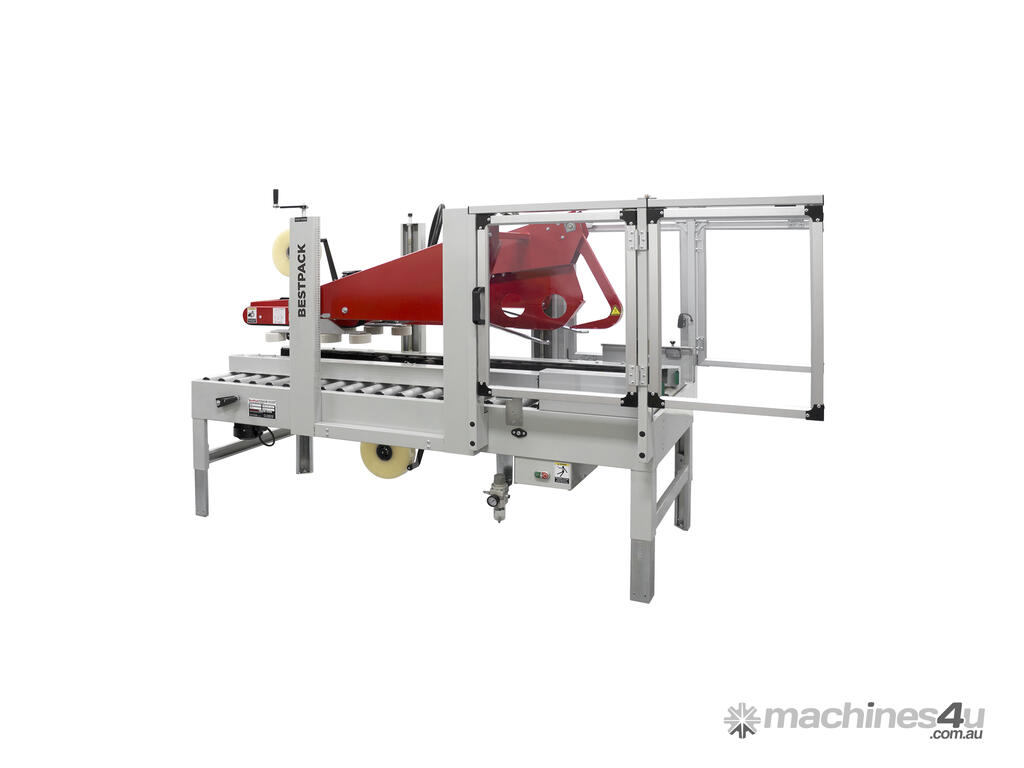

AQ Automatic Quad Drive Sealer

The BestPack™ AQ Series is a fully automatic, carton sealer designed to meet the needs of uniform in-line carton closure applications. The four-belt drives are powered by three electric 110V UL-approved motors. The quad-belt technology allows for more carton stability and effective sealing in rugged applications. The AQ model, which closes all top flaps and seals the top & bottom of the carton, is designed with a stable four-column support structure.


Category: Carton Sealers
Belt Drive: Side Belt Drive
MS Bottom Only
Up to 40 cartons/min.


SpeedUp to 57 Cartons/min.
Power Requirements = 110 Volts 60 Hz
Air Requirements = 45-60 PSI, 4-5 SCFM
Shipping Weight = 632-657 lbs
Machine Dimensions = (77.5") x (33.8") x (73.0")
Carton Range = (8.0" - 27.5") x (7.5" - 20.0") x (5.5" - 20.0")
Trip Current (A) = 20FLA5
Conveyor Height adjustment = (23.5" - 30.0")
Phase = 1
SCCR (KA) = 10
Max Current (A) = 7.5
Power (W) = 550
Specifications based on Line = Specifications based on AQ22-2


-------------------------------------------------------------------------------

General Information:-
All our machines come with strict quality control checks, and certificates issued to the machines come along with the machine despatch.
A one-year standard warranty is applicable to all our machines and models. We offer additional warranty and services upon request, so please contact us for further information.
All our sales, prices, and information strictly adhere to our terms and conditions. Please contact us and demand the terms and conditions information document. Customers can also visit our for more information.
Our skilled service engineers and technicians are available to come to your site for machine installation and training. We have the capability to keep your machine operational at all times with on-time spare parts delivery, whether they are general consumables or critical.
We continuously enhance our capabilities and provide support to our customers, fostering strong relationships with them.

*Please note* that prices may vary slightly due to international foreign exchange rates. For the final product quote, kindly contact our sales team.
