ASSET Industrial New EURO Lathe 1500mm Bed, 410mm Swing, 80mm Bore

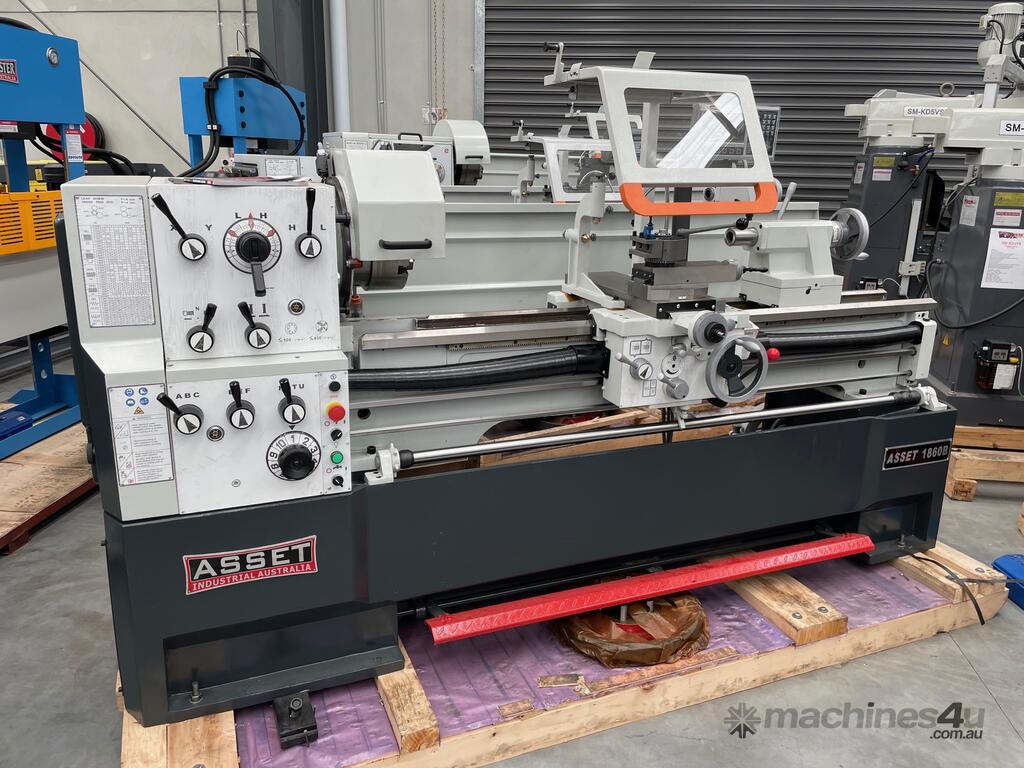

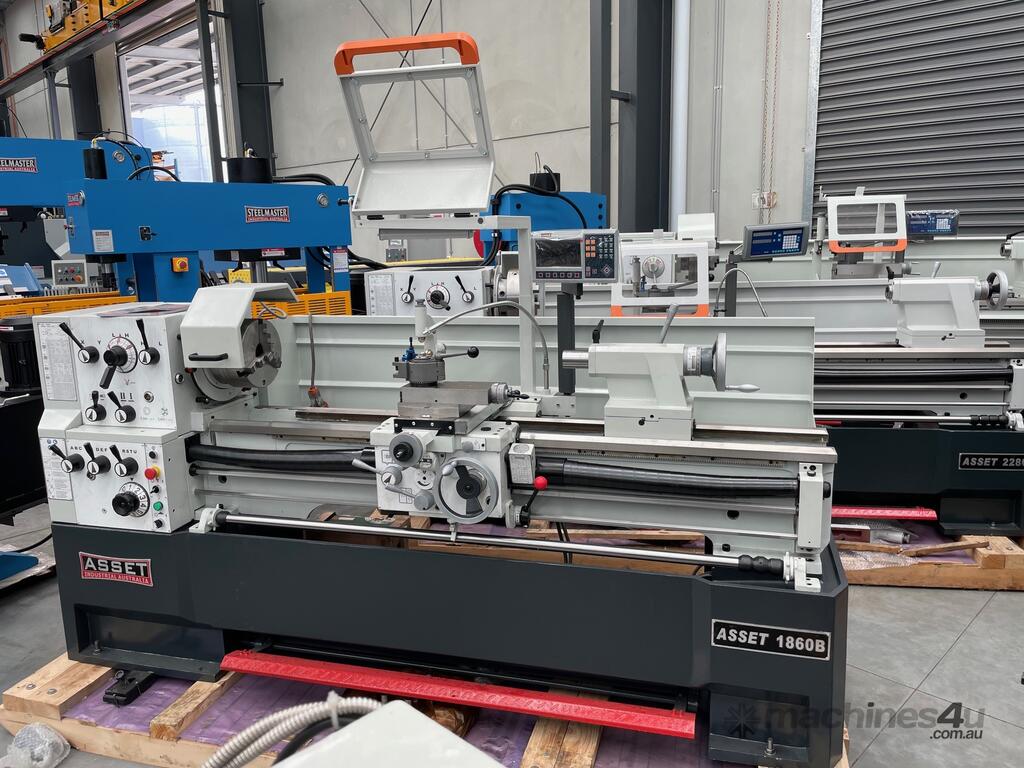

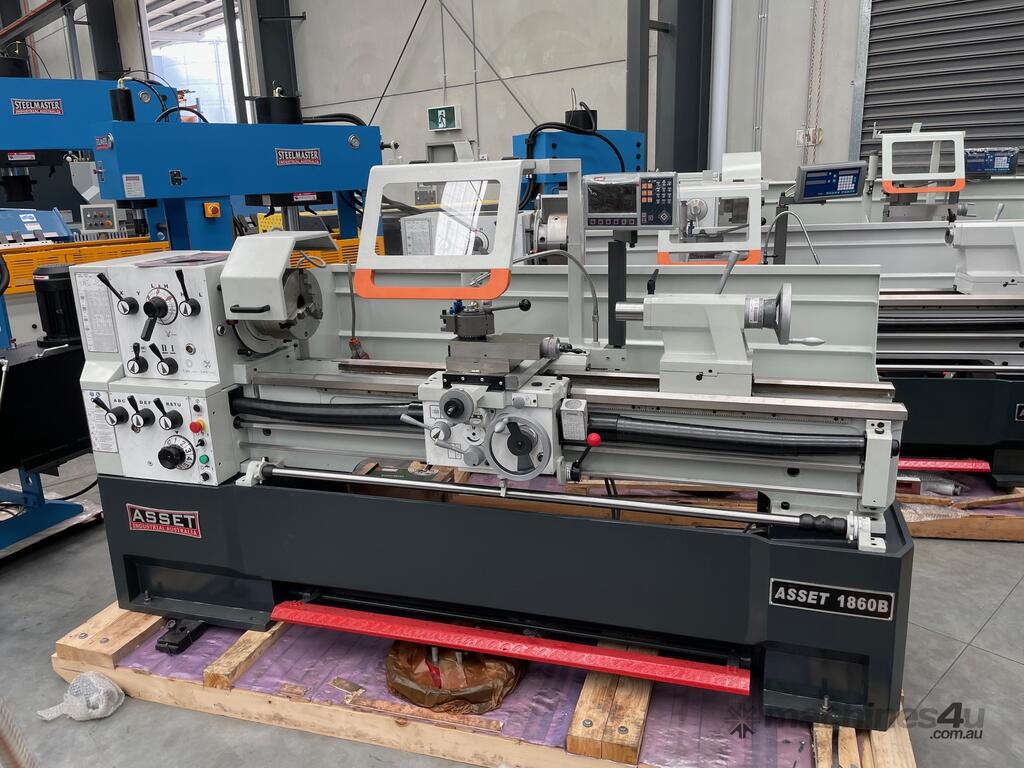

ASSET 1860B – EURO Big Bore Precision Lathe. Duty, 1500mm Bed Length, 460mm Swing, 80mm Bore, 2 Axis Easson Digital Readout, Quick Change Tool Post, Foot Brake, Coolant & Std Accessories. V

Description
This feature packed lathe should be the workhorse in your shop. We've combined the mass, power and precision needed for turning tough to machine materials and extra heavy workpieces to exacting dimensions and finishes.

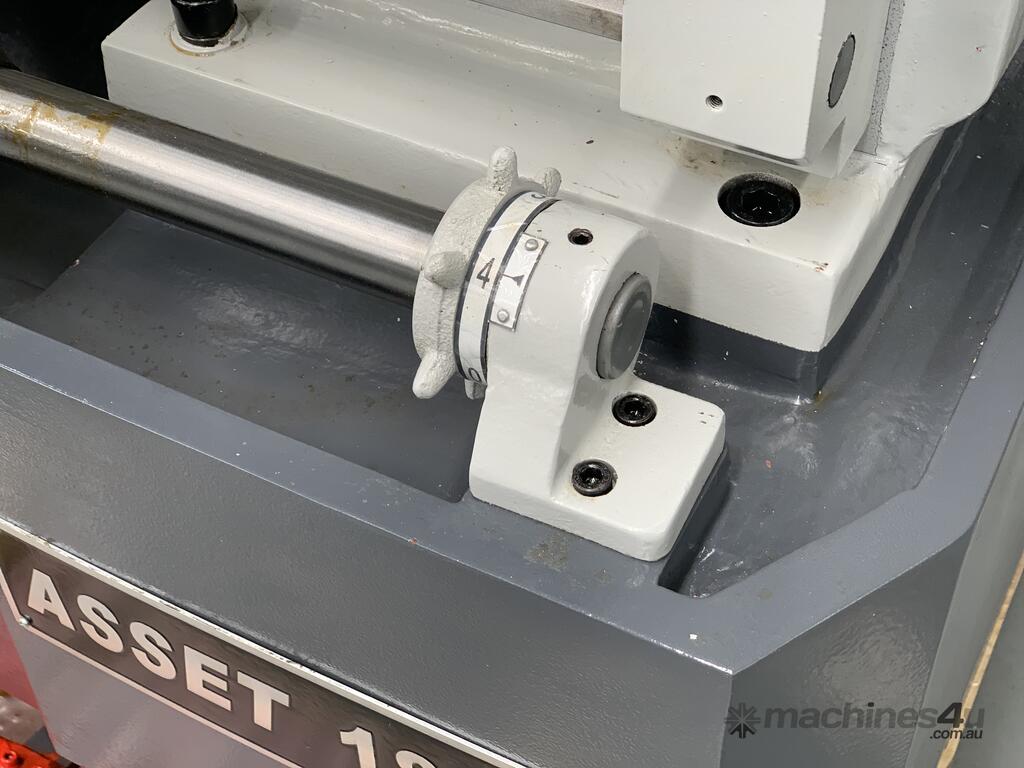

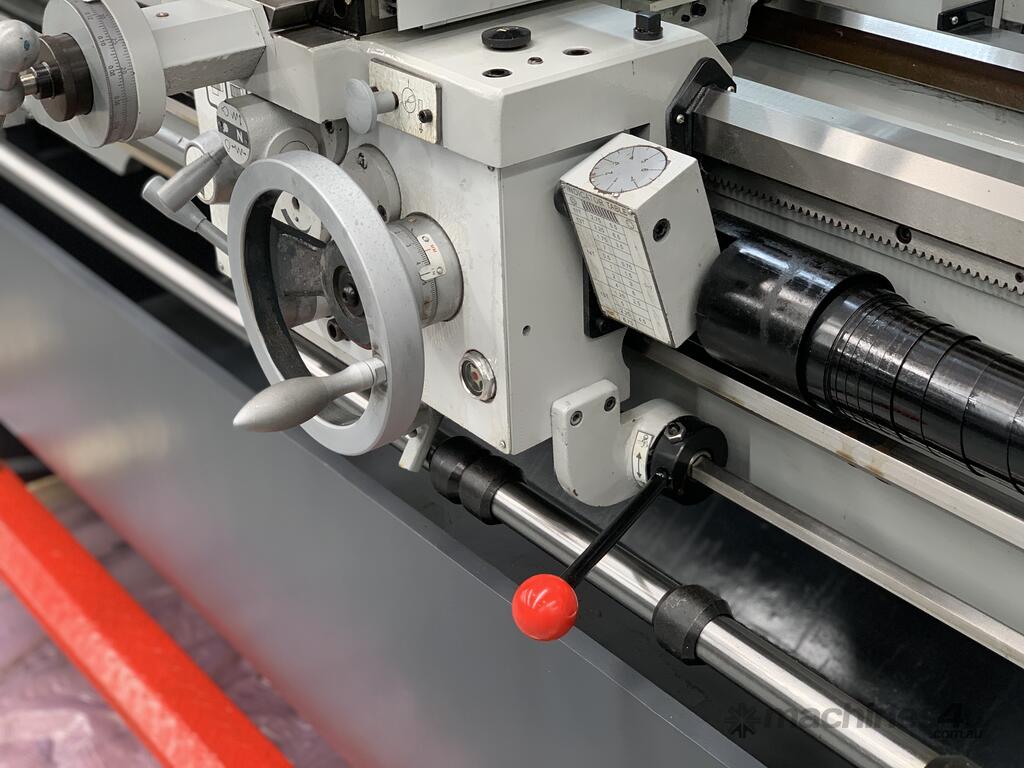

Check out this spindle speed range from 25 - 1700 RPM! You'll be able to spin that workpiece up for fine finishing or slow that part down to a crawl, all the time with unparalleled power and rigidity. Aside from this we've included standard features like: auto carriage stop with indexable cams, interlocked apron controls, adjustable apron clutch, heavy-duty tailstock and more!

Take a close look at everything included with the package and you'll agree that this is one great value you won't want to miss out on.

Features
? large 80 mm spindle bore
? triple precision headstock bearings fitted

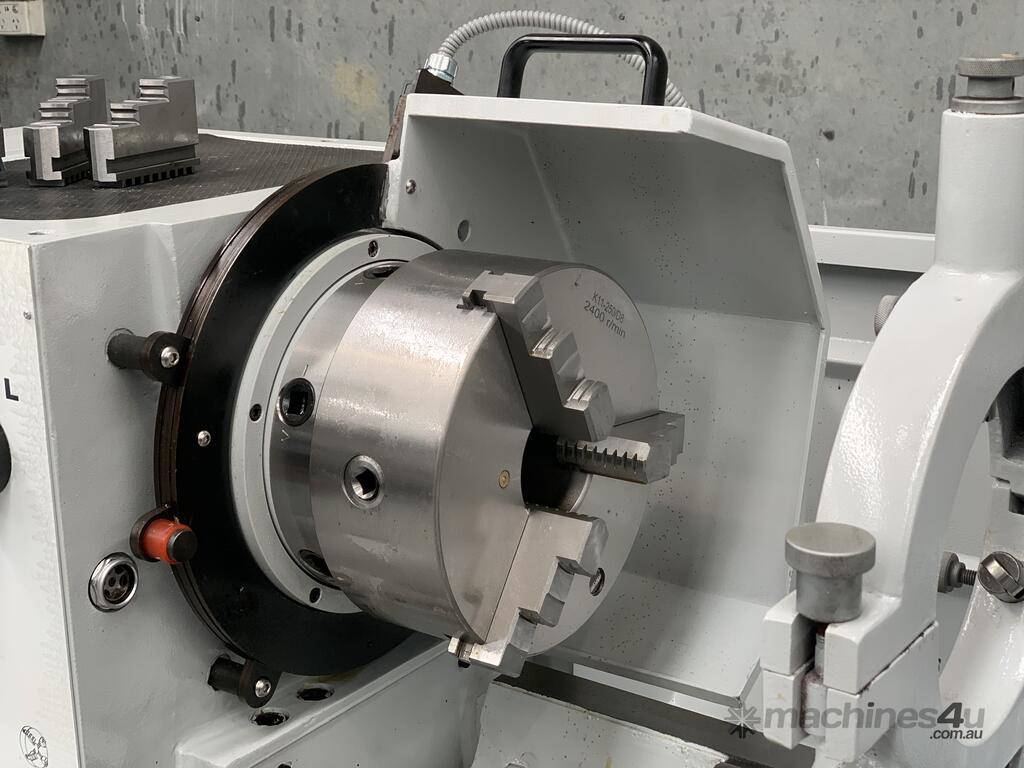

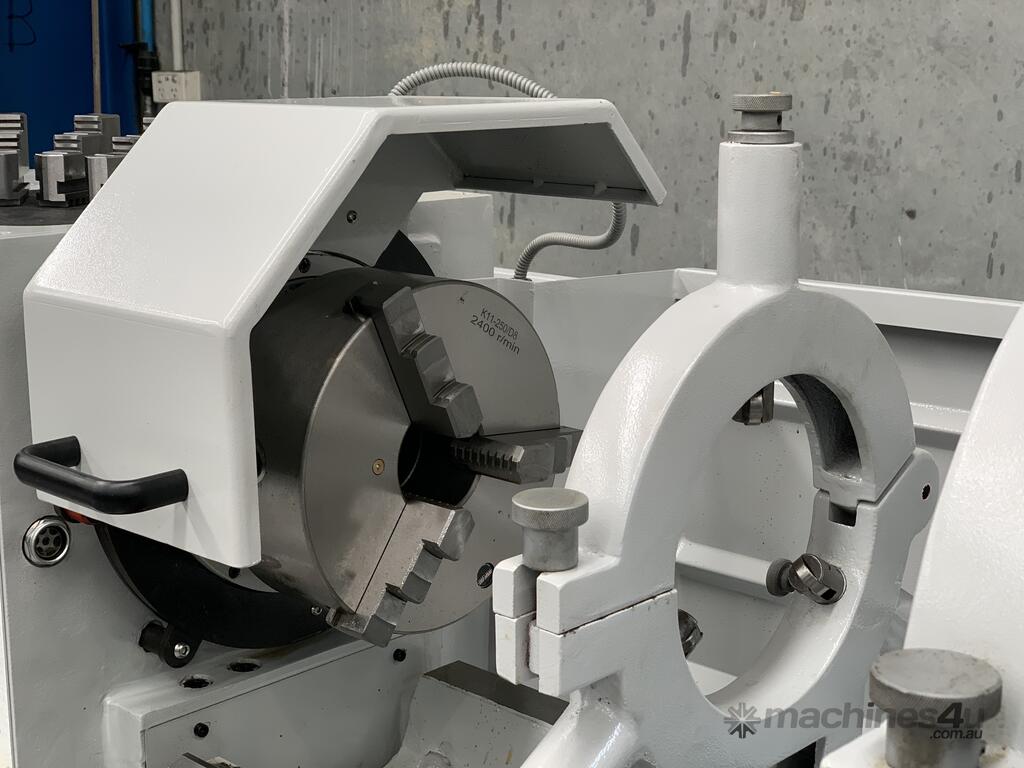

? new Euro retractable chuck guard & flip up tool post guard with LED worklight
? induction-hardened and ground cast iron bed and slide ways
? spindle holding camlock system
? main spindle running in oil bath, hardened and ground with two adjustable precision taper rollerbearings ensures accuracy
? maximum accuracy and quiet operation, even at high speeds
? capable of turning over 200 different types of threads with a low speed of 25 rpm

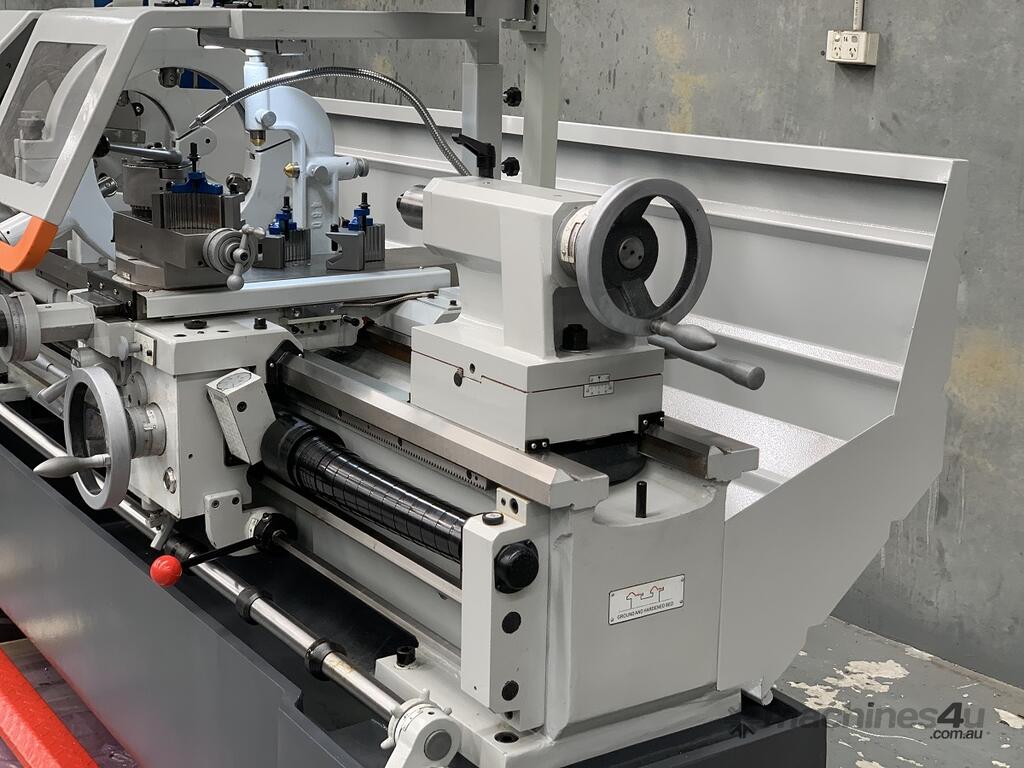

? transversal adjustment of tailstock for taper cutting applications

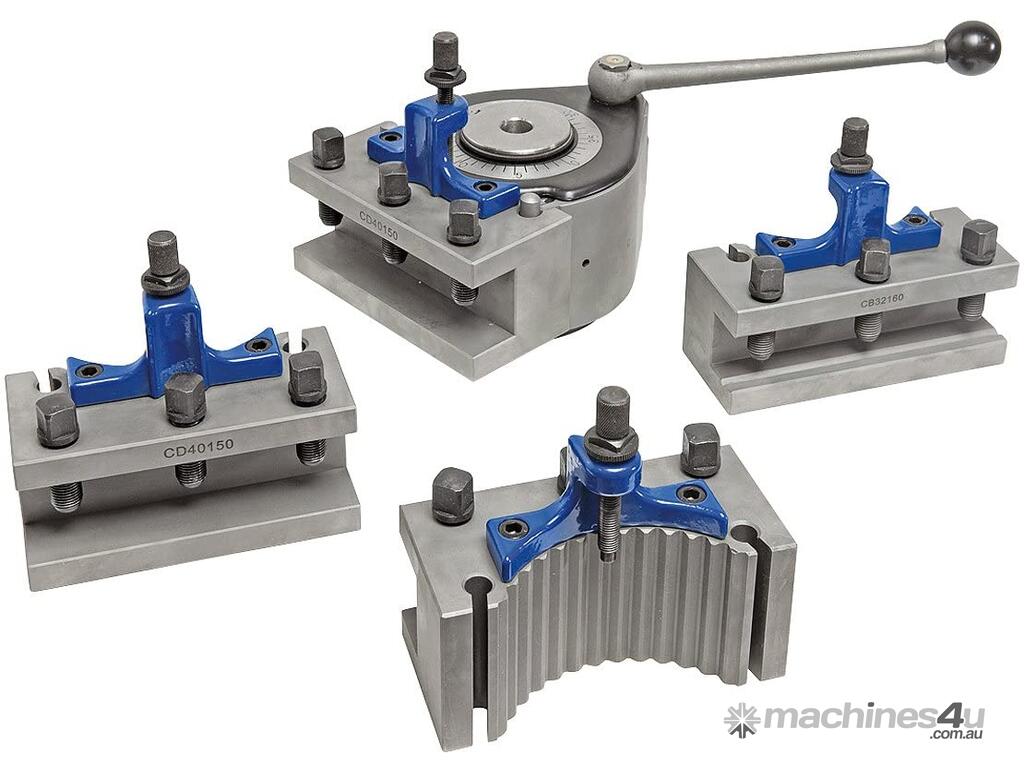

? Haase / Multifix type quick change post with 3 x holders offering full 360 degree positioning

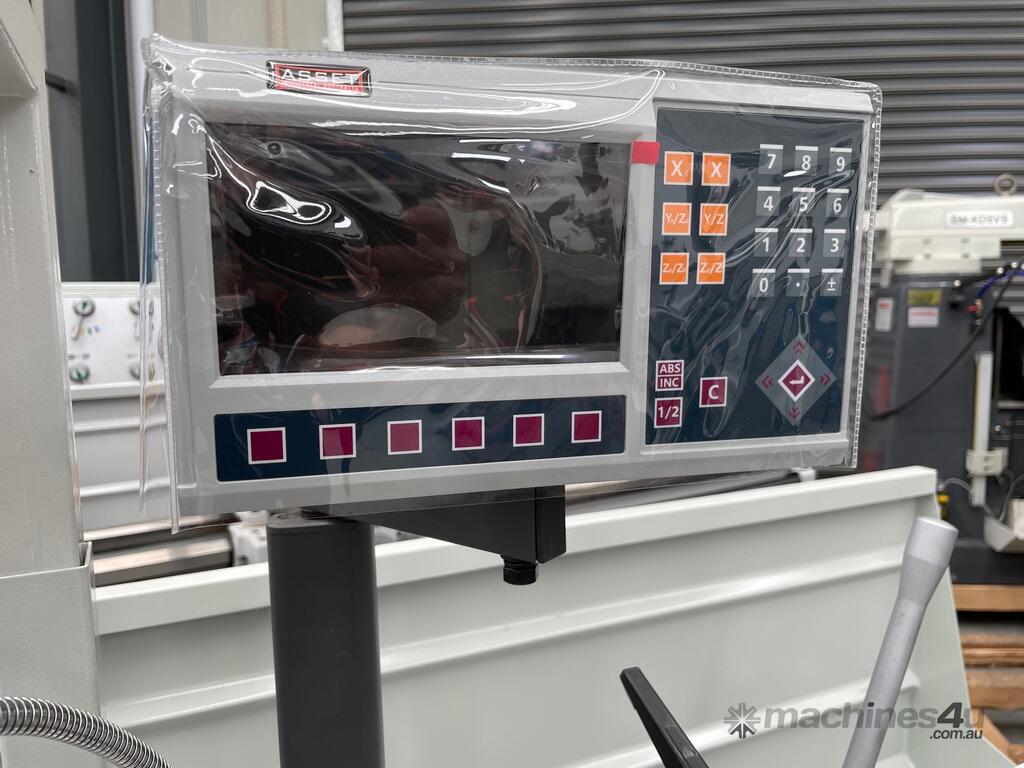

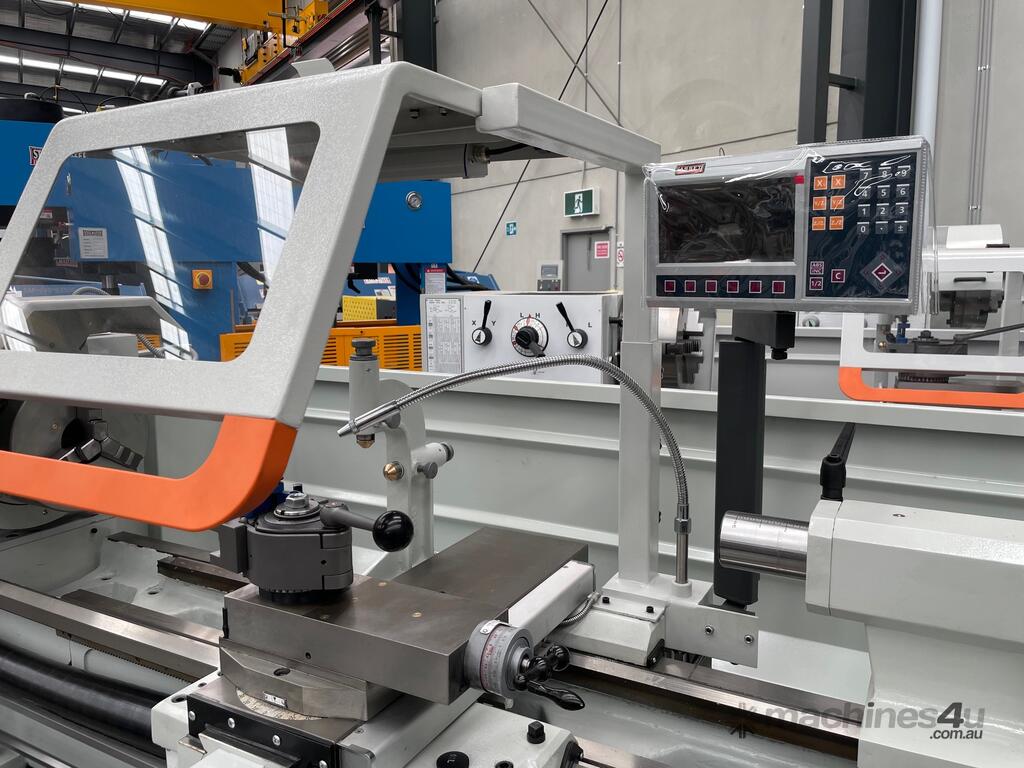

? 2 axis DRO fitted as standard
? safety covered lead screw
? safety interlocks on chuck guard, gear box and foot brake
? v 3ph, CE compliant

Technical Data Snap-Shot
?460mm swing over bed
?690mm swing in gap
?1500mm bed length
?80mm spindle bore
?camlock - D1-8

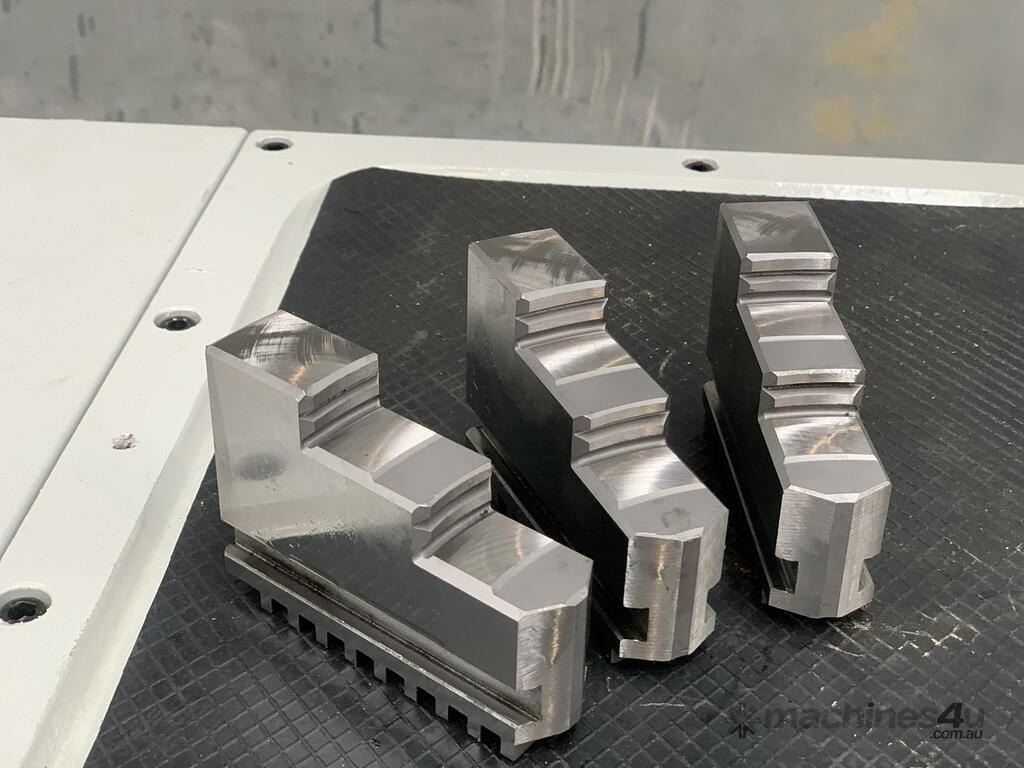

?250mm 3 jaw chuck
?320mm 4 jaw chuck

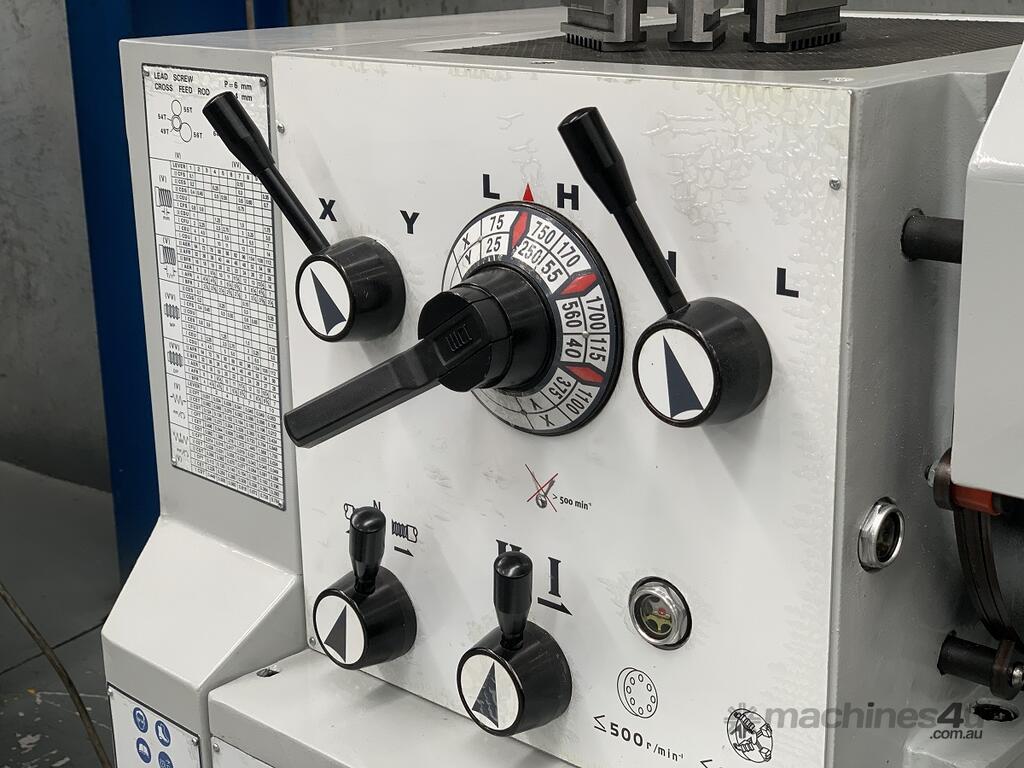

?speeds(12)-25/40/55/75/115/170/250/375/560/750/1100/1700
?285mm - cross slide travel
?128mm - top slide travel
?130mm - tailstock travel
?65mm (No.4) - tailstock diameter
?300mm - bed width
?metric threads - 0.1 ~ 14mm (41)
?imperial threads - 2 ~ 112 tpi (60)
?dp threads - 4 ~ 112dp (50)
?modular threads - 0.1 ~ 7mp (34)
?faceplate supplied
?fixed & travelling steadies
? Haase / Multifix type quick change post with 3 x holders offering full 360 degree positioning
?BD 25 Series Tool Holders
?tools to suit - 25mm
?2 axis digital read out fitted
?tailstock taper - 4MT
?tailstock travel - 130mm
?shipping dimensions - 2850mm x 1200mm x 1500mm
?power - V 5.5Kw
?approx weight: 2630kg
?same machine builder at Grizzly model G0788

EQUIPMENT & ACCESSORIES SUPPLIED
Easson 2 axis DRO, 3 & 4 jaw chuck, quick change tool
post with 3 holders, face plate & centres, fixed steadies &
1 travelling steady, full length splash guard up to 2000mm,

MAKE YOUR NEXT PURCHASE AN ``ASSET`` TO YOUR COMPANY!
Please contact us for more information.
