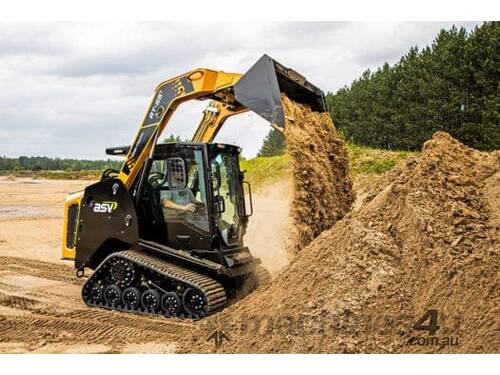

ASV RT-65 MAX-SERIES POSI-TRACK LOADER

LESS DOWNTIME. MORE GO TIME.
The RT-65 MAX-Series Posi-Track is designed to deliver maximum serviceability, reliability and productivity.

With ASV’s patented Posi-Track® undercarriage, this machine is built for digging and ground engagement work in construction, excavation, landscaping and land-clearing applications.

POWER
Its turbocharged 67-horsepower Deutz TCD 2.2 T4 diesel engine produces 250Nm of torque that the drive motors transfer to ASV’s patented internal-drive sprockets. Internal rollers reduce friction loss in the undercarriage, resulting in maximum power being transferred to the track regardless of drive speed. The RT-65 tops out at a speed of 17.1 km/h.

PERFORMANCE
The RT-65 features a rated operating capacity of 1247 kilograms and a tipping load of 2495 kilograms. The machine is 1676mm wide, provides excellent manoeuvrability and has a 2959mm lift height. The innovative Posi-Track system featured on the RT-65 allows customers to use it as an all-terrain, all-season machine with maximum control, flotation, traction and pushing power in steep, wet, muddy and slippery conditions.


COMFORT
The RT-65 features ASV’s unique and patented suspension system made up of two independent torsion axles per undercarriage and a suspended air ride seat so operators experience a smooth ride over every type of terrain on a variety of job sites. And with next-generation MAX-Series features, the RT-65 offers plenty of creature comforts that let operators work more comfortably for longer periods of time: more all-around space, improved ergonomics, an upgraded HVAC system for better circulation and defrosting, and an optional all-weather pressurized cab for a cleaner operator environment.

SERVICEABILITY

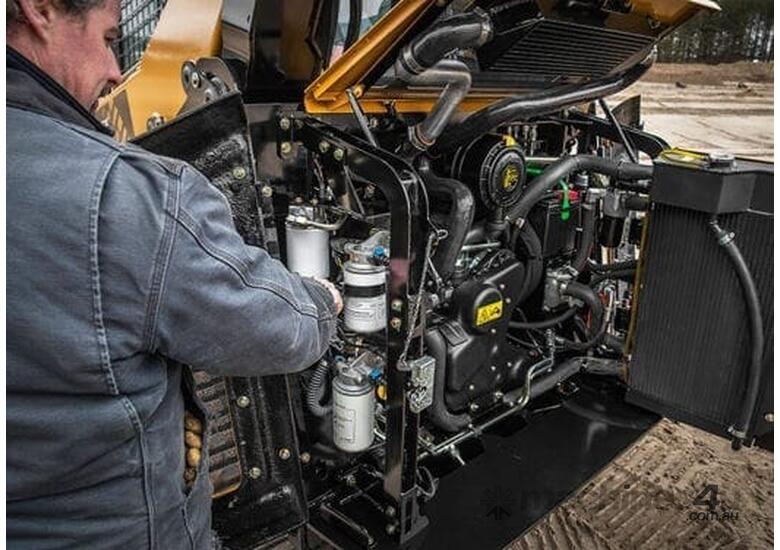

The RT-65 boasts industry-leading serviceability. We do this so operators can spend less time maintaining the machine and more time on the job. The features that keep operators moving include a swing-out radiator, top hood and side doors that allow access to all sides of the engine compartment—including filters and other daily checkpoints.

MACHINE SPECIFICATIONS
OPERATIONS

Loader Arms: Radial
Operating Weight: 3393 kg
Rated Op Capacity 35%: 873 kg
Ground Pressure: 29.0 kPa / 4.2 psi
Engine Power: 50 kW / 67 hp
Tipping Load: 2495 kg
Max Travel Speed: 17.1 km/h
ENGINE

Features: Diesel 3-cylinder, Turbo Charged, After Cooled Deutz TCD 2.2 T4, Hydraulically Driven Fan, Dual Stage Intake Air Cleaner.
Cooling System: Anti-Freeze Filled Radiator Cooling System.
Engine Power: 50 kW / 67 hp
Displacement: 2.2 L
Torque Peak: 250 Nm
DRIVE TRAIN

Features: Dual Hydraulic Drive Motors, 2 Independent Torsion Axle Suspension.
Roller Wheels: 24 High Density Polyurethane.
Front and Rear Wheels: 355.6 mm
Middle Wheels: 254 mm
Track Width: 381 mm
Length of Track on Ground: 1499 mm
DIMENSIONS

Full Length: 3594 mm
Arm Up Height: 2959 mm
Machine Height: 2068 mm
Machine Width: 1676 mm
Ground Clearance: 330 mm
AUXILIARY HYDRAULICS

Features: Pilot Hydraulic Joystick Control, Work Port Relief.
Max System Pressure: 22753 kPa
Couplers: Manual Quick Attach (Standard Models) or Hydraulic Quick Attach (Premium Model).
Auxiliary Pump Flow: 84.0 lpm (Low Flow) / 103.7 lpm (High Flow)
ELECTRICAL SYSTEM

Features: Upgradeable Wiring Harness, Attachment Control Kit.
Normal Charge: 12 V
Battery: 800 CCA
Alternator Charging System: 120 Amp
Port Outlet (Inside Cab): 1 – 12 V

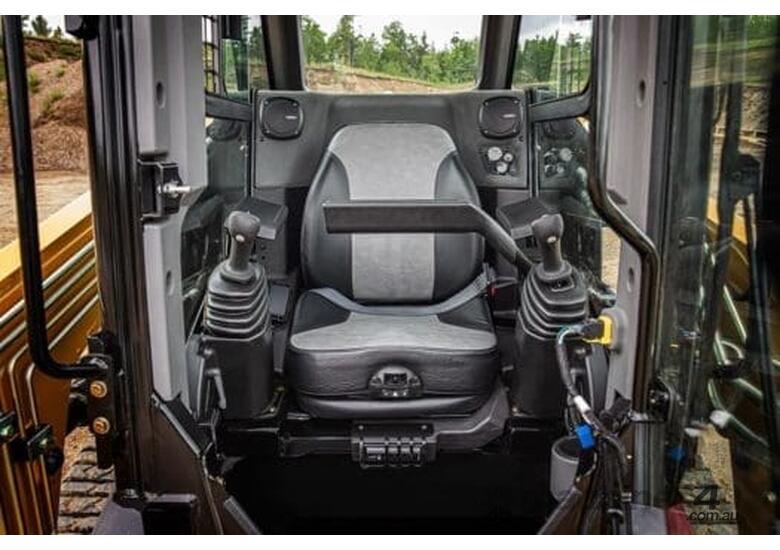

OPERATOR STATION

Features: ROPS, Suspension Seat w/ 2 in. Seatbelt, Roof Panel, Rear Window, Sound Insulation, Horn, Backup Alarm, Lap Bar.
Loader Control: Right-hand pilot hydraulic joystick controls loader lift/tilt, with variable control of auxiliary hydraulics.
Drive Control: Left-hand pilot hydraulic joystick controls machine speed and direction.
Multifunction Display / Indicator: Fuel, Tachometer, Engine Temperature, Hour Meter, Battery, Trip Meter, Hydraulic Temperature, Water Temperature, Multiple Languages.
ROPS: Restraint-ISO 6683, SAE J2292, Cal OSHA 1596,ISO 3471.
FOPS: Meets ISO 3449: Level I and II (Optional).
Illumination: 2 Forward Facing Lights / 2 Rear Facing Lights.
SERVICE CAPACITY

Fuel Tank: 87.8 L
Hydraulic Tank: 12.5 L
Engine Coolant: 9.5 L
Engine Oil (inc Filter): 8 L
