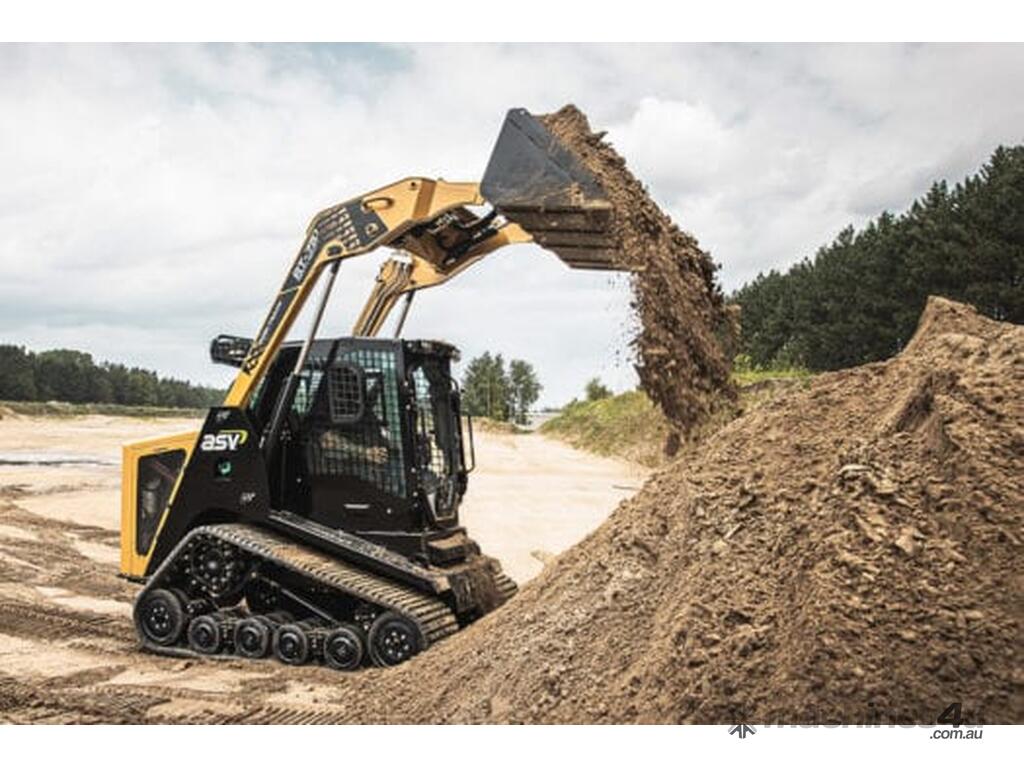

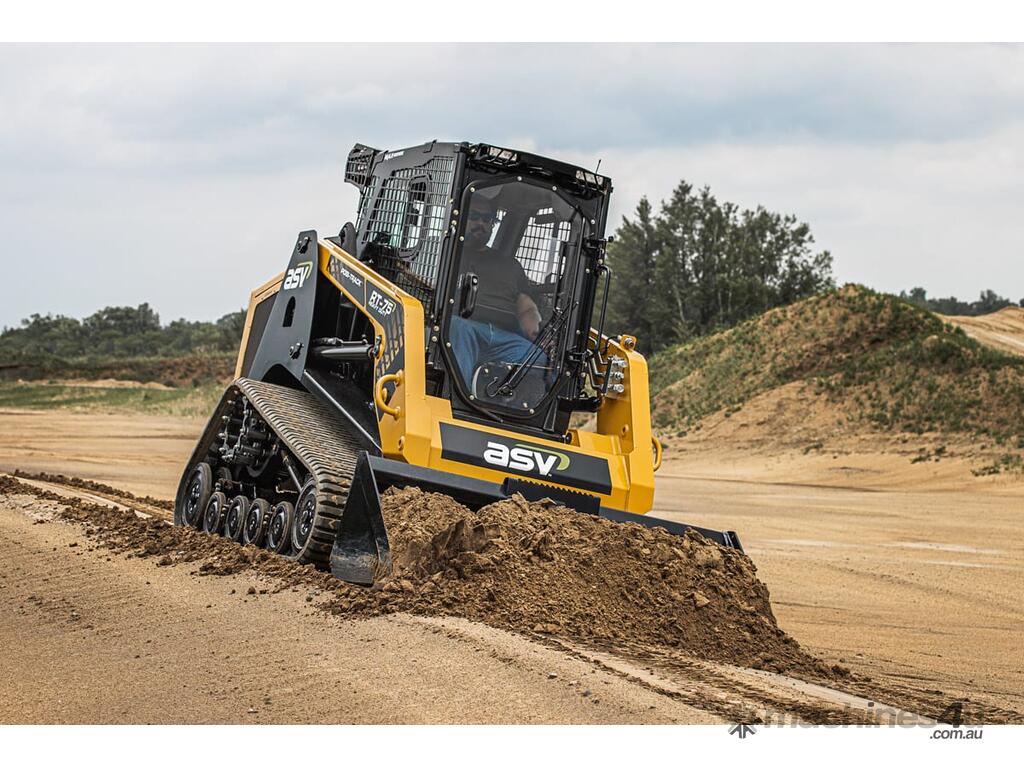

ASV RT-75HD MAX-SERIES POSI-TRACK LOADER

Proudly representing ASV Positrack in North East Victoria and Southern NSW

Next-gen MAX-Series features, patented Posi-Track® technology, plus Heavy Duty and Forestry capability.

Operating Weight
4178 kg

Tipping Load
3629 kg

Ground Pressure
3.6 psi

Engine Power
74 hp


TAKE ON MORE.

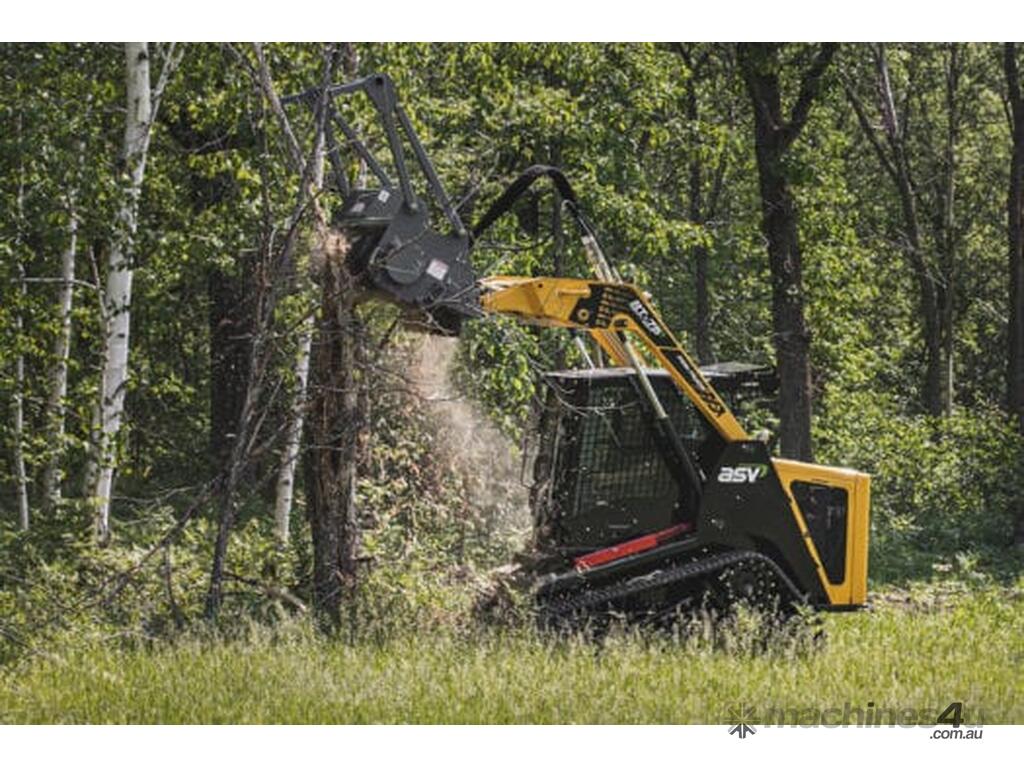

The ASV RT-75HD (Heavy Duty) Posi-Track ensures our operators get maximum durability, serviceability and productivity in the toughest conditions – especially in forestry and mulching applications – while requiring less maintenance.

Like the RT-75, the HD is engineered with a next-generation cab and patented Posi-Track® technology and provides the industry’s highest ground clearance, lowest ground pressure, longest track life and best traction over all types of surfaces—and it offers some heavy-duty extras, too.



While ASV MAX-Series machines are purpose-built with the same technology as our full lineup of compact track loaders, they also feature a brand-new, next-generation cab and other features for a premium operator experience like never before.

RT-75 HEAVY DUTY MAX – KEY FEATURES

POWER
The ASV RT-75HD Posi-Track Loader features a Cummins 2.8-litre turbocharged diesel engine, producing 300Nm torque — 13 percent more than the machine’s 80-horsepower Terex predecessor. The torque is transferred to the ground through direct-drive hydraulic motors, delivering maximum power without compromise during high intensity jobs.



PERFORMANCE
ASV built the RT-75HD’s auxiliary hydraulic system to be highly efficient, including 135 lpm high flow and 3,300 psi. This model also comes with a hydraulically driven, auto-reversing cooling fan to blow debris out of the engine compartment screens. It offers hydraulic bucket positioning and a full rear brush guard is available as a factory installed option.



COMFORT

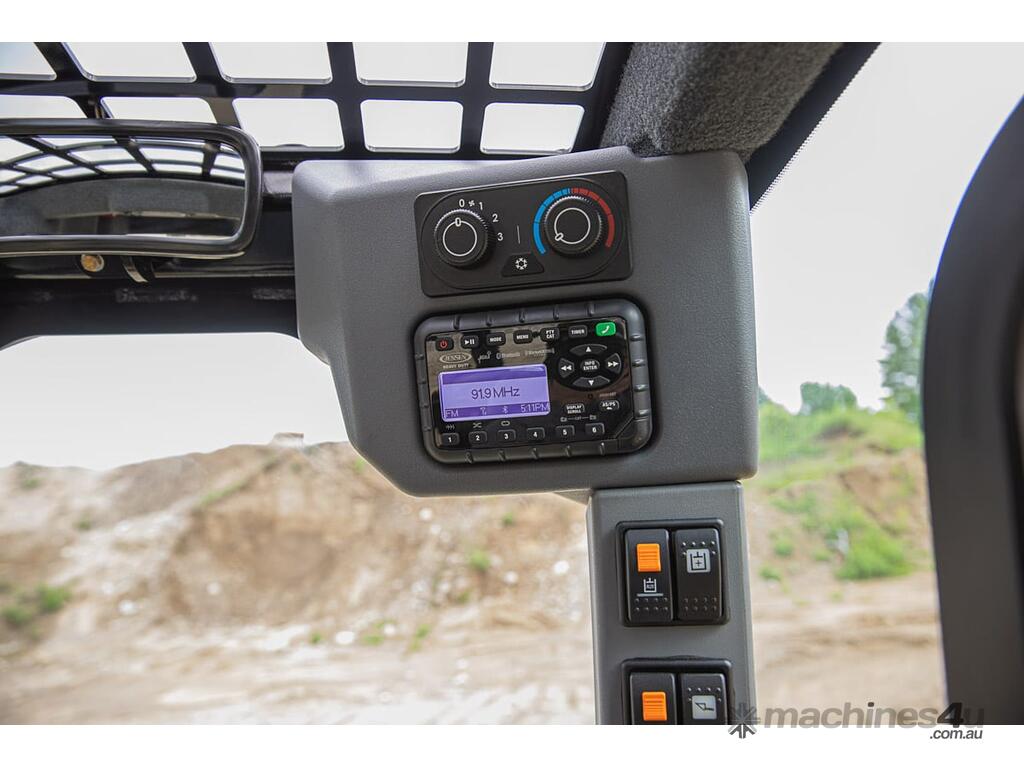

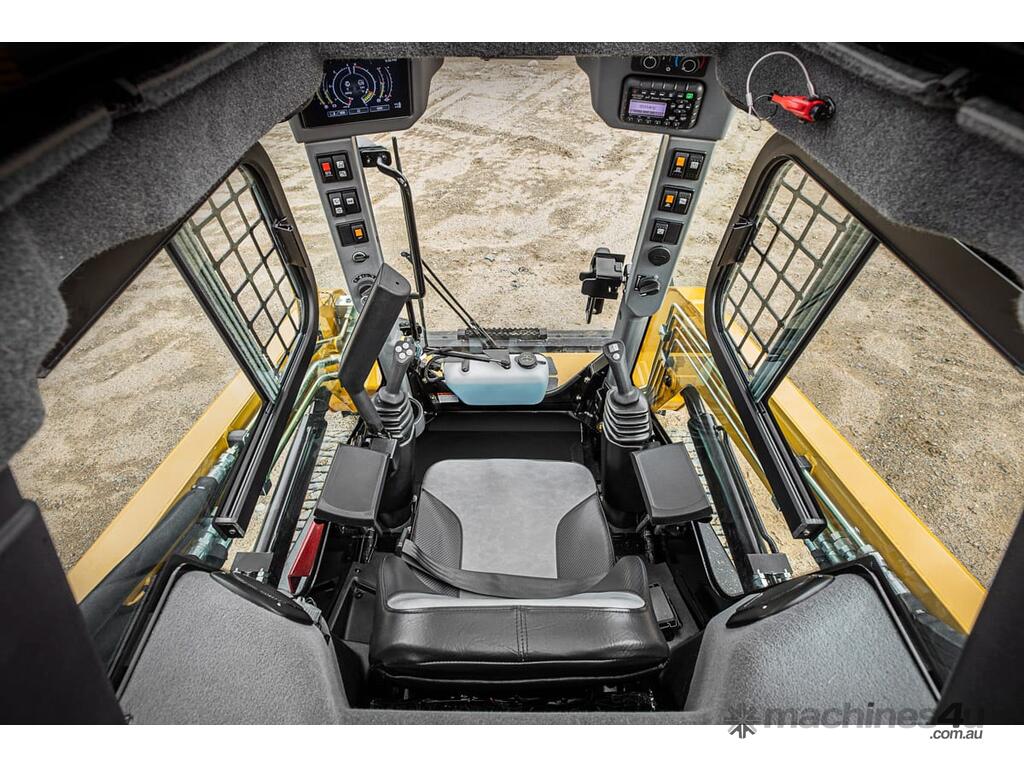

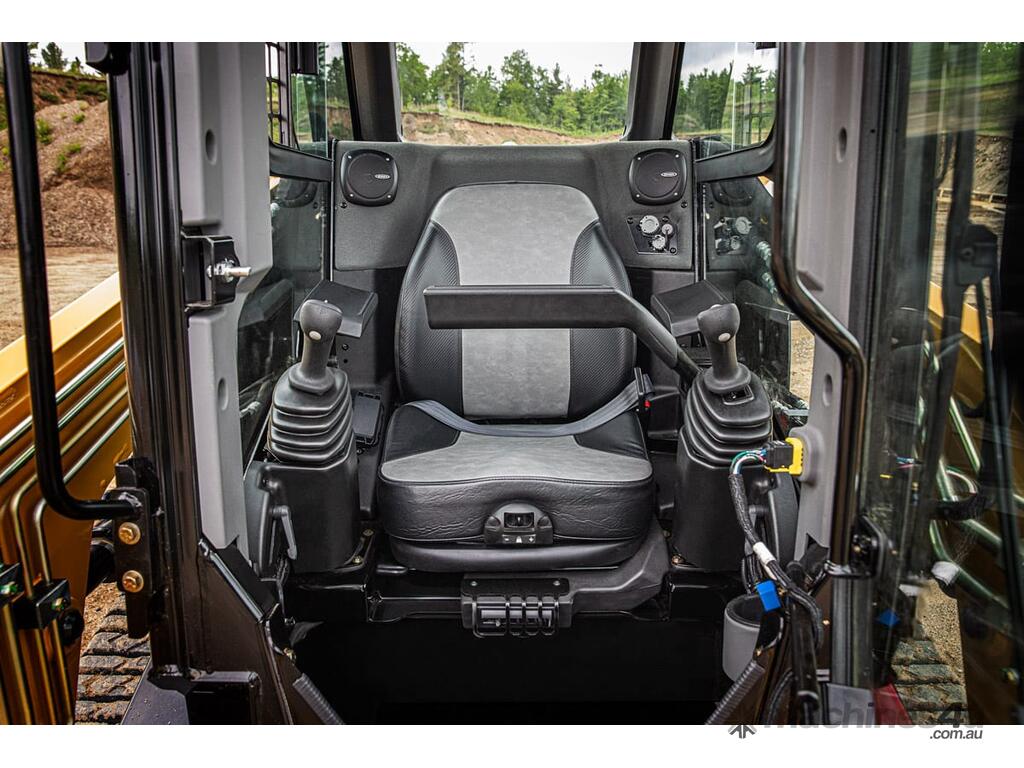

With a next-generation MAX-Series cab, the HD features plenty of creature comforts that let operators work more comfortably for longer periods of time: more all-around space, improved ergonomics, an upgraded HVAC system for better circulation and defrosting, an all-weather pressurized cab for a cleaner operator environment, heating, air conditioning, standard joystick controls, a Lexan door and a Bluetooth radio with USB.



SERVICEABILITY

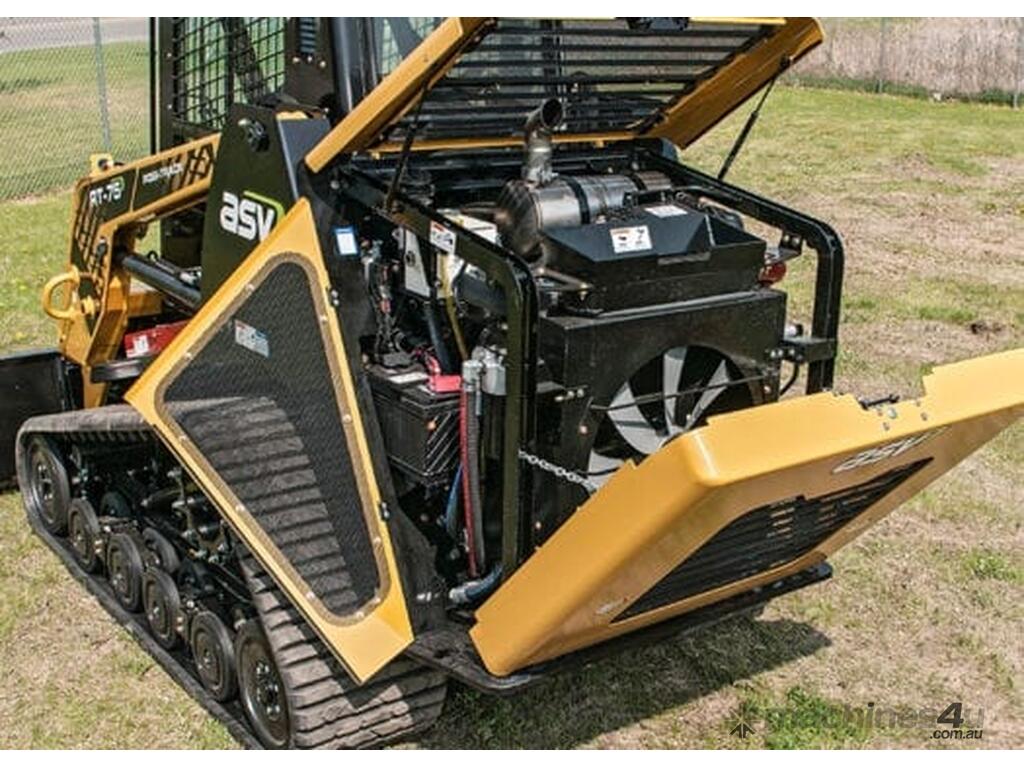

Like the RT-75 standard, the HD model gives operators easy access to the reliable Cummins engine through a three-panel hood and tilting cooler arrangement. The design, paired with sight gauges for both hydraulic oil and coolant, simplify routine inspections of filters, oil and normal service items. The RT-75 HD can be paired with all standard attachments, such as backhoes, buckets, snow blades, brush cutters and pallet forks.



OPERATIONS

Loader Arms: Radial
Operating Weight: 4178 kg
Rated Op Capacity 35%: 1270 kg
Rated Op Capacity 50%: 1814 kg
Ground Pressure: 24.8 kPa / 3.6 psi
Engine Power: 55 kW / 74.0 hp
Tipping Load: 3629 kg
Max Travel Speed: 15 km/h


ENGINE

Features: Diesel 4-cylinder, Intercooled Turbo Cummins QSF2.8, Hydraulically Driven Fan, Anti-Freeze Filled Radiator Cooling System, Dual Stage Intake Air Cleaner.
Engine Power: 55 kW / 74.0 hp
Displacement: 2.8 L
Torque Peak: 300 Nm

DRIVE TRAIN

Features: Dual Hydraulic Drive Motors, 2 Independent Torsion Axle Suspension.
Undercarriage Suspension: Two Independent Torsion Axles per Undercarriage, Bogey Wheel Suspension.
Roller Wheels: 48 High Density Polyurethane.
Front and Rear Wheels: 381 mm
Middle Wheels: 254 mm
Track Width: 457 mm
Length of Track on Ground: 1803 mm

DIMENSIONS

Full Length: 3759 mm
Arm Up Height: 3188 mm
Machine Height: 2299 mm
Machine Width: 1778 mm
Ground Clearance: 366 mm

AUXILIARY HYDRAULICS

Features: Pilot Hydraulic Joystick Control, Hydraulic Quick Attach, Bucket Positioning, Ride Control, Reversing Fan.
Max System Pressure: 22750 kPa
Auxiliary Pump Flow: 85.5 lpm (Low Flow) / 135 lpm (High Flow)

ELECTRICAL SYSTEM

Features: Upgradeable Wiring Harness, Attachment Control Kit, Rear View Camera.
Normal Charge: 12 V
Battery: 950 CCA
Alternator Charging System: 120 Amp

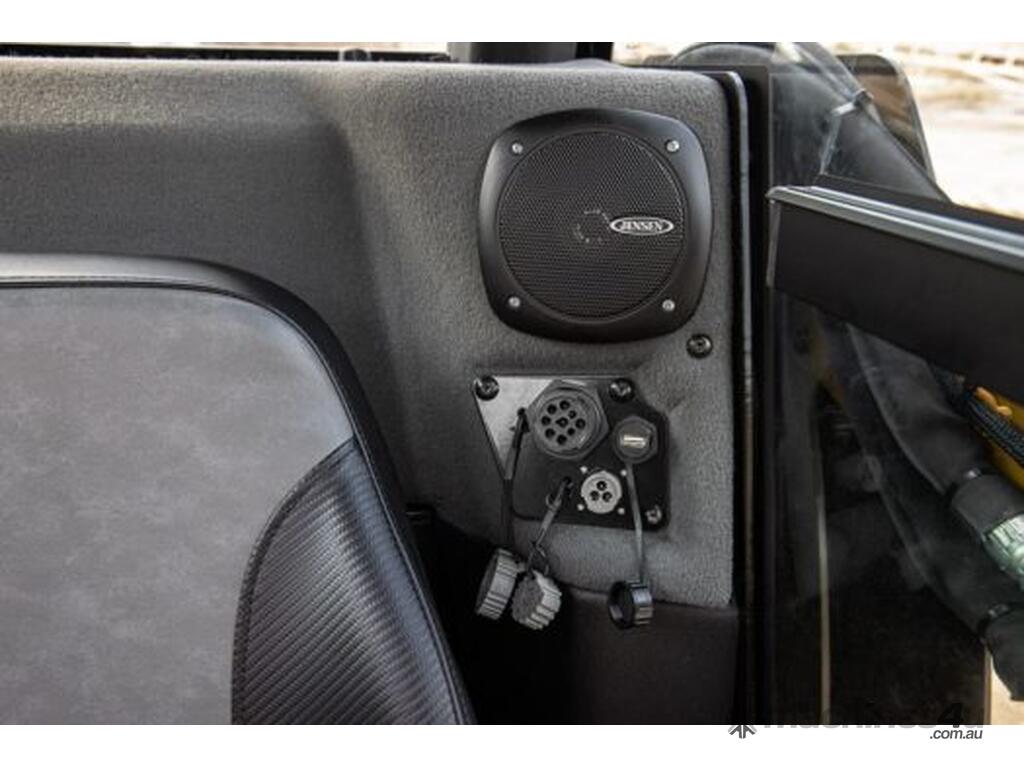

Port Outlet (Inside Cab): 1 – 12 V


OPERATOR STATION

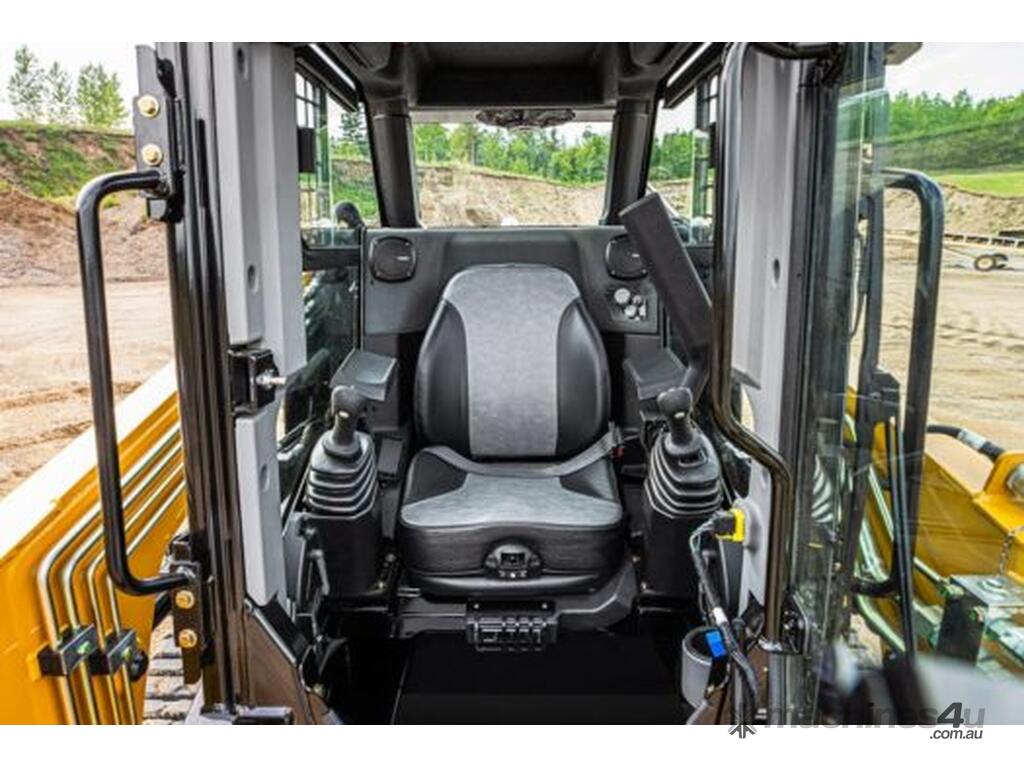

Features: All Weather Cab with Lexan Door, Mechanical Suspension Seat w/ 2.

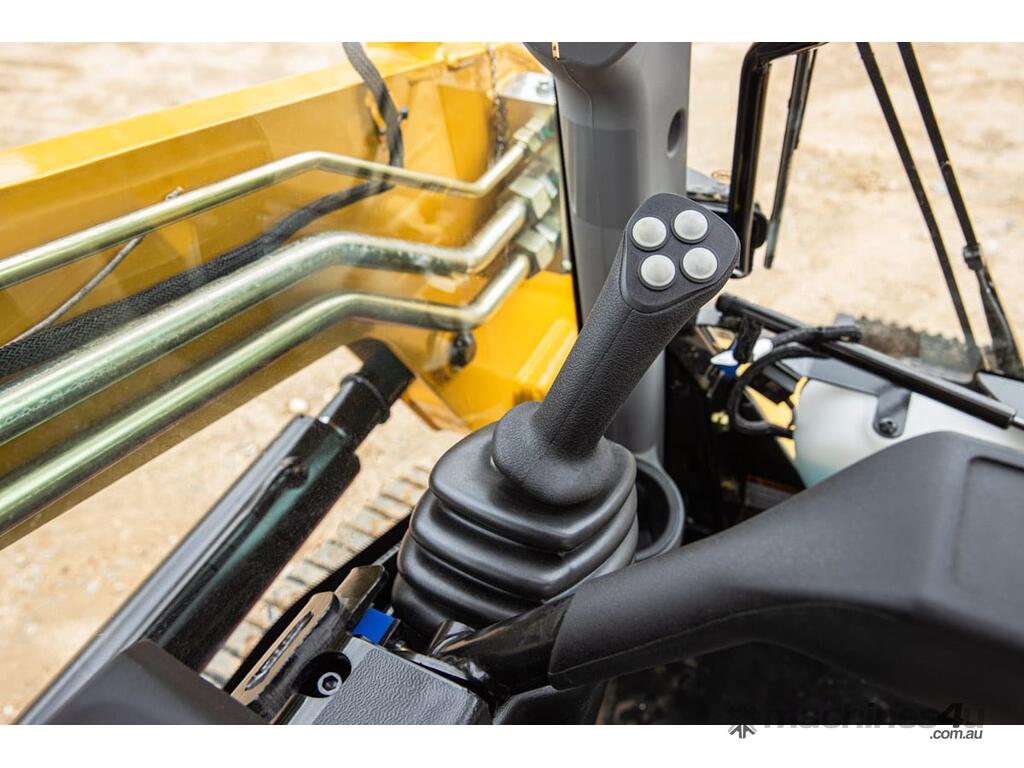

Loader Control: Right-hand pilot hydraulic joystick controls, loader lift/tilt, with variable control of auxiliary hydraulics.
Drive Control: Left-hand pilot hydraulic joystick controls machine speed and direction.

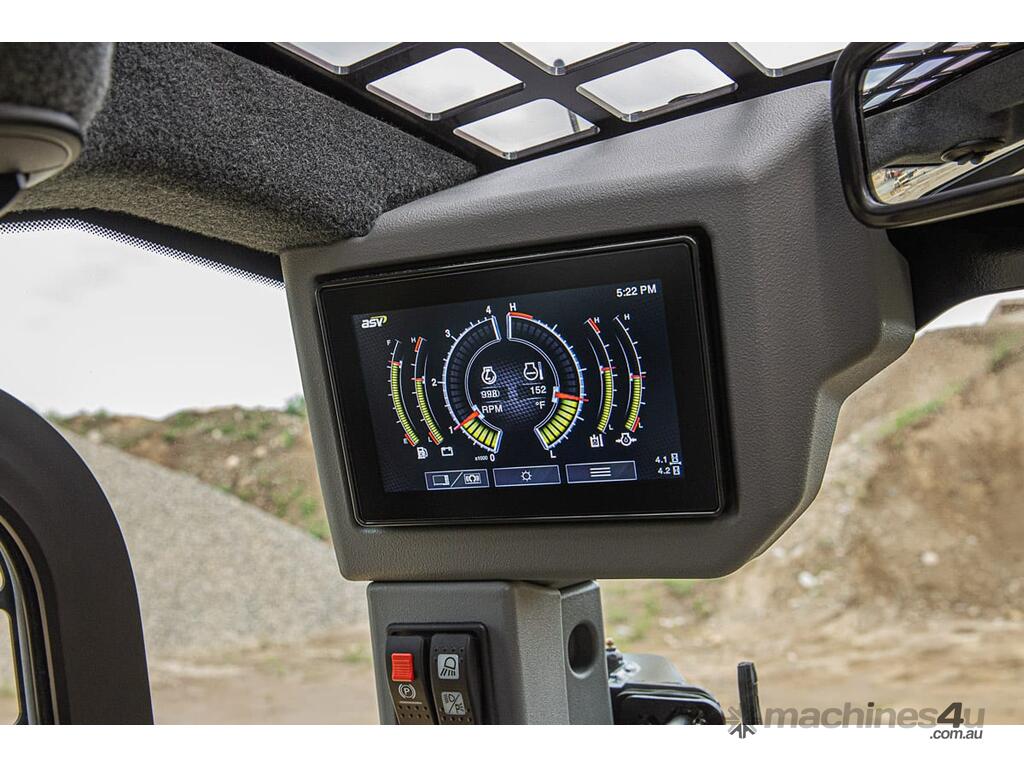

Multifunction Display / Indicator: Fuel, Tachometer, Engine Temperature, Hour Meter, Battery, Trip Meter, Hydraulic Temperature, Water Temperature, Multiple Languages.
ROPS: Restraint-ISO 6683, SAE J2292, Cal OSHA 1596, ISO 3471.
FOPS: Meets ISO 3449: Level I and II.
Illumination: 2 Forward Facing Lights, 2 Rear Facing Lights.

SERVICE CAPACITY

Fuel Tank: 67.9 L
Hydraulic Tank: 30.3 L
Engine Coolant: 20.8 L
Engine Oil (inc Filter): 8.5 L
