AUSA DR1001AHG DUMPER - CAB/AIR - DISTRIBUTORSHIP ENDING

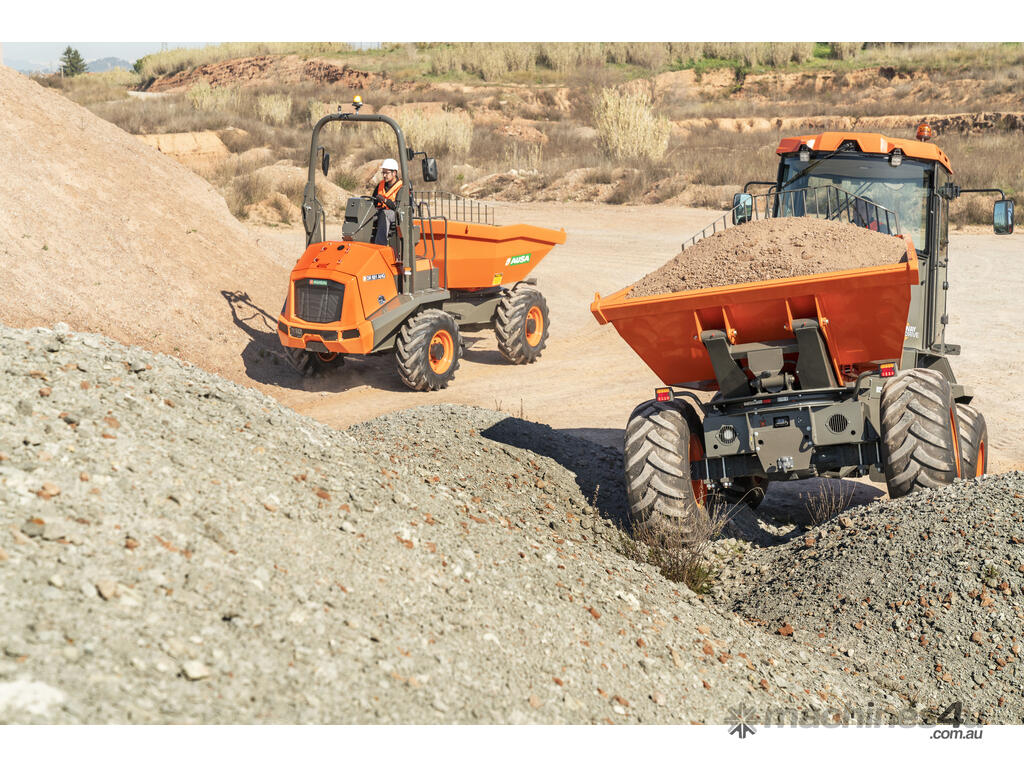

The DR1001AHG reversible dumper has a 10,000 kg (22,000 lb) payload and comfortable hydrostatic transmission. Thanks to the innovative reversible design, the seat can rotate 180 degrees and all components are instantly adjusted to suit the driver’s new position: steering wheel, joystick, pedals, safety cameras, etc. The driver can also comfortably and safely get on and off both sides of the dumper, so speed and flexibility are significantly increased.

In terms of technology, various systems have been included to make it a more efficient dumper: it has the ECO Mode function, where the engine speed is automatically controlled to ensure lower fuel consumption and CO2 emissions.

It is fitted with the Hill Holder system, a start-assist and safety system that engages the dumper’s brake when you take your foot off the accelerator at zero speed. This significantly increases safety, especially when operating on slopes.

It can also be equipped with Smart Stop: a plug-in system that automatically shuts down the engine when it is not in use and the optimal time and safety requirements are met.

Unloading system Rotating
Load capacity 10000 Kg
Chassis Articulated
Water skip capacity 1850 l
Level skip capacity 3300 l
Heaped skip capacity 3900 l
Empty weight 5050 Kg
Transmission Hydrostatic
Reversibility Reversible
Brand Deutz
Model TCD3.6 L4 HT
Power 55.4 kW
Torque 3901300
No. of cylinders 4
Emissions Stage IIIB – EPA Tier 4F
Noise level 101 dB(A)
Max. speed 22 Km/h
Maximum gradient 45 %
External turning radius 6287 mm
Traction 4×4
Tyres 500/60-22.5
Flow rate 50 l/min
Working pressure 180 bar
Fuel 69 l
Hydraulic system 60 l
Service Hydraulic, sealed, multi-disc
Parking Negative
