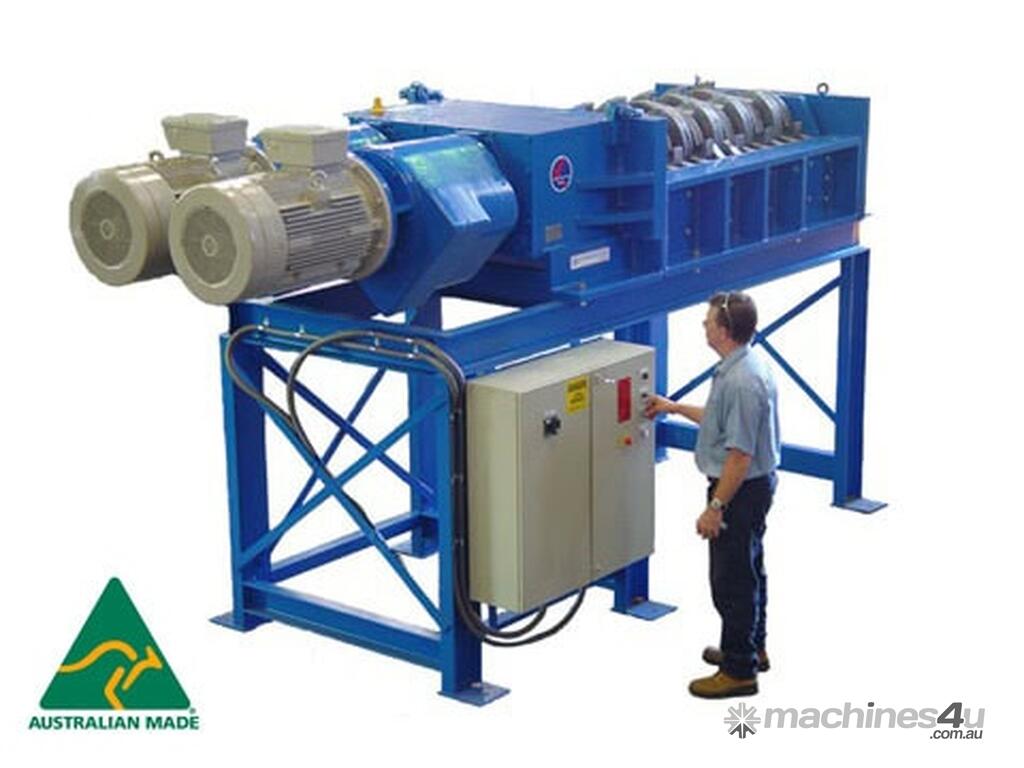

AZ150W 110kW Dual Shaft Shredder

Our largest shredder - used for MSW, RDF, timber, tyres and other tough applications

The AZ150W is a 110kW machine with 180mm shafts. The distance between shaft centres is 365mm giving this machine an exceptional ability to grab bulky materials. This machine is used for some of the toughest applications including truck tyres and mattress spring sets.

Key Features:
Made in Australia
2 x 55kW drives
High torque/low speed
180mm hexagonal shaft
Planetary reduction gearboxes
High surface hardness/high core strength repairable alloy cutters
47, 70 or 94mm cutters
Hot dip galvanised casing
Optional seal protection plates
VSD or DOL control panel with auto reverse and overload protection.

Specifications
Output size (mm): Cutter dependent
Motor 110kW (2 x 55kW)
3 Phase Voltage 415V/50Hz
Full load current 200 amps
DOL starting current 1600 amps
Shaft centres (mm): 365
Shaft diameter (mm): 180
Length over cutters (mm): 1498
Cutting Chamber Width (mm): 933
Number of shafts 2
Cutter Width (mm): 47/70/92
Machine length (mm): 4263
Width (mm): 1700
Height (mm): 765
Weight (kgs): 10,000
